Text type

A text type column can be filtered using the following options.

• Individual Value
• Wildcard

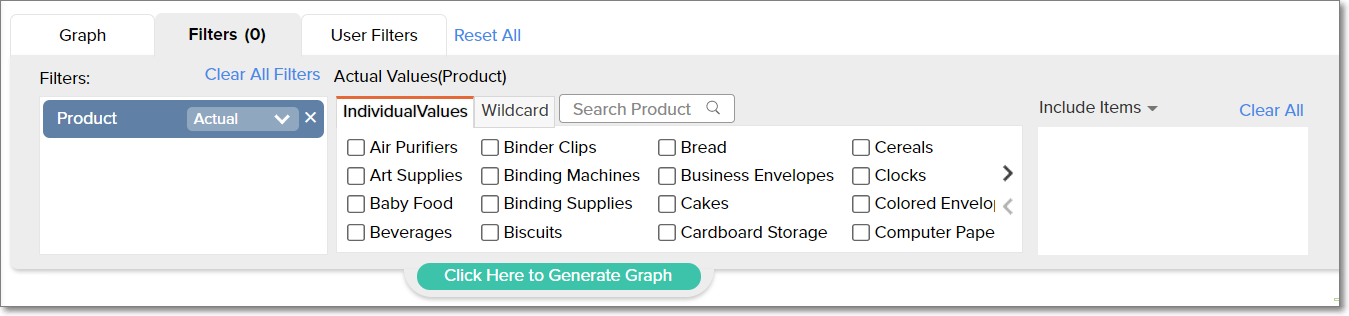

This allows you to filter the chart by the actual value. All the distinct values from the column will be listed and you can select the value to include or exclude from the chart. You can select multiple values using the shift + click option, and also search for the required values using the search box on the top right corner.

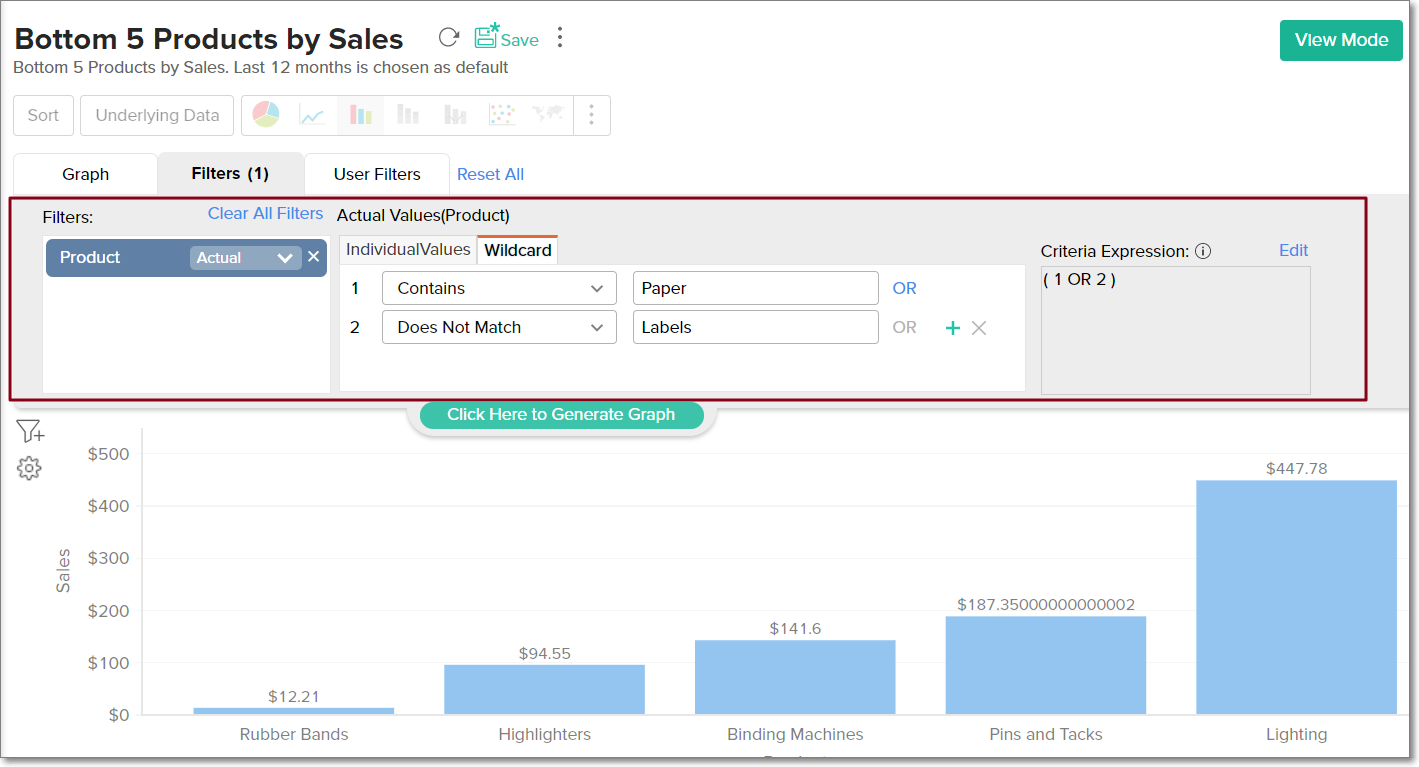

Wildcard filters allow you to construct filter criteria with multiple string conditions to filter the data in your reports. The following table lists the possible conditions for filtering.

The above conditions can be joined using the AND or OR operator, by clicking the required link at the right.

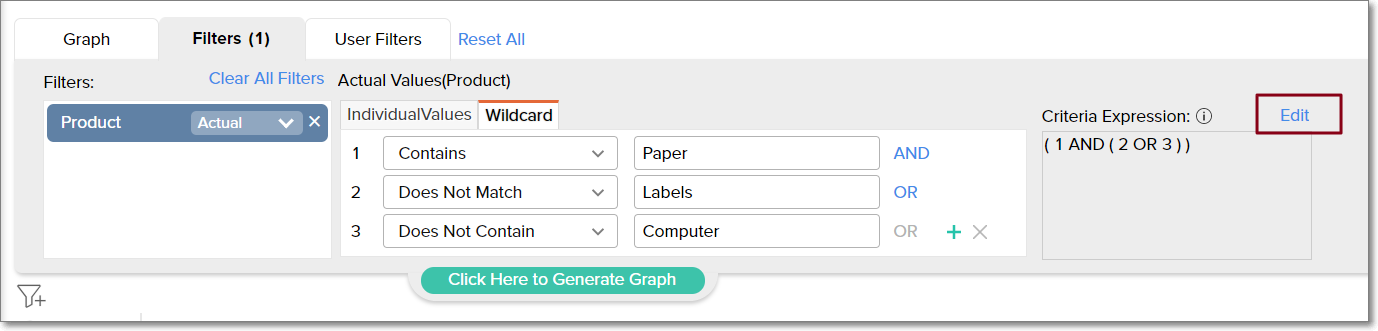

When there is a combination of AND/OR conditions, the order of execution will be defined by sequence in which the conditions are added. The order of execution can be modified by clicking the Edit option in the Criteria Expression section. Modify the criteria as required, and click OK.

Note:

• The search terms are not case-sensitive.

• You can specify up to 15 conditions for filtering data.

Date type

When you select Actual Values for a Date column dropped in the Filter shelf the following are the options available for filtering.

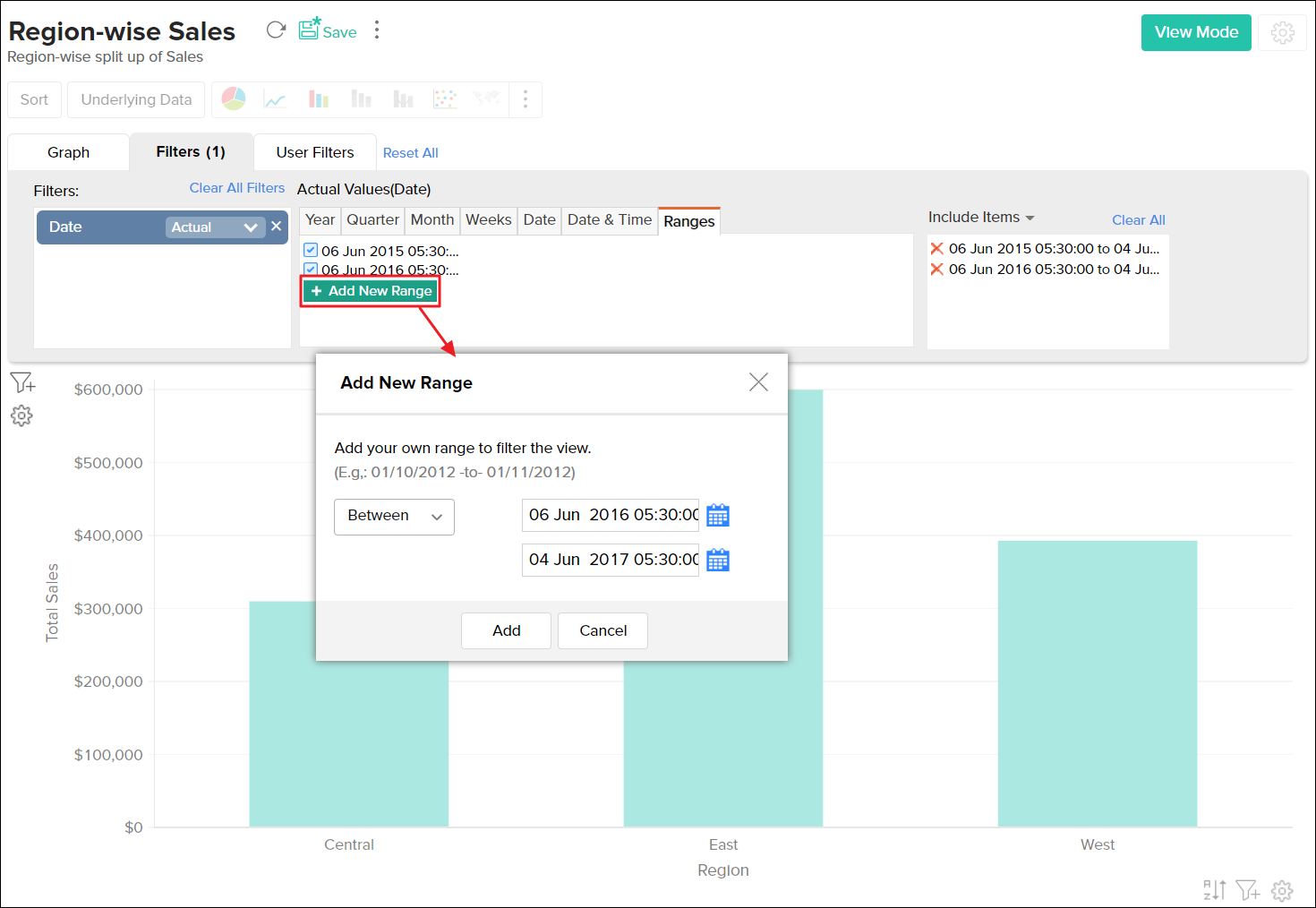

To enter a custom date range, under Ranges option click Add New Range. In the Add New Range dialog box that appears, type dates in the From and To boxes or click the calender icon to open the calendar to select the required dates and then click Add.

When you select Seasonal for a Date column dropped in the Filter shelf the following are the options available for filtering.

When you select Relative for a Date column dropped in the Filter shelf the following are the options available for filtering.

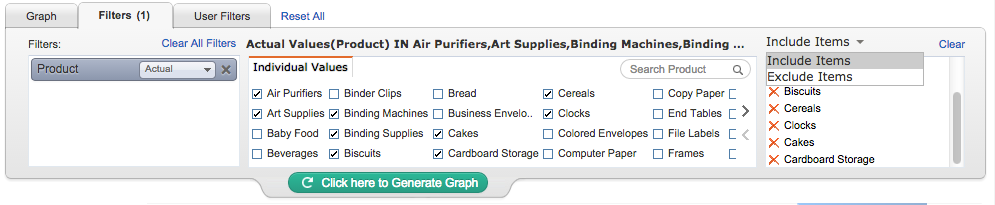

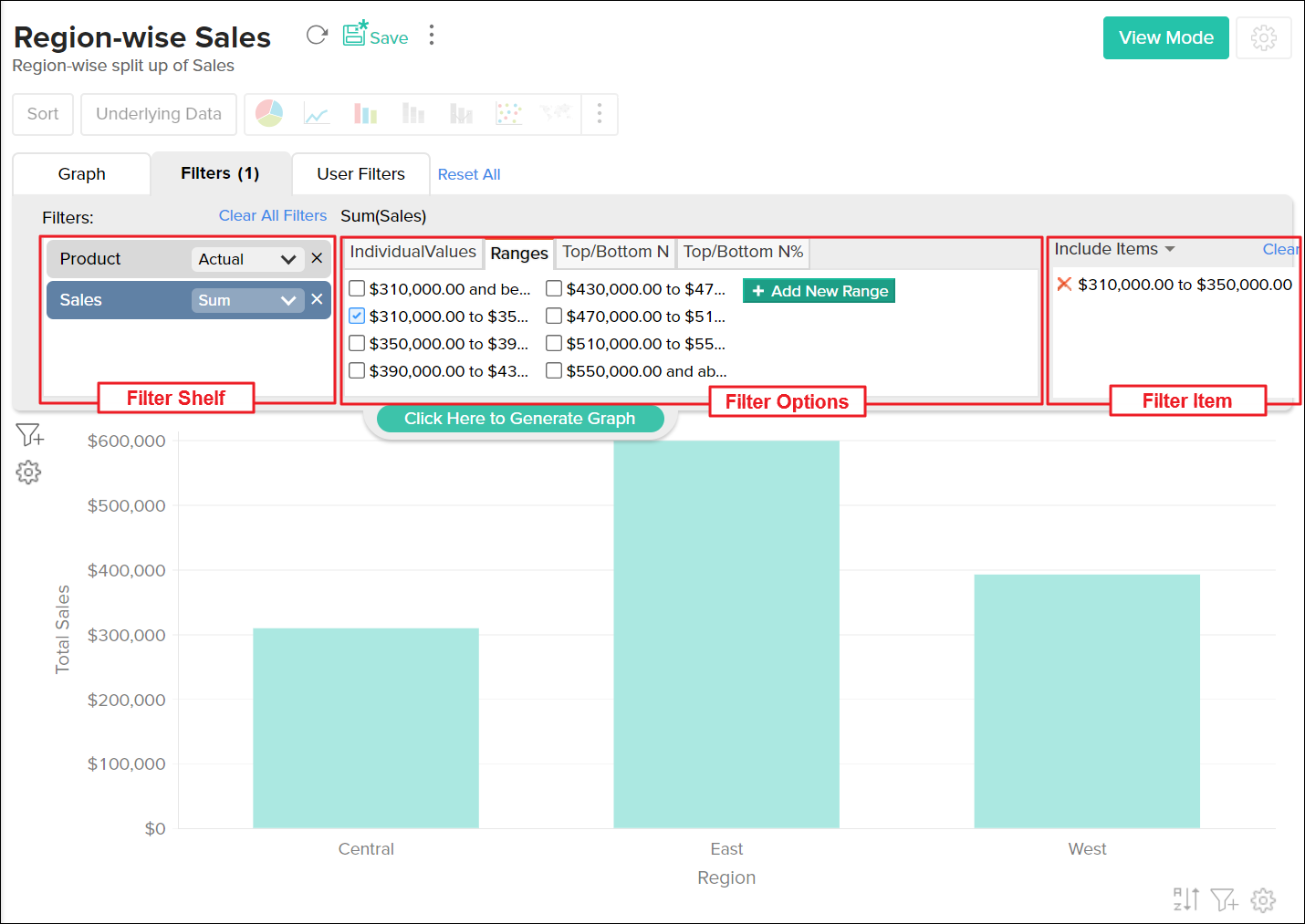

After you have dropped the column and selected one or more values to filter the selected filter items appears in the third box on the right. You can Include or Exclude the selected values from the report that you are designing by choosing the appropriate option on top of this filter items box.

Once you are done with selecting the appropriate filters, select Click here to Generate Graph link or View Mode button in the toolbar. Notice that only the data that matches the filters you have defined will be displayed.

 User Filters

Zoho Analytics allows you to include dynamic filtering capability in the reports view mode called User Filters. User filters enables your users who access the report, to apply filters on the report data displayed using the filter columns exposed as part of User Filters. The filter columns included in User Filters can be displayed using a variety of display components like Drop Down boxes, Slider, Date range chooser etc., to suit your needs.

Following sections describes in detail on providing User Filters for various column types (Data types).

 User Filters for String (Categorical) Column Type

To add a string (categorical) column as a User Filter, follow the instructions given below:

• Open your report (chart) in Edit Design Mode and then click User Filters tab in the Design Area.

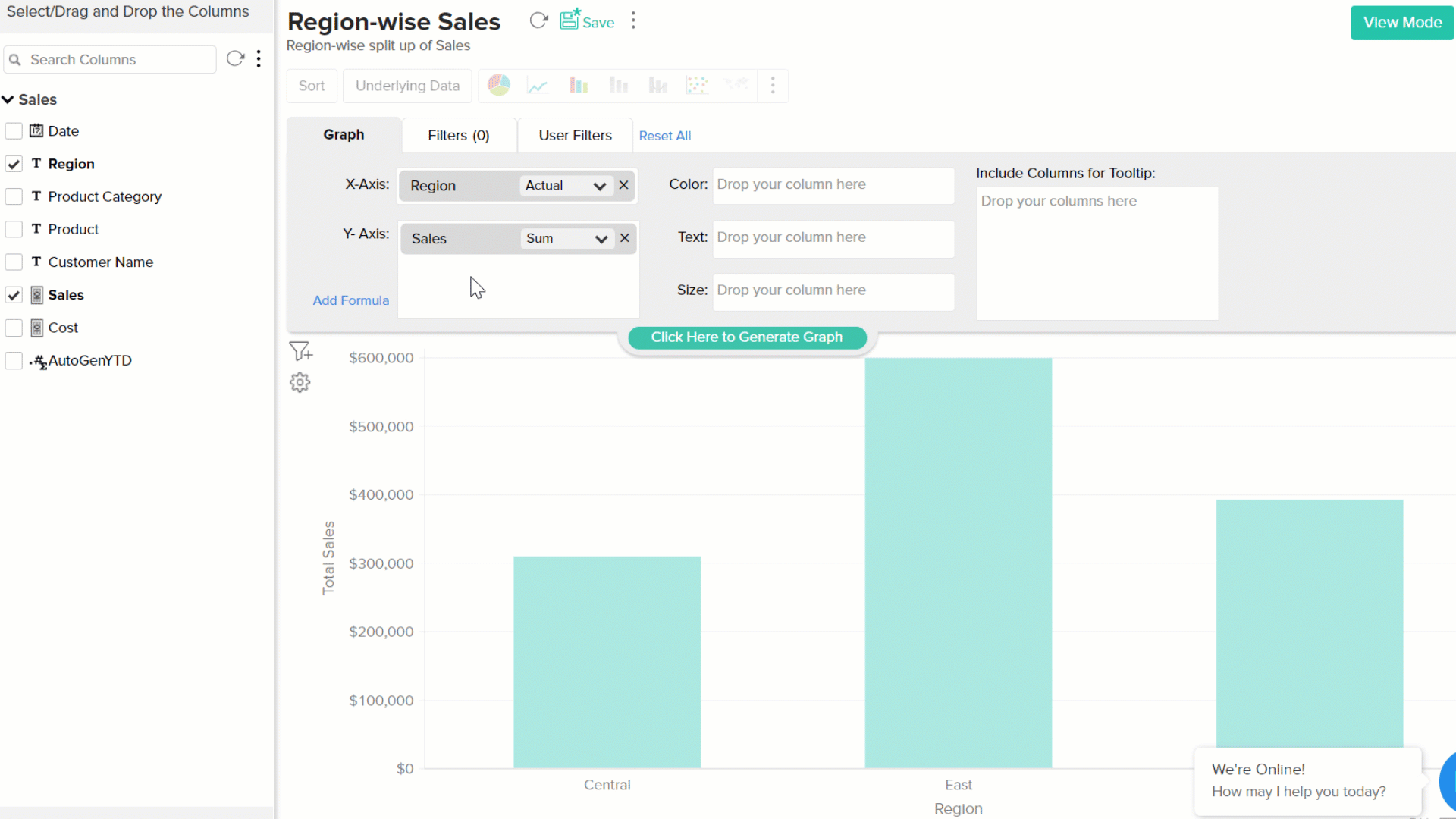

• Drag and drop the required cayegory column which you want to add as user filter in to User Filters tab as shown below. In this example, we are going to filter by the Category column, Product.

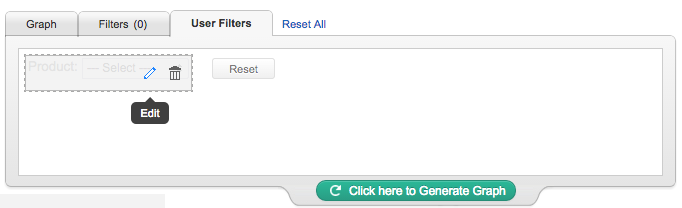

• To edit the user filter you will have to mouse over the dropped column and select Edit from the highlighted options.

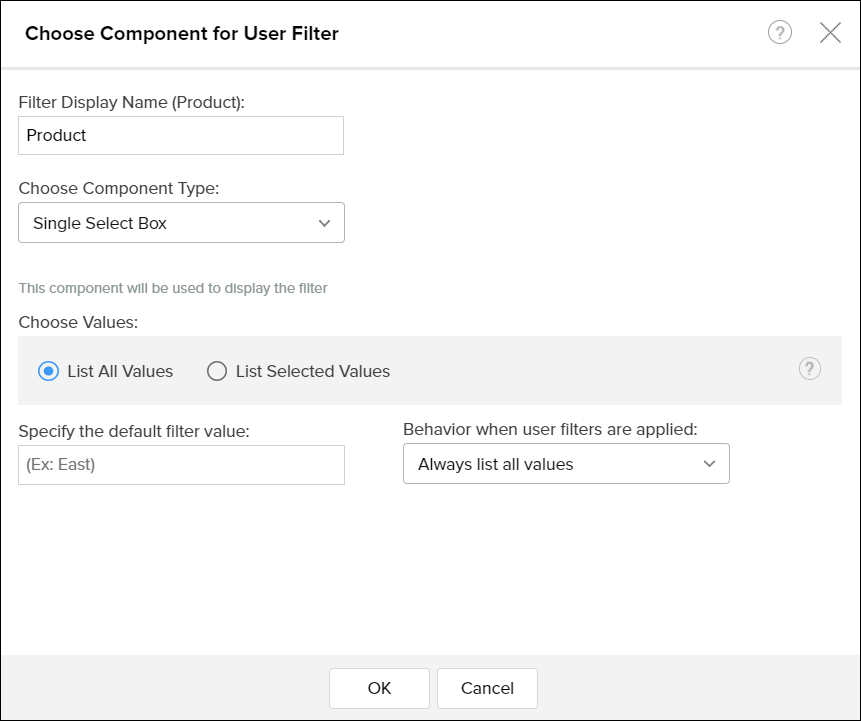

On clicking the Edit user filter option it opens a dialog box with options to edit the Filter Display Name and to Choose Component type for the user filter, as shown in the screenshot below.

By default, dropped user filter column name will be displayed as the filter name. To modify the filter display name, type in the name in the Filter Display Name text box. The settings dialog also provides option to choose the component that is to be used to display the user filter using the Component Type field. In the case of categorical (string) columns you can choose between single select drop down box or multi select drop down box.

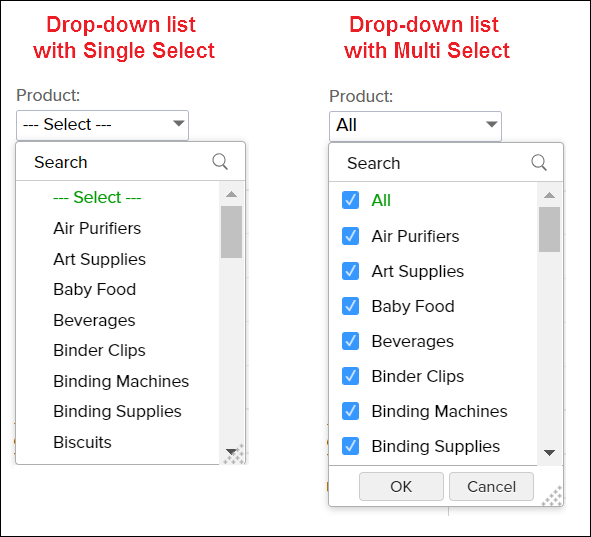

• Select Box Option: Select this option to allow chart users to select only one item at a time to filter data against the selected column.
• Multi Select Box Option: Select this option to allow chart users to select multiple filter items at a time to filter data from the drop down list. On selecting this option a check box will be provided next to each filter item allowing users to choose more than one filter item from the list.

After you have selected the required option, click Next go to Step 2.

In Step 2, you could choose the values that are to be displayed in the user filter column, as shown in the screenshot below.

The following are the options available:

List All Values: On selecting this option, all distinct values of the selected column will be listed as selectable items in the drop down list of the User Filter. Users can select any item from the list to filter the report accordingly.

The resultant User Filter in reports view mode would look like as shown below:

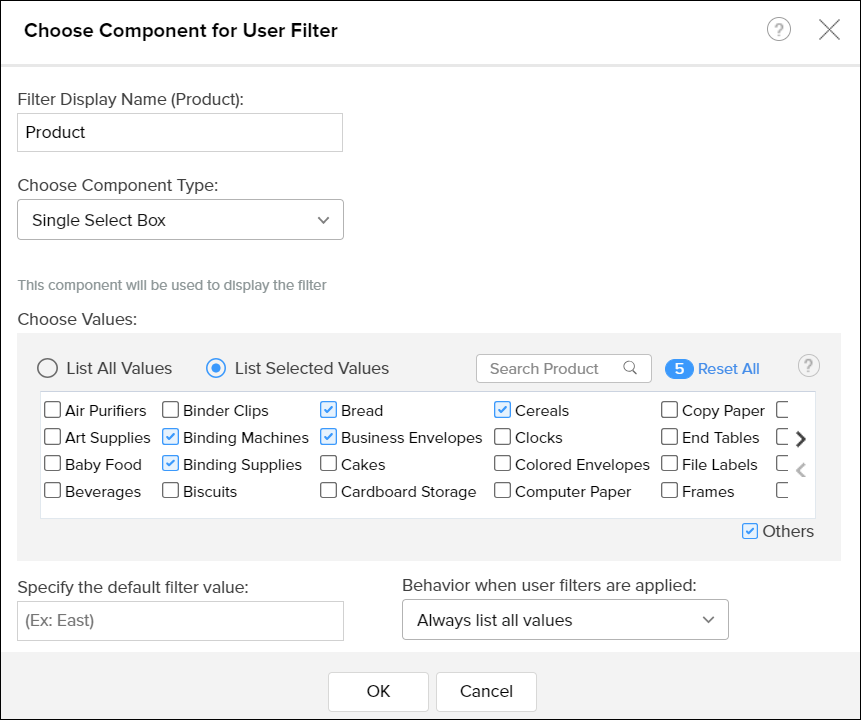

List Selected Values: Instead of listing all the values of the column in the drop-down list, you can choose to list only selected values from the column by selecting this option.

To specifically select values to be listed in the User Filter:

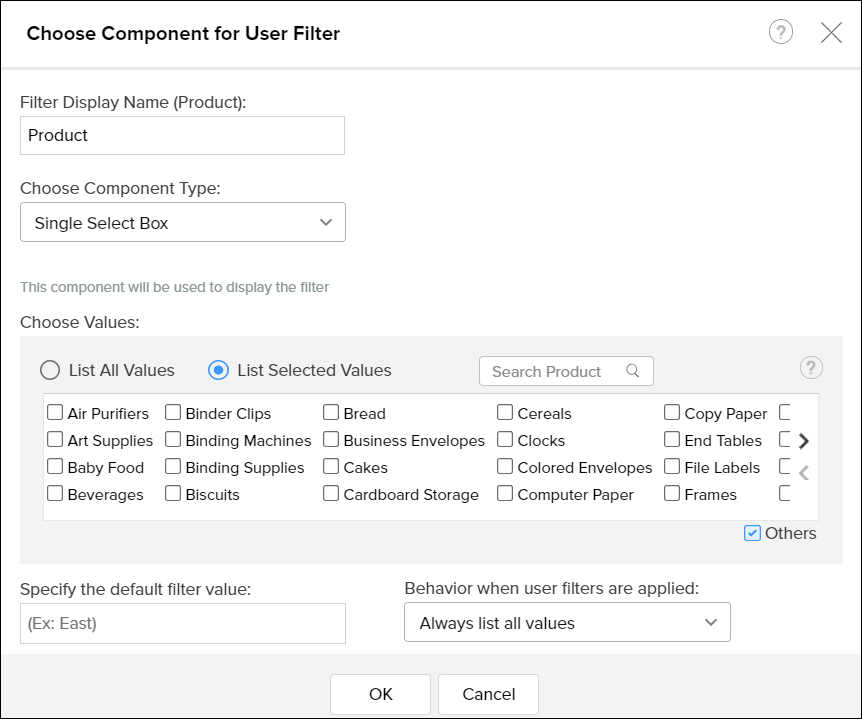

• Select List Selected Values option. On selecting this option all the distinct values in the column will appear under Select Values box as shown below. Search box can also be used to find the required values on need.
• Select the values to be listed by ticking the check box next to each value.
• Selected filter items will be displayed under Selected Values box as shown below. To remove selected values from the list, click   on the left of the filter item.

• Others: On selecting this option an item Others will be added to the user filter list. When user selects this option (in the reports view mode) it will display data corresponding to all other remaining items that are not listed in the user filter drop down.

• Specify the default filter value: Use this option to set a default value to the filter that will be automatically applied with the report is loaded/opened. To set a default filter, type the filter value in the text box provided next to Specify the default filter value option. To apply multiple values as default filter, you need to specify the values separating them with a comma.

• Behavior when user filters are applied: This option allows you to choose whether or not to cascade user filters. Values available for the option are:

  • List only relevant values: Use this option to set up cascading user filters i.e., the list of values available in one User Filter depends on the value that you have chosen in the preceding User Filter(s). For example, let's say you have one user filter to filter Product Category, and a second filter to filter Products in a report. When this option is selected while creating user filter, If you select Furniture in the Product Category filter, only the products which comes under the category Furniture will be listed in the drop down list of the Products filter, instead of listing all the products.
  • List only relevant values, with Show All option: This option sets up cascading user filters, but lists every value in the subsequent user filter, regardless of the preceding user filter's value.
  • Always List All Values: Use this option to disable Cascading of User Filters and list all the values in the drop down.

After selecting the required options in the dialog box, click Finish button.

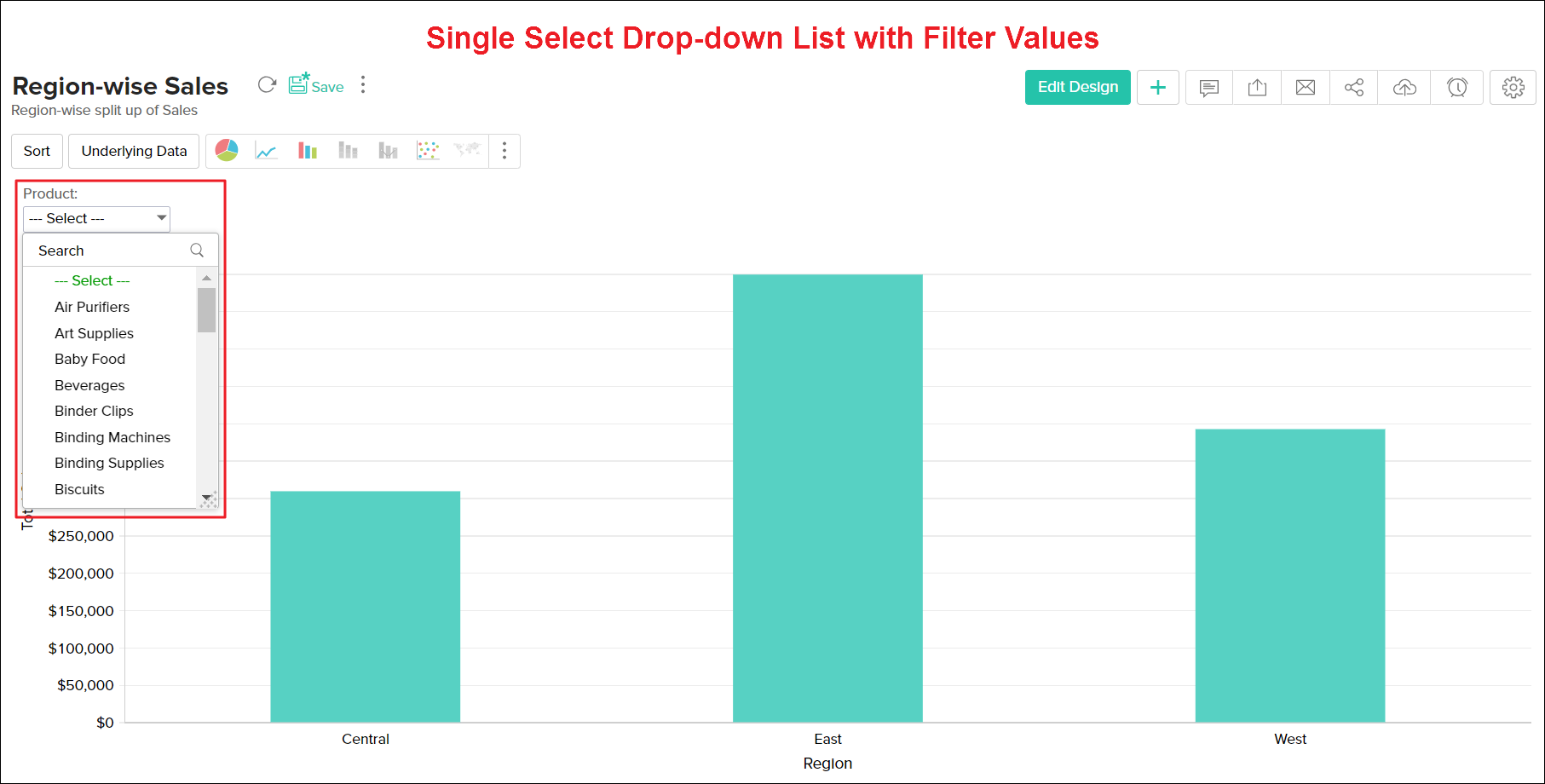

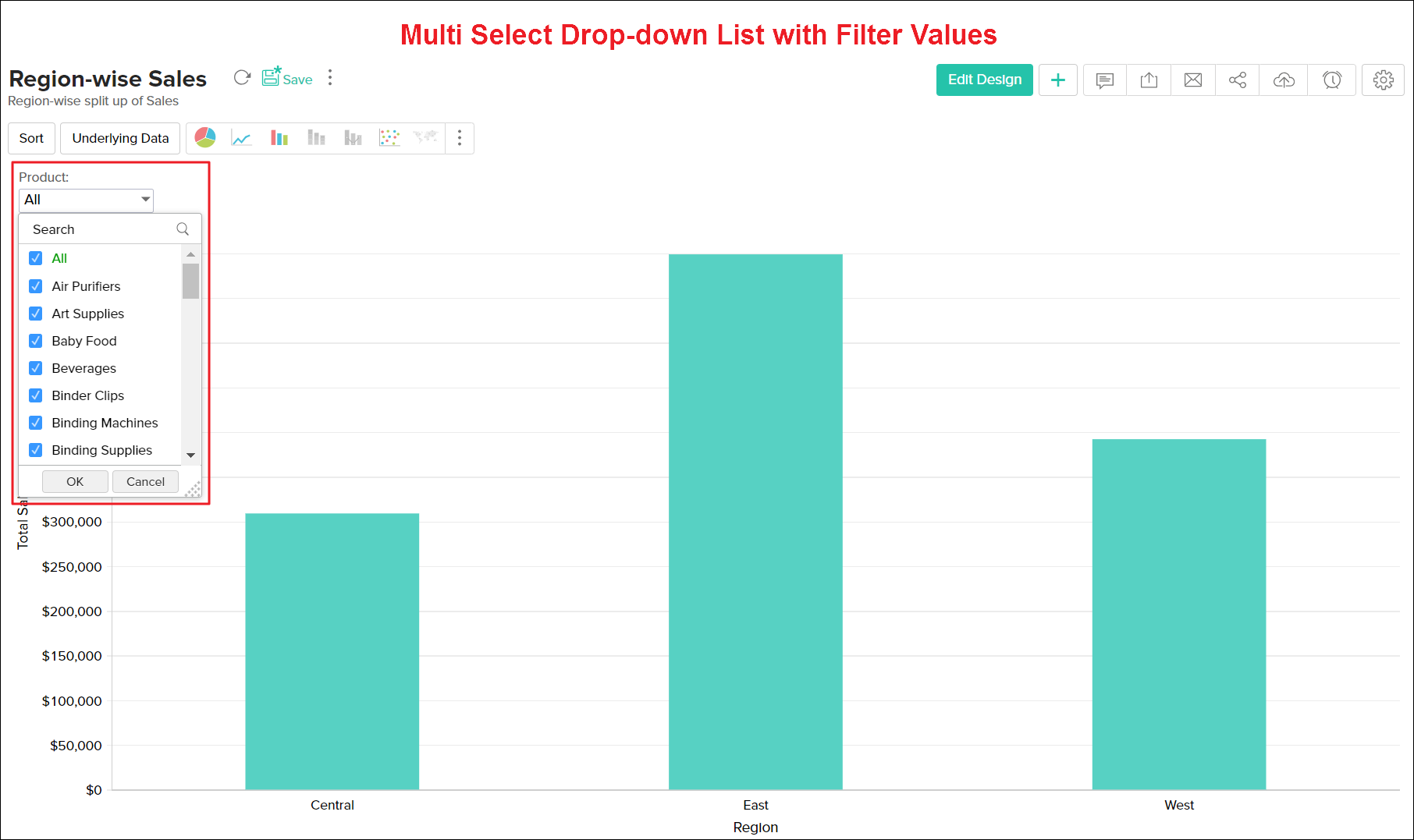

When you view the report in view mode by clicking View Mode button in the tool bar, User Filters with a drop-down filter list appears on the top-left as shown below:

 User Filters for Numeric and Currency Column Type

To add a User Filter for a numeric or currency column type

• Open your report (chart) in Edit Mode and then click User Filters tab in the Design Area.
• Drag and drop the required column for which you want to add user filter in to the User Filters tab.

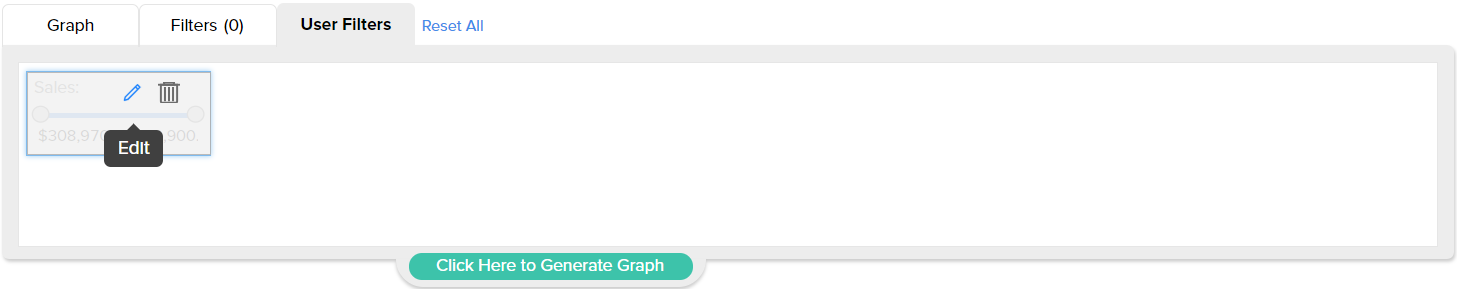

• Hover your mouse over the dropped column and select Edit option from the highlighted options.

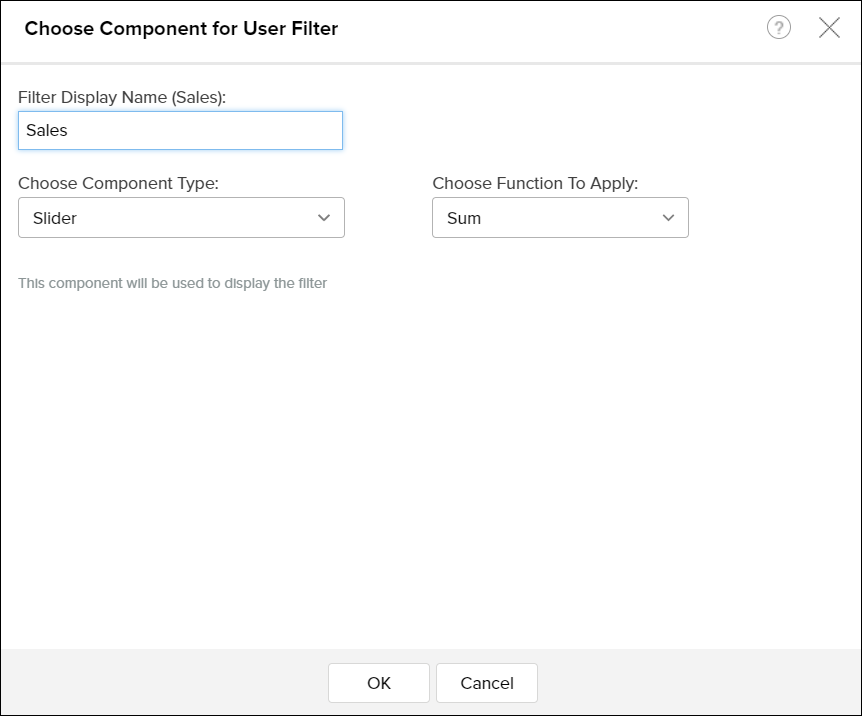

On clicking the Edit user filter option it opens a dialog box with options to edit the Filter Display Name and to Choose Component type for the user filter, as shown in the screenshot below.

By default, dropped user filter column name will be displayed as the filter name. To modify the filter display name, type in the name in the Filter Display Name text box. The settings dialog also provides option to apply aggregate functions like Sum, Max, Min, Average, Standard Deviation, Count and Actual Values on the user filter numeric column, to allow users to filter data based on aggregate value. Zoho Analytics provides the following component types for a numeric data type column.

Slider: Default component for a numeric column type is a Slider. Sliders allows users to choose a specific numeric range by adjusting the slider bars accordingly.
Combo Selection: This option will be enabled only when you apply Actual Values function on the user filter numeric column. All the distinct numeric values in the column will be listed in the filter. Users can select one or more values from the combo box.

After you have selected the required component type, click Next go to Step 2.

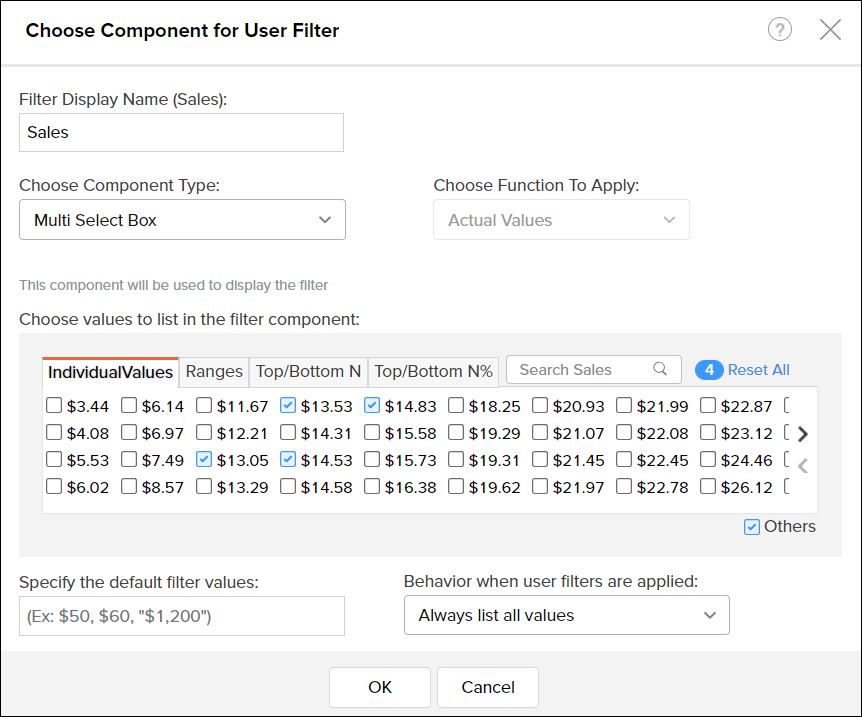

Step 2 (Choose Values tab) option will be available only if you have chosen Multi Select Box component type in the previous step. You can choose the values that are to be displayed in the user filter column, as shown in the screenshot below.

The Choose Values tab provides different options to choose the type of values to be displayed in the user filter column. Each of these options are described in the table below.

Select the values to be listed by ticking the check box next to each value. Choose Other option to add an items "Others" to the User filter list, to display data corresponding to all other remaining values that are not listed in the user filter drop down, when a user selects it. Select the value List only relevant values for the option Behavior when user filters are applied to set up cascading user filters i.e., the list of values available in one User Filter depends on the value that you have chosen in the preceding User Filter(s).
After selecting the required options in the dialog box, click Finish button.

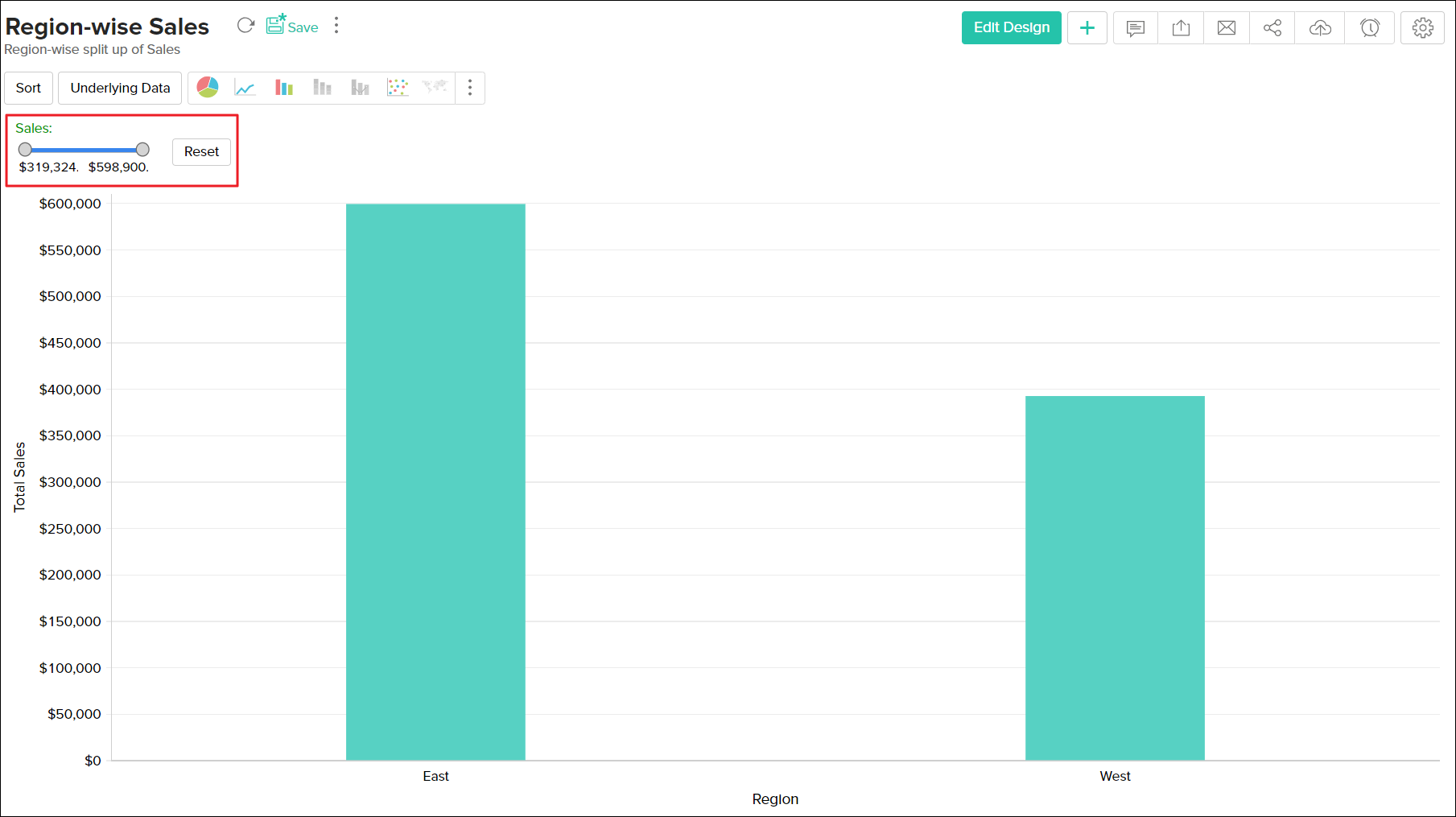

When you view the report in view mode by clicking View Mode in the toolbar, the User Filter with a slider or drop-down filter list appears on the top-left as shown below. Users can use this to filter the values in the report.

User Filters for Date Column Type

To add a User Filter for a Date column do the following.

• Open your report (chart) in Edit Mode and then click User Filters tab in the Design Area.
• Drag and drop the required Date column which you want to add as user filter into User Filters tab.
• Hover your mouse over the dropped column and select Edit option from the highlighted options.

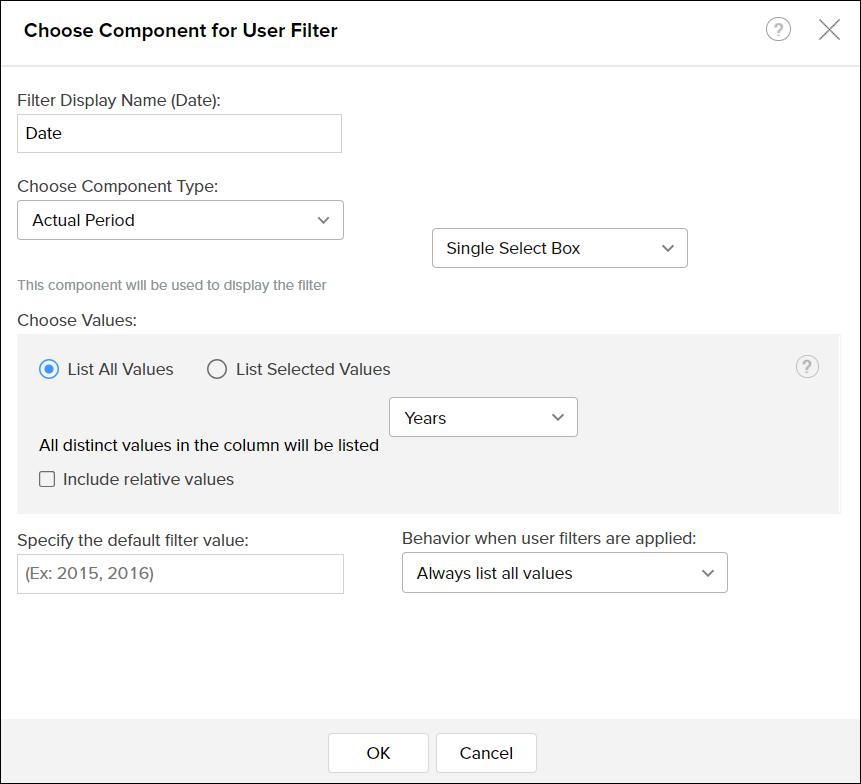

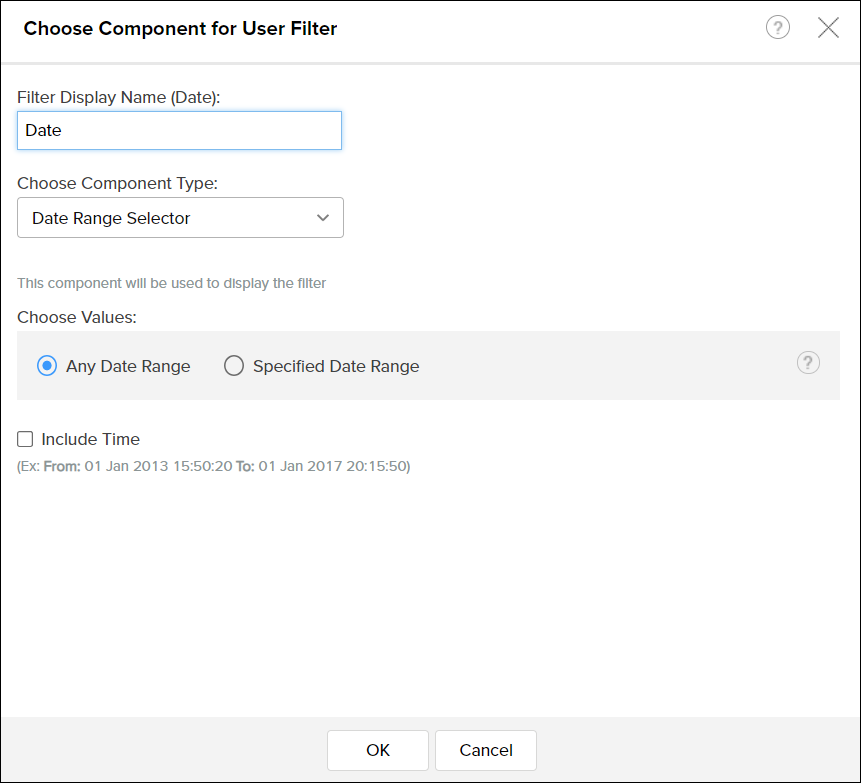

On clicking the Edit user filter option it opens a dialog box with options to edit the Filter Display Name and to Choose Component type for the user filter.

By default, the dropped column name will be displayed as the filter name. To customize the filter display name, select Filter Display Name option and type the name that you want. The settings dialog also provides option to choose the component that is to be used to display the user filter using the Component Type field. The following are the possible component types that you could choose from for a date column:

• Date Range: Select this option to allow users to select a date range and filter the data.
• Actual Period: Select this option to allow users to filter data based on actual period present in the date column. For example:- 2014, 2015 etc.
• Relative Period: Select this option to allow users to filter based on relative period. For example:- Last 2 months, Last 3 months etc.
• Seasonal Period: Select this option to allow users to filter based on repeating seasonal period. For example, All Sundays, All March months, All Q3 etc

In Step 2, you could choose the values that are to be displayed in the user filter column, as shown in the screenshot below.

The Choose Values tab provides different options depending on the component type you choose in Step 1. Each of these options are described in the table below.

After selecting the required options in the dialog box, click Finish button to complete the settings.

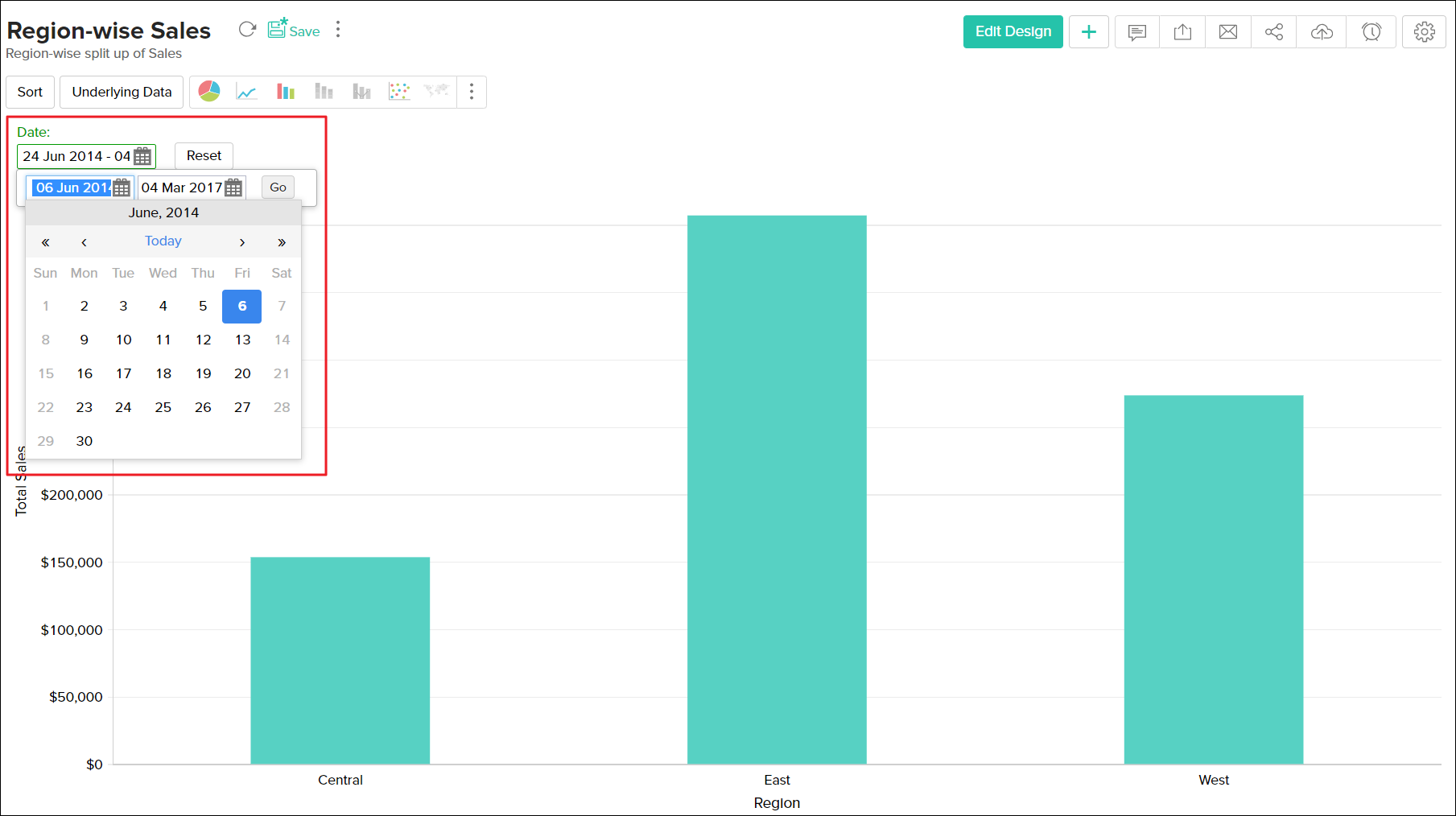

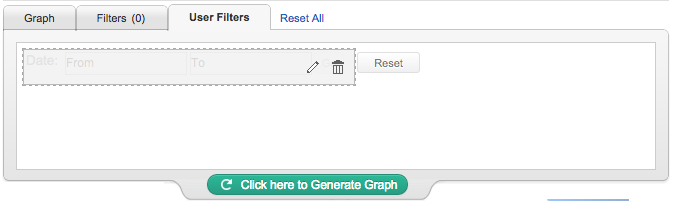

When you view the report in view mode by clicking View Mode button in the toolbar, the User Filter appears on the top-left as shown below. Following screenshot displays how a User Filter for Date column would look like when Date Range component type is chosen.

How User Filters Work?

Zoho Analytics allows you to provide multiple user filters in a report. Users who view the report can apply any number of user filters provided, in any order he/she wants. When a user applies more than one user filter on a report then the data is by AND'ing all the filter conditions i.e., all the filter conditions should be met for the data to be shown part of the report.
