Working with Tables

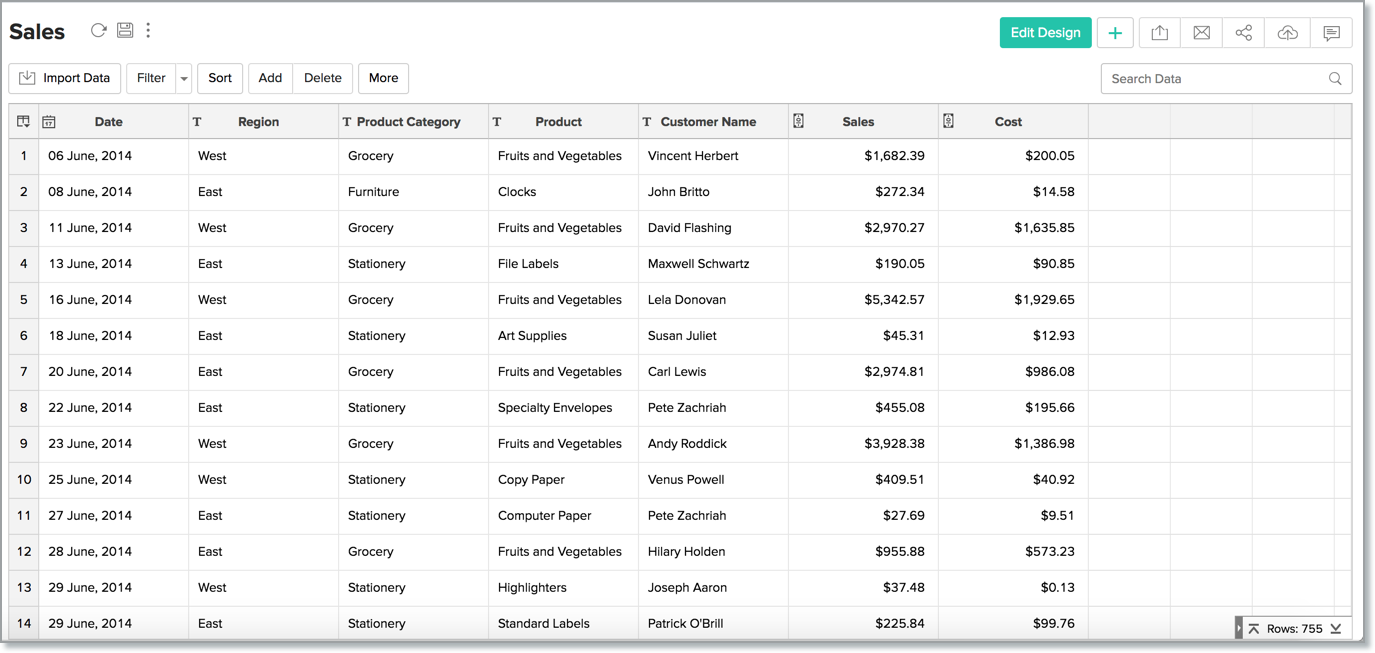

Zoho Analytics offers a range of interactive options to work with a table. Some of the options include Filter, Sort, Format, Find and Replace values, Freeze and Show/Hide Columns. Zoho Analytics also allows to Export, Share and Publish a table.

Note:

  • These options will be enabled only to users who have been provided with appropriate permissions during sharing by the Administrator. Refer to the topic Sharing and Collaboration to know more about sharing.

 Searching

Zoho Analytics allows you to quickly search for specific records within a large set of data. The Search box on the toolbar can be used to locate records in a table that matches the keyword that you specify.

To search for records, type the keyword that you want to search for in the search box and click on the magnifying glass icon ( ) next to the search box. All the records containing the specified keyword will be filtered and displayed as shown below. Note that the search operation will search across data contained in all columns of the table.

 Filtering

Zoho Analytics provides a Filter option to easily filter records in your table based on criteria that you specify. You can also apply filters on multiple columns at a time.

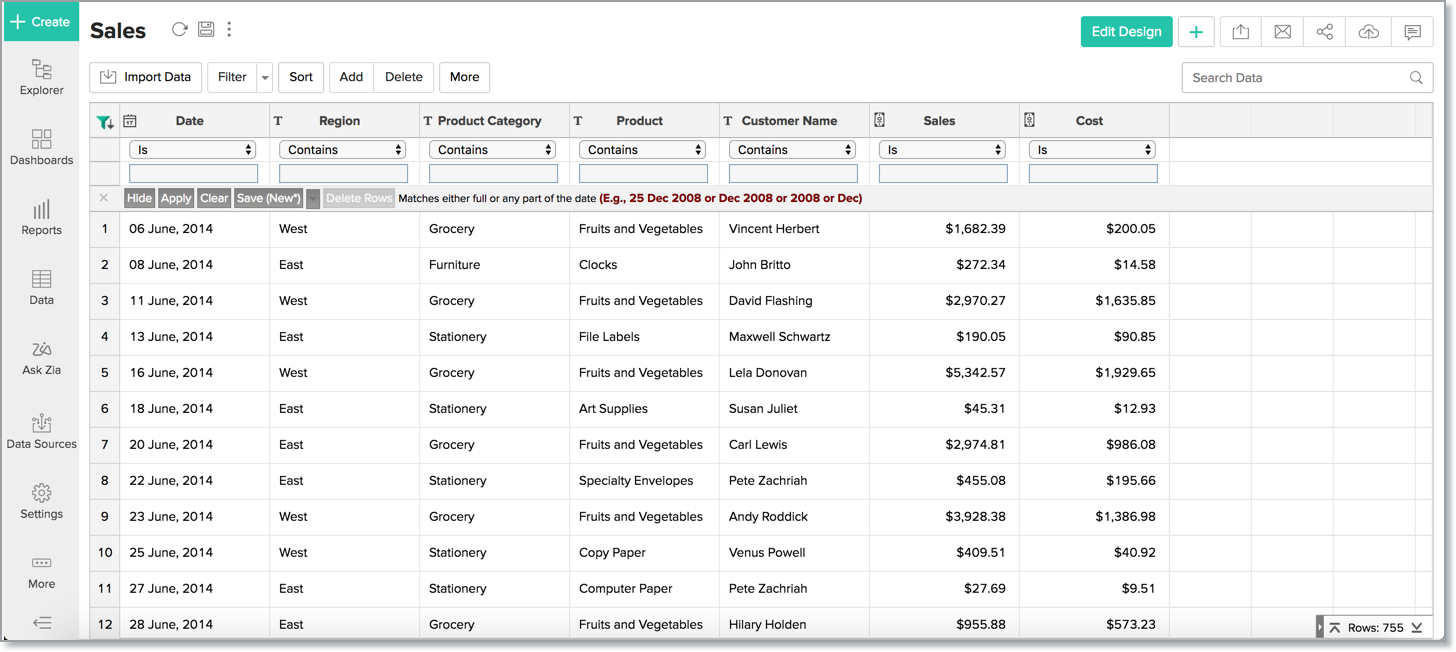

To filter data, click Filter. The filter panel will open.

Depending on the data type of the column, Zoho Analytics offers various filtering options like filter based on specific numeric ranges, date ranges, individual values, partial match etc. You will also find some filter panel option to apply the filter.

The following is a brief description of various options provided in the Filter Pane when you apply filters.

  • Hide: Click this option to hide filter pane. You can also use  icon at the column header to hide/show filter pane.
  • Clear: Click this option to remove all the filters applied.
  • Save/Save as: Click this option and type the name in the dialog box that appears to save your filter for later/repeated use. How to save a filter for repeated usage is discussed below.
  • Delete Rows: Select this option to permanently delete the filtered rows from the table.

 Sorting

Zoho Analytics allows you to rearrange rows in a table by sorting values in one or more of its columns.You can sort a column numerically, alphabetically or by date depending on its data type. For example, you can sort a column of dates by their date order, while a column of numbers can be sorted numerically.

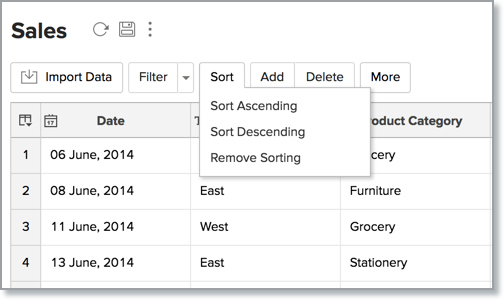

To sort the columns, click Sort and then select the required options. The sort options available in Zoho Analytics are:

  • Sort Ascending - Sorts text data in ascending alphabetical order (A to Z), numbers from smallest to largest (0-9) and dates from oldest to latest.
  • Sort Descending - Sorts text data in descending alphabetical order (Z to A), numbers from largest to smallest(9-0) and dates from latest to oldest.
  • Remove Sort - Removes sorting.

You can also sort the columns using the arrow icon in the column header.

 Find and Replace

Find and replace option can help you to locate a value in a column and replace it with another value. This feature can be very useful especially when you are working with large sets of data and have the need to quickly correct/rectify issues in your data set.

Note:

  • This option will be enabled only to users who have been provided Write permission by the Administrator.

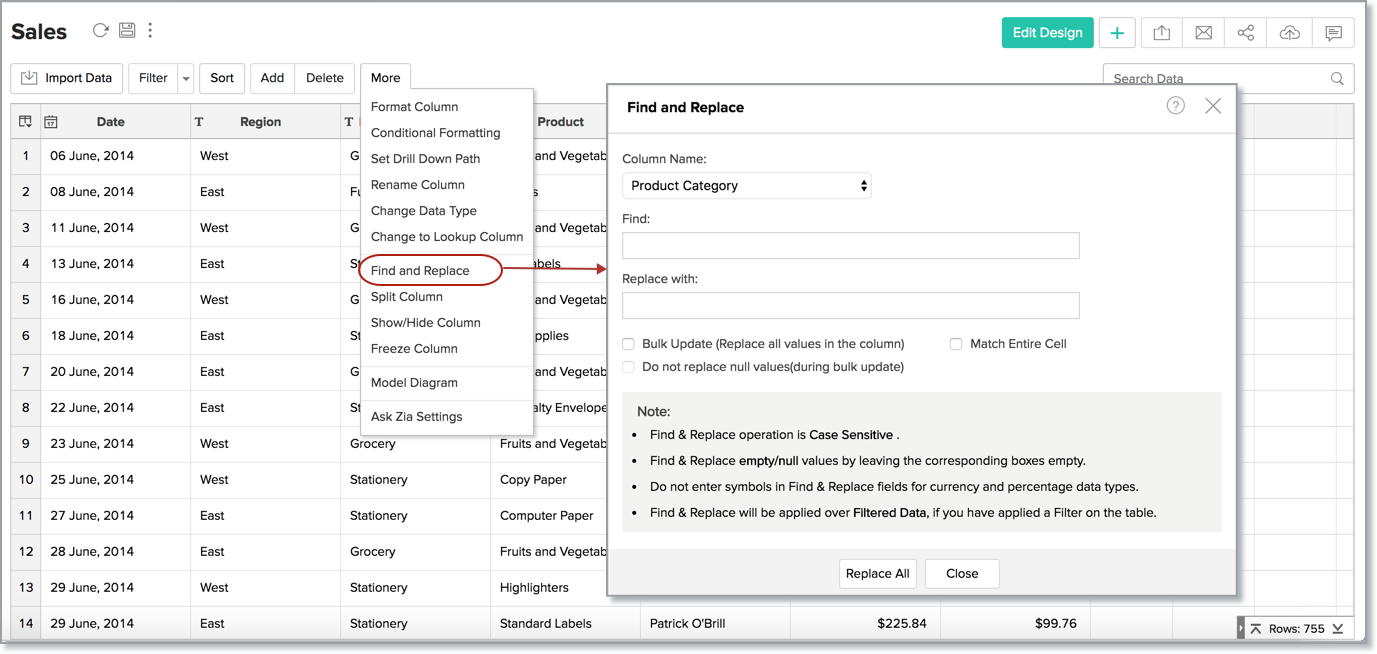

To find and replace data click More > Find and Replace. The Find and Replace dialog will open.


Specify the following details to replace data.

  • Column Name - Select the column where you want to find and replace data.
  • Find - Specify the data to be searched in this field.
  • Replace With - Specify the data to replace in this field.
  • Bulk Update: Select this option if you want to replace all the values in the column with the value specified in the Replace With text box. On selecting this option the Find what text box will be disabled.
  • Match entire cell: Select this option to limit your search results only to cells whose entire contents match with the Find What value that you have provided. This option is selected by default for number and currency type columns.
  • Do not replace null values: Select this option when you do not want to replace existing null values in the column with the value specified in Replace With. This is applicable only when you use the Bulk Update option.

Couple of Points to Note:

  • Find & Replace operation is Case Sensitive i.e., upper and lower letters are not considered as equivalent.
  • To find a cell with empty/null value or to replace a cell value with an empty/null value you have leave the corresponding boxes empty.
  • Currency (Ex :-$) and Percentage(%) symbols cannot be used in Find & Replace fields for currency and percentage data types.
  • Find & Replace will be applied over Filtered data, if you have already applied a Filter on the table

 Show/Hide Columns

Zoho Analytics let you show or hide columns in the table. To show or hide columns, click More > Show/Hide Column. The Show/Hide/Reorder dialog will open. Ensure that only column that you want to show are selected. You can rearrange the column order using the arrow icons.

 Freeze Column

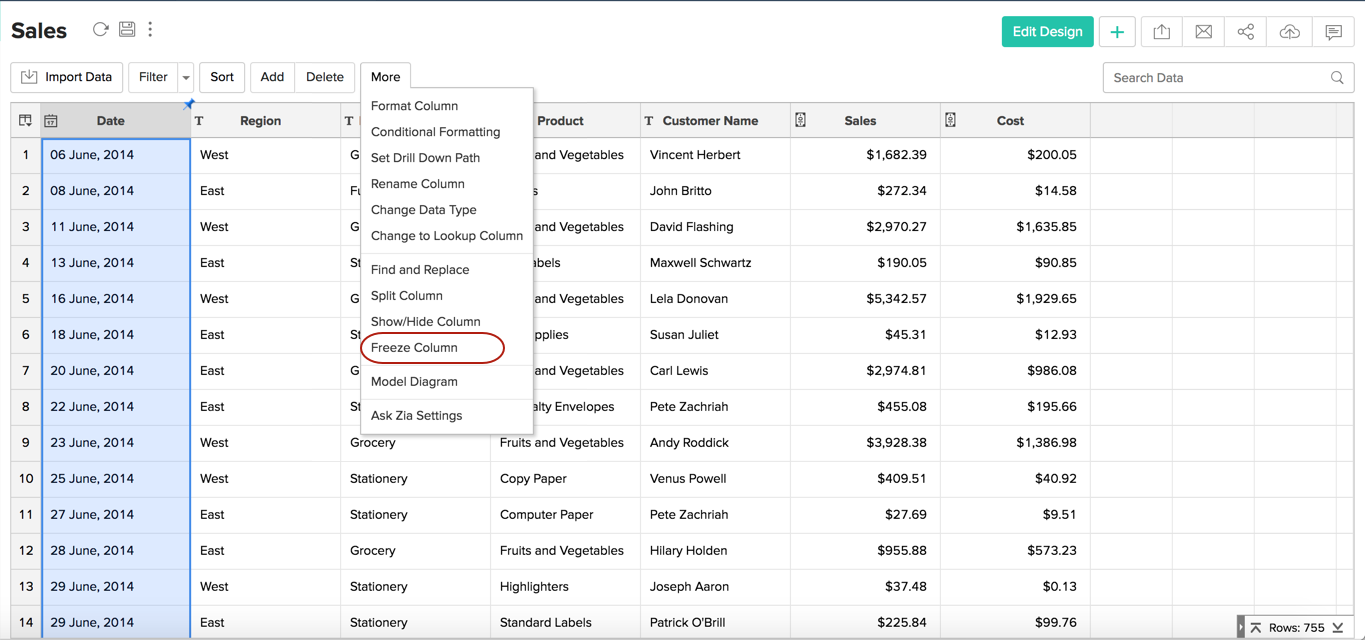

Freeze Column option allows you to keep specific columns always visible in the table even when you scroll horizontally across the screen. For example, you can freeze columns that identify the records (Ex:- Customer Name, Product ID) in a table so that you can keep track of a record that you are looking, even when you scroll off to the right-most column in the table. You can easily freeze columns by clicking More > Freeze Column.

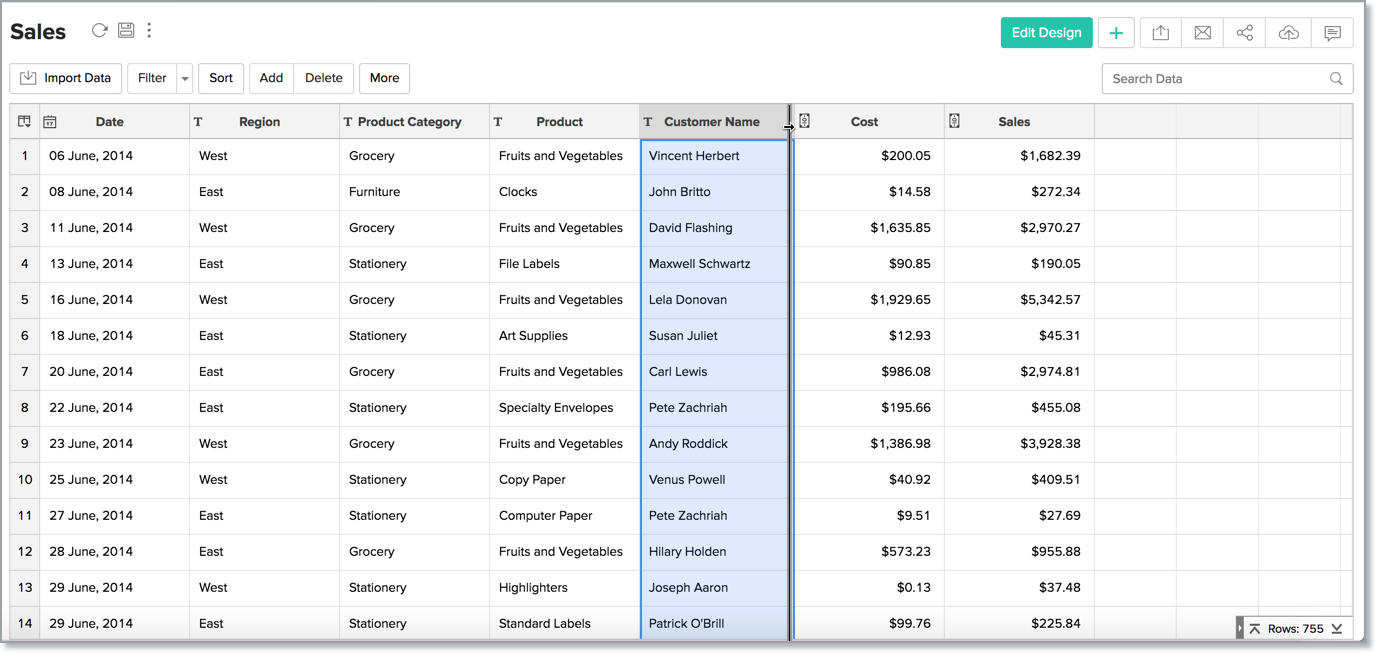

 Reorder and Resize Columns

Zoho Analytics allows you to rearrange the order of columns in a table using drag and drop.

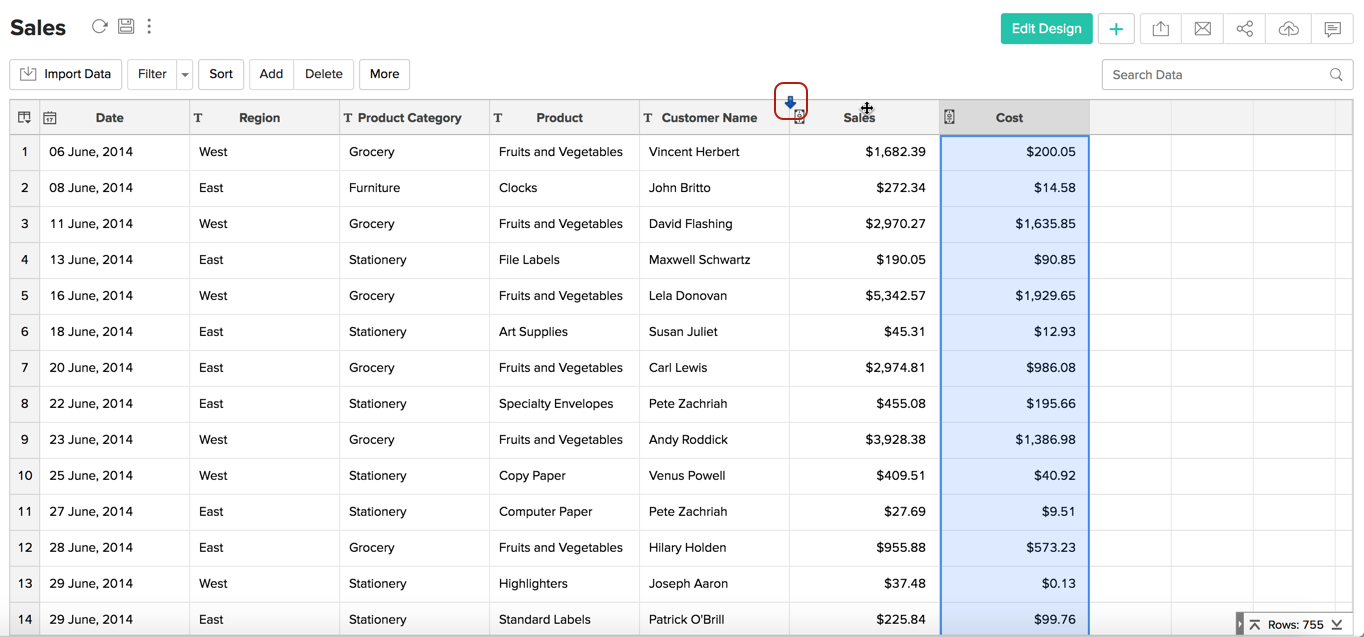

Drag the column into the required position.


Drag column to resize.

Change Column Properties

Each column has a set of properties like the format, name, data type etc. Column Properties option in the toolbar provides you with options to change these properties any time you want after creating a column.

Format a Column

Zoho Analytics offers options to change the format of a column like an alignment, decimal places, date formats, currency symbol etc., depending on its data type. Using these options you can choose how you would like to have your column data displayed in your table.

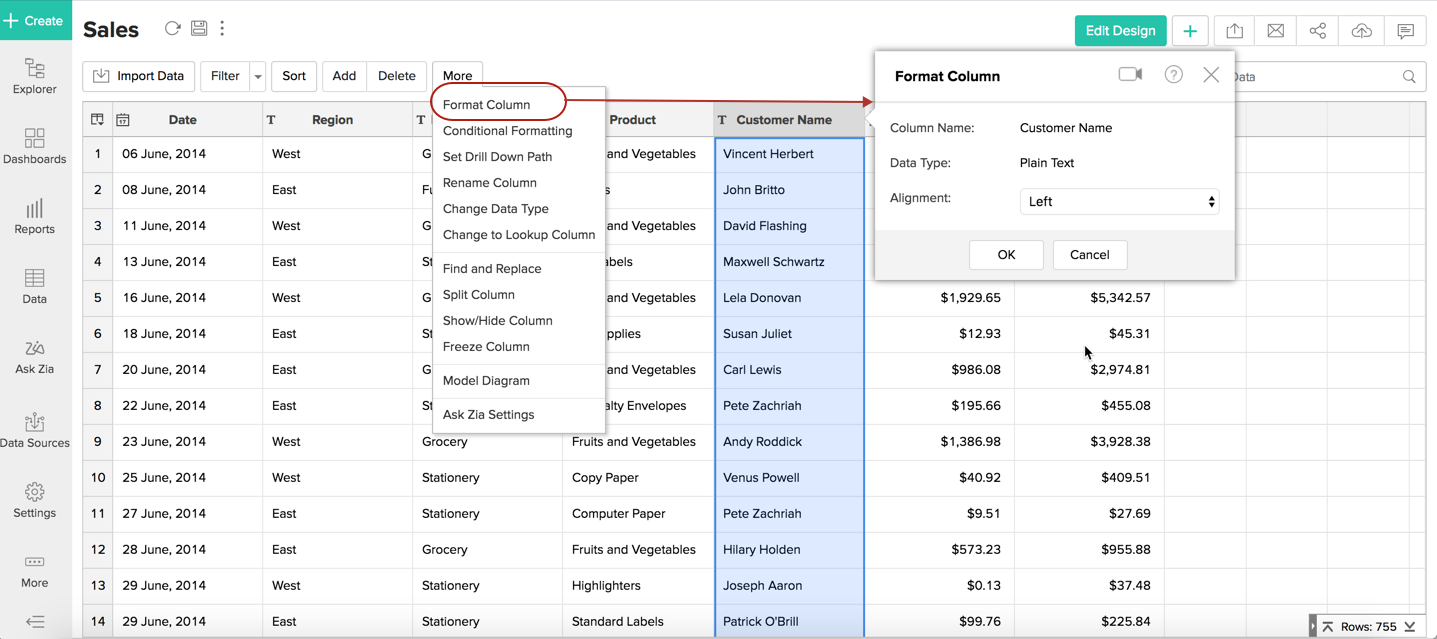

To format column click Column Properties  >  Format Column.

Note:

  • Option to format columns will be disabled for shared users.

Formatting options provided in the dialog box changes based on the data type of the selected column. The following table gives a brief description of these options.

Numeric Data Type
OPTION DESCRIPTION
Alignment

This option can be used to horizontally align the value in the cell. Possible values are left , right and center.

Units

This option enables you to format the unit value in thousands (K), millions (M) and billions (B).

  • None - No unit formatting will be applied to the data.
  • (Thousands) K - The data will be formatted in thousands (k).
  • (Lakhs) L - The data will be formatted in lakhs (L).
  • (Millions) M - The data will be formatted in millions (m).
  • (Crores) C - The data will be formatted in crores (C).
  • (Billions) B - The data will be formatted in billions (B).
  • (Thousands) K - (Lakhs) L - (Crores) C - The data will be auto formatted to the unit value as thousands (K), lakhs (L) and crores (B) based on the data in the corresponding column.
  • (Thousands) K - (Millions) M - (Billions) B - The data will be auto formatted to the unit value as thousands (K), millions (M) and billions (B) based on the data in the corresponding column.
  • Auto (User Locale Specific) -  The data will be auto formatted to the unit value as per the users local standards i.e., either as thousands (K), millions (M) and billions (B) or as thousands (K), lakhs (L) and crores (B) based on the data in the corresponding column.
Separator

This option allows you to pick a decimal and thousand separators to be used.

Apply User Locale Settings - You can select this option to use separators based on the locale settings of the user. For example, in US locale a comma will be used for a thousand separator and in case of German locale a dot will be used.

Thousand - This option can be used to select the type of thousand separator. This option will be enabled for number and decimal type columns. This option will be disabled when you have chosen. Apply User Locale Settings mentioned above. Available options include: Comma, Dot, Space and Single Quote

Decimal - This option can be used to select the type of decimal separator. This option will be available only for decimal, currency and percentage columns. Also, this option will be disabled when you have chosen. Apply User Locale Settings mentioned above. Available options include Dot and Comma.

Currency Symbol

This option enables you to choose the type of currency symbol displayed. You can select the currency symbol you want from the wide variety of symbols available in the drop down list. This option will be enabled for currency type columns.

Negative Number Display

This options allows you to specify how negative numbers are to be displayed

Options available are:

  • Enclosed in parenthesis - Displays a negative number enclosed in parenthesis, For example, displays '-25' as (25)
  • With Negative Sign - Displays a negative number with a negative sign. For example as '-25'
Decimal Places

You can use this option to set the number of decimal places to display for decimal, currency and percentage columns.

Date Data Type:
OPTION DESCRIPTION
Alignment This option can be used to horizontally align date in the cell. Possible values are left, right and center.
Choose Date Format

This option allows you to pick the date format you want, for displaying dates values, from the given list.
Enter Your Date Format:
Zoho Analytics provides this option to allow you to specify a custom date format, if the required format is not available as part of the default list provided. Refer here to know how to construct custom date format string.

String/Category Data Type:
OPTION DESCRIPTION
Alignment This option can be used to horizontally align the text in the cell. Possible values are left, right and center.
URL Data Type
Alignment This option can be used to horizontally align the text in the cell. Possible values are left, right and center.
Alternate Text This option allows you to provide a substitute reader-friendly text that will be shown instead of the actual URL.
Image This option allows you to replace the URLs that point to images with the corresponding images. Click here to learn more.

Couple of points to note on the behavior of the Alternate text (for URL data type columns) feature in various scenarios:

  • Sorting - When you sort URL data type column in a table, sorting will be done based on the actual URLs in the column.
  • Copy and Paste - When you copy and paste the Alternate text in a column, actual URL corresponding to it will be pasted.
  • Exporting - When a view with alternate text is exported, the view will be exported with the actual URLs.

Image URL in Tables

Zoho Analytics allows you to convert the image URLs in your table into the corresponding images.

Follow the steps below to do this:

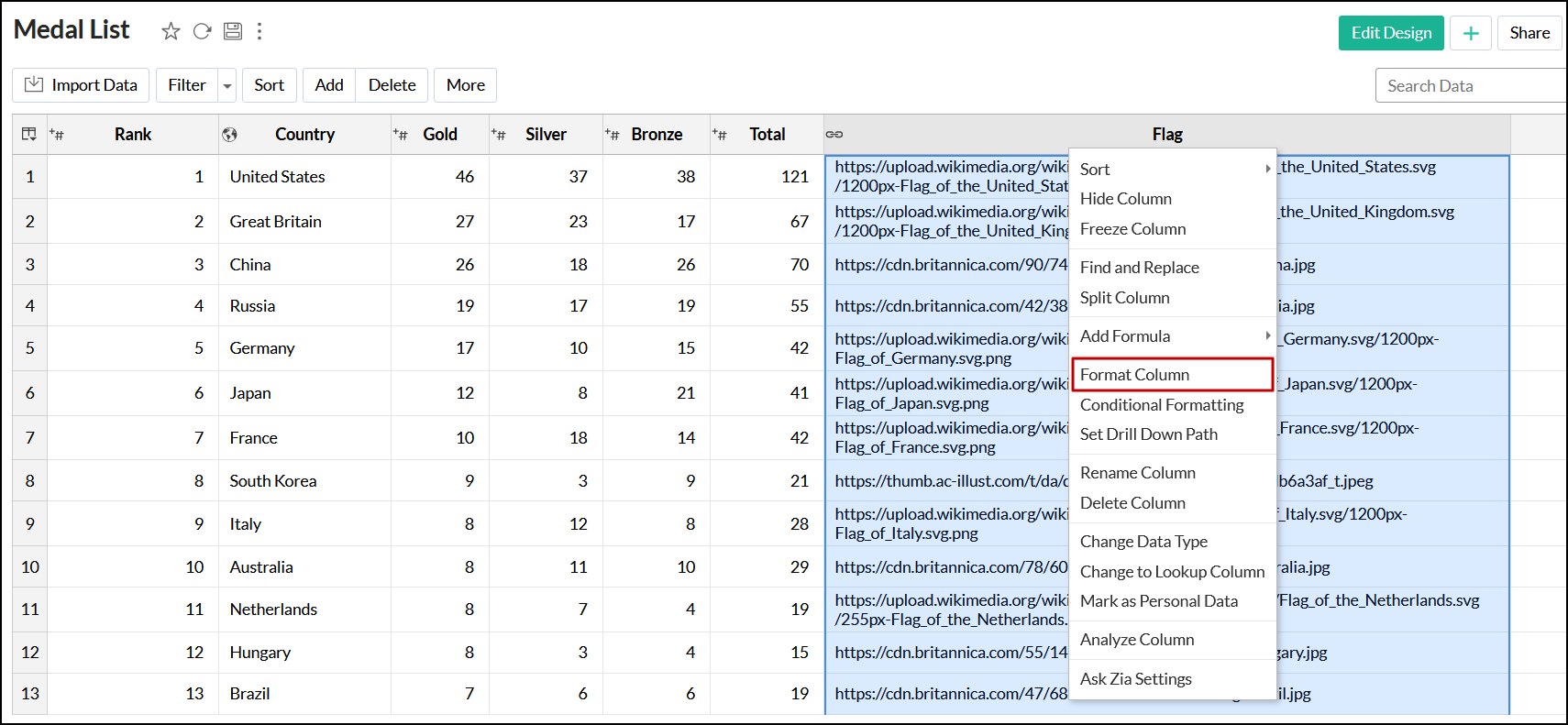

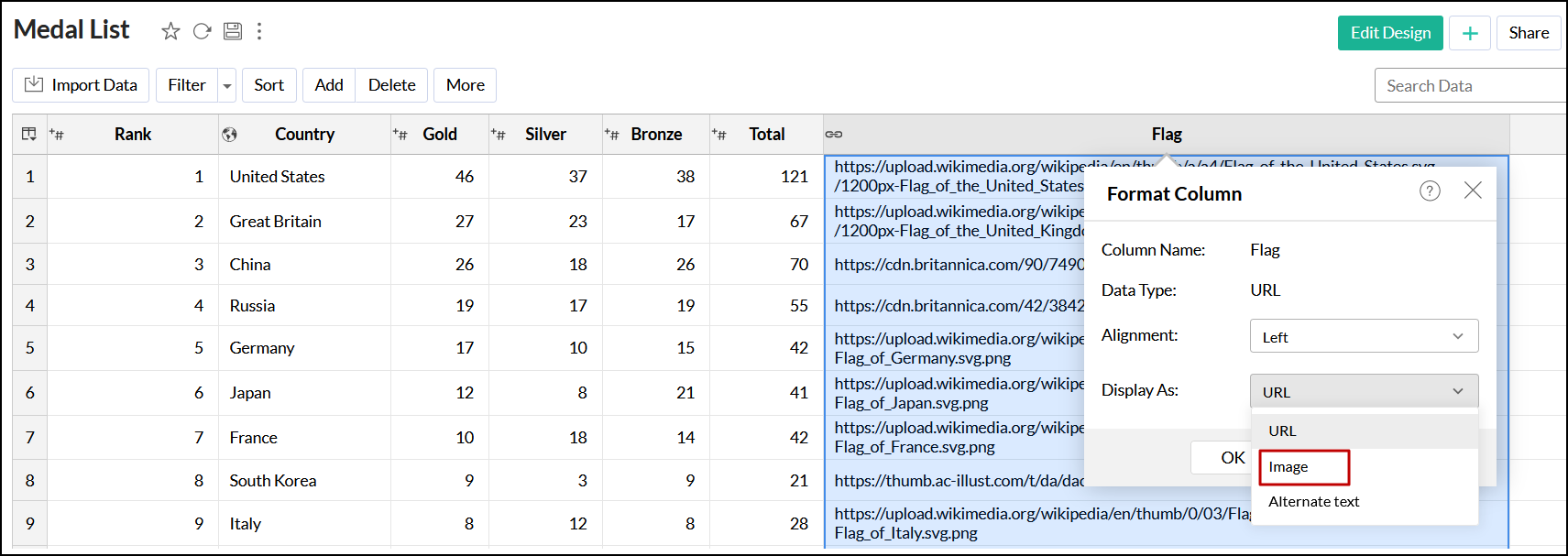

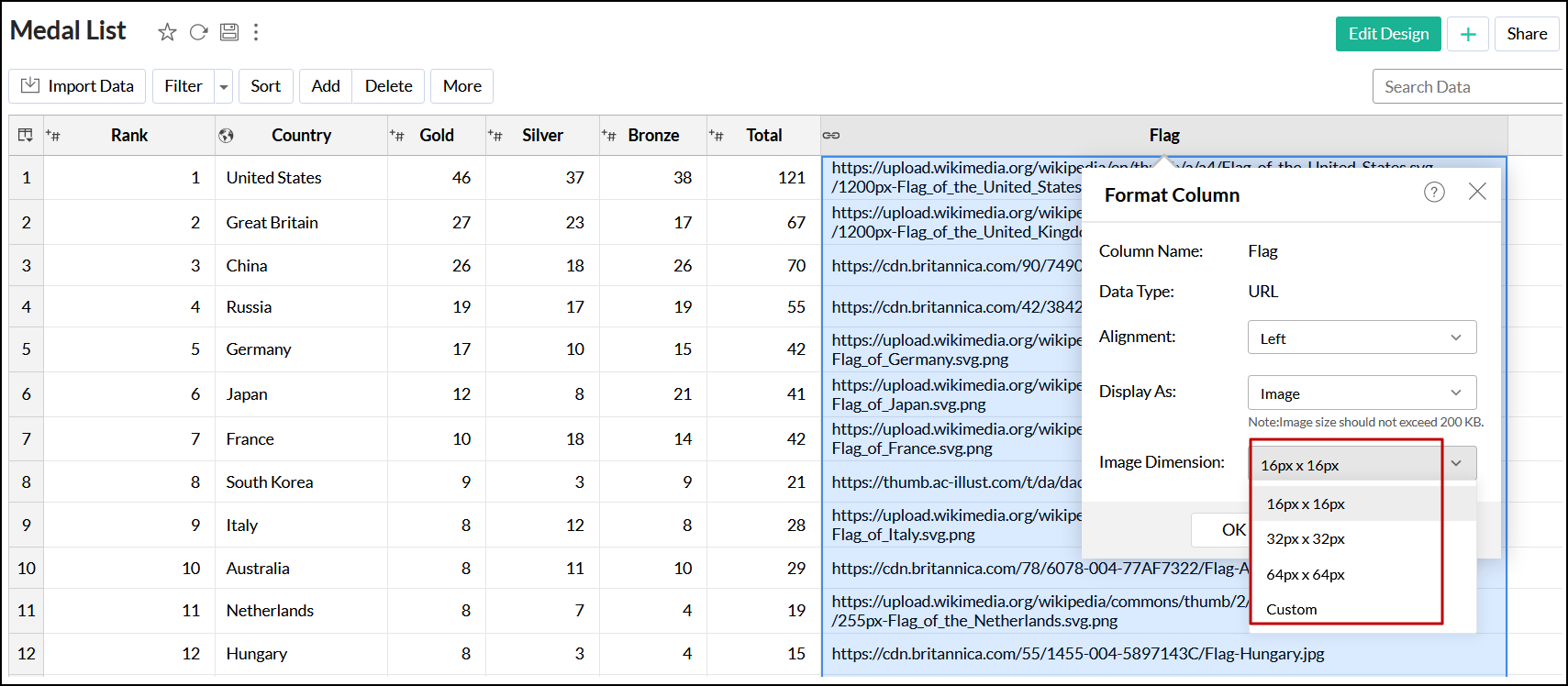

  • Open the required table, right-click the required image URL column, and select the Format Column option.

  • In the popup that appears, choose Image from the Display As drop-down. Please note that the size of the image should not exceed 200 KB.

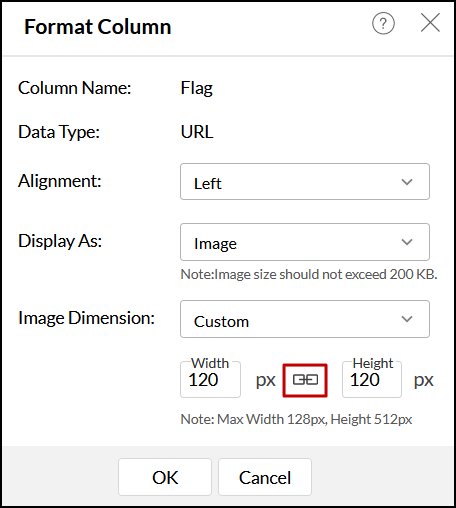

  • Choose the required dimension from the Image Dimension drop-down.

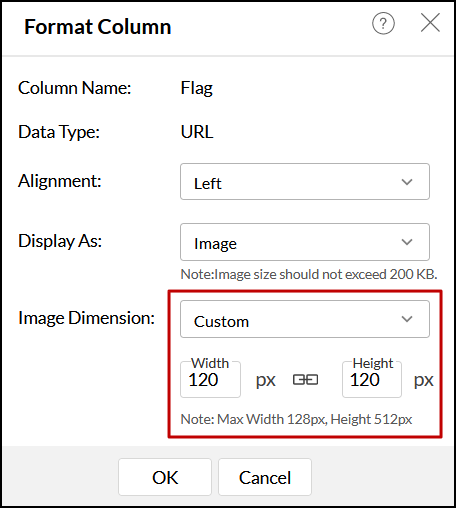

    You can also provide custom dimensions for the images. Choose Custom from the Image Dimension drop-down and provide the image's dimensions.

    You can click the Ratio icon to maintain an aspect ratio between the height and width.

  • Click OK to replace the image URLs with the corresponding images in your table.

Note: To display the converted images while exporting, ensure the view is exported as an HTML file.

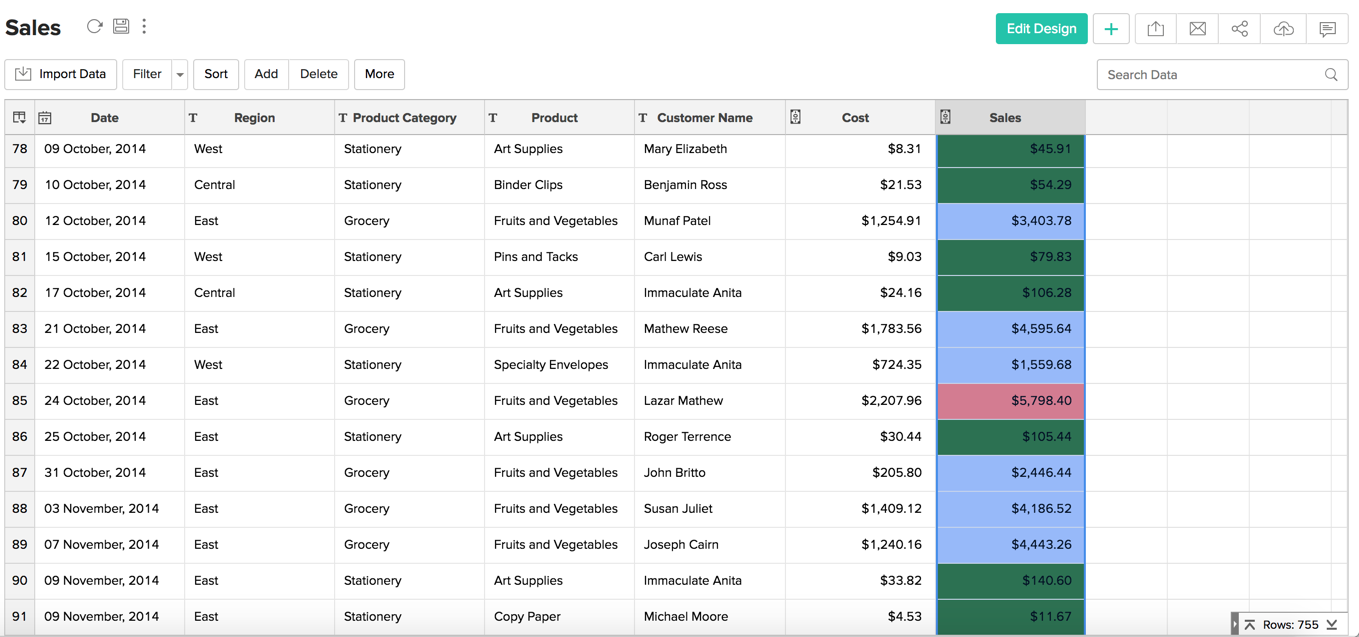

Conditional Formatting

Conditional formatting feature allows you to highlight cells in a column with different background and font colors based on a condition. You have to specify the required conditions/criteria for formatting. When data in a cell meets the condition, Zoho Analytics applies the corresponding formatting style that you have specified. Conditional formatting is currently supported in Tables, Tabular Views and Query Tables.

To apply conditional formatting:

  • Select the column (by clicking the header) on whose cells you want to apply conditional formatting.
  • Either right click to get the pop-up menu or invoke Column Properties option in the toolbar.

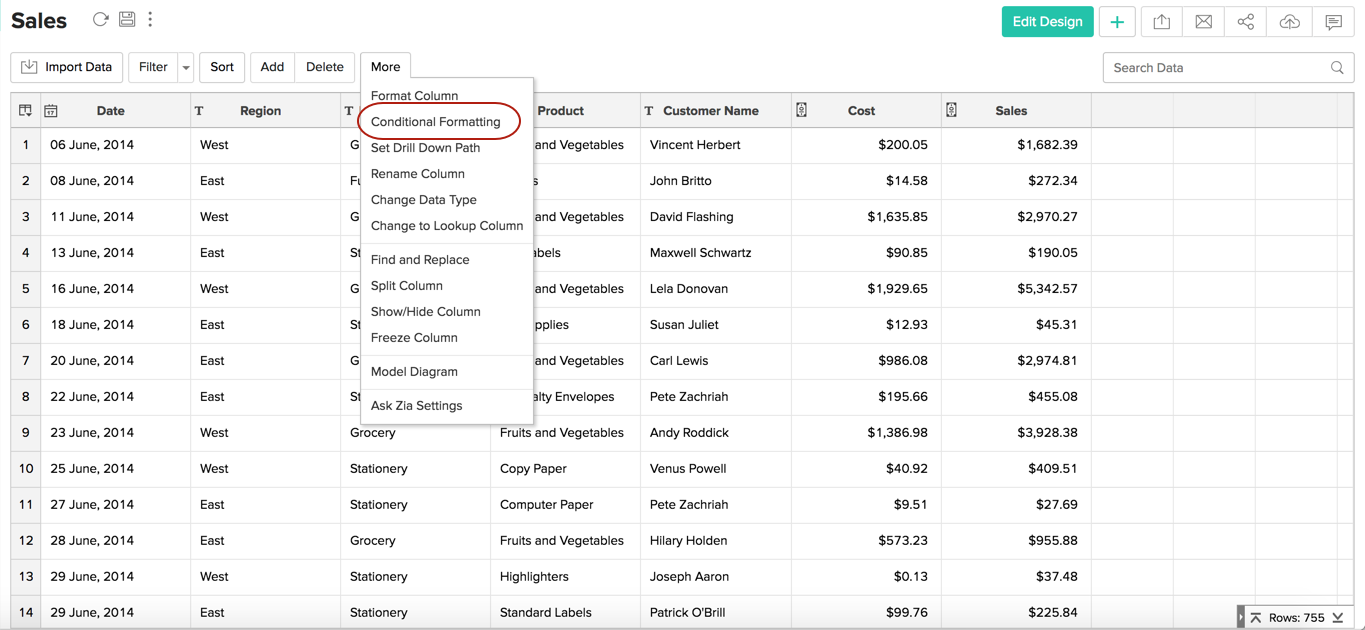

  • In the menu, select Conditional Formatting option a shown below.

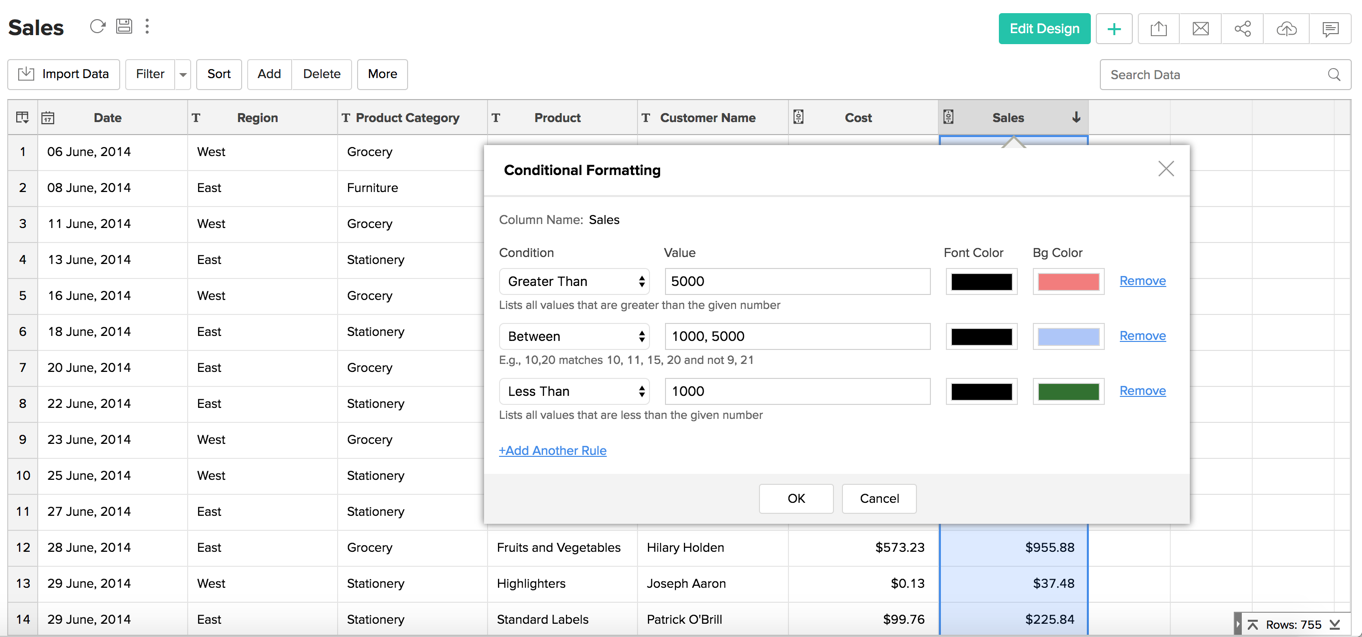

  • A dialog box appears with options for specifying the conditions and selecting colors for font and background.
  • Click the drop down arrow under Condition header and select the type of the condition that you want to apply.
  • Type the matching value that you want to use for the condition in the Value text box.



  • Select the required colors for the font and background.
  • You can add any number of conditions using +Add Another Rule option at the bottom of the dialog box.
  • Click OK after you have added all the conditions.
  • All the cells that meets the criteria will be formatted accordingly.



Note:

  • Conditional Formatting option will be disabled for shared users.

Set Chart Drill Down Path

Zoho Analytics allows you to drill down on your chart, enabling you to do powerful exploratory analytics. With this, You can click on any point in the chart and visualize the underlying data points as a new chart.

You need to configure the drill down path for any given column in the table/query table. For Date colums, Zoho Analytics will set a default path. You can change this as needed. Once the path is configured whenever you use this column in the chart, the corresponding drill path will be followed on drill down.

Follow the steps given below to define the drill down path for a column in a table.

  • Open the table over which you want to create the chart.

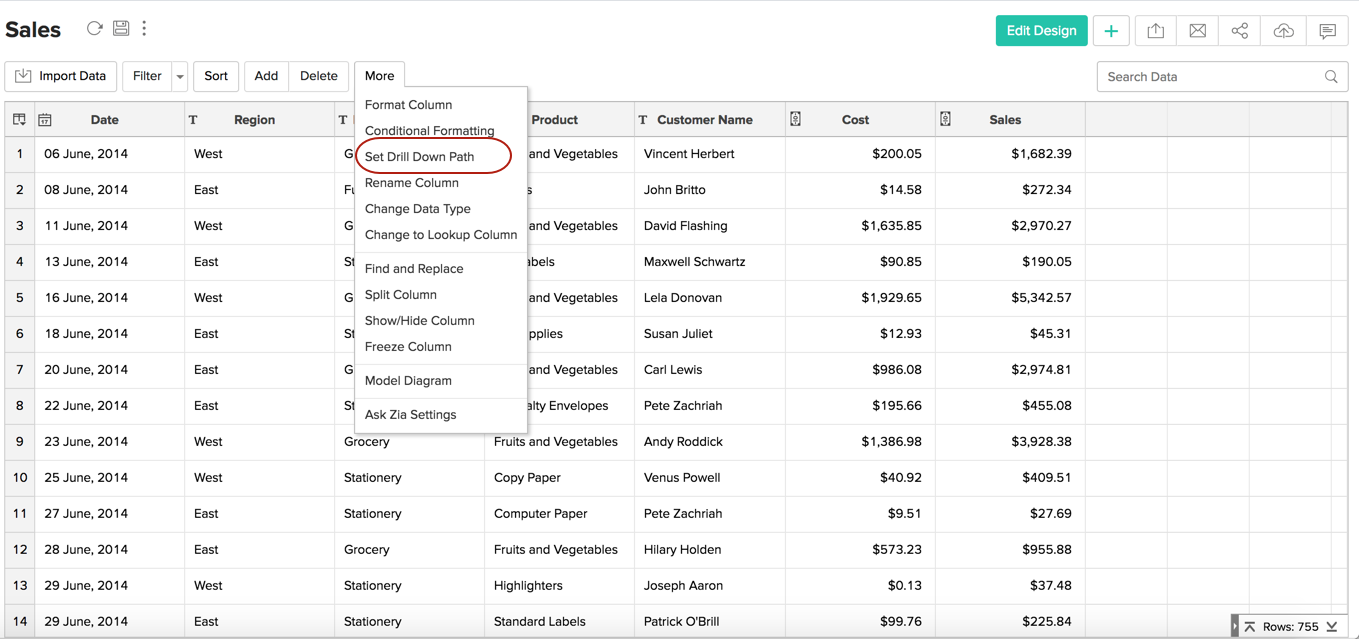

  • Click the corresponding column to drill down and then select Set Drill Down path.



  • The Drill Down Path Settings dialog will open. Select the next column to drill down (the next jump) from the current column using the drop box.



  • Click OK to set the path.

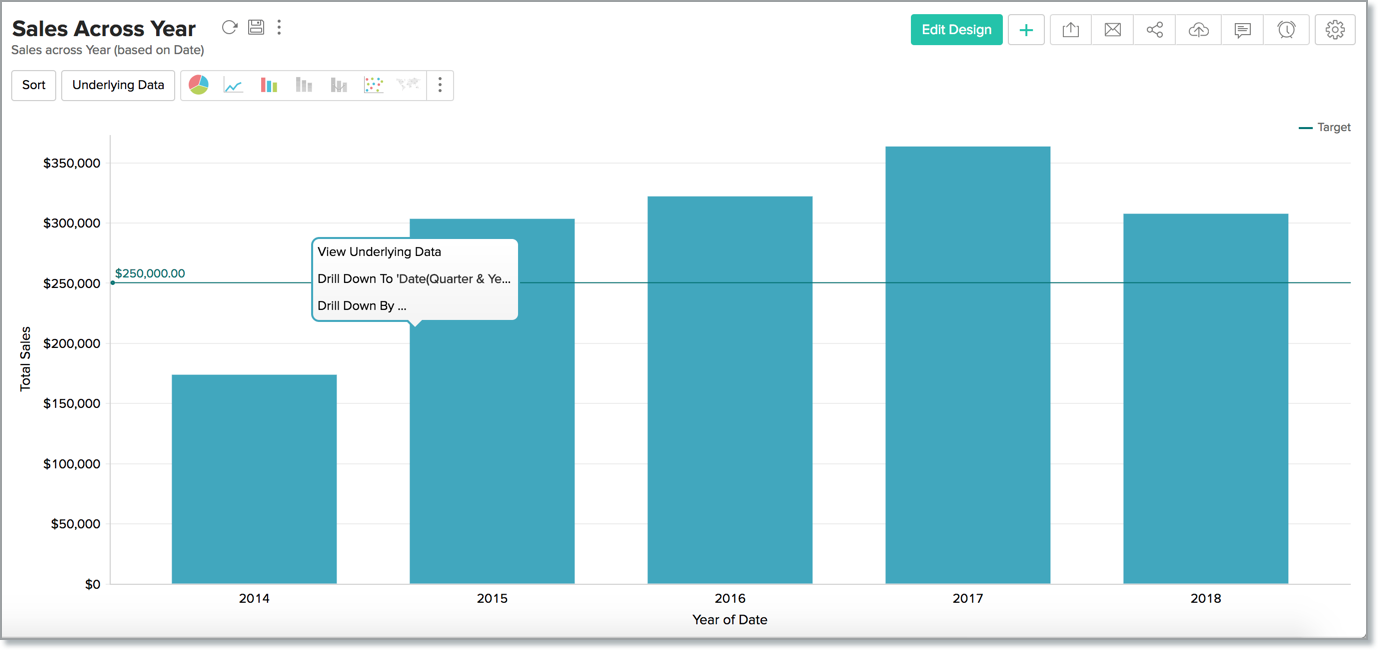

When you use the column (for which the drill down path has been defined) in a chart, then clicking its corresponding data point will drill down to the next level based on the path defined.

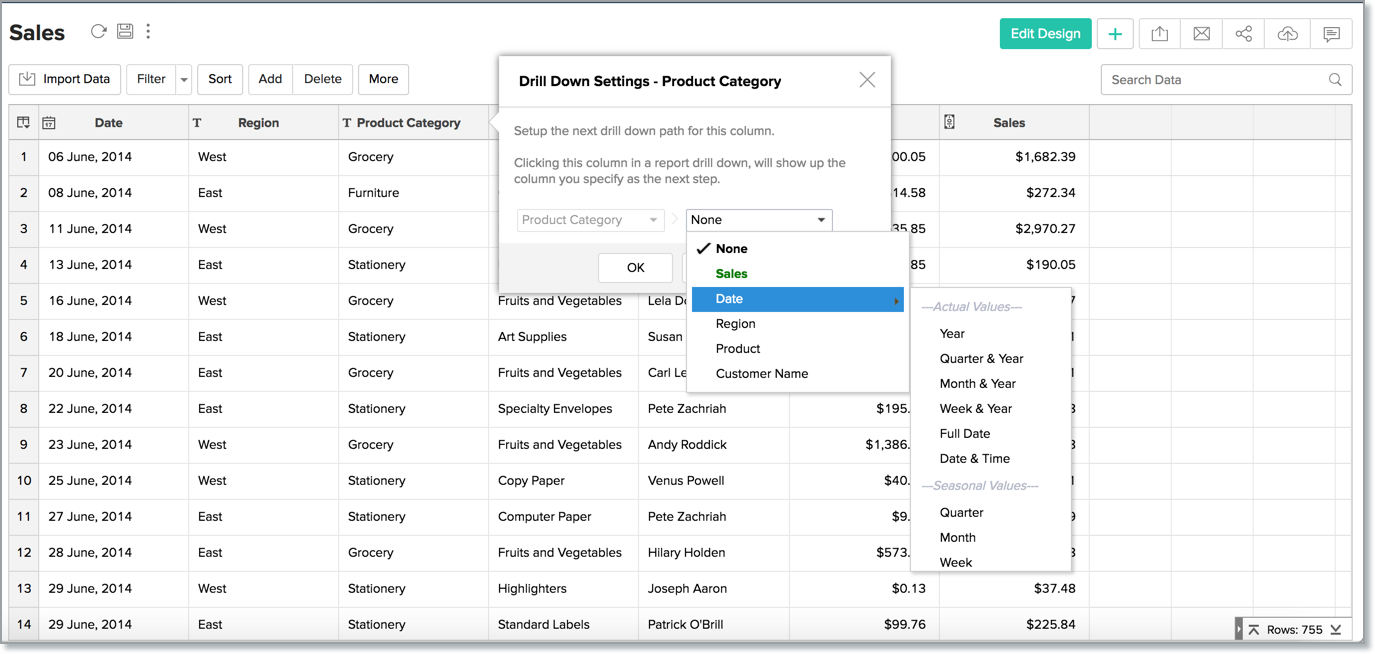

The following screenshot illustrates a drill down path set for a text column "Product Category".

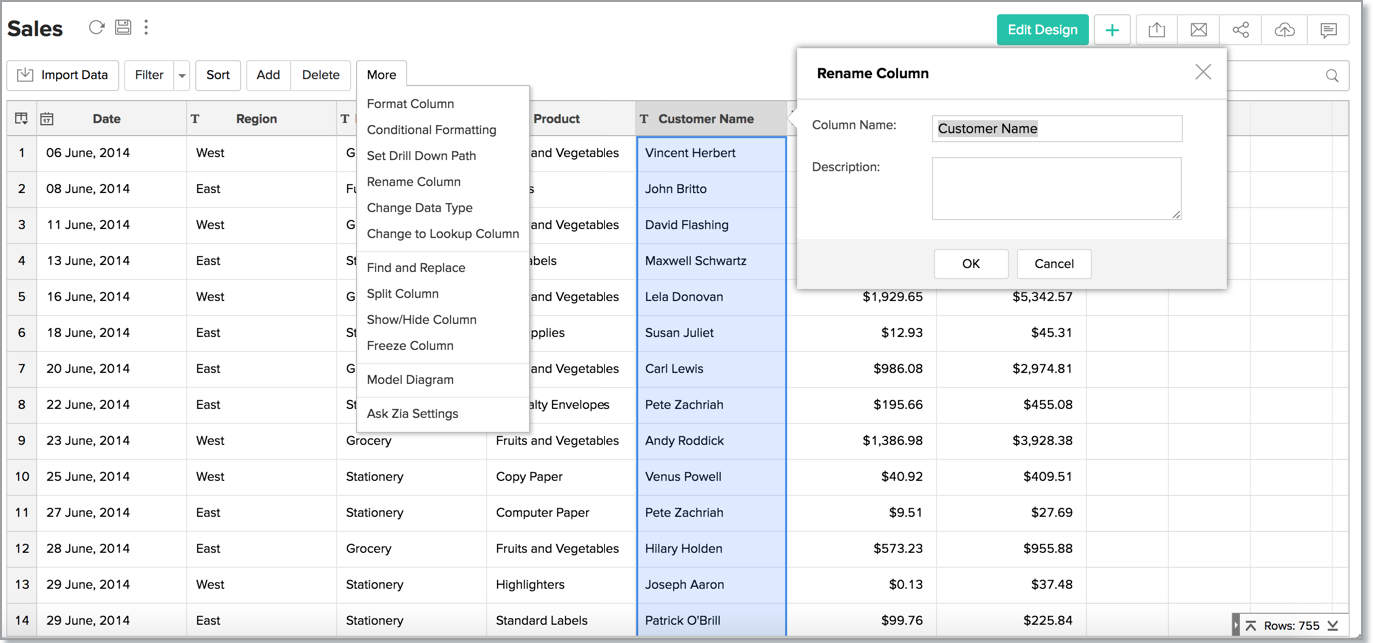

Renaming a Column

In Zoho Analytics changing a column's name is easy. You can rename by clicking Column Properties > Rename Column.

You can also rename column by clicking edit icon in the column header.

Note:

  • Rename Column option will be disabled for shared users.

Change DataType of a Column

After creating a table, it is common for you to feel the need to change an already existing column's data type. Let us suppose you initially defined a column to hold text data, you realize later that it actually contains numeric data. In such cases, Zoho Analytics provides you with an option to change the columns data type without losing data in it. However, when changing a column's data type, all the data existing in the column must be compatible with the new data type.

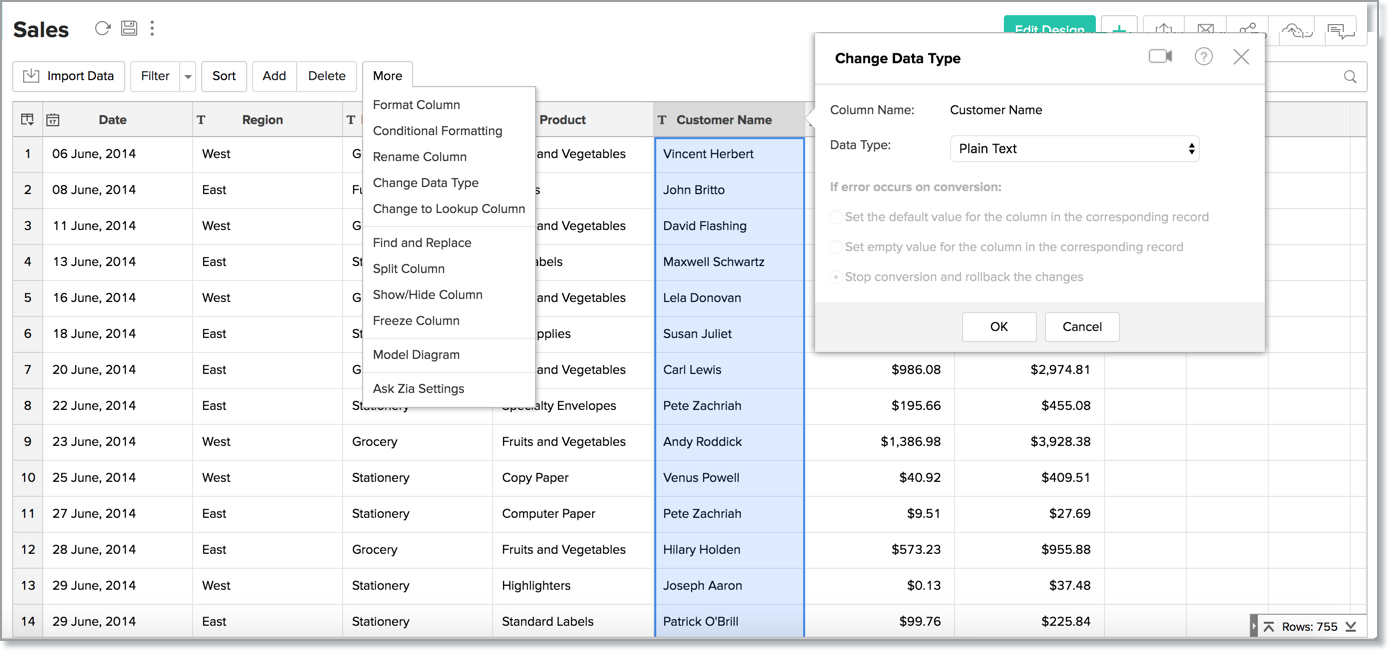

To change data type, click Column Properties > Change Data Type.

  • Change Datatype dialog box lists
  • Click OK. Data type of the column will be modified.

Note:

  • Remember that you cannot change the data type of a lookup column. You have to remove its lookup reference before changing the data type.
  • This option will be disabled for shared users.

Changing a Column to Lookup

Lookup column relationships in Zoho Analytics are similar to Foreign key relationships in Relational Database. A lookup column is a type of column whose values will be referenced from a column in another table in the same database i.e., it can be used to cross-reference tables in a database. Refer to the topics Relational Data Modeling and Joining Tables to know more about lookup column.

Zoho Analytics provides you with an option to change a column to a lookup column. To change a column to a Lookup column:

  • Open the required table from the Workspace.
  • Select the column that you want to change to a lookup column.
  • Select More > Change to Lookup Column optionon the toolbar or right click on the column and choose Change to Lookup Column option.

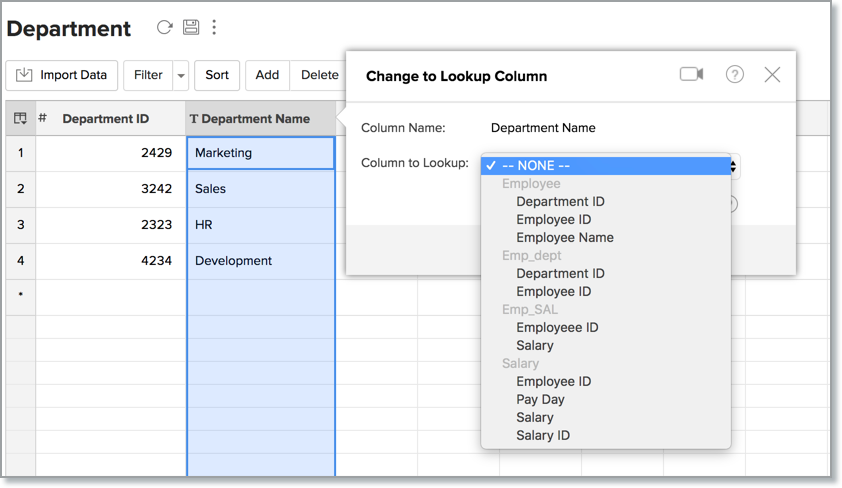

  • The Change to Lookup Column dialog box will open as shown below with Column to Lookup option which lists all the tables and their columns in the database as drop-down list.



Note:

  • Change to Lookup column option will be disabled for shared users.

Analyze Column

Zoho Analytics can automatically analyze your column's data and create sample reports by picking the meaningful metrics. You can get started with these reports or modify them or create your own. To analyze your column and create reports.

  • Select a column by clicking on its header and right click on the header.

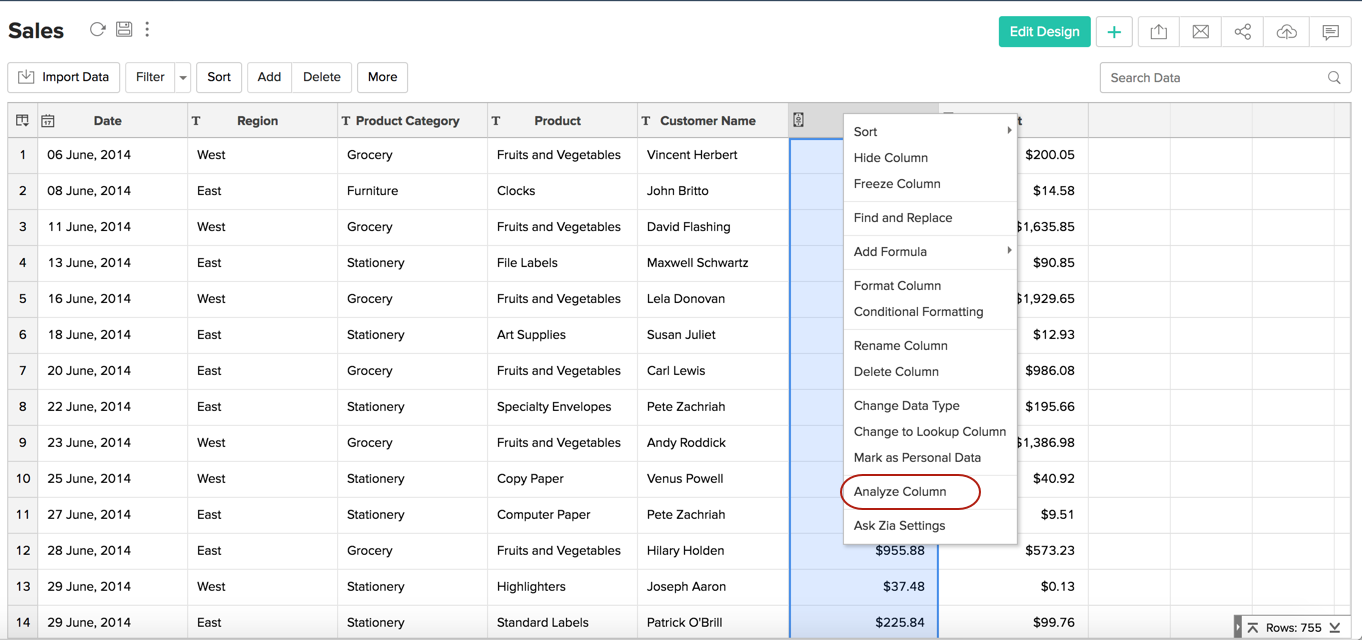

  • In the right click pop-up menu select Analyze Column option as shown below.
  • On successful completion of analysis, tables reports will be generated.



Note:

  • Analyze Column option will be disbaled for shared users of the database.

Copying a Table

Zoho Analytics allows you to save a copy of a table in your database. On copying, all formatting, formulas etc., will be retained in the new table too.

Follow the steps given below to copy a table.

  1. Open the table you want to copy.

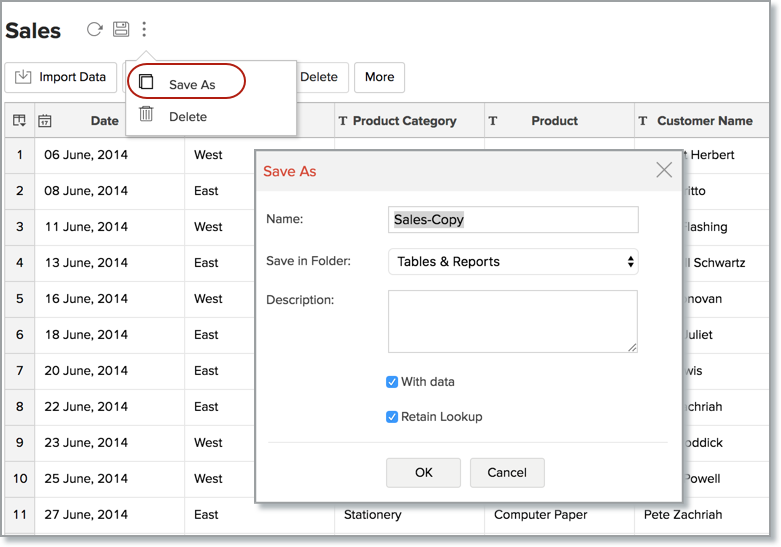

  2. Save As icon will appear when you mouse over on the title of the table. Click this to open the Save As dialog.
  3. Specify a name to the new table in the Name field..
  4. Select the folder to save the new table in Save in folder drop-down.
  5. The Copy with Data option allows you to choose whether to copy the table with or without data.
    • Select this to backup the data. By default this will be selected.
    • Unselect this to copy the table design, where you can import similar data.
      e.g., you have a sales table for last year and want to create a new table for the current year. You can copy the table design and import the current year data instead of creating from scratch.



  1. The Retain Lookup option allows you to choose whether to retain the lookup columns defined in the original table.
  2. Click OK. The table will be copied as you have set.

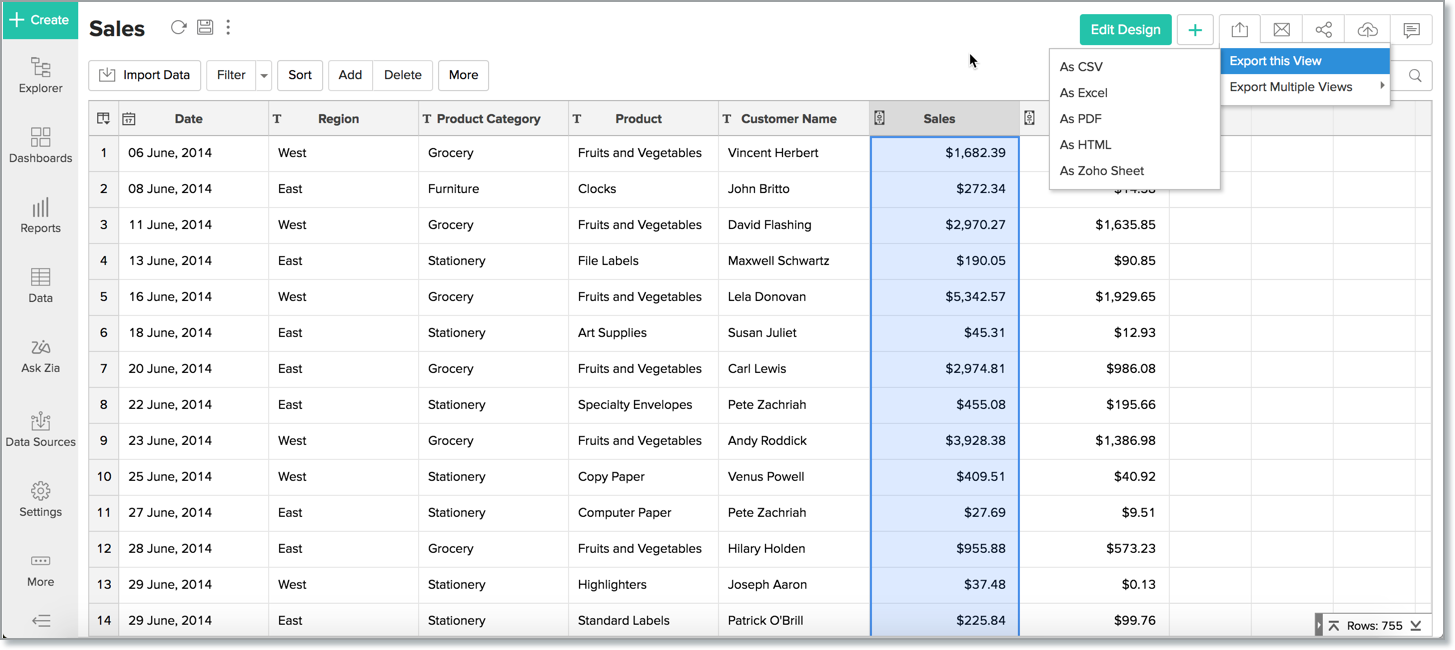

Exporting a Table

Zoho Analytics allows you to export tables that you have into various file formats like CSV, PDF, XLS or HTML files.

To export a table:

  • Open the table that you would like to export.
  • Select Export in the toolbar.
  • Select one of the five export format options:
    • CSV -Exports the table's data as a Comma Separated Value (CSV) file.
    • PDF- Exports the table's data in Portable Document Format (PDF) file format.
    • HTML - Exports the table's data in HTML file format.
    • Excel (XLS)- Exports table as a Excel file.
  • In the Export Settings window that opens, set the required options and then click Export button at the bottom to export.


Sharing a Table

In Zoho Analytics you can easily share your table for other users access. You can also set specific permissions on the shared tables, so that the users would be allowed to do only permitted actions when they access the table. The various share options are provided under the Share menu in the toolbar.
Refer to the topic Sharing and Collaboration to know how to share a table.

Note:

  • Share option will be enabled only to users who have been provided that permission during sharing by the Administrator.

 Publishing a Table

Zoho Analytics allows you to publish/embed tables into your websites/web pages or as iGoogle Gadgets or as easy to access URLs. Zoho Analytics also allows you to control the access privileges and permissions provided to the users who access the table.
Refer to the topic Publishing Options to know how to Publish a table.

Note:

  • This option will be enabled only to Administrator and Database Owners of the Workspace.

    Access your files securely from anywhere

      Zoho CRM Training Programs

      Learn how to use the best tools for sales force automation and better customer engagement from Zoho's implementation specialists.

      Zoho CRM Training
        Redefine the way you work
        with Zoho Workplace

          Zoho DataPrep Personalized Demo

          If you'd like a personalized walk-through of our data preparation tool, please request a demo and we'll be happy to show you how to get the best out of Zoho DataPrep.

          Zoho CRM Training

            Create, share, and deliver

            beautiful slides from anywhere.

            Get Started Now


              Zoho Sign now offers specialized one-on-one training for both administrators and developers.

              BOOK A SESSION






                          Quick Links Workflow Automation Data Collection
                          Web Forms Enterprise Begin Data Collection
                          Interactive Forms Workplace Data Collection App
                          Offline Forms Customer Service Accessible Forms
                          Digital Forms Marketing Forms for Small Business
                          HTML Forms Education Forms for Enterprise
                          Contact Forms E-commerce Forms for any business
                          Lead Generation Forms Healthcare Forms for Startups
                          Wordpress Forms Customer onboarding Order Forms for Small Business
                          No Code Forms Construction RSVP tool for holidays
                          Free Forms Travel
                          Prefill Forms Non-Profit

                          Intake Forms Legal

                          Form Designer HR

                          Card Forms Food
                          Assign Forms Photography

                          Translate Forms Real Estate
                          Electronic Forms

                          Notification Emails for Forms Alternatives
                          Holiday Forms Google Forms alternative
                          Form to PDF Jotform alternative





                                            You are currently viewing the help pages of Qntrl’s earlier version. Click here to view our latest version—Qntrl 3.0's help articles.




                                                Manage your brands on social media

                                                  Zoho Desk Resources

                                                  • Desk Community Learning Series


                                                  • Digest


                                                  • Functions


                                                  • Meetups


                                                  • Kbase


                                                  • Resources


                                                  • Glossary


                                                  • Desk Marketplace


                                                  • MVP Corner


                                                  • Word of the Day


                                                    Zoho Marketing Automation

                                                      Zoho Sheet Resources



                                                          Zoho Forms Resources


                                                            Secure your business
                                                            communication with Zoho Mail


                                                            Mail on the move with
                                                            Zoho Mail mobile application

                                                              Stay on top of your schedule
                                                              at all times


                                                              Carry your calendar with you
                                                              Anytime, anywhere




                                                                    Zoho Sign Resources

                                                                      Sign, Paperless!

                                                                      Sign and send business documents on the go!

                                                                      Get Started Now




                                                                              Zoho TeamInbox Resources



                                                                                      Zoho DataPrep Resources



                                                                                        Zoho DataPrep Demo

                                                                                        Get a personalized demo or POC

                                                                                        REGISTER NOW


                                                                                          Design. Discuss. Deliver.

                                                                                          Create visually engaging stories with Zoho Show.

                                                                                          Get Started Now









                                                                                                              • Related Articles

                                                                                                              • Working with pivot tables

                                                                                                                Zoho Analytics offers a wide range of interactive options on a Pivot Table when accessed by an end-user. The options include Viewing Underlying data, sorting, exporting, sharing and publishing a Pivot Table. In this section we will discuss about each ...
                                                                                                              • Query Tables for Data Preparation

                                                                                                                Query Table is a feature that enables you to prepare data for easy reporting and analysis. You can combine data from one or more tables in a reporting database and create specific data views using the standard SQL SELECT queries. These data views are ...
                                                                                                              • Joining Tables

                                                                                                                In a reporting system often you might require to combine data from two or more tables to get the required information for analysis and reporting. To retrieve data from two or more tables, you have to combine the tables through the operation known as ...
                                                                                                              • Working with tabular view

                                                                                                                Zoho Analytics provides various options to sort, filter, format, and freeze the columns in a tabular view. Sorting a tabular view By default, Zoho Analytics sorts the data in ascending order based on the data columns in the Group by block shelf. You ...
                                                                                                              • Working with charts

                                                                                                                Zoho Analytics offers a wide range of interactive options on a chart when accessed by a end-user. The options include interactive chart highlighting, changing chart type, dynamic filtering of data displayed, sorting, viewing underlying data, ...
                                                                                                                Wherever you are is as good as
                                                                                                                your workplace

                                                                                                                  Resources

                                                                                                                  Videos

                                                                                                                  Watch comprehensive videos on features and other important topics that will help you master Zoho CRM.



                                                                                                                  eBooks

                                                                                                                  Download free eBooks and access a range of topics to get deeper insight on successfully using Zoho CRM.



                                                                                                                  Webinars

                                                                                                                  Sign up for our webinars and learn the Zoho CRM basics, from customization to sales force automation and more.



                                                                                                                  CRM Tips

                                                                                                                  Make the most of Zoho CRM with these useful tips.



                                                                                                                    Zoho Show Resources
