Interactions with Dashboards

Dashboards enables you to do exploratory analysis using immersive and interactive features. In this section, we are going to learn about the advanced interactive features such as View Underlying Data, Drill down and Change Chart Type.

Note:  All these capabilities are available in the View Mode only.

View Underlying Data

Users of a dashboard can view the underlying data of a report in the dashboard.

To view the underlying data of a chart,

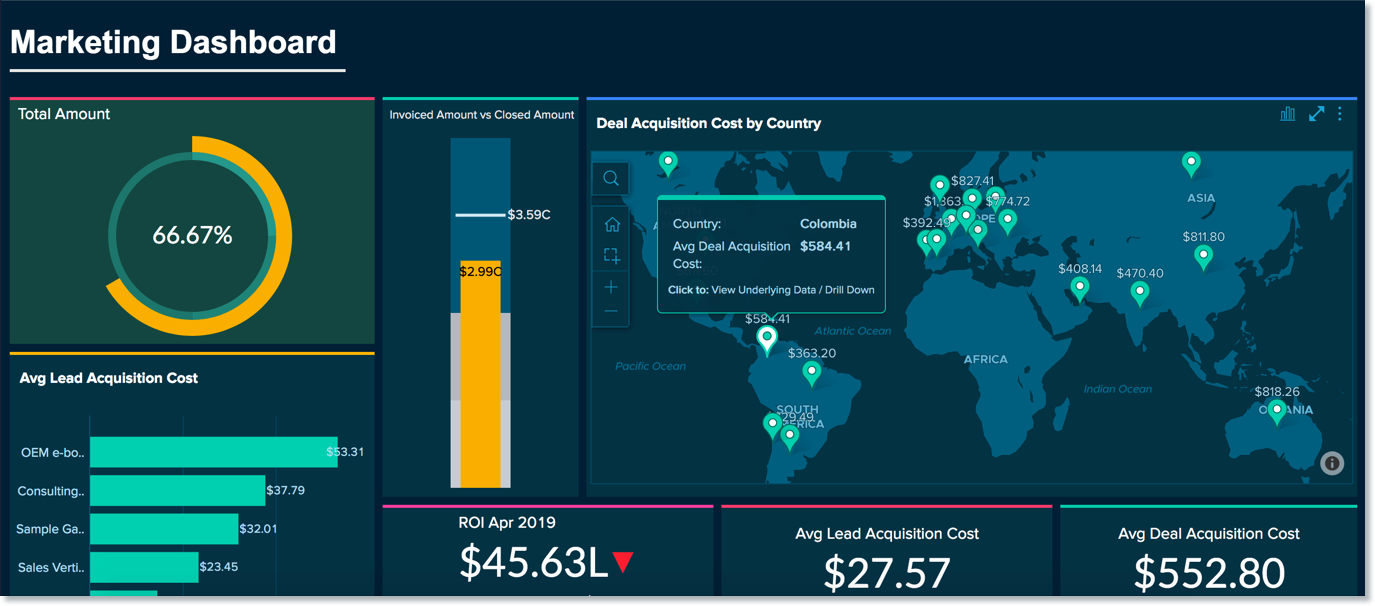

• Click the data point for which you wish to view the underlying data.

• Select View Underlying Data

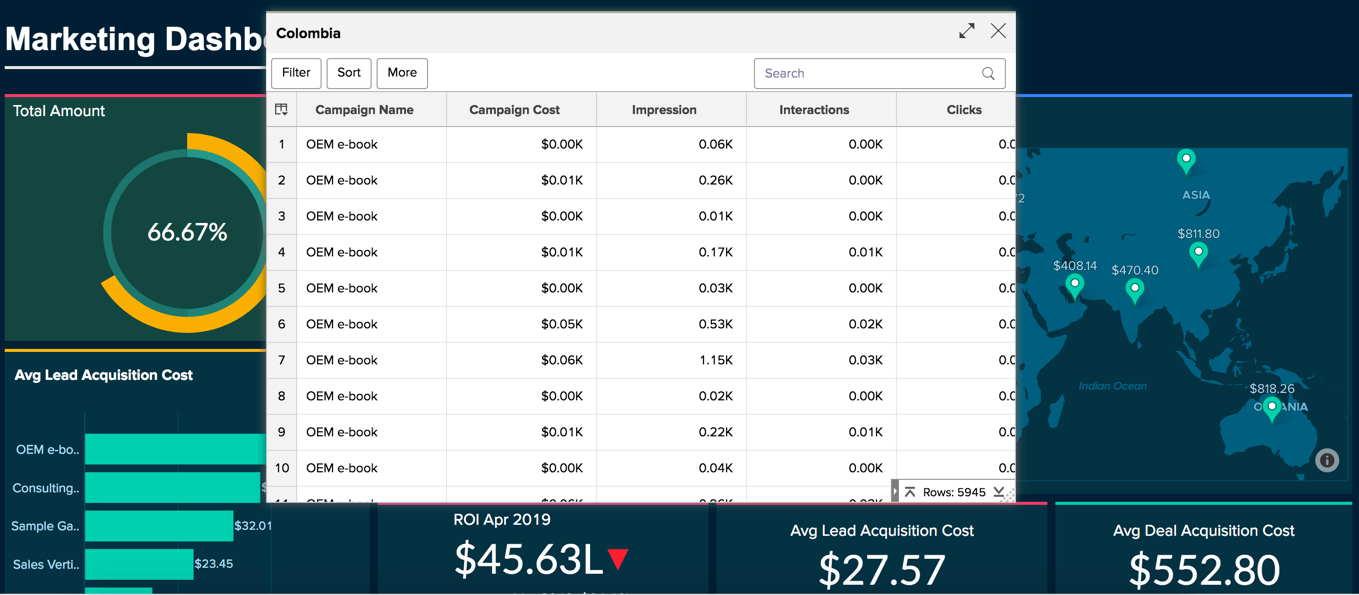

• The underlying data of the data point will be displayed as shown below.

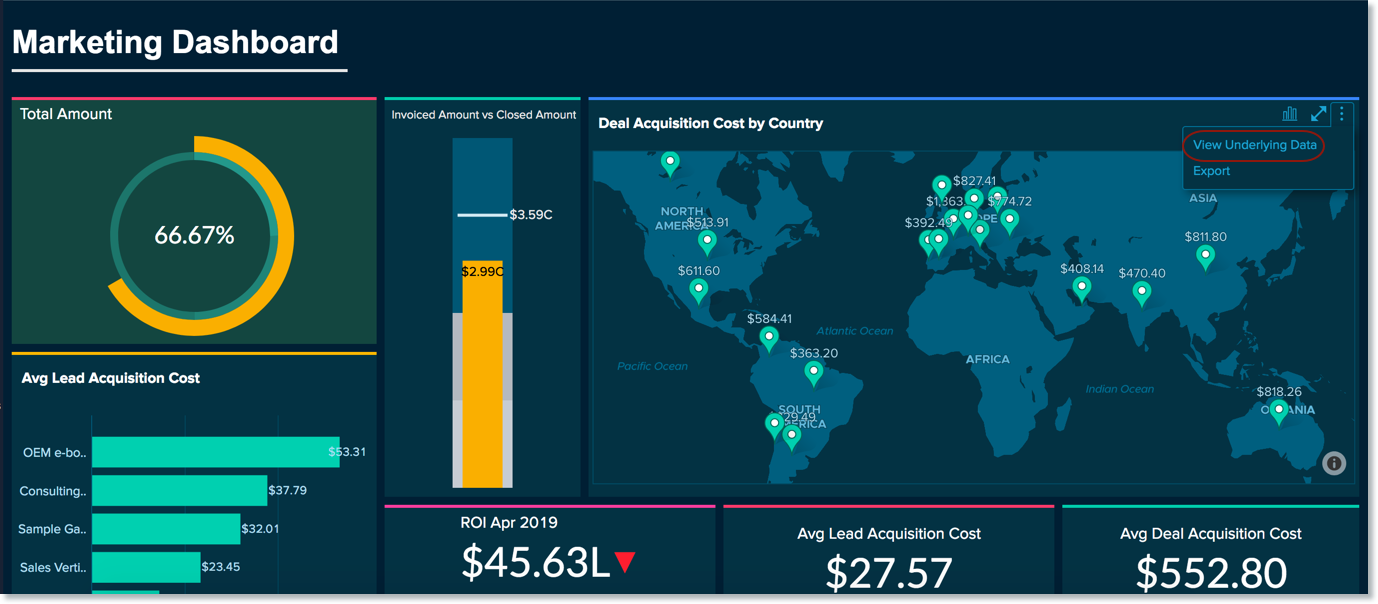

Alternatively, you can also view the entire underlying data of the report by clicking the More option and selecting View Underlying Data .

Drill Down

The Drill Down option allows you to perform powerful exploratory analysis. Using this feature, you can click on any data point in a chart and visualize the underlying data as a chart. You can either drill down using the path that is already set for the chart or choose from the list of compatible columns suggested by Zoho Analytics.  Click to learn more about the drill down option.

To drill down a chart,

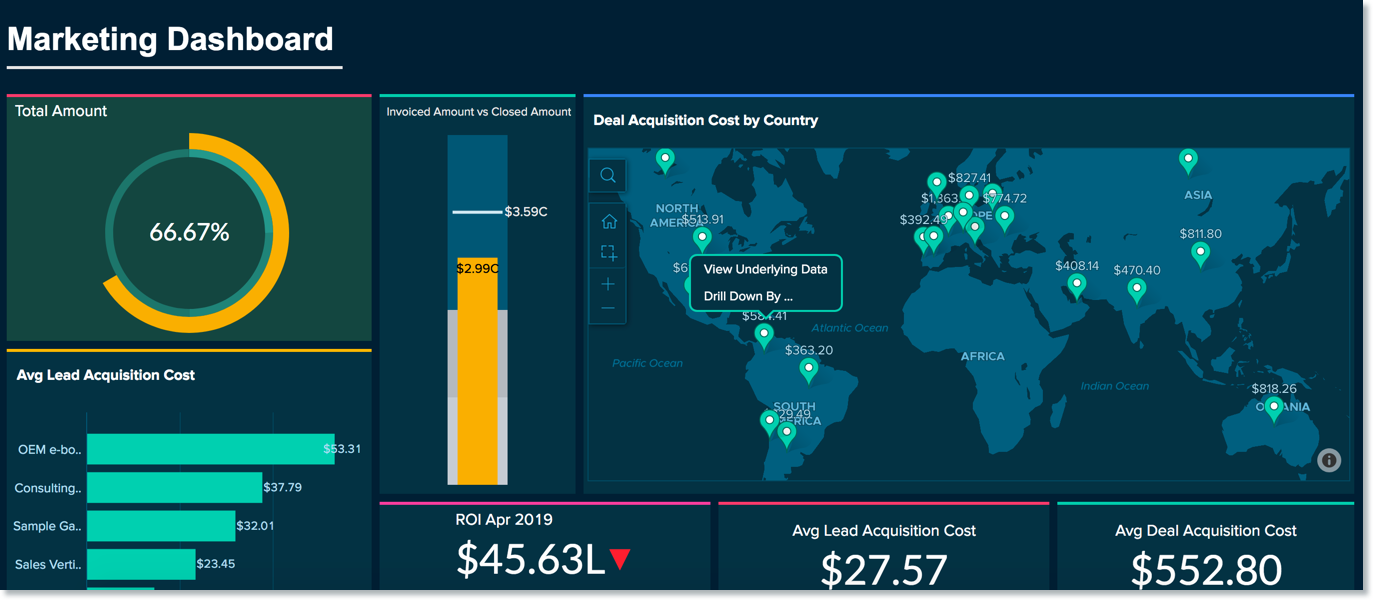

• Click the data point that you wish to drill-down.

• Zoho Analytics offers two options to drill down -  Drill Dow n and Drill Down By .

  • Drill Down will only allow you to drill down the chart based on the column that is set as a drill down path while creating the chart.
  • Drill Down By option will allow you to dynamically select a column from the wide list of columns that you can use to drill down the chart.

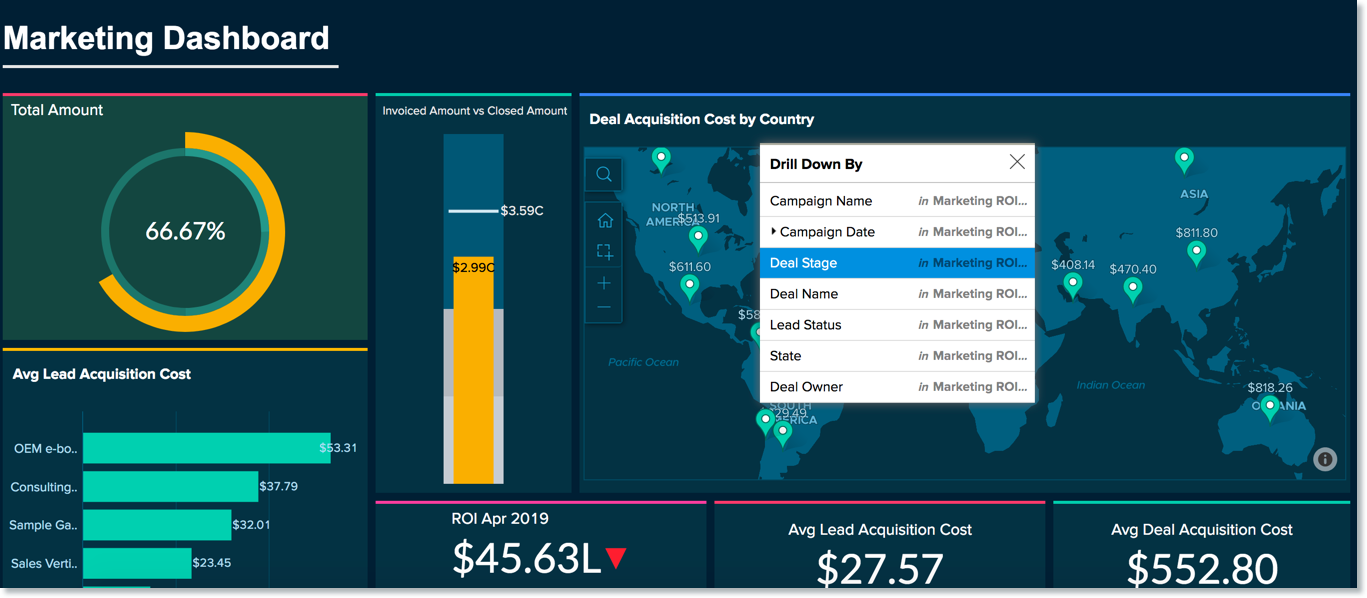

• In this example, we are going to see how to drill down a chart using the Drill Down By option.

• Select the column by which you wish to drill down.

• The chart will get drilled down/get structured based on the path selected by you. The path will be displayed as a breadcrumb on the top.

Click to learn more about the drill down option.

Note:  It will be available only if the user who has shared the dashboard with you has granted the Drill down permission for you while sharing the dashboard .

Change Chart Type

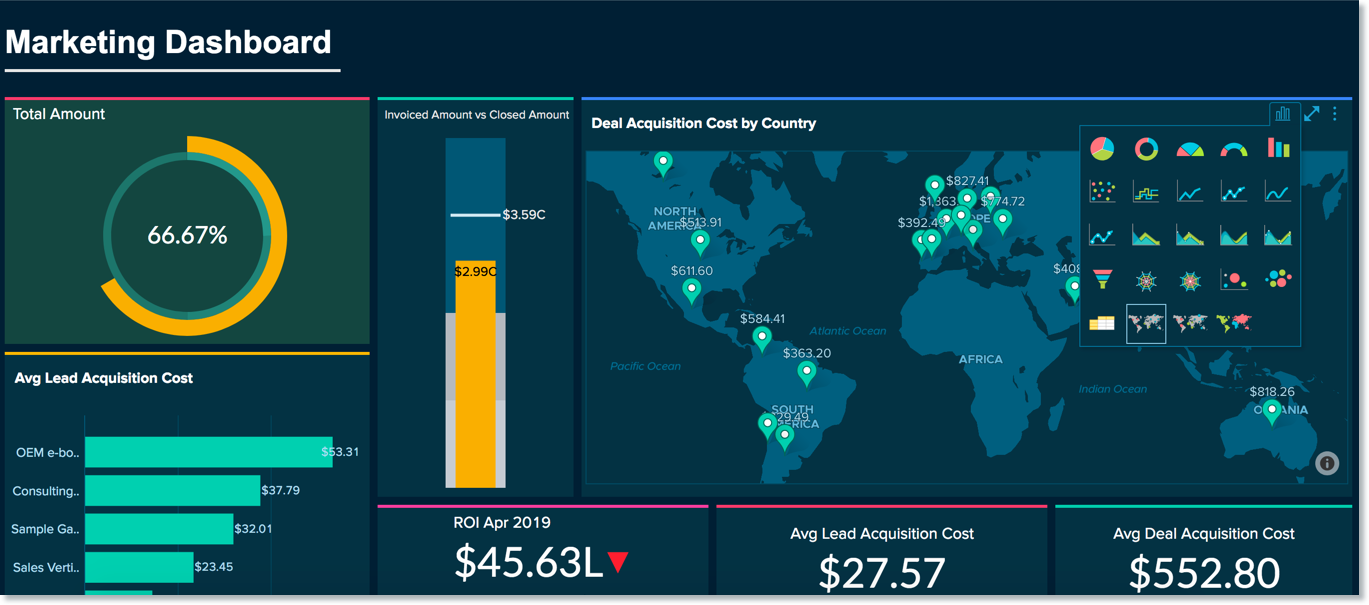

Zoho Analytics allows you to visualize the chart that you have created using different chart type options. You can change the chart type of individual charts in a dashboard by clicking the  Change Chart Type option. Please do note this is applicable only for a particular session and cannot be saved.

Maximize Embedded Report

You can maximize the embedded report to view in full dashboard layout by following the below steps.

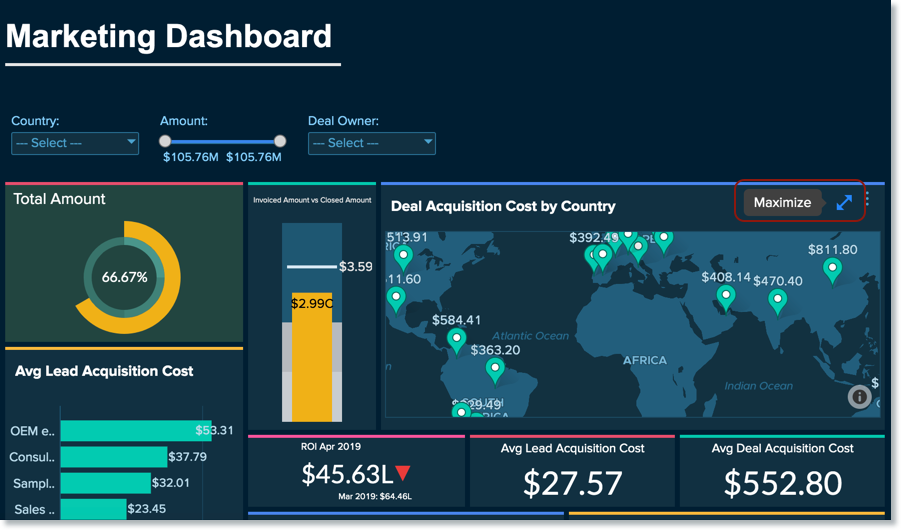

1. Click the Maximize icon in the top left corner of the report. You can also Double-click on the header to do the same.
2. The report will open in full dashboard layout. Rest of the components will be hidden, except the user filter. However, when you apply the user filter in this mode, it will be applied to all components in the dashboard.


3. If required, you can choose to edit the report by clicking the Edit icon. The reports in edit mode will open in new tab. You can modify the report as needed.

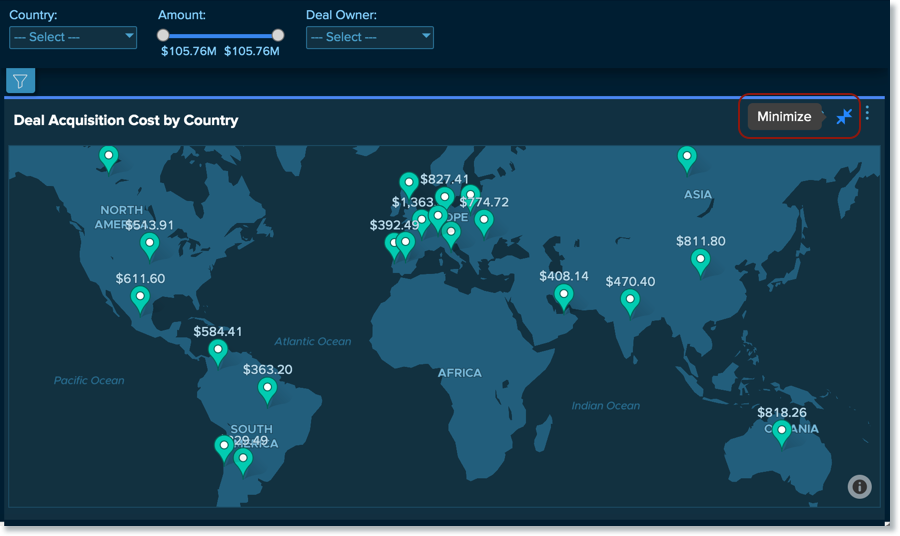

4. Click Minimize icon to revert to the embedded size.



Exporting and Emailing Dashboards

Zoho Analytics offers exporting and emailing capabilities which enables you to view the dashboard when you work offline and share them securely with users who do not have a Zoho account.

Exporting Dashboard

Zoho Analytics allows you to export your Dashboard as an HTML zip file or as a PDF.

Follow the steps given below to export a dashboard as HTML.

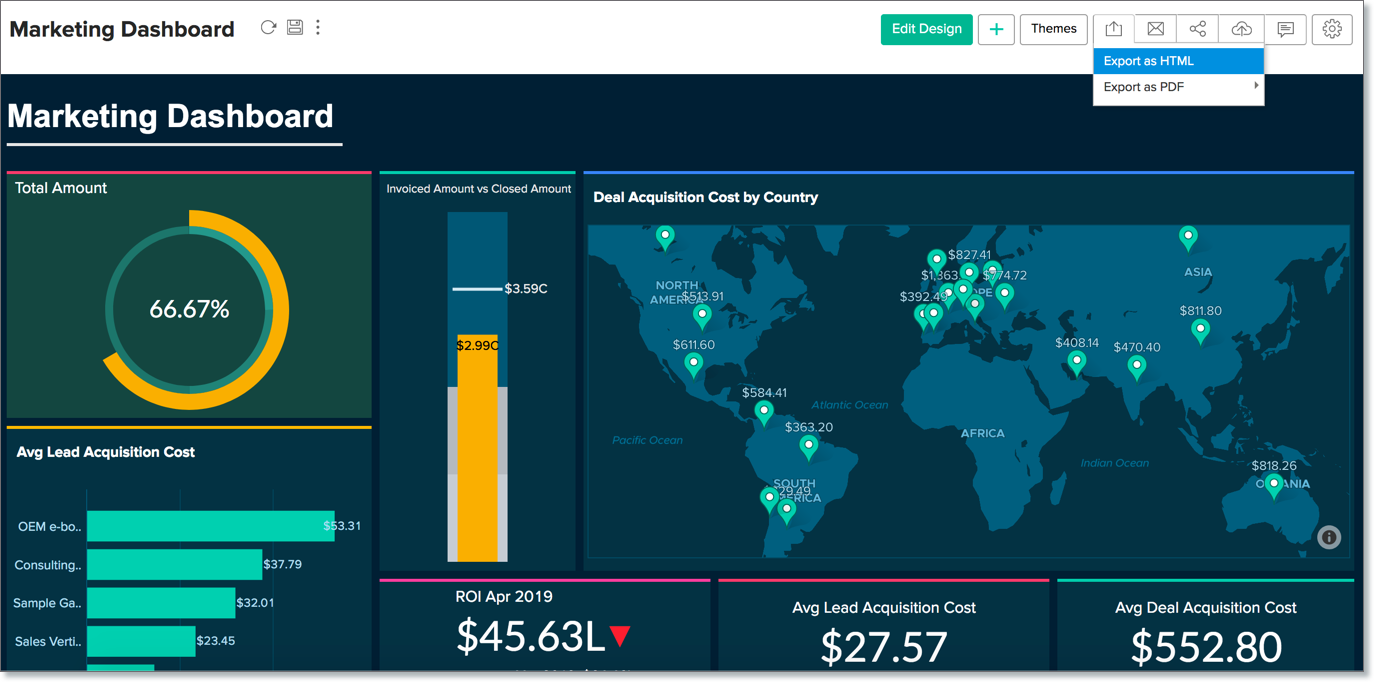

1. Click the Export icon and then select Export as HTML .

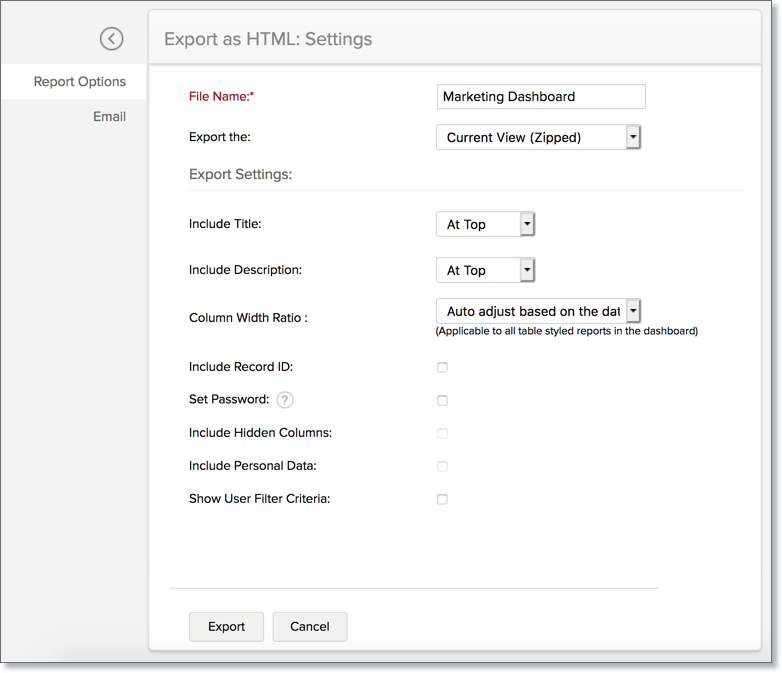

2. The Export As HTML : Settings page will open.


3. Specify a name for the exported HTML file in the File Name field.
4. Select required options to display title and description. The possible options to customize the layout of title and description are: At Top, At Bottom and None (without title or description correspondingly).
5. Select Show User Filter Criteria option to add a label for user filter applied.
6. Click Export . Your dashboard will be exported into an HTML file.

Zoho Analytics allows you to export the dashboard as PDF in two different layouts.

• Layout as in Dashboard
• Each Report in a New Page

Layout as in Dashboard

This option will export the dashboard in the same layout as arranged in the dashboard.

Note:  This PDF export option is optimized for Dashboards containing charts and KPI widgets. Export may fail if it contains table styled reports, especially with huge data.

Follow the given steps to export with Layout as in Dashboard.

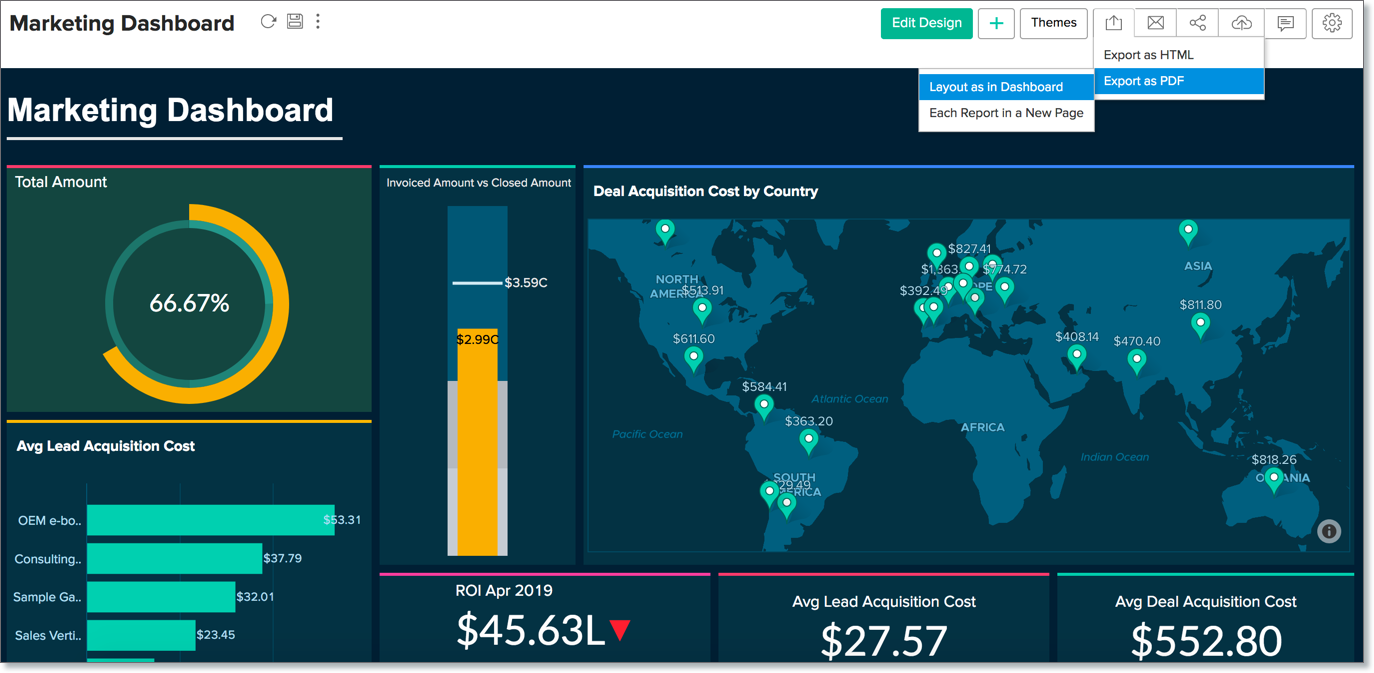

1. Click Export icon and then select Export as PDF > Layout as in Dashboard .

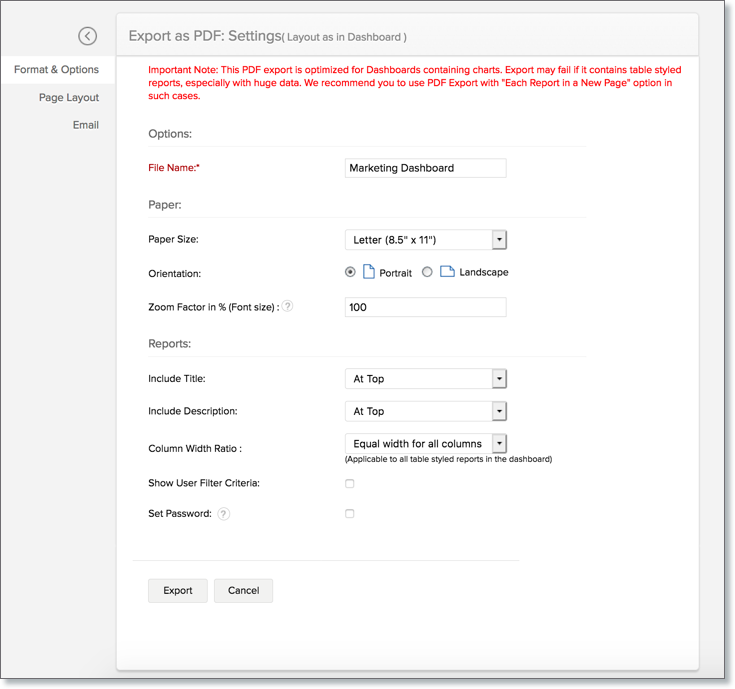

2. This opens the Export as PDF: Settings page as shown below.

Format and Options tab

This tab provides options to format the exported PDF.

• Specify the files name in the File Name field.
• Set the paper size on the Paper Size option, in the Paper section.
• Set the orientation as Portrait or Landscape .
• In th e Zoom Factor in % , specify a value in percentage to scale the font size in your dashboards to fit the page size appropriately. This could be scaled between 1 to 100%.
• Select required options to display title and description. The possible options to customize the layout of title and description are: At Top, At Bottom and None (without title or description correspondingly).
• Specify the column width radio for the table styles reports (pivot, summary, table etc.,) in your dashboard. Available options are:

  • Equal width for all columns - Choose this to have an equal width for all columns.
  • Proportionate width as in the report - Choose this to set proportional column width based on the design of the original report.


• Select Show User Filter Criteria option to add a label for user filter applied.

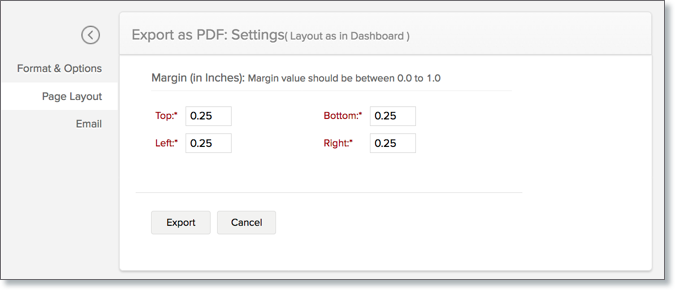

Page Layout tab

This tab provides the page layout option.

• Specify the Margin (in Inches). Margin value should be between 0.0 to 1.0.
• Click Export. Your dashboard will be exported into a PDF file with the layout as in dashboard.

Each Report in a New Page

This layout will export the dashboard in a single column layout displaying each report in a new page in the PDF.

This type provides the following benefits.

• Supports exporting dashboard containing tabular views with large data.
• Supports adding a Table of Content.
• Supports adding Header and Footer on each page.
• Supports customizing the language.
• Supports more file size for the exported PDF.
• Supports displaying filter criteria applied at the dashboard level and in the reports level.

Follow the given steps to export the dashboard with each report in a new page.

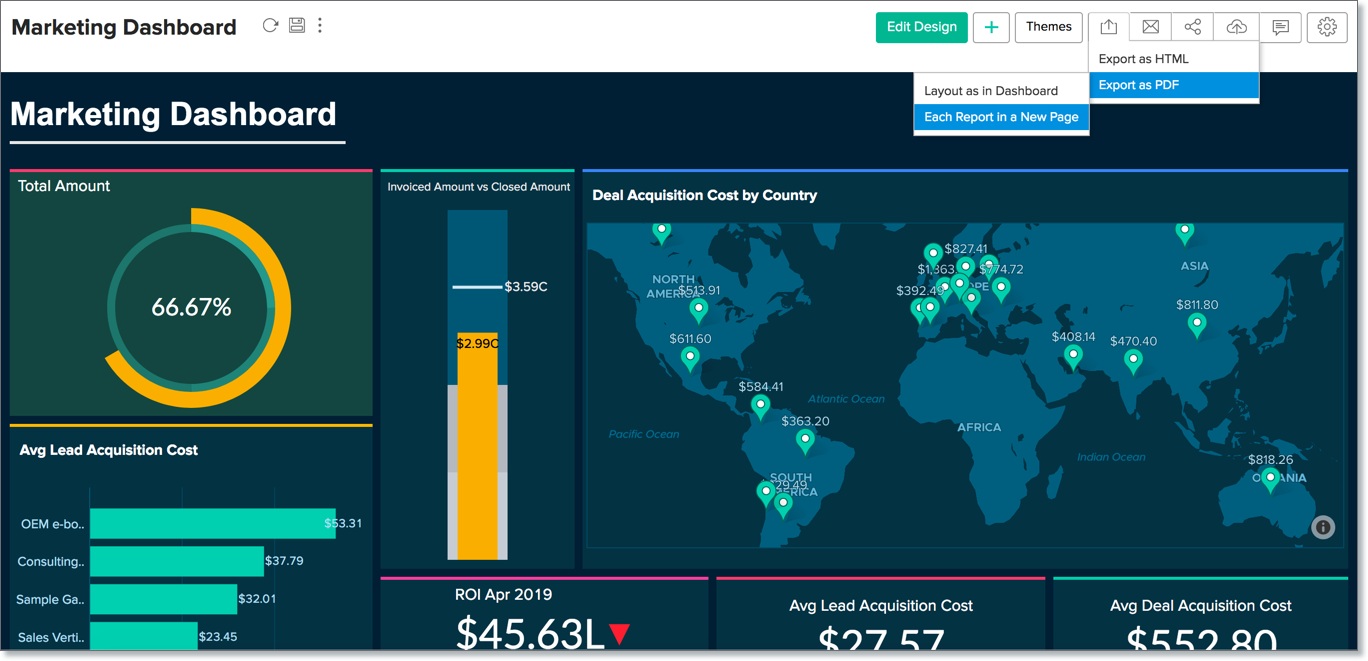

1. Click the  Export icon and then select Export as PDF > Each Report in a New Page.


2. This opens the Export as PDF: Settings page as shown below.

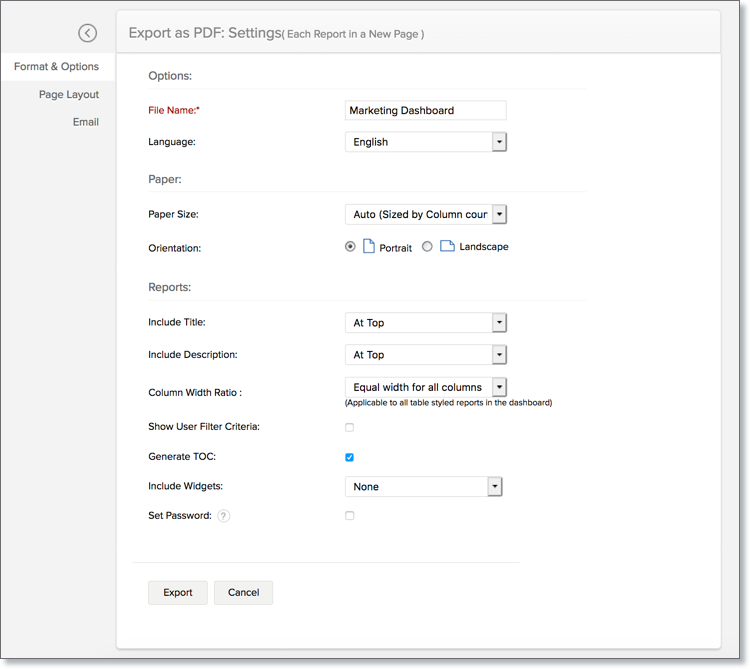

The Format and Options tab

This tab provides formatting options for the exported PDF.

• Specify the files name on the File Name field.
• Select the Language .
• Set the paper size on the Paper Size option, in the Paper section.
• Set the Orientation as Portrait or Landscape.
• Select required options to display title and description. The possible options to customize the layout of title and description are: At Top, At Bottom and None (without title or description correspondingly).
• Select Show User Filter Criteria option to add a label for user filter applied.
• Select Generate TOC checkbox to include a table of content of your dashboard in the exported PDF file.
• Specify how to add KPI widgets in the exported file. Available options are.

  • None - Select this to exclude the widget from the exported copy.
  • Each in a New Page - Display each widget in a new page.
  • Associate to Nearest Report - Display widget along with the nearest page.

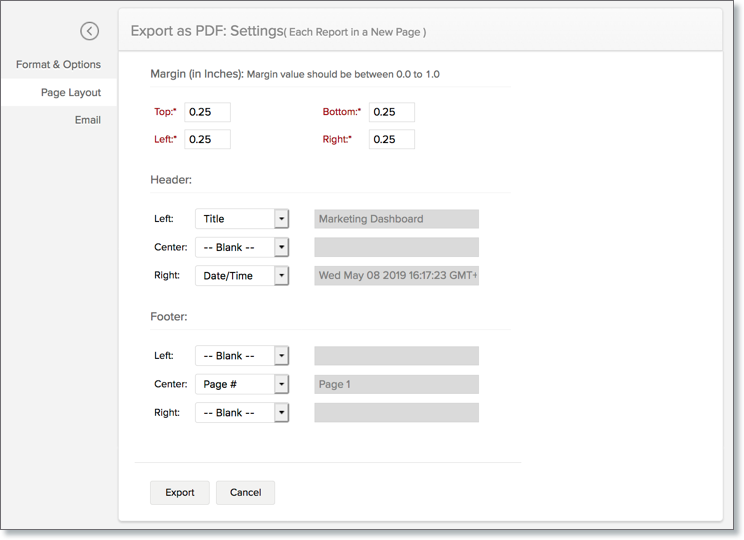

The Page Layout tab

This tab provides the page layout option.

1. Specify the Margin (in Inches). Margin value should be between 0.0 to 1.0
2. You can choose to add Header and Footer for this layout. There are three positions (Left, Right or Center) and you can choose to display one of the following in these positions.

   • Blank - Displays nothing in this position
   • Title - Displays the title of the file
   • Date Time - Displays the date and time of export
   • Page # - Displays the page number
   • Page # of # - Displays the page number out of total pages
   • Custom Text - Displays the custom text that is entered in the nearby field
   • Logo - Displays the logo
3. Click Export . Your dashboard will be exported into a PDF file with each report in a new page .

Export a Report

Apart from exporting the dashboard as a whole, Zoho Analytics also provides an option to export the individual reports in the dashboard.

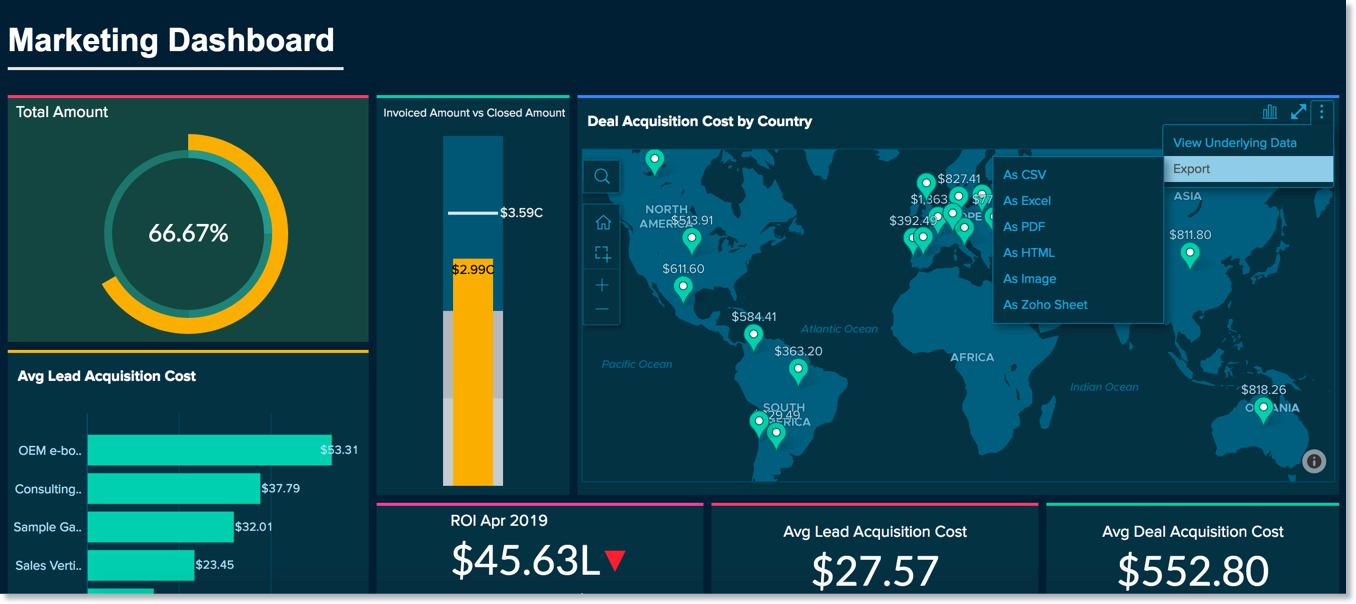

To export a report,

• In the  View Mode , select the  More  icon that appears on mouse over
• Select  Export  and choose the file type that you wish to export the report as.

Emailing Dashboard

Zoho Analytics allows you to e-mail your dashboard to your colleague and clients. You can also schedule emailing your dashboards.

To e-mail your dashboard follow the given steps:

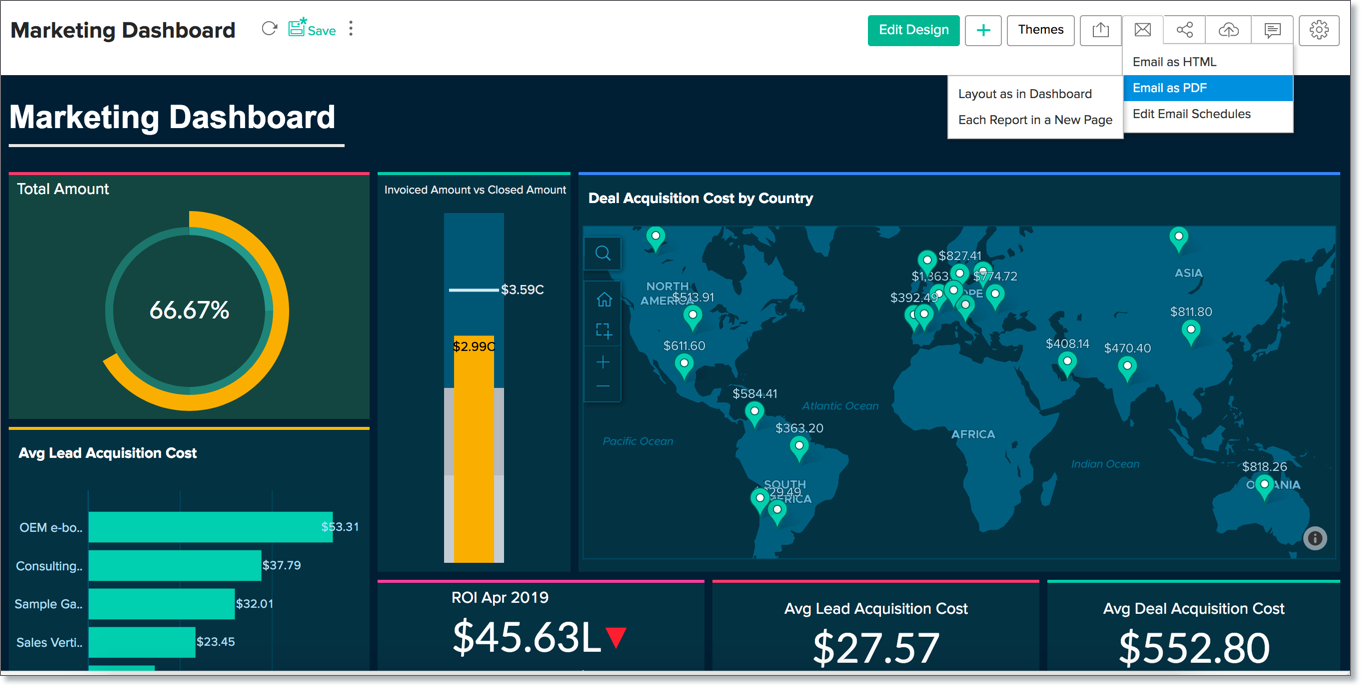

1. Click the E-mail icon and select one of the following options.

   • Email as HTML - Email the dashboard in HTML file format.
   • Email as PDF - Email the dashboard in Portable Document Format (PDF) file format.

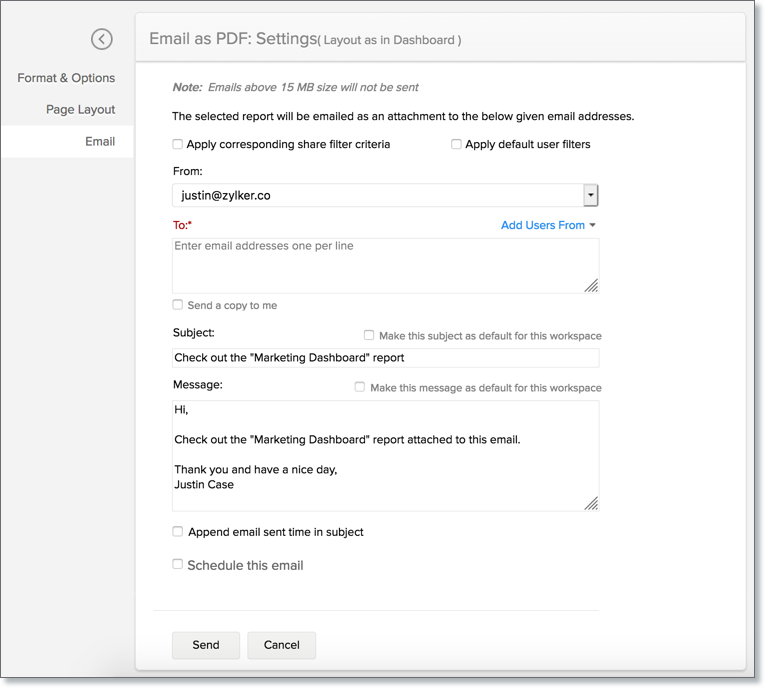

2. E-mail tab provides various options to specify users email addresses and to customize your message.


3. Specify the email addresses in the Enter E-Mail Addresses text box. You can enter the email addresses by typing them or by selecting from Zoho Contacts/Shared User list.
4. Customize your e-mail subject and message using the Subject box and the Message box respectively.
5. Specify whether the dashboard should be mailed As an in-line Message or As Attachment in the Mode. This option is available only for emailing as HTML file.
6. You can also schedule to send the exported copy at a recurring date and time using the Schedule this Email options.
7. Click Send t o send the report to the specified users.

Other settings will be similar to that on Exporting option. For details refer to the corresponding section in the Exporting Dashboard document.

Sharing your Dashboard

Zoho Analytics allows you to share your Dashboards to your Users and set permissions like Read, View Underlying Data, Drill Down, Export, and Share such that the shared users would be allowed to do only permitted actions when they access the shared dashboard.

Refer to the topic Sharing and Collaboration to know how to share your dashboard.

Publish your Dashboard

Zoho Analytics also allows you to embed the dashboards you create in a website, web application, blog or an intranet page.

Refer to the topic Publishing Options to know how to publish your dashboard.
