Create Custom Connector

 Note: This feature is only available in C6.
Custom Connectors are created to integrate with services that are not available as Zoho Creator's built-in connectors. You can configure your own connector for the desired service and create a connection. Learn more about Connectors.
Note: The existing version of PayPal, PayflowPro, and Payments Pro has been deprecated on 26th September, 2024 and none of the payment transactions will be processed after this date. To ensure uninterrupted payment processing, migrate to the latest versionLearn more

Navigate to "Create Custom Connector"

Perform the following actions to create the Custom Connector,

  1. Navigate to the Microservices tab.

  2. Click +Create New in the top-right corner.

  1. Choose Connection and click Pick & Create.

  1. Click the CUSTOM CONNECTOR category in the left pane.

  1. Click Create New Custom Connector.

NotesNote: Click here for other methods to create a custom connector.

  1. If you have previously created Custom Connectors, they will be displayed as cards on the Custom Connectors page. Click the +Create New icon in the top-right corner, and a builder will appear. Next, follow the steps given in the next section to create your own Custom Connector.

You can also establish a connection by clicking the Custom Connector cards. Learn More

Create Custom Connector

The following major configurations are necessary to create a Custom Connector:

    • General defines the basic information of your Custom Connector, such as Connector name, Connector link name, Description, and Logo.

    • Security defines the authentication settings of the Custom Connector, such as Authentication Type, Authentication Parameters, and Scopes.

    1. Continuing from the previous instructions, enter the Connector Name and Description for your Custom Connector.

    • Connector Name is the display name of the connector you want to create.

    Notes   Note:
    -Connector name can have only the following special characters * _ - @ / ! : | & ~ \ +  and cannot exceed 50 characters.
    -Connector name must start with a letter, a number, or an _ (underscore).

    • Description (Optional) is the text box which stores details or more information about the Custom Connector.

    Notes Note:  Description can have only the following special characters , . ( ) - _ * @ / \ ! : | ~ | & and cannot exceed 255 characters.

    1. Click Create Custom Connector. You will be directed to the General section of the Custom Connector builder.

    General - Update Basic Connector Details

    The General section consists of the basic details of the Connector.

    1. The Connector name, Connector link name, and Description will be auto-populated from the initial page. You can also edit them by clicking on the respective field.


    Notes   Note:
    -Connector link name must only start with a letter and cannot exceed 50 characters.
    -Connector link name must not contain any special characters except _ (underscore)

    1. Upload a logo for your Custom Connector.

      Note:

      -The image size must be less than 1MB.
      -Only PNG, JPG, and JPEG Image formats are supported.

    3. Click Save & Continue, and you will be directed to the Security section.



    Notes   Note :
      -There are two stages in creating a connector: Draft and Ready. The stage of the connector will be shown in the top-right corner.
      -Initially, the stage will be marked as Draft. You cannot create connections with the connector in the Draft stage.
      -Once you complete all the mandatory authentication details, you can mark it ready by clicking Mark as Ready.
      -If a connector is marked as ready, it cannot be reversed back to the Draft stage.


    Security - Specify Authentication Details

    The security section enables you to set authentication based on your requirement. The list of supported Authentication Types and their details are specified in the table below. Choose the required authentication type for your application and click Save & Continue as shown.


    Authentication Type

    Description

    Fields

    Basic

    This requires you to specify the keys as mentioned in the target services API docs. These connector configurations will be prompted during the connection authorization phase, where you need to key in the values for the parameters (username and password). They will be automatically encrypted with the base64 algorithm and passed as a header in the format: basic <encrypted_value>


    Parameter Name: Display name of the field, which will be prompted when you authorize a connection.
    Notes
    Note:
    • Parameter Name can have only the following special characters * _ - @ / ! : | & ~ \ +

    • Parameter Name can only start with a letter or a number.

    Parameter Key: API key as specified in the target services  API  documentation against which the parameter value needs to be sent. This Key will be prompted to the user with the mentioned  Parameter Name during connection authorization.

    API Key


    This allows you to connect with third-party  APIs by authenticating with an API key. It acts as a unique identifier for authentication purposes.



    Parameter Name: Display name of the parameter. This name will be prompted when you authorize a connection.
    Notes
    Note:
    • Parameter Name can have only the following special characters * _ - @ / ! : | & ~ \ +

    • Parameter Name can only start with a letter or a number.

    Parameter Key: Key (as specified in the API documentation of the desired service) against which the parameter value needs to be sent.

    NotesNote: The Parameters Key is a placeholder value and will be prompted with the given Parameter Name to the user during the connection authorization.


    Parameter Location: Decides how the authentication parameters will be sent along with the URLs specified in the invoke URL script. Supported parameter types are  Query StringForm Data, and Header.

    OAuth1
    OAuth 1.0 protocol enables Creator applications to access third-party resources through an API without disclosing the user’s credentials. Once the user grants the authorization, the Creator application can use an access token provided by the third-party service to access the user's resources. OAuth1 is efficient only for connecting with web-based applications. It uses cryptographic signatures and temporary tokens to secure the connection.
    Consumer Key: A unique identifier for a third-party application in OAuth1, used to identify the application in requests made to the service provider. It should be kept confidential by the application.
    Notes
    Note:
    1. Consumer Key can only have alphanumeric characters and the following special characters, “ # $ % & ‘ ( ) * + , - . / : ; < = > ? @ [ \ ] ^ _ { | } ` ~ including single blank space.
    2. Consumer Key cannot have languages other than English.
    Consumer Secret: A secret key associated with a consumer key in OAuth1, used to sign requests made by a third-party application to the service provider.
    Notes
    Note:
    1. Consumer Secret can only have alphanumeric characters and the following special characters, “ # $ % & ‘ ( ) * + , - . / : ; < = > ? @ [ \ ] ^ _ { | } ` ~ including single blank space.
    2. Consumer Secret cannot have languages other than English.
    Authorization URL: URL as specified in the API documentation of the desired service to get authorization for application access.

    Token URL: URL to fetch the access token in exchange for an request token as specified in the API documentation of the desired service.

    Request Token URL: URL to obtain request token, used to initiate the authorization process between the application and the third-party service.

    Revoke Token URL: URL to revoke specified OAuth1 access or refresh token. A revoke token request causes the removal of the client permissions associated with the specified token.
    Notes
    Note:
    1. The URL should be in a standard format with protocol(http/https), a host name ( www.zylker.com) and a file name (index).
      Example:
      https://www.zylker.com/index
    2. OAuth1 has the ability to handle call back automatically after the user grants authorization. This allows the authorization server to redirect the user back to the Creator application with an authorization code or access token that the application can use to access the protected resource.

    OAuth2



    Authentication-OAuth2
    OAuth 2.0 is an authorization protocol that gives limited access to user data on a web server. An OAuth 2.0 server issues an access token that the Creator applications can use to access protected resources on behalf of the resource owner. OAuth2 consists of scopes that allow Creator applications to request specific permissions from the user and are more compatible with both web and non-web-based applications.



    Grant type: Refers the way to access the protected resources from the target server. The supported grant types are,
    1. Authorization Code
    2. Authorization Code With PKCE
    3. Client Credentials
    Notes
    Note:
    1. Authorization parameters for all grant types are transmitted in the header.
    2. The Client Secret parameter is not necessary for connectors using the Authorization Code With PKCE as their grant type.


    Client ID: Client ID that is issued by the service provider.

    Notes
    Note:
    1. Client ID can only have alphanumeric characters and the following special characters, “ # $ % & ‘ ( ) * + , - . / : ; < = > ? @ [ \ ] ^ _ { | } ` ~ including single blank space.
    2. Client ID cannot have languages other than English.
    Client Secret: Your client secret to authorize your
    application.
    Notes
    Note:
    • Client secret can only have alphanumeric characters and the following special characters, “ # $ % & ‘ ( ) * + , - . / : ; < = > ? @ [ \ ] ^ _ { | } ` ~ including single blank space.

    • Client secret cannot have languages other than English.

    Client Authentication: Specifies how the client's credentials (Client ID and Client Secret) are sent to the authorization server to prove its identity during the token request process.

    • Include in the form data (Default)

      • Adds credentials to the form data submitted in the request body.

    • Include in authorization header

      • Places credentials in the request's security header using HTTP basic auth.

    NotesNote:
    • Client Authentication improves compatibility with different API authentication expectations and reduces potential misconfigurations.

    • If no method is explicitly selected, it defaults to sending credentials via form data. However, based on the API's requirements, the method can be altered from the default.


    Token URL: URL to fetch the access token as specified in the API documentation of the desired service.

    NotesNote:  The Request Token URL and Revoke Token URL fields specified below are applicable only when the Grant Type is selected as Authorization code.

    Revoke Token URL: URL to revoke specified OAuth2 access or refresh token. A revoke token request causes the removal of the client permissions associated with the specified token.



    Refresh Token URL: URL to access new access tokens when the current access token becomes invalid or expires.
    NotesNote: The URL should be in a standard format withthe protocol(http), a hostname ( www.zylker.com), and a file name(index). E.g. http://www.zylker.com/index.


    Advanced Parameters




    Bearer Name: Text that acts as a prefix in the authentication header for the API request.



    Expiry Time: Time (in seconds) at which the access token expires. The default expiry time will be 3600 seconds.
    Notes
    Note:
    • The Bearer Name can only be of alphanumeric values.

    • The Expiry Time can only have numeric values.

    • The Expiry Time cannot be less than 15 minutes or more than 24 hours.


    OAuth Scopes (Optional) - This limits the level of access given to the user via access token.



    Scope Display Name: The display name of the third-party Scope.

    Notes
    Note:
    1. Scope Display Name can have only the following special characters * _ - @ / ! : | & ~ \ +
    2. Scope Display Name can only start with a letter or a number.
    3. Only a maximum of 50 scopes can be added.
    Scope Value: The level of access that you are requesting for the third-party service.


    Scope Delimiter: Delimiter with which the desired service API expects the scopes to be separated.

    NotesNote: The default Scope Delimiter will be Comma.

    Bearer Token

    This authentication type allows connecting to third-party APIs by authenticating with a secure bearer token.

    Parameter Location: Specify how you want to pass your parameters in the request. This field is preselected as "Header".

    Parameter Name: Configure the display name of the parameter. This name will be prompted when you authorize a connection. This field is prefilled as "Bearer Token" and can be customized.
    NotesNote: Parameter Name can only
    • Have only the following special characters * _ - @ / ! : | & ~ \ +

    • Start with a letter or a number.

    Parameter Key: Specify the technical key used when communicating with the external system. This field is set to "Authorization" by default and cannot be edited.

    Token Prefix: Defines the prefix attached to the token for authentication. The prefix is included when sending the token as part of the request.
    AWS
    This authentication type allows connecting to AWS services using Signature Version 4 authentication.
    AWS Service Name: Specify the AWS service to which the request should be sent. The name must match the exact service name as specified in the AWS API documentation.

    AWS Region: Define the AWS region where the requested service will be hosted. The region must be provided in the format supported by AWS (e.g., us-east-1, eu-west-2).



    The configuration part will differ based on the authentication type selected for creating a custom connector,
    1. Basic and API Key authentication
    2. OAuth1 authentication
    3. OAuth2 authentication
    4. Bearer Token
    5. AWS

    Steps for Configuring the Basic and API Key Authentication

    Notes Note: The following steps are similar for both API key and Basic authentication types. Only the Authentication parameter fields change, hence we have considered API Key as an example.
    1. Once you select Authentication Type, enter the authentication parameter and click Save. Here we have shown Open Weather as an example.


    2. You can also change the Authentication Type by clicking the edit icon, as shown below.


      Note: Authentication Type can only be changed when the connector is in the Draft stage, losing all connector configurations. Once the connector is marked ready, you cannot change the Authentication type.

    3. Once you complete entering the authentication details, mark the connector as ready.


    4. Once you complete entering the authentication details, mark the connector as ready.

      The stage has been changed from Draft to Ready.

    1. Once marked Ready, You will be able to add connection using the Add Connection button.

    Steps for Configuring the OAuth1 Authentication

    1. Enter the Authentication Parameters as mentioned in the target services API documentation and click Save. Here, we have shown Trello as an example.


    2. Mark the connector as ready, and you will be able to add connections by clicking the Add Connections button.

    Steps for Configuring the OAuth2 Authentication

    1. Specify the Authentication Parameters and Advanced Parameter as shown. Here, we have shown Dropbox
      as an example.


      Note: The Request Token URL and Revoke Token URL fields will be shown only when the Grant Type is selected as Authorization Code.

    2. For Advanced Parameter, the values in the fields are defaulted as Bearer for Bearer Name and 3600 for Expiry Time. You can modify these values if required.
      Note:
      -The Bearer Name can only be of alphanumeric values.
      -The Expiry Time can only have numeric values.
      -The Expiry Time cannot be less than 15 minutes or more than 24 hours.

    3. Click Save & Continue. Mark the connector as ready to use it in connection. You can also add optional scopes before marking as ready. Refer to the steps in the next section to know more.
    Note:
    - Once the connector is marked ready, the Authentication Parameters cannot be edited.
    - The specified Authentication parameters will be prompted during connection authorization. Based on the authentication type used, there will be a difference in connection authorization for Custom Connectors .

    Add OAuth Scopes (Applicable only for OAuth2 - Optional)
    Notes Note: We strongly recommend adding scopes to your OAuth connector, even though scopes in OAuth2 are optional.
    1. After saving the Authentication Parameters in OAuth2You will be directed to the OAuth Scopes section, or you can also navigate by clicking OAuth Scopes from the left pane.

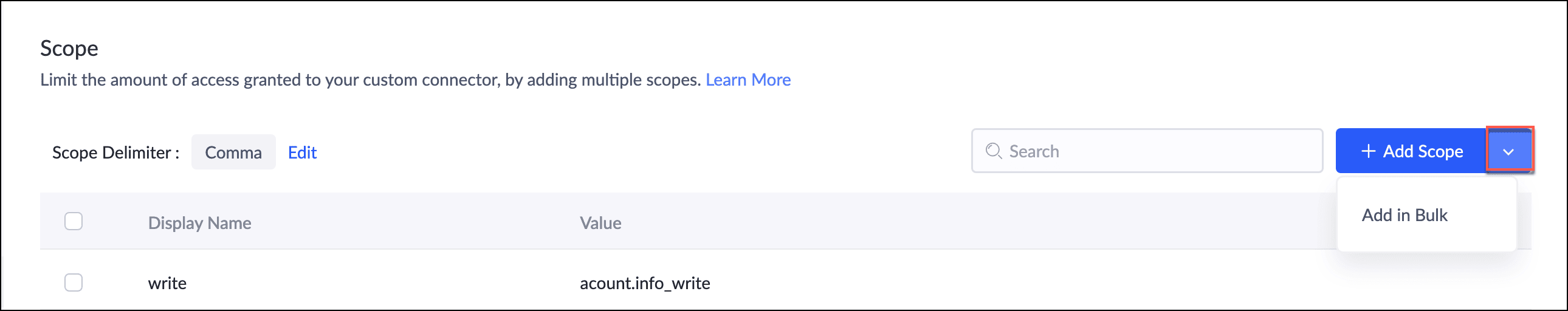

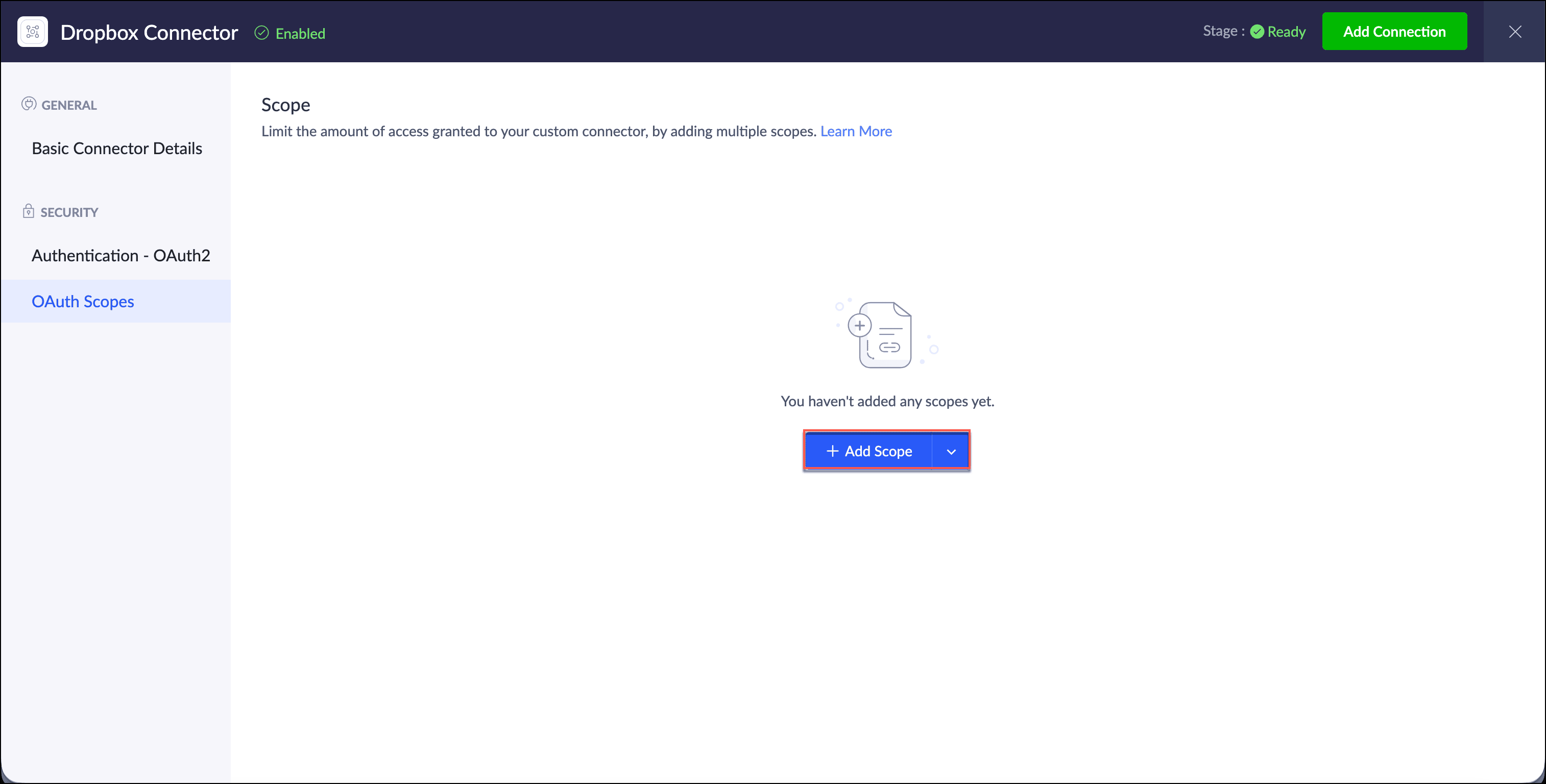

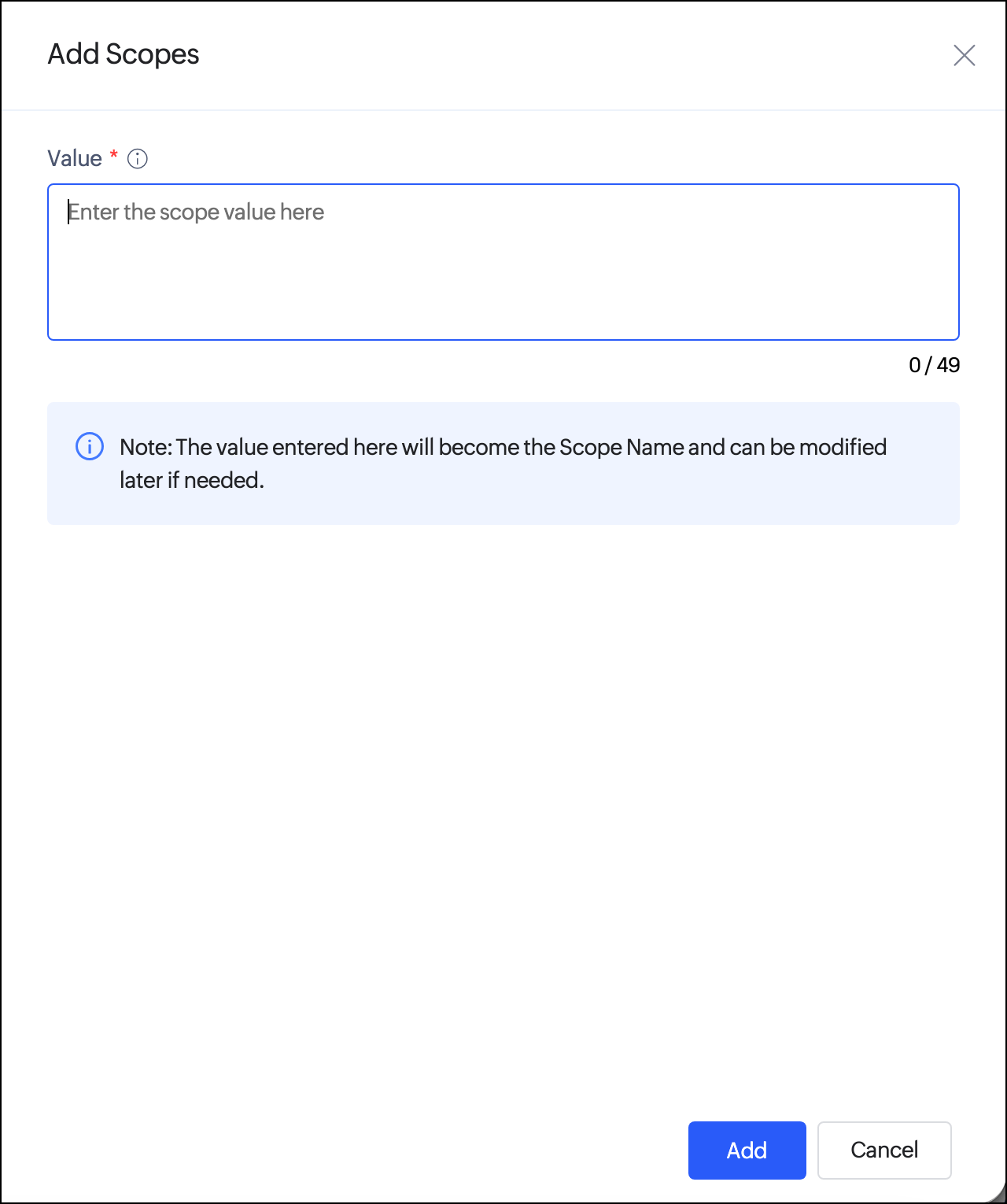

    1. On the next page, click +Add Scope.

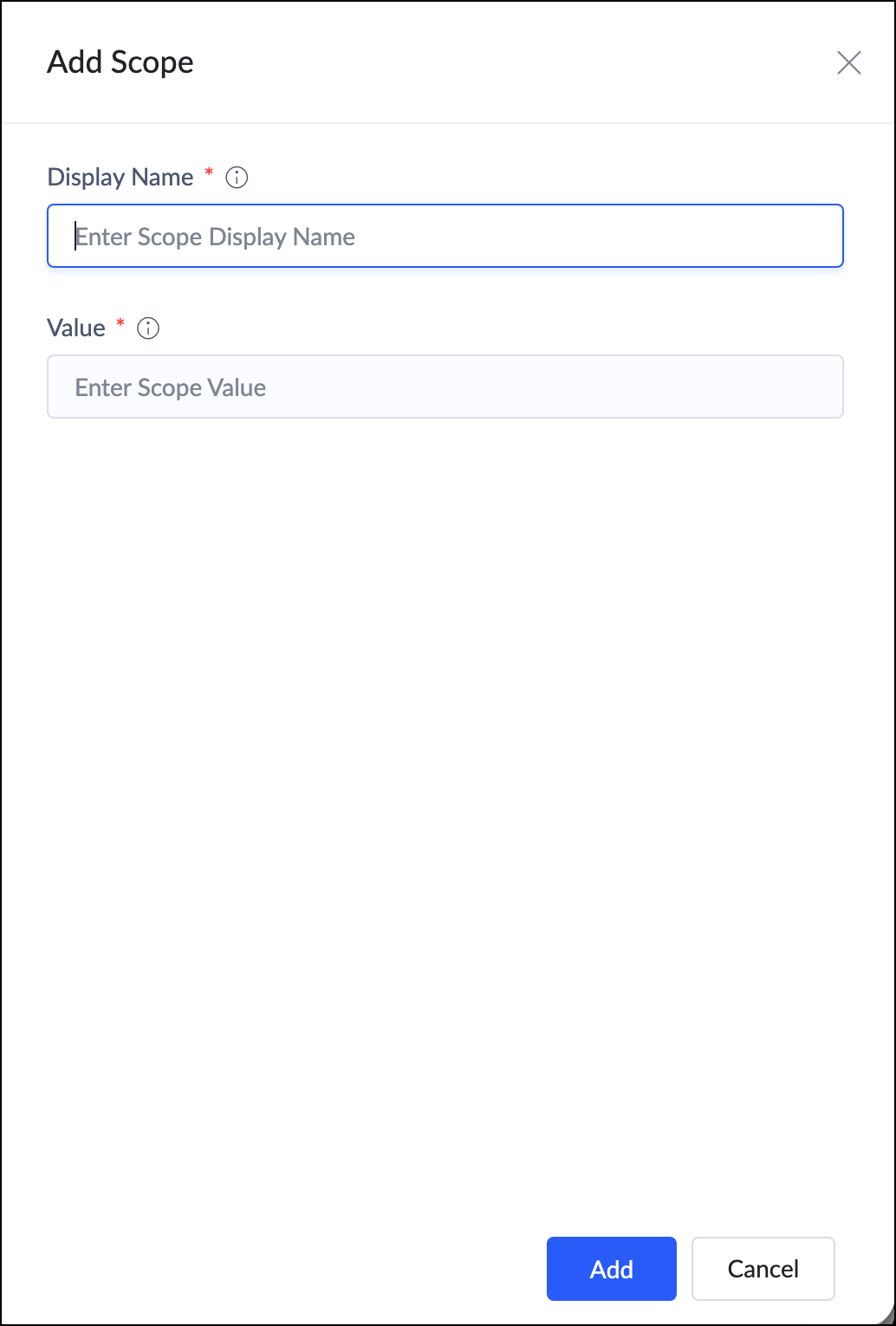

    1. Fill in the Scope Name and Scope Value. Click Add. Here we considered adding the scopes of Dropbox.

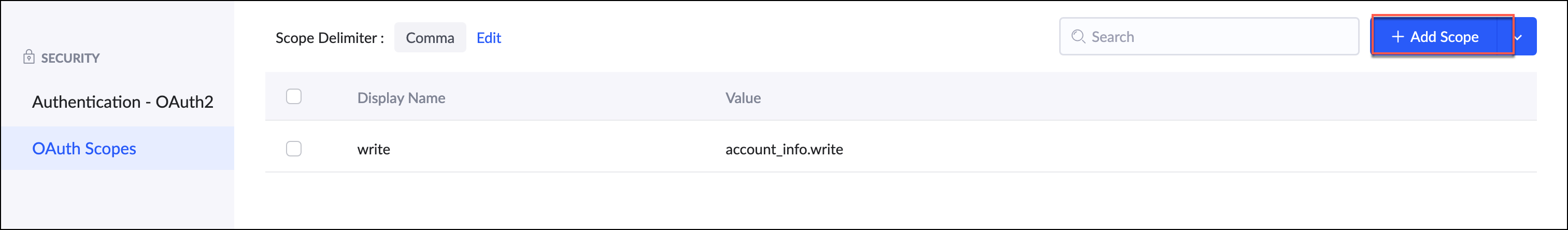

    1. Click the Add New button to add more scopes.

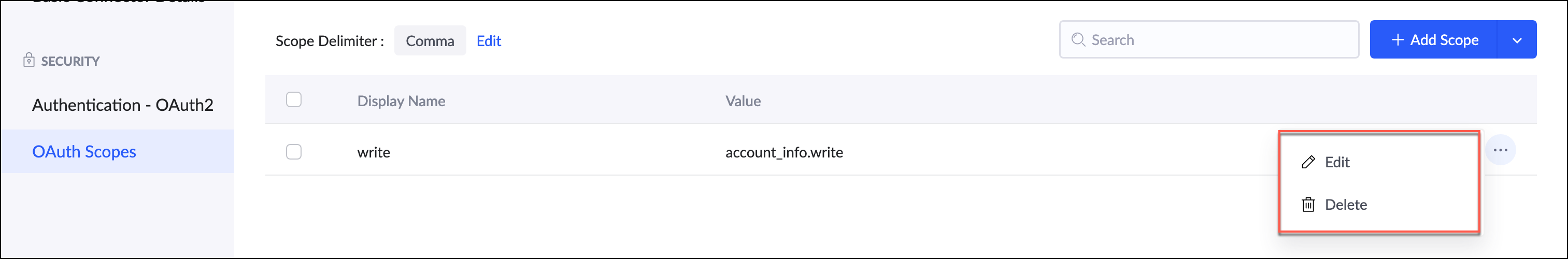

    1. Click the three horizontal ellipsis to Edit or Delete a specific scope record in the table.

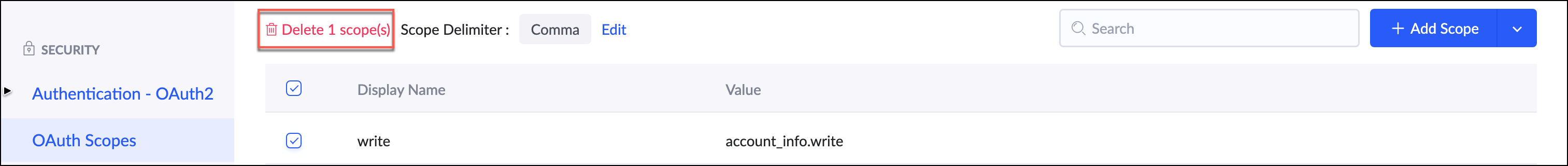

    1. If you want to delete multiple scopes, mark it by checking in the checkbox and click Delete, as shown below.



    You can search for the specific scope by entering the scope name or scope value on the Search tab.

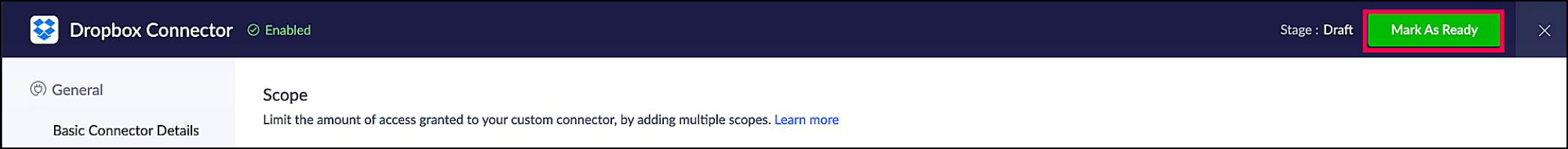

    1. Click the Mark as Ready button. The stage will be changed from Draft to Ready.

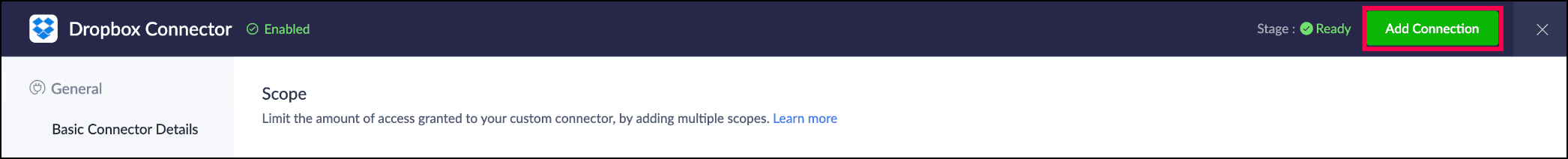

    2. Once the connector is marked Ready, You can add connection using Add Connections.

    Notes   Note:
     -You cannot edit or delete scopes once you have added connections with the Custom Connector .
     -Connections using Custom Connectors should be invoked using Deluge invoke URL task, mentioning the respective action API for any specific scenario/workflow.

    Steps for configuring Bearer Token Authentication

    Once you select Bearer Token as the Authentication Type, you'll be taken to a screen where you can configure the authentication parameters.
    1. The Parameter Location is automatically set to Header and is non-editable. This determines that the token will be passed in the request header.
    2. The Parameter Key is pre-filled as Authorization and cannot be changed.
    3. The Parameter Name is pre-filled as Bearer Token. You can edit this to a custom name if required.
    4. Enter the Token Prefix (e.g., “Bearer”) if needed.
    5. After making changes, click Save to confirm your authentication settings.
    6. Mark the connector as Ready to change the stage from Draft to Ready. This will enable the Add Connection button.
    7. Click Add Connection to proceed.
    8. Enter a Name for the connection, select the appropriate Connection Authorization Level.
    9. Enter the Bearer Token obtained from the third-party service to complete the authorization.
    Note: The parameter name set during connector creation will be displayed as the field name here. By default, it is "Bearer Token."

    Steps for configuring AWS Authentication

    Once you select AWS as the Authentication Type, you'll be prompted to configure the Authentication Parameters.
    1. Enter the AWS Service Name and AWS Region values.
    2. Click Save to apply these authentication settings.
    3. Mark the connector as Ready to change its stage from Draft to Ready. This will enable the Add Connection button.
    4. Click Add Connection to proceed.
    5. Enter the AWS Access Key and AWS Secret Key obtained from the AWS service to complete the authorization.
    Note: Make sure you have the correct credentials from your AWS account before proceeding.

    Different ways to navigate to "Create New Custom Connector"

    From Manage Custom Connector page

    1. Navigate to the Microservices page and scroll down to reach the Connections section.


    2. If you have three or less connections, click Manage Custom Connectors that appears across the Connections section.


    3.  i) If you have more than three connections, click View More. A list of all the connections in your account will appear.

    Note: Alternately, you can navigate to the Connections tab on the top to view the whole list of connection.



        ii) Click Manage Custom Connectors.




    4. Click +Create Custom Connector.


    5. If you find the Custom Connectors listed as cards, click the +Create New icon in the top-right corner to create a Custom Connector.


    6. Follow the steps given in Creating your own Custom Connector section to build your own Custom Connector.

    From Built-in Connectors Category in Add Connections page

    1. Navigate to the Microservices tab and click +Create New in the top-right corner.


    1. Choose Connection and click Pick & Create.

    2. Scroll down to the end of the Built-in Connectors page and click +Create Custom Connector.

    Notes Note: You can use the search tab to search for the desired connector. If the connector is not present in the Built-in Connectors list, you will be prompted with the +Create Custom Connector link. You can also click this link to create a new Custom Connector.

    1. Follow the steps given in the Creating your own Custom Connector section to build your own Custom Connector.

    Related Topics

    1. Understand Connectors
    2. Manage Custom Connectors
    3. Understand Connections
    4. Create and Authorize Connections

        Create. Review. Publish.

        Write, edit, collaborate on, and publish documents to different content management platforms.

        Get Started Now


          Access your files securely from anywhere

            Zoho CRM Training Programs

            Learn how to use the best tools for sales force automation and better customer engagement from Zoho's implementation specialists.

            Zoho CRM Training
              Redefine the way you work
              with Zoho Workplace

                Zoho DataPrep Personalized Demo

                If you'd like a personalized walk-through of our data preparation tool, please request a demo and we'll be happy to show you how to get the best out of Zoho DataPrep.

                Zoho CRM Training

                  Create, share, and deliver

                  beautiful slides from anywhere.

                  Get Started Now


                    Zoho Sign now offers specialized one-on-one training for both administrators and developers.

                    BOOK A SESSION







                                Quick LinksWorkflow AutomationData Collection
                                Web FormsEnterpriseOnline Data Collection Tool
                                Embeddable FormsBankingBegin Data Collection
                                Interactive FormsWorkplaceData Collection App
                                CRM FormsCustomer ServiceAccessible Forms
                                Digital FormsMarketingForms for Small Business
                                HTML FormsEducationForms for Enterprise
                                Contact FormsE-commerceForms for any business
                                Lead Generation FormsHealthcareForms for Startups
                                Wordpress FormsCustomer onboardingForms for Small Business
                                No Code FormsConstructionRSVP tool for holidays
                                Free FormsTravelFeatures for Order Forms
                                Prefill FormsNon-Profit
                                Intake FormsLegalMobile App
                                Form DesignerHRMobile Forms
                                Card FormsFoodOffline Forms
                                Assign FormsPhotographyMobile Forms Features
                                Translate FormsReal EstateKiosk in Mobile Forms
                                Electronic Forms
                                Drag & drop form builder

                                Notification Emails for FormsAlternativesSecurity & Compliance
                                Holiday FormsGoogle Forms alternative GDPR
                                Form to PDFJotform alternativeHIPAA Forms
                                Email FormsEncrypted Forms

                                Secure Forms

                                WCAG

                                        Create. Review. Publish.

                                        Write, edit, collaborate on, and publish documents to different content management platforms.

                                        Get Started Now






                                                          You are currently viewing the help pages of Qntrl’s earlier version. Click here to view our latest version—Qntrl 3.0's help articles.




                                                              Manage your brands on social media

                                                                Use cases

                                                                Make the most of Zoho Desk with the use cases.




                                                                eBooks

                                                                Download free eBooks and access a range of topics to get deeper insight on successfully using Zoho Desk.




                                                                Videos

                                                                Watch comprehensive videos on features and other important topics that will help you master Zoho Desk.




                                                                Webinar

                                                                Sign up for our webinars and learn the Zoho Desk basics, from customization to automation and more



                                                                • Desk Community Learning Series


                                                                • Meetups


                                                                • Ask the Experts


                                                                • Kbase


                                                                • Resources


                                                                • Glossary


                                                                • Desk Marketplace


                                                                • MVP Corner

                                                                  Zoho Sheet Resources



                                                                      Zoho Forms Resources


                                                                        Secure your business
                                                                        communication with Zoho Mail


                                                                        Mail on the move with
                                                                        Zoho Mail mobile application

                                                                          Stay on top of your schedule
                                                                          at all times


                                                                          Carry your calendar with you
                                                                          Anytime, anywhere




                                                                                Zoho Sign Resources

                                                                                  Sign, Paperless!

                                                                                  Sign and send business documents on the go!

                                                                                  Get Started Now




                                                                                          Zoho TeamInbox Resources





                                                                                                    Zoho DataPrep Demo

                                                                                                    Get a personalized demo or POC

                                                                                                    REGISTER NOW


                                                                                                      Design. Discuss. Deliver.

                                                                                                      Create visually engaging stories with Zoho Show.

                                                                                                      Get Started Now









                                                                                                                          • Related Articles

                                                                                                                          • Custom API status codes

                                                                                                                            The success or failure of a custom API request is conveyed by the code and message in its response. The following table lists all the codes corresponding to Zoho Creator's custom APIs. HTTP Status Code HTTP Status Code Message Description 403 ...
                                                                                                                          • Display custom action button for specific records

                                                                                                                            Requirement   The custom action button in a report should be visible only for certain records, based on a condition. Use Case   An asset request app lets employees raise requests for gadgets or machines. While filling the form, employees can specify ...
                                                                                                                          • Create Custom Layout

                                                                                                                            This page is relevant to list type report only. To create a custom layout for quick view: Navigate to the Design page of report. Select Quick View tab. Click Custom Layout. The Build your Layout window will appear. Click From Scratch. Select Text ...
                                                                                                                          • Custom access permissions for app users

                                                                                                                            Requirement Create custom permissions for an application and assign them to relevant users. Use case In a human resources management application, users need to be assigned with different access levels, based on their designation. For example, ...
                                                                                                                          • Disable Custom Actions after n times

                                                                                                                            Requirement  A custom action on a report has to be disabled after it is triggered three times. Use Case  We have an app to maintain customer invoices. After an invoice is created, the staff can email the invoice to the customer with the click of a ...
                                                                                                                            Wherever you are is as good as
                                                                                                                            your workplace

                                                                                                                              Resources

                                                                                                                              Videos

                                                                                                                              Watch comprehensive videos on features and other important topics that will help you master Zoho CRM.



                                                                                                                              eBooks

                                                                                                                              Download free eBooks and access a range of topics to get deeper insight on successfully using Zoho CRM.



                                                                                                                              Webinars

                                                                                                                              Sign up for our webinars and learn the Zoho CRM basics, from customization to sales force automation and more.



                                                                                                                              CRM Tips

                                                                                                                              Make the most of Zoho CRM with these useful tips.



                                                                                                                                Zoho Show Resources
