This page is applicable to all report types except pivot chart and pivot table.

1. Single Upload – Displays one image per record.
2. Multiple Upload – Displays uploaded images in a gallery or grid view.


When the image field is configured in Multiple Upload mode, admins can also define the maximum number of images allowed per record in the form properties.

Note: In reports:

1.
   Carousel view is supported only in the Canvas layout. In all other multi-image-supported layouts—except image layout, Canvas layout, and custom quick view layout—the grid view will be displayed by default.

2. Bulk image export is not supported in all formats.


Select the Image field in the fields section to define properties specific to it.

The following steps will help you define the dimensions that the field values will appear in.

To set properties of image field:

1. Navigate to the Design page.

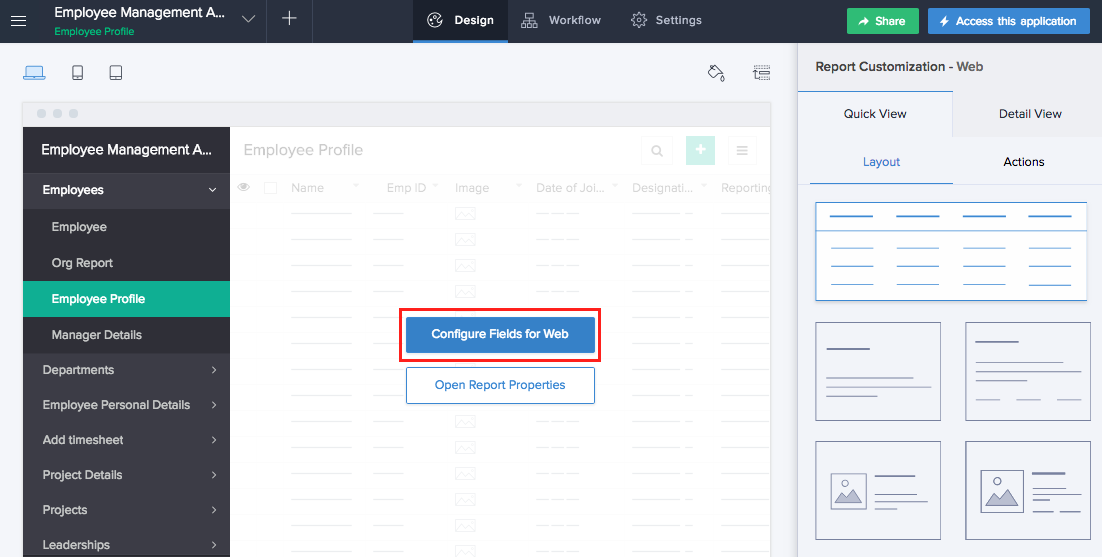

2. Click the Configure Fields button. The Configure Fields will appear.

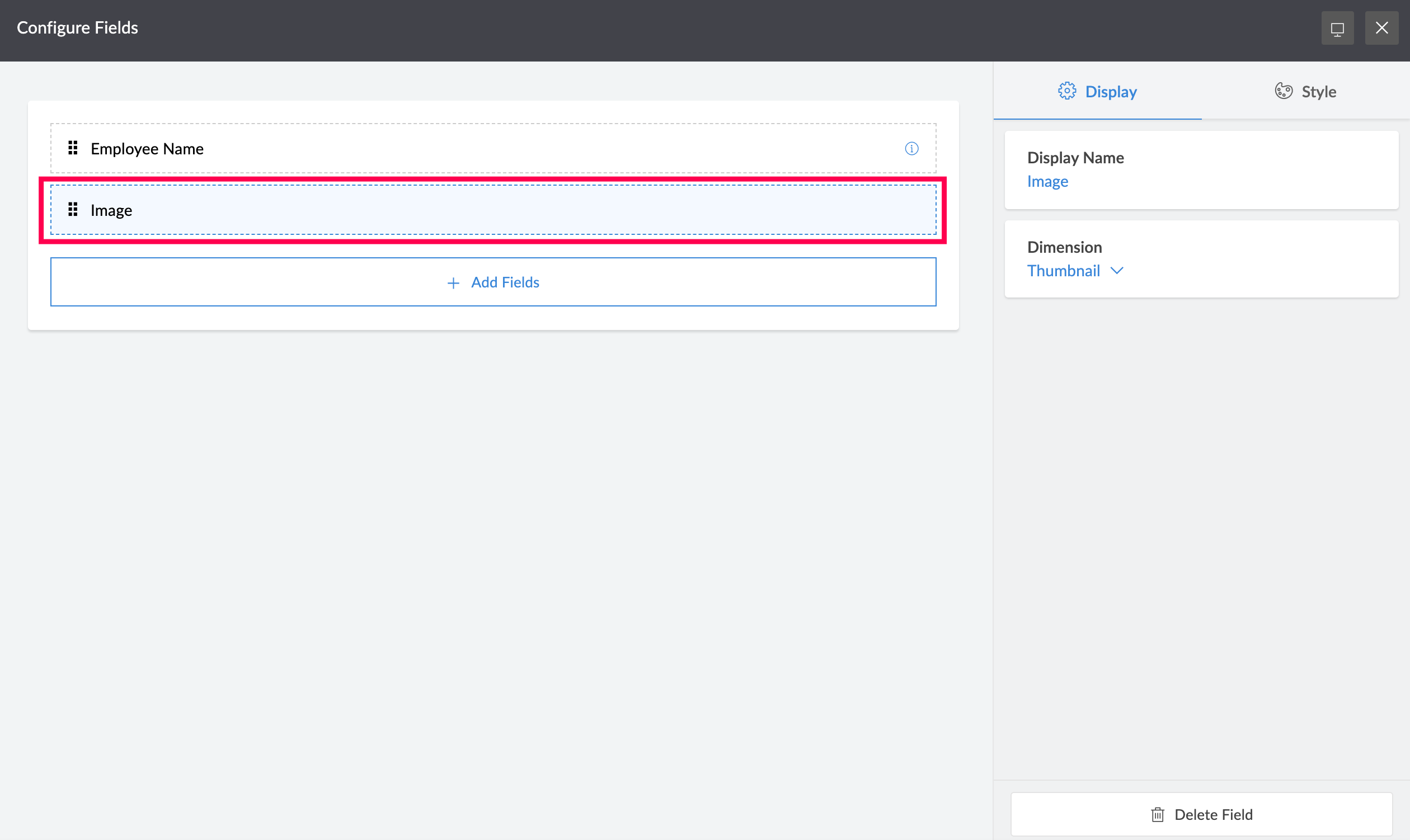

3. Select the photo field.


4. Select Dimension.

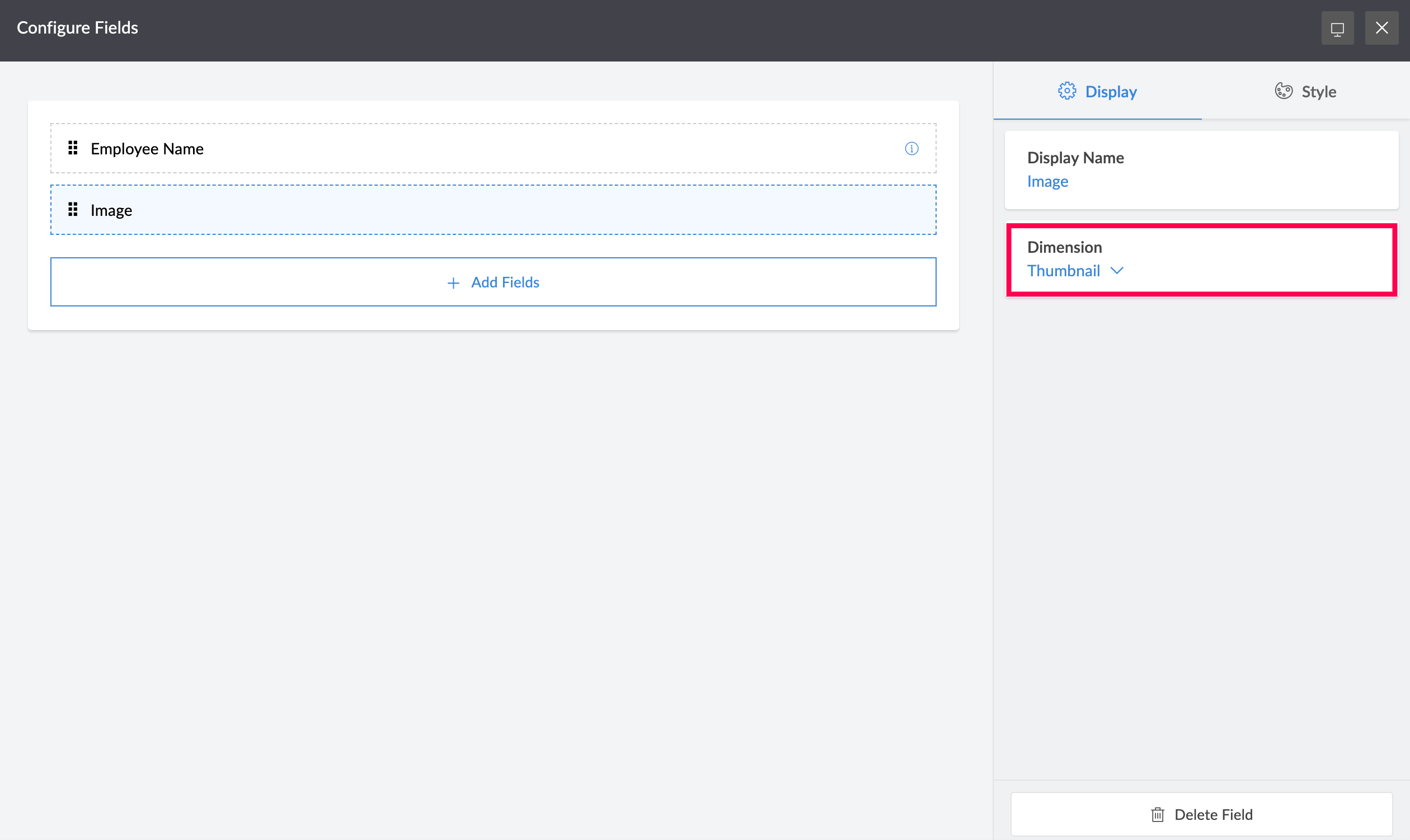

5. Set the dimension to Thumbnail, ActualSize, or Custom. Actual Size will retain the dimensions of the image as such and Custom option will enable you to specify the width and height.


6. Click Close icon to go back to the preview.



Upon accessing application, you will find that the changes are reflected in the report.
