How to display images dynamically on a subform row based on the lookup field selection

The images stored in a form can be retrieved and displayed dynamically within subforms. When users select a record from a lookup field in a subform row, relevant images associated with that record can appear in a designated rich text field within the same row. This functionality enhances the user experience by providing a visual reference for each selection, ensuring that users can quickly identify items without needing to navigate to separate views or records.
This can be useful in the cases of order management where the user can place an order by selecting the preferred product from the lookup field. The relevant image will be shown in the rich text field of the same row.
In this tutorial, we'll focus on creating two forms, Store Images and Display Images. The Store Images form will include an image field to store images and a single-line field to record a reference name for each image. The Display Images form will have a subform containing a lookup field to select a reference name from the Store Images form. Based on this lookup selection, the corresponding image will be displayed dynamically within the subform.
Notes
Note: The report from the Store Images form will be published to obtain an encrypted key. This key will be used within a function to facilitate image previewing.
  1. Create forms with the following details to display image dynamically on a subform row based on the lookup field selection.

    Form

    Form Link Name

    Field Type

    Field Name

    Field Link Name

    Store Image

    Store_Image

    Single Line

    Reference Name

    Reference_Name




    Display Images

    Display_Images

    Subform

    • Lookup(Store Image)

    • Rich Text



    Subform

    • Image Reference Name

    • Image Preview

    Subform

    • Image_Reference_Name

    • Image_Preview

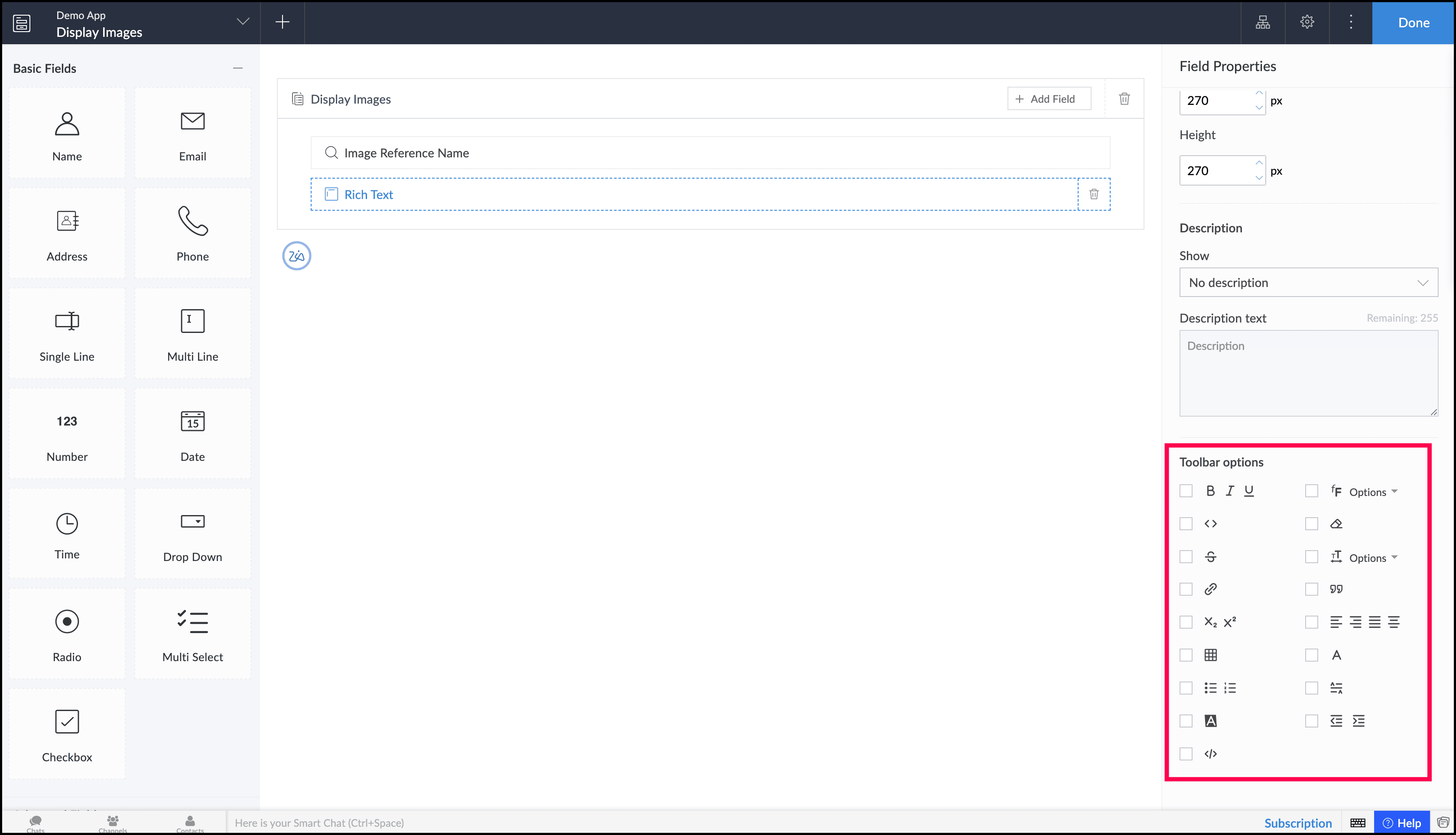

    1. NotesNote: Uncheck all toolbar options in the field properties of the rich text field to hide its toolbar when accessed by the user.

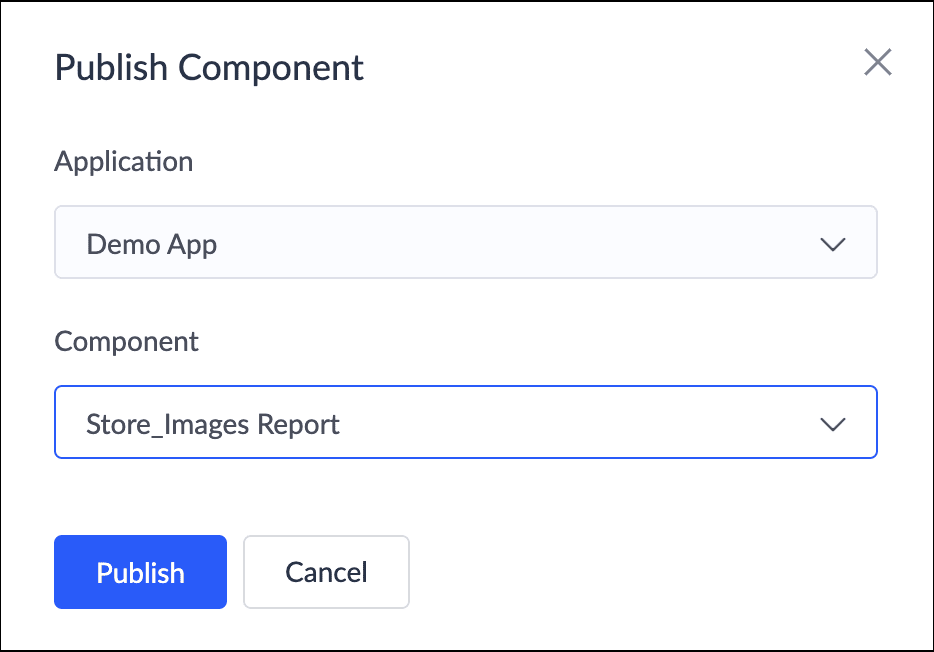

  2. Publish the report of the Store Images form. In our case, it will be Store Images Report.

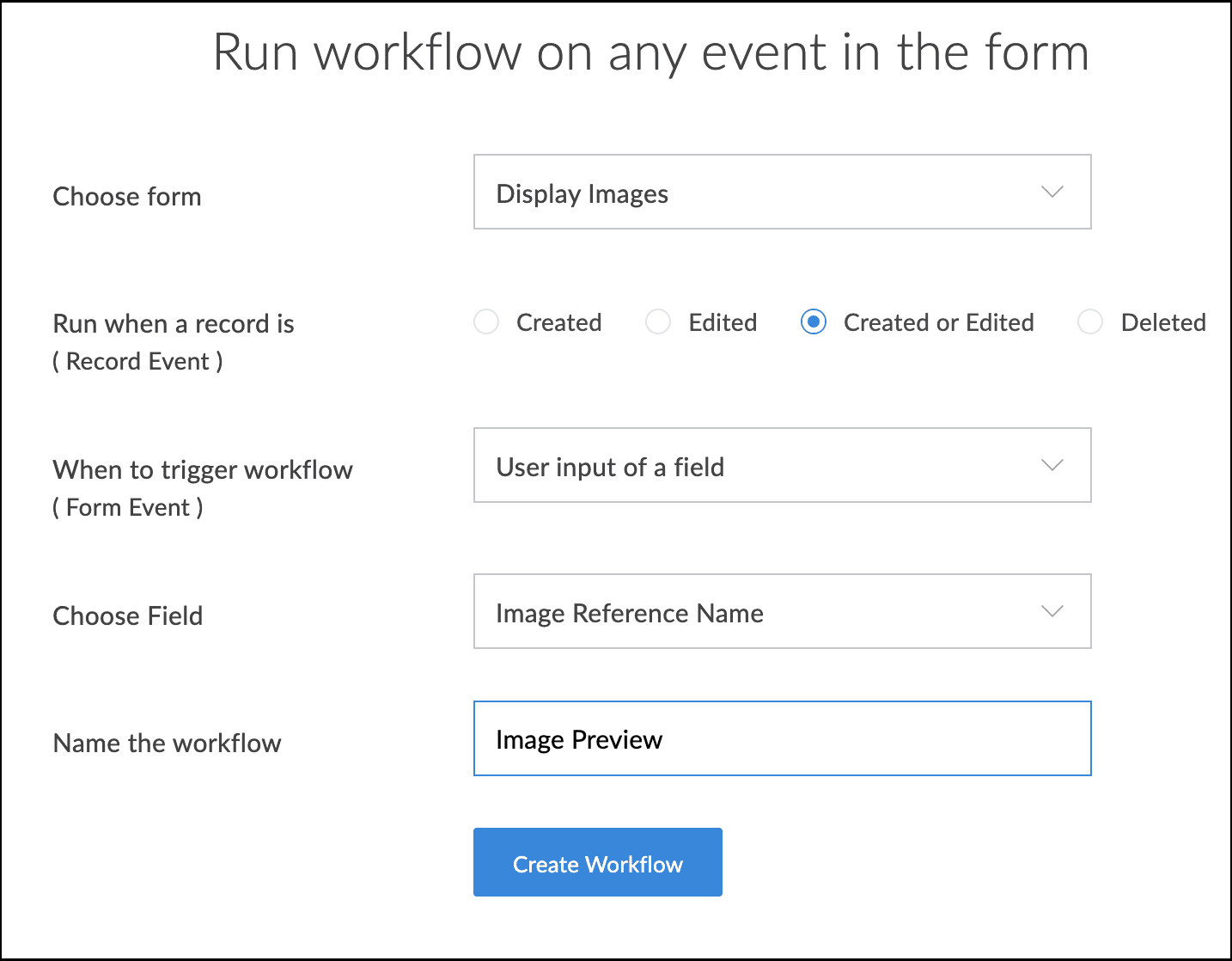

  3. Create a workflow to execute on the user input of the Image Reference Name  field in the subform of the Display Images form. Select the Record Event as created or edited. This workflow will fetch the image from the Store Images form and previews it in the Rich Text field based on the Image Reference Name selected in the subform of the Display Images form.

  4. Click Add New Action and add the following script in the Deluge editor.
if(row.Reference_Name != null)
  1. {
  2.  //Fetch the image record from the Store Images form by matching the ID in the Reference Name Lookup selection.
  3.  fetch_Record = Store_Images[ID == row.Image_Reference_Name];
  4.  //Fetch the Image URL
  5.  fetch_imageUrl = fetch_Record.Image;
  6.  //Constrct the Public URl for the image.
  7.  subStringStart = fetch_imageUrl.lastIndexOf("image/") + 6;
  8.  subStringEnd = fetch_imageUrl.lastIndexOf("\" border");
  9.  imagePath = fetch_imageUrl.subString(subStringStart,subStringEnd);
  10.  Public_image = "https://creator.zohopublic.com"+zoho.appuri+"Store_Images_Report/" + row.Image_Reference_Name + "/Image/image-download/<encryptedKey>/" + imagePath;
  11.  // Populate the image in the rich text field.
  12.  row.Rich_Text="<img src=" + img + " width='100' height='100'>";
  13. }

Where,
<encryptedKey>
is the unique key that is generated while publishing the report. It can be located within the URL of the published report. For example, in the following publish URL:  https://creatorapp.zohopublic.com/zylker/it-asset-tracker/report-perma/All_Store_Images/nDm8eJMv4TTKMd1qOZnqA0Je8dj90rW0CbQZBBPZxZd6fM02GmuUnPa962bDKWPXmnJ8vEMdF7rpWgM3jhRb6SR8kd213G2b4nbt

the encrypted key is as follows:
nDm8eJMv4TTKMd1qOZnqA0Je8dj90rW0CbQZBBPZxZd6fM02GmuUnPa962bDKWPXmnJ8vEMdF7rpWgM3jhRb6SR8kd213G2b4nbt

See how it works


  1. Fetch records
  2. Publish reports
