Working with Built-in Telephony

This guide will cover the information needed for a CRM admin to maintain the built-in Telephony feature in Zoho CRM. Please use the table of contents on the right hand side (under On this page) to navigate through this document. If you're accessing this page on a smartphone or a tablet, it will be available at the bottom.
Built-In Telephony does not support outgoing calls to China.
In most businesses, a large volume of calls are made and received each day. These calls often contain information like customer pain points, expectations, or feedback that helps an organization perform better, so they are vitally important. To ensure that these conversations are kept secure and to remove third-party dependencies, Zoho CRM gives you the option of using the Built-in Telephony system.

The built-in telephony feature synchronizes with other CRM functions to provide exceptional user experience and increases user productivity. You can make calls, manage call queuing using interactive prompts, record calls, monitor call history, evaluate user performance using call reports, and manage payments and subscriptions all by yourself. You can also configure automations based on the calls and feed call data into overall CRM reports.

Availability
Permission required
Users with Administrator permission can set up this feature.

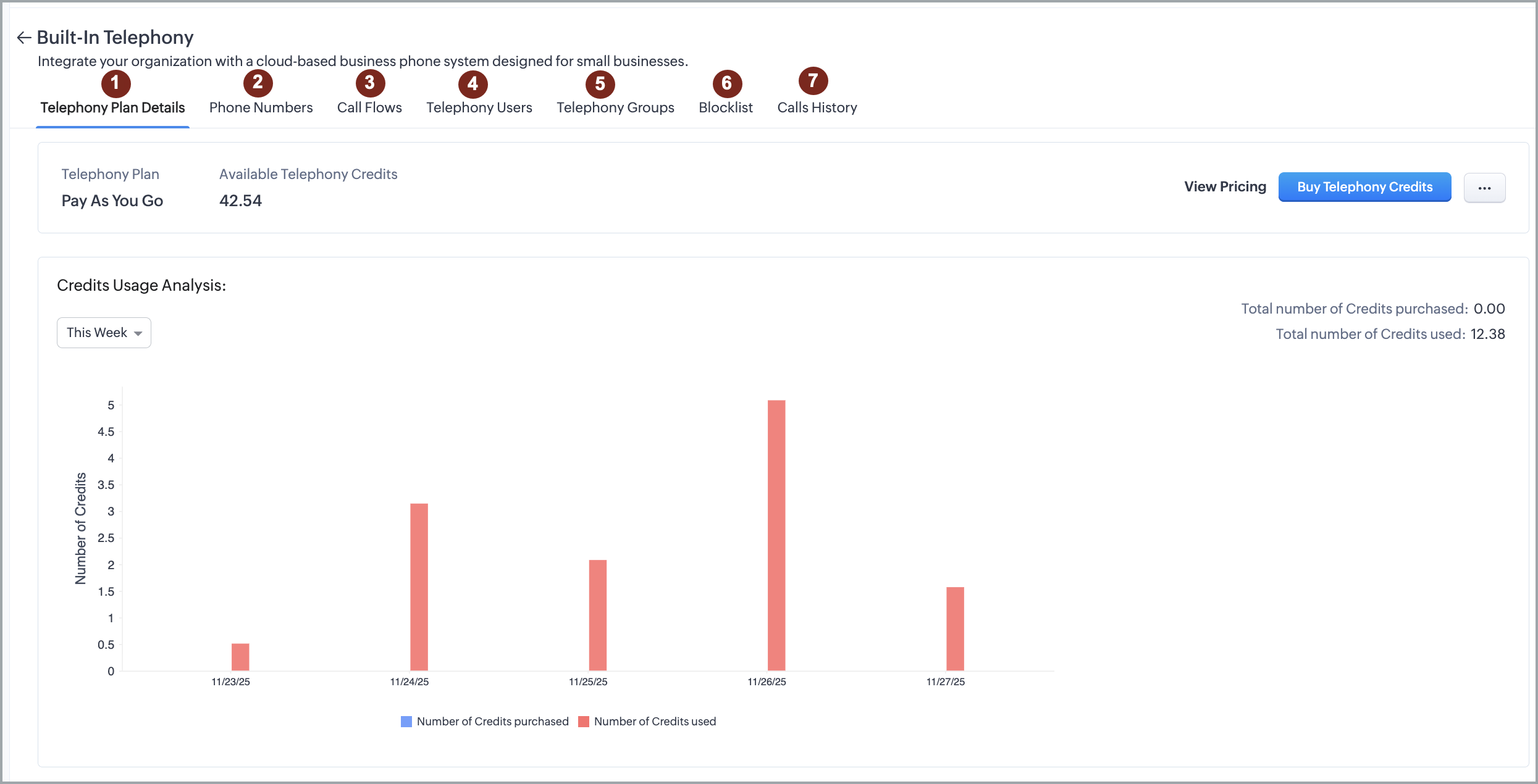

Built-in Telephony page

Your CRM's built-in telephony system can be managed using the Built-in Telephony page (available at Setup > Channels > Telephony > Installed > InBuilt > Details). Different aspects of the feature are neatly organized into tabs for easy access and configuration.
These tabs include:
  1. Telephony Plan Details: This is where you manage credits and storage. You can:
    1. Purchase additional credits and set up auto-recharge
    2. Access credit usage analytics
    3. View the history of your credit purchases
    4. View recording storage usage and manage your storage plan (for your call recordings)
  2. Phone Numbers: This tab holds the list of all your purchased numbers. You can add and delete phone numbers and associate them to call flows from here.
  3. Call Flows: A call flow is the process through which an incoming call is handled. The Call Flows tab will list all such flows configured for your organization. You can create, modify, and delete call flows from here.
  4. Telephony Users: All the CRM users who need to use the Telephony service can be managed here. You can add and remove telephony users. You'll also be able to filter them by telephony groups (collections of telephony users).
  5. Telephony Groups: You can group your telephony users into groups to make it easier to route incoming calls to the right person. This is the tab where you manage such groups.
  6. Calls History: All the incoming, outgoing, and missed calls will be listed here. You can download this list as a csv file.
Let's look at these tabs one by one.

Telephony Plan Details

Credits help you purchase and maintain phone numbers, make and receive calls, and store recordings of these calls. All actions related to credits and storage can be taken in the Telephony Plan Details tab.

Credits

An organization can have multiple phone numbers which are cumulatively managed using credits. 1 Credit equals $1 US. The cost of the credits will be converted into your local currency for the transaction. Purchased credits will be spent on:
  1. Number maintenance (monthly): The organization will be charged in credits each month based on the number type and country.
  2. Recording storage (monthly): Zoho provides 1000 minutes of free recording storage for each organization. If the limit is exceeded, new recordings will not be saved. To extend the recording storage, you can upgrade the telephony plan to one of the following:
    1. 50,000 minutes: 25 credits/month
    2. 200,000 minutes: 50 credits/month
    3. 1,000,000 minutes: 75 credits/month
  3. Call activity (usage-based): Credits will be debited from the wallet for both incoming and outgoing call activities. This charge for call activity is not debited monthly. It is based on call usage. You will need to recharge your wallet when the credits are low or choose to auto recharge whenever the available credits fall below a set amount.
    Note: Click here to view the call rates for built-in telephony.

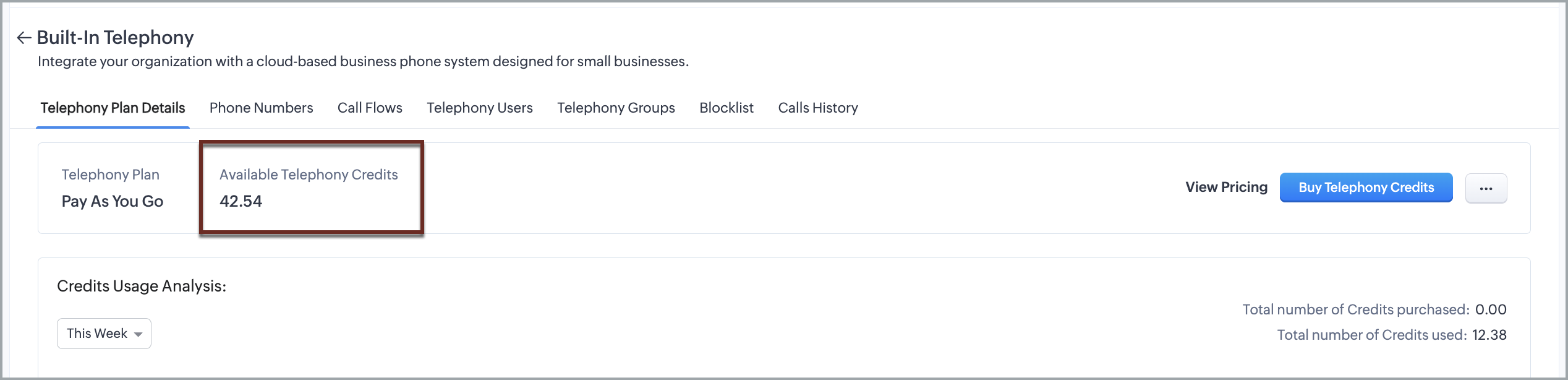

To view available credits

  1. Navigate to Setup > Channels > Telephony > Installed > InBuilt > Details.
  2. In the Built-In Telephony page, the Telephony Plan Details tab is selected by default. If it is not selected, click the Telephony Plan Details tab.
  3. You can view number of credits under Available Telephony Credits.

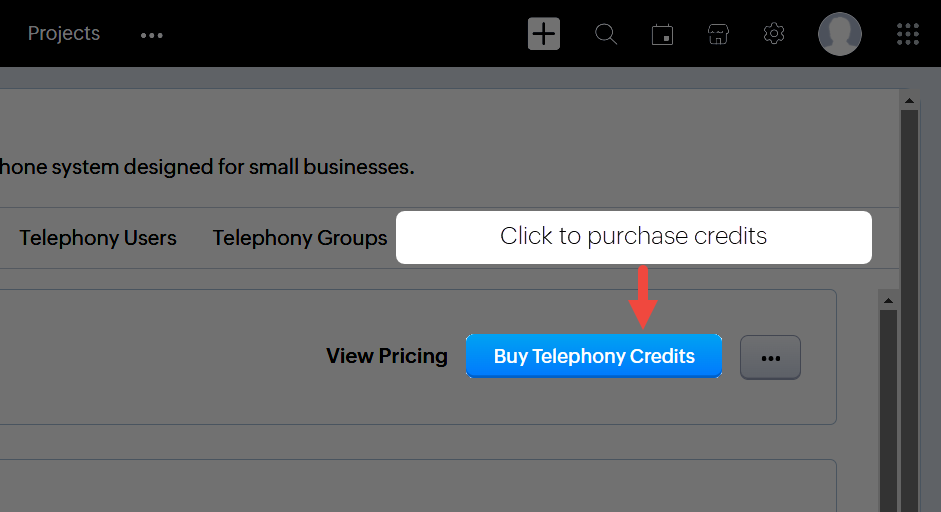

To buy telephony credits

  1. Navigate to Setup > Channels > Telephony > Installed > InBuilt > Details.
  2. In the Built-In Telephony page, the Telephony Plan Details tab is selected by default. If it is not selected, click the Telephony Plan Details tab.
  3. Click Buy Telephony Credits.

  4. In the Buy Credits popup, enter the Number of Phone Credits to be Purchased.
  5. Click Make Payment.
  6. In the Purchase Phone Credits popup that appears, verify the price and click Calculate Price.
  7. After verifying the price, click Make Payment.

To auto-recharge credits

When you use multiple phone numbers, enabling the auto-recharge option will help you maintain an optimal credit balance. As soon as the minimum balance limit is reached, the wallet will be automatically recharged with the predefined amount of credits. To do so, you can:
  1. Navigate to Setup > Channels > Telephony > Installed > InBuilt > Details.
  2. In the Built-In Telephony page, the Telephony Plan Details tab is selected by default. If it is not selected, click the Telephony Plan Details tab.
  3. Click the More (...) icon and select Auto Recharge.

  4. In the Auto Recharge popup, toggle Would you like to enable Auto Recharge? on.
  5. Enter the minimum number of credits for your account in the Minimum Balance Limit field. A recharge will be initiated whenever the available number of credits falls below this minimum number.
  6. Enter the number of credits to add in the Credits To Be Added When Balance Goes Below Minimum Balance field. When a recharge is initiated automatically, this number of credits is purchased automatically.
  7. Click Save.
Partners and partner-associated customers will not have the auto recharge option.

To view credit usage

  1. Navigate to Setup > Channels > Telephony > Installed > InBuilt > Details.
  2. In the Built-In Telephony  page, the Telephony Plan Details tab is selected by default. If it is not selected, click the Telephony Plan Details tab.
  3. In the Credit Usage Analysis section, you can view:
    1. Number of credits purchased in a given time period
    2. Number of credits used in that time period
  4. You can also specify the time period for which you want to see usage (This week, last week, this month, last month, this quarter, last quarter, or custom range).

To view credit purchase history

  1. Navigate to Setup > Channels > Telephony > Installed > InBuilt > Details.
  2. In the Built-In Telephony page, the Telephony Plan Details tab is selected by default. If it is not selected, click the Telephony Plan Details tab.
  3. Click the More (...) icon and select View Credit Purchase History.

  4. In the Credit Purchase History popup, you'll see the list of all your credit purchases with details like:
  1. the date of purchase
  2. the user who initiated the purchase, and
  3. the number of credits purchased.

Recording Storage

You can record the calls made using the inbuilt telephony system. Please make sure that doing so is legal in your region.

Listening to recordings of your calls helps you understand customers' pain points and also allows managers to check and manage call quality. The recordings can be used to evaluate employees' performance, evaluate customer expectations, and ensure that the company guidelines are adhered to.

You can record both incoming and outgoing calls.

To record incoming calls

In a call flow, you can enable call recording for the following states:
  1. Transfer to a user
  2. Transfer to a telephony group
When you configure these states, you can enable the Record this call checkbox.

To record outgoing calls

When you add or edit a telephony user, you can enable the Record outgoing calls made by this user checkbox.

These recordings will be available in the call's entry in the Calls History tab.

Zoho provides 1000 minutes of free storage space for each organization. If you exceed this limit, admins will be notified and new recordings will not be stored. The recording storage usage will be displayed as a chart so that the admins can monitor the organization's storage usage.

Admins can manage recording storage in two ways:
  1. Upgrade the recording storage plan:
    1. 50,000 minutes: 25 credits/month
    2. 200,000 minutes: 50 credits/month
    3. 1,000,000 minutes: 75 credits/month
  2. Delete recordings automatically 3 months or 6 months after the date of recording.

To change your storage plan

  1. Navigate to Setup > Channels > Telephony > Installed > InBuilt > Details.
  2. In the Built-In Telephony page, the Telephony Plan Details tab is selected by default. If it is not selected, click the Telephony Plan Details tab.
  3. Click the More (...) icon and select Change Storage Plan.

  4. In the Change Storage Plan popup, select the plan.
  5. Click Next.
  6. Validate the purchase summary and click Buy Storage.

To set automatic deletion of recordings

  1. Navigate to Setup > Channels > Telephony > Installed > InBuilt > Details.
  2. In the Built-In Telephony page, the Telephony Plan Details tab is selected by default. If it is not selected, click the Telephony Plan Details tab.
  3. Under the Recording Storage section, enable Delete Recordings after 3 or 6 months.

To view storage usage

  1. Navigate to Setup > Channels > Telephony > Installed > InBuilt > Details.
  2. In the Built-In Telephony page, the Telephony Plan Details tab is selected by default. If it is not selected, click the Telephony Plan Details tab.
  3. Under the Recording Storage section, you can see the number of minutes of recordings against the available storage.

Phone Numbers

Built-in telephony is designed to support multiple numbers at the same time. You have the option to purchase three types of phone numbers: Local, Mobile, and Toll-free, which can be combined to fulfill all your business needs. For instance, you can assign a number for outgoing calls, another for handling incoming product inquiries, and a different one for customer support.

To buy a phone number

  1. Navigate to Setup > Channels > Telephony > Installed > InBuilt > Details.

  2. In the Built-In Telephony page, click the Phone Numbers tab.
  3. You can view the details of existing numbers in this tab. Click Buy Phone Number.

  4. In the Buy a number pop-up:
    1. Choose the Country.
    2. Select the Number Type as Local, Mobile, or Toll Free from the dropdown list. Please note that all options may not be available for the country you've chosen.
    3. Depending on the number type, you may have to select a Region or fill in an Address.
    4. Choose a number from the Available Phone Numbers dropdown and click Next.
  5. Verify the purchase summary and click Buy.
  6. In the Confirm Your Purchase pop-up, click Buy Phone Number.

Note: There is no limit on the number of phone numbers an organization can have.

To delete a number

  1. Navigate to Setup > Channels > Telephony > Installed > Built-in > Details.
  2. In the Built-In Telephony page, click the Phone Numbers tab.
  3. In this tab, all the purchased numbers will be shown. Hover over the number you want to delete and click the More (...) icon.
  4. Click Delete Phone Number.
  5. On the confirmation pop-up for permanently deleting the number, click Confirm.

Call flows

Call flows allow you to configure how incoming calls are handled. You can build these using the Call Flow builder.


You can build call flows to:
  1. Route inquiry calls about specific products to sales representatives who specialize in those products
  2. Include IVR to promote self service for common problems.
  3. Simultaneously ring all available users in the customer support group to ensure quick response, and so on.
No matter what the use case is, each call flow comprises of two basic elements: states and connections between those states.

States

A state is a particular step in the call flow process. The different states available are:
  1. Transfer to a user: Use this when you want to route the call to one particular telephony user.
    When you add this state to the builder, you have the following options:
  1. Enable or disable call recording
  2. Set the ring timeout (in seconds)
  3. Enable or disable queuing of calls if user is on another call. If this is enabled, you'll be able to make queue-related configurations like:
    1. the maximum number of calls in queue
    2. Enable or disable announcement for those callers. If enabled, you can decide to either read out a text message or play an audio.
    3. Choose the music to be played during the waiting period, and how many times that music is to be played.
  4. Route the call to other states in case:
    1. The call is timed out (ring timeout duration is over)
    2. the user is not available or
    3. if the user is busy (the user is available but is busy on another call).
  1. Transfer to a telephony group: You can also route calls to a telephony group. In this case, you have the options available in the Transfer to a user state along with the ability to set the ringing type as parallel or sequential. For example, you can route a call related to billing details to a group of billing specialists.

  1. Parallel: All users in the group will receive the incoming call simultaneously.
  2. Sequential: The call will be routed to the users in sequence. You can set the time limit for a user to pick up the call. If the time limit is exceeded, the call moves on to the next user.

    The order of routing will be the order in which the users have logged into Zoho CRM. If a user is unavailable, the call will routed to the next user.
  3. You can route the call to other states in case the call is timed out, if no user is available, or if all the users are busy on other calls.

  1. Transfer to an IVR:  IVR (Interactive Voice Response) is a computer-operated response system which will interact with callers and route their call based on the inputs they make. You can decide if the announcement should be the reading of a text message, an audio file, or an audio URL.
    You can configure IVR using the Key Press and Menu options. You can connect each of these menu options to another state. You can set a maximum of 11 Menu options (0 - 9 and *).
    Note: This state has a system-defined timeout of 5 seconds from the end of the announcement.
  2. Announce to caller: This option allows you to have a text message or audio ( via audio file or audio URL) played to the caller.
    Once the announcement has been successfully made, you can route the caller to the next state if needed.

  3. Leave voicemail: Sometimes, it's just not possible to immediately respond to all customers. In such cases, you can ask the caller to leave a voice mail. Like the previous options, you can enter text, an audio file, or an audio URL for the announcement. You can also set the timeout for this state.
    You can route the call to another state in case of timeout.

The maximum length of voicemails is 2 minutes.
Note
  1. You can edit or remove a state by hovering over it, clicking the more icon (...) and selecting Edit/ Remove.

  2. Wherever you have the option of adding audio, you can upload WAV files or add an audio URL.

Connections

A connection is a route between one state and another.

Please remember that:
  1. The start state can be connected to only one other state.
  2. Each state can have a maximum of 10 connections coming into it from other states.
  3. Each state can have one or more connections leaving the state. This can range from one in the case of Leave voicemail state to eleven in the case of Transfer to IVR state.
  4. No loops are allowed in a call flow. Let's say that a call has to pass through three states to reach the present state. You cannot connect the present state to any of those three states.
Using the builder's intuitive interface, you can quickly build sophisticated call flows by dragging and dropping states and making connections between them. To make a connection, click and drag the connecting arrow from the output of a state to the next state.

You can delete a connection by clicking the trash icon.

To create a call flow

  1. Navigate to Setup > Channels > Telephony > Installed > Built-in > Details.
  2. In the Built-In Telephony page, click the Call Flows tab.
  3. Click Create Call Flow.
  4. In the Create Call Flow popup, enter the Name for the flow and add a Description.
  5. Select the Associated Phone Numbers from the dropdown list. Incoming calls to these numbers will follow the process you set up for this flow.
  6. Click Next.
  7. In the Call Flow builder, drag and drop the required states from the left pane. You'll have to configure each of these states.
  8. Add and delete connections between states as required.
  9. Click Publish.
The flow is now enabled for the associated numbers.

Note
  1. If a number is not associated with a call flow, incoming calls will be rejected for that number.
  2. You can associate a number with an existing call flow or new one from the Phone Numbers tab. Hover over the number, click the More (...) icon and select the required option.
  3. You can save the flow as a draft by clicking the Save as Draft button.

  4. If you've already published a flow, you can compare the draft with the published version by selecting their respective tabs in the Call Flow builder.

  5. To deactivate the flow, toggle the Status in the Call Flows tab.

To edit a call flow

  1. Navigate to Setup > Channels > Telephony > Installed > Built-in > Details.
  2. In the Built-In Telephony page, click the Call Flows tab.
  3. Hover over the call flow you want to edit and click the More (...) icon.
  4. Select Edit Call Flow.
  5. In the Edit Call Flow popup, you can modify details like Name, Description, or Associated Numbers.
  6. Click Next.
  7. Make changes to the call flow using the call flow builder.
  8. Click Publish to make those changes final.

To delete a call flow

  1. Navigate to Setup > Channels > Telephony > Installed > Built-in > Details.
  2. In the Built-In Telephony page, click the Call Flows tab.
  3. Hover over the call flow you want to edit and click the More (...) icon.
  4. Select Delete Call Flow.
  5. In the popup that appears, click Confirm.

Telephony users

Telephony users are your CRM users who can make and receive calls using the built-in telephony system. They can receive incoming calls from associated numbers if they are added to a call flow (as part of transfer to a user state or transfer to a telephony group state). They can make outgoing calls from numbers associated to them.
Note: If you do not want to display the phone number during an outgoing call, you can mask the number using a custom caller ID so that if the prospect or customer calls you back, they will be redirected to the dedicated support number. When you add/edit a telephony user, you'll be able to enable this for that user.

To add a telephony user

  1. Navigate to Setup > Channels > Telephony > Installed > Built-in > Details.
  2. In the Built-In Telephony page, click the Telephony Users tab.
  3. Click Add User.
  4. In the Create Telephony User popup, select the User.
  5. If you want to add this user to a Telephony Group, you can select the group from the dropdown list.
  6. If you want the user to be able to make outbound calls, select the Allow to make outgoing calls checkbox.
  7. If you want to record calls made by this user, select the Record outgoing calls made by this user checkbox.
  8. Select the Outgoing caller IDs that must be available for this user.
  9. If you want to allow the user to add custom caller IDs, select the Allow to add custom outgoing caller IDs checkbox.

To edit a telephony user

  1. Navigate to Setup > Channels > Telephony > Installed > Built-in > Details.
  2. In the Built-In Telephony page, click the Telephony Users tab.
  3. Hover over the telephony user whose details need to be edited and click the More (...) icon.
  4. Select Edit Telephony User.
  5. In the Edit Telephony User popup, make the necessary changes.
  6. Click Save.

To delete a telephony user

  1. Navigate to Setup > Channels > Telephony > Installed > Built-in > Details.
  2. In the Built-In Telephony page, click the Telephony Users tab.
  3. Hover over the telephony user whose details need to be edited and click the More (...) icon.
  4. Select Remove Telephony User.
  5. In the popup that appears, click Confirm.

Telephony groups

Telephony groups allow you to group your telephony users as per your needs. For example, you can group your telephony users by their capabilities (Billing specialists, sales representatives, customer support agents, and so on). They can receive incoming calls from associated numbers if they are added to a call flow (as part of transfer to a telephony group state).

To add a telephony group

  1. Navigate to Setup > Channels > Telephony > Installed > Built-in > Details.
  2. In the Built-In Telephony page, click the Telephony Groups tab.
  3. Click Create Telephony Group.

  4. In the Create Telephony Group popup, enter the Name and Description of the group.
  5. Select the telephony users from the Telephony Users dropdown.
  6. Click Save.

To edit a telephony group

  1. Navigate to Setup > Channels > Telephony > Installed > Built-in > Details.
  2. In the Built-In Telephony page, click the Telephony Groups tab.
  3. Hover over the telephony group whose details need to be edited and click the More (...) icon.
  4. Select Edit Telephony Group.
  5. In the Edit Telephony Group popup, make the necessary changes.
  6. Click Save.

To delete a telephony group

  1. Navigate to Setup > Channels > Telephony > Installed > Built-in > Details.
  2. In the Built-In Telephony page, click the Telephony Groups tab.
  3. Hover over the telephony group whose details need to be edited and click the More (...) icon.
  4. Select Delete Telephony Group.
  5. In the popup that appears, click Confirm.

Call History

You can view and download the call report to help you oversee your operations and manage your telephony subscriptions. The report displays information like the call owner, call type, call from, call to, date and time, duration, recording duration, the credits charged for each activity, and includes an option to play the call recording.

You can also filter the report based on the call type, call owner, or the time period within which the call happened.

To view and download the call report

  1. Navigate to Setup > Channels > Telephony > Installed > InBuilt > Details.
  2. In the Built-In Telephony page, select the Calls History tab.
  3. Click the funnel icon to filter the call report based on Call Owner, Call Type, and Time of Call.

  4. Click Download to download the call history to your device.
  5. Choose the location in your local device and click Save.
See Also:
Telephony - an Introduction (For a general introduction to telephony in Zoho CRM)
Using Built-in Telephony (For non-admins who use the telephony system as part of their work)
Integrating multiple telephony providers (You can use different PBX providers for different sets of users)
Configuring built-in Telephony (For admins looking to set up the built-in telephony system)
Workflows for calls (For admins looking to automate follow-ups and other actions based on calls)
Call analytics (A dashboard in the Voice of Customer feature)
Zia for calls (For call transcription, sentiment analysis, and more)

    Access your files securely from anywhere

      Zoho CRM Training Programs

      Learn how to use the best tools for sales force automation and better customer engagement from Zoho's implementation specialists.

      Zoho CRM Training
        Redefine the way you work
        with Zoho Workplace

          Zoho DataPrep Personalized Demo

          If you'd like a personalized walk-through of our data preparation tool, please request a demo and we'll be happy to show you how to get the best out of Zoho DataPrep.

          Zoho CRM Training

            Create, share, and deliver

            beautiful slides from anywhere.

            Get Started Now


              Zoho Sign now offers specialized one-on-one training for both administrators and developers.

              BOOK A SESSION






                          Quick Links Workflow Automation Data Collection
                          Web Forms Enterprise Begin Data Collection
                          Interactive Forms Workplace Data Collection App
                          Encrypted Forms Customer Service Accessible Forms
                          Digital Forms Marketing Forms for Small Business
                          HTML Forms Education Forms for Enterprise
                          Contact Forms E-commerce Forms for any business
                          Lead Generation Forms Healthcare Forms for Startups
                          Wordpress Forms Customer onboarding Order Forms for Small Business
                          No Code Forms Construction RSVP tool for holidays
                          Free Forms Travel
                          Prefill Forms Non-Profit

                          Intake Forms Legal
                          Mobile App
                          Form Designer HR
                          Mobile Forms
                          Card Forms Food Offline Forms
                          Assign Forms Photography
                          Mobile Forms Features
                          Translate Forms Real EstateKiosk in Mobile Forms
                          Electronic Forms

                          Notification Emails for Forms Alternatives
                          Holiday Forms Google Forms alternative
                          Form to PDF Jotform alternative





                                            You are currently viewing the help pages of Qntrl’s earlier version. Click here to view our latest version—Qntrl 3.0's help articles.




                                                Manage your brands on social media

                                                  Zoho Desk Resources

                                                  • Desk Community Learning Series


                                                  • Digest


                                                  • Functions


                                                  • Meetups


                                                  • Kbase


                                                  • Resources


                                                  • Glossary


                                                  • Desk Marketplace


                                                  • MVP Corner


                                                  • Word of the Day


                                                    Zoho Marketing Automation

                                                      Zoho Sheet Resources



                                                          Zoho Forms Resources


                                                            Secure your business
                                                            communication with Zoho Mail


                                                            Mail on the move with
                                                            Zoho Mail mobile application

                                                              Stay on top of your schedule
                                                              at all times


                                                              Carry your calendar with you
                                                              Anytime, anywhere




                                                                    Zoho Sign Resources

                                                                      Sign, Paperless!

                                                                      Sign and send business documents on the go!

                                                                      Get Started Now




                                                                              Zoho TeamInbox Resources



                                                                                      Zoho DataPrep Resources



                                                                                        Zoho DataPrep Demo

                                                                                        Get a personalized demo or POC

                                                                                        REGISTER NOW


                                                                                          Design. Discuss. Deliver.

                                                                                          Create visually engaging stories with Zoho Show.

                                                                                          Get Started Now









                                                                                                              • Related Articles

                                                                                                              • Using Built-In Telephony

                                                                                                                Built-In Telephony does not support outgoing calls to China. Once built-in telephony is set up, users can personalize their phone preferences, manage user availability, make outgoing calls, receive calls, view calls in conversation and calls in ...
                                                                                                              • Configuring built-in telephony in Zoho CRM

                                                                                                                This guide covers the information needed for a CRM admin to set up the built-in Telephony feature in Zoho CRM. Built-In Telephony does not support outgoing calls to China. Once you've identified your company's telephony needs, you can compare ...
                                                                                                              • Telephony - An Introduction

                                                                                                                Many salespeople spend a significant portion of their day making and receiving calls. For example: SDRs place large numbers of calls to reach out to potential clients and source appointments for account executives. Account executives engage with ...
                                                                                                              • Integrating Multiple Telephony Providers in an Organization

                                                                                                                Integrating CRM account with third-party telephony providers is cost-effective and time-saving. It allows to make, receive, associate, and automate calls directly from CRM, facilitating hassle-free correspondence. A few enterprise level ...
                                                                                                              • Telephony

                                                                                                                Make and manage calls with your customers from CRM using Telephony Help guide Telephony - An Introduction Working with Telephony
                                                                                                                Wherever you are is as good as
                                                                                                                your workplace

                                                                                                                  Resources

                                                                                                                  Videos

                                                                                                                  Watch comprehensive videos on features and other important topics that will help you master Zoho CRM.



                                                                                                                  eBooks

                                                                                                                  Download free eBooks and access a range of topics to get deeper insight on successfully using Zoho CRM.



                                                                                                                  Webinars

                                                                                                                  Sign up for our webinars and learn the Zoho CRM basics, from customization to sales force automation and more.



                                                                                                                  CRM Tips

                                                                                                                  Make the most of Zoho CRM with these useful tips.



                                                                                                                    Zoho Show Resources
