Zoho CRM SaaS Architecture and Deployment Options
Zoho CRM runs on infrastructure Zoho owns and operates, not on AWS, Azure, or GCP. Here is how the architecture is built, how region selection works, and how tenant isolation is enforced.
Private cloud, not a hyperscaler
Most SaaS vendors rent infrastructure from public cloud providers. Zoho does not. Zoho is a private, independent, and bootstrapped company. We have 16 datacenters worldwide. All customer data, application code, and AI services run on this privately owned and managed infrastructure.
This has a direct implication for data sovereignty. Because Zoho owns the stack end to end, customer data does not pass through third-party cloud environments. We encrypt customer data both in transit and at rest.
Data at rest is encrypted using industry-standard AES-256. All customer data is encrypted in transit over public networks using Transport Layer Security (TLS) 1.2/1.3 with Perfect Forward Secrecy (PFS) to protect it from unauthorized disclosure or modification.
How customers select their region
When you sign up for Zoho, you are given the option to choose the country from which you are signing up from. In order to make it easier for you, that field is selected by default based on your IP address. Based on the country chosen there, the corresponding datacenter is chosen for your account.
That selection determines the legal jurisdiction and infrastructure cluster that permanently hosts the organisation's data. New customers are automatically routed to the nearest data centre for optimal performance, but the selection can be made explicitly at signup.
Each country and region has its own set of privacy laws and regulations that we adhere to. We prefer to store our users' data in the datacenter specific to their region to meet those privacy requirements.

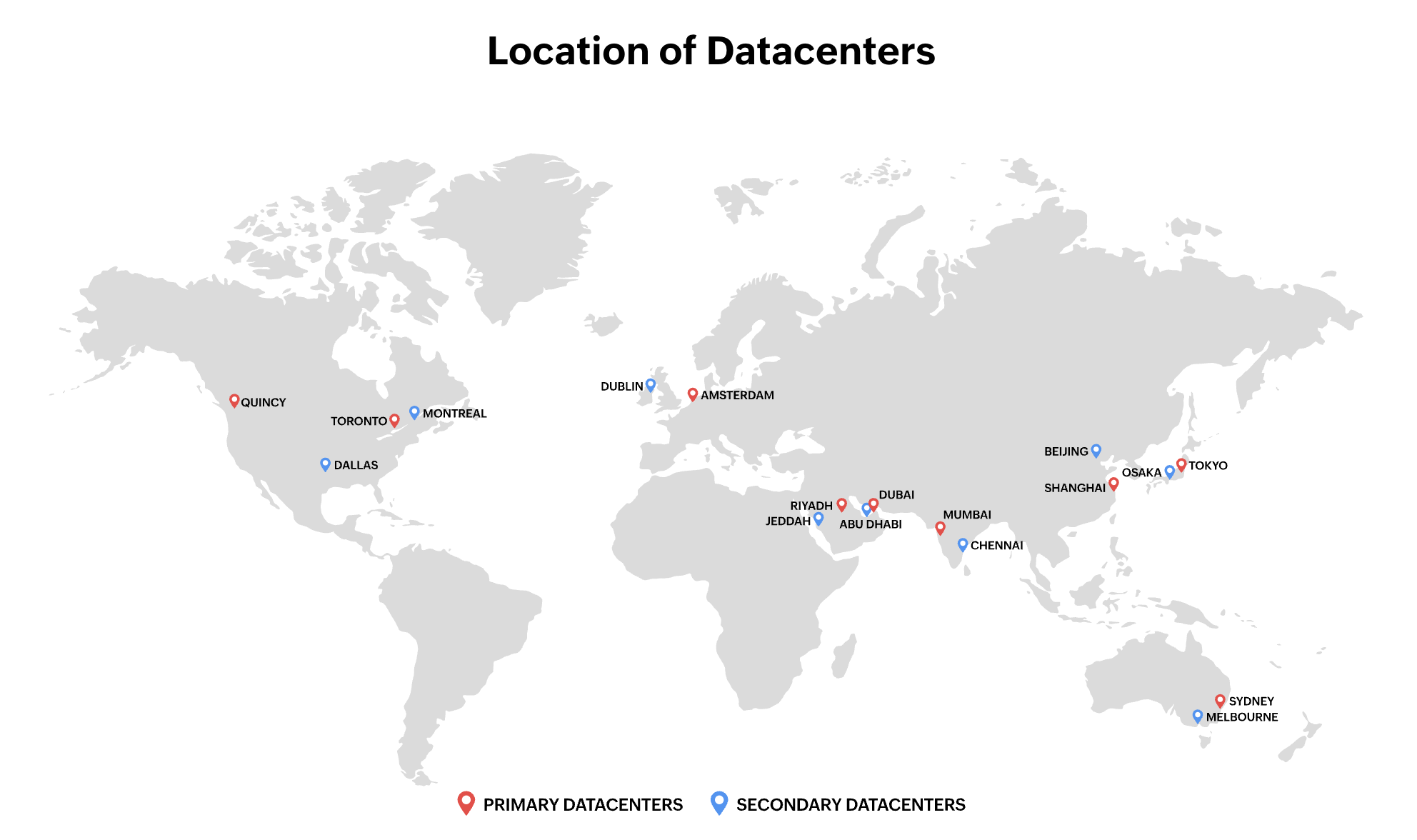

Global data centre coverage
Every region operates a primary and secondary data centre pair. The secondary handles failover if the primary experiences issues, ensuring high availability and business continuity without customer intervention. You can see the locations we service and their associated datacenter.
Multi-tenant architecture and tenant isolation
Zoho CRM operates on a multi-tenant architecture. Customers share underlying hardware and application code, but their data is segregated at the software and database levels.
Each organisation signup is tagged with a unique org ID. No query executes without this filter applied, meaning there is no path for one tenant's data to appear in another tenant's context.
Access controls at the application layer enforce this segregation regardless of the underlying shared infrastructure.
Access controls at the application layer enforce this segregation regardless of the underlying shared infrastructure.
This is not a Zoho-specific architectural pattern but it is enforced rigorously. The org ID filter is the hard boundary between tenants, applied at every data access point across data objects, events, administration, and AI services.
Sandbox environments for safe change management
Beyond production, Zoho CRM provides isolated sandbox environments for testing before any change goes live.
A sandbox is an isolated environment to test and validate various business cases in real-time. This protects your production environment from any issues occurring due to faulty codes, erroneous configurations, etc. Organizations can run multiple isolated environments to test and make changes without affecting their existing system. Once tested successfully, they can deploy the changes to the production account.
CRM admins can create multiple sandboxes in one account to test different configurations independently. There are four types of sandboxes to meet different business requirements: Configuration, Sample Data, Partial Data, and Full Data.
What can be tested in a sandbox covers the full breadth of the platform: workflows, Blueprints, Canvas layouts, custom functions, integrations, and automation rules. Developers can be added as non-CRM users with their own role and profile inside the sandbox environment without touching production at all.
AI services coverage
AI services in Zoho CRM, including Zia's predictive models, generative outputs, and agentic capabilities, operate within the same regional infrastructure as the CRM data they draw from. Because Zia LLM runs on Zoho's own servers across its US, India, and Europe data centres, AI processing does not leave the Zoho infrastructure boundary. For organisations using self-hosted open source models like Llama or DeepSeek through Zoho's setup, the same principle applies. Customer data used as context for AI generation stays within the org's designated data centre region and is never transmitted to external AI cloud providers.
