Zoho CRM's Core Data Model and How You Extend It Safely
Zoho CRM ships with a complete set of standard modules covering every stage of the sales cycle, and gives your team structured, governed ways to extend that model as your business grows. Here is how the core data model is built, what it covers, and how customisation stays controlled.

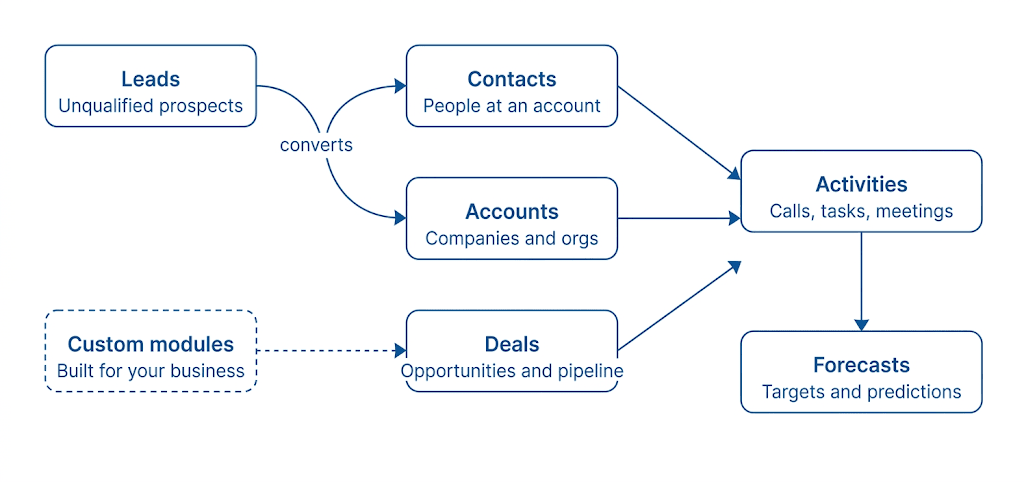

The core modules
Zoho CRM includes standard modules such as Leads, Accounts, Contacts, Deals, Forecasts, and Activities, along with custom modules. These are the building blocks every sales team starts with.
What each one does:
Leads: unqualified prospects collected from web forms, trade shows, campaigns, or manual entry. When a rep qualifies a lead, it converts automatically into a Contact, Account, and Deal, with field mapping carrying data across so nothing gets lost.
Contacts: converted or directly created individuals tied to an account. A contact can be linked to multiple deals.
Accounts: the company or organisation a contact belongs to. Related lists on the Account record surface all linked contacts, deals, activities, and emails in one view.
Deals: the opportunity record where most sales workflow lives. Stage movement, pipeline forecasting, automation triggers, and AI scoring all operate primarily here.
Activities: calls, tasks, and meetings logged against any record. As you scroll through the Activities module, you can pinpoint the relationship between users and the Activities module, along with all the associated fields.
Forecasts: rep and team-level revenue targets with predicted achievement, gap analysis, and anomaly detection powered by Zia.
How the data model is visualised
Zoho CRM includes a Data Model feature that gives admins a live visual map of their entire CRM structure.
Data Model is the visual representation of your CRM's data structure, the different entities and the relationships between them. It allows you to understand how different entities like modules and subforms are connected, and also provides the list of fields and properties for each entity.
The Data Model provides a visual representation of the different entities in your CRM and how they are interconnected. These entities include modules, custom modules, subforms, linking modules, and picklist history. By clicking on an entity, you can easily see its relationships with other entities through highlighted relationships.
Developer mode goes further, surfacing module and field API names and data types, directly inside the same view.

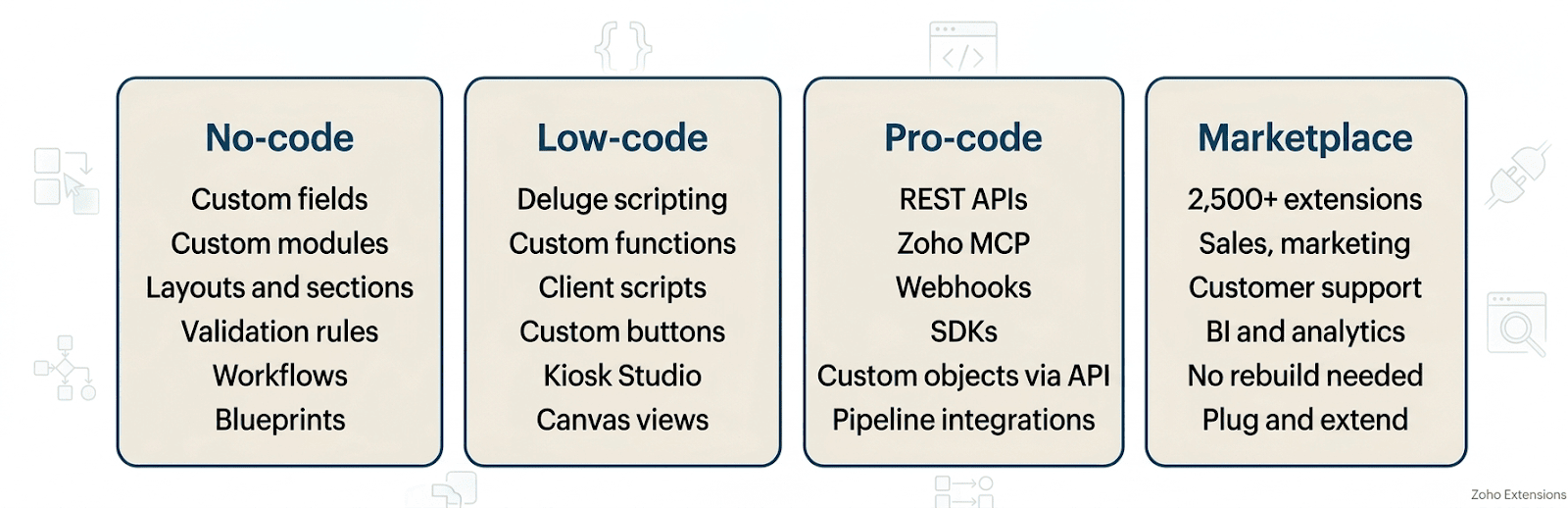

How customers extend the model
The data model is extensible at multiple layers: the data structure itself, validation logic, workflows, and integrations. Customers can work at whichever level suits their team's capability, from no-code to pro-code.
No-code options
Zoho CRM lets you work with more than 10 standard modules for Sales, Marketing, Customer Support, and Inventory management. These predefined modules come with a set of default fields and layout. You can edit most aspects of a standard module to suit your requirements.
Sometimes the standard, predefined modules do not always meet your requirements. Zoho CRM lets you create a new module depending on your business needs. With the Custom Modules functionality in Zoho CRM, you can develop new modules using built-in tools that need no programming skills. These custom modules can seamlessly integrate with core CRM modules.
Low-code options
Teams with some scripting capability can use Deluge, Zoho's built-in scripting language, to write custom functions, automate complex logic, build Kiosk Studio flows for guided multi-step processes, and design Canvas views that customise how records look for different teams.
Pro-code options
Developers can compose custom objects, Blueprints, and workflows using REST APIs and Zoho MCP, extend the CRM schema with external data sources, and expose predictions and AI outputs back into the CRM via API endpoints.

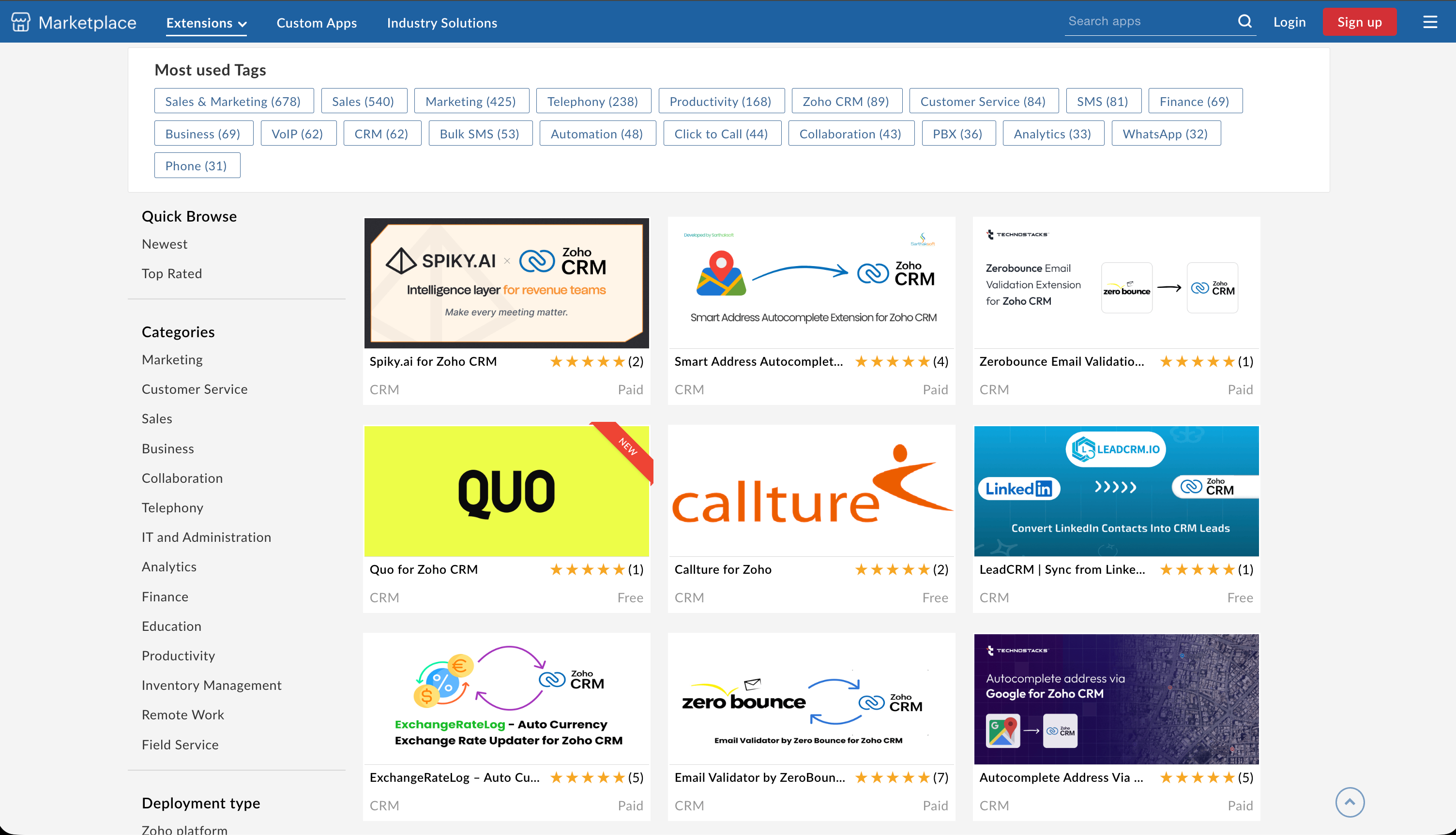

Marketplace
The Zoho Marketplace provides more than 2,500 extensions across sales, marketing, customer support, and BI, meaning users can extend functionality and data flows without rebuilding core structures.
How data integrity is enforced when you extend
Extensibility without guardrails causes data quality problems. Zoho CRM enforces integrity at multiple points.
Validation mechanisms: Admins can mandate required fields on forms so critical sales information cannot be skipped. They can set maximum character limits on fields, configure field dependencies so child field values update based on parent field selections, and set records to submit automatically for manual approval before they can progress.
Lead conversion mapping: Lead conversion mapping is used to map the fields in different modules. The main goal of lead conversion mapping is to move the data from the lead module to other modules without omitting any fields. When leads are converted, the fields in the leads module map to their corresponding contact, account, and deal module automatically.
Permission-gated design: Only users with specific admin permissions can view and change the CRM's entities, relationships, or add new fields. Users need Manage Extensibility or Modules Customization permission to access the Data Model feature. This prevents unintended structural changes from cascading across existing processes and integrations.
How extended data is secured
Every piece of data in the CRM, standard or custom, sits under the same security model.
To protect sensitive customer data, Zoho CRM uses AES to encrypt and decrypt data. The application also uses AES-256 encryption on all its servers to safeguard critical files and prevent data leaks.
This encryption framework applies to custom fields and extended entities as well. Data encryption is supported for Leads, Accounts, Contacts, Deals, linking modules, Users, and custom modules.
For field-level encryption specifically, the agent receives the Data Encryption Key (DEK), then encrypts and decrypts the data using 256-bit AES encryption. The cipher text is then stored in CRM.
Role-based access controls define what each user can see, create, edit, or delete at the module, field, and record level. These controls apply automatically to any new custom module or field, so extending the data model does not create access gaps.
Multi-tenant architecture, private cloud
Zoho CRM operates on a multi-tenant architecture hosted on Zoho's own private cloud infrastructure, not on AWS, Azure, or GCP. While customers share underlying hardware and application code, their data is segregated at the software and database level. Each organisation is tagged with a unique org ID and no query executes without that filter, preventing any cross-tenant data leakage.
Customers select their data centre region at the time of signup. Zoho operates data centres in the US, Europe, India, Australia, Japan, China, Canada, the UAE, and Saudi Arabia. That selection is permanent and determines the legal jurisdiction and infrastructure cluster that hosts the organisation's data.
