Builder Tools | Workflow Setup Utilities | Zoho Flow

Workflow builder (Tools)

The workflow builder in Zoho Flow includes tools that help you navigate, organize, and test flows faster. Use these tools to manage complex integrations and collaborate efficiently.

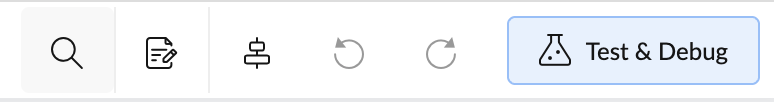

Builder toolbar

Located at the top-right corner of the builder, these tools help you quickly find steps, document flows, and test automation.



Use Search to locate the trigger, actions, or other steps within your flow.

Why use it?

  • Quickly find specific steps in large or complex flows

  • Navigate the builder without manually scanning the flow

  • Access triggers and actions faster while building

How it works

  1. Click the Search icon in the builder or use the shortcut key command/ctrl + k.

  2. Type the name of a trigger, action, or step.

Matching results appear instantly for quick navigation.

  1. Use the arrow keys to navigate results and press Enter/return to select.


Notes

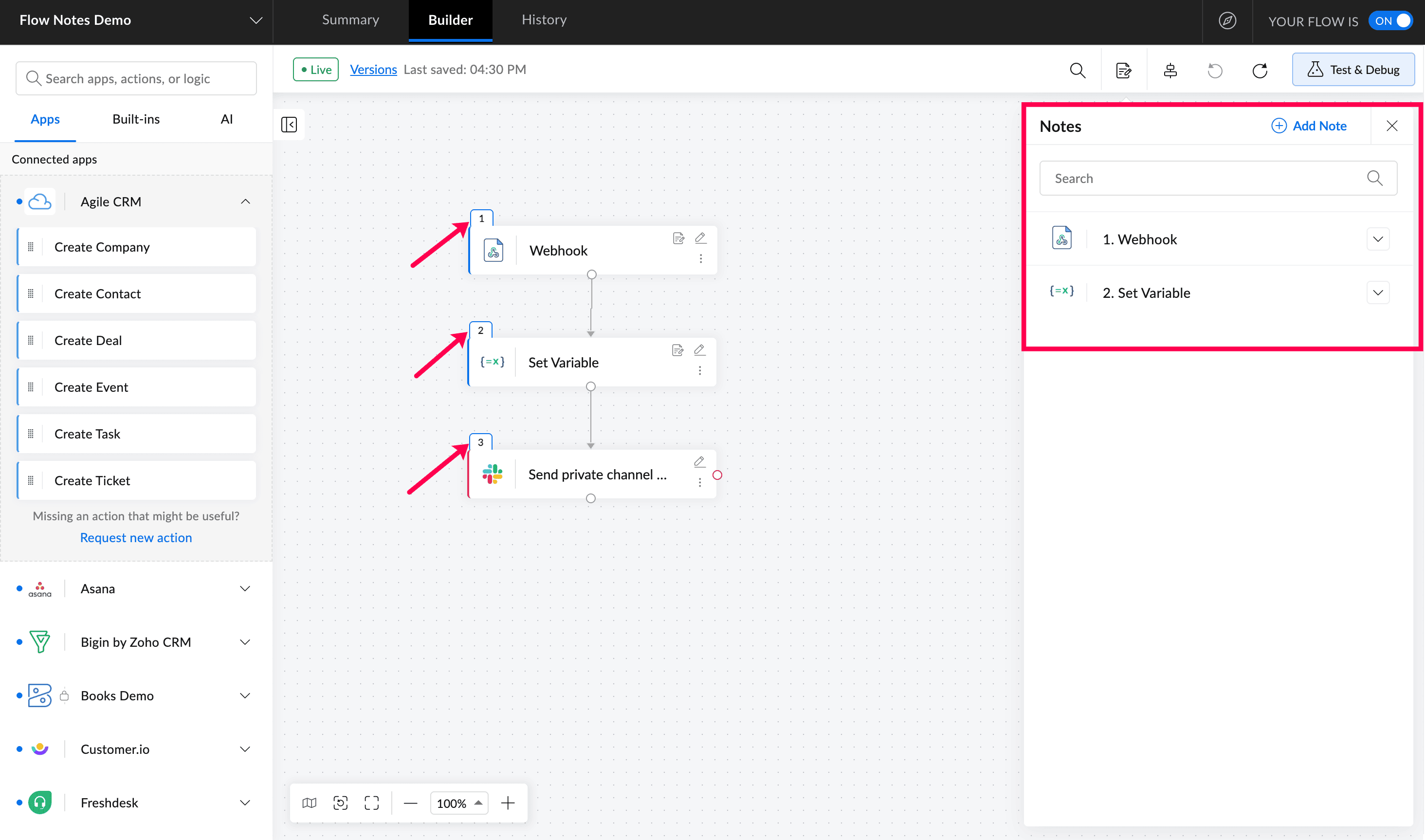

Add notes in the builder to document the purpose or logic behind different steps in your flow.





Why use it?

  • Explain complex steps or decisions in the flow

  • Help teammates understand the steps in the flow

  • Keep important context documented for future updates

How it works

  • Add notes to specific steps from the builder.

  • Each note is automatically numbered based on the step it is attached to.

  • You can edit or delete notes anytime.

  • Each note supports up to 180 characters.

  • The Update button becomes active once changes are made.


Auto Arrange

Use auto arrange to organize the layout of steps in your flow automatically.

Why use it?

  • Keep the builder visually clean and structured

  • Fix overlapping or scattered steps

  • Improve readability in complex flows

How it works

Click Auto Arrange or use the shortcut key 'a' in the builder to align the steps across the flow neatly. You can also organize steps from a specific point in the flow using the Auto arrange from here option in the step menu.



Undo

Use Undo to revert the most recent change made in the builder.

Why use it?

  • Quickly correct accidental edits

  • Restore the previous state of the flow while building

How it works

Click Undo or use the shortcut key command/ctrl + z in the builder to step back through recent changes.

Redo

Use Redo to reapply the last action that was undone.

Why use it?

  • Restore changes that were accidentally undone

  • Move forward through recent edits while building

How it works

Click Redo or use the shortcut key command/ctrl + shift + z in the builder to reapply the previously undone action.


Test & Debug

Use Test & Debug to verify that your flow works correctly before turning it on. This feature helps you identify configuration or data mapping issues and ensures that data moves between steps as expected.

How it works

  1. Click Test & Debug in the builder.

  2. Select a test data source, such as:

    • Sample data from the trigger app

    • Recent test data

    • Recent executions

  1. Run the test to execute the flow using the selected data.

  2. Review the input and output of each step to confirm the flow is working as expected.

When to use it

  • After creating a new flow

  • When modifying triggers or actions

  • To troubleshoot errors before enabling the flow


Idea

Tip: Testing with sample data from the trigger app closely simulates a real event and helps validate the entire workflow.

Navigation tools

Use the controls at the bottom of the builder to navigate and adjust how your flow appears on the screen. These tools help you focus on specific steps or view the entire flow at once.




Map

Open the Map to see a mini overview of the entire flow. This helps you quickly navigate to different sections in large or complex flows.

Reset Zoom

Restore the zoom level to the default view.



Fit to Screen

Automatically adjust the view so the entire flow fits within the builder window. This is useful when working with large flows or after rearranging steps.



Zoom Out

Reduce the zoom level to view a larger portion of the flow on the builder.



Zoom In

Increase the zoom level to focus on specific steps in the flow. You can also set the zoom percentage for a more precise view.

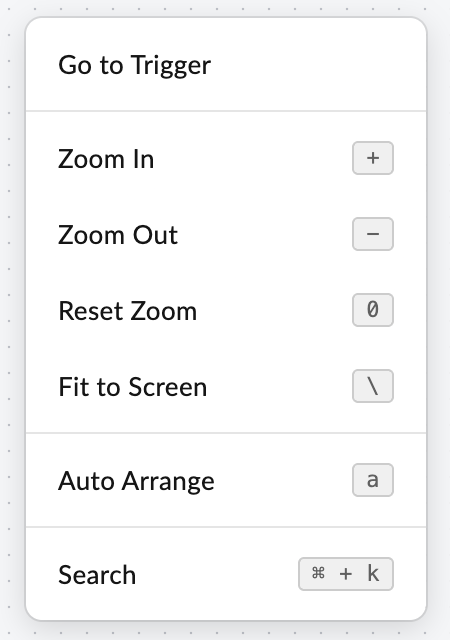

Builder shortcuts

Right-click anywhere on the builder to access the navigation tools.



Available options:

  • Go to Trigger – Navigate to the start of the flow

  • Zoom In / Zoom Out – Adjust the flow view

  • Reset Zoom – Restore the default zoom level

  • Fit to Screen – Display the entire flow on the screen

  • Auto Arrange – Organize steps automatically

  • Search – Locate steps or apps quickly

Each option also includes keyboard shortcuts for faster navigation.

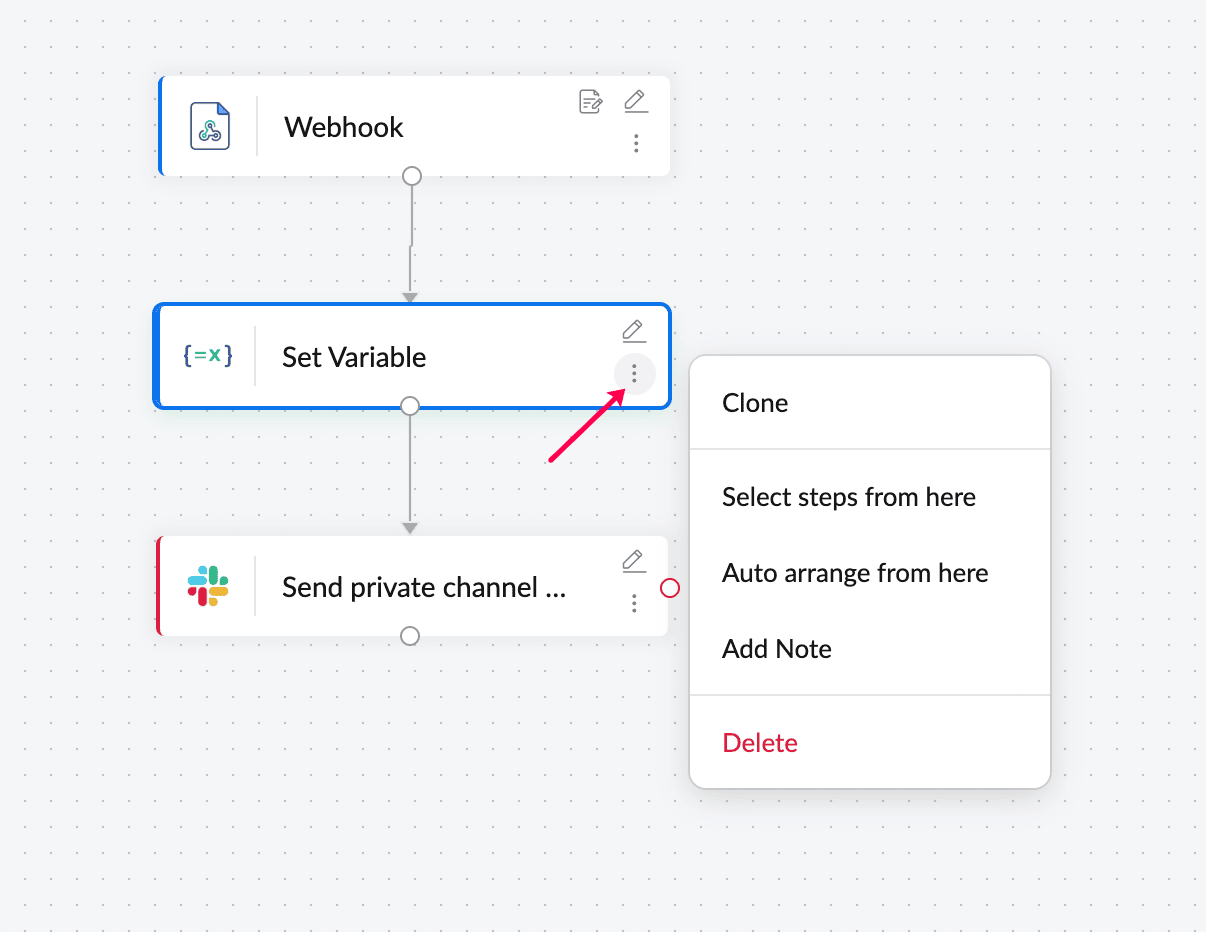

Action tools

Click the three dots next to each step to view the additional options.



Clone

Duplicate a step to reuse the same configuration and quickly create similar actions without setting them up again.

Select steps from here

Select multiple steps starting from the current step to manage quickly or organize several steps at once.

Auto arrange from here

Automatically organize the layout starting from the selected step to keep your flow visually clear and structured.

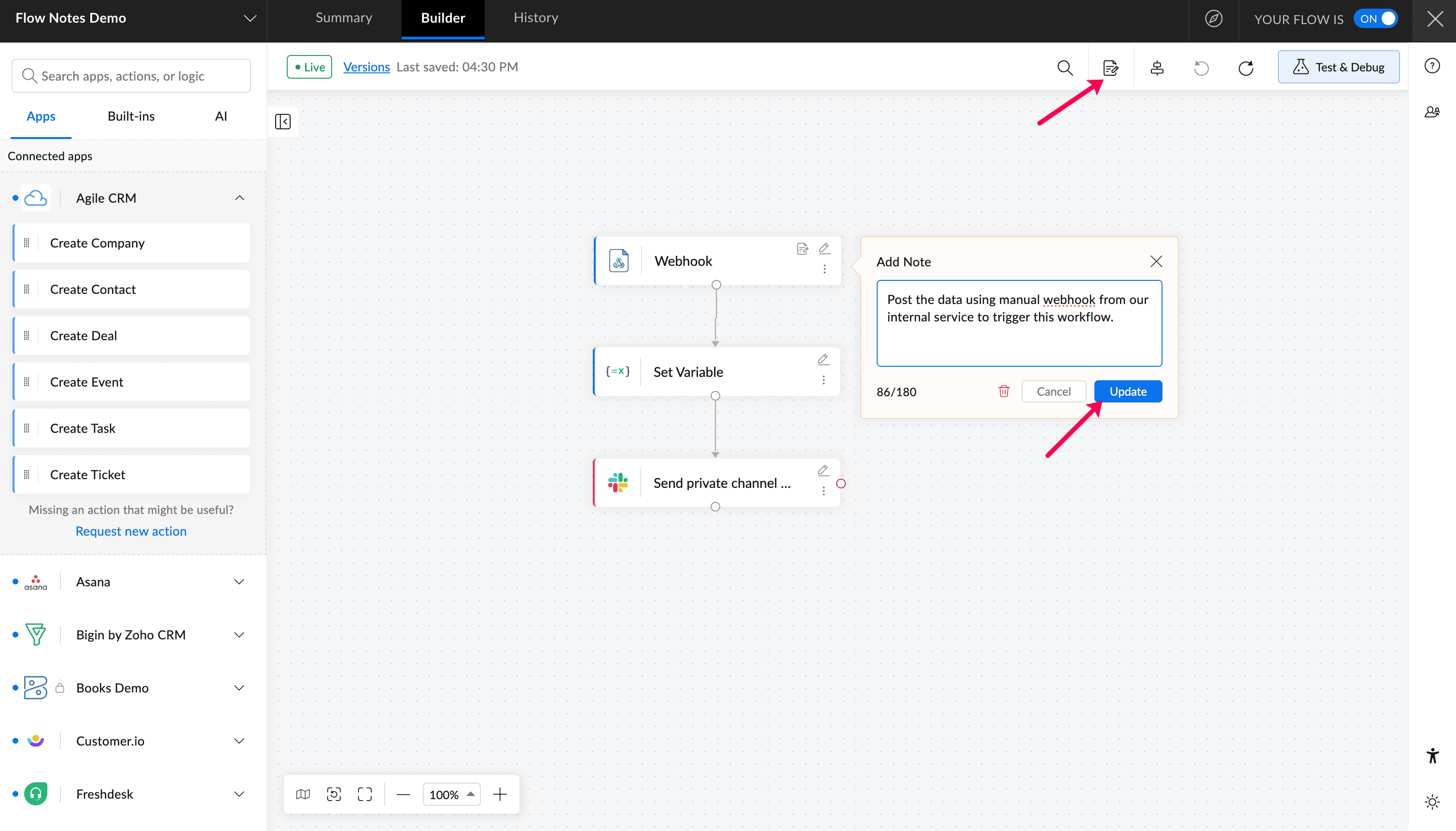

Add Note

Add a note to explain the purpose of the step, making it easier for you and your team to understand the flow later. If a note has already been added, this option will appear as Edit Note.

Delete

Remove the selected step from the flow to clean up or update your workflow logic.
