Table of Contents

1. Overview

2. Image Compression for Web Browsers
3. Uploading Images from mobile

1. User Input
2. Geo-Stamping

Overview

Using this field, respondents can capture an image using their smart phone or upload images from their gallery or computer to a form.

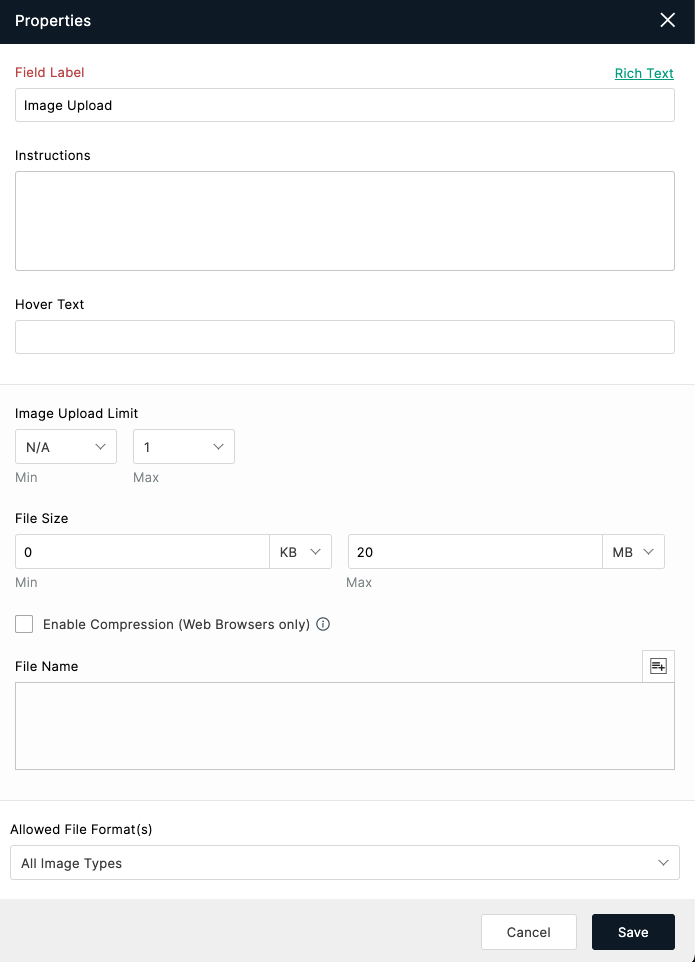

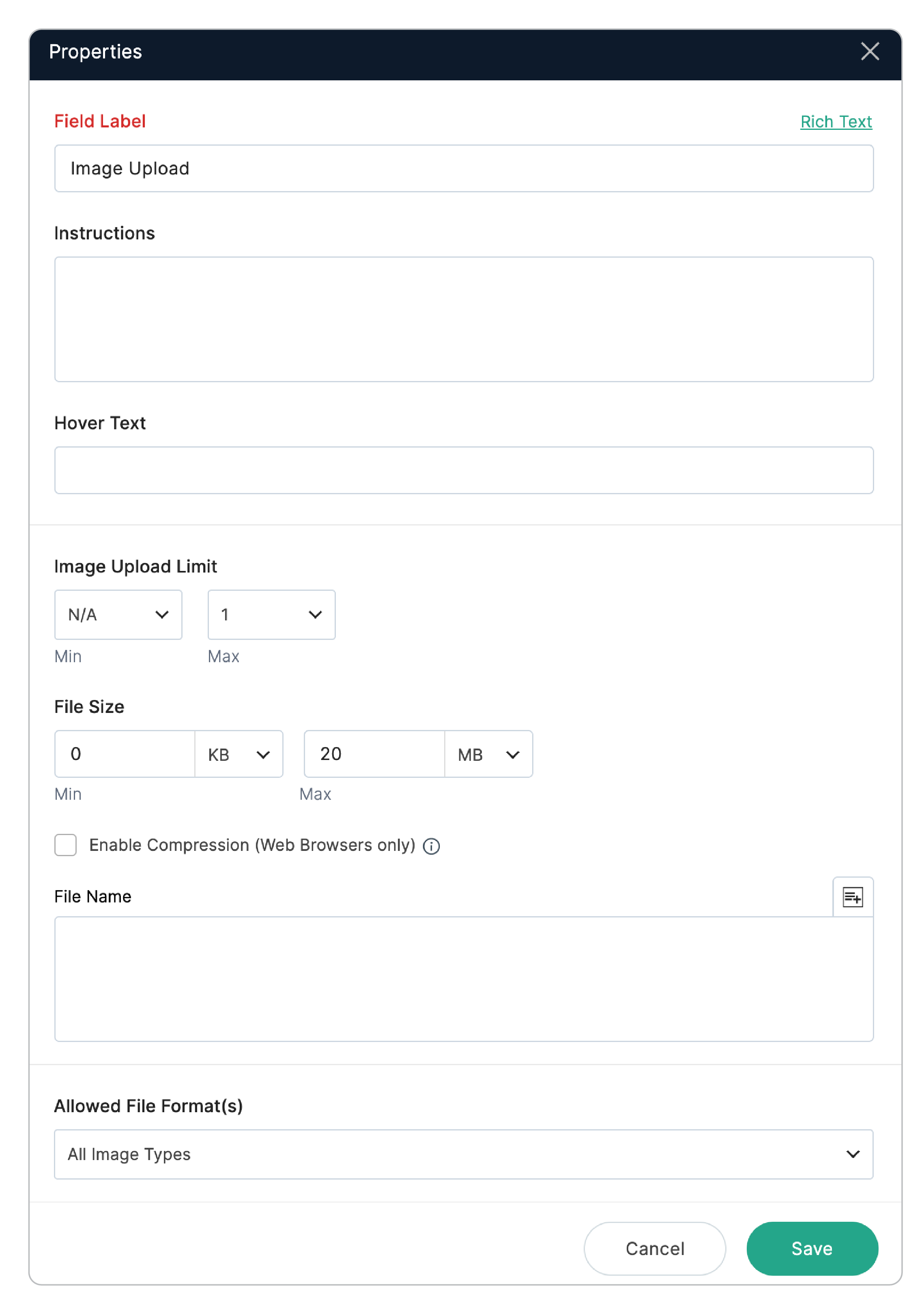

1. Add the Image Upload field from the Uploads section to your form.

2. Under Properties, enter the name of the field in Field Label.

3. You can enter the minimum and the maximum number of images that can be uploaded to the field under Image Upload Limit.

4. You can enter the minimum and maximum size allowed for an image under File Size.
   To allow image size above 20 MB (upto 1 GB): Upgrade to our  Premium or Zoho One Enterprise  plan and configure to store the file attachments in Zoho WorkDrive. Learn more
5. You can choose Enable Compression (Web Browsers Only) option to automatically compress images before uploading. This is applicable only for web browsers. Learn more
   For mobile apps, the same option can be found here.
6. You can use the File Name option to rename the uploaded files automatically when the respondent submits the form. This will help with file name consistency and file management. Learn more about Renaming uploaded files.
7. You can select the allowed formats of images under Allowed File Format(s).


Respondent can either upload images from their device or use the webcam to directly take pictures by clicking  .

Note:

1. Respondents must turn on the camera permission on their browser if they wish to use their webcam to capture pictures.

2. Respondents can capture images using webcam only in .png format.
3. If your form is embedded on a website, the respondents will not be able to capture pictures using the webcam. To allow this, you must include the following in the embed code:
   allow="camera"
   ?zf_enablecamera=true

For example:

While embedding using iframe

<iframe frameborder="0" style="height:500px;width:99%;border:none;" allow="camera " src=' https://forms.zoho.com/zylker/form/TravelRequestForm/formperma/1d2ld7jUoGDLINcnloYo2R_VOPJGeUSGtSq5WWDf3sc
?zf_enablecamera=true" ></iframe>

While embedding using JavaScript

While embedding as Lightbox pop-up

Image Compression for Web Browsers

1. Live form submissions

2. Save and Resume

3. Editing responses

4. Editing records in Reports

5. Tasks and Approvals

1. Image compression is only supported for paid plans.

2. The maximum allowable file size for compression is 50 MB.

3. When image compression is enabled, Min-Max file size validation for the attached image is done after the compression process.

HEIC and HEIF images are automatically converted to JPEG before compression and upload.

4. If the compression or conversion process fails, the original image file will be uploaded without any modifications. The same applies to unsupported image formats.

5. Compression cannot be guaranteed in all cases, as it depends on browsers, file encoding types, and whether the file is already compressed.

6. Image compression is not supported if Large File Uploads is enabled.

7. Enable Compression (Web Browsers Only) option will not be visible in Mobile apps. It can only be viewed and modified when accessed from web browsers.

Uploading images from mobile

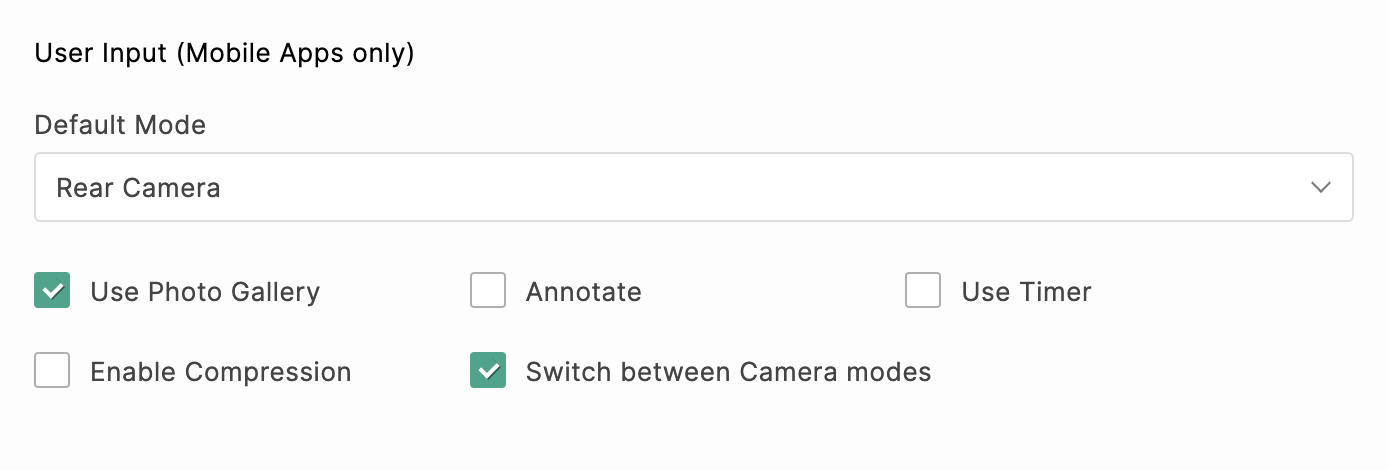

User Input

1. Select if you wish to allow users to capture images using the Front Camera or Rear Camera under Default Mode.



2. To allow users to upload pictures from their gallery, select Use Photo Gallery


3. To enable users to add markings, text, or drawings to captured images, select Annotate.


4. To set a timer to capture images, select Use Timer.


5. To compress the size of the captured images, select Enable Compression.


6. To allow users to capture images using both front and rear camera modes, select Switch between Camera modes.

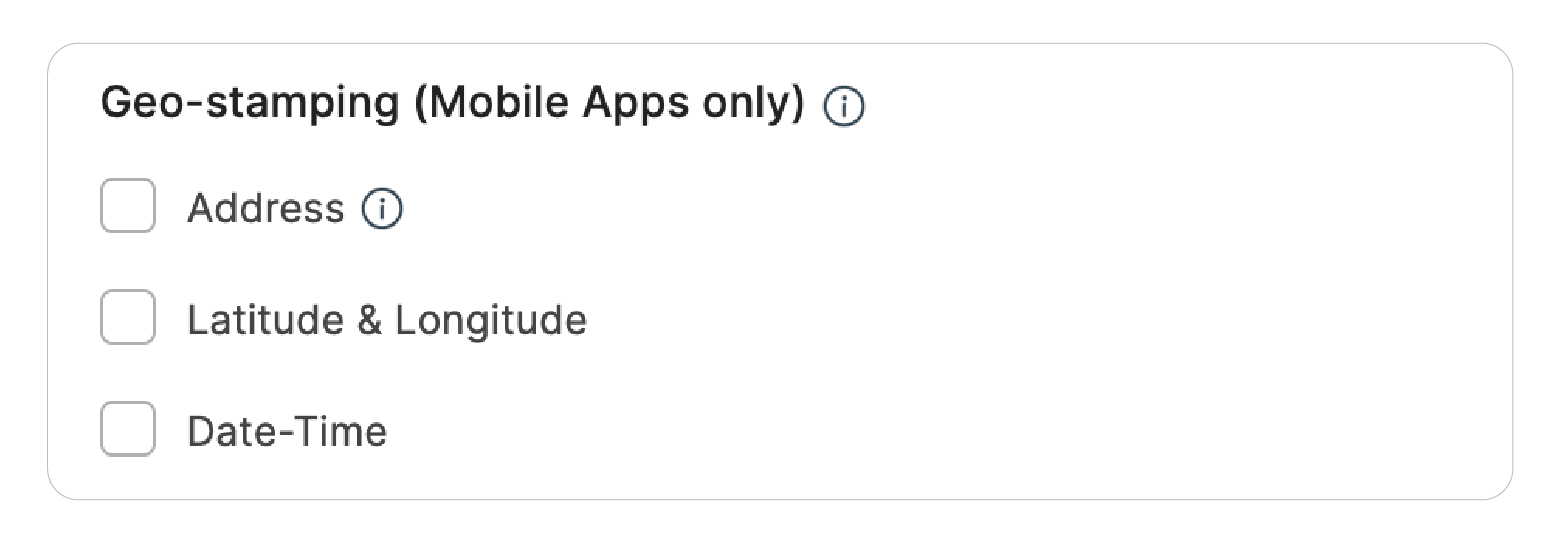

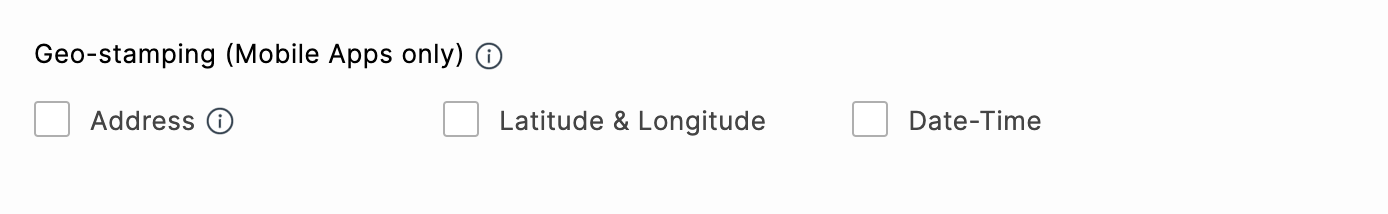

Geo-Stamping

When you opt for Geo-stamping, the image captured using the camera can be stamped with location details and the time of capture.

Note:

1. The geo-stamped details in the image at the time of capture will be retained.

2. The address of the location cannot be stamped for images captured offline.
