Zoho FSM | Create a Work Order in FSM from a CRM Sales Order

Create a Work Order in FSM from a CRM Sales Order

Use case: Create a work order in Zoho FSM whenever a sales order is created in Zoho CRM.

Follow the steps below to implement this use case:

Step 1:  Create a connection for Zoho FSM in Zoho CRM

To create a connection for Zoho FSM that can be used in Zoho CRM for invoking the Zoho FSM APIs, do the following:
  1. Log in to Zoho CRM.

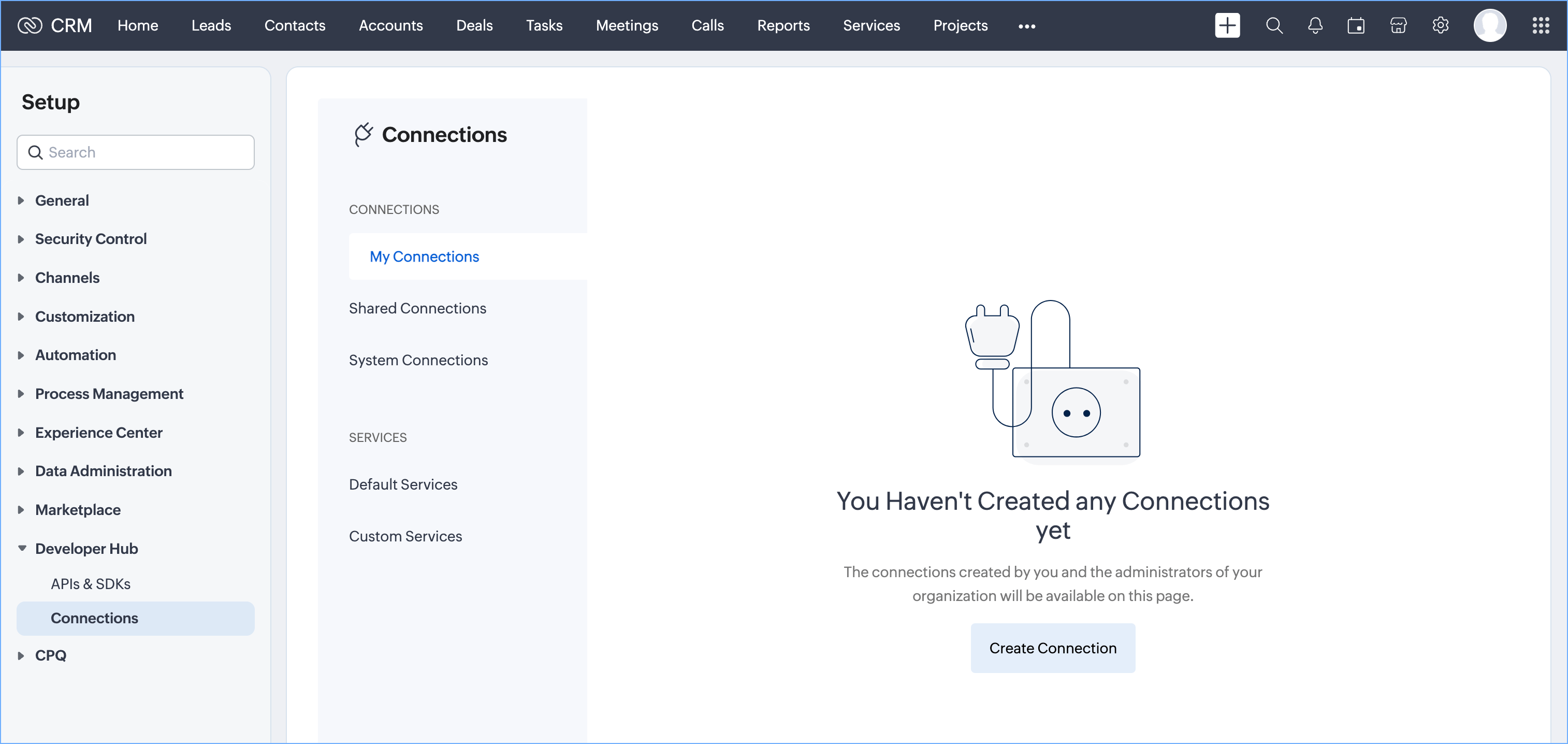

  2. Navigate to Setup > Developer Hub > Connections and click Create Connection.



  3. In the Create Connection page, select the Custom Services tab and click Create New Service.

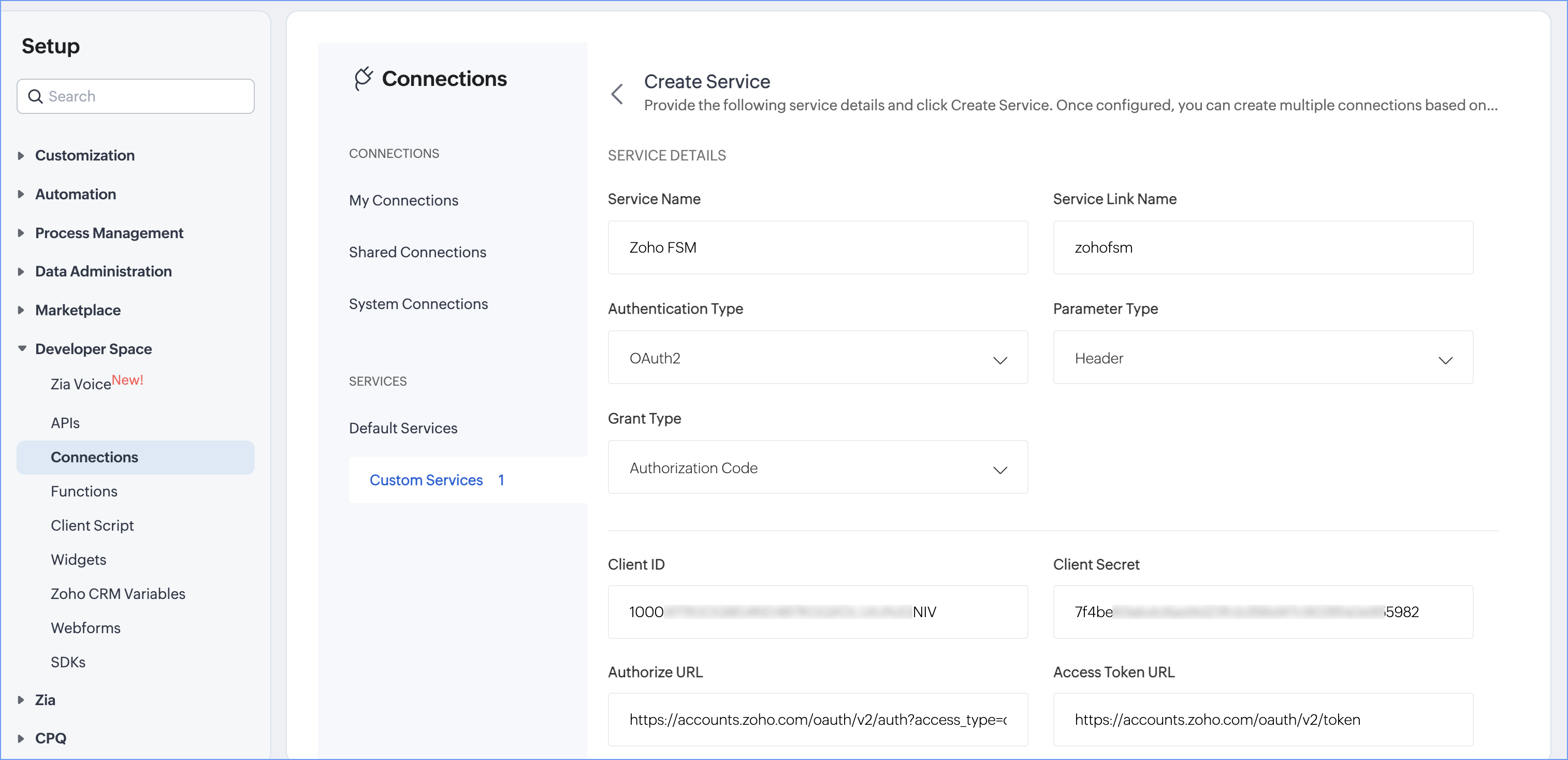

  4. In the Create Service page, enter the following details and click Create Service.
    1. Service Name: Zoho FSM
      The Service Link Name will be automatically populated.
    2. Authentication Type: OAuth2
    3. Parameter Type: Header
    4. Generated Client ID, Client Secret
    5. Authorize URL: https://accounts.zoho.com/oauth/v2/auth?access_type=offline&prompt=consent
    6. Access Token URL: https://accounts.zoho.com/oauth/v2/token
    7. Refresh Token URL: https://accounts.zoho.com/oauth/v2/token
    8. Scope: ZohoFSM.modules.all
      Provide values for Scope Display Name.



  5. Click Create Connection.

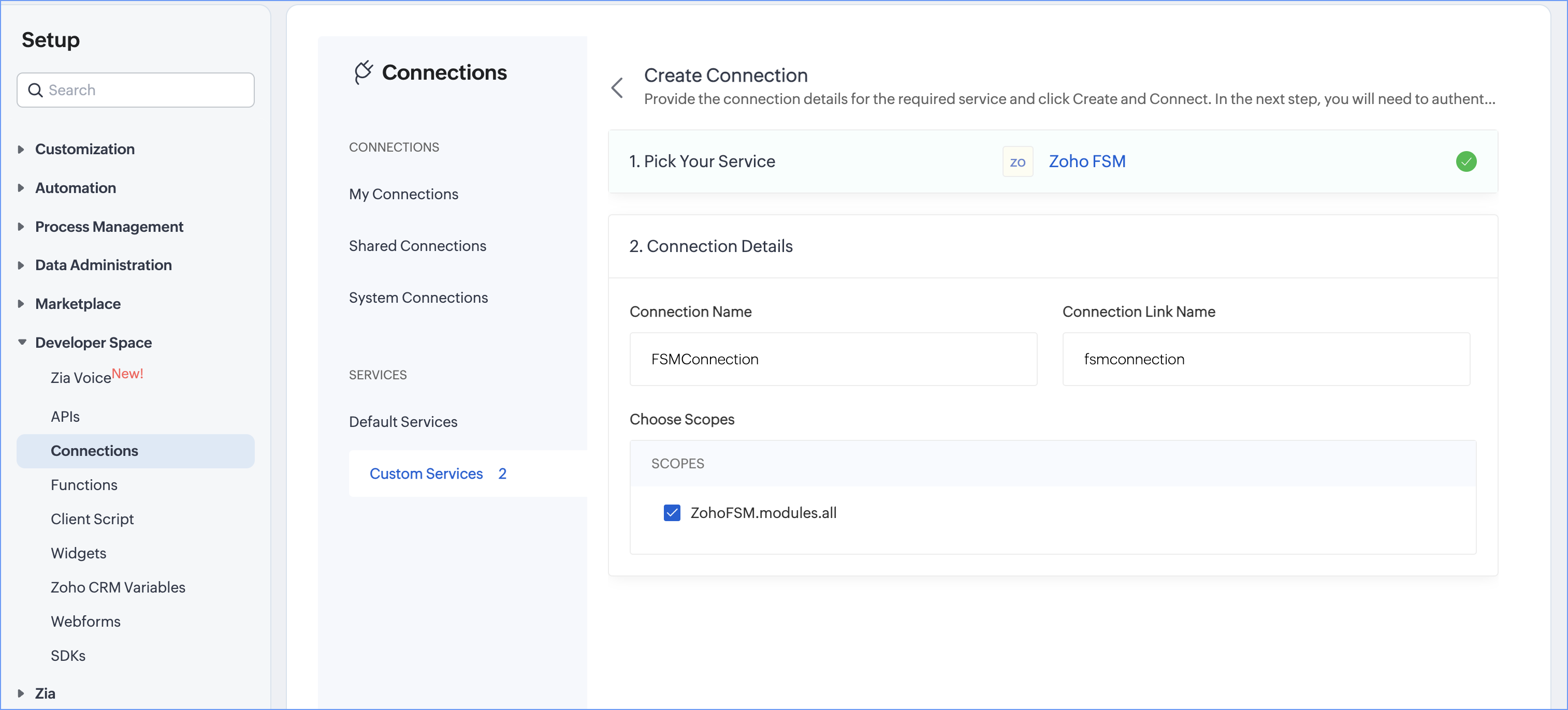

  6. Do the following and click Create And Connect:
    1. Connection Name: FSMConnection
    2. Select the Scopes ZohoFSM.modules.all



  7. Click Connect in the authentication page.

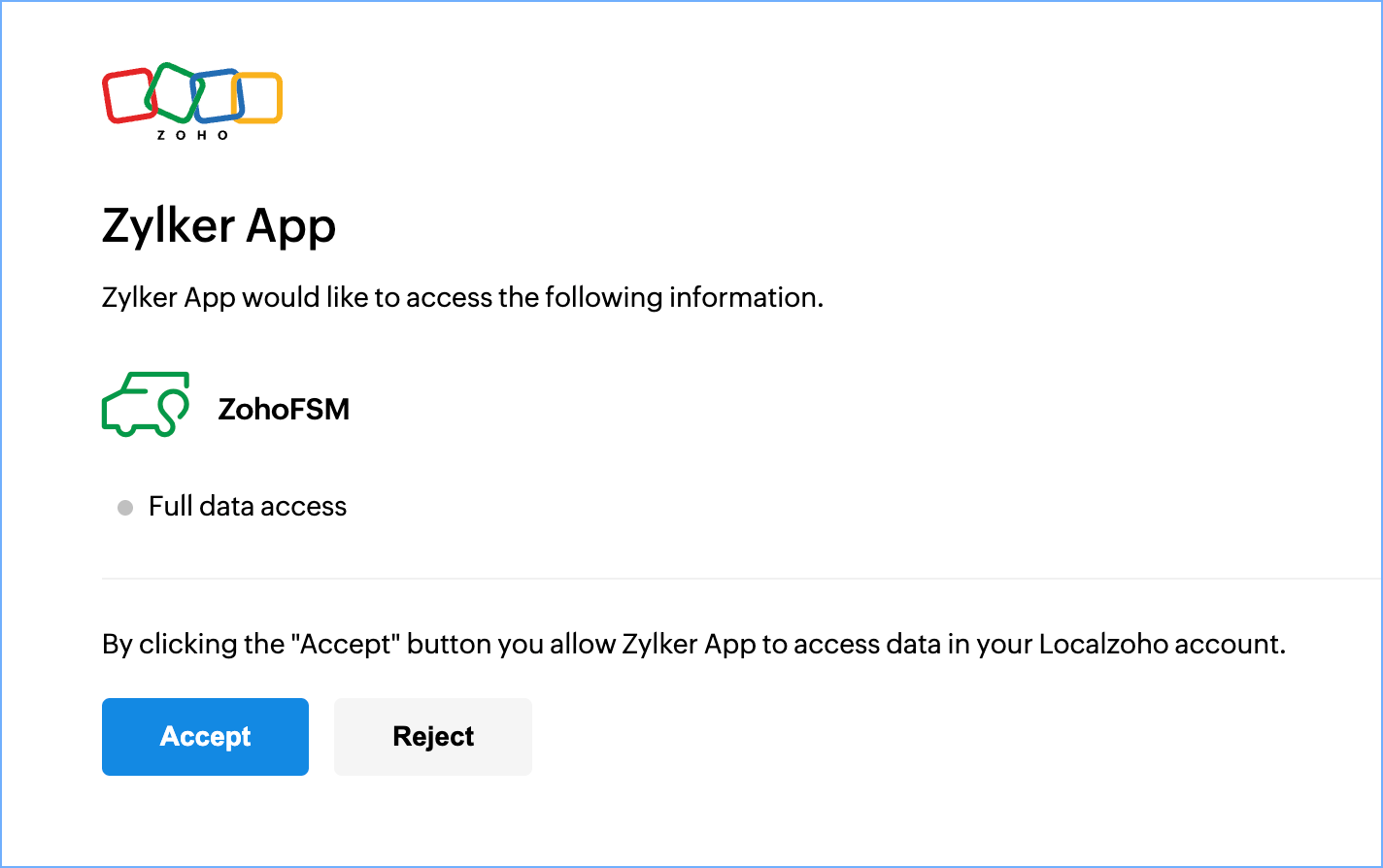

  8. Click Accept in the authorization page.


In the custom function, where FSM APIs are used via the invokeURL task, use this Connection Link Name.


Step 2: Create a workflow rule

Create a workflow rule in Zoho CRM to create a work order in Zoho FSM whenever a sales order is created in Zoho CRM.

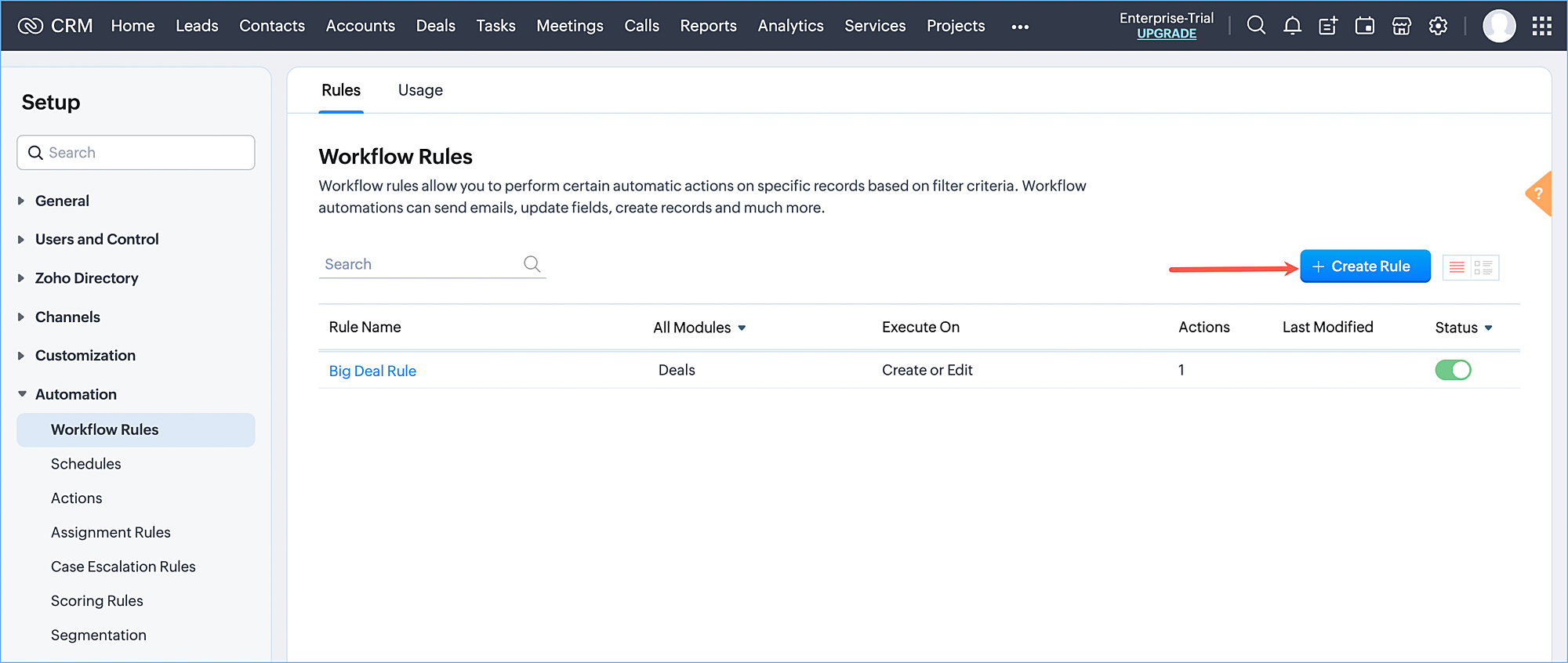

  1. Navigate to Setup > Automation > Workflow Rules and click Create Rule.

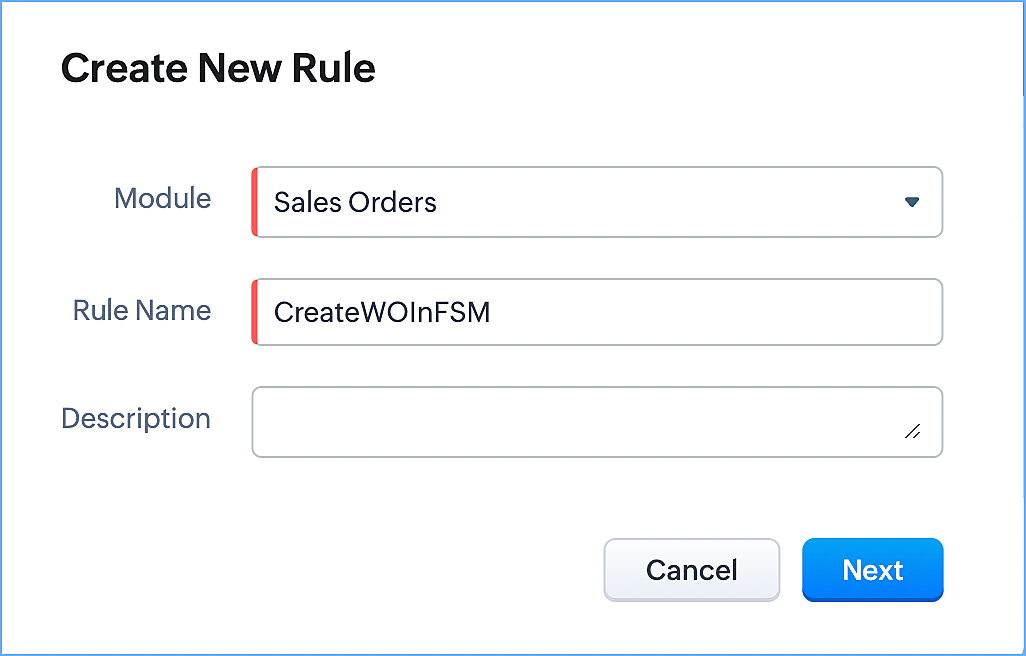

  2. Enter the following details, then click Next:
    1. Module: Sales Orders
    2. Rule Name: CreateWOInFSM

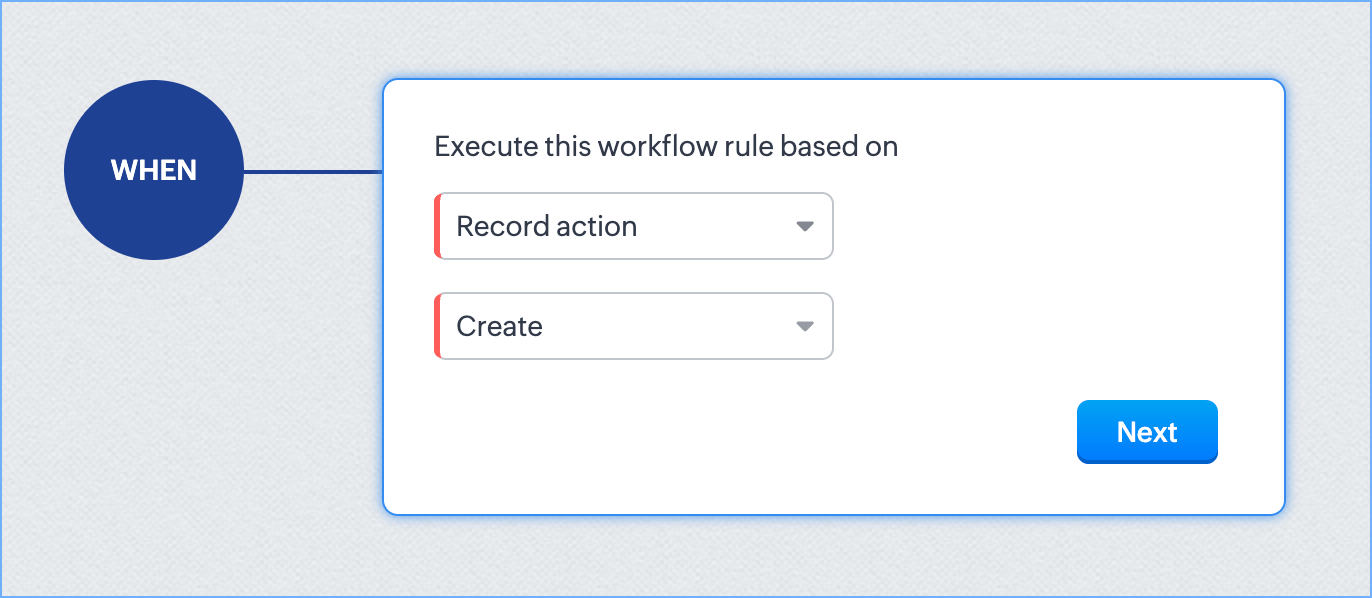

  3. Select the rule trigger as Create from Record action and click Next.

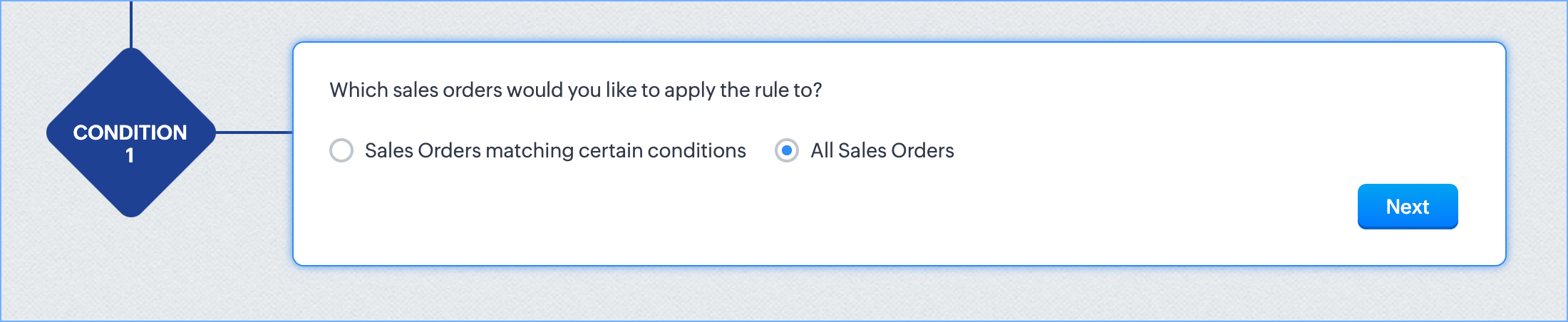

  4. Select the rule criteria as All Sales Orders. Click Next.

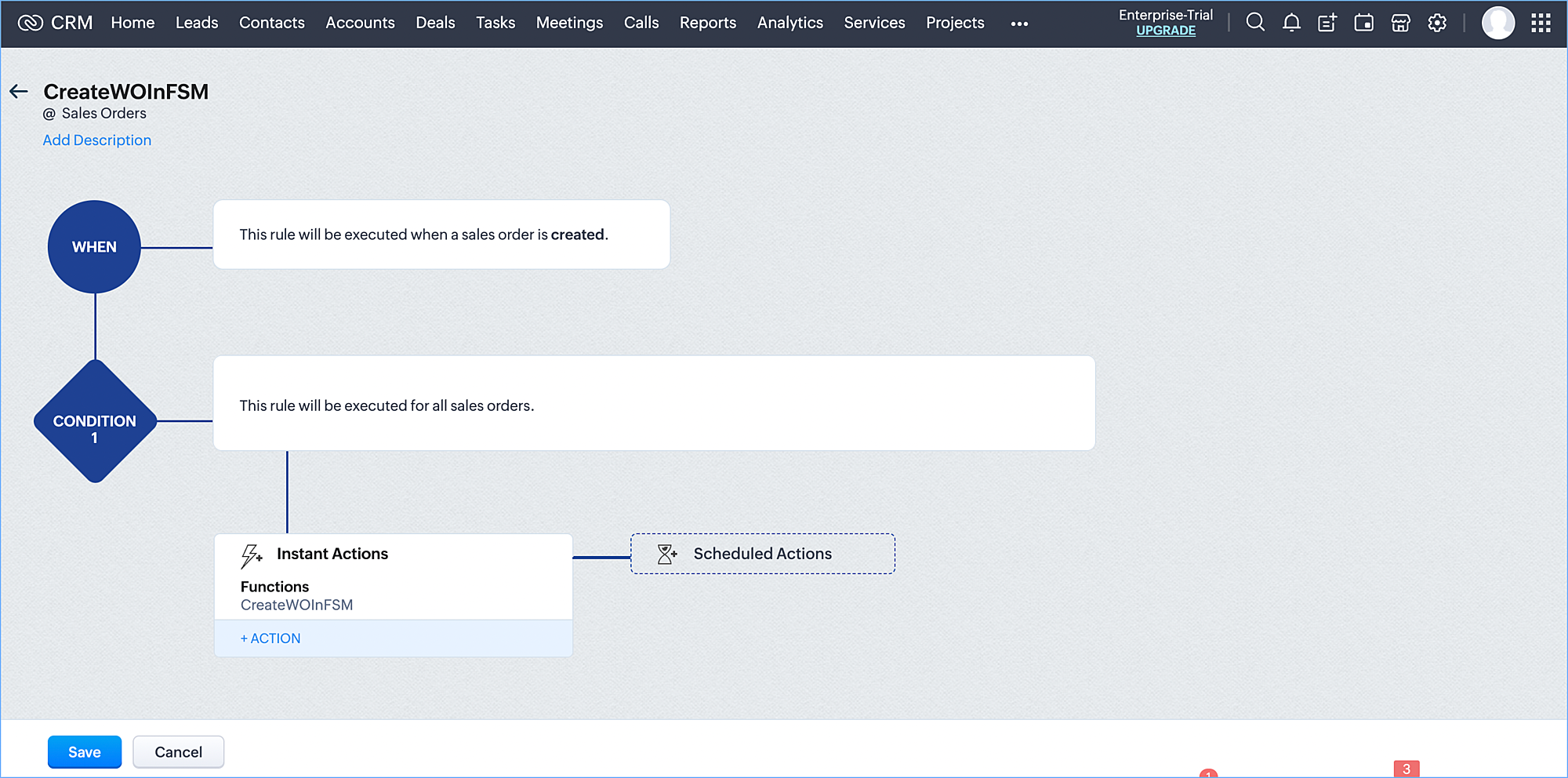

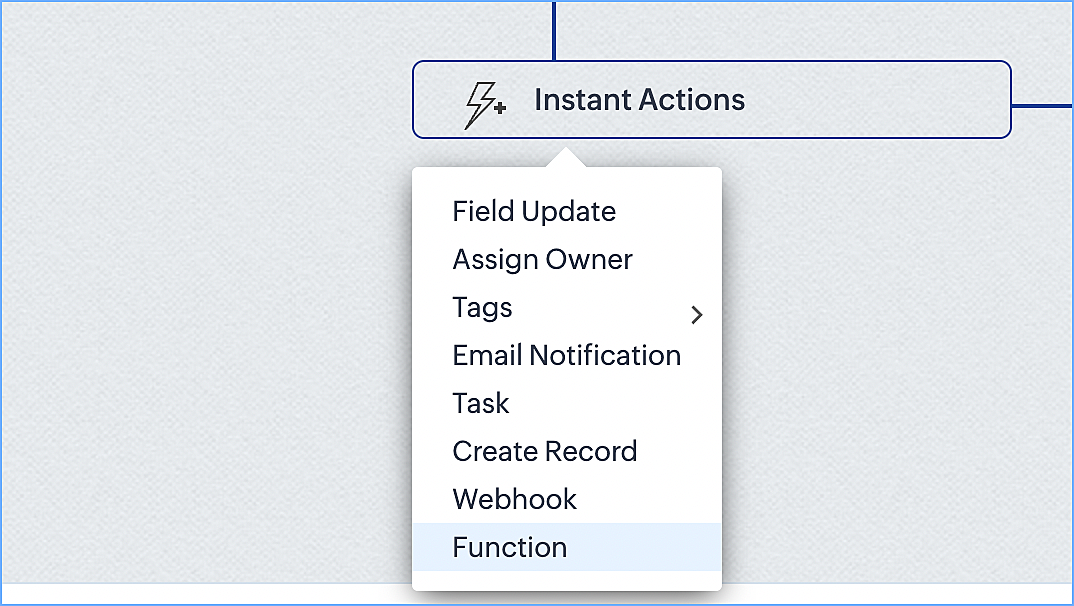

  5. Click +Action and select Function.

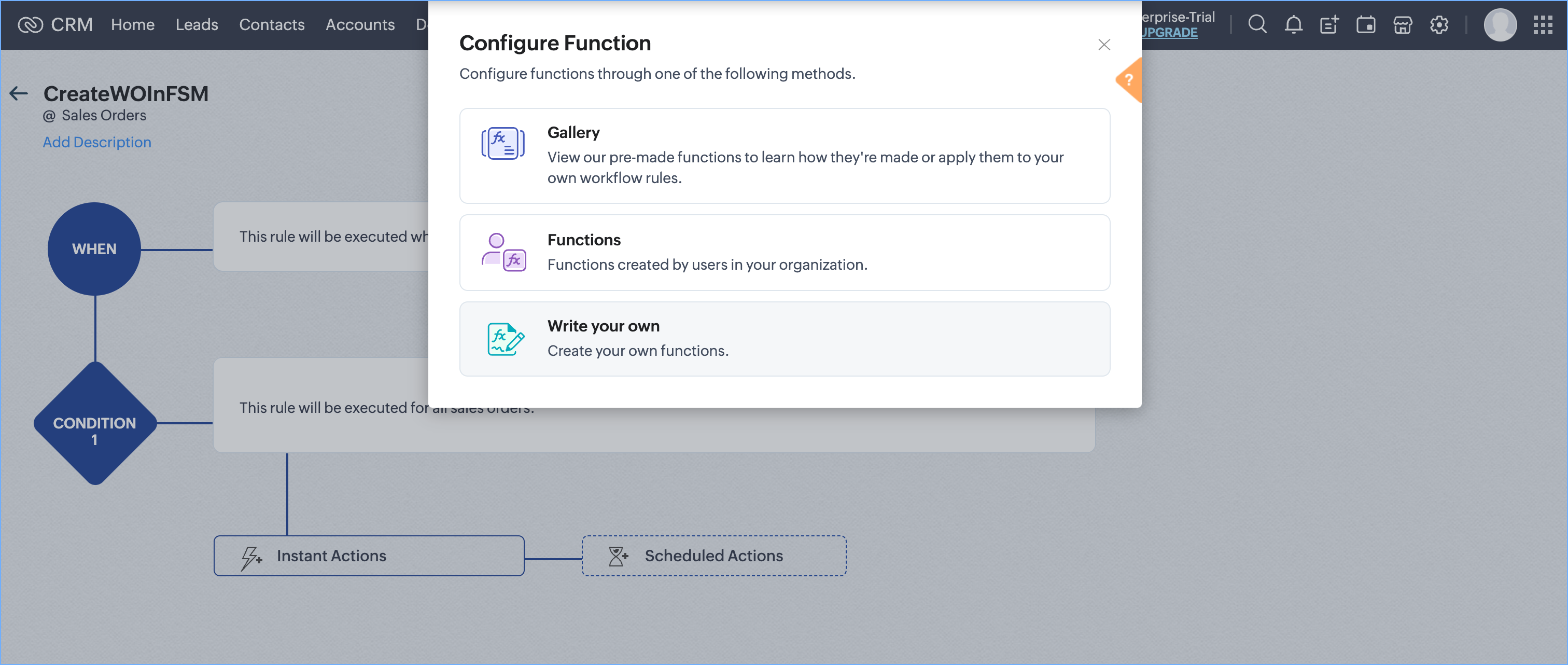

  6. In the Configure Function popup, click Write your own.
    Create a custom function.



  7. Click Save.

Step 3: Create a custom function

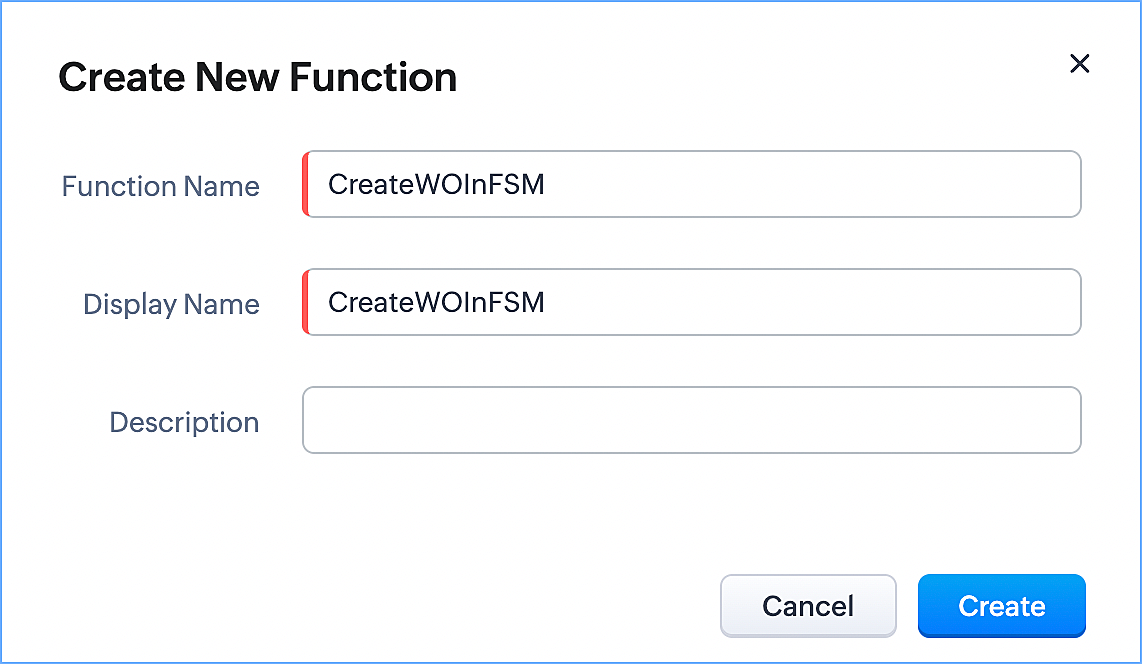

  1. In the Create New Function popup, enter the following and click Create.
    1. Function Name: CreateWOInFSM
    2. Display Name: CreateWOInFSM

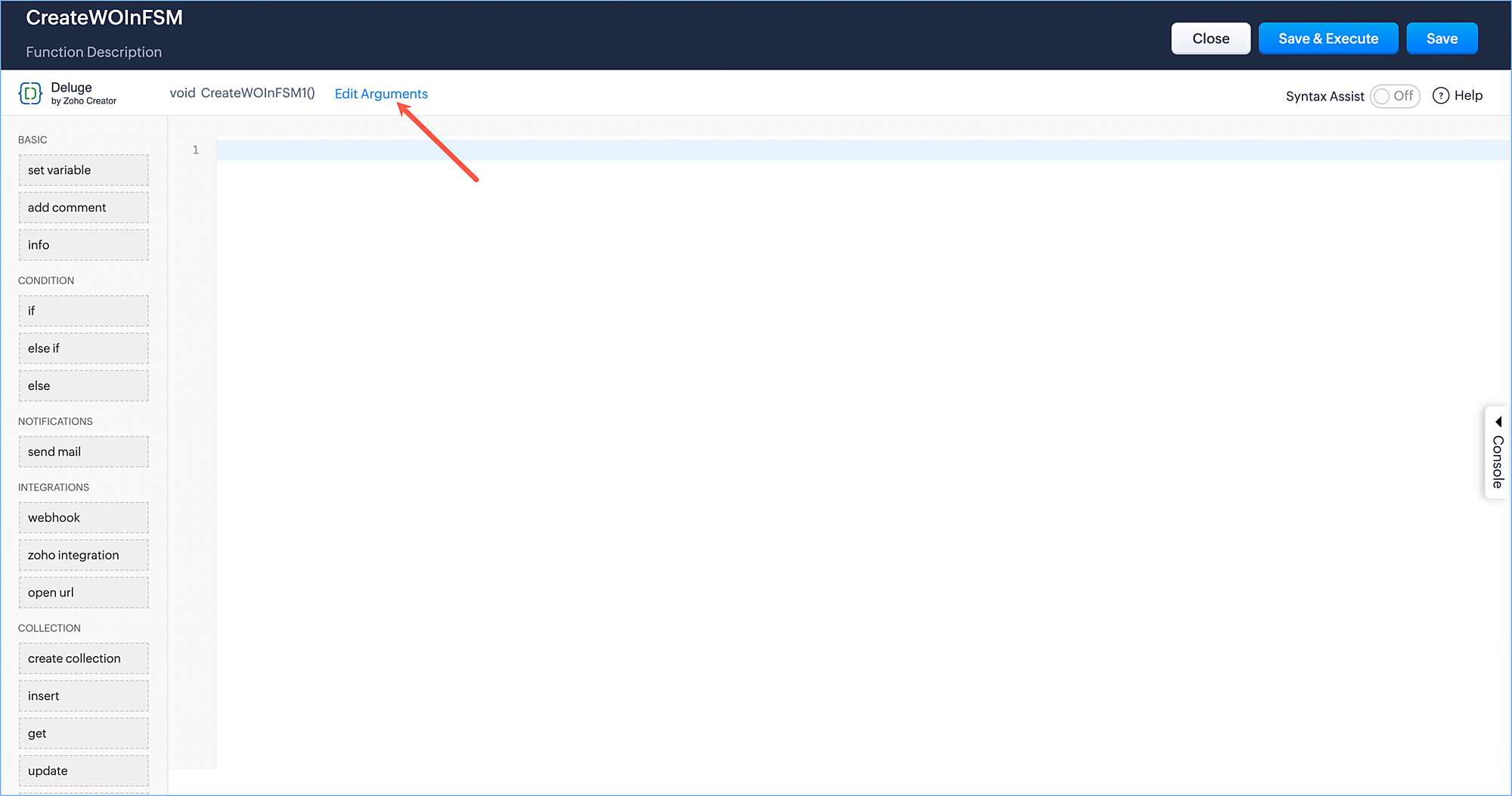

  2. In the Deluge Script Editor, click Edit Arguments.

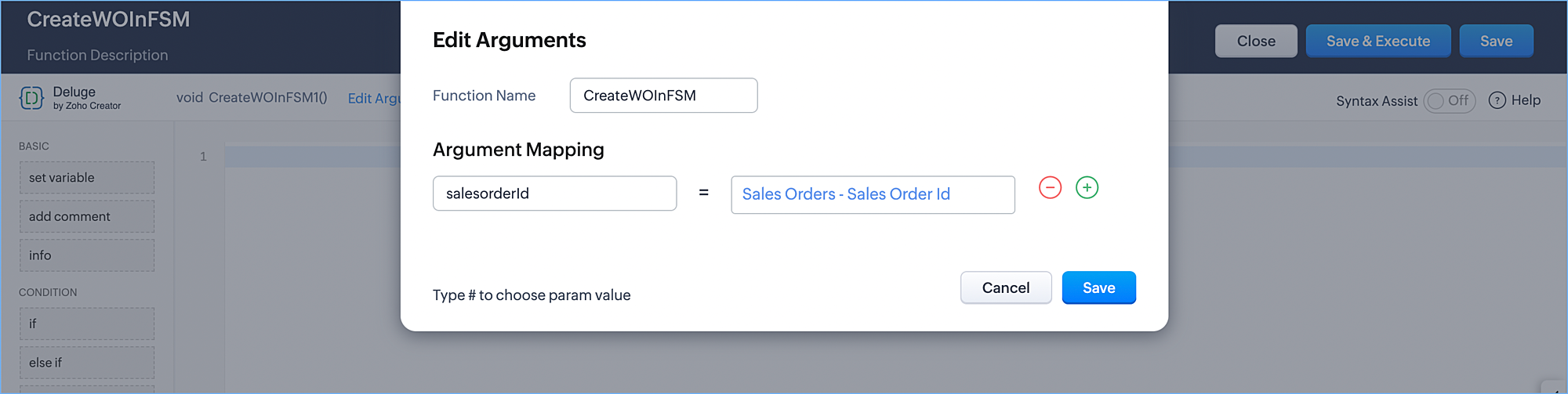

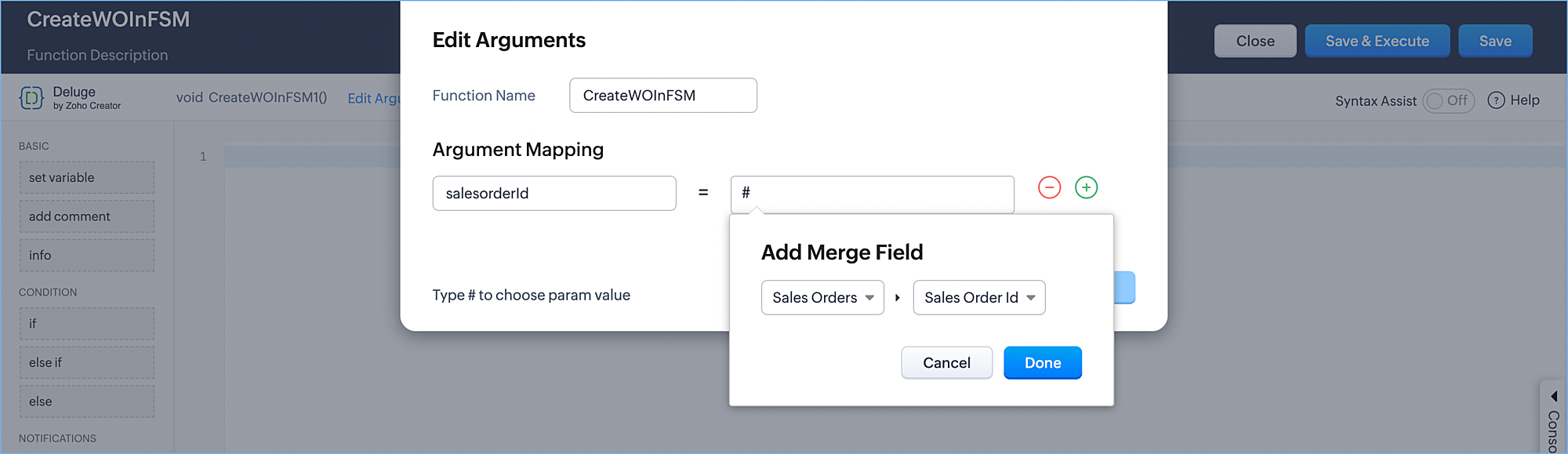

  3. In the Edit Arguments popup, do the following:
    1. Enter the argument name as salesorderId.
    2. For the argument value, type # and select Sales Orders - Sales Order Id and click Done.



  4. Click Save.



  5. Add the below script and click Save.

    salesOrderresp = zoho.crm.getRecordById("Sales_Orders",salesorderId);
    if(salesOrderresp != null)
    {
    Summary = salesOrderresp.get("Subject");
    Account_Name = salesOrderresp.get("Account_Name").toMap().get("name");
    Encoded_Account_Name = zoho.encryption.urlEncode(Account_Name);
    response = invokeurl
    [
    type :GET
    connection:"fsmconnection"
    ];
    if(response != "")
    {
    response_data = response.get("data").toMap();
    FSM_Account_id = response_data.get("id");
    Billing_Address_resp = response_data.get("Billing_Address");
    if(Billing_Address_resp != null)
    {
    Billing_Address_resp = Billing_Address_resp.toMap();
    bill_add_map = Map();
    bill_add_map.put("id",Billing_Address_resp.get("id"));
    }
    Service_Address_resp = response_data.get("Service_Address");
    if(Service_Address_resp != null)
    {
    Service_Address_resp = Service_Address_resp.toMap();
    ship_add_map = Map();
    ship_add_map.put("id",Service_Address_resp.get("id"));
    }
    }
    else
    {
    Account_Id = salesOrderresp.get("Account_Name").toMap().get("id");
    account_resp = zoho.crm.getRecordById("Accounts",Account_Id);
    mobile = account_resp.get("Fax");
    phone = account_resp.get("Phone");
    website = account_resp.get("Website");
    sh_street = account_resp.get("Shipping_Street");
    sh_city = account_resp.get("Shipping_City");
    sh_state = account_resp.get("Shipping_State");
    sh_code = account_resp.get("Shipping_Code");
    sh_country = account_resp.get("Shipping_Country");
    bi_street = account_resp.get("Billing_Street");
    bi_city = account_resp.get("Billing_City");
    bi_state = account_resp.get("Billing_State");
    bi_code = account_resp.get("Billing_Code");
    bi_country = account_resp.get("Billing_Country");
    createMap = Map();
    createMap.put("Company_Name",Account_Name);
    createMap.put("Mobile",mobile);
    createMap.put("Phone",phone);
    createMap.put("Website",website);
    Service_Address_Map = Map();
    Service_Address_Map.put("Address_Name",Account_Name + "Shipping Address");
    Service_Address_Map.put("Street_1",sh_street);
    Service_Address_Map.put("City",sh_city);
    Service_Address_Map.put("State",sh_state);
    Service_Address_Map.put("Zip_Code",sh_code);
    Service_Address_Map.put("Country",sh_country);
    Billing_Address_Map = Map();
    Billing_Address_Map.put("Address_Name",Account_Name + "Billing Address");
    Billing_Address_Map.put("Street_1",bi_street);
    Billing_Address_Map.put("City",bi_city);
    Billing_Address_Map.put("State",bi_state);
    Billing_Address_Map.put("Zip_Code",bi_code);
    Billing_Address_Map.put("Country",bi_country);
    createMap.put("Service_Address",Service_Address_Map);
    createMap.put("Billing_Address",Billing_Address_Map);
    responze = zoho.fsm.createRecord("Companies",createMap);
    FSM_Account_id = responze.get("data").toMap().get("Companies").toMap().get("id");
    temp_company_resp = zoho.fsm.getRecordById("Companies",FSM_Account_id);
    response_data_x = temp_company_resp.get("data").toMap();
    Billing_Address_resp = response_data_x.get("Billing_Address");
    if(Billing_Address_resp != null)
    {
    Billing_Address_resp = Billing_Address_resp.toMap();
    bill_add_map = Map();
    bill_add_map.put("id",Billing_Address_resp.get("id"));
    }
    Service_Address_resp = response_data_x.get("Service_Address");
    if(Service_Address_resp != null)
    {
    Service_Address_resp = Service_Address_resp.toMap();
    ship_add_map = Map();
    ship_add_map.put("id",Service_Address_resp.get("id"));
    }
    }
    Contact_Id = salesOrderresp.get("Contact_Name").toMap().get("id");
    Contact_Resp = zoho.crm.getRecordById("Contacts",Contact_Id);
    Contact_Email = Contact_Resp.get("Email");
    responze = invokeurl
    [
    type :GET
    connection:"fsmconnection"
    ];
    if(responze.toString() != "")
    {
    responze = responze.toMap();
    FSM_Contact_id = responze.get("data").toMap().get("id");
    }
    else
    {
    Salutation = Contact_Resp.get("Salutation");
    First_Name = Contact_Resp.get("First_Name");
    Last_Name = Contact_Resp.get("Last_Name");
    Phone = Contact_Resp.get("Phone");
    Mobile = Contact_Resp.get("Mobile");
    bi_Street = Contact_Resp.get("Mailing_Street");
    bi_city = Contact_Resp.get("Mailing_City");
    bi_state = Contact_Resp.get("Mailing_State");
    bi_code = Contact_Resp.get("Mailing_Zip");
    bi_country = Contact_Resp.get("Mailing_Country");
    sh_street = Contact_Resp.get("Other_Street");
    sh_city = Contact_Resp.get("Other_City");
    sh_state = Contact_Resp.get("Other_State");
    sh_code = Contact_Resp.get("Other_Zip");
    sh_country = Contact_Resp.get("Other_Country");
    createMap = Map();
    createMap.put("Salutation",Salutation);
    createMap.put("First_Name",First_Name);
    createMap.put("Last_Name",Last_Name);
    createMap.put("Email",Contact_Email);
    createMap.put("Phone",Phone);
    createMap.put("Mobile",Mobile);
    createMap.put("Company",FSM_Account_id);
    Service_Address_Map = Map();
    Service_Address_Map.put("Address_Name",First_Name + " " + Last_Name + " Shipping Address");
    Service_Address_Map.put("Street_1",sh_street);
    Service_Address_Map.put("City",sh_city);
    Service_Address_Map.put("State",sh_state);
    Service_Address_Map.put("Zip_Code",sh_code);
    Service_Address_Map.put("Country",sh_country);
    Billing_Address_Map = Map();
    Billing_Address_Map.put("Address_Name",First_Name + " " + Last_Name + " Billing Address");
    Billing_Address_Map.put("Street_1",bi_Street);
    Billing_Address_Map.put("City",bi_city);
    Billing_Address_Map.put("State",bi_state);
    Billing_Address_Map.put("Zip_Code",bi_code);
    Billing_Address_Map.put("Country",bi_country);
    createMap.put("Service_Address",Service_Address_Map);
    createMap.put("Billing_Address",Billing_Address_Map);
    cr_resp = zoho.fsm.createRecord("Contacts",createMap);
    FSM_Contact_id = cr_resp.get("data").toMap().get("Contacts").toMap().get("id");
    }
    i = 1;
    servive_line_list = list();
    product_List = salesOrderresp.get("Product_Details").toList();
    for each  each_product in product_List
    {
    temp_each_product = each_product.toMap();
    quantity = temp_each_product.get("quantity");
    unit_price = temp_each_product.get("unit_price");
    product_Name = temp_each_product.get("product").toMap().get("name");
    Encoded_product_Name = zoho.encryption.urlEncode(product_Name);
    rezponse = invokeurl
    [
    type :GET
    connection:"fsmconnection"
    ];
    if(rezponse != "")
    {
    FSM_Product_id = rezponse.get("data").toMap().get("id");
    }
    else
    {
    product_id = each_product.toMap().get("product").toMap().get("id");
    product_resp = zoho.crm.getRecordById("Products",product_id);
    Unit = product_resp.get("Usage_Unit");
    Unit_Price = product_resp.get("Unit_Price");
    Type = product_resp.get("Product_Category");
    Description = product_resp.get("Description");
    createMap = Map();
    createMap.put("Name",product_Name);
    createMap.put("Description",Description);
    createMap.put("Unit",Unit);
    createMap.put("Unit_Price",Unit_Price);
    createMap.put("Type",Type);
    resp = zoho.fsm.createRecord("Service_And_Parts",createMap);
    FSM_Product_id = resp.get("data").toMap().get("Service_And_Parts").toMap().get("id");
    }
    servive_line_resp = Map();
    servive_line_resp.put("Service",FSM_Product_id);
    servive_line_resp.put("Quantity",quantity);
    servive_line_resp.put("List_Price",unit_price);
    servive_line_resp.put("Sequence",i);
    servive_line_list.add(servive_line_resp);
    i = i + 1;
    }
    }

    terrResp = zoho.fsm.getRecords("Territories");
    terrId = terrResp.get("data").toMap().get("id");

    createMap = Map();
    createMap.put("Summary",Summary);
    createMap.put("Priority","Medium");
    createMap.put("Type","Service");
    createMap.put("Contact",FSM_Contact_id);
    createMap.put("Company",FSM_Account_id);
    createMap.put("Service_Address",ship_add_map);
    createMap.put("Billing_Address",bill_add_map);
    createMap.put("Service_Line_Items",servive_line_list);
    createMap.put("Territory",terrId);
    create_resp = zoho.fsm.createRecord("Work_Orders",createMap);
    info create_resp;

Testing the use case

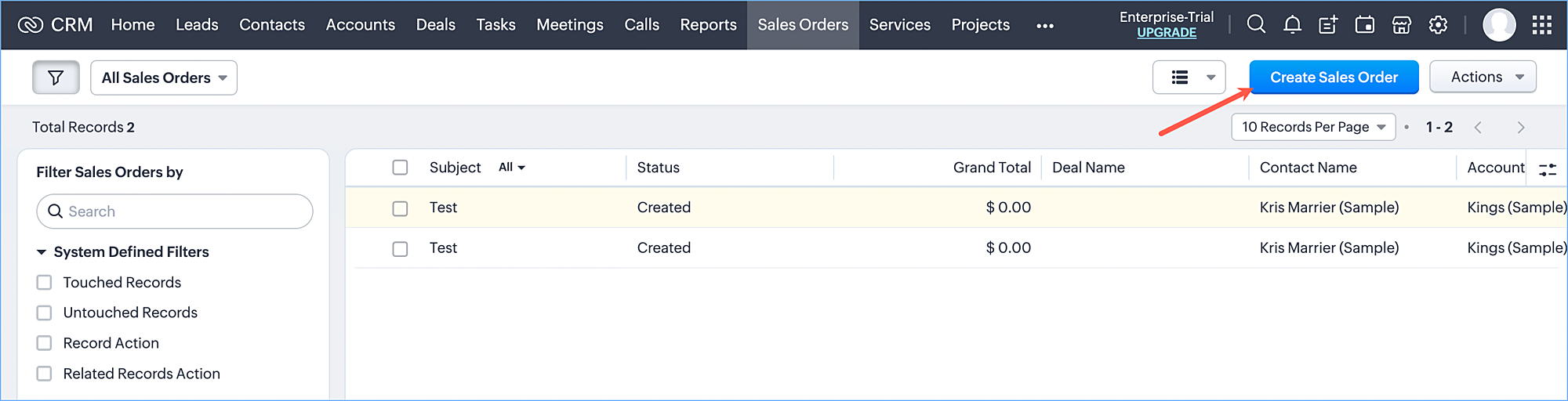

Create a Sales Order.
Ensure the contact and account in the deal is already present in FSM. Use this custom function to push the contact and account from CRM to FSM.

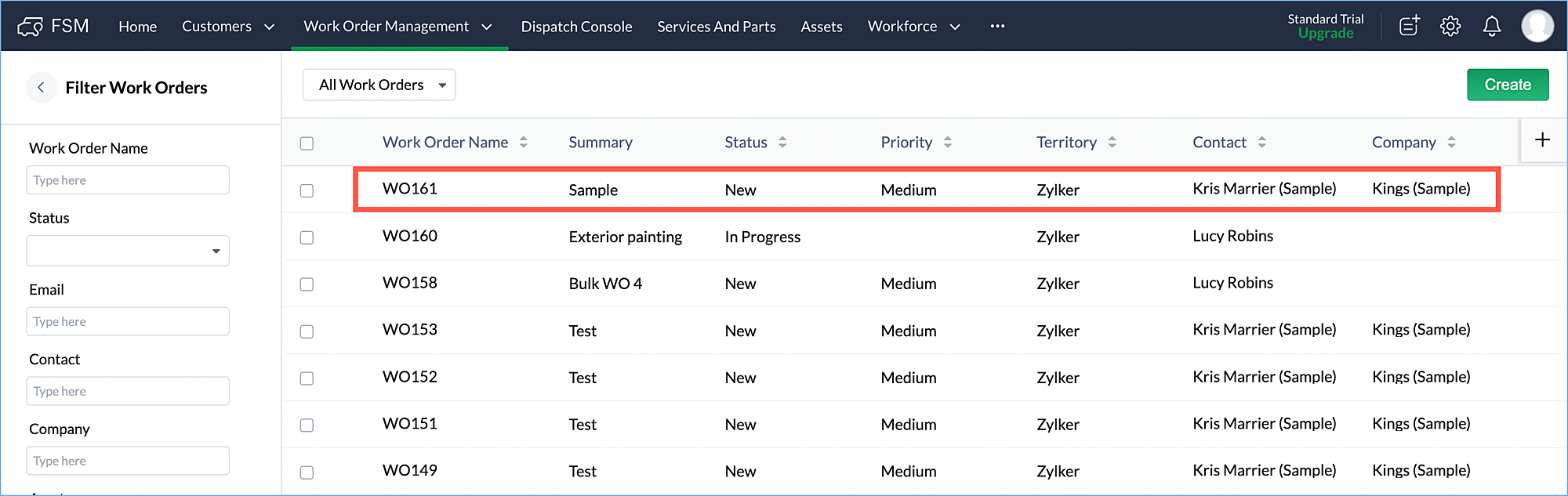

A new Work Order will be created in FSM.



    Access your files securely from anywhere

      Zoho CRM Training Programs

      Learn how to use the best tools for sales force automation and better customer engagement from Zoho's implementation specialists.

      Zoho CRM Training
        Redefine the way you work
        with Zoho Workplace

          Zoho DataPrep Personalized Demo

          If you'd like a personalized walk-through of our data preparation tool, please request a demo and we'll be happy to show you how to get the best out of Zoho DataPrep.

          Zoho CRM Training

            Create, share, and deliver

            beautiful slides from anywhere.

            Get Started Now


              Zoho Sign now offers specialized one-on-one training for both administrators and developers.

              BOOK A SESSION





                          Quick LinksWorkflow AutomationData Collection
                          Web FormsEnterpriseBegin Data Collection
                          Interactive FormsWorkplaceData Collection App
                          CRM FormsCustomer ServiceAccessible Forms
                          Digital FormsMarketingForms for Small Business
                          HTML FormsEducationForms for Enterprise
                          Contact FormsE-commerceForms for any business
                          Lead Generation FormsHealthcareForms for Startups
                          Wordpress FormsCustomer onboardingOrder Forms for Small Business
                          No Code FormsConstructionRSVP tool for holidays
                          Free FormsTravel
                          Prefill FormsNon-Profit

                          Intake FormsLegal
                          Mobile App
                          Form DesignerHR
                          Mobile Forms
                          Card FormsFoodOffline Forms
                          Assign FormsPhotography
                          Mobile Forms Features
                          Translate FormsReal EstateKiosk in Mobile Forms
                          Electronic Forms

                          Notification Emails for FormsAlternativesSecurity & Compliance
                          Holiday FormsGoogle Forms alternative GDPR
                          Form to PDFJotform alternativeHIPAA Forms
                          Email Forms
                          Encrypted Forms
                          Embeddable Forms
                          Secure Forms
                          Drag & drop form builder
                          WCAG



                                            You are currently viewing the help pages of Qntrl’s earlier version. Click here to view our latest version—Qntrl 3.0's help articles.




                                                Manage your brands on social media


                                                  • Desk Community Learning Series


                                                  • Digest


                                                  • Functions


                                                  • Meetups


                                                  • Kbase


                                                  • Resources


                                                  • Glossary


                                                  • Desk Marketplace


                                                  • MVP Corner


                                                  • Word of the Day


                                                  • Ask the Experts


                                                    Zoho Marketing Automation

                                                      Zoho Sheet Resources



                                                          Zoho Forms Resources


                                                            Secure your business
                                                            communication with Zoho Mail


                                                            Mail on the move with
                                                            Zoho Mail mobile application

                                                              Stay on top of your schedule
                                                              at all times


                                                              Carry your calendar with you
                                                              Anytime, anywhere




                                                                    Zoho Sign Resources

                                                                      Sign, Paperless!

                                                                      Sign and send business documents on the go!

                                                                      Get Started Now




                                                                              Zoho TeamInbox Resources



                                                                                      Zoho DataPrep Resources



                                                                                        Zoho DataPrep Demo

                                                                                        Get a personalized demo or POC

                                                                                        REGISTER NOW


                                                                                          Design. Discuss. Deliver.

                                                                                          Create visually engaging stories with Zoho Show.

                                                                                          Get Started Now









                                                                                                              • Related Articles

                                                                                                              • Create a Work Order in Zoho FSM from a Sales Order in Zoho Books

                                                                                                                Use case: Whenever a Sales Order is created in Zoho Books, create a Work Order for it in Zoho FSM. Follow the steps below to implement this use case: Step 1: Create a connection for Zoho FSM in Zoho Books Step 2: Create a custom function in Zoho ...
                                                                                                              • Create a Work Order in Zoho FSM from an Invoice in Zoho Books

                                                                                                                Use case: Whenever an Invoice is created in Zoho Books, create a Work Order for it in Zoho FSM. Follow the steps below to implement this use case: Step 1: Create a connection for Zoho FSM in Zoho Books Step 2: Create a custom function in Zoho Books ...
                                                                                                              • Integrating Zoho FSM with Zoho CRM

                                                                                                                Zoho FSM for Zoho CRM is a must-have extension for increasing collaboration between your sales and service teams. It can benefit the sales and service teams by providing them with a consolidated view of customers, enabling quicker and more efficient ...
                                                                                                              • Create an Estimate in Zoho Invoice from a Work Order in Zoho FSM

                                                                                                                Use case: Whenever a Work Order is created in Zoho FSM, create an Estimate for it in Zoho Invoice. Follow the steps below to implement this use case: Step 1: Create a custom function Step 2: Create a workflow rule Step 1: Create a custom function ...
                                                                                                              • Create an event in monday.com Calendar for a Zoho FSM Work Order

                                                                                                                Use case: Create an event in the monday.com calendar when a work order is created Step 1: Create a custom function Step 2: Create a workflow rule Step 1: Create a custom function Add a custom function that will create an event in Monday.com calendar ...
                                                                                                                Wherever you are is as good as
                                                                                                                your workplace

                                                                                                                  Resources

                                                                                                                  Videos

                                                                                                                  Watch comprehensive videos on features and other important topics that will help you master Zoho CRM.



                                                                                                                  eBooks

                                                                                                                  Download free eBooks and access a range of topics to get deeper insight on successfully using Zoho CRM.



                                                                                                                  Webinars

                                                                                                                  Sign up for our webinars and learn the Zoho CRM basics, from customization to sales force automation and more.



                                                                                                                  CRM Tips

                                                                                                                  Make the most of Zoho CRM with these useful tips.



                                                                                                                    Zoho Show Resources
