Zoho FSM | Connections


There are some services that cannot be integrated directly with Zoho FSM. In these cases, you can use a connection to expand FSM's third-party support. Connection supports different authentication types (viz API Key, Basic, OAuth 1.0, OAuth 2.0) to facilitate this integration. Connections will be used while creating Custom Functions.

There are three types of connections:
  1. System Connection: The connection used by the built-in integration task, for accessing the data from FSM and other Zoho services (CRM, Projects, Books, etc). Individual internal connections will be created for individual Zoho integration tasks.
  2. Connection using Default Services: You can choose from the already available list of services, provide your credentials, and establish a connection.
  3. Connection using Custom Services: If the desired service is not available in the default services list, you can configure it on your own and connect to it. Details for registering your Zoho Client is mentioned here.

System Connection

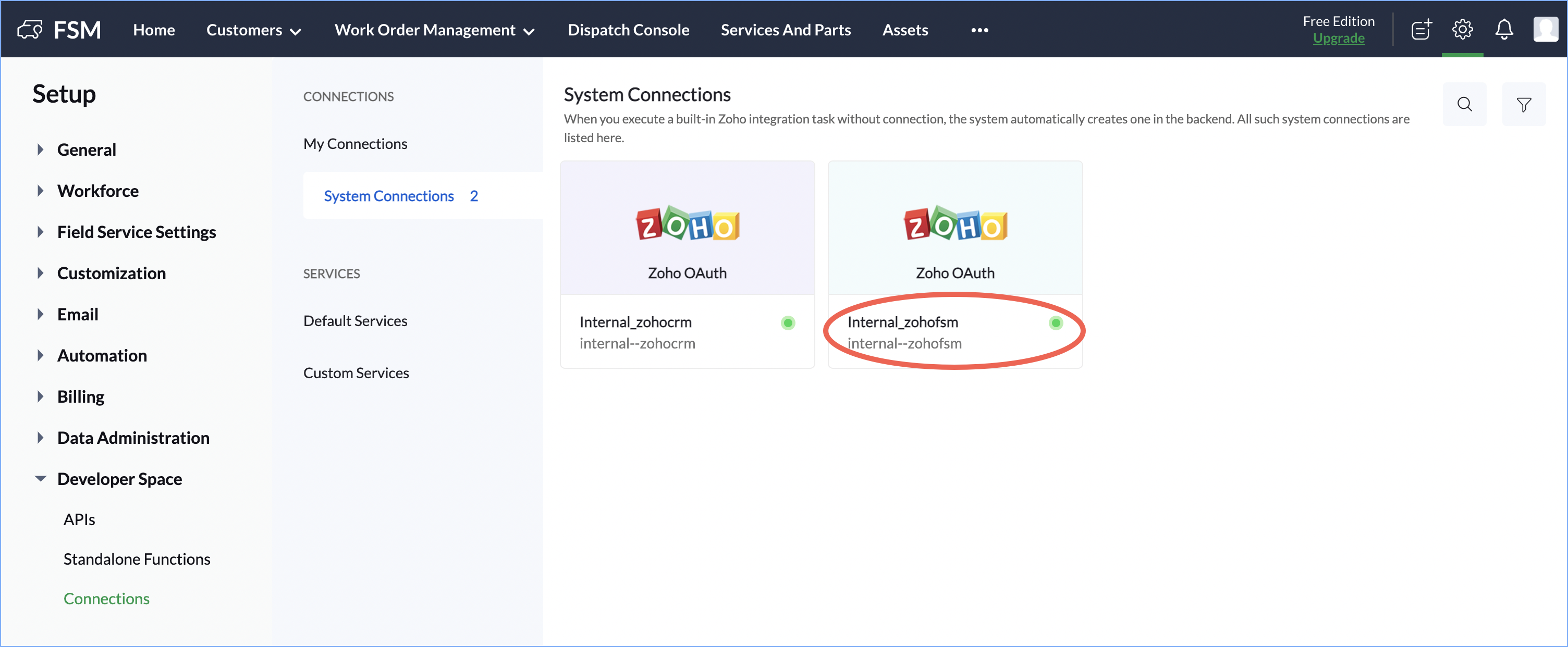

The internal connection used for the FSM data manipulation tasks is listed under Internal Connections at Setup > Developer SpaceConnections. Ensure that the status of the connection is Connected. The green dot [] indicates that the connection is Connected.

Connection using Default Services

Following are the steps to create a Connection for a Default Service (Zoho FSM):
  1. Navigate to Setup > Developer Space > Connections.
    Only users with the profile Administrator will have this option.

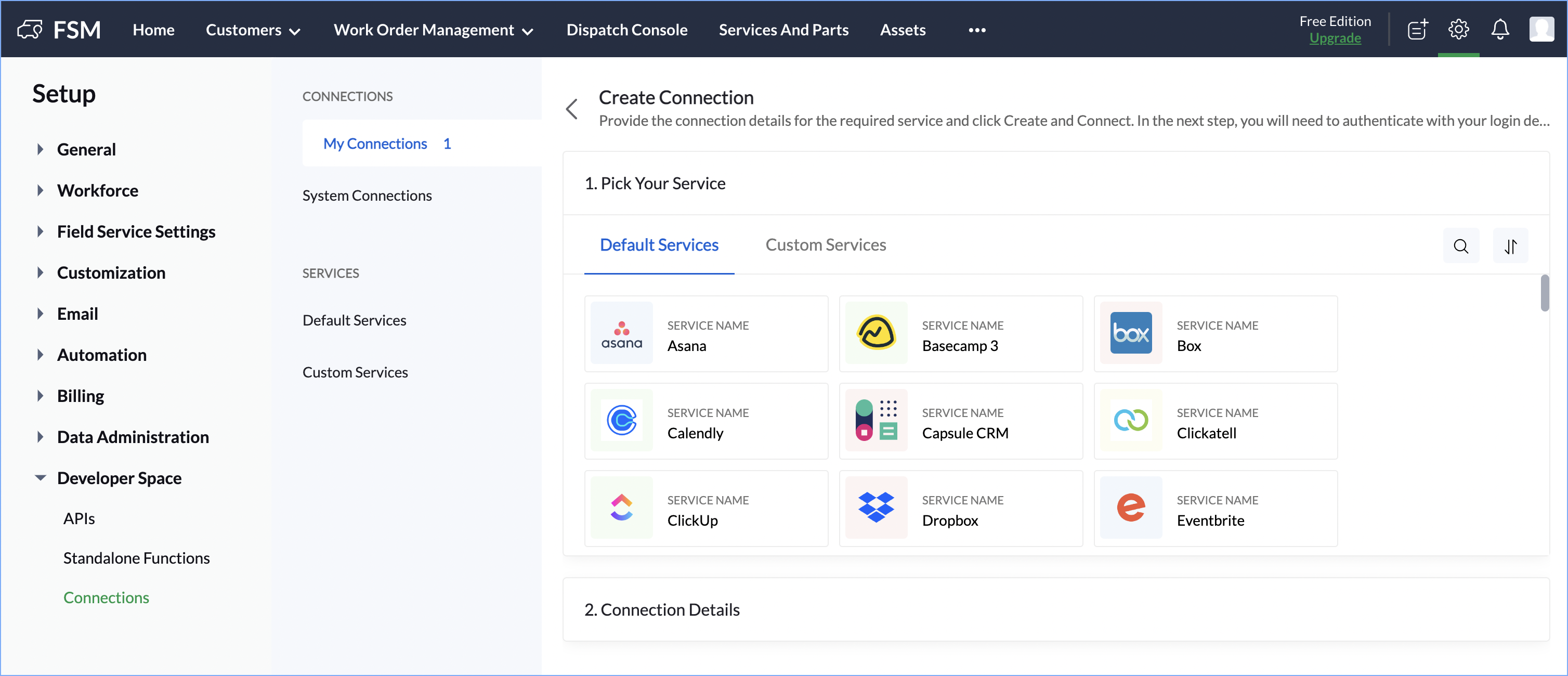

  2. Click Create Connection.
  3. Select the Default Services tab and click on the service to which you want to connect your Zoho Service. In our case, we need to select Zoho FSM.

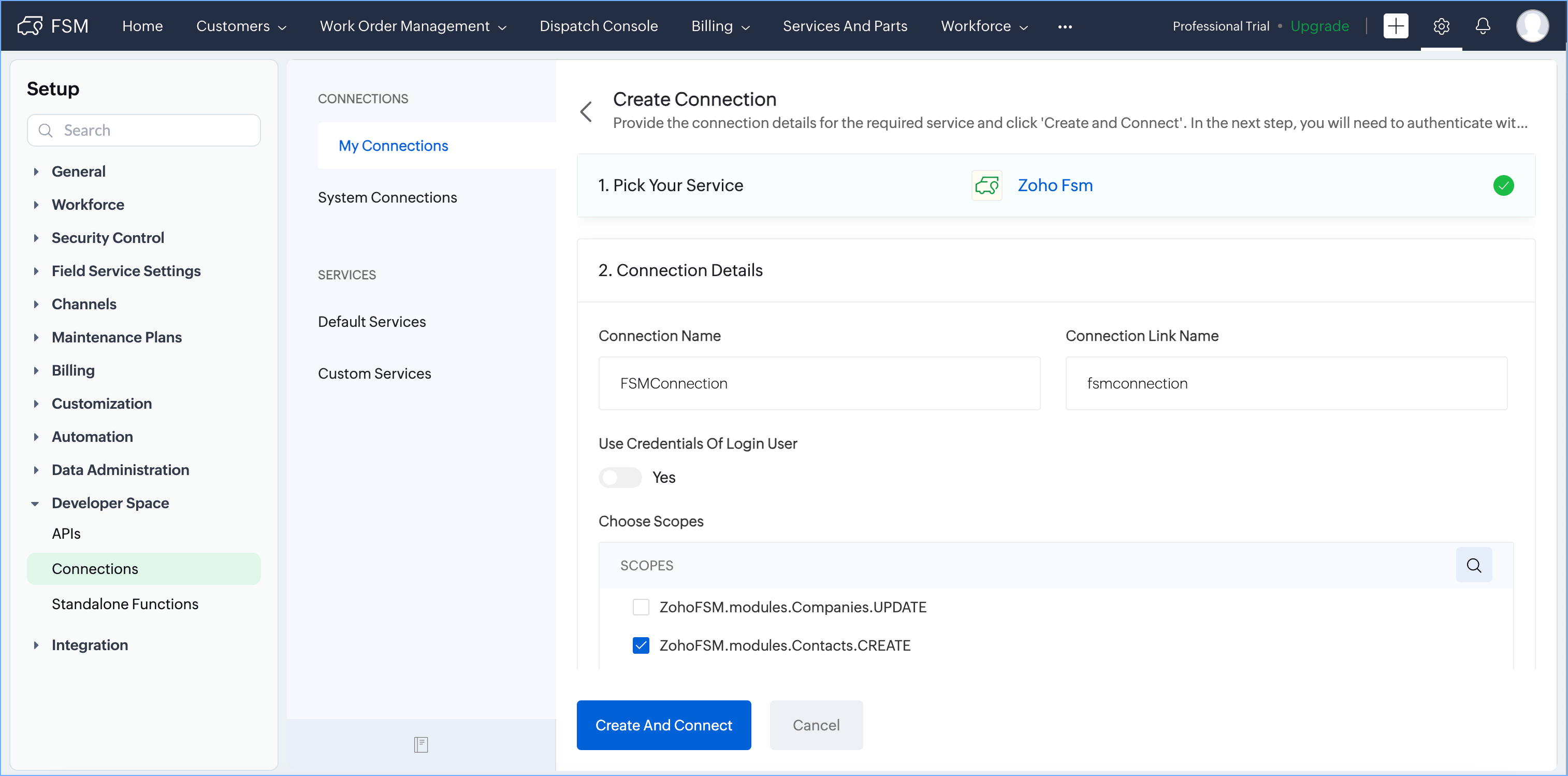

  4. Enter a Connection Name.
  5. Choose Scopes.
    The following scopes are available for FSM. Select the appropriate scopes as per your requirements.






    Used to retrieve records. Will be used in the following tasks:

    zoho.fsm.getRecords(<module>, <page>, <perPage>, <optionalDataMap>, <connection>);

    zoho.fsm.getRecordById(<module>, <id>, <optionalDataMap>, <connection>);

    zoho.fsm.getRelatedRecords(<relationName>, <parentModuleName>, <id>, <page>, <perPage>, <optionalDataMap>, <connection>);





    Used to create records. Will be used in the following tasks:

    zoho.fsm.createRecord(<module>, <dataMap>, <optionalDataMap>, <connection>);






    Used to edit records. Will be used in the following tasks:

    zoho.fsm.updateRecord(<module>, <id>, <dataMap>, <optionalDataMap>, <connection>);

  6. Click Create and Connect.

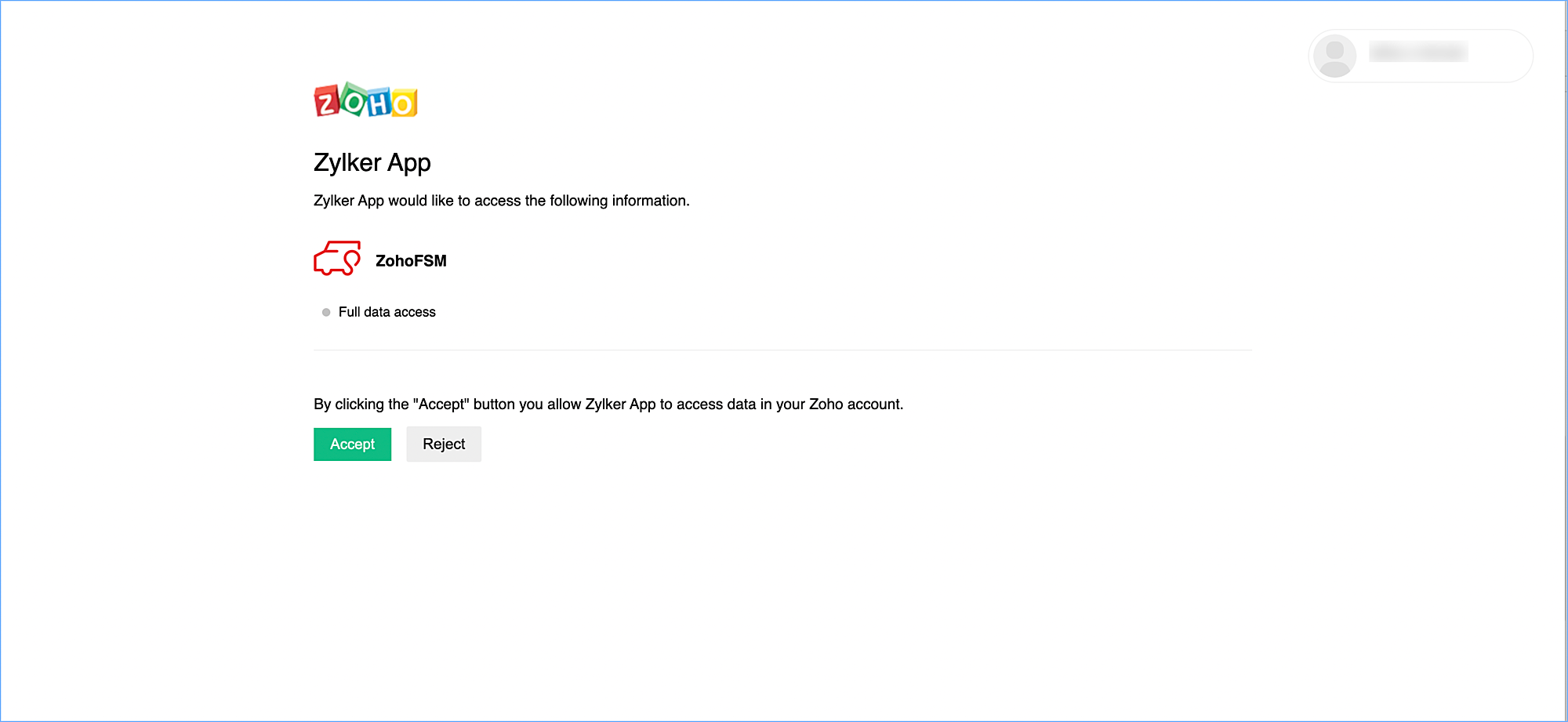

  7. Click Accept in the permissions page.

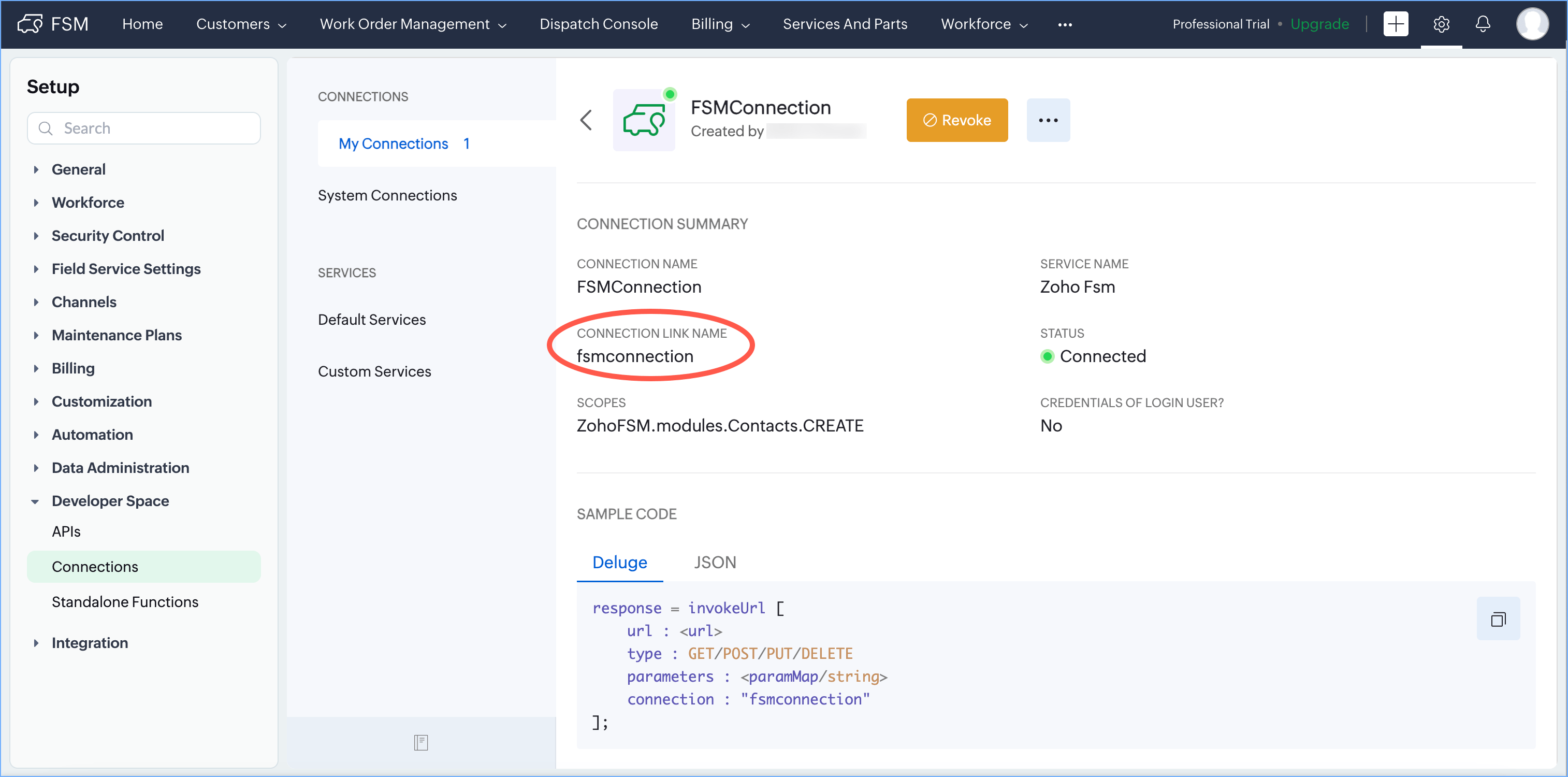

    The connection is created. The Link Name will be used as an argument in the task zoho.fsm.createRecord.

Click here to know the steps for creating a function using the connection of a default service.

Connection using Custom Services

Refer to this page for details of how to create a custom connection. To create a custom connection for Zoho FSM, follow the steps mentioned below:

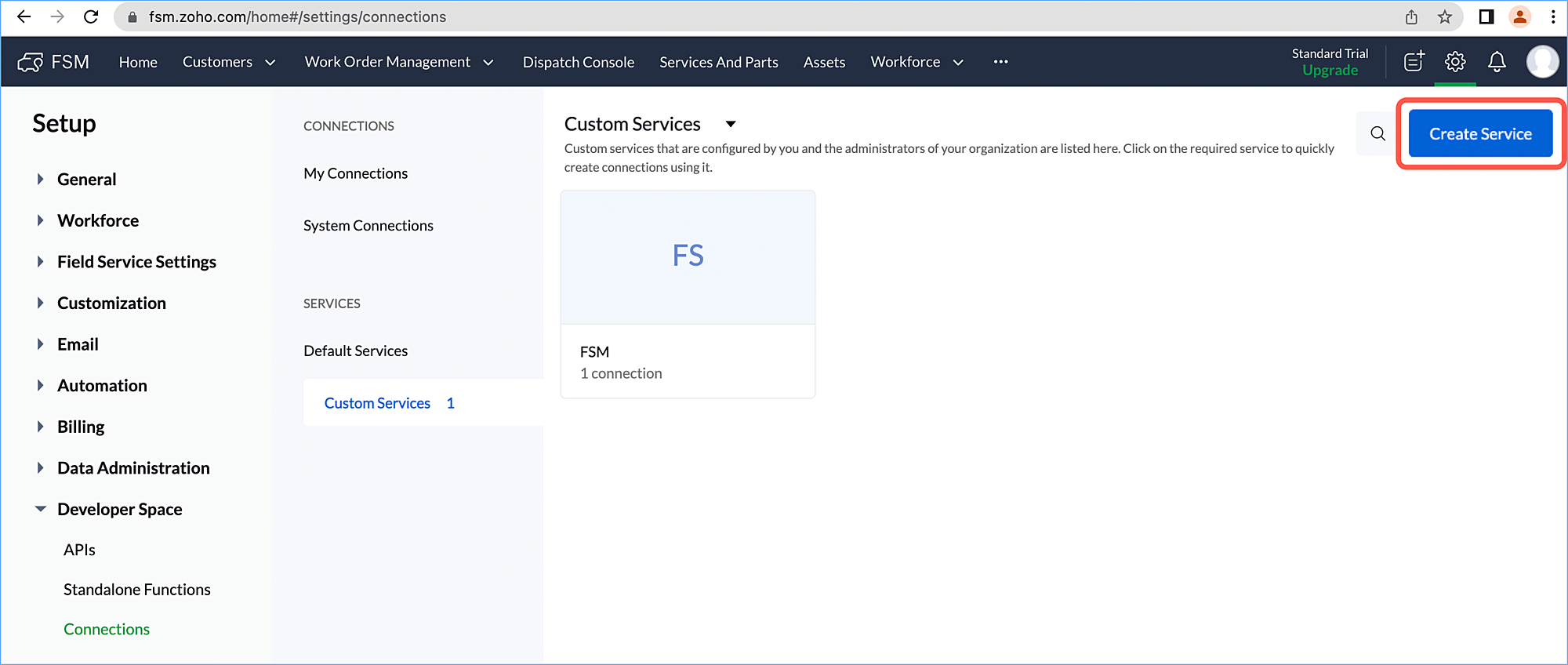

  1. Navigate to Setup > Developer Space > Connections and click Create Service.

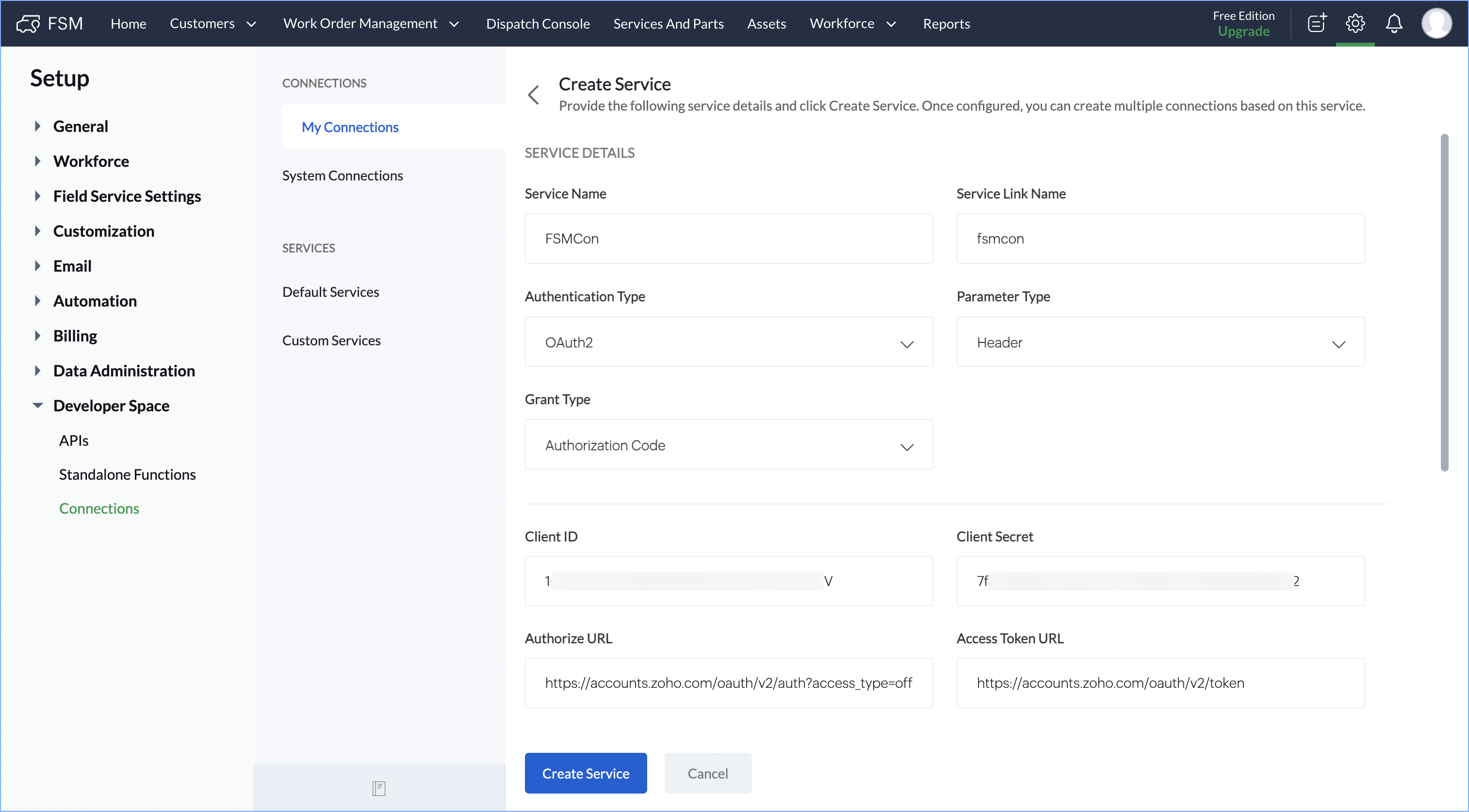

  2. Enter the following details and click Create Service.
    1. Service Name
      The Service Link Name will be automatically populated.
    2. Authentication Type: OAuth2
    3. Parameter Type: Header
    4. Grant Type: Authorization Code
    5. Generated Client IDClient Secret
    6. Authorize URL: https://accounts.zoho.com/oauth/v2/auth?access_type=offline&prompt=consent
    7. Access Token URL: https://accounts.zoho.com/oauth/v2/token
    8. Refresh Token URL: https://accounts.zoho.com/oauth/v2/token
    9. The desired Scope.
      Provide a Scope Display Name.

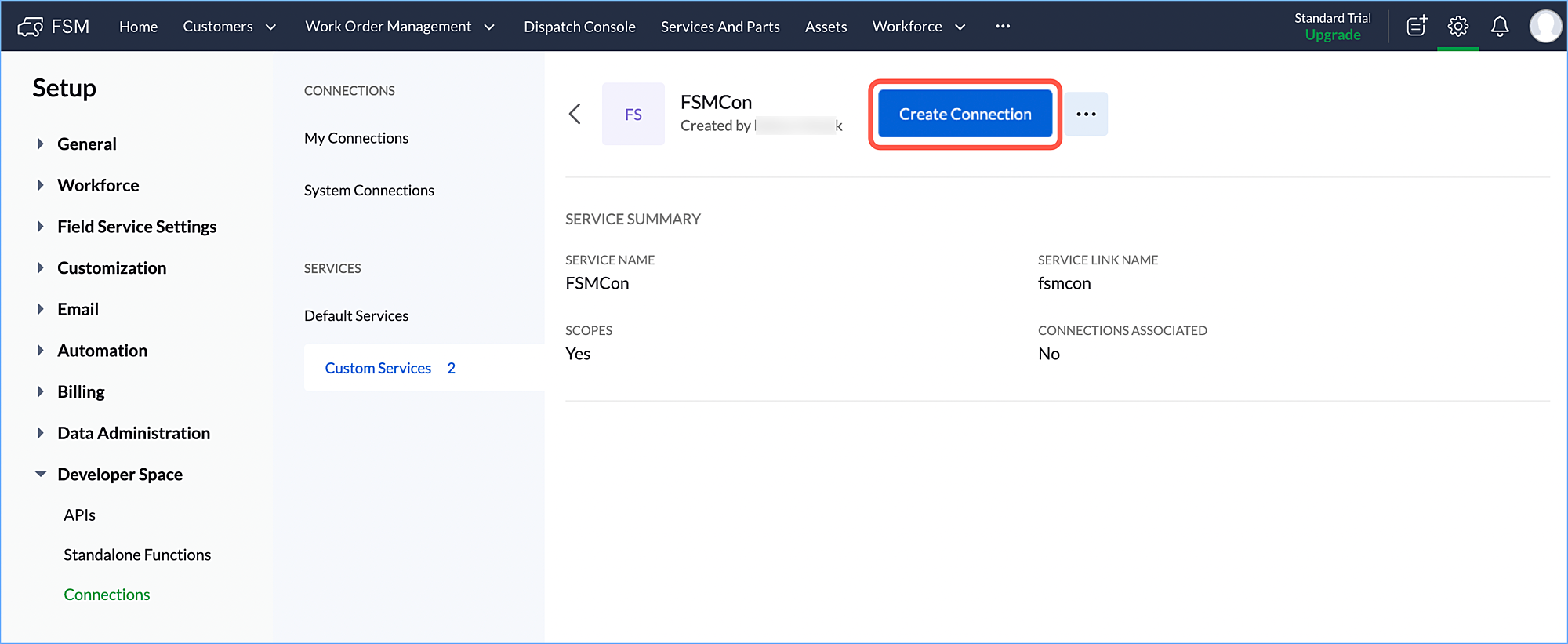

  3. Click Create Connection.

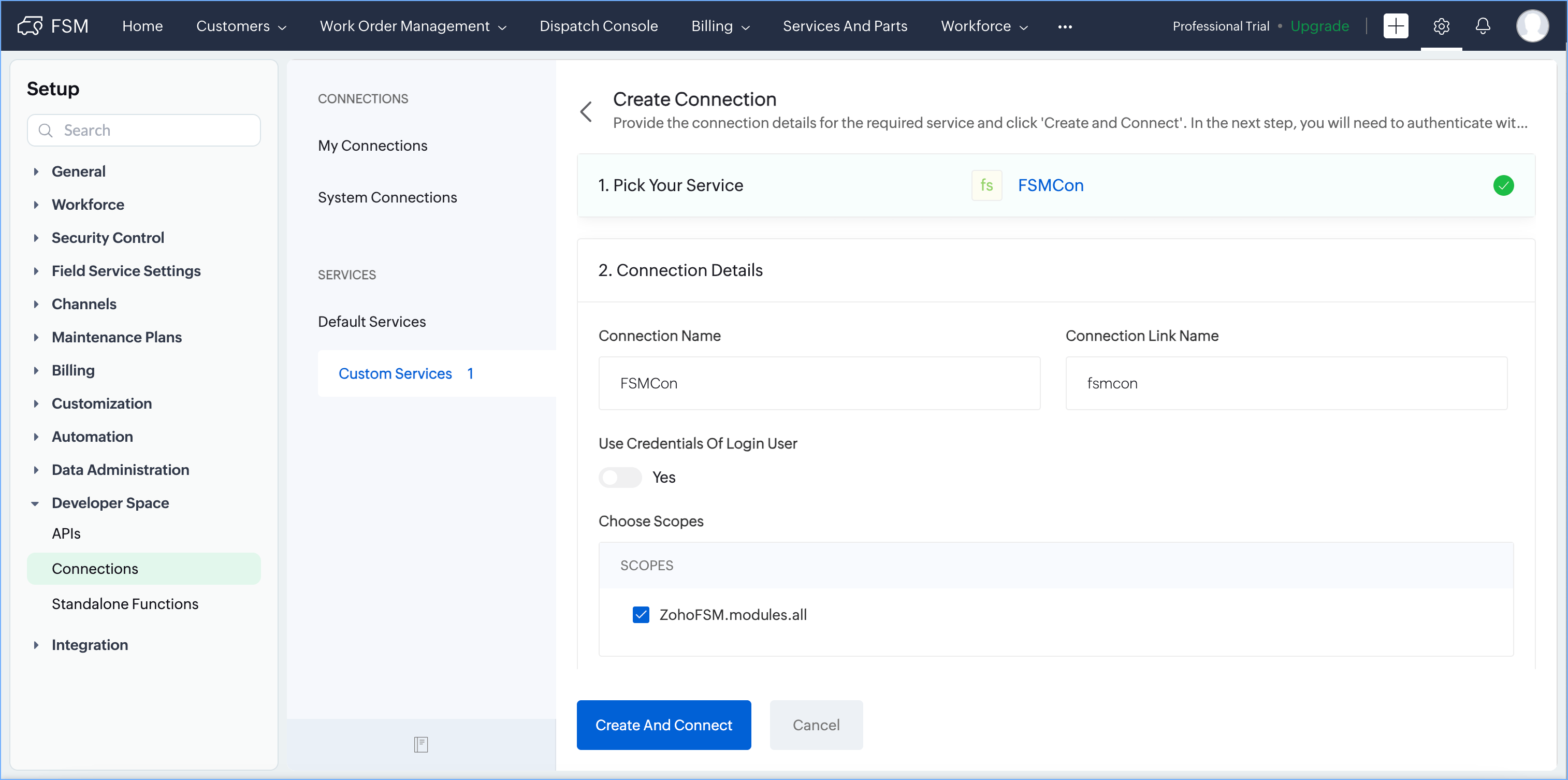

  4. Perform the following and click Create And Connect:
    1. Connection Name
      The Connection Link Name will be populated automatically.
    2. Select the necessary Scopes.

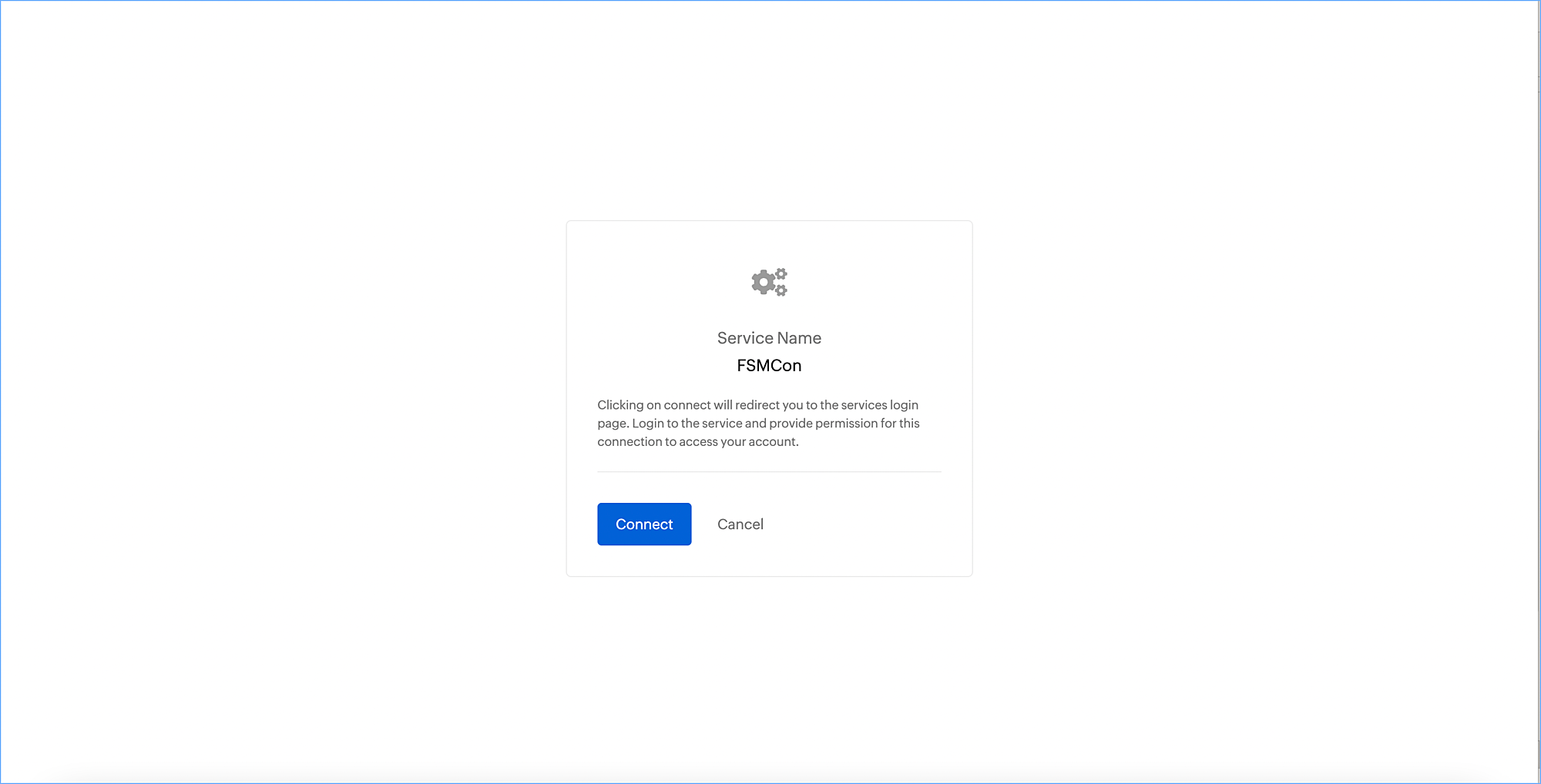

  5. Click Connect in the authentication page.

  6. Click Accept in the Authorization page.

 In custom functions, where the FSM API is used via the invokeURL task, use this Connection Link Name.

Register your Application

To register your application with Zoho FSM:
  1. Go to the API Console.

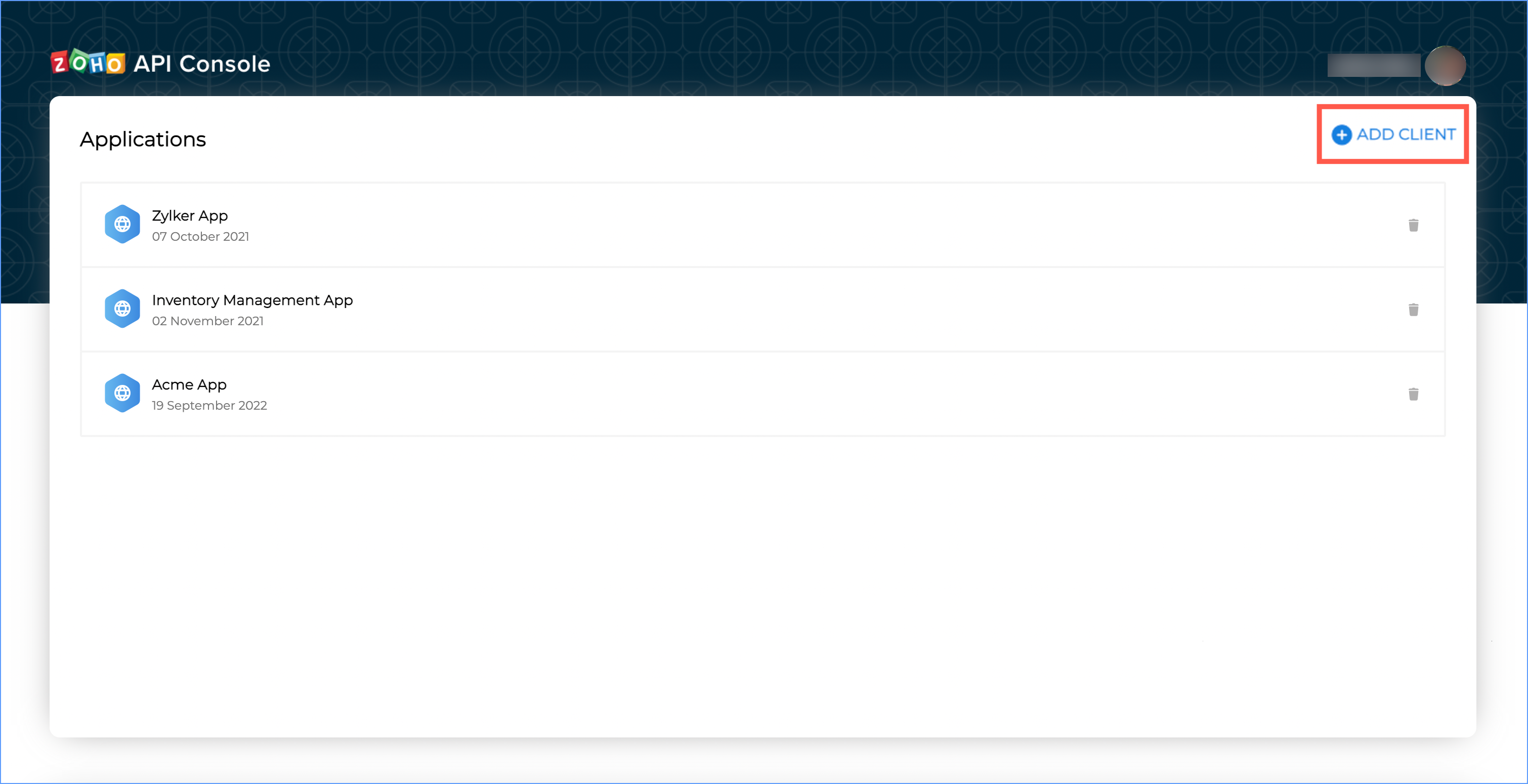

  2. Click Add Client.

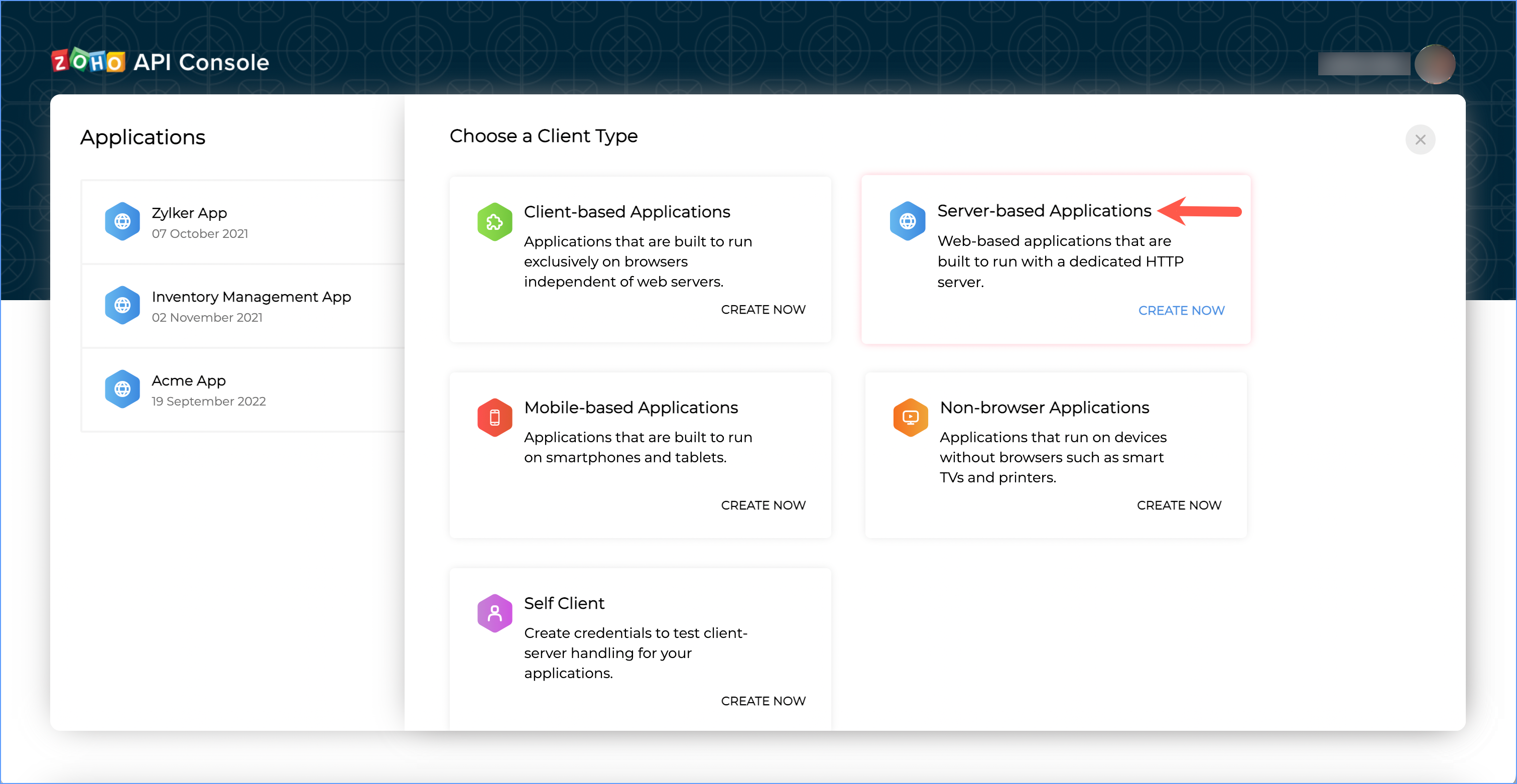

  3. Choose the Client Type as Server-based Applications.

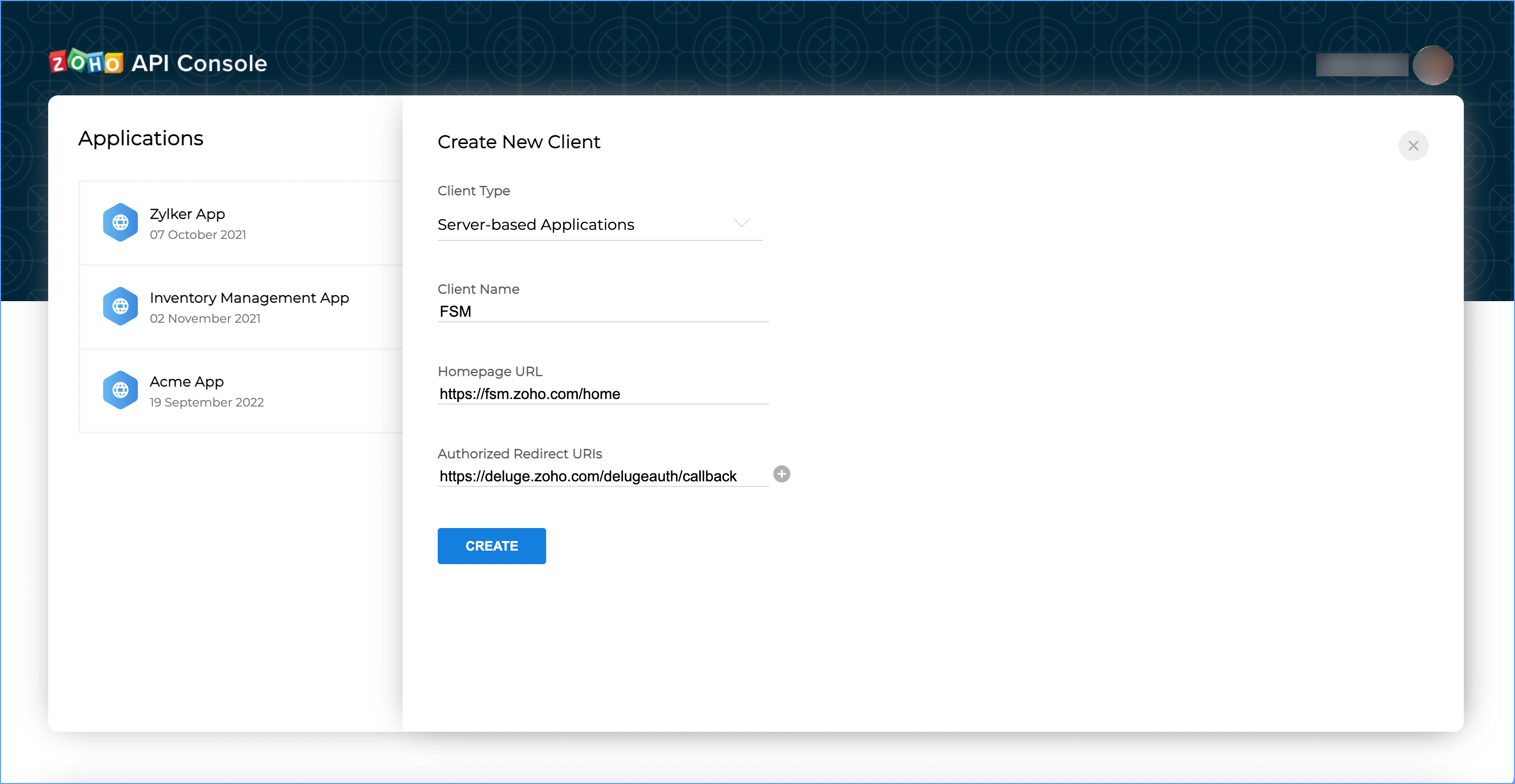

  4. Enter the following details and click Create:
    1. Client Name: FSM
    2. Homepage URL: https://fsm.zoho.com/home
    3. Authorized Redirect URIs:
      For US domain: https://deluge.zoho.com/delugeauth/callback
      For EU domain: https://dre.zoho.eu/delugeauth/callback
      For IN domain: https://deluge.zoho.in/delugeauth/callback
      For AU domain: https://dre.zoho.com.au/delugeauth/callback

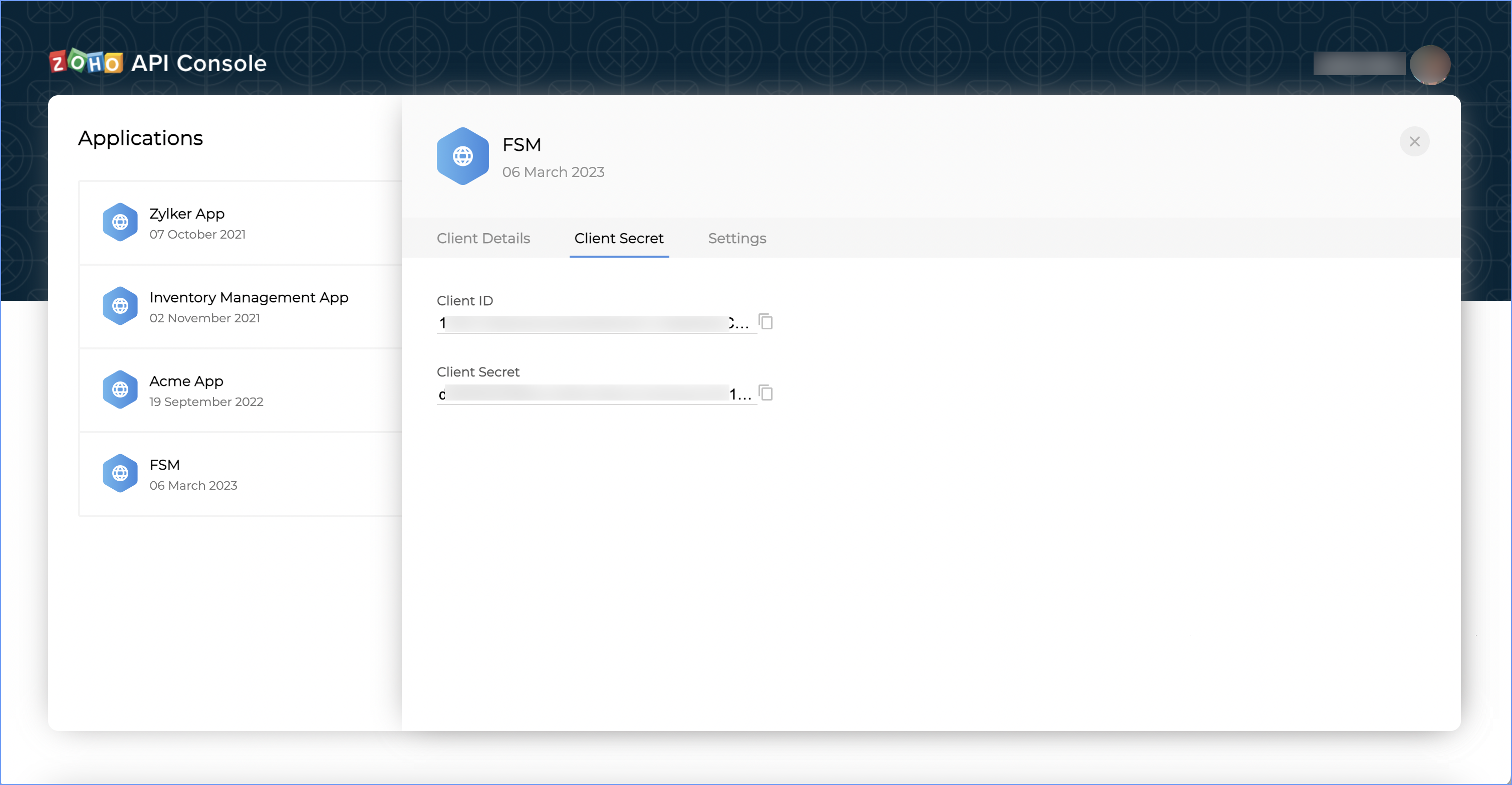

You will receive the following credentials:
Client ID: The consumer key generated from the connected app.
Client Secret: The consumer secret generated from the connected app.
