Dispatch Console Resources List

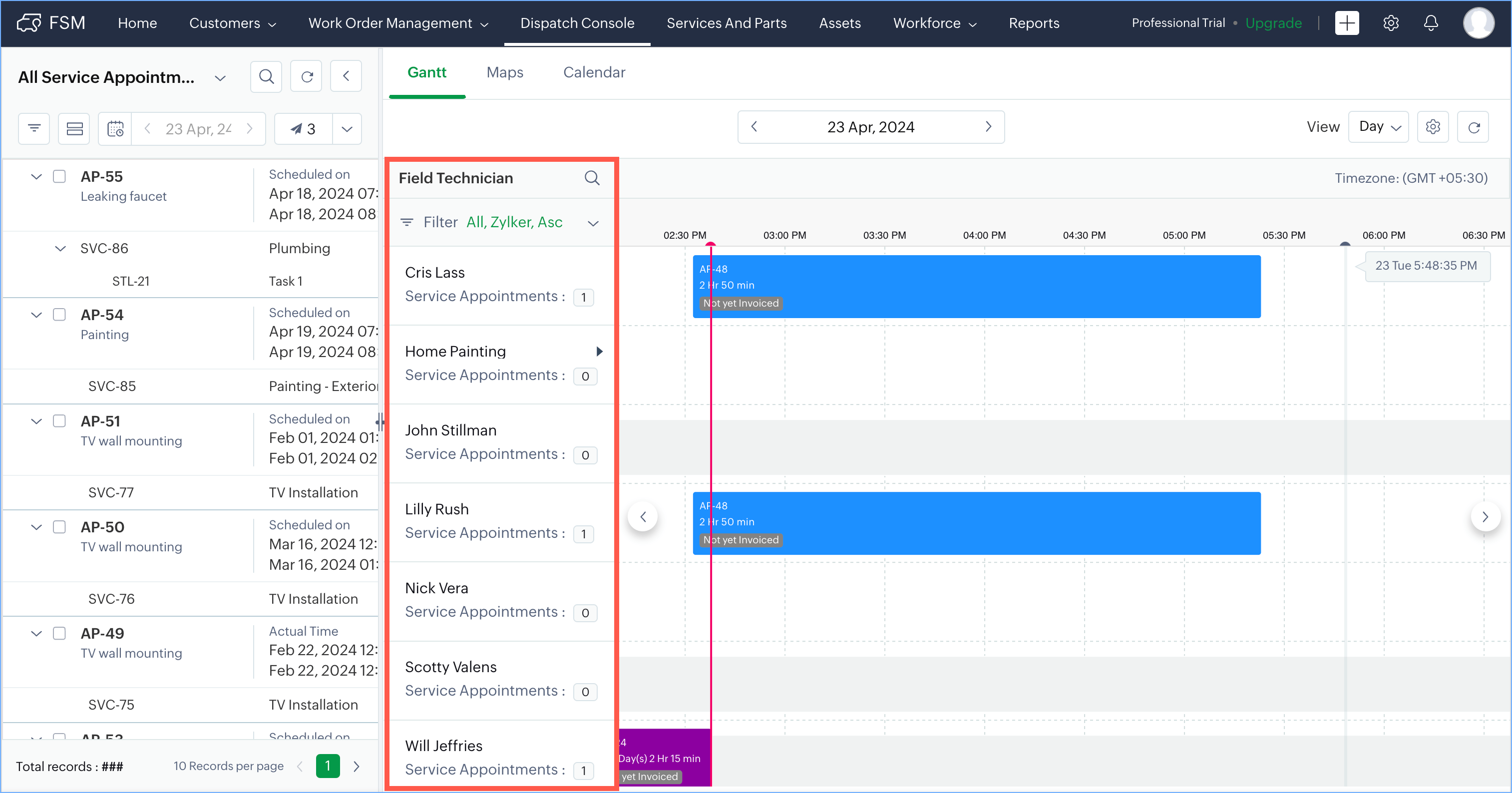

The Service Resources List is displayed on the left side of the Gantt view. Only active territories assigned to the logged-in user will be shown here and the active field agents and crew for the selected date will be displayed here.

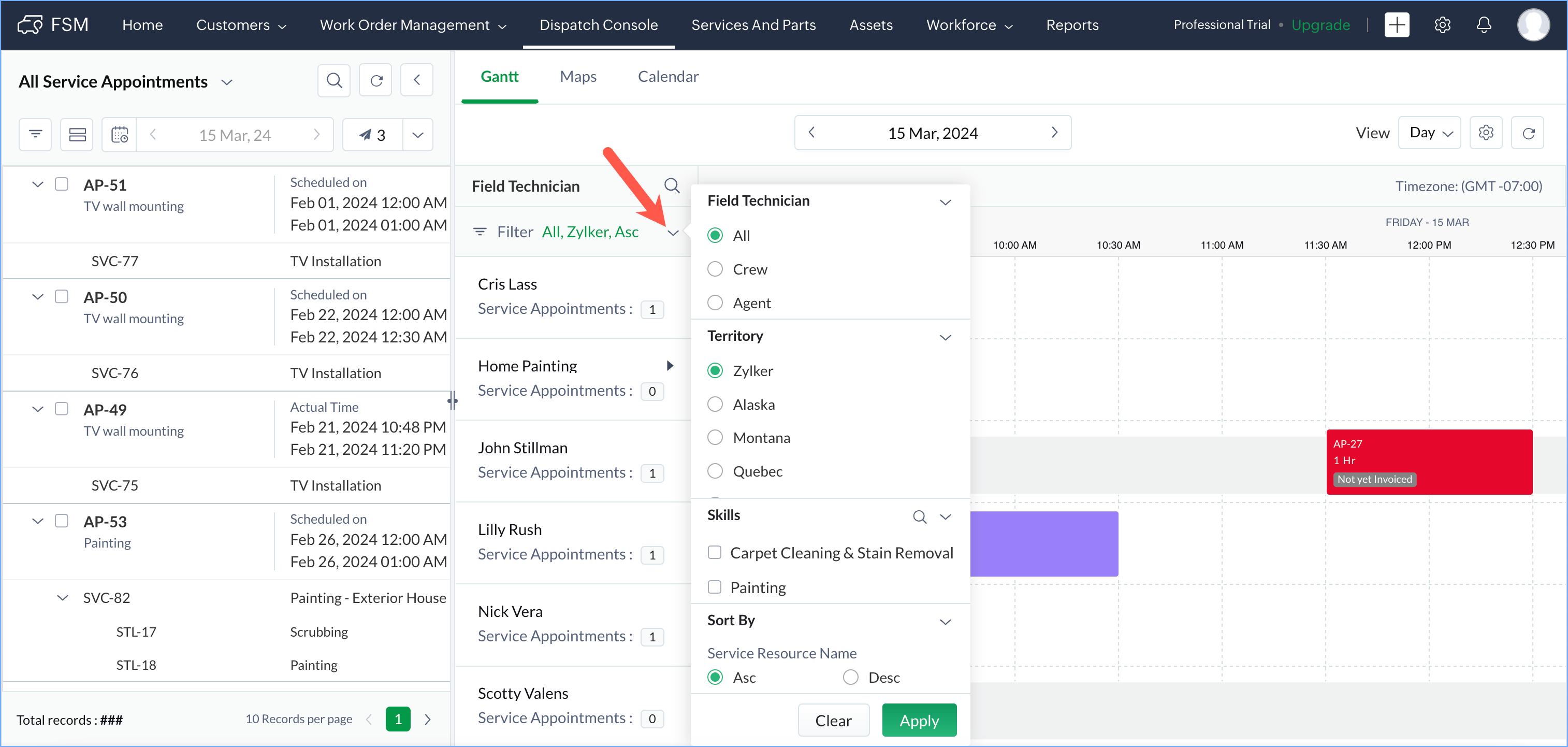

You can filter the Service Resources List using the following criteria:
  1. Resource type, i.e. All, Crew, or Agents
  2. Territory
  3. Skills
You can also sort the Service Resources List using the agent or crew name. The agents will be listed first followed by the crew.

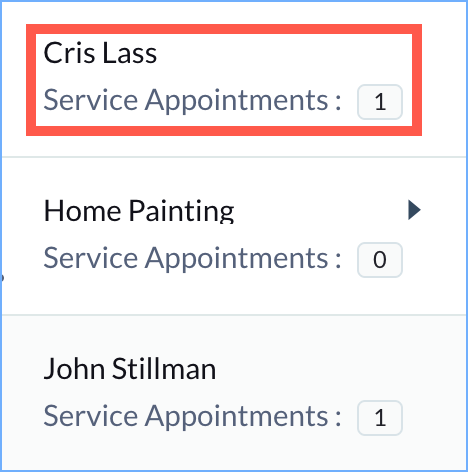

The following details about the field agents and crew are displayed:
  1. Name
  2. Assigned service appointments count

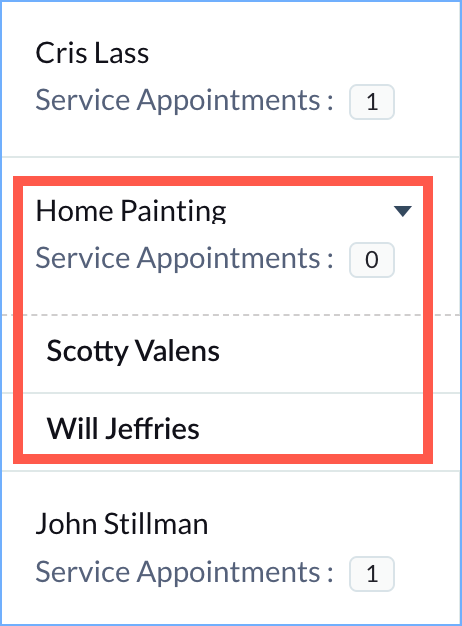

For a crew, you can see the agents in the crew by clicking the expand arrow [].

Service Resource Details

Clicking on a particular row will show the details of the field agent/crew.

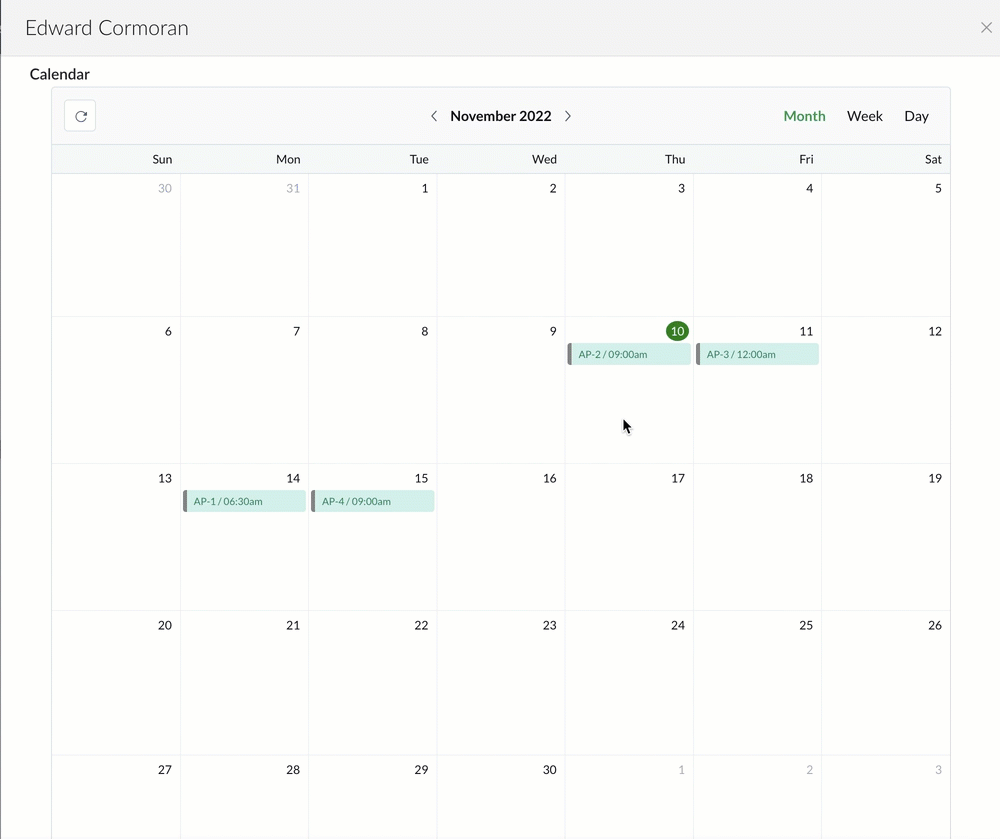

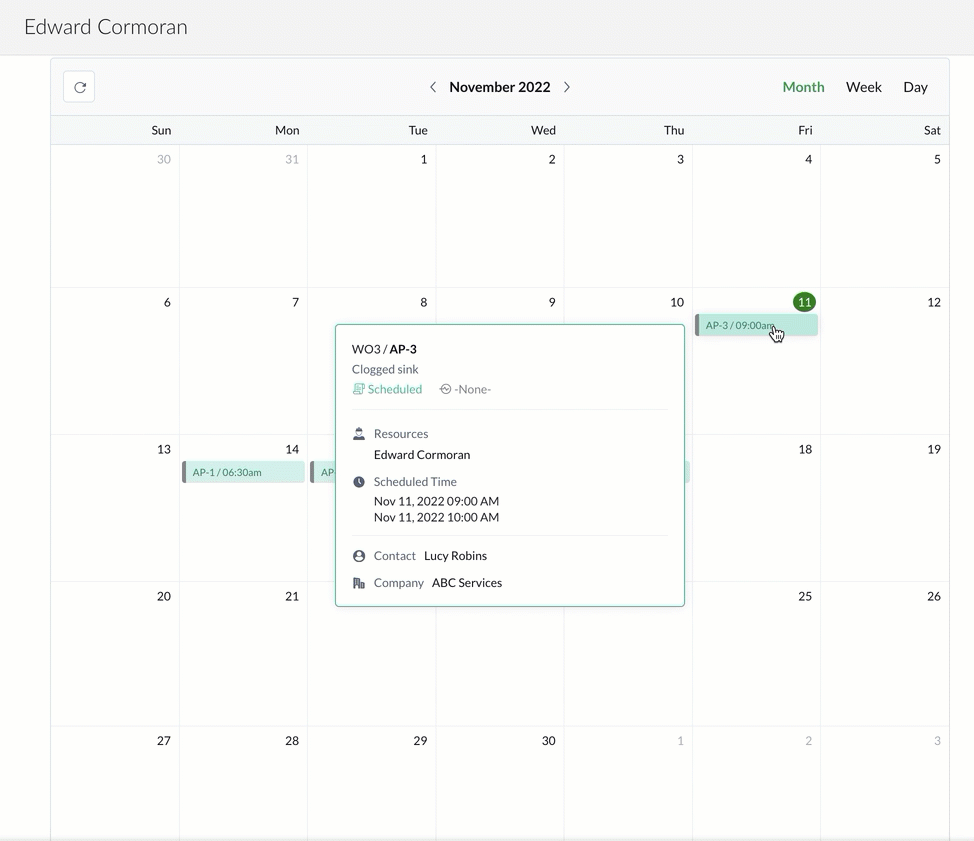

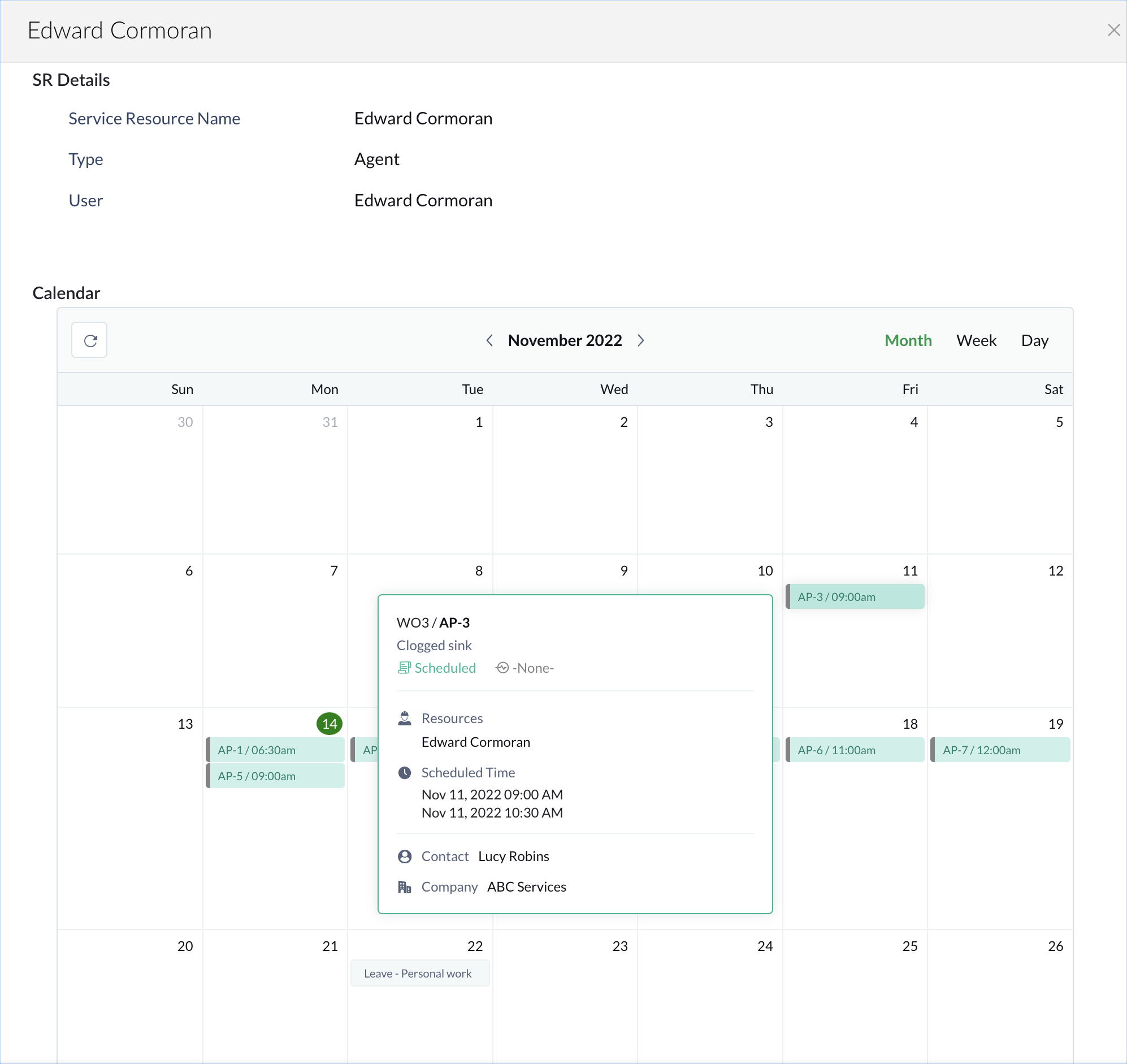

The appointments assigned to the field agent/crew can be viewed in the service resource calendar with Monthly, Weekly, or Daily views. Hover over an entry to view the details. Further details of the appointment can be viewed by clicking on the entry. The TimeOff entries will also be displayed. Within this service resource calendar, you can schedule appointments.

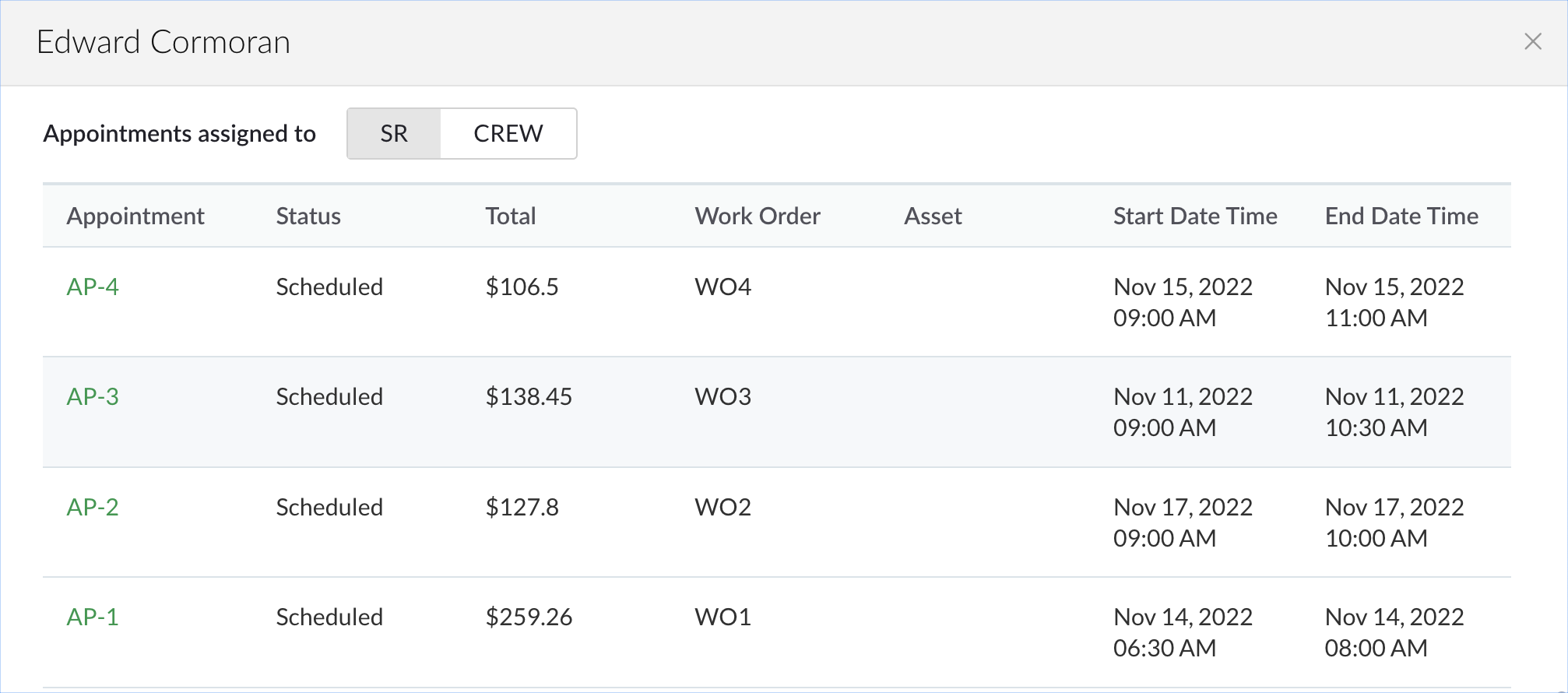

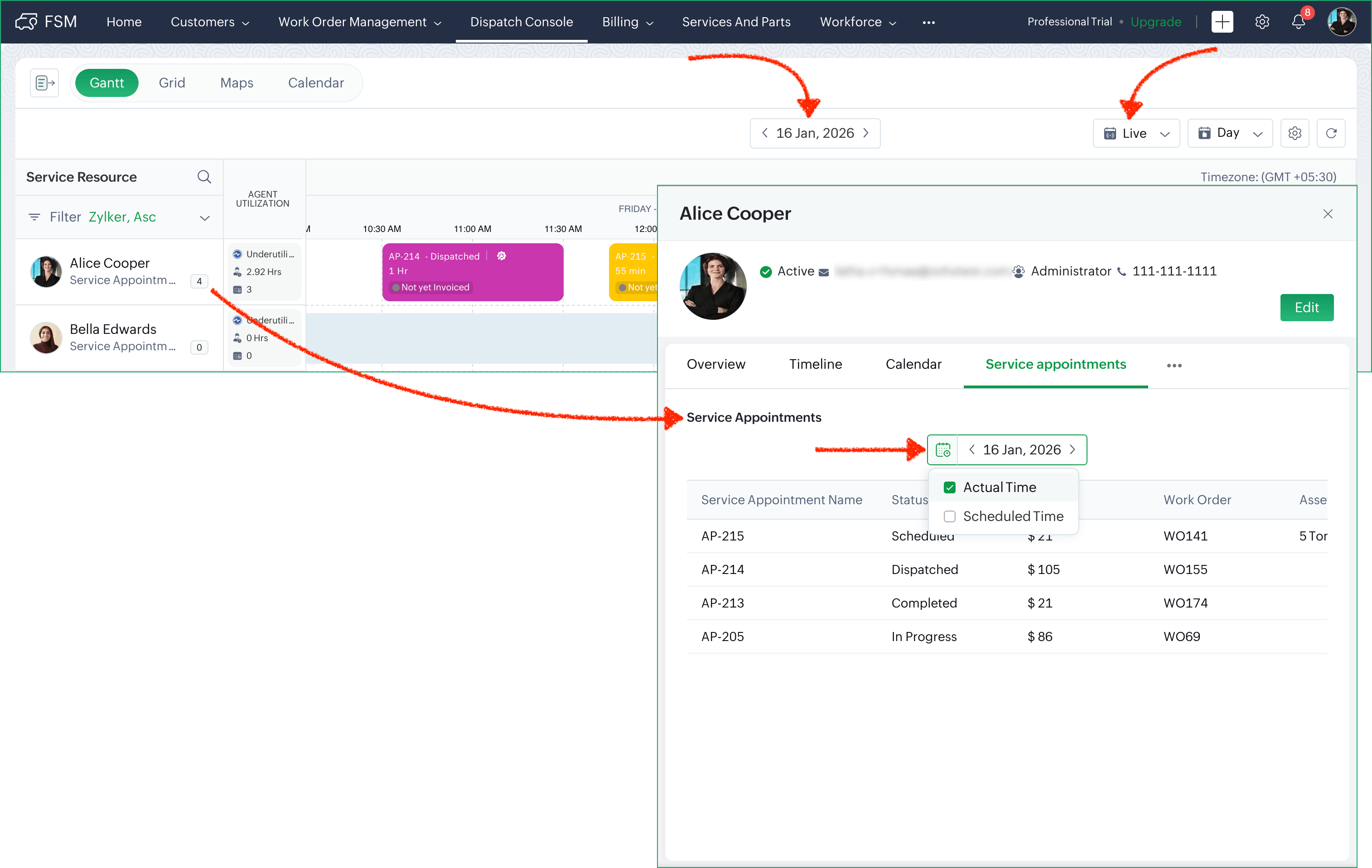

All the appointments assigned to the field agent/crew are also displayed in a list view.

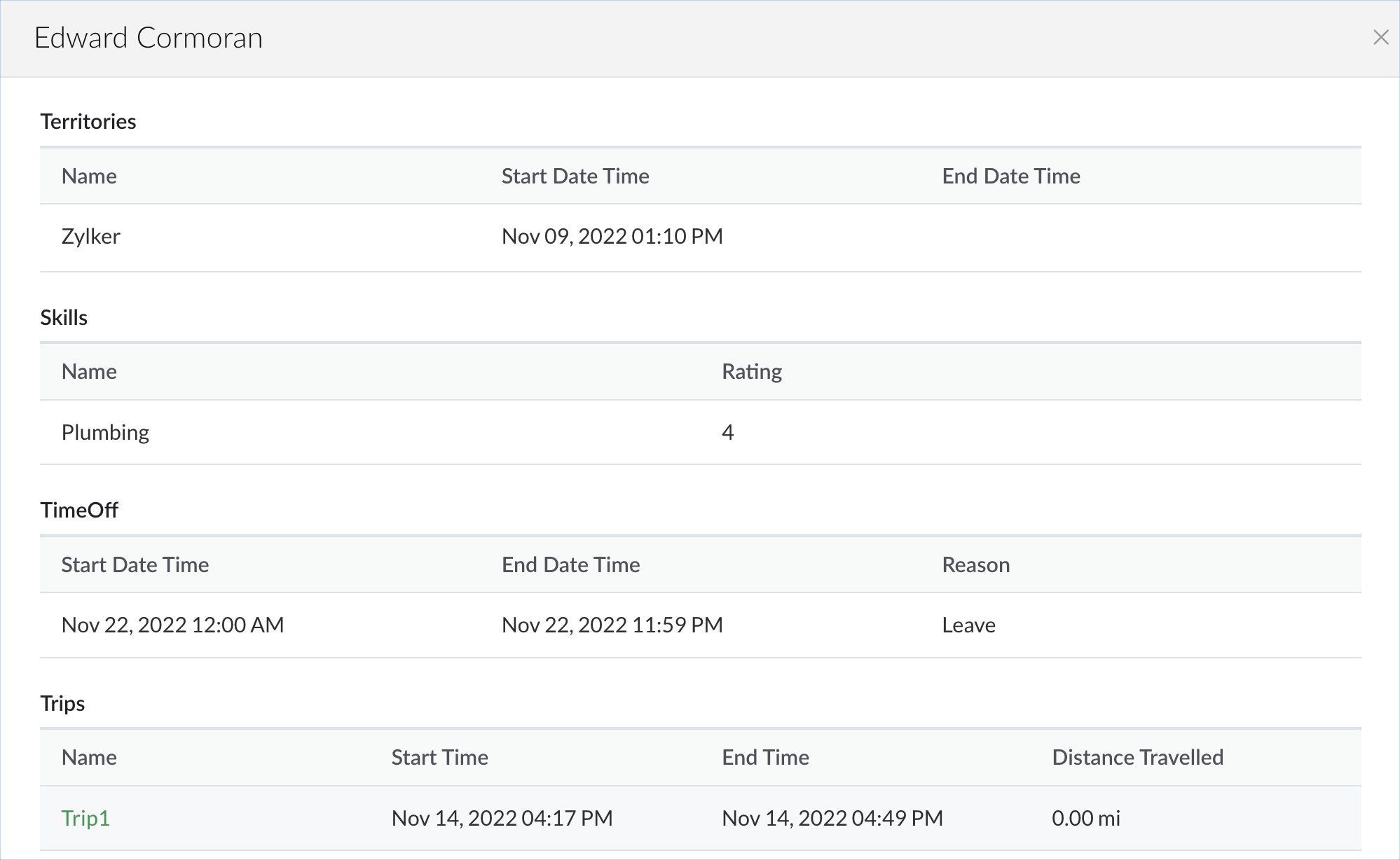

Other details of the field agent/crew like the Territories they have worked in, their Skills, their TimeOff and Trip entries will be displayed.

Scheduling in Service Calendar

You can do the following in the service resource calendar:
  1. Create appointment
  2. Reschedule through drag and drop

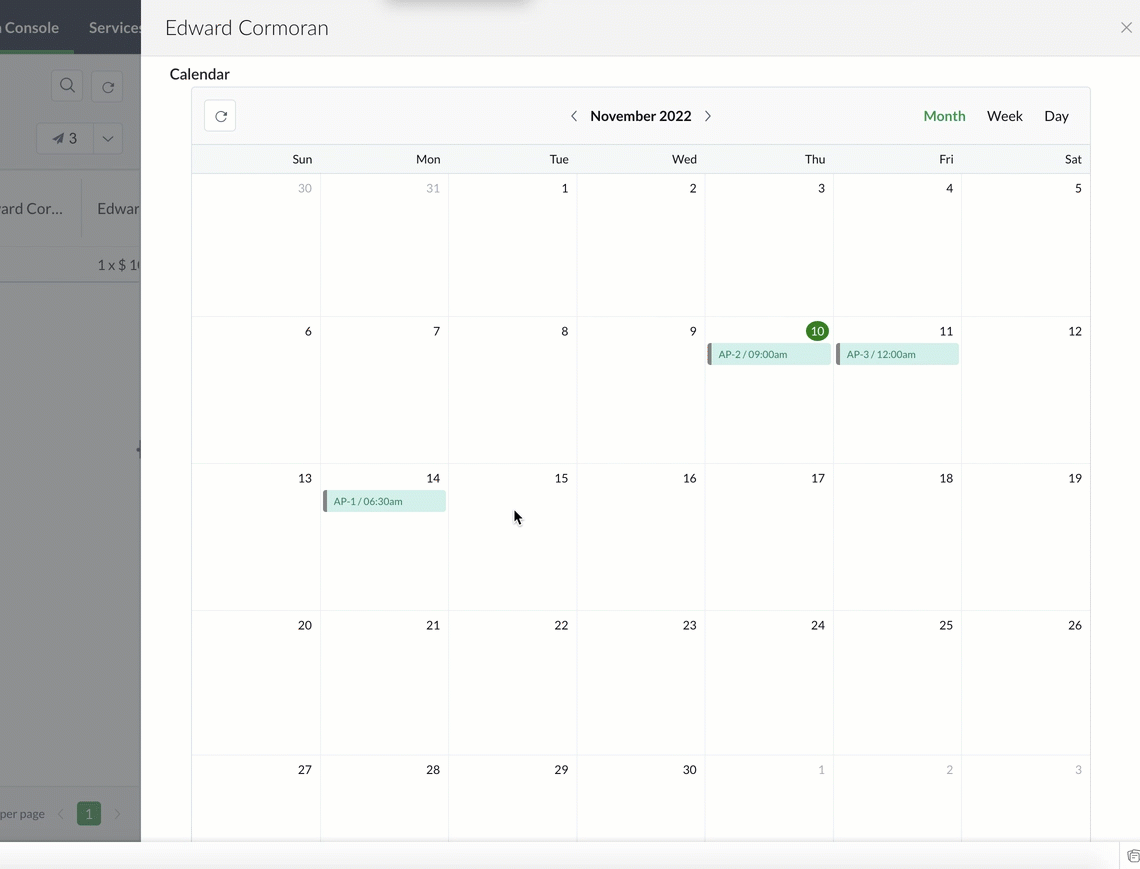

Create Appointment
  1. Click on the point in the calendar that corresponds to the day or time for which you want to create the appointment.
  2. In the Create Appointment popup, choose the work order for which you want to create the appointment.
  3. In the Create Appointment popup, the following details will be populated, which you can change if required. Click Schedule or Schedule and Dispatch to continue.
    1. Service
    2. Summary
    3. Scheduled Start/End Date Time
    4. Service Resource
You can create appointments from the Month, Week, and Day views.

Reschedule Appointment
From the service resource calendar, you can reschedule an appointment in the following ways:
  1. Drag and drop an appointment to a different date or time
  2. Resize the appointment
You can reschedule an appointment by dragging and dropping it to a different date or time. In the Schedule Appointment popup, the details are prefilled. Make the necessary changes and click Schedule AppointmentYou can reschedule appointments from the Month, Week, and Day views.

You can also reschedule an appointment by resizing the appointment. Move your cursor to the bottom edge of the service appointment and when the cursor changes to a downward arrow, resize it to the duration you want for the service appointment. In the Schedule Appointment popup, the details are prefilled. Make the necessary changes and click Schedule Appointment. You can resize and reschedule appointments only from the Week, and Day views.

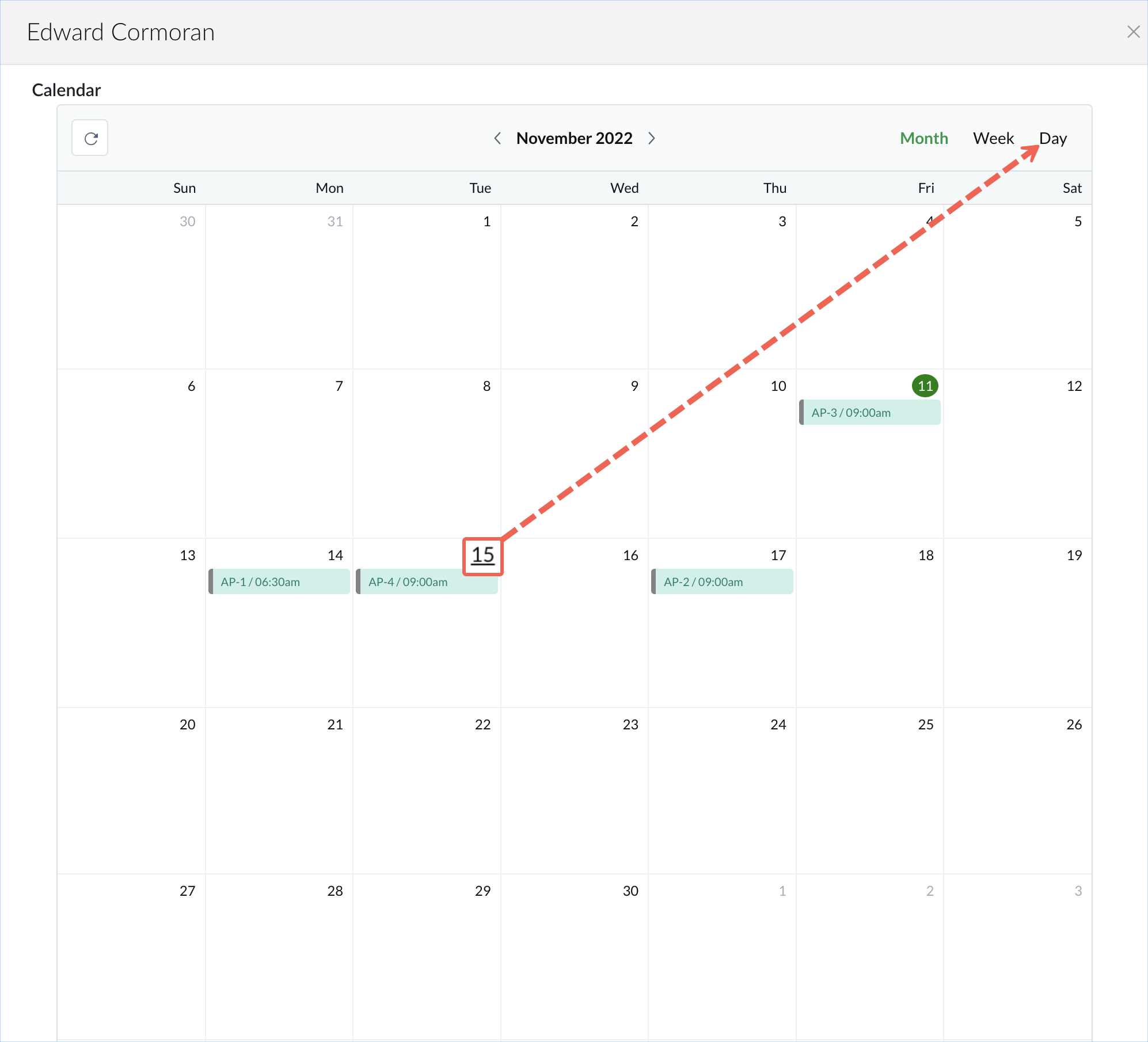

Tip: Click on the date in the Month view to go to the Day view.
