Service Appointments

Service appointments are jobs created for carrying out the services in a work order. These service appointments are assigned to field agents or crew who will then perform the services at the contact location. As many service appointments as the services in the work order can be created. The service appointments can be viewed under the Service Appointments module. Service appointments can be created and managed here. Appointments can also be created from within a work order.

Permission RequiredService Appointments
- Find out the Edition-specific limits for Service Appointments.

Create Service Appointments

To create a service appointment:
  1. Select Service Appointments from the Work Order Management menu and click Create.

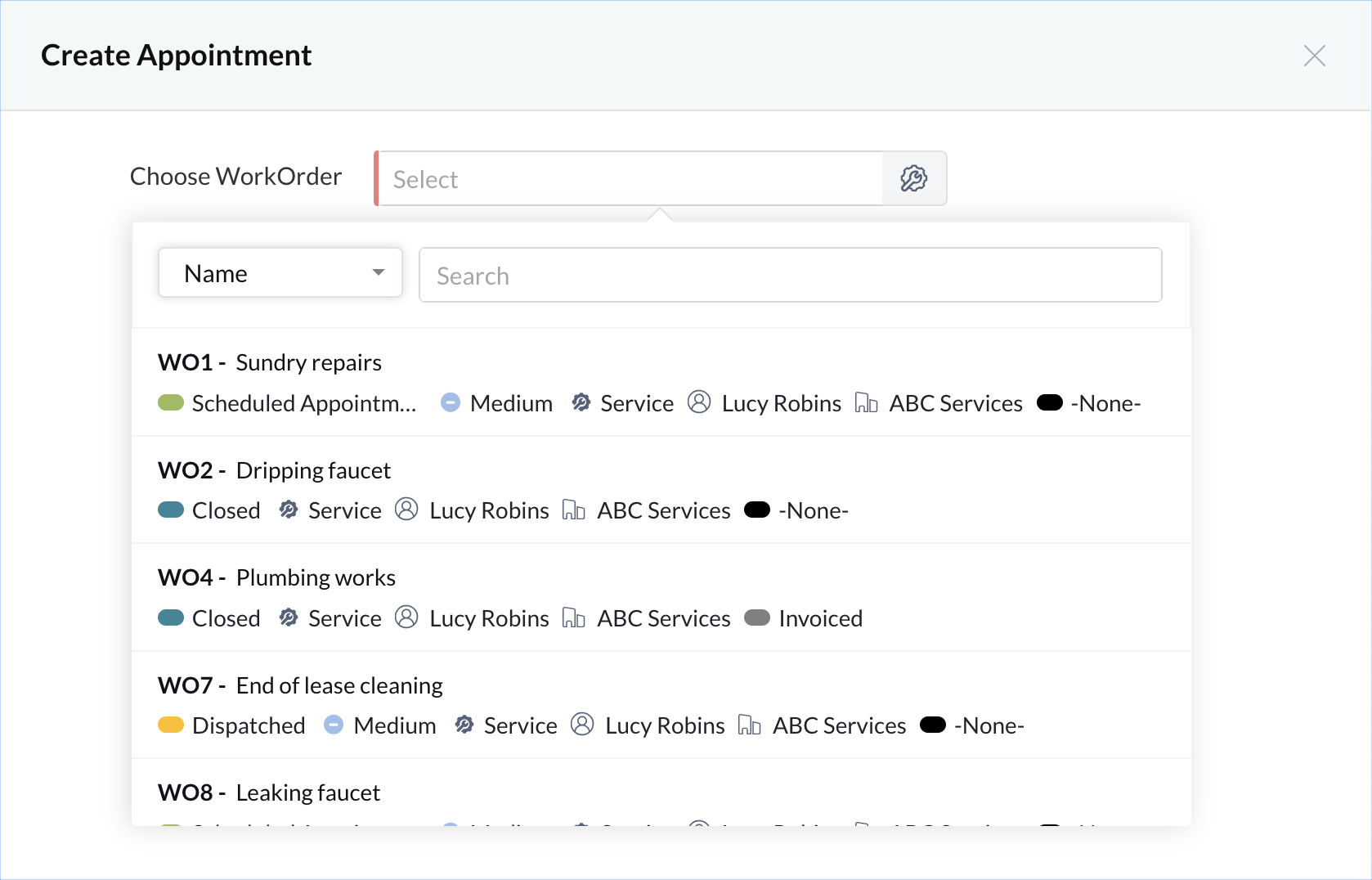

  2. Select the work order that you want to create the service appointment for.

    `
    The details of the selected work order are displayed.

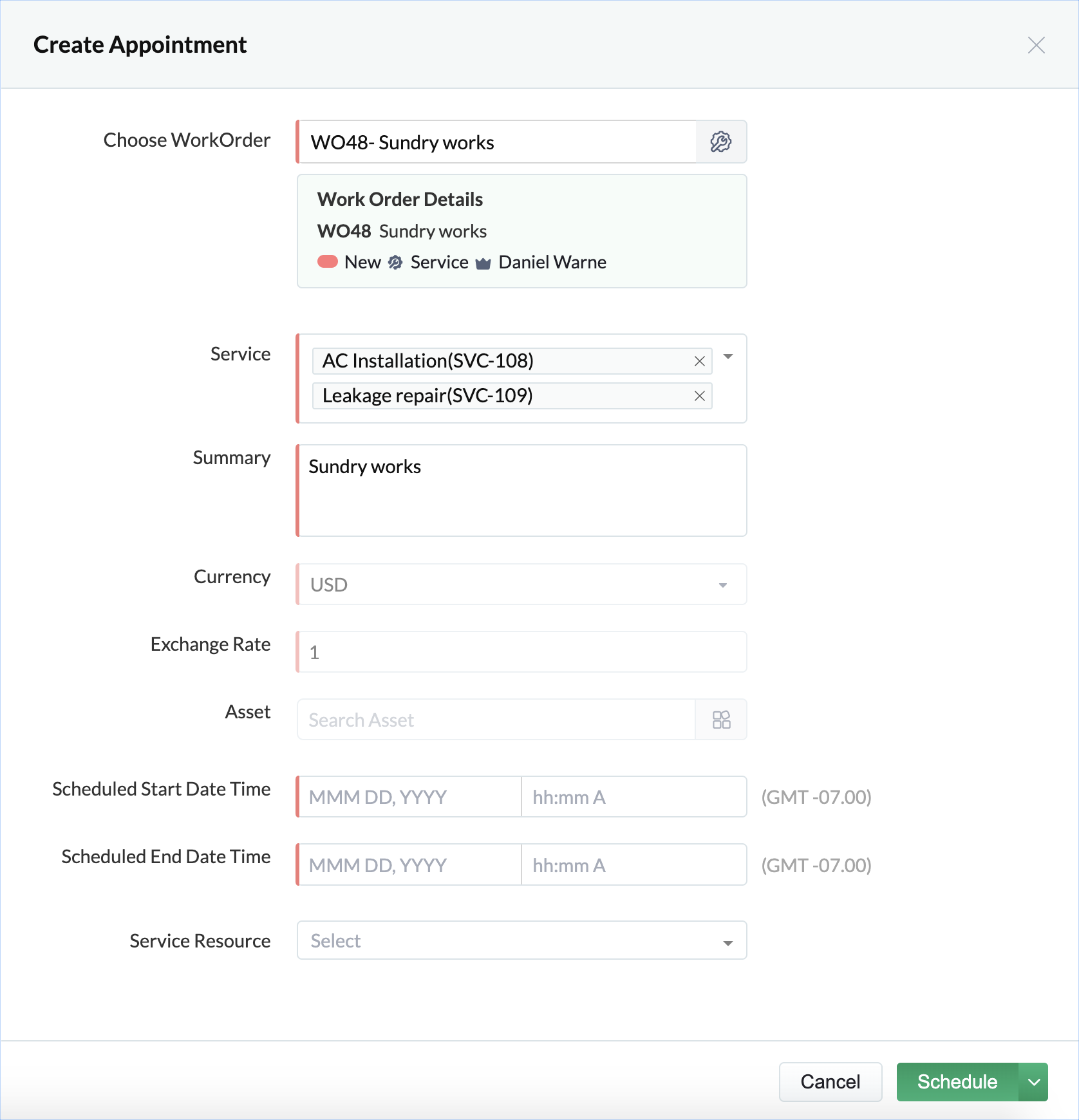

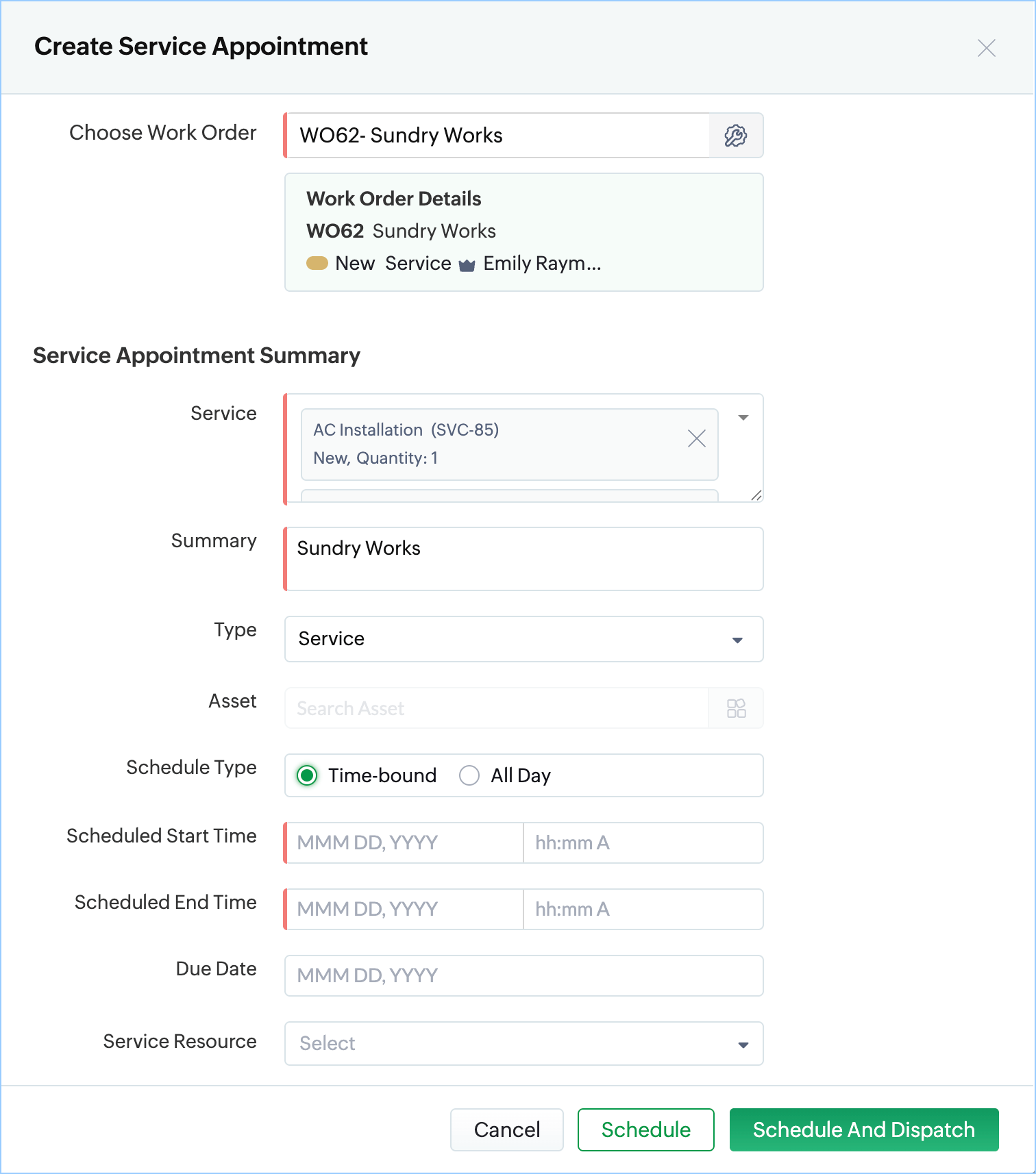

  3. Enter the following details, then click Schedule:
    1. The values for Scheduled Start Date Time and Scheduled End Date Time.
      The Scheduled Start Date Time and Scheduled End Date Time should be within the same day. Use multi-day scheduling to schedule an appointment spanning multiple days.
    2. A Service Resource (Agent or Crew)
      One or more resources can be assigned to the appointment.


      The following agents or crews will be available for assignment:

      - Active agents or crews assigned to the territory that is chosen in the work order

      - The agents and crews who are active in the territory between the
      Scheduled Start Date Time and Scheduled End Date Time

      - During the time when an agent is part of a crew, they will not be available as an individual resource.

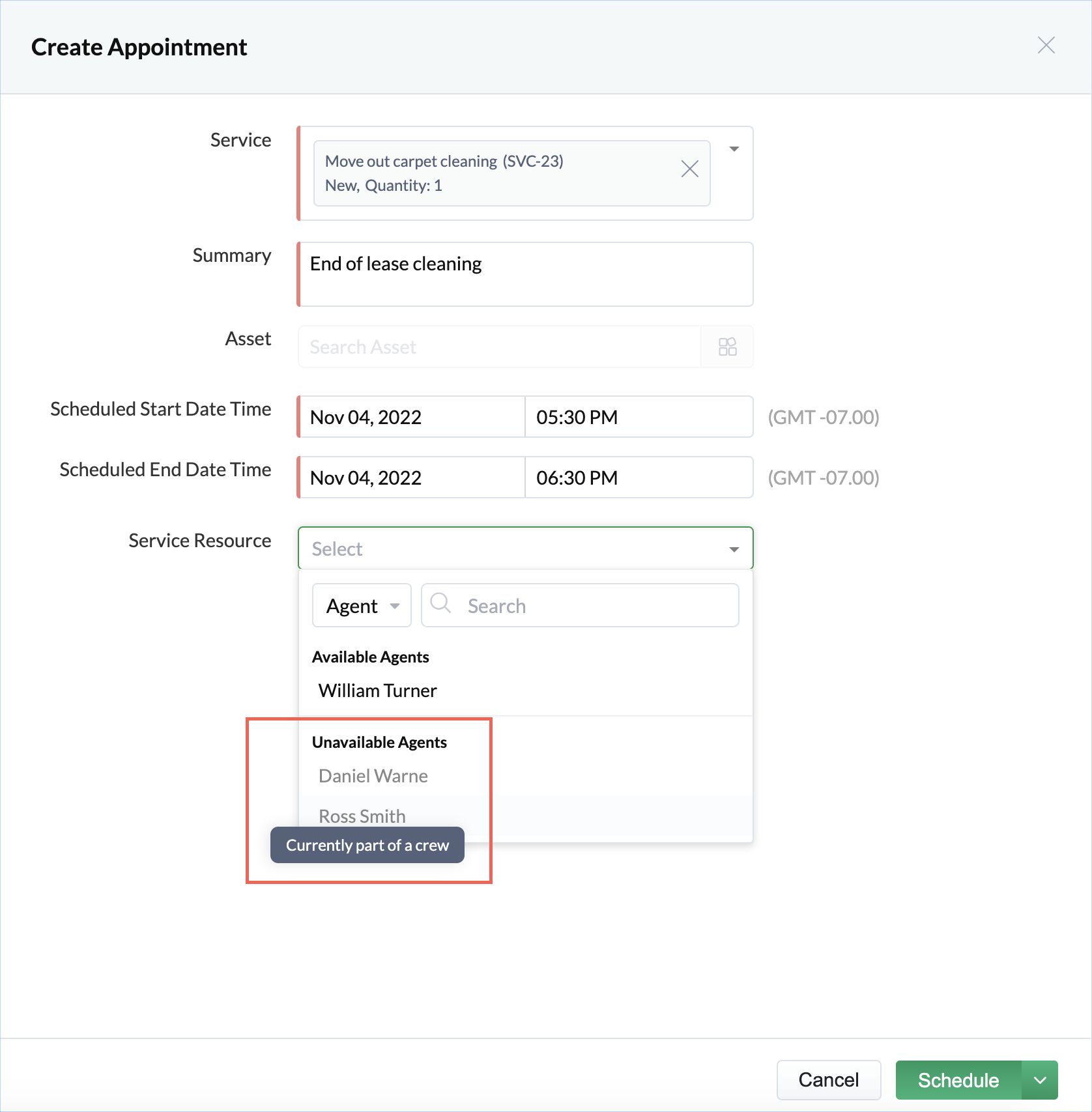

      Hover over the name of an unavailable agent to know the reason for their unavailability.

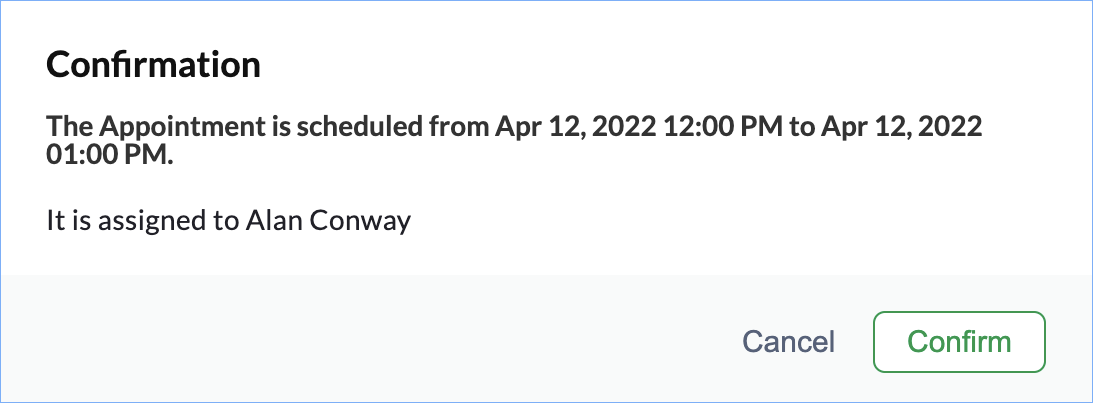

  4. Click Confirm in the confirmation message.

The service appointment details page will be displayed. This page will display the name of the work order for which the service appointment has been created. You can also dispatch, reschedule, terminate, and Cancel an appointment from this page.



The appointment created can also be viewed under the Appointments tab of the work order for which the service appointment has been created. Under the Service and parts tab of the work order, you can see the appointment created for each service line item. Hover over the appointment icon [  ] next to the Service Line Item Name to see the appointment details. Click to navigate to the Appointment Details screen.


Creating Service Appointment for a Service

You can create a service appointment for a work order or for the individual services. Appointments for the services can be created as explained below:

To create a service appointment for a service line item:
  1. Follow steps 1-2 mentioned above.
  2. Enter the following details, then click Schedule:

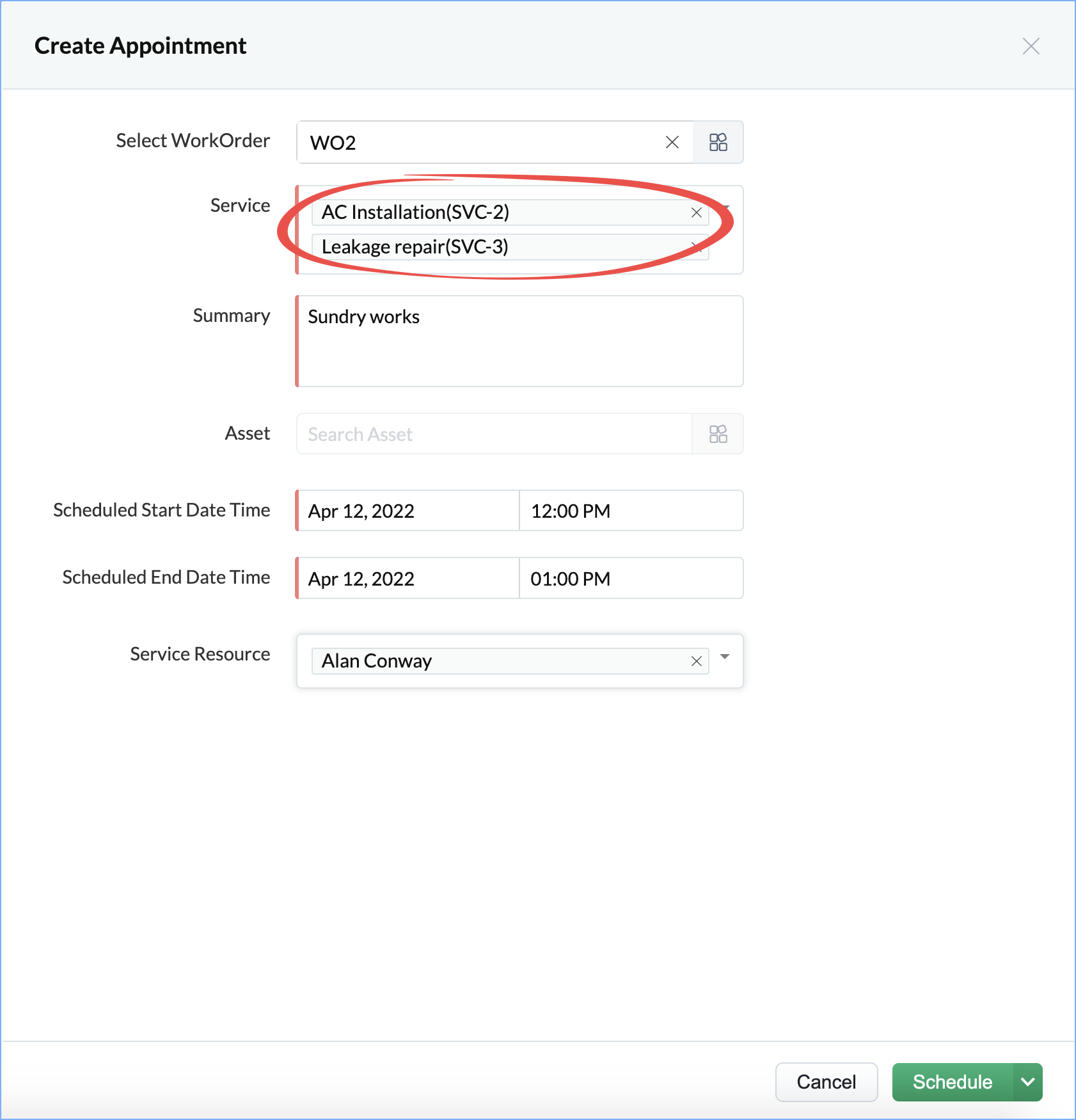

    1. In the Service field, retain the services or service tasks you want to create the appointment for.
    2. The values for Scheduled Start Date Time and Scheduled End Date Time.
      The Scheduled Start Date Time and Scheduled End Date Time should be within the same day. Use multi-day scheduling to schedule an appointment spanning multiple days.
    3. Service Resource (Field Agent or Crew)
      One or more resources can be assigned to the appointment.

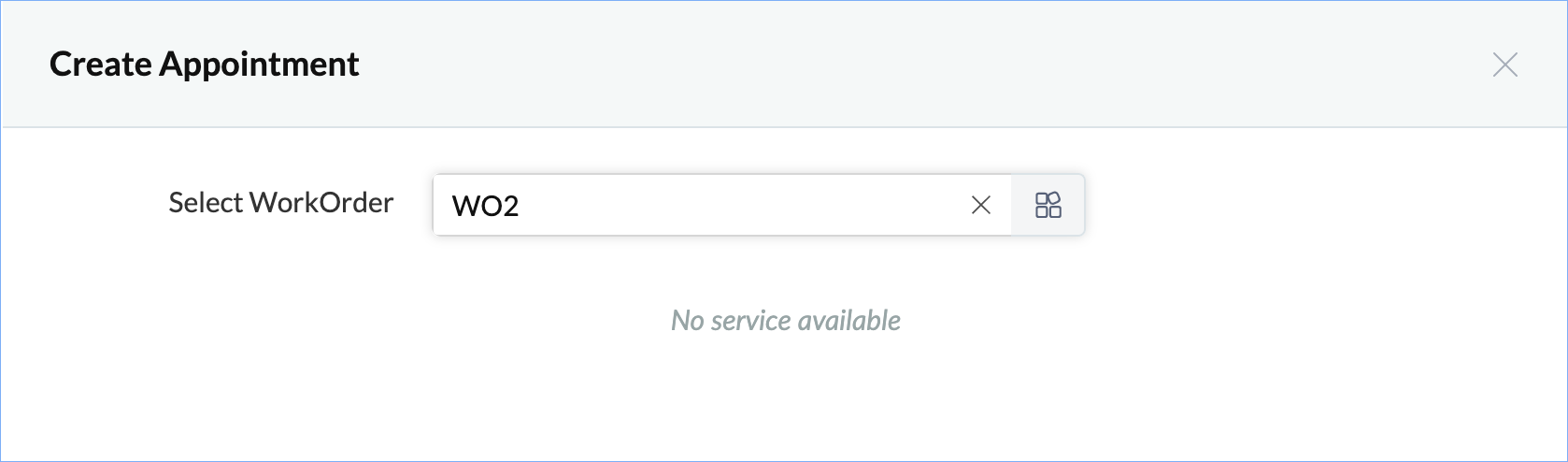

Once service appointments have been created for all the service line items of a work order, then new service appointments can be created only after the existing ones have been cancelled or terminated. In this scenario, a message will be displayed as shown in the screenshot below.


Multi-Appointment Scheduling

At a time, you can schedule multiple service appointments from the work orders. This option is available in the Maps view of the Dispatch Console.

To schedule multiple appointments:
  1. Navigate to the Dispatch Console module and click the Maps tab.
  2. Click the Work Orders filter.

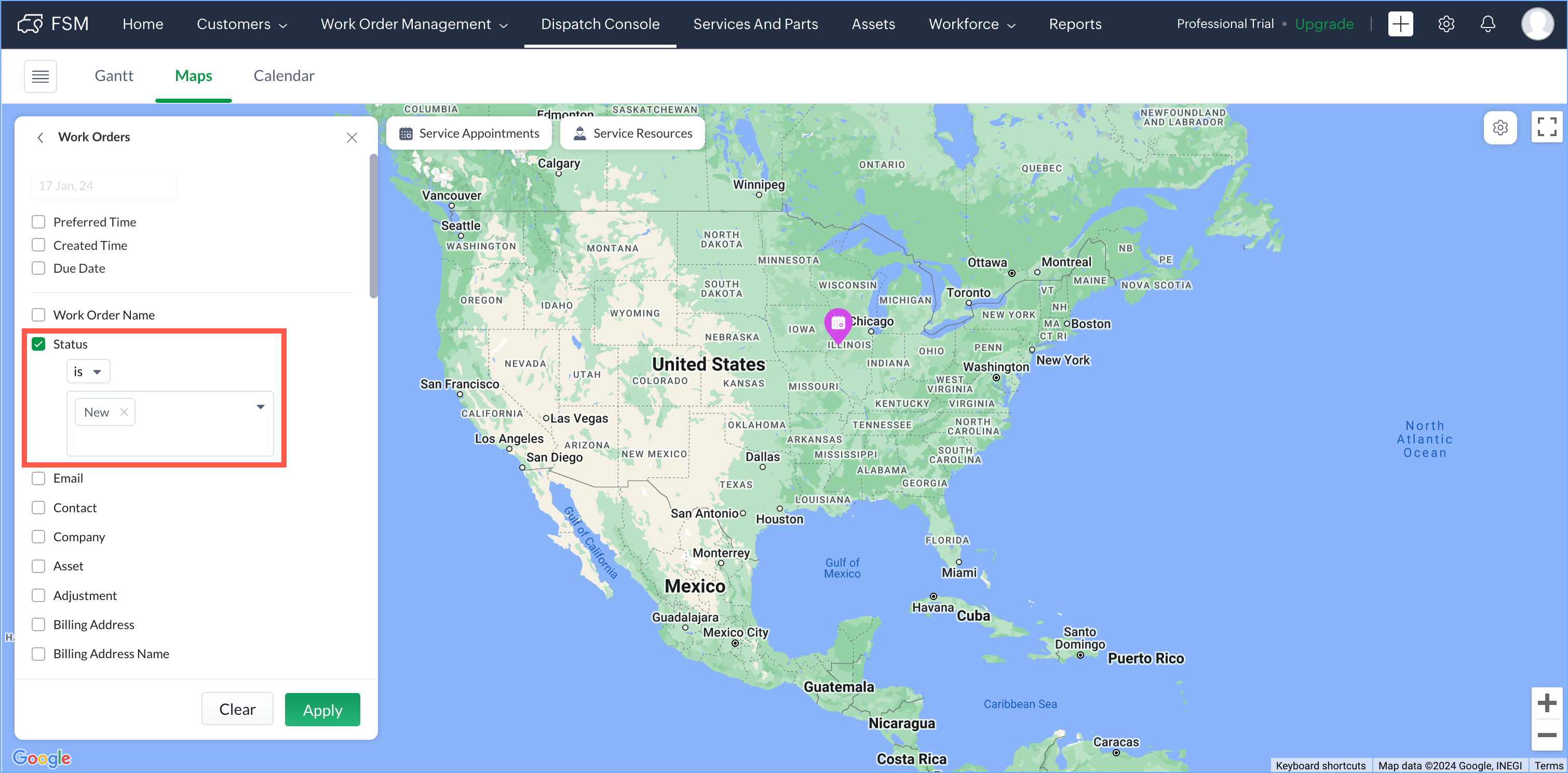

  3. Filter the work orders by the New Status.



    To filter the work orders, click Edit next to Filtered By.

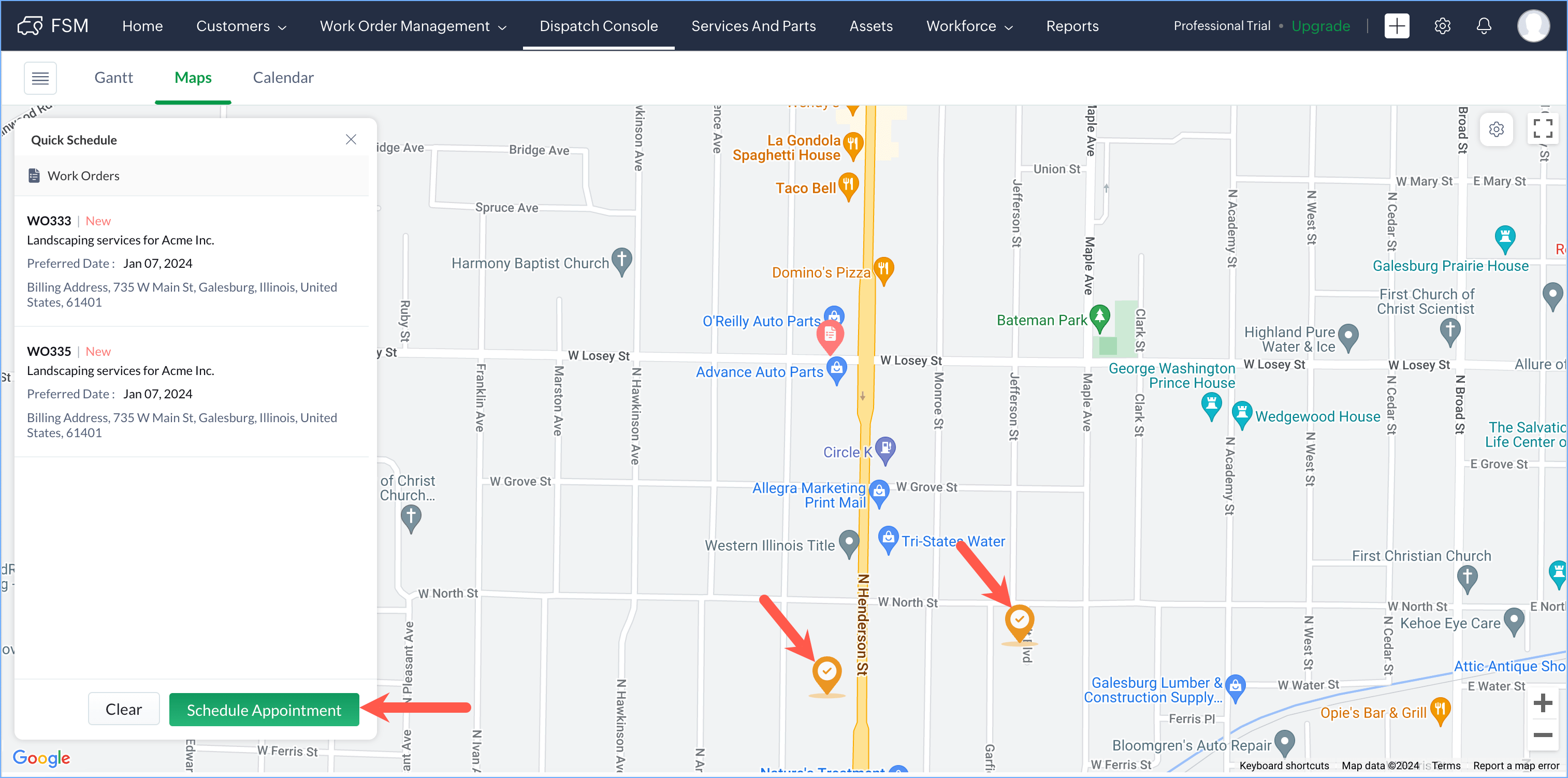

  4. Hold the Command (for Mac) / Ctrl (for Windows) key and click on the markers for the work order for which you want to create the service appointments and click Schedule Appointment.
    The selected markers will be indicated as or . The selected work orders will be listed in the left panel. You can select a maximum of 10 work orders.

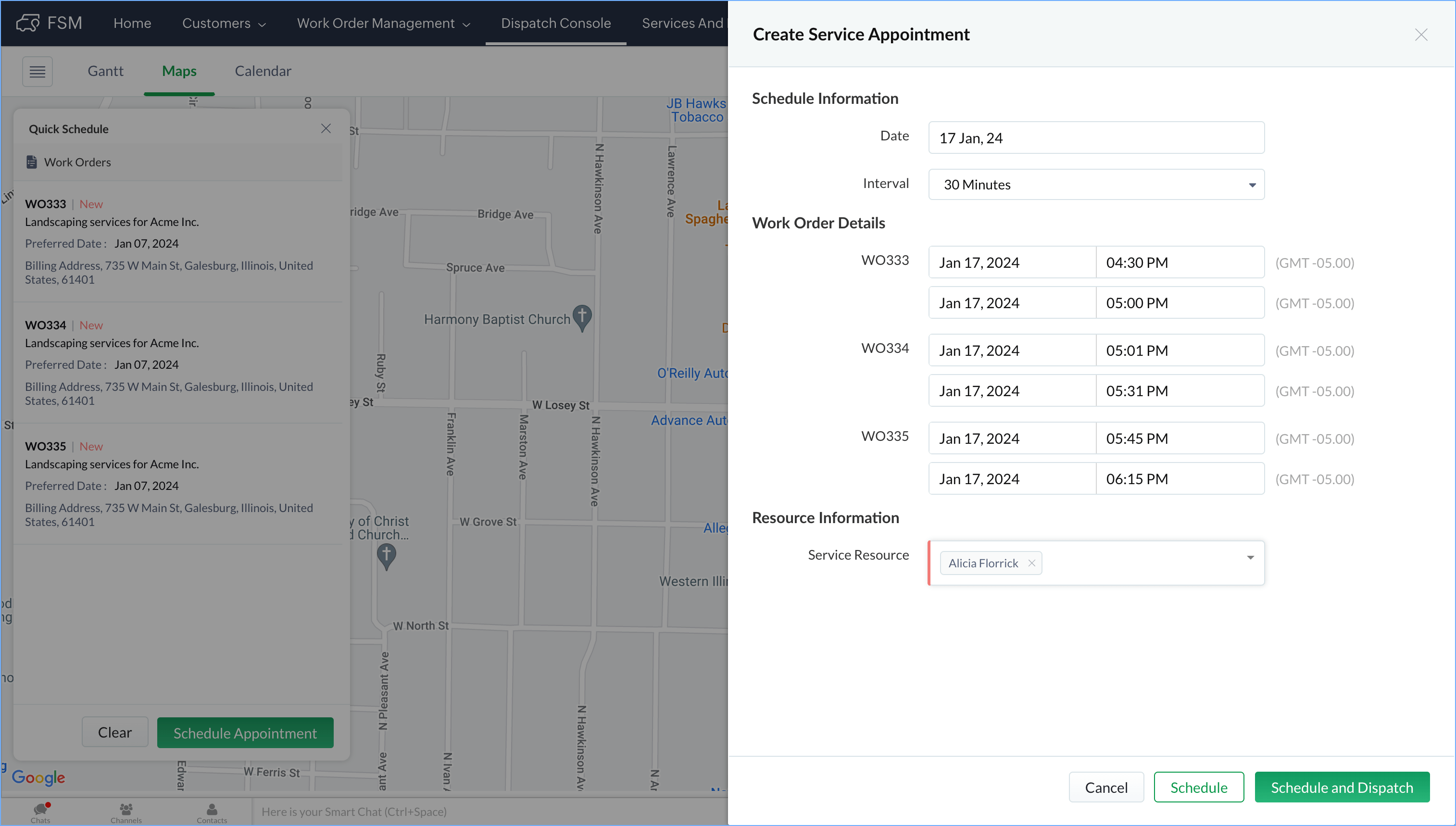

  5. Select the desired scheduled dates, assign the service resources, and click Schedule or Schedule and Dispatch.
    By default, the schedule dates will be prepopulated based on the Business Hours. If business hours are not configured, then schedule dates starting from 12 am will be prepopulated. The time gap between the End Time of an appointment and the Start Time of the next will be based on the Interval selected.

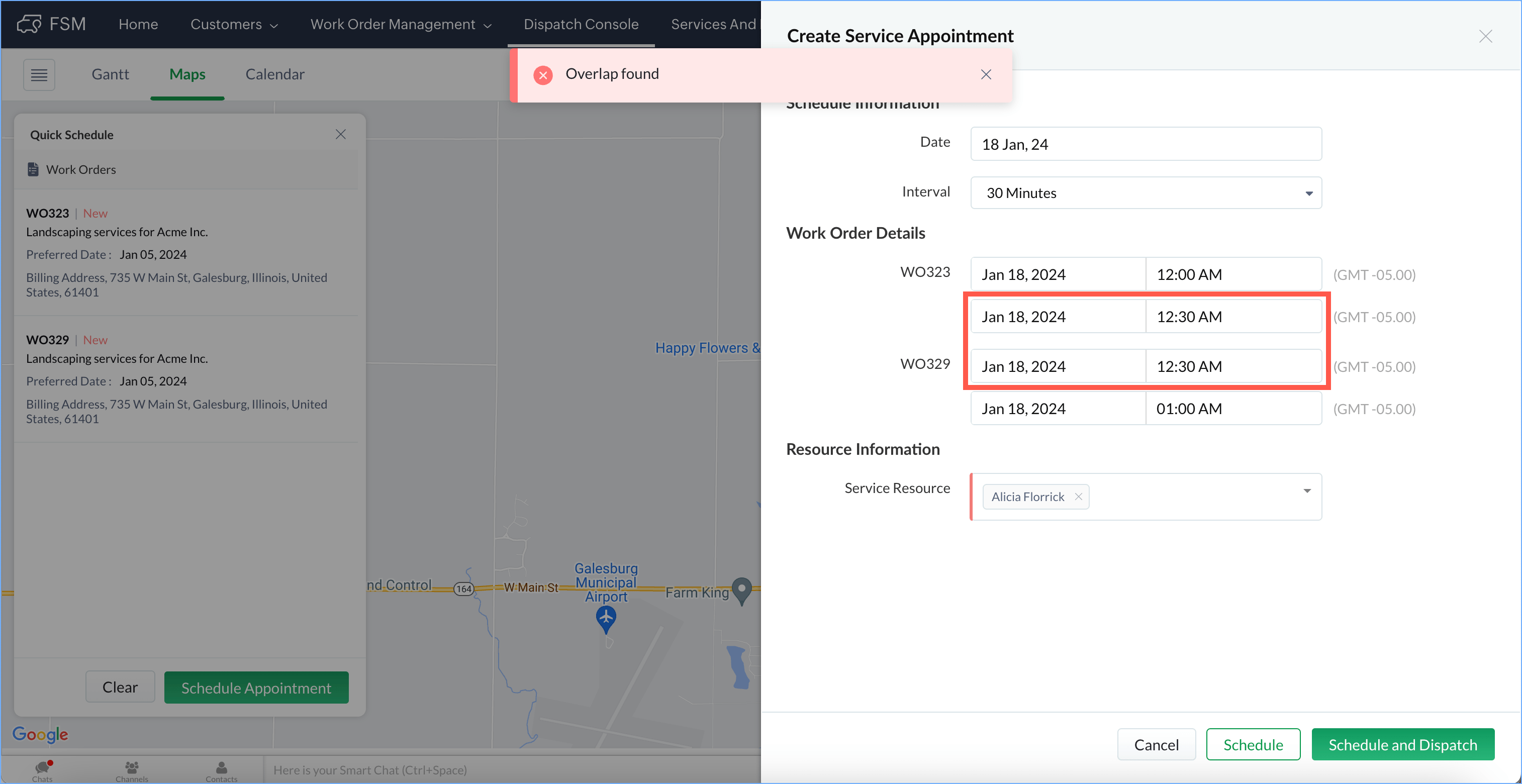

    You should schedule the appointments such that their timings don't overlap.

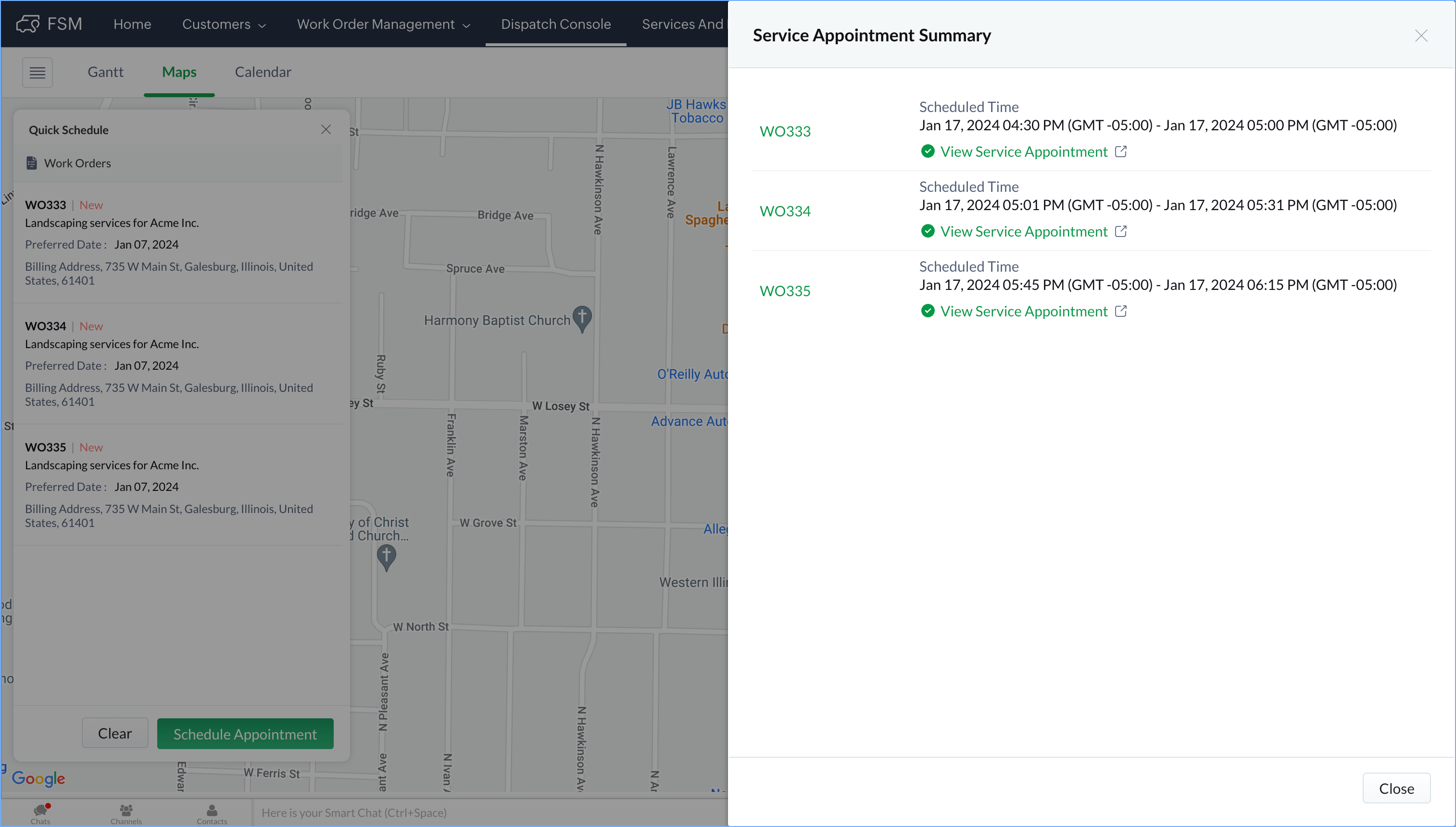

The created service appointments will be listed.

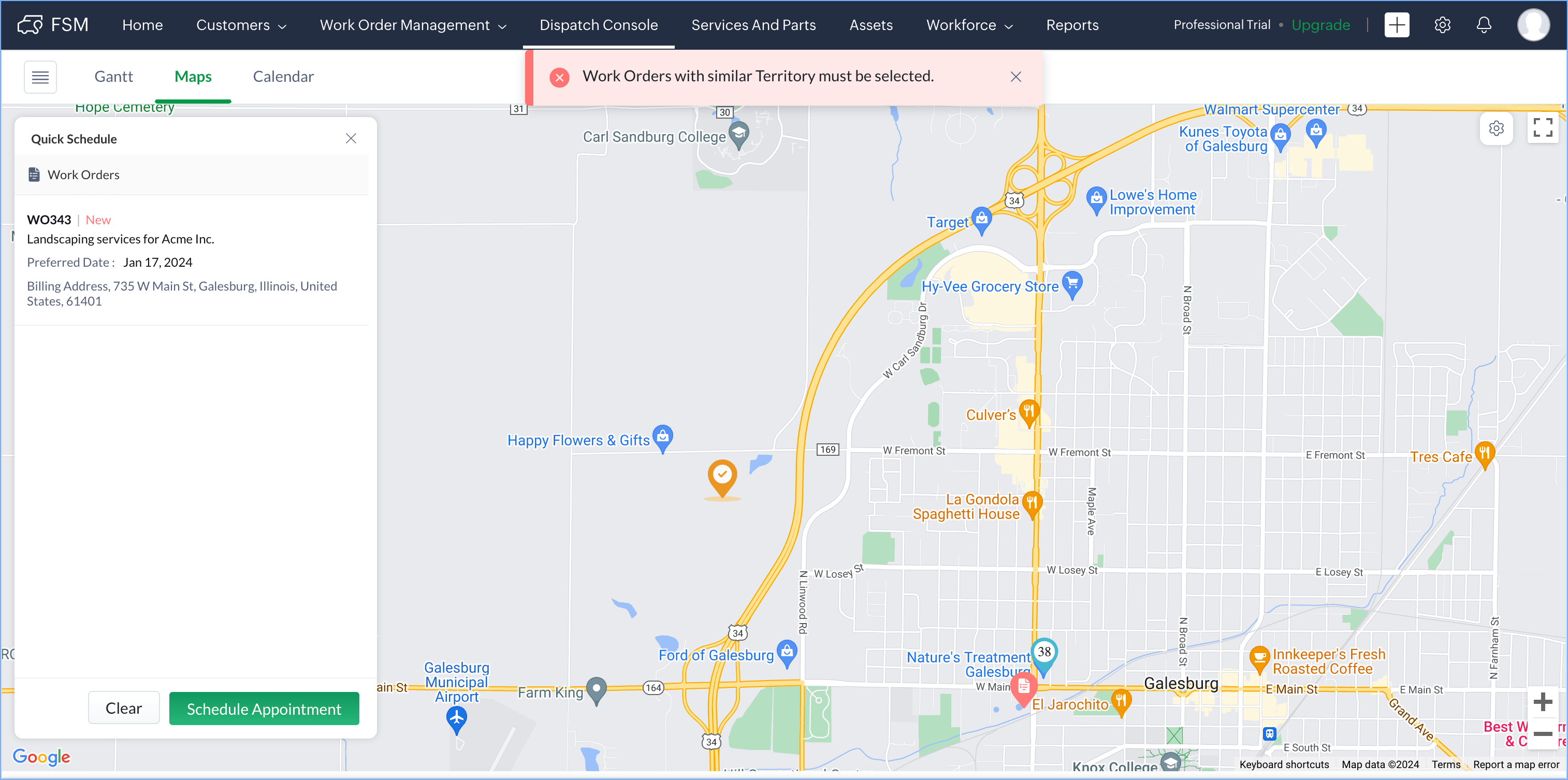

You will not be allowed to choose work orders assigned to different territories.



Points to remember
  1. You can only choose work orders in the New status to create the appointment.
  2. For the work orders chosen, all the service line items in the New status will be considered while creating the appointment.

Multi-day appointments

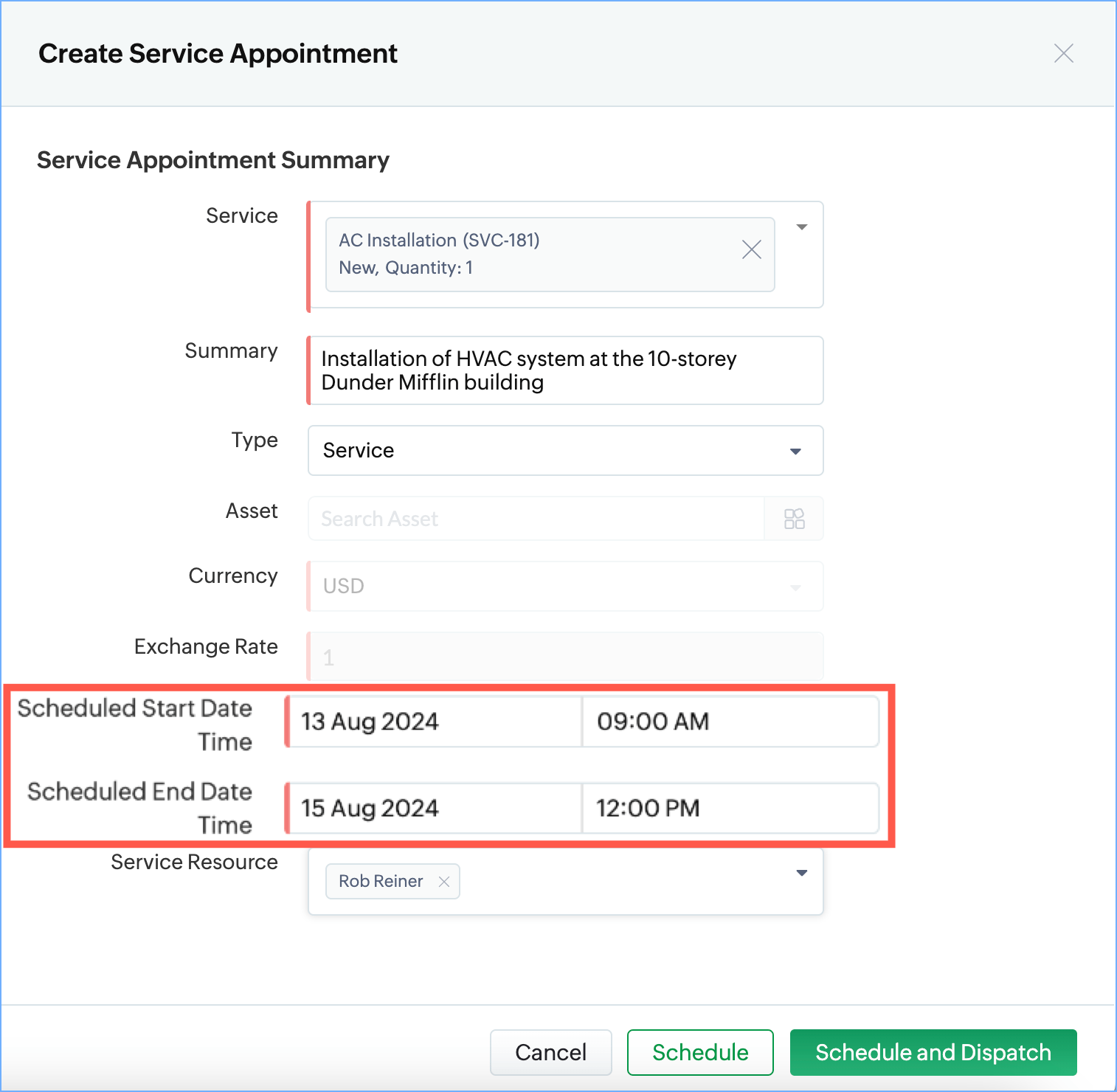

You can create appointments that span over multiple days. This will help you schedule appointments for complex or time-consuming services. E.g. Installing large or complex equipment may require technicians to spend multiple days on-site to ensure proper installation and set-up. This could include tasks like wiring, configuration, testing, and training. Multi-day appointments can only be created in the Professional edition of Zoho FSM. Please refer to this section to know how the appointment usage will be calculated for multi-day appointments.

Edit Service appointments

To edit service appointments:
  1. Select Service Appointments from the Work Order Management menu.
  2. Click the service appointment you want to edit and in the Service Appointment details page, click Edit.
  3. Click Save after making the changes.

Delete Service appointments

To delete a service appointment, you need to have the following permissions:
  1. Delete permission of Service Appointments
  2. Delete permission of the following related records:
    1. Time sheets
    2. Service report
    3. Trips
    4. Notes and Attachments
The deletion of the related records will also depend on whether you have the permission to delete either All Records or Own Records of the related records.

To delete a service appointment:
  1. Select Service Appointments from the Work Order Management menu and click the service appointment you want to delete.

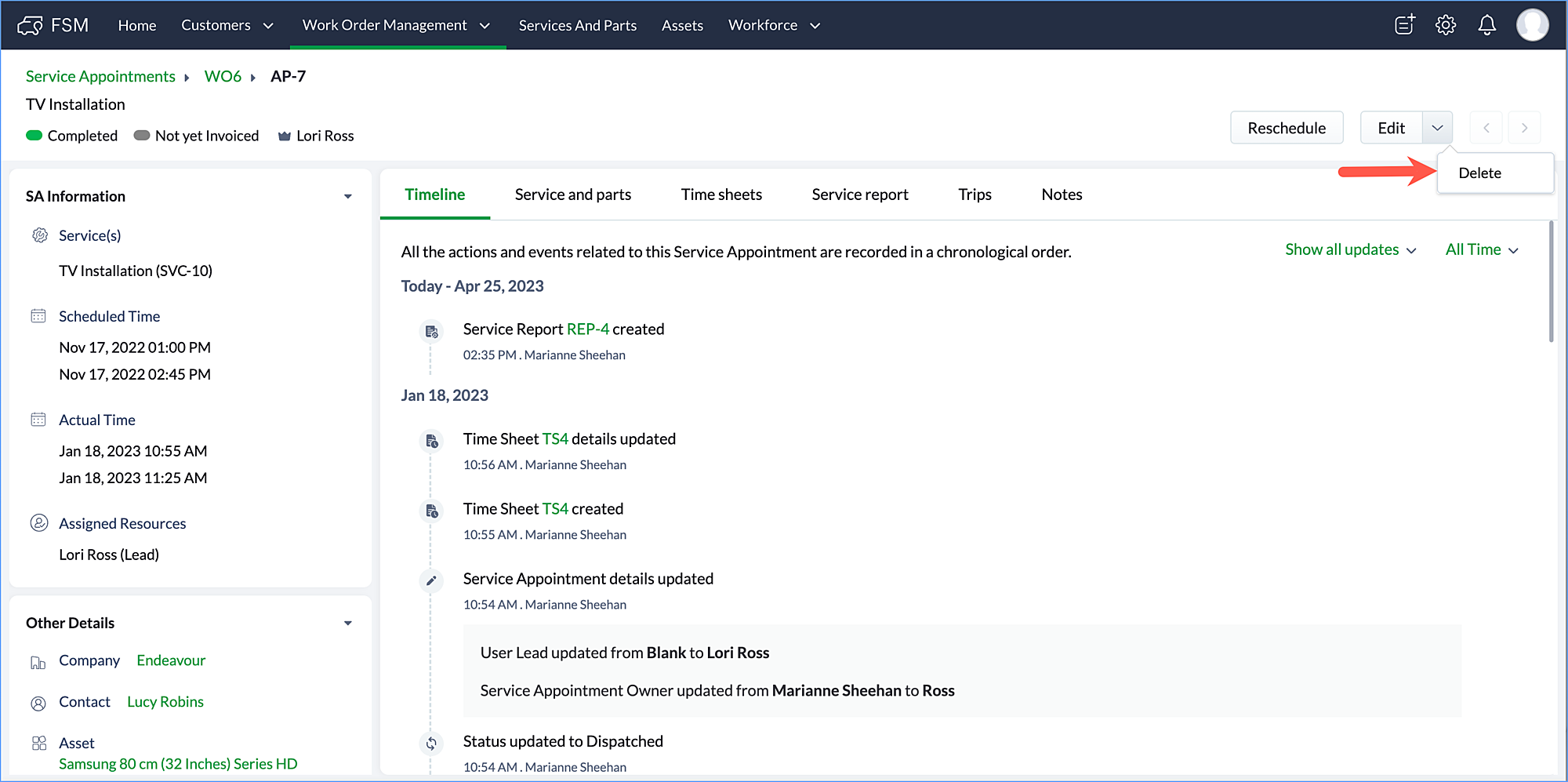

  2. In the Service Appointment Details page, click Delete from the Edit button.

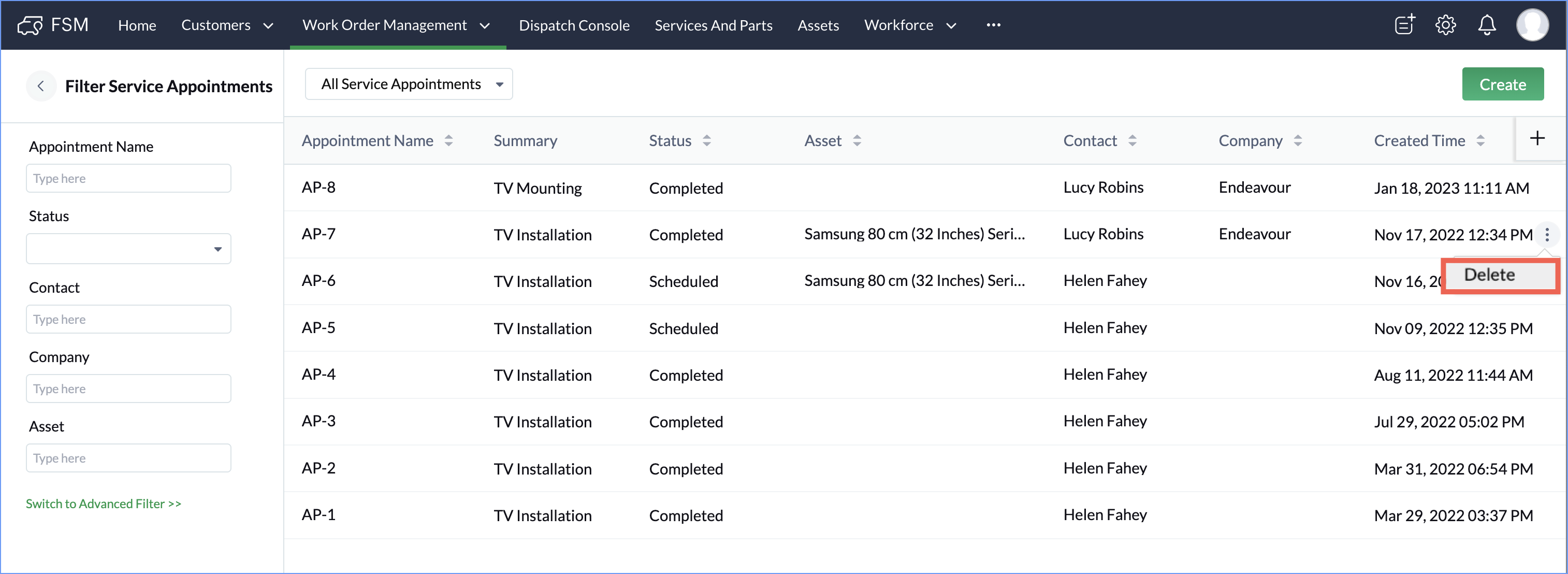

    Alternatively, in the Service Appointment List page hover over a service appointment, click the More Options ] icon and select Delete.

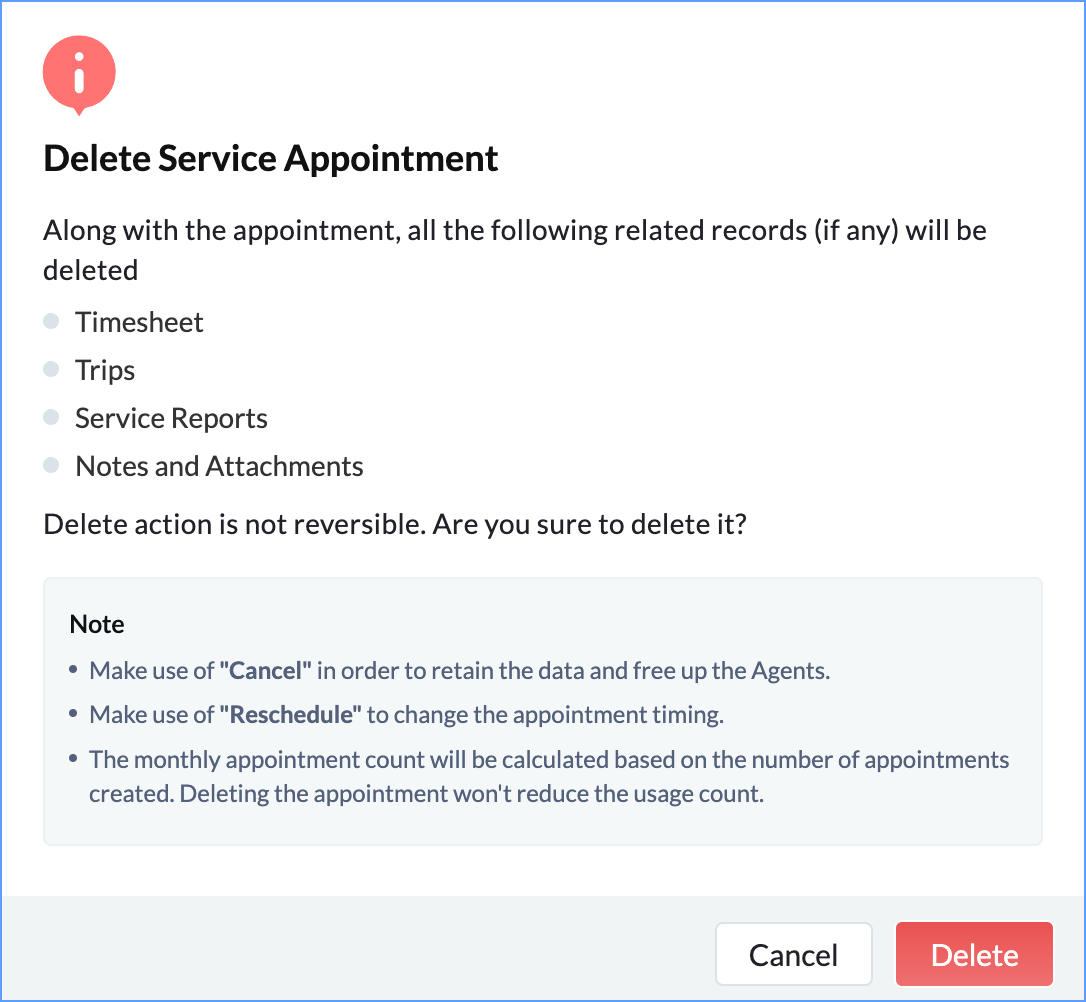

  3. Click Delete in the Delete Service Appointment popup.

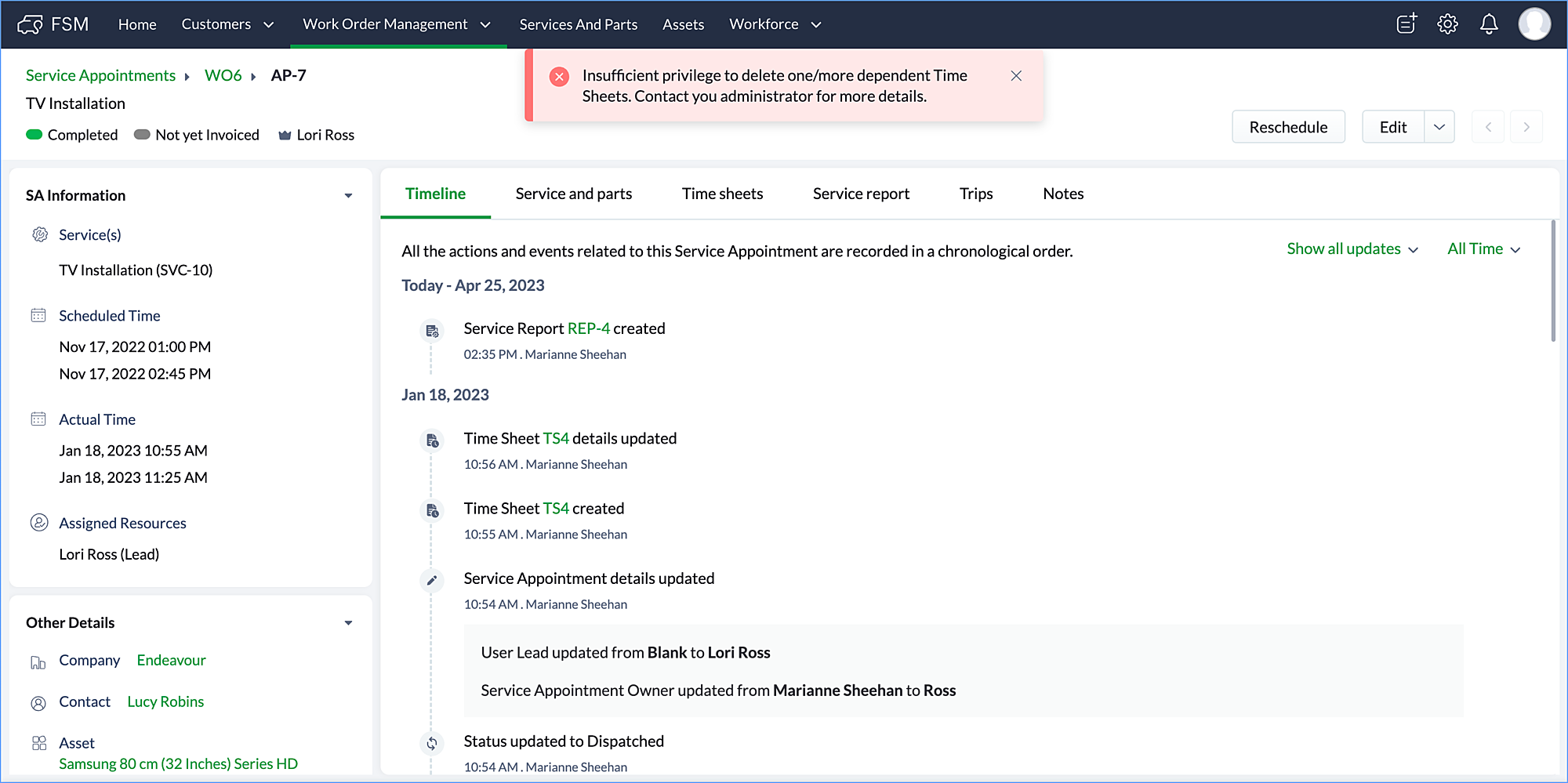

If the user doesn't have permission to delete any of the related records, then they will not be able to delete the service appointment.



Note: Service appointments of any status can be deleted.

Points to remember
  1. The deleted appointments will be deducted from the number of appointments available for a month.
  2. Instead of deleting the service appointment and losing data, you can consider Cancelling the service appointment.
  3. In case you want to change the appointment timing, you can consider Rescheduling the appointment.
  4. When a service appointment is deleted, an entry will be included in the timeline of the parent work order indicating this.

Complete Service Appointments

To complete a service appointment:
  1. Select Service Appointments from the Work Order Management menu.

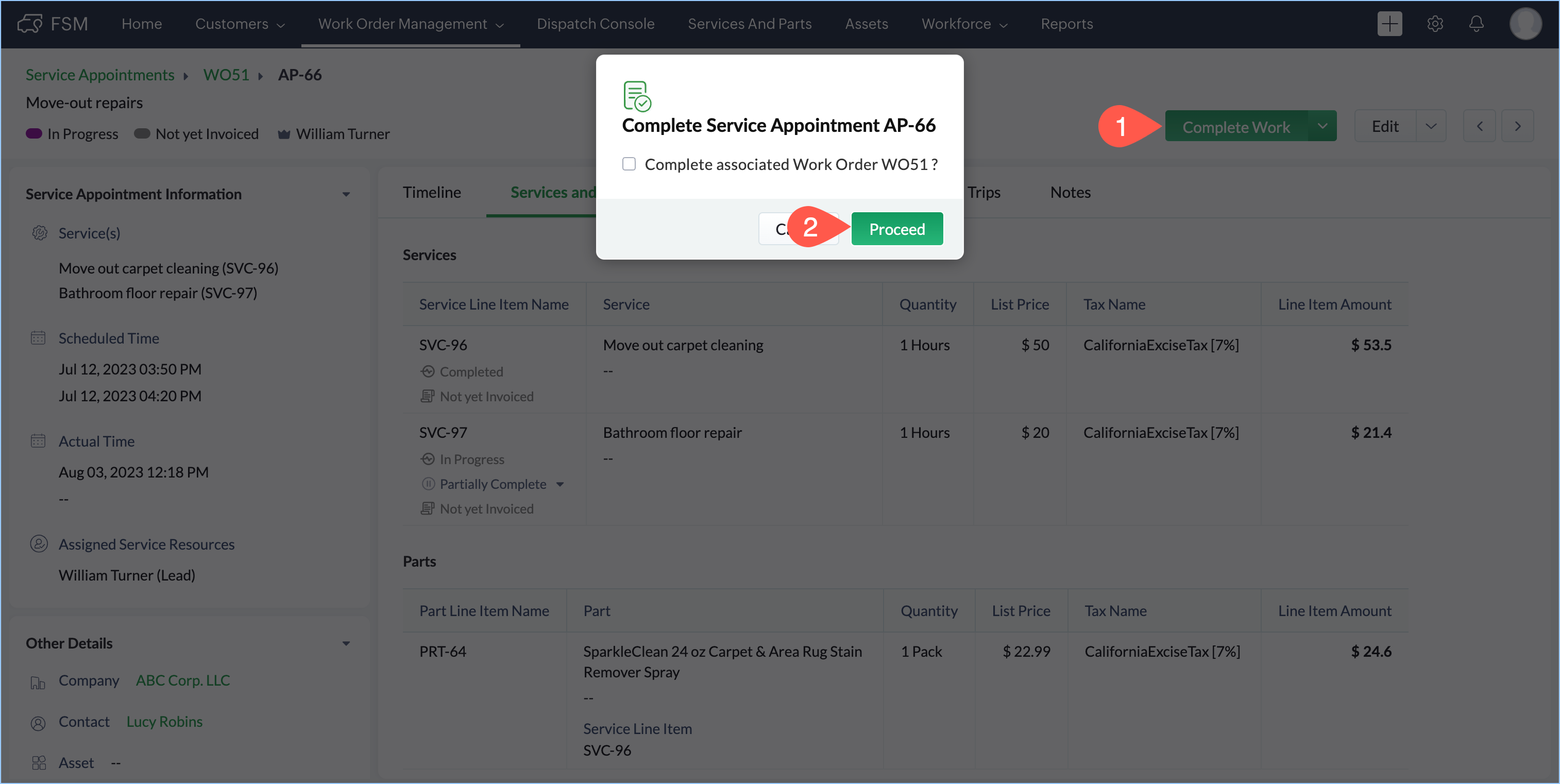

  2. Click the service appointment you want to complete and in the Service Appointment details page, click Complete Work.
  3. In the confirmation message, click Proceed.


The above confirmation message will appear if the status of the service line items is either In Progress, or Completed.

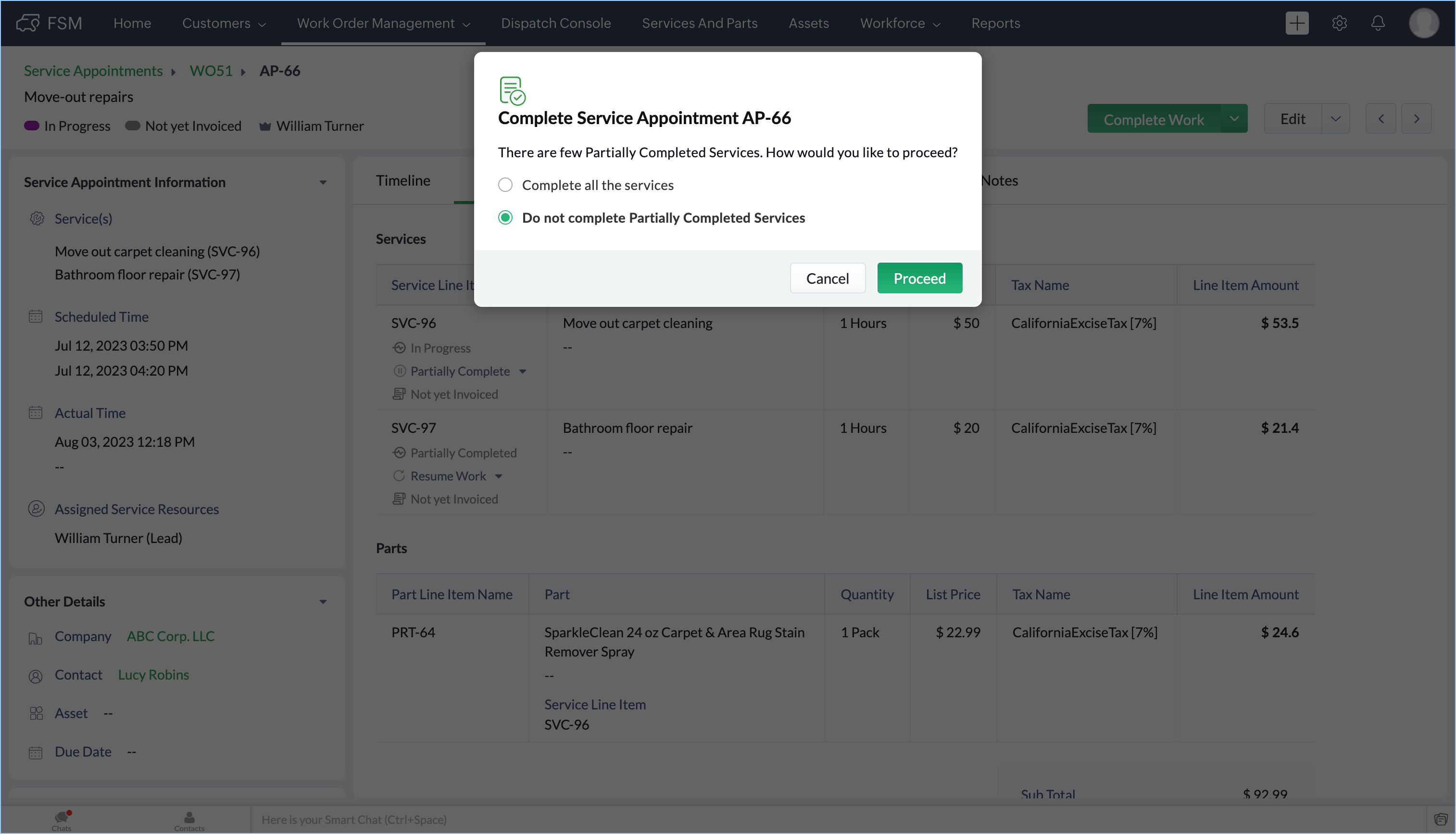

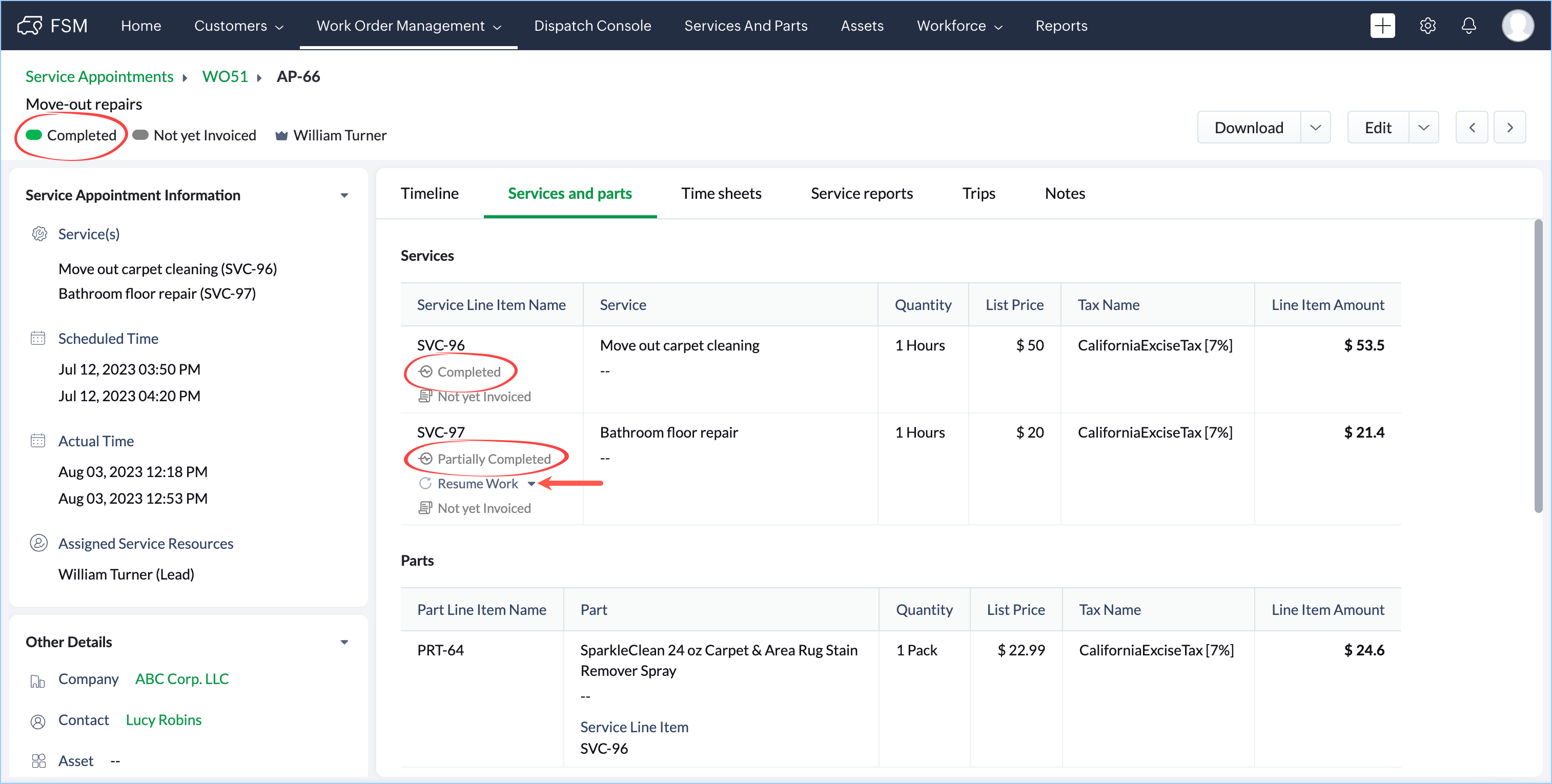

If the status of one of the service line items is Partially Completed, then when you complete the service appointment, you will have two options:
  1. Complete all the services
  2. Do not complete partially completed services


Complete all the services: If you choose this option, the status of the service line items will change to Completed and the status of the service appointment will change to Completed.

Do not complete partially completed services: The status of the service appointment will change to Completed. The status of the Partially Completed service line items will remain as is and the status of the other service line items will change to Completed. You can Resume Work on the Partially Completed service line items at any time.


Cancel Service appointments

There may be instances when you do not want to proceed with a service appointment. For example, customer who had requested for an AC installation decides to not go ahead with the installation for the time being. In this case, the service appointment created for the this request will have to be cancelled.

When a service appointment is cancelled, its status changes to Cancelled.

To cancel a service appointment:
  1. Select Service Appointments from the Work Order Management menu.

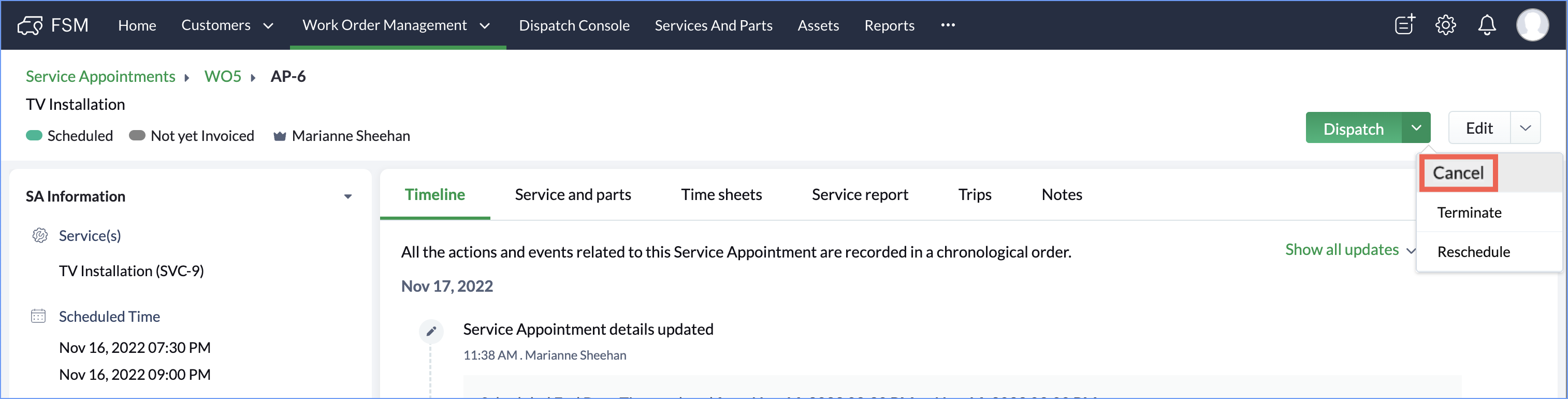

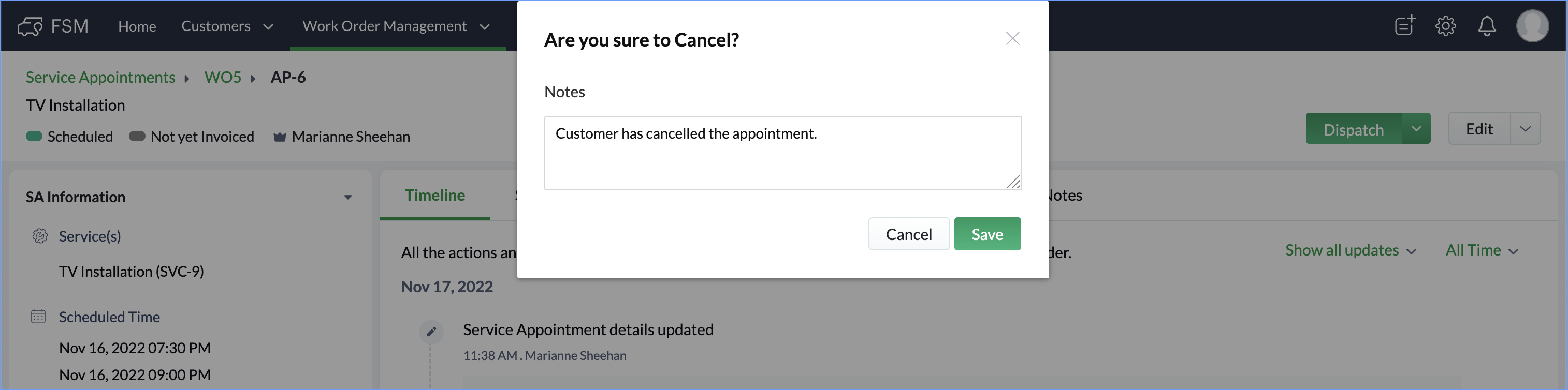

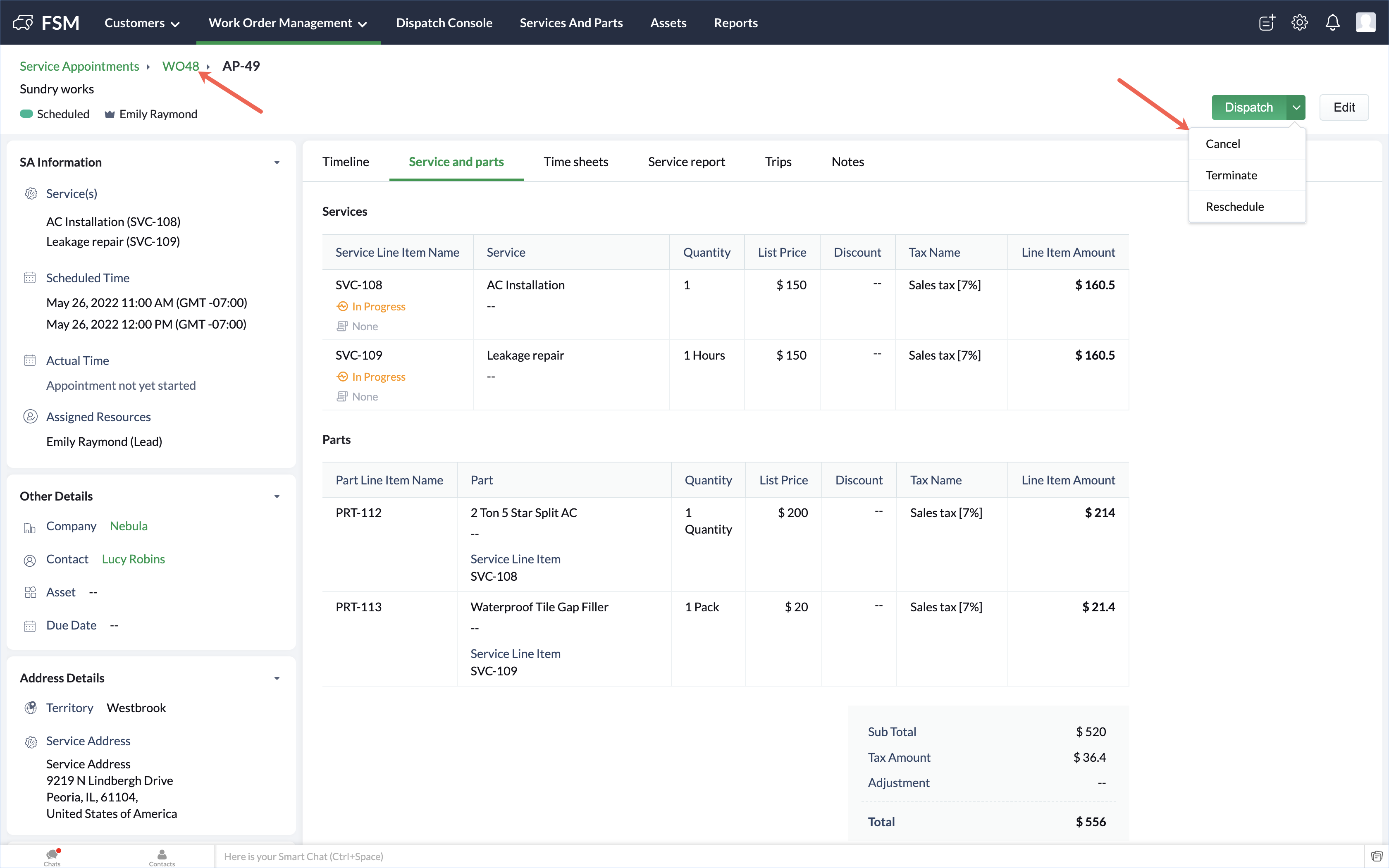

  2. Click the service appointment you want to cancel and in the Service Appointment details page, click Cancel.
    The Cancel option will be available till the service appointment is completed.



  3. Click Save in the confirmation message.


Terminate Service appointments

There may be instances when you cannot proceed with a service appointment. For example, the field agent goes to the service location and finds out that the customer is not present at the service location, or the field agent is unable to carry out their task due to faulty equipment. In these cases, the service appointment created for the this request will have to be terminated.

When a service appointment is terminated, its status changes to Cannot Complete.

To terminate a service appointment:
  1. Select Service Appointments from the Work Order Management menu.

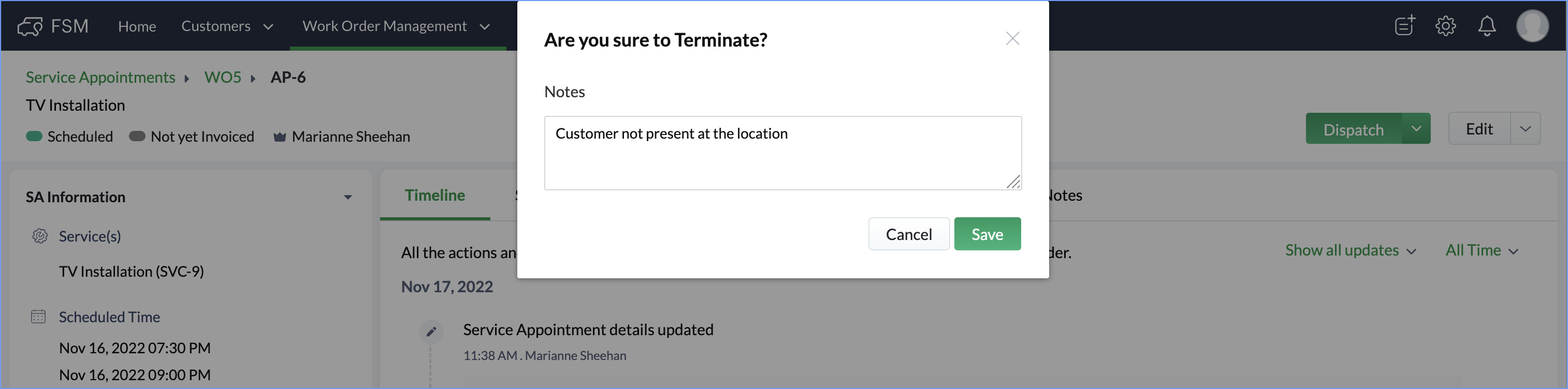

  2. Click the service appointment you want to terminate. In the Service Appointment details page, click Terminate.
    The Terminate option will be available till the service appointment is completed.



  3. Click Save in the confirmation message.

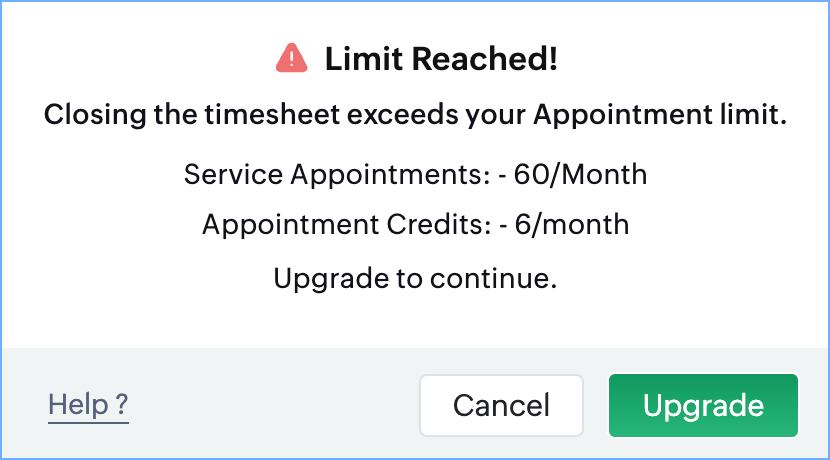

Appointment Usage Calculation

The details of the appointment usage can be seen in the left panel of a service appointment.

Single-Day Appointment

In the Standard, and Free editions of Zoho FSM, you can schedule an appointment only within the same day. The Scheduled Start Date Time and Scheduled End Date Time should be within the same day.

The appointment usage will be determined by the Actual duration of the appointment. The number of appointments that will be deducted from your total available appointments will be equal to the number of distinct dates during which the service appointment actually takes place. Refer to the example below to understand this better:

Service Appointment Scheduled Duration: Nov 30, 2023 01:00 PM to Nov 30, 2023 06:00 PM.
Service Appointment Actual Duration: Nov 30, 2023 12:54 to Nov 30, 2023 05:30 PM
No. of service appointments used up: 1

Service Appointment Scheduled Duration: Nov 30, 2023 01:00 PM to Nov 30, 2023 06:00 PM.
Service Appointment Actual Duration: Nov 30, 2023 12:54 PM to Dec 01, 2023 12:54 PM
No. of service appointments used up: 2

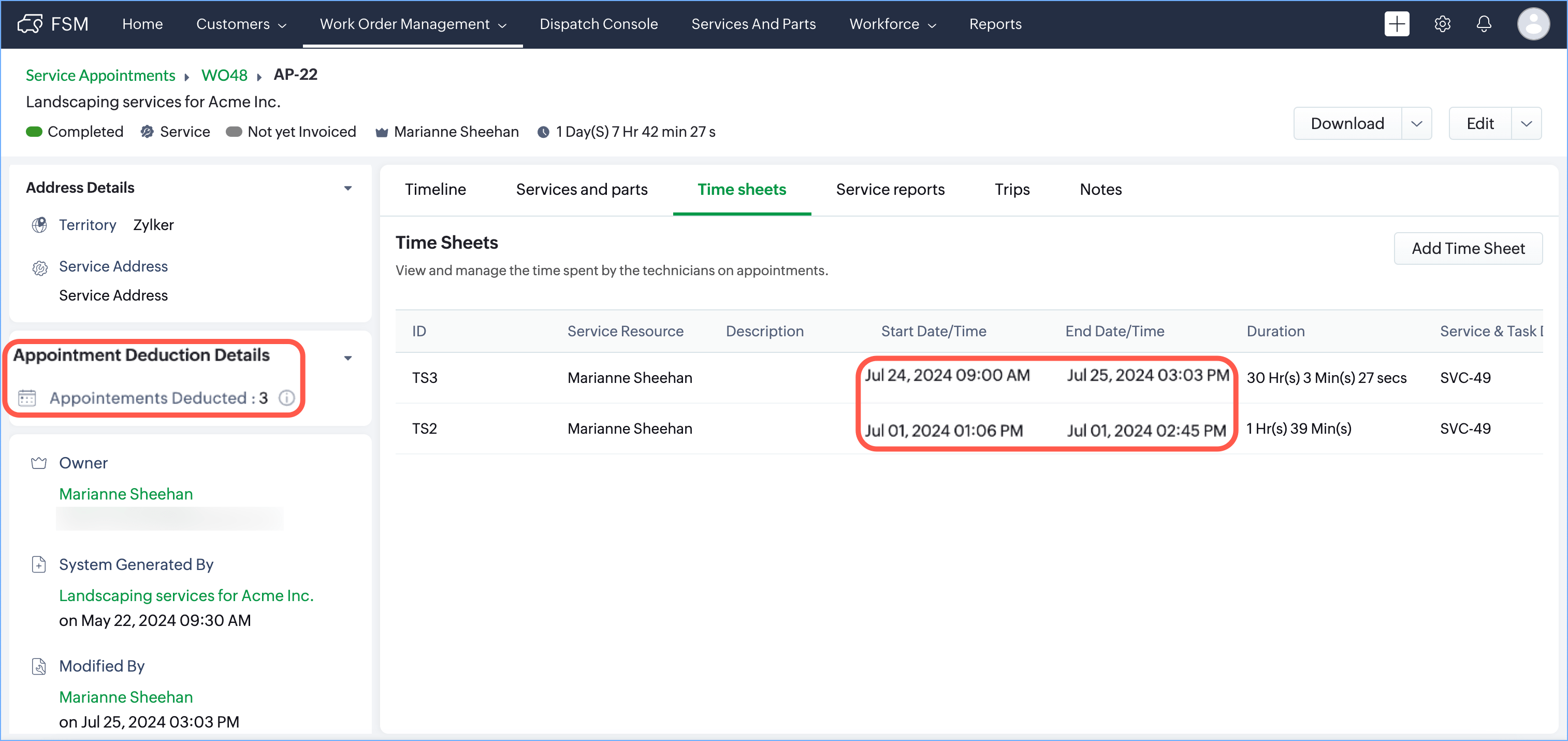

Multi-day Appointment

The number of appointments that will be deducted from your total available appointments will be equal to the number of distinct dates in the Scheduled or Actual duration of the service appointment, whichever is greater. The duration will be calculated based on the Zoho FSM Org timezone. Please refer to the table below for details on how multi-day appointments will affect your count of purchased appointments.

IF the Scheduled Duration is

AND the Actual Duration is

THEN the Number Of Appointments used will be

4

5

5

5

4

5

5

Rescheduled to 3

2

5
