Deleting a datapoint template in a datapoint group in the end application

Deleting a datapoint template in a datapoint group in the end application

Datapoint templates added to a custom datapoint group can be removed from the group.

Delete Dependency: If a datapoint template in a datapoint group is imported in a product or utilised in configuring alarm rules template or other computational datapoint templates, it becomes a dependency for those elements. You must first remove them from the product they are associated with and the corresponding alarm rules template and computational datapoint templates using it. Only then can you delete the datapoint template.

Note: Datapoint templates in imported datapoint groups cannot be deleted.

To delete a datapoint template of a datapoint group in the end application,

1. Access the End Application.

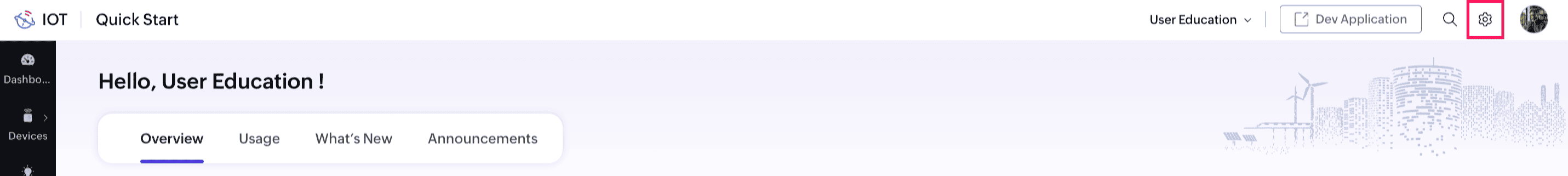

2. Click the Settings icon in the top right corner.

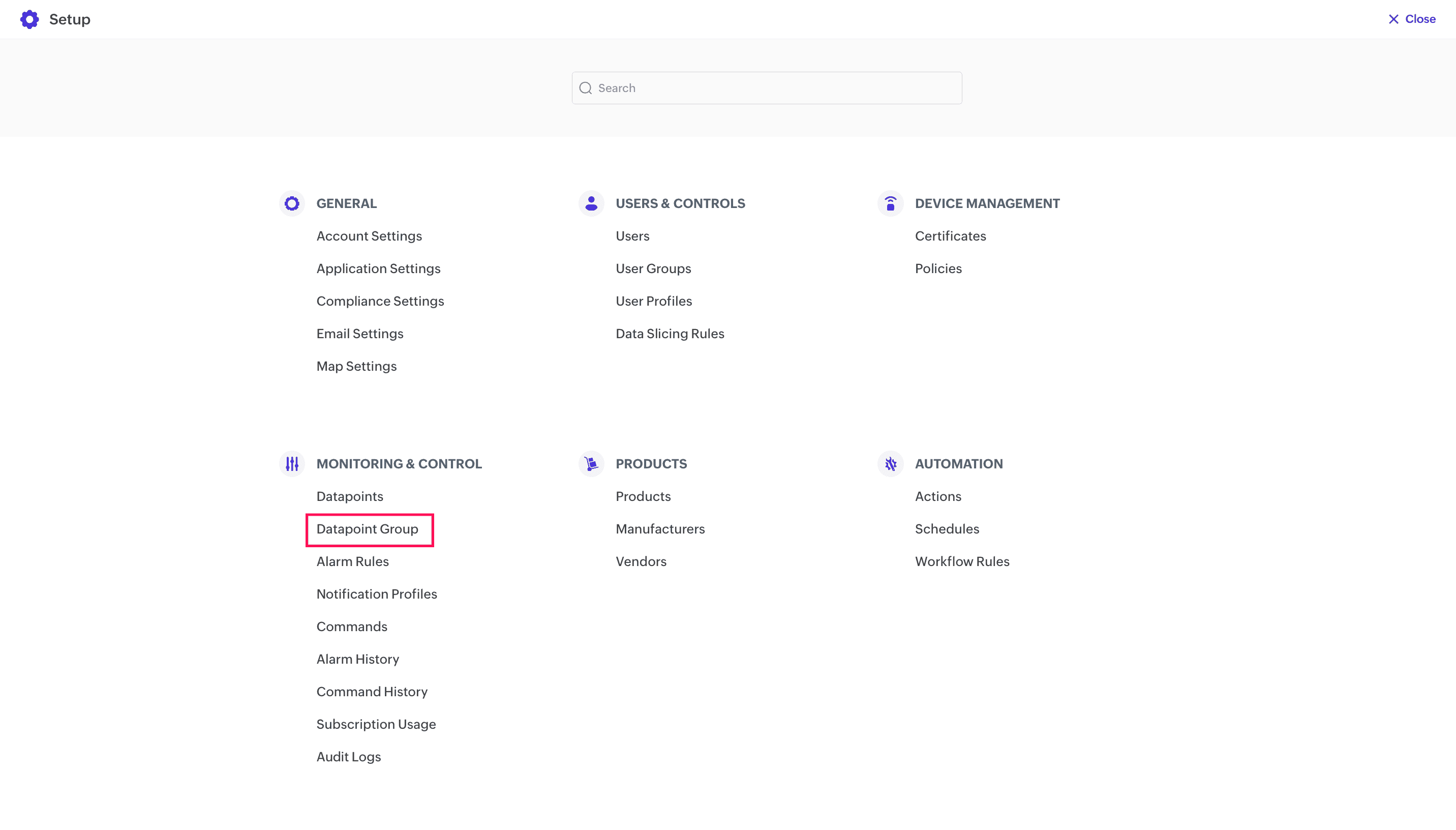

3. Click on Datapoint Group under the MONITORING & CONTROL section.

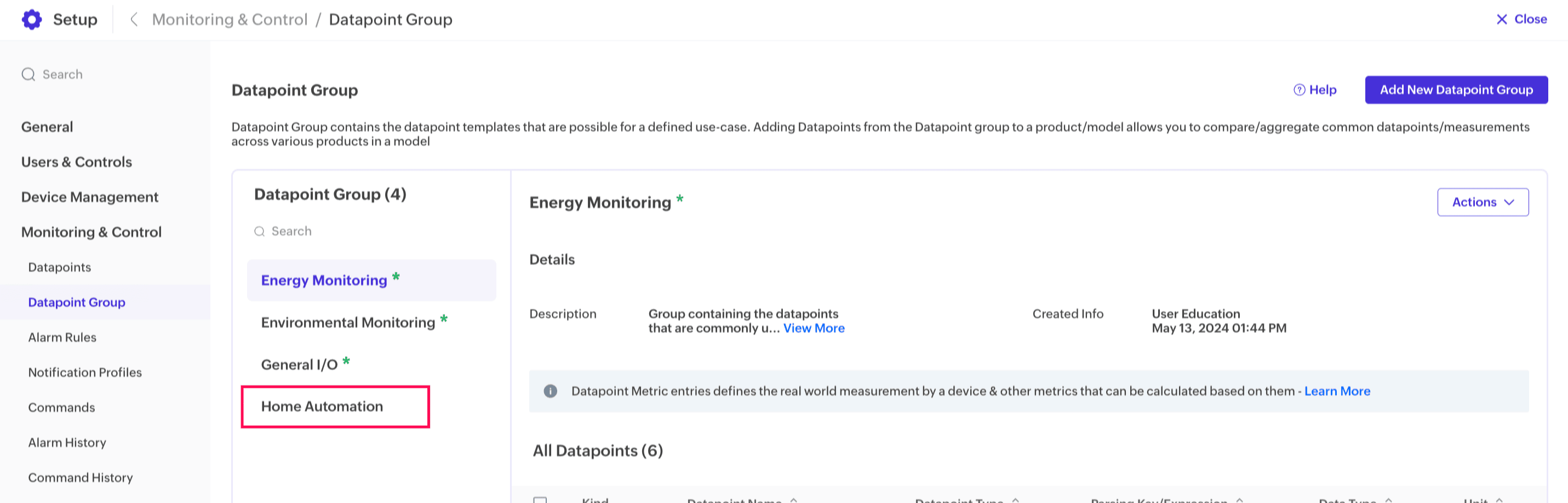

4. Click on the custom datapoint group from which you want to delete the datapoint template. For this illustration, the Home Automation datapoint group is selected.

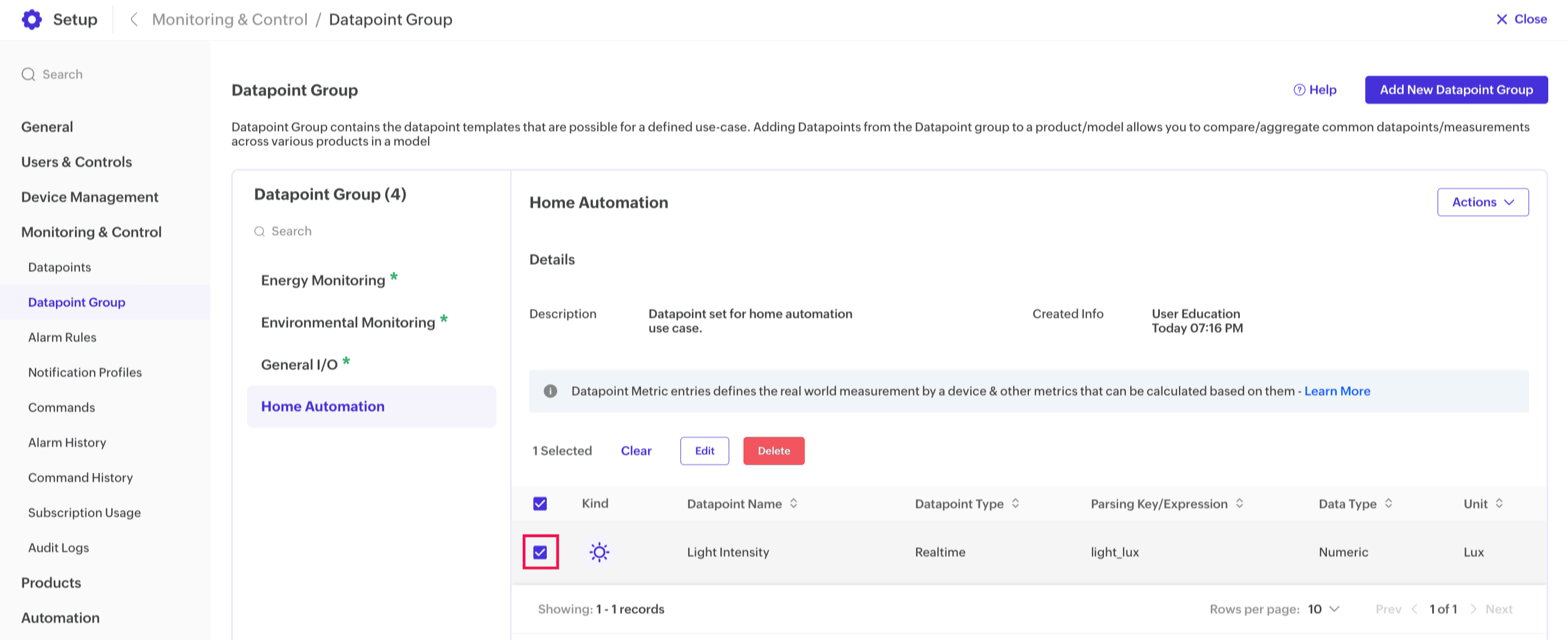

5. Check the box near the name of the datapoint template you want to delete. For this illustration, the datapoint template Light Intensity is selected.

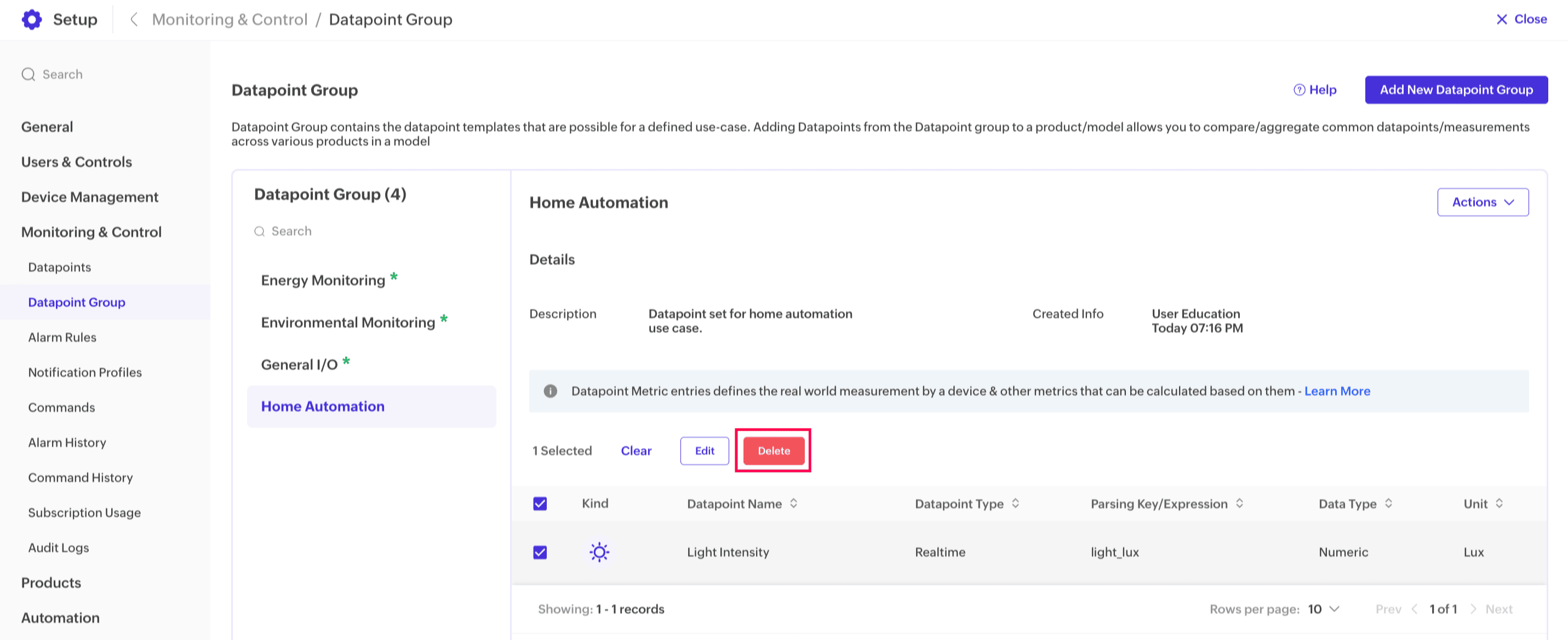

6. Click the Delete button that appears.

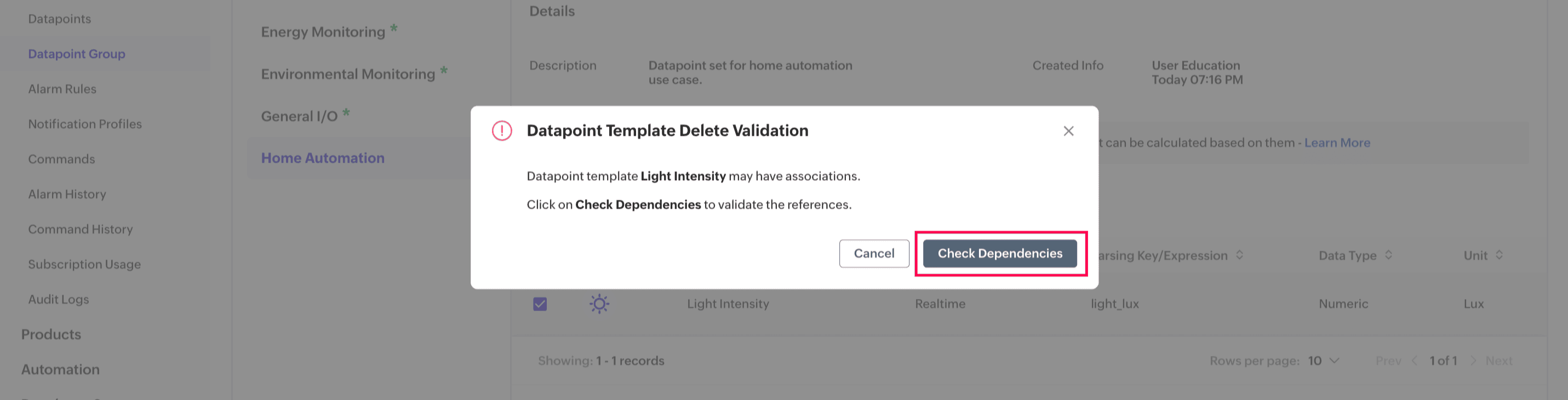

7. Click Check Dependencies in the validation pop-up.

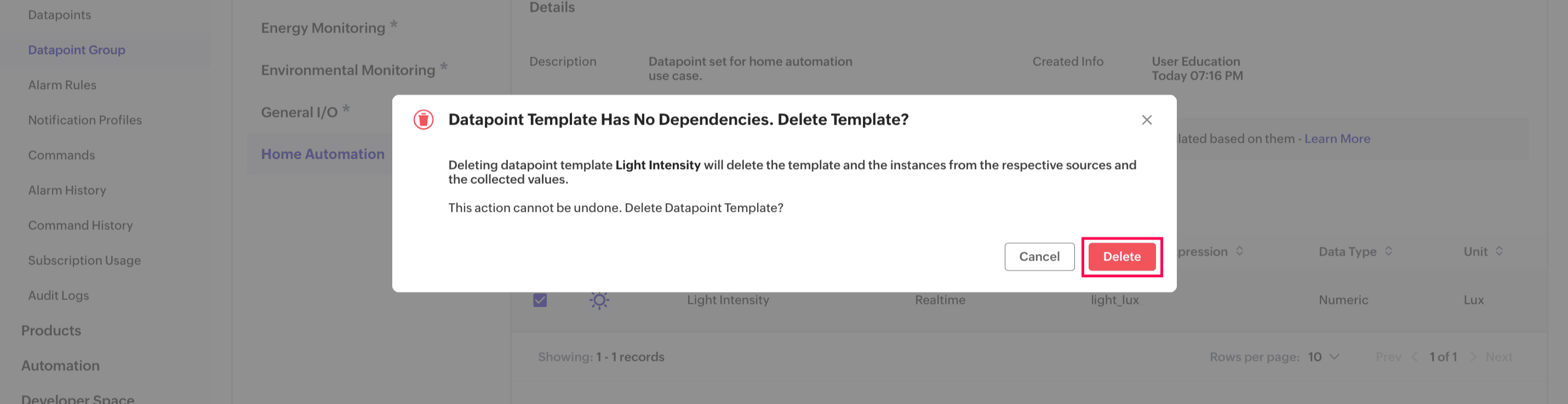

8. Click Delete in the confirmation pop-up.





The datapoint template will now be deleted from the custom datapoint group.
