Create a heatmap using advanced url targeting options

Zoho PageSense provides a little more advanced way of creating heatmaps to understand your user behavior on the website with the URL Targeting option. The URL targeting feature allows you to choose the appropriate URL pattern, such as a single page or several similar pages that you want to track heatmaps for within your experiment. You can also exclude a set of web pages on your site that you don’t want to track. Moreover, the URL targeted heatmap makes the task to view specific user behavior on your website very easy.

For example, say you want to view user behavior on all the product categories of your eCommerce website. Then, you can choose the URL Contains option with the Category keyword to run the heatmap experiment to all the customers visiting any of your product pages on the site.

To create a URL targeted heatmap:

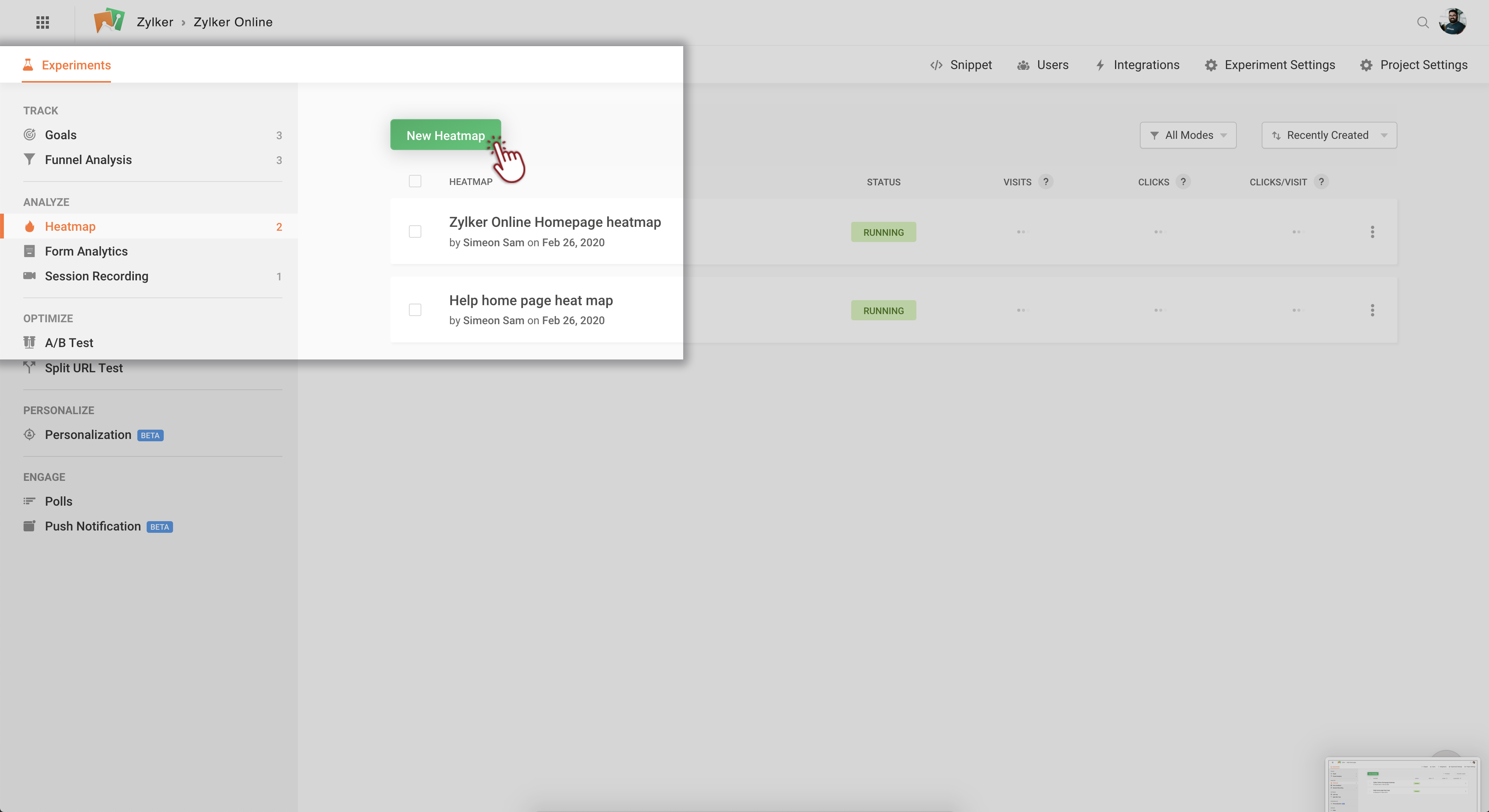

1. Click Heatmap on the left pane, then the New Heatmap button.

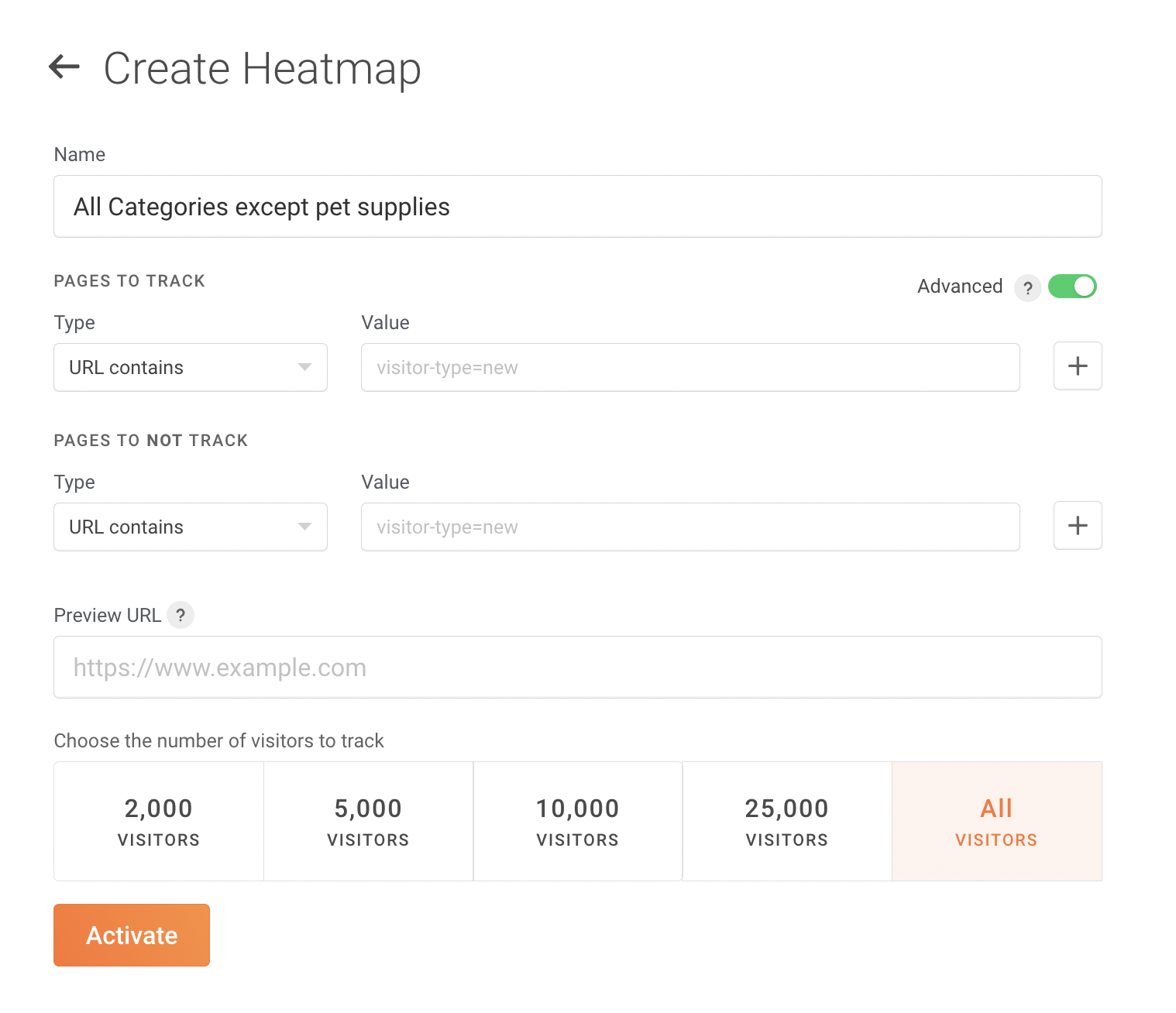

2. Enter a descriptive name for your heatmap in the text box and enable the Advanced button.

For example, let's say you want to view visitor interactions across all the product categories of your ecommerce site but want to exclude the 'Pet Supplies' category from being tracked. We will name this heatmap as 'All categories except pet supplies'

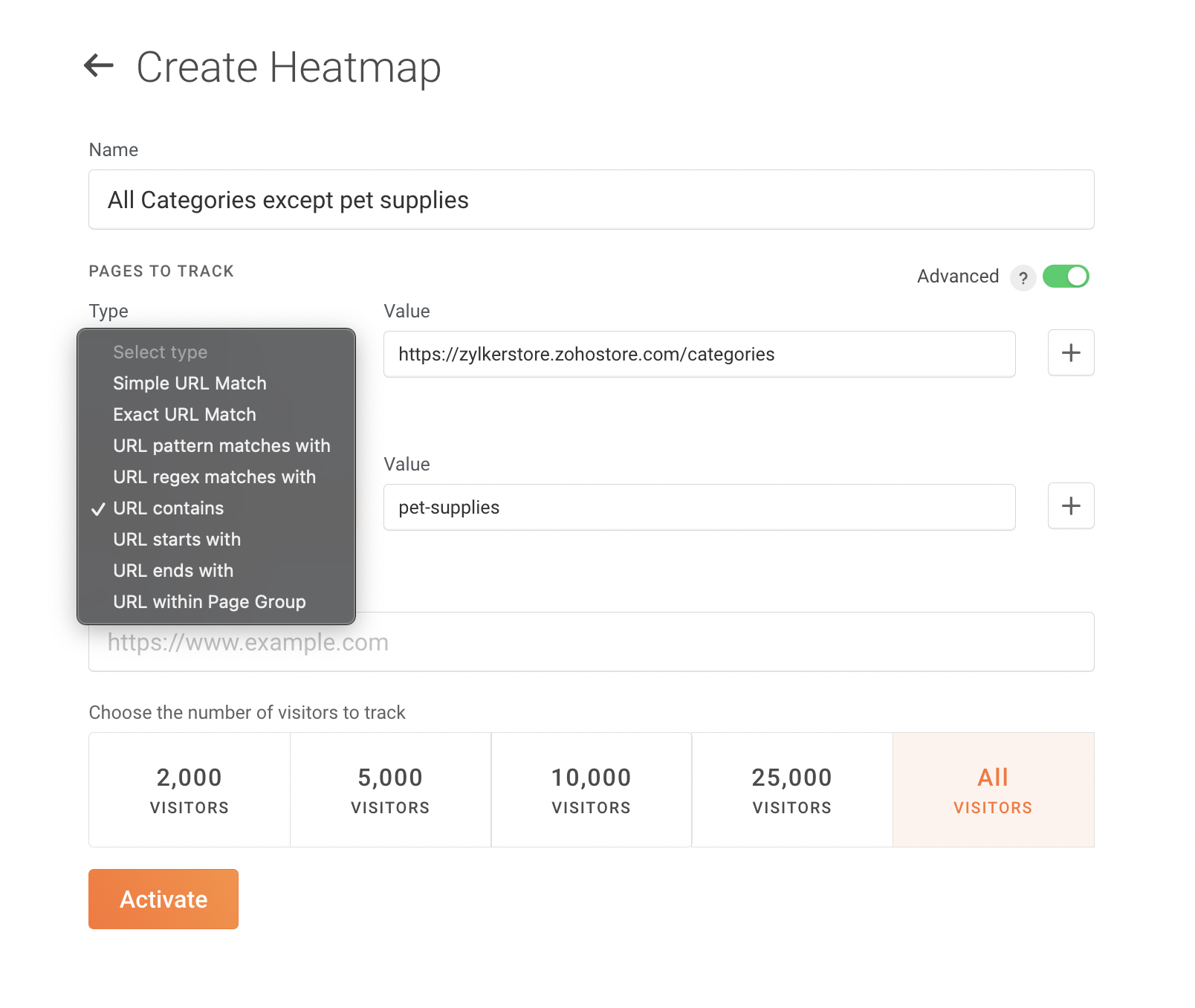

3. Selet your preferred URL match type from the dropdown, then enter the specified URL pattern in the URL field.
You can also include or exclude specific web pages to generate your heatmap reports. Based on the example, we'll choose the URL pattern to be contains from the dropdown, and add the exclude URL for 'Pet Supplies' under PAGES TO NOT TRACK
as shown in the image below.

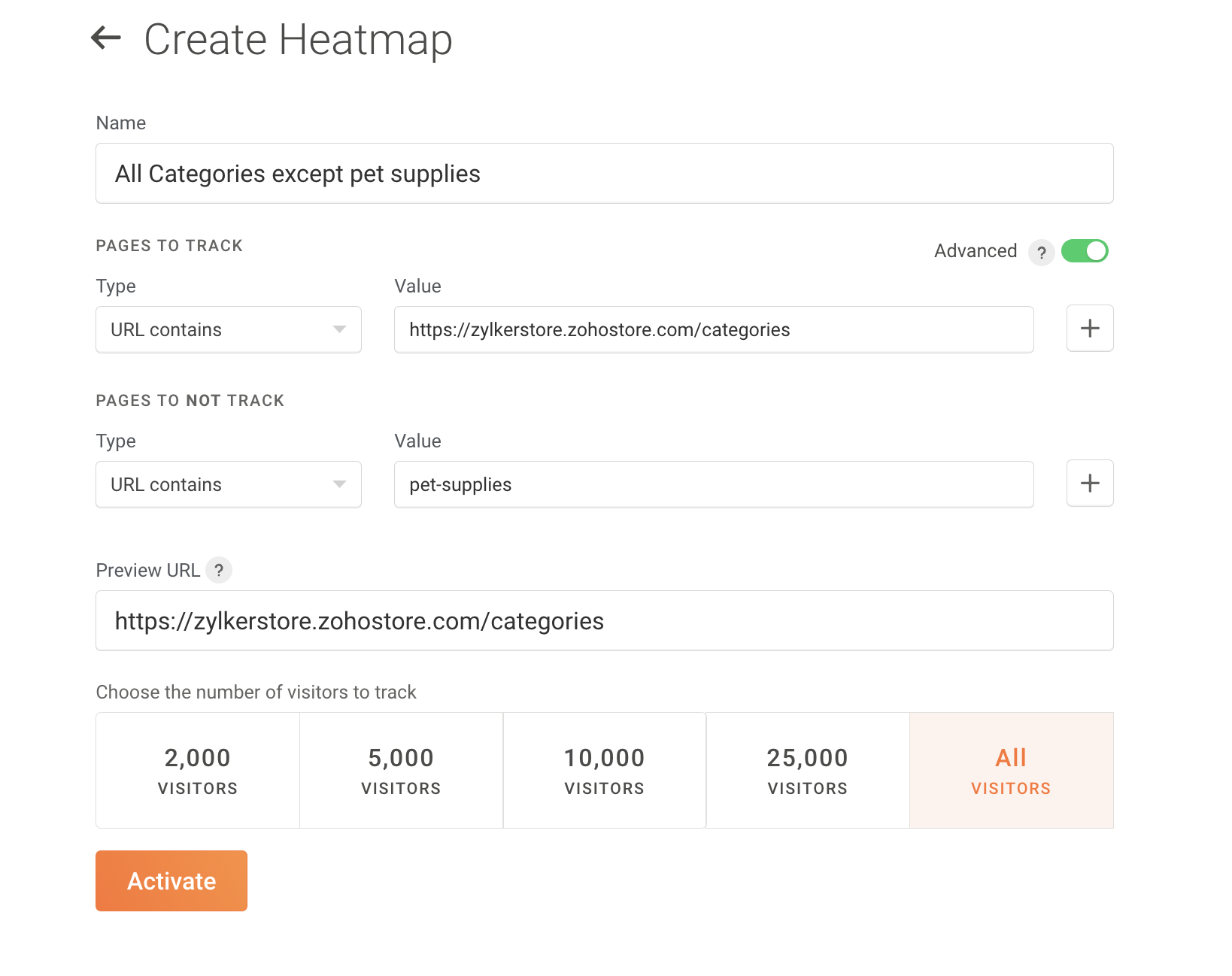

4. Enter the Preview URL in the URL field and choose the visitor limit until which you want to run your heatmap.
By default, the Visitors option is set to 2000; however, you can set the limit to a maximum of 25000 to stop the experiment.

5. Click Activate to launch the heatmap on your web page.
Zoho PageSense will now begin to track the visitors interaction on the specified web page, and will show the relevant metrics under the REPORTS tab. However, if you wish to make changes to your heatmap, click the Pause button at the top-right corner, then click Relaunch to run the experiment again.
