Launch and Sync a Custom Widget in Flyout Mode Using Client Script in Zoho CRM
Summary:
This article explains how to launch a custom widget as a flyout in Zoho CRM using Client Script, pass data from a CRM field to the widget, and update the same field based on the widget’s response.
Requirement Overview:
Certain use cases require custom interactions when a user edits a field in Zoho CRM.9 For example, launching a calculator or custom logic interface without navigating away from the record. By using a Client Script with flyout configuration, you can open widgets in a dedicated pane (flyout), pass data from the CRM record, and update fields based on the widget’s output.
Deploy Client Script in Zoho CRM:
- You will configure a Client Script to trigger when the user edits the Price field. The script will:
- Open a Flyout widget
- Send the field value to the widget
- Wait for a response from the widget
- Update the Price field with the returned value
Use Case
Scenario:
When a user edits the Price field, a calculator widget opens as a Flyout. The field’s value is passed to the widget for computation. Once a new value is calculated in the widget, it sends the result back to the Client Script, which then updates the same field in CRM.
Configuration:
Client Script – Create and Handle Flyout
Create a Client Script and run it on change of the
Price field-
Go to Setup → Developer Hub → Client Script.
-
Click New Script.
-

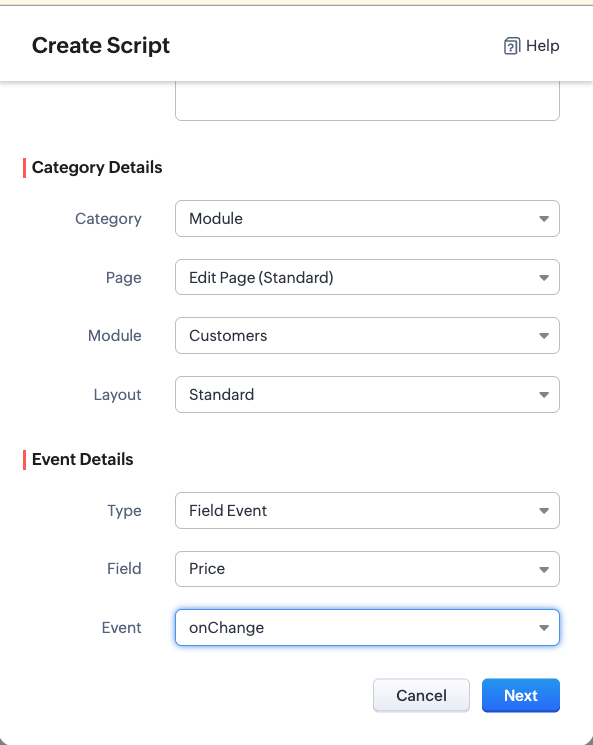

Select the appropriate Category and Event as shown in the screenshot (Event: On Change, Field: Price).
-
Add your script code in the editor.
-
Click Save and Publish/Activate the script.
Screenshot for reference:
Code:
- const WIDGET_API_NAME = "Calculator";
- // Step 1: Create and configure the flyout
- ZDK.Client.createFlyout('myFlyout', {
- header: WIDGET_API_NAME,
- animation_type: 3,
- height: '400px',
- width: '420px',
- top: 'center',
- right: '0'
- });
- // Step 2: Open the flyout widget and pass the Price field value
- ZDK.Client.getFlyout('myFlyout').open({ api_name: WIDGET_API_NAME, type: 'widget'});
- let response = ZDK.Client.getFlyout('myFlyout').notify({ data: ZDK.Page.getField('Price').getValue() }, { wait: true });
- // Step 3: Close the flyout after receiving response
- ZDK.Client.getFlyout('myFlyout').close();
- // Step 4: Update the Price field with the response
- ZDK.Page.getField('Price').setValue(response.incrementedNumber);
In the widget code, register the following event listener to wait for the flyout and receive data from the client script.
- ZOHO.embeddedApp.on("NotifyAndWait", function (data) {
- console.log("Client Script synchronous flyout notification", data);
- console.log("Data received:", data.data);
- // Store the incoming data (e.g., original price)
- result.value = data.data.data;
- // Save the Flyout ID for sending the response back
- FLYOUT_ID = data.id;
- }
To send a response back from your widget to the Client Script, you can use the Zoho CRM JS SDK method:
- ZDK.Client.sendResponse(FLYOUT_ID, {
- incrementedNumber: result.value // Replace with actual computed result
- });
In the widget UI, add a “Send Result” button that, on click, computes the value and calls the SDK method to return it to the Client Script.
Example Workflow :
- User edits the Price field.
- The Client Script opens the Calculator widget as a flyout.
- The widget receives the original price and performs the calculation.
- Upon clicking “Send,” the widget returns the computed value.
- The Price field is updated automatically with the new value.
Working demo:
