Files & Media Field

Files & Media Field

Attach your custom module's supporting files within the module using the Files & Media field. Upload images, documents and other media directly to the layout field consolidating all related records in a single location.
Users can specify allowed formats or allow all formats for upload. They can set the limit for the maximum and minimum count and size for the files.
Info
Available for all plans as per plan-based limit. Included only in custom module layouts.

Free plan
Premium
Enterprises
Ultimate
Files & Media Field
1
2
5
20



Idea
Use case:
A commercial construction firm, runs a custom module called Site Inspections in Zoho Projects. With no dedicated file attachment field, inspection photos lived on an engineer’s phone, signed reports sat in email threads, and permit scans were in a shared drive. Finding everything for one inspection meant checking three places.
The project manager, adds Files & Media field to the Site Inspections layout and configures it to match the company’s compliance requirements. They add field details;

Name: Inspection Evidence.
Allowed formats: JPG, PNG, and PDF only, so raw video files and unsupported formats don’t clutter the record.
File count: a maximum of 15 files per inspection,
File size: a maximum of 10 MB per file

During project audit, field engineer uploads eight site photos, the signed safety checklist, and the municipal permit scan to the Inspection Evidence field. When he tries to upload a 30-minute walk through video, the field rejects it because the format isn’t allowed. When he tries to add more than 15 photos, a prompt displays the maximum limit being 15 as per the set limit.

All the inspection records are stored for future reference in one place, with no searching through emails or drives.

Add

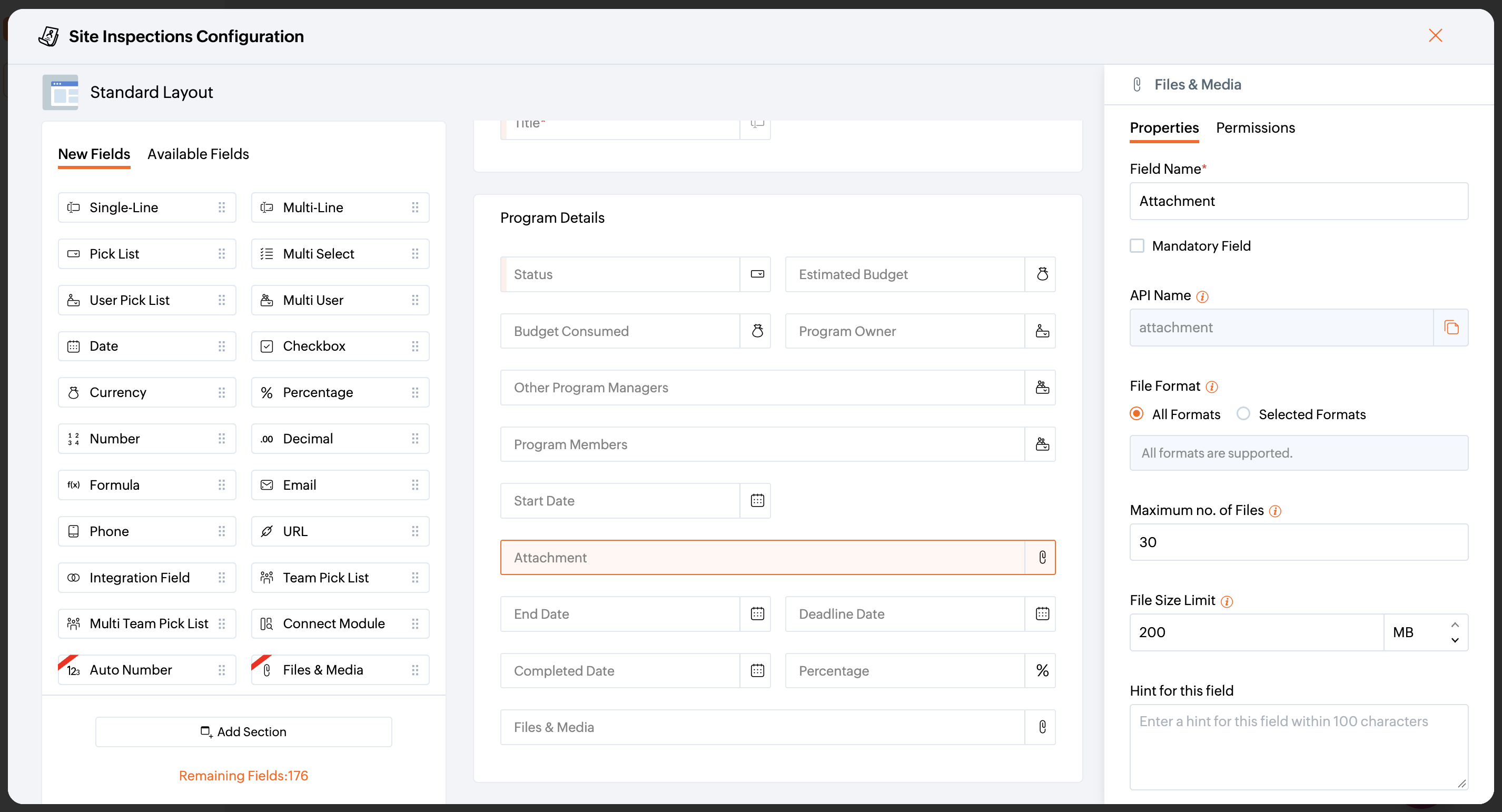

  1. Navigate to Set Up > Customization > Layouts.
  2. Go to the custom module layout you want to add the Files & Media field to.
  3. Drag and drop the field in the layout.
  4. Enter field details like name, format, file size and count limit and click Add to Layout.

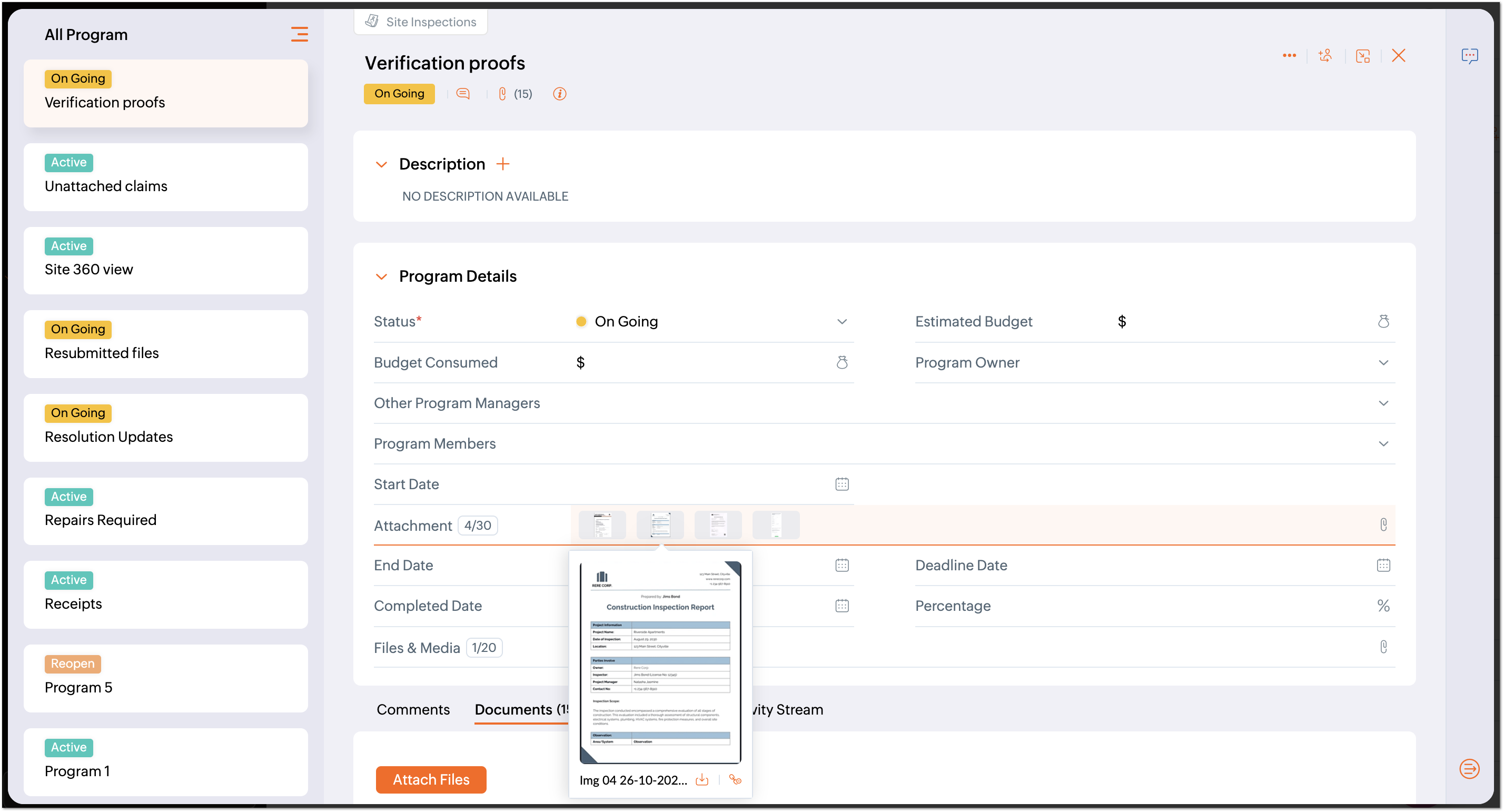

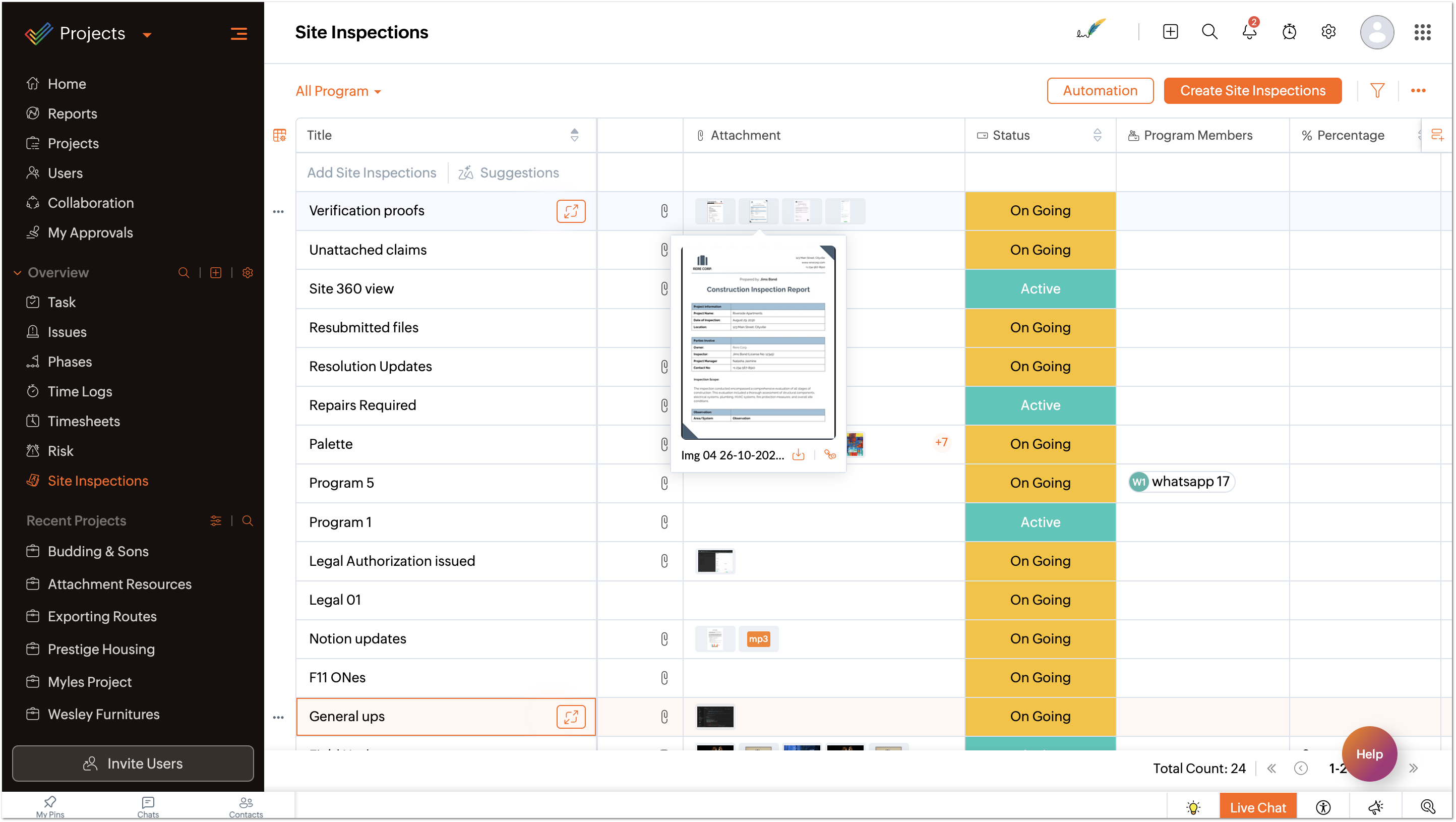

The files can be attached to or dissociated from the module directly from the Field and can be viewed on the list view and the details page.



Edit

  1. Navigate to Set Up > Customization > Layouts.
  2. Go to the custom module layout you want to add the Files & Media field to.
  3. Hover over the field and click <pencil icon>.
  4. Make the changes and press Enter/ Return.
The changes will be auto saved.

More Action

  1. Click on the < mandatory icon> to mark the field as mandatory.
  2. Click on the <cross icon> to remove the field from the layout.
  3. To delete the field permanently, go to Set Up > Customization > Fields. Hover over the specific summary field and click . Confirm your action and select Delete.
  4. Set Permissions for the field from the Permissions tab next to Properties on the Files & Media form. The permission changes will apply for the profile across all the layouts in the portal.
