Results
In a nutshell
Results is a real-time dashboard that displays the execution status of test plans, both manual and automated. It surfaces key metrics like total runs, completed runs, active runs, and success rate for a specified period. You can filter and sort results by platform, status, or time range to quickly identify failures, track testing trends, and drill into individual test case outcomes.
Overview
The results page is a real-time dashboard of manual or scheduled executions of your test plans. Test plans are schedules which automate the execution of test suites comprising of test cases.
All insights regarding execution times, trends, failures, and environments are displayed for quick reference.
View real-time execution status
The results page provides the execution status of your test plans.
- Total Execution Runs displays the total number of test plans executed for a specified period.
- Completed displays the number of executions completed.
- Running displays the number of executions that are in progress.
- Success Rate displays the percentage of test cases that succeeded against the total number of test cases executed for all runs.
Customize views
Search, sort, and filter test plan execution results. Toggle between list view and grid view. Derive insights by supplying the required parameters and see how test plans perform.
Search Test Plans
Search results for a required test plan with its name and view its executions.

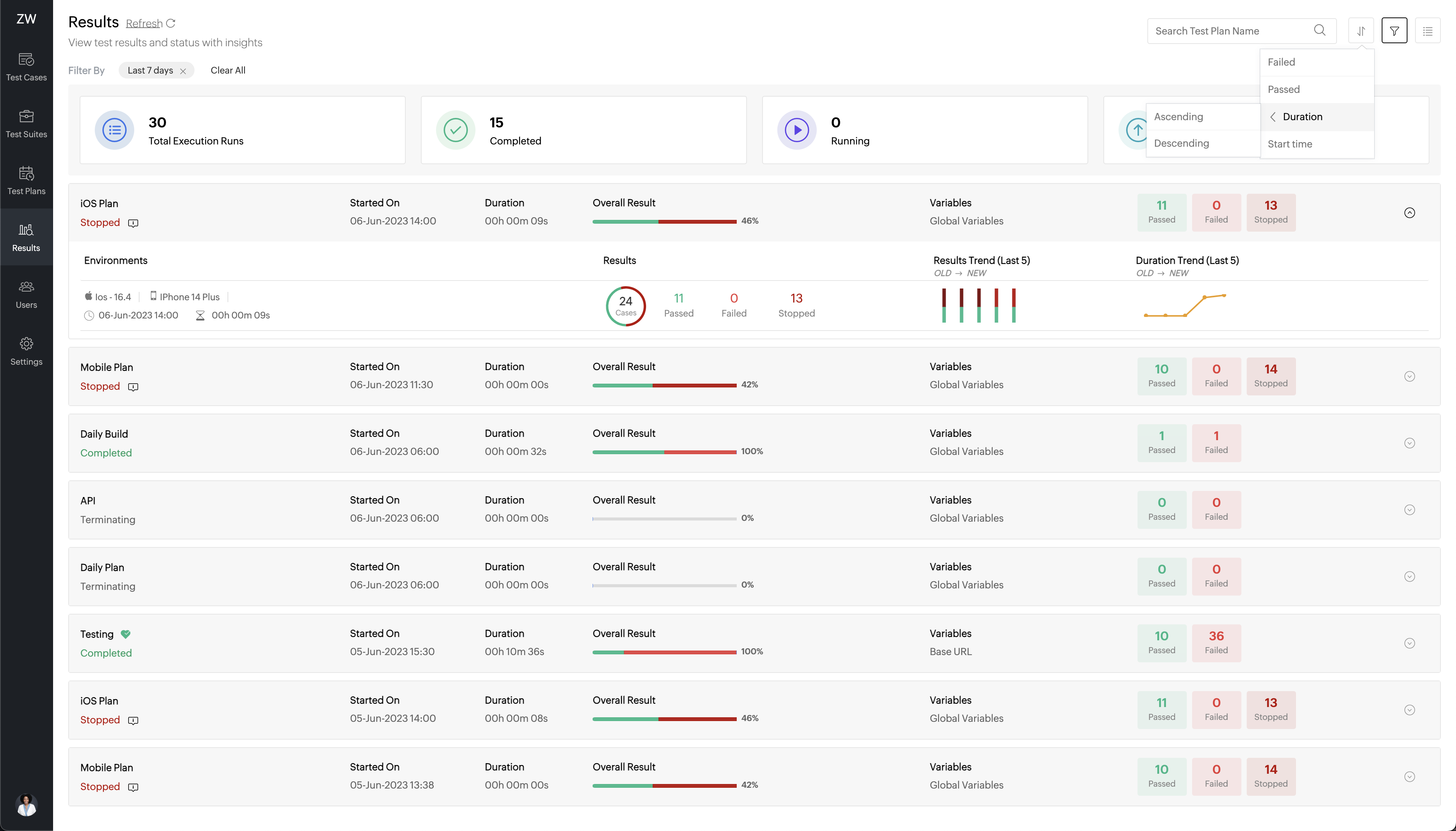

Sort Test Plan execution results
Sort executions in an ascending or descending order based on their execution status – Failed, Passed, Duration (execution time), Start Time (execution start time).

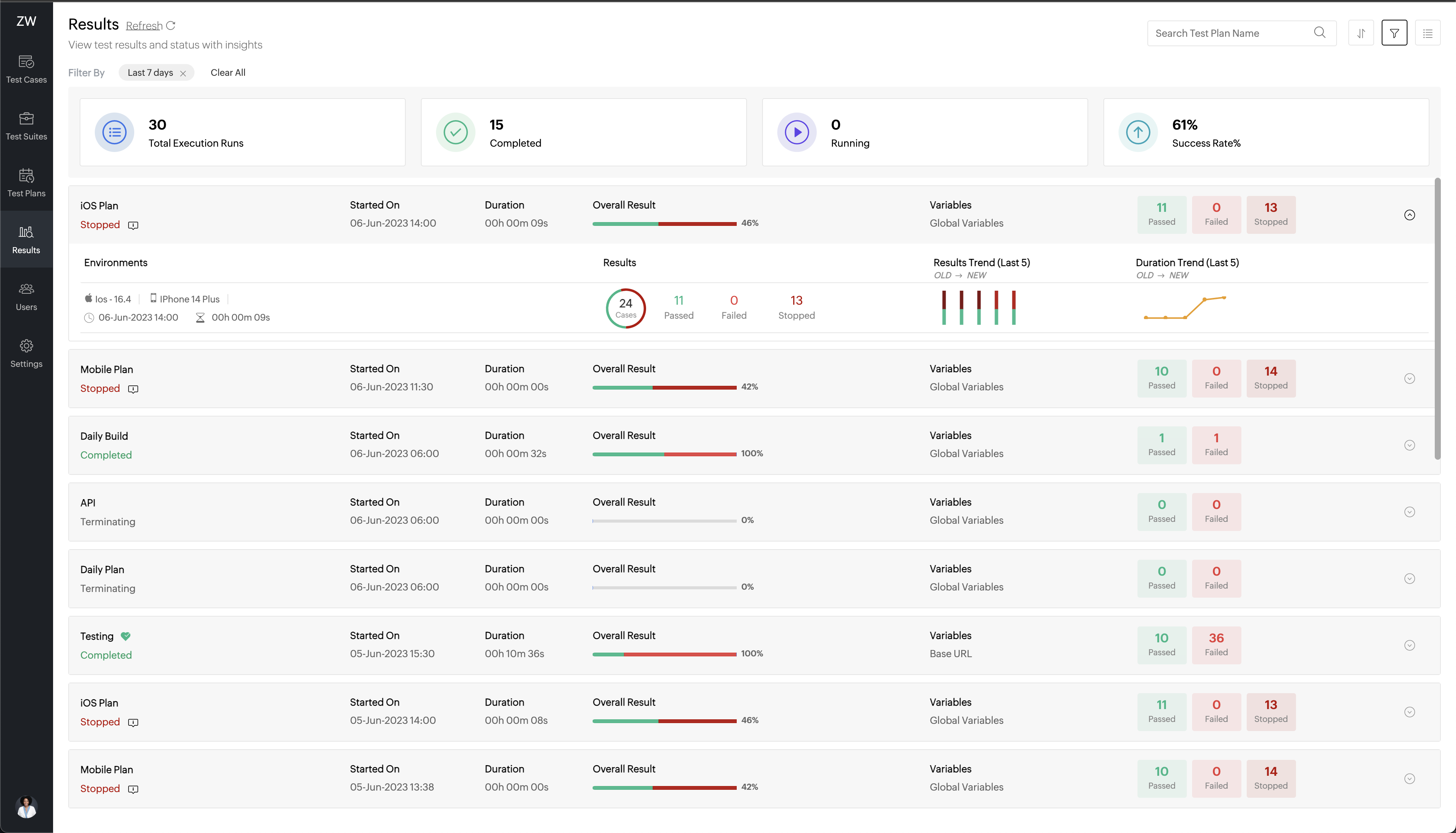

Filter Test Plan execution results
Filter results based on the parameters - Data Range, Status, and Test Plan. The filter also provides an advanced filter option.
Filter by Data Range
Filter execution based on predefined date ranges - Today, Yesterday, Last 7 days, or Last 30 days.
Another option is to filter using a custom date range.
Click Apply to filter the results. To reset the filtering criteria, click Clear All.
Filter by Status
Filter results based on Status – Running, Completed, Stopped, or Terminated.
Filter by Test Plan
View test execution results by filtering them for a particular test plan.
Advanced Filter
Customize viewing test results using the available filters – Date, Status, Duration, Test Plan, and Platform. Derive insights by using them individually or in combination with each other.
Filter by Duration
Click the Duration drop down and select durations ranging from Lesser than 1 hour to Greater than 5 hours, spaced 1 hour between each other.
Filter by Platform
Click Platform drop down and select a required platform - Web, Android, iOS, and API to filter the results.
Click Apply to filter the results. To reset the filtering criteria, click Clear All.
Toggle between Views
Grid View

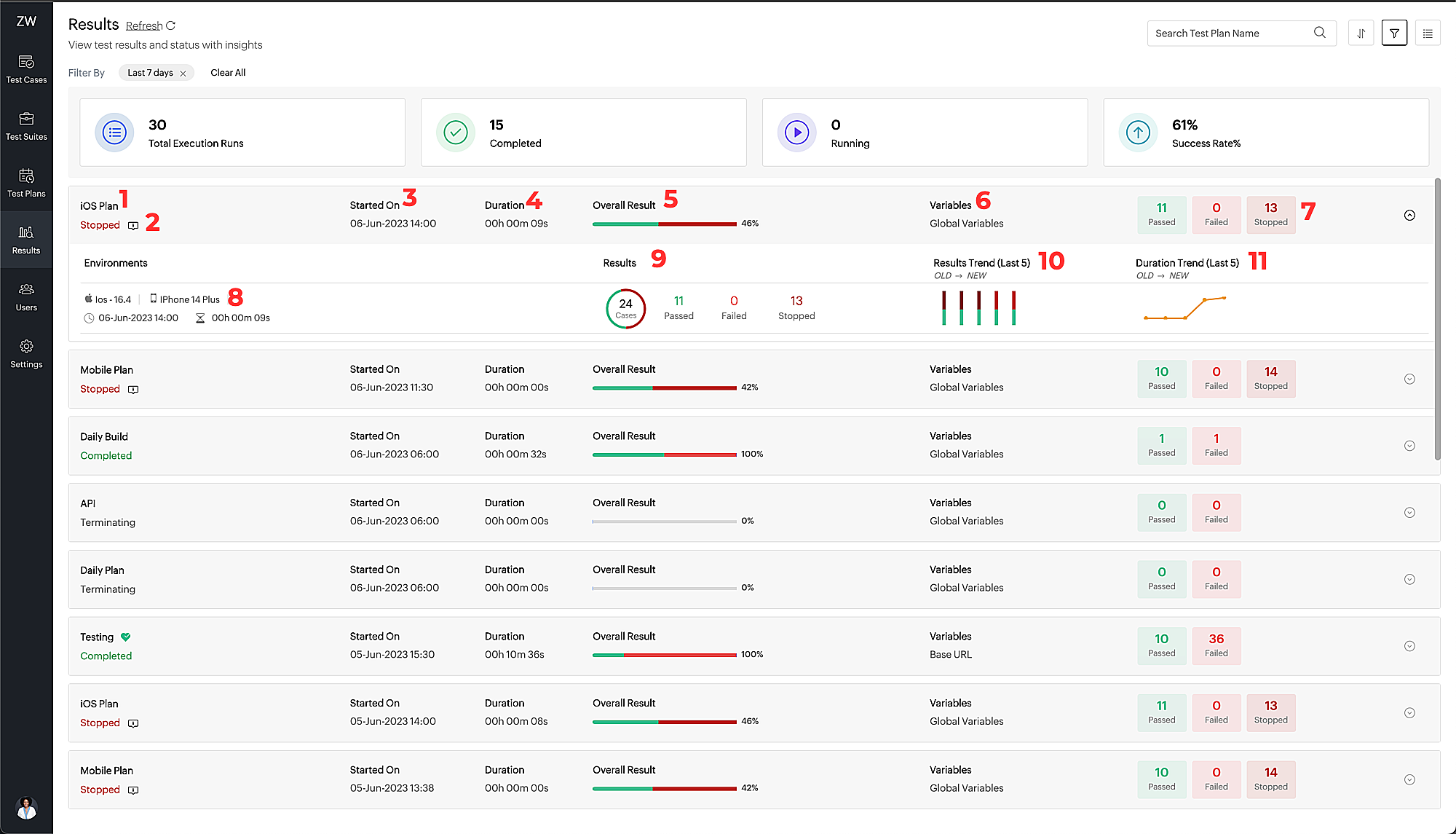

The Grid view is the default view that groups results with test plan name. Each entry is a test plan execution for the chosen environments.
It presents comprehensive information regarding a single test plan execution. Let's take a look at each one of them.
1 - Name of the test plan being executed.
2 - Status of the test plan execution.
3 - Started On represents the time when the test plan execution started.
4 - Duration represents the time for which the current test plan is being executed.
5 - Overall Result represents the progress of the test plan execution.
6 - Variables represents the variables or environment variables defined for the test plan.
7 - Test case progress breakdown shows the number of test cases that currently are executed - Passed, Failed, and Remaining.
8 - Platform details display the environments chosen for the test plan execution.
9 - Results show the breakdown of the test cases based on their execution status.
10 - Results Trend (Last 5) represents the success-failure ratio of a test plan execution from the last 5 times it was run.
11 - Duration Trend (Last 5) represents the duration a test plan execution took to complete from the last 5 times it was run.

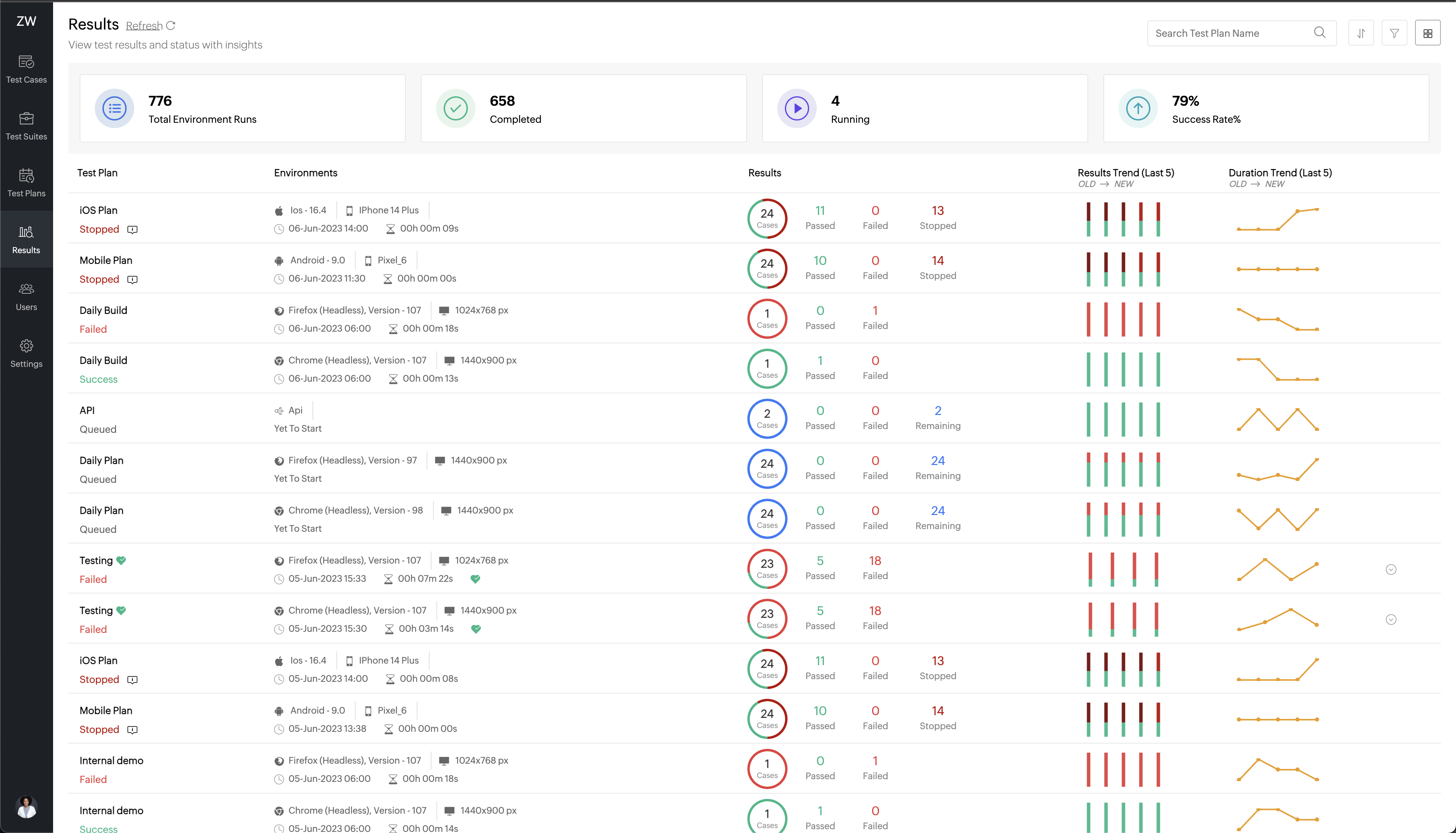

List View
The List view displays a test plan execution for a selected environment as an individual entry. The screen below displays {three} entries for the test plan - {Test Plan}, one for each environment.
In the Grid View, this would have been a single entry with all the selected environments listed within it.

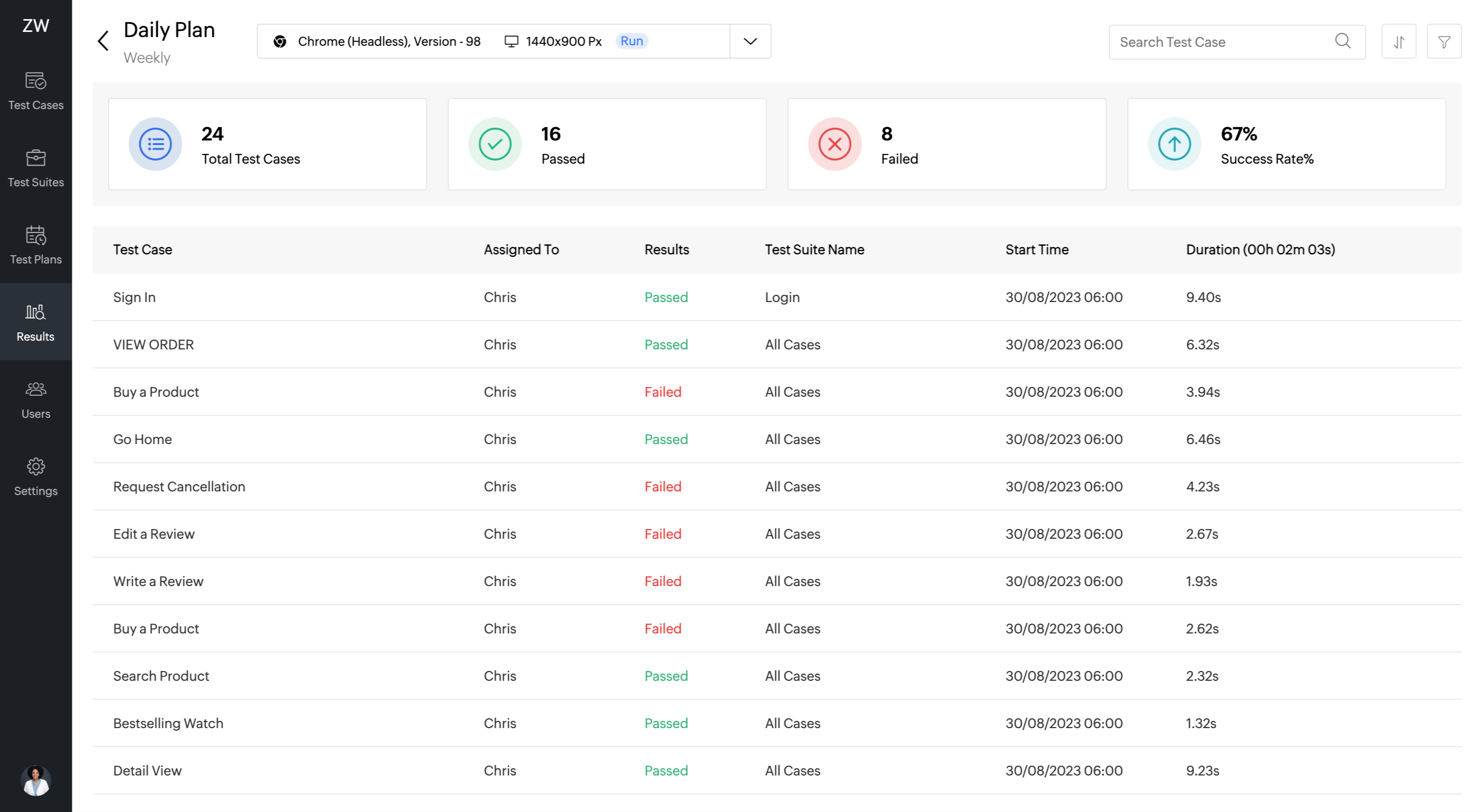

Test Plan Execution Results Drill-Down
Click any of the listed test plan execution results to view test case details.
1 - Name of the test plan that is executed.
2 - The type of run (available while creating plans - weekly or once) of the test plan.
3 - This section represents the environment for which the test plan was executed. When there is more than one environment, the test case execution details are displayed based on the environment selected.
Note: If any of the test plan need a re-run, click on the re-run icon beside the search bar, respectively these manual re-runs will get reflected inside results.

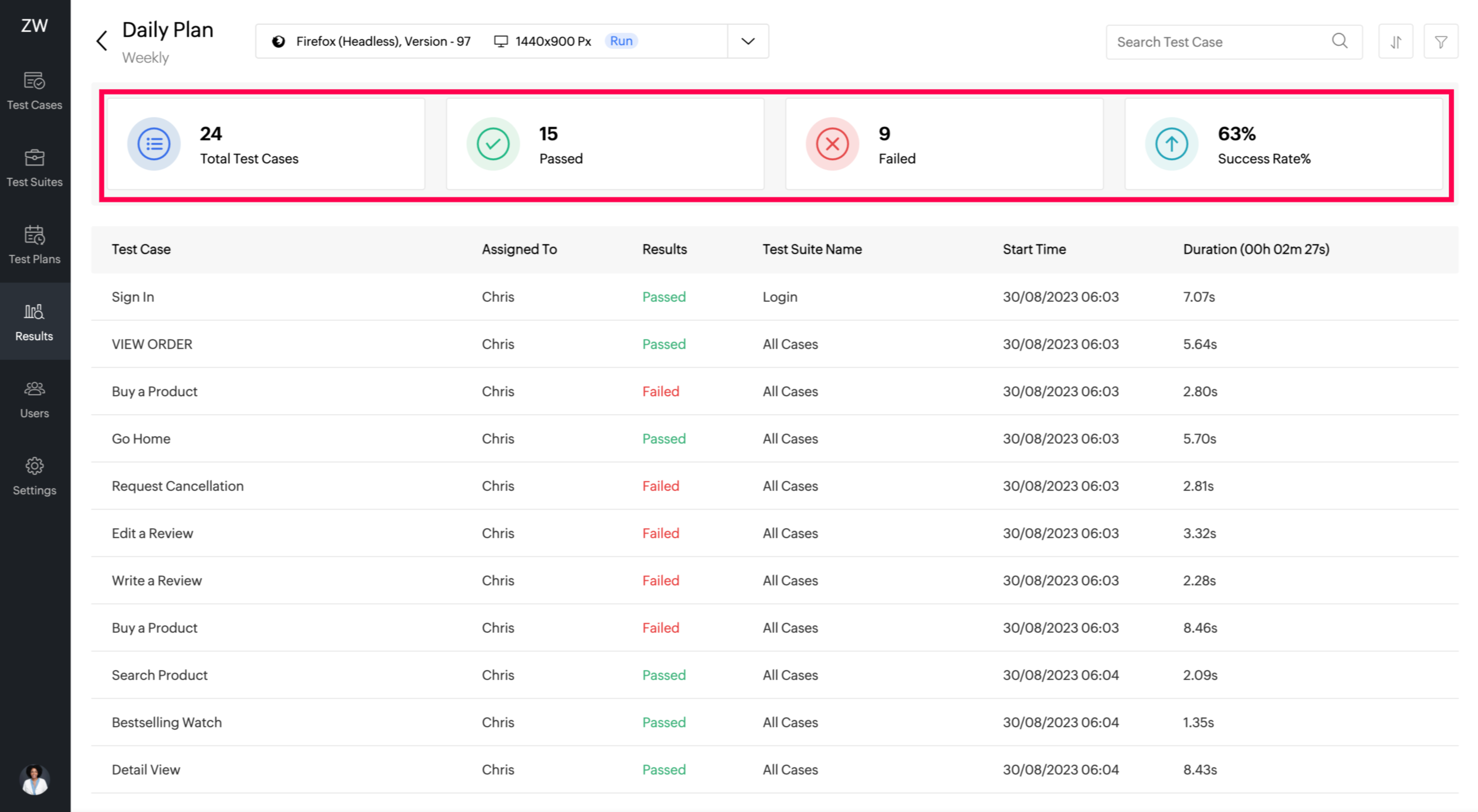

View Real-Time Status
The test case results page provides the execution status of your test cases.
- Total Test Cases displays the total number of test cases available in the test plan.
- Passed shows the number of test cases that passed.
- Failed shows the number of test cases that failed.
- Success Rate displays the percentage of test cases that succeeded against the total number of test cases executed.
Customize Views
Search, sort, and filter test case results. Derive insights by supplying the required parameters and see how your test cases perform.

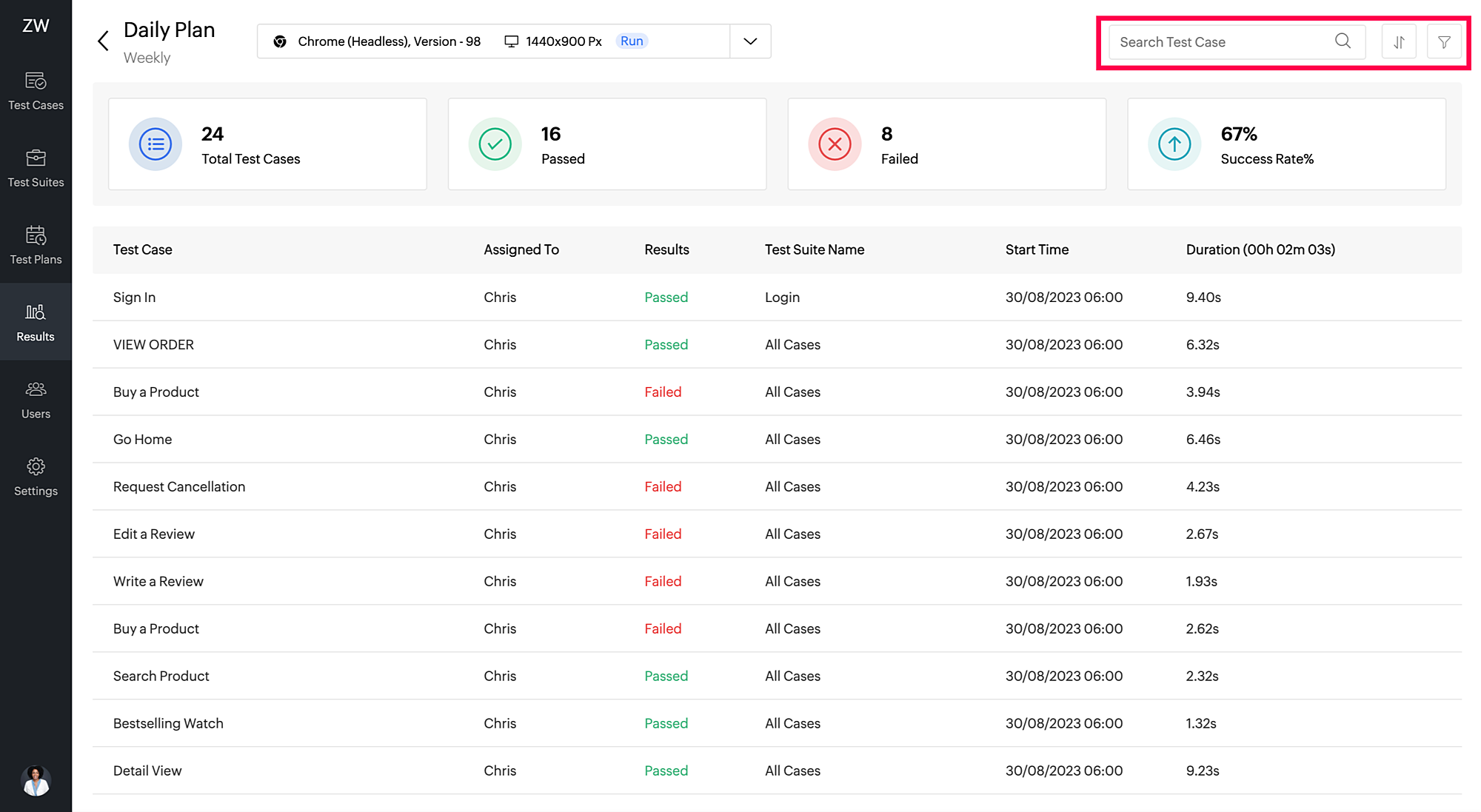

Search Test Cases
Search for a required test case with its name.

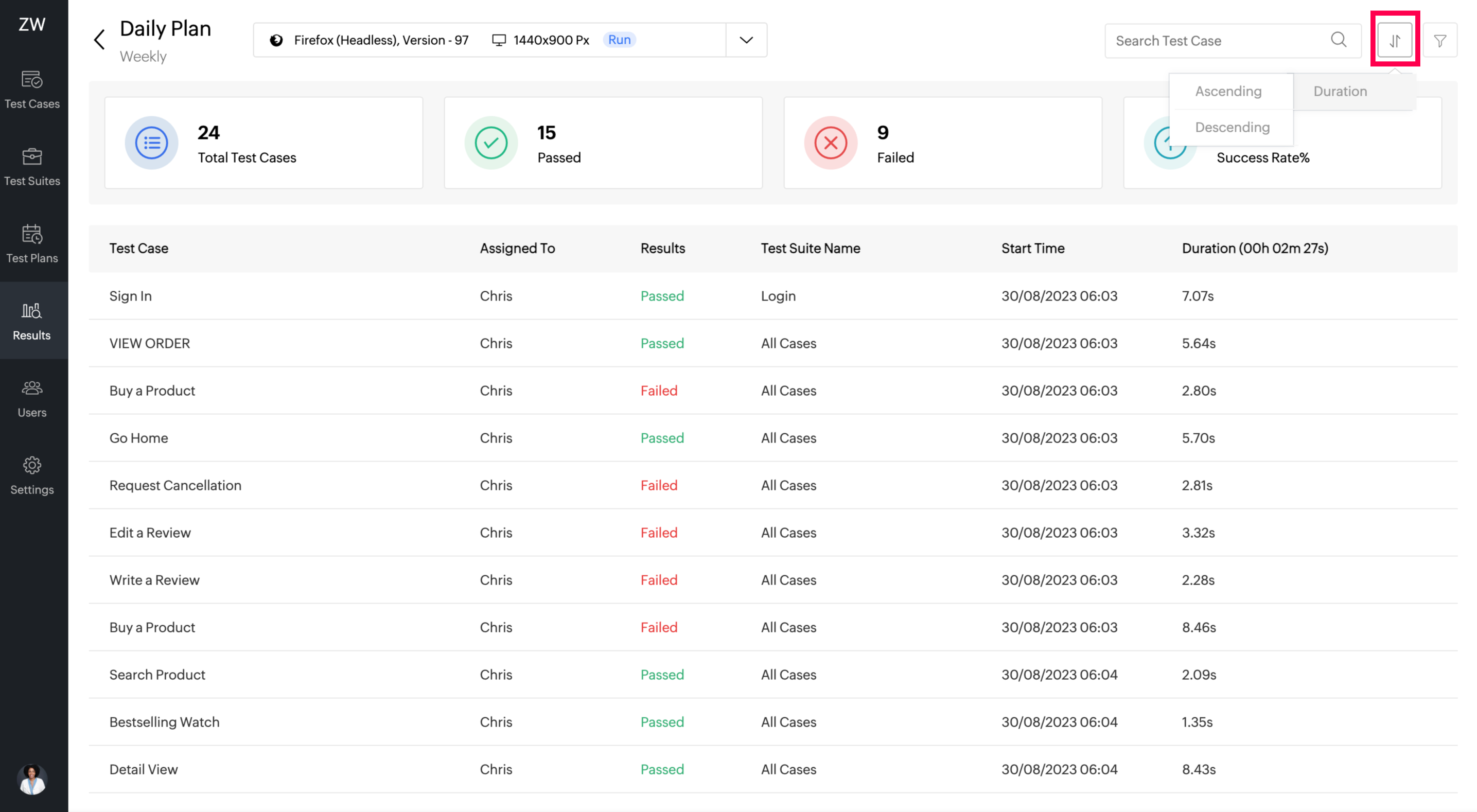

Sort Test Case Results
Sort test case execution results in an ascending or descending order based on the duration.

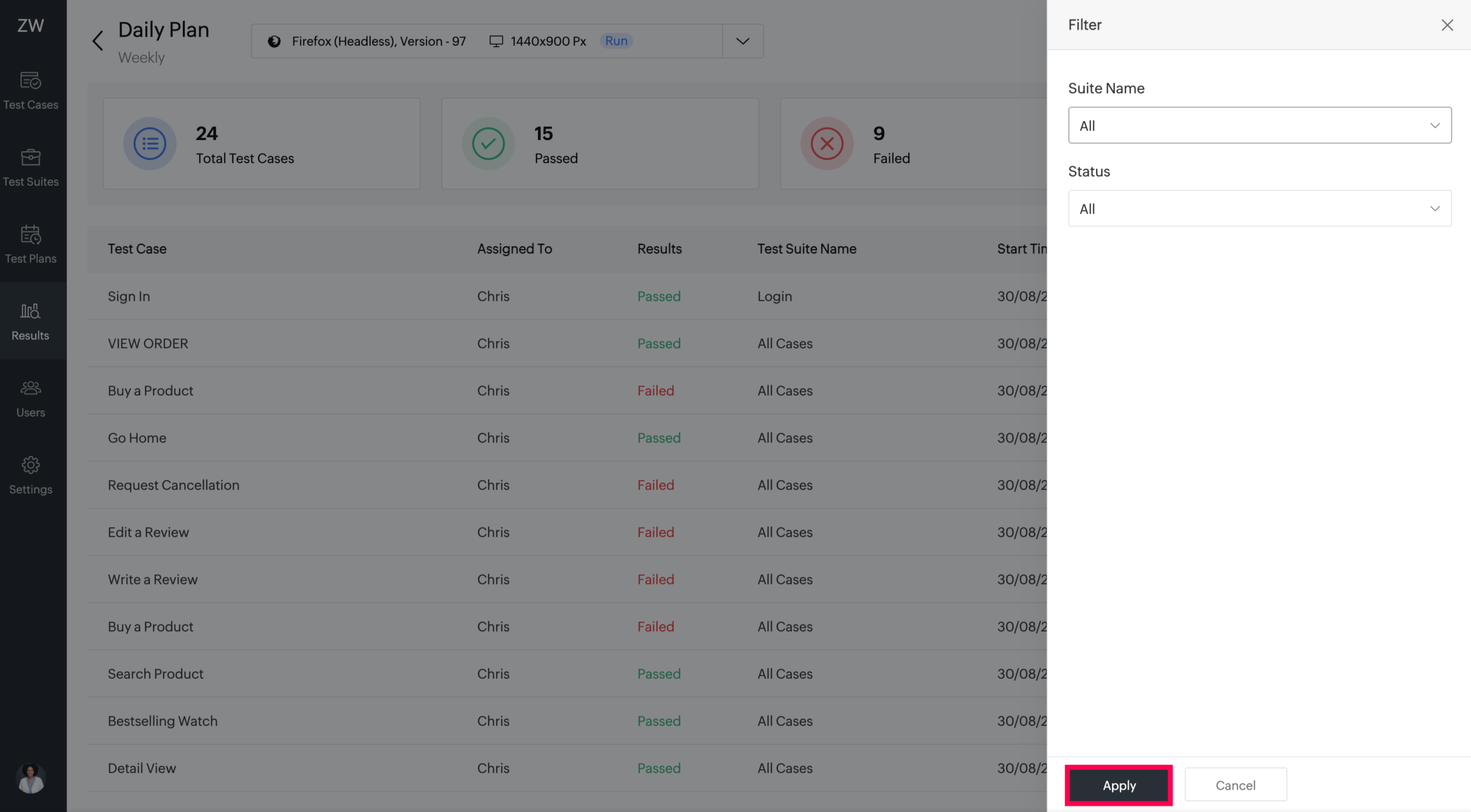

Filter Test Case Results
Filter results based on the parameters - Suite Name and Status (All, Completed, Passed, or Failed).
Click Apply to filter the results. To reset the filtering criteria, click Clear All.
