Use case for Bridge: Connect with remote databases using Bridge

Most organizations secure their remote databases using firewalls. If you are looking for a way to navigate these firewalls to access remote databases, Bridge can be of help.



Let us try to solve a real-time business case where bridge is used to access a MySQL database inside a private network.


Business Scenario

Zylker Corp maintains all their data in a MySQL database inside their secure private network. They use Qntrl for automating different workflows. In one such workflow—Leave Approval, they are looking to retrieve the employees' remaining leave balance for the current year and display it in Qntrl. If the leave balance is sufficient, the card will be sent to the employee’s manager for approval. Else, if the leave balance is nil or less than the requested number of leaves, the card must be automatically rejected.



Also, once the leave is approved in Qntrl, the remaining leave balance must be updated in the client’s MySql database as well, thus maintaining uniform data throughout.


Solution

To address this business case effectively, you can create a Orchestration with required fields for leave request Form and utilize a combination of Bridge and Custom Function functionalities.

Implementation

Follow the steps below to implement the solution:

Step 1: Configure Bridge

Bridge is an installable java application that runs on the customer’s local network to facilitate communication between a Qntrl’s instance and the client’s application inside firewall.

Create a bridge and configure the bridge’s agent from your Window’s or Linux machine. Get to know the step-by-step process to run a bridge from our help documentation.


Step 2: Create Messages in Bridge

Create two messages in bridge to hold basic details like module used, database query, bridge values, etc. We will later use these messages to communicate with the database. Click here to learn about Execution of Messages in bridge.

Message 1: Fetch Employee Details

Message 2: Update Remaining Leaves


Step 4: Create a Connection

Create a Connection using the following scopes:
  1. Orchestly.job.ALL
  2. Orchestly.message.CREATE
  3. Orchestly.message.UPDATE

Step 4: Create Custom Functions

The Function has to be executed 'on-create' stage of a card by configuring in Business Rule.

Code custom functions to
  1. Fetch data from MySql server
  2. Update data inside MySql server

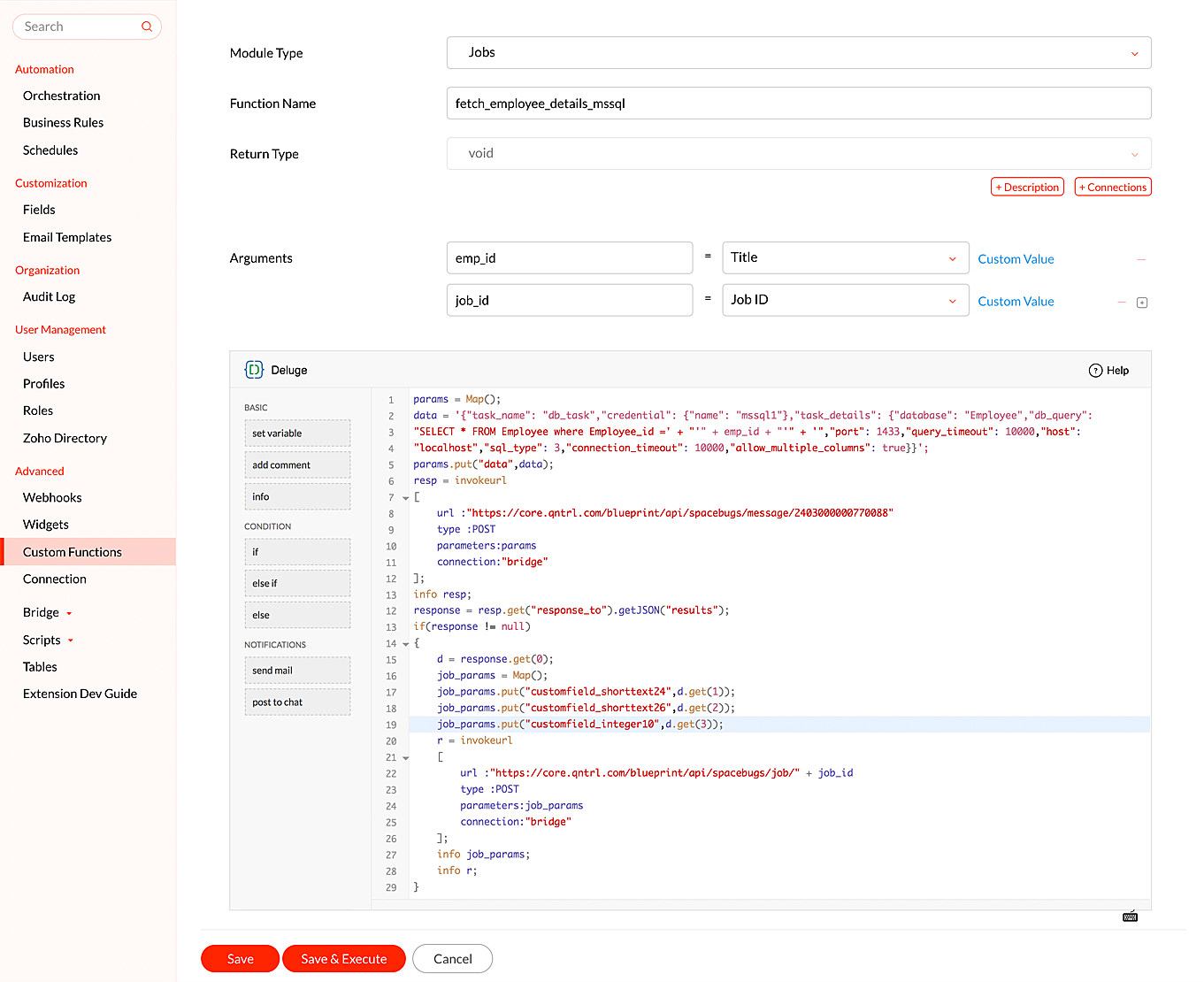

Here’s the sample code to retrieve employee details from SQL database:
  1. //Fetching selected employee details from local database
  2. params = Map();
  3. data = '{"task_name": "db_task","credential": {"name": "mssql1"},"task_details": {"database": "Employee","db_query":
  4. "SELECT * FROM Employee where Employee_id =' + "'" + emp_id + "'" + '","port": 1433,"query_timeout": 10000,"host":
  5. "localhost","sql_type": 3,"connection_timeout": 10000,"allow_multiple_columns": true}}';
  6. params.put("data",data);
  7. resp = invokeurl
  8. [
  9.  url :" https://core.qntrl.com/blueprint/api/spacebugs/message/2403000000770088"
  10.  type :POST
  11.  parameters:params
  12.  connection:"<connection_name>"
  13. ];
  14. info resp;
  15. response = resp.get("response_to").getJSON("results");
  16. //Updating employee details in the current job
  17. if(response != null)
  18. {
  19.  d = response.get(0);
  20.  job_params = Map();
  21.  name = d.get(1);
  22.  job_params.put("customfield_shorttext24",name);
  23.  email = d.get(2);
  24.  job_params.put("customfield_shorttext26",email);
  25.  remaining_leaves = toNumber(d.get(3));
  26.  job_params.put("customfield_integer10",remaining_leaves);
  27.  r = invokeurl
  28.  [
  29.   url :" https://core.qntrl.com/blueprint/api/spacebugs/job/" + job_id
  30.   type :POST
  31.   parameters:job_params
  32.   connection:"<connection_name>"
  33.  ];
  34.  //check for leave count. if leave count exceeds available leaves then 'Rejected' transition will be performed.
  35.  leave_days = daysBetween(from_date,to_date);
  36.  if(leave_days > remaining_leaves)
  37.  {
  38.   trans_params = Map();
  39.   trans_params.put("transition_id","2403000000763175");
  40.   trans_params.put("is_form","true");
  41.   trans_params.put("content","Leave count exceeded.");
  42.   r = invokeurl
  43.   [
  44.    url :" https://core.qntrl.com/blueprint/api/spacebugs/job/transition/" + job_id
  45.    type :POST
  46.    parameters:trans_params
  47.    connection:"<connection_name>"
  48.   ];
  49.  }
  50. }

Here’s the sample code to update employee details to SQL database:

  1. leave_days = daysBetween(from_date,to_date);
  2. remaining_days = remaining_leaves.toLong() - leave_days +1;
  3. params = Map();
  4. data = '{"task_name": "db_dml_task","credential": {"name": "mssql1"},"task_details": {"database": "Employee","db_query": {"update":["UPDATE Employee set Remaining_leaves = ' + "'" + remaining_days + "'" + ' where Employee_id =' + "'" + emp_id + "'" + '"]},"port": 1433,"query_timeout": 10000,"host": "localhost","sql_type": 3,"connection_timeout": 10000}}';
  5. params.put("data",data);
  6. resp = invokeurl
  7. [
  8. //Upadte org name and message ID here
  9. url :" https://core.qntrl.com/blueprint/api/<org-name>/message/<message_ID>"
  10. type :POST
  11. parameters:params
  12. connection:"<connection_name>"
  13. ];
  14. info resp;
  15. job_params = Map();
  16. job_params.put("<parameter-for-custom-field-remaining leaves>",remaining_days);
  17. r = invokeurl
  18. [
  19. //Upadte org name here
  20. url :" https://core.qntrl.com/blueprint/api/<org-name>/job/" + job_id
  21. type :POST
  22. parameters:job_params
  23. connection:"<connection_name>"
  24. ];
  25. info r;

Step 5: Create a Card in the Leave Request Orchestration

Initiate leave request by creating a new card within the orchestration. Refer to the resources for guidance on creating new cards within the orchestration interface. Here is the sample card template to get the employee inputs for Leave Request devised by Zylker.



The Leave Request card contains fields like ‘Employee ID’, ‘Date from’, ‘Date to’, and ‘Reason for leave’. When the employee ID is filled, other employee details are fetched automatically from the database.

On filling ‘Date from’ and ‘Date to’ fields, the difference between them is calculated and validated with the ‘Remaining Leaves’ field. If the difference is lesser than or equal to the remaining leaves, the card is sent to the manager for approval. Else, the card is rejected automatically.



Once the manager approves the card, the Remaining Leaves field is updated and also, the second custom function gets triggered to update the same value in the client’s database.
