Card Views

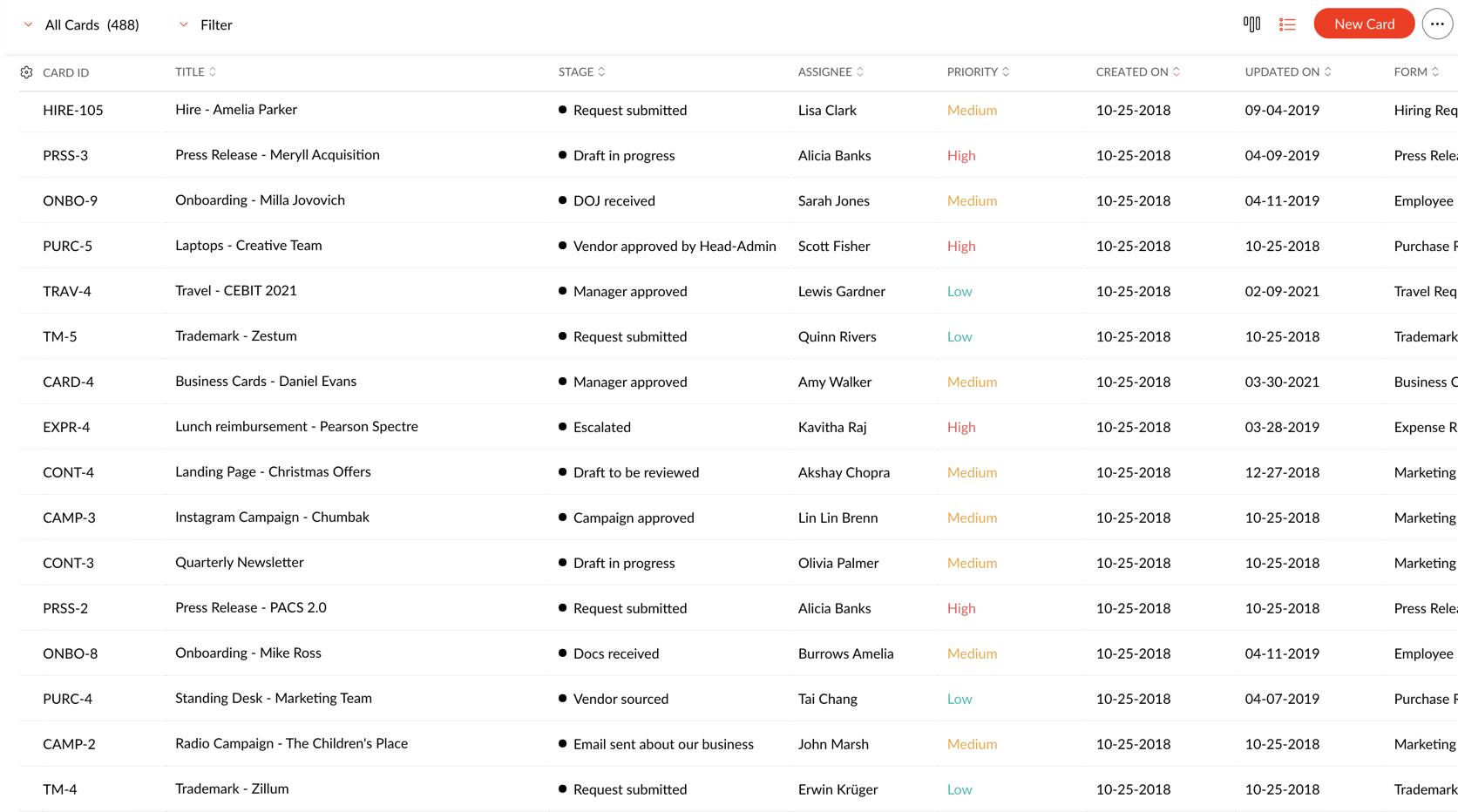

List View

This is the conventional view, where all the cards are listed in chronological order, by default.

1. To navigate to list view, click  icon in the Cards  tab.

2. You can customize the columns that are displayed in the list view, as well as modify the order of the columns in ascending or descending sequences.

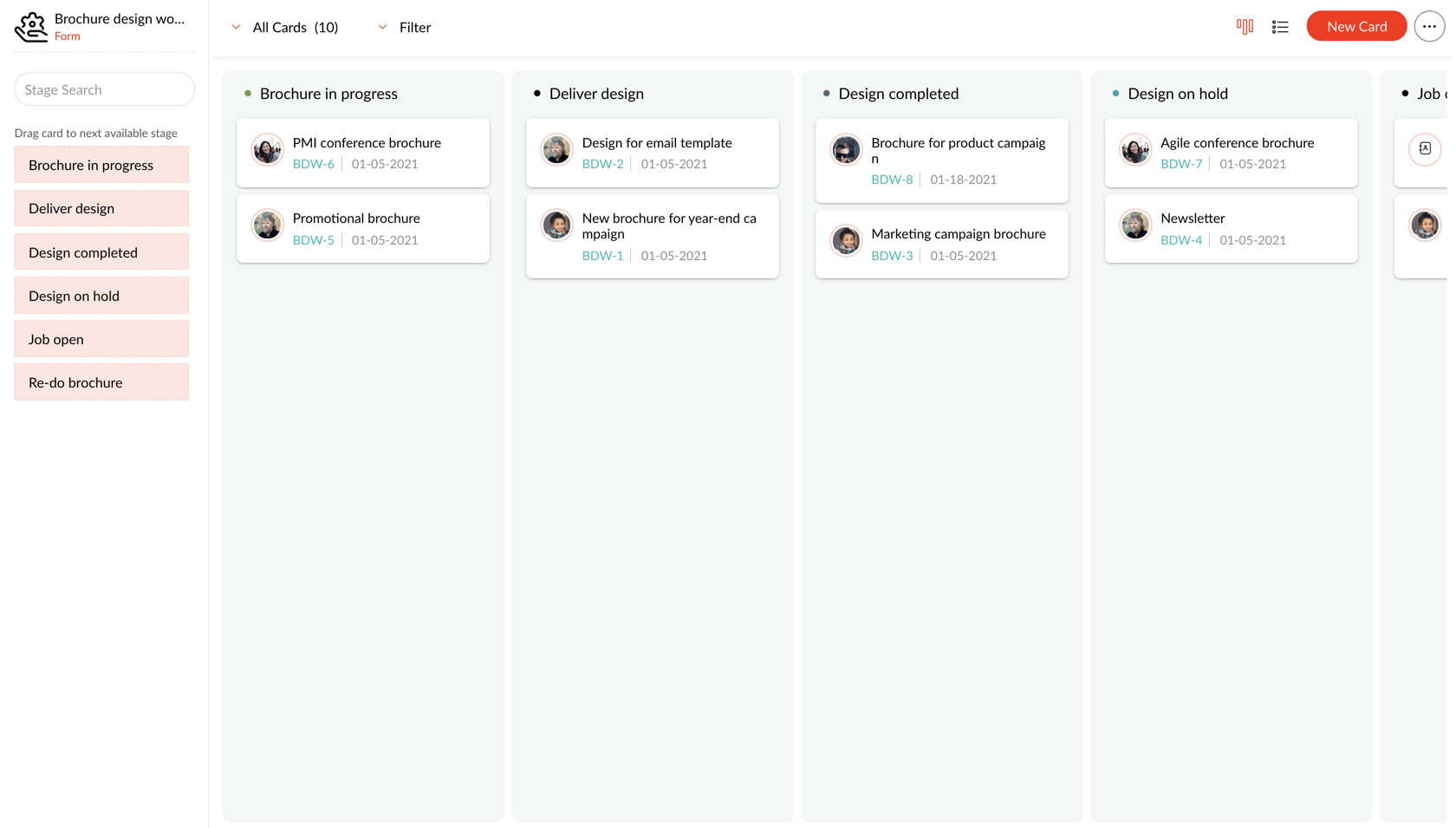

Kanban view is available only for orchestration shortcut tabs.

Learn the 5 benefits of using Kanban boards in Qntrl.

1. Navigate to an orchestration shortcut   and click  icon.
2. Choose a Form in the top-left corner of the left panel.

3. The stages configured in the form's blueprint will be listed in the left panel.

4. Click on each stage to view the cards active in them.


How to progress cards using kanban view

1. Click and drag a card in the kanban panel.

1. The stages to which the selected card can be moved are highlighted.

2. The other stages are blurred out.

2. Drop the card in the desired stage.

3. Confirm your action.


When a form is selected, the stages of all the associated blueprints in the orchestration are listed in the kanban view.

How to reorder stages in kanban view

By default, the Kanban columns are displayed in alphabetical order of the blueprint stages. However, this order can be interchanged.

1. Hover over the stage name in the kanban column.

2. Click and drag the column to the desired location.


Reordering stages in the kanban panel does not reorder the stages in the respective blueprint.

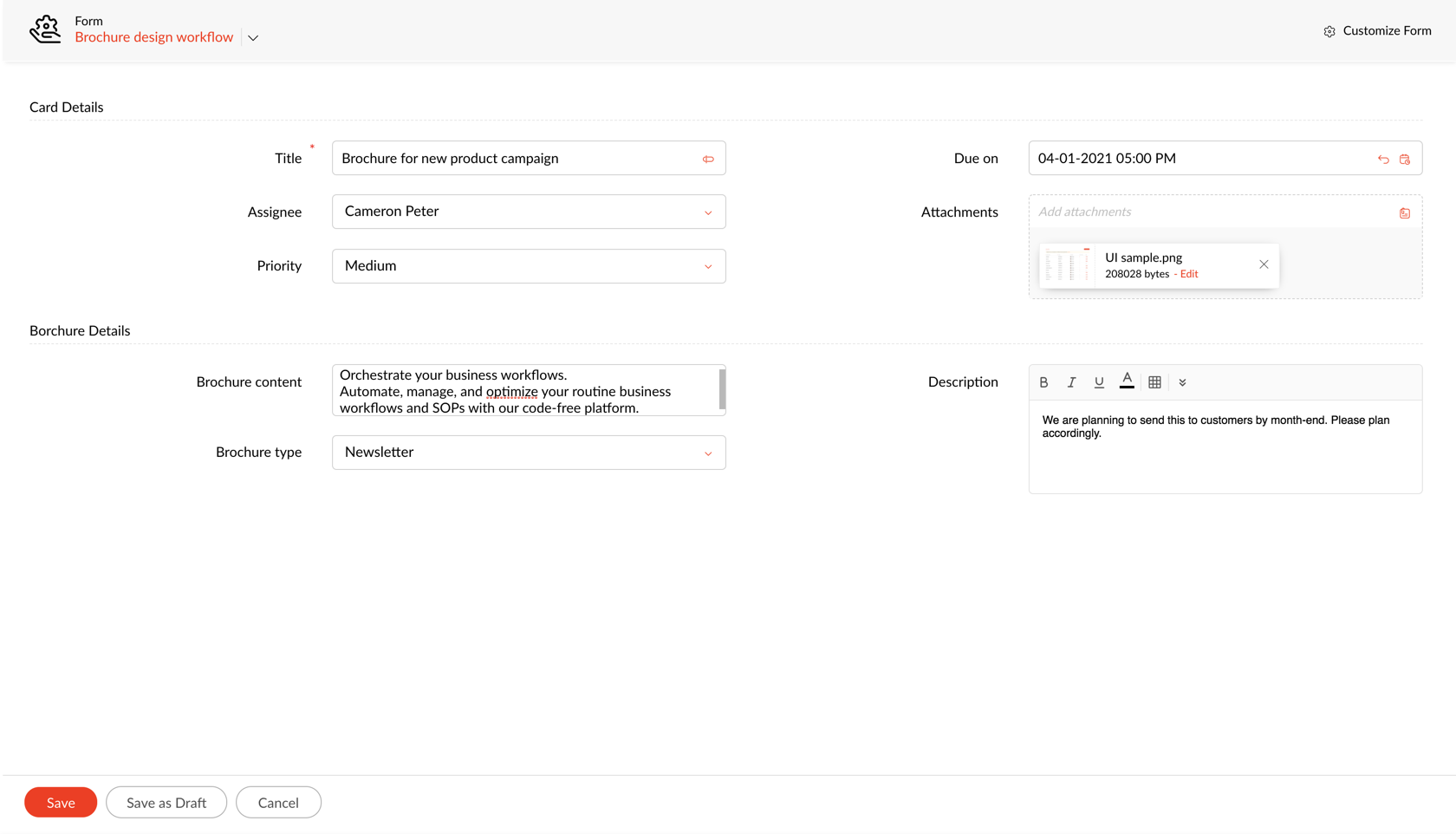

Create card

1. Navigate to the  Cards  tab and click the  New Card  button.

2. Select the  Form  under which you want to create the card.

3. Enter the card details and click  Save.

4. If you’re not ready to create the card yet, you can save the entered details as a draft by clicking Save as Draft.


• Cards can be assigned only to individual users.

• It is not mandatory to assign a card to a user during card creation. Users can be assigned at later stages of the card.

• Cards will be mapped to blueprints with matching or no criteria.

• Visibility of the draft is restricted to each user.

• Card drafts cannot be accessed if:

• The form associated with the card is deleted or deactivated.

• User permissions to add cards using the associated form is withdrawn.

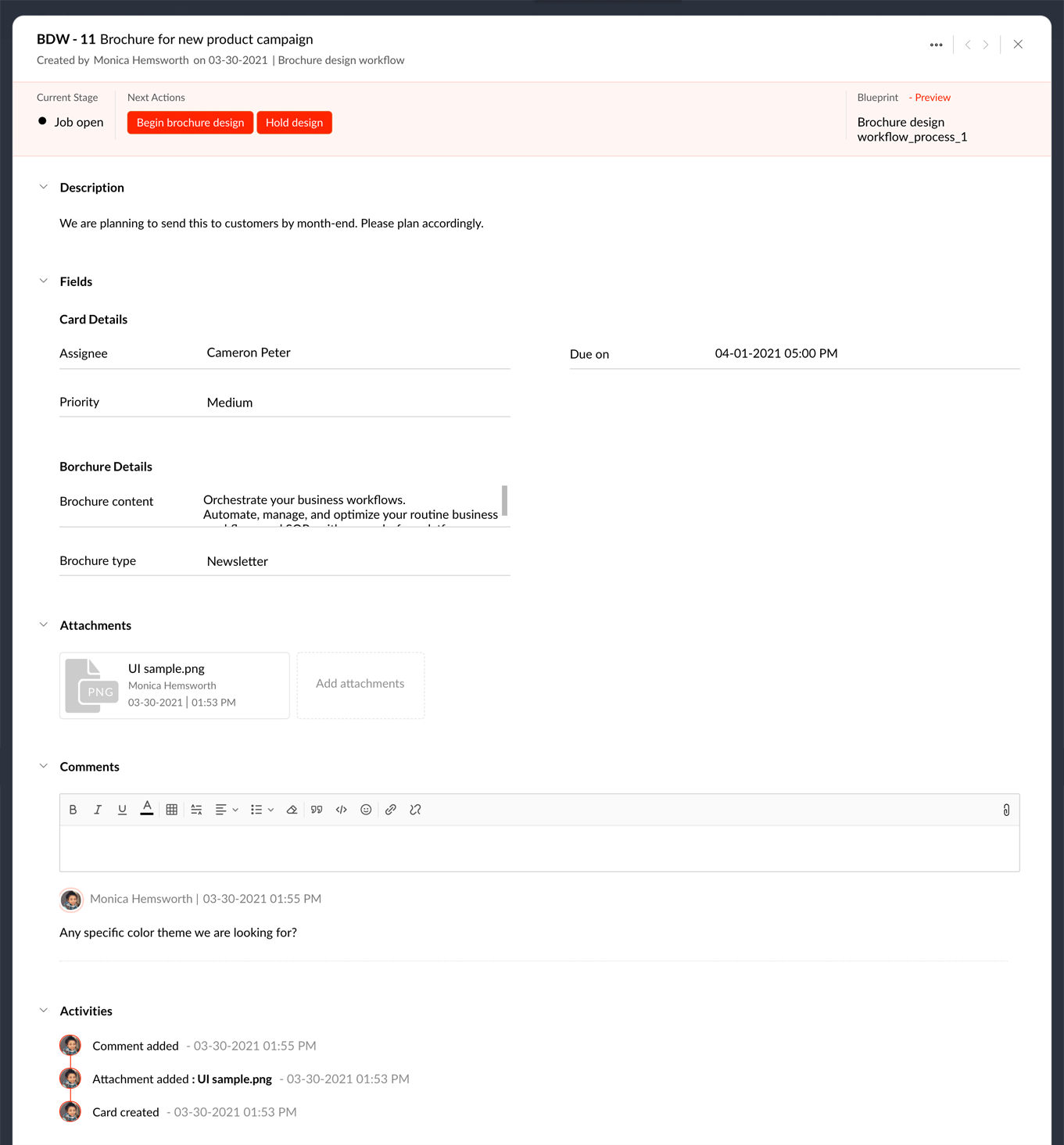

View card details

To view all the details of the card:

1. Navigate to the  Cards  tab and select a card   that you would like to view the details of.

2. The ensuing page will hold all the card   details like card name, card creator, associated orchestration, current stage, associated blueprint, fields, comments, and activities.

Card fields

Title

This field holds the card's title. You can modify the title only if you have both the  Edit permission on the card and the  Read/Write permission for Title field.  Learn more about Card-Level  and Field-Level  edit permissions.

Description

A short description about the card can be mentioned here. You can only modify the description if you have both  Edit permission on the card and  Read/Write permission for Description field.

Team

This field displays the team that can work on the card. The assignee must be a user from this team. The card can be picked up by any user from the team.

Assignee

This field holds the user responsible for executing the card. You will not need  Edit permission to modify this field.

• A user can pickup a card:

• When the user has Access Cards permission in the Orchestration and also has the  Assign permission under the Cards   to me category.

• When the user is an Admin.

• When the user is part of the assigned Team.


• A user can assign a card to other users:

• When the user is an assignee of the card and also has  Assign permission under the  My Cards to others category.

• When the user has the  Assign permission under the  Cards to others category.

• When the card is assigned to the user's  Team.


Due on

This field holds the card's due date. You can only modify the due date if you have both  Edit permission on the card  and Read/Write permission for Due on field.

Priority

Priority of the card can be specified here. It helps the assignee prioritize his work diligently. You can only modify the field if you have both  Edit permission on the card  and Read/Write permission for Priority field.

Attachments

Any file related to the card can be attached here. The size of the attachment must be lesser than 65 MB. You can only modify the field if you have both  Edit permission on the card  and Read/Write permission for Attachments field.  Attachments can be downloaded or previewed.

Actions

You will be able to view and perform actions in the card if you have Access Cards permissions in Orchestration or if mentioned in 'Who can perform this transition?' section in Blueprint.

Other fields

Other custom fields designed in the form can only be edited if you have both the  Edit permission on the card as well as the  Read/Write permission for the particular field.

Comments

Comments provide a space for initiating collaboration on the card. To edit comments, the user should have both the  Edit permission on the card as well as the  Read/Write permission for the comment field.

Activities

All actions performed on the card are displayed as Activities . Every user will be able to view all user activities except the ones performed on fields with the  Hide permissions.
