Action Block

Action Block

Action blocks are used to perform actions based on the visitor's needs and information collected so far in the flow.


Criteria Router

The criteria router splits the conversation flow into various flows based on custom rules defined with the visitor's information.

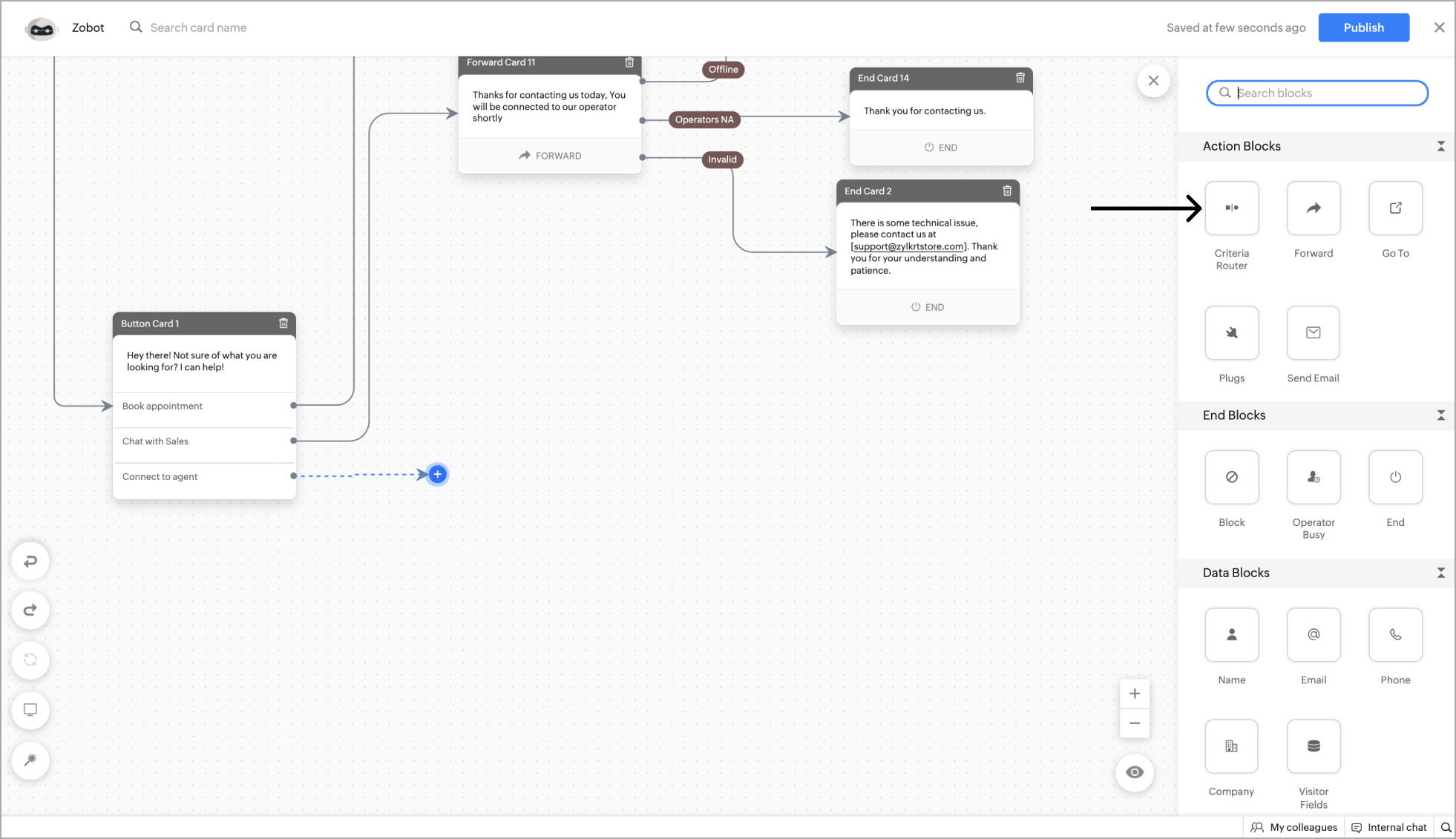

  • To add a Criteria router card to the bot's flow, click on the card holder (+) icon to view the blocks gallery and select the Criteria router  block under the action blocks section.

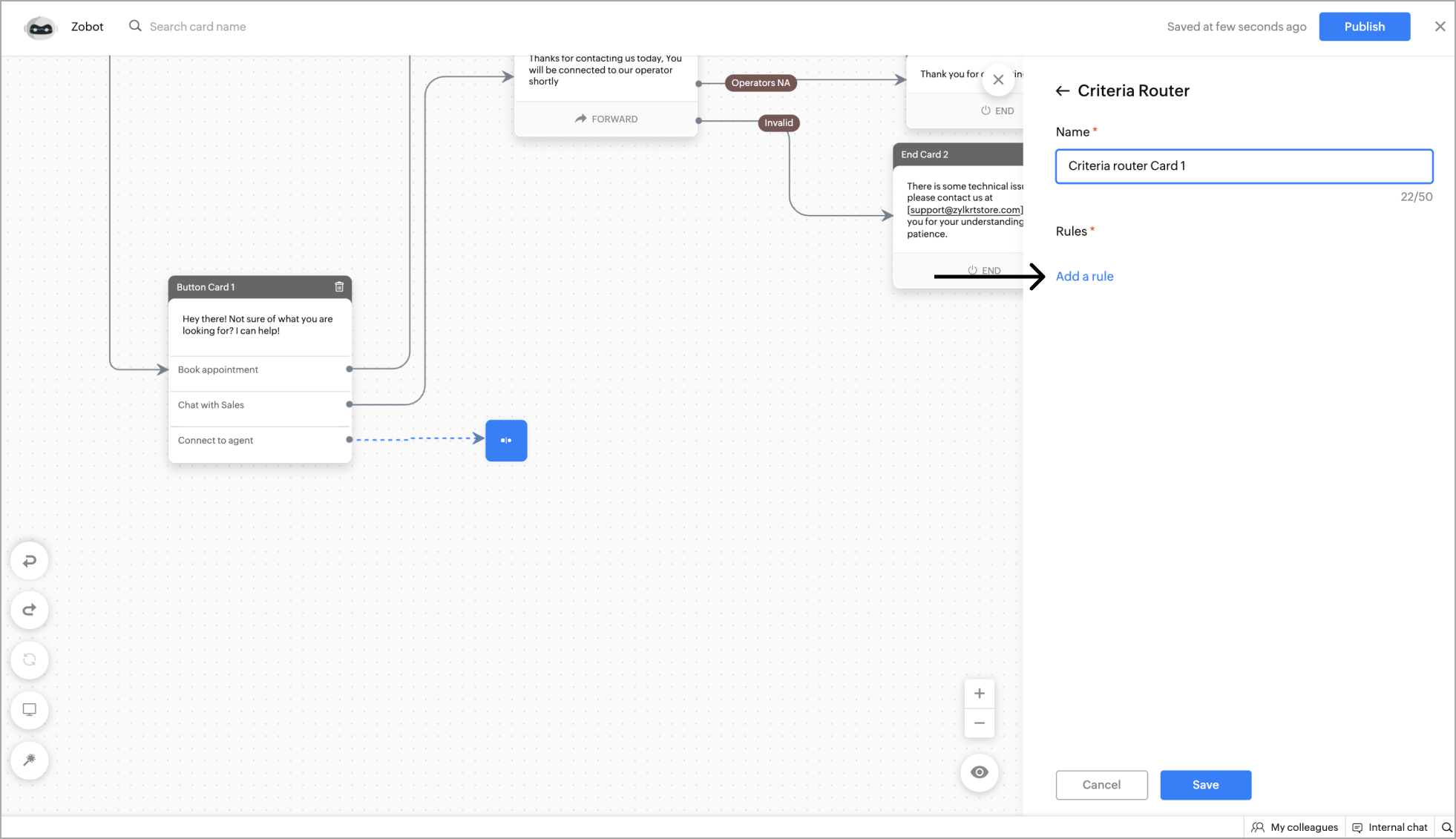

  • Now, give your card a name and click on Add a rule.

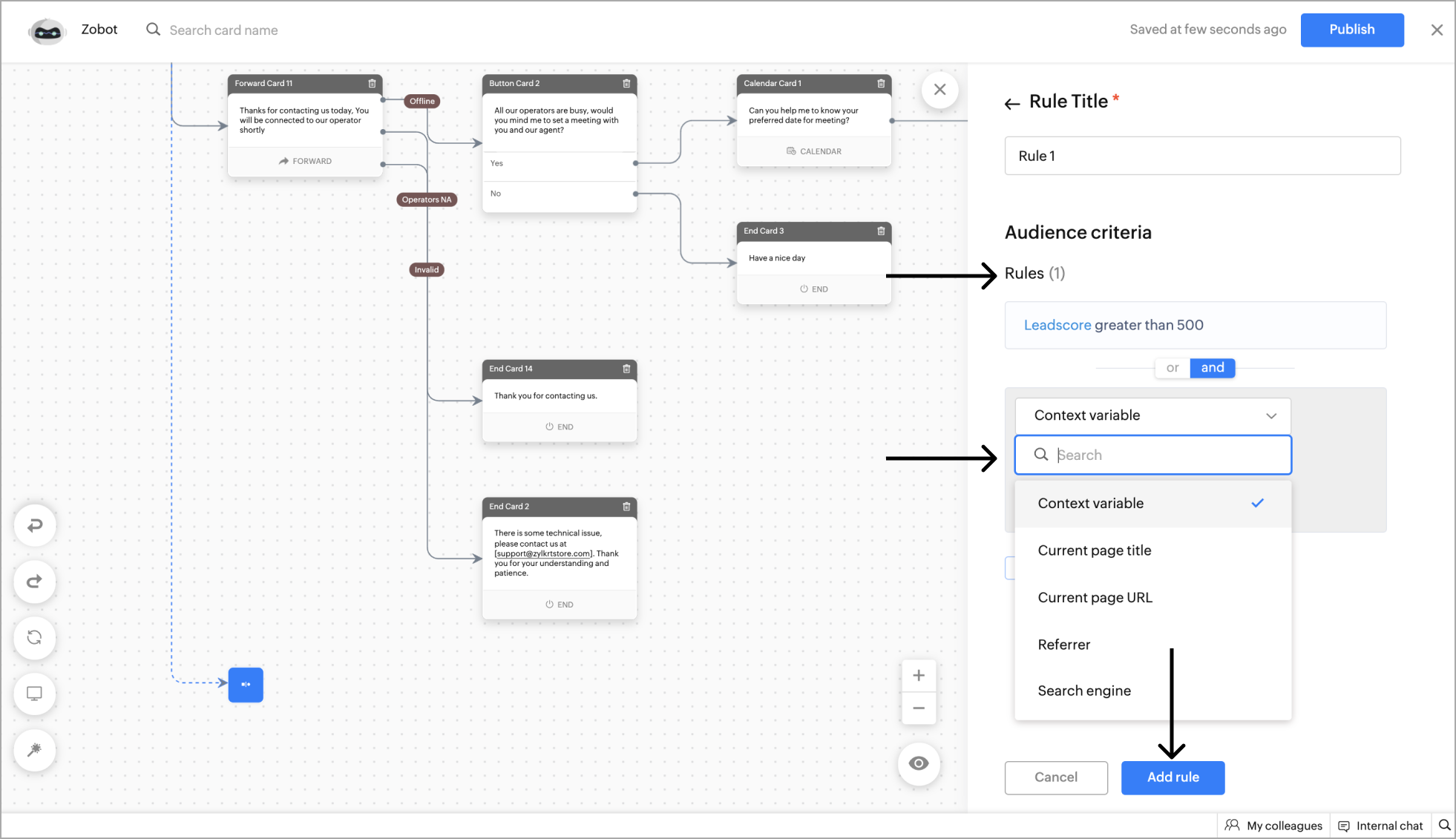

  • Now, define a rule by entering the conditions in the search field or choose a rule based on the section header.

  • You can add multiple rules to perform multiple complex routing based on your business requirements.

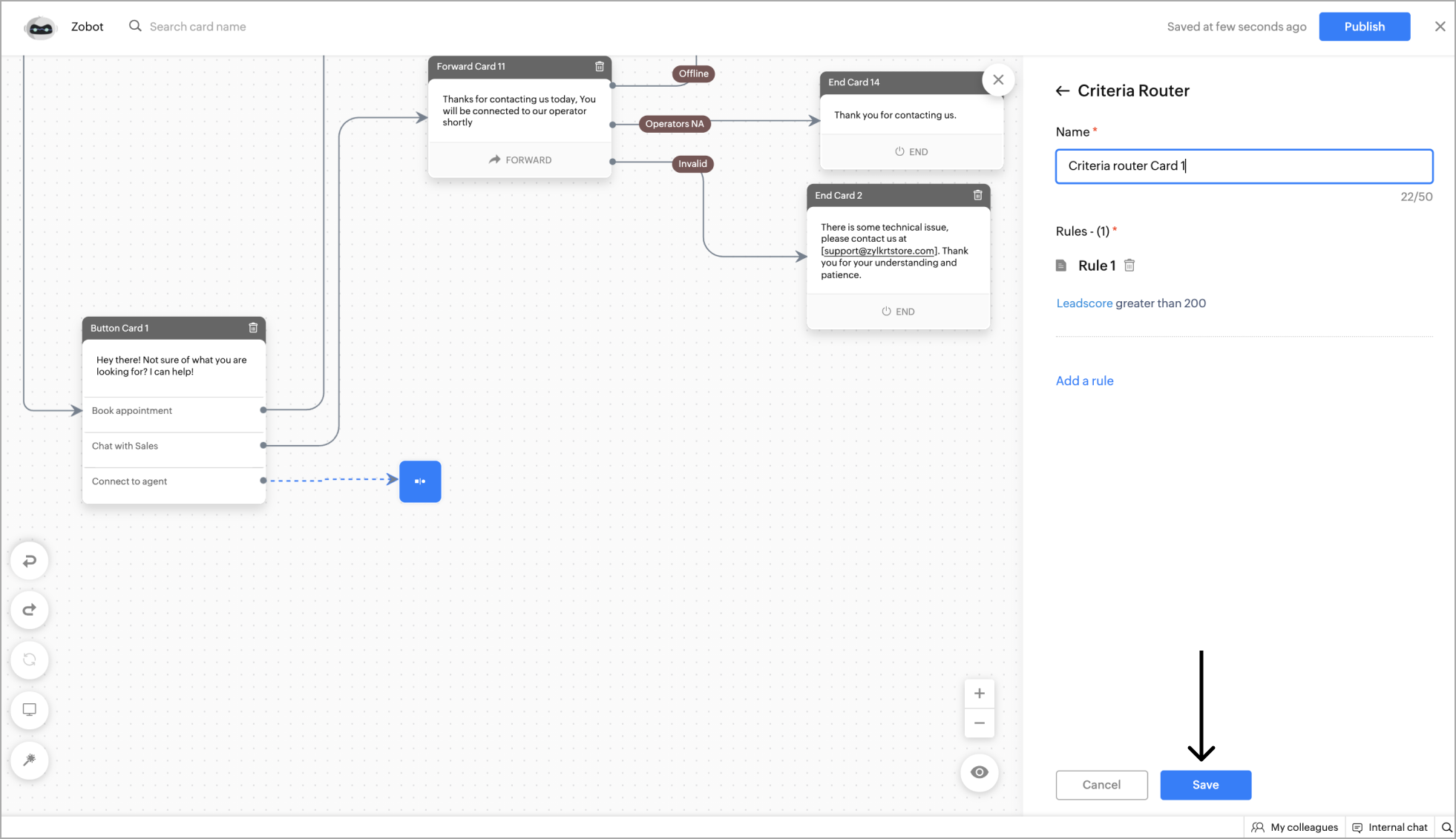

  • After adding all the required rules, click Save .

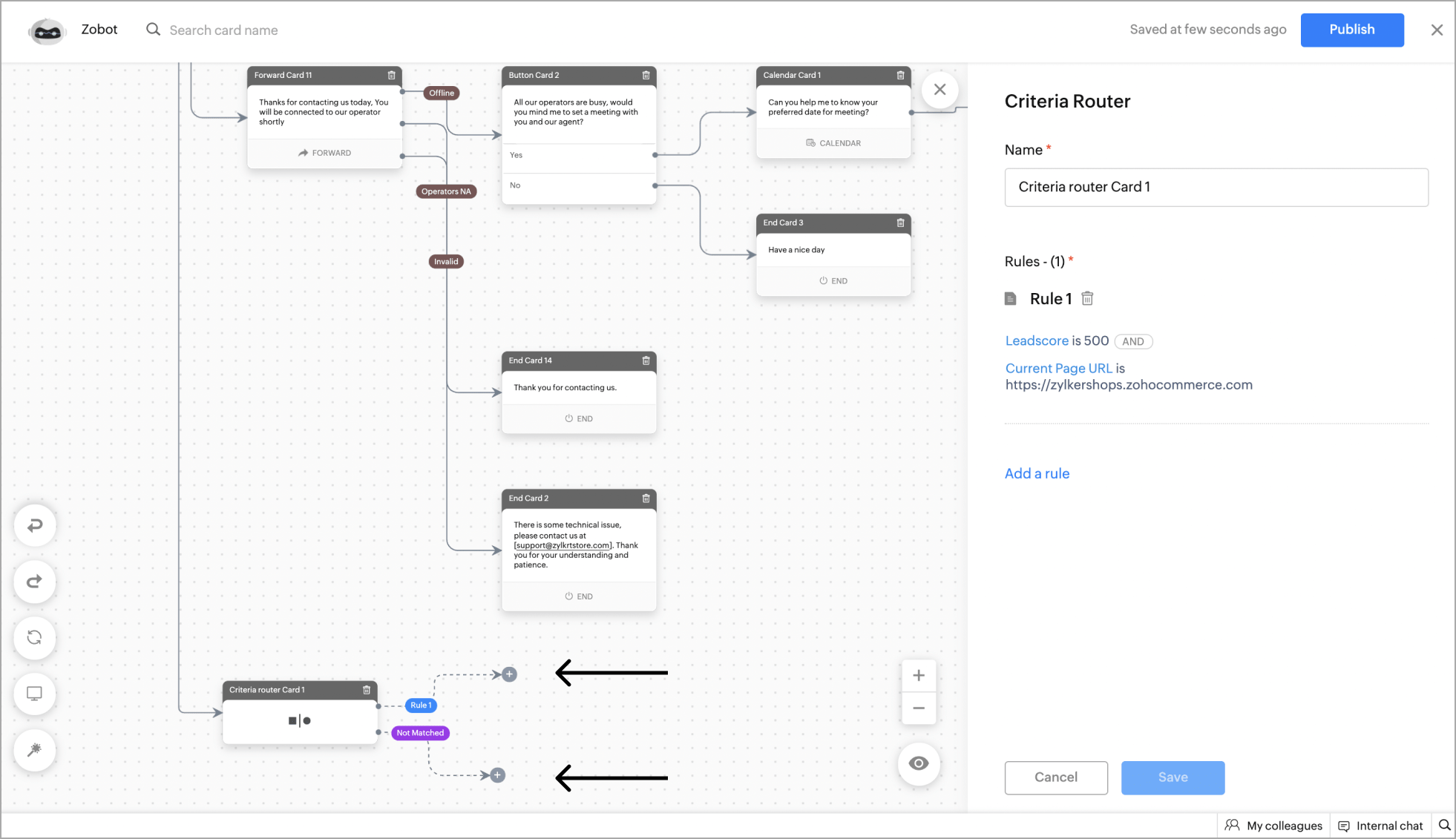

  • Once the card is configured, you can view all the flows based on the conditions specified in the criteria router card. In case if the visitors don't match any condition, then they will be diverted to the 'Not matched' flow.

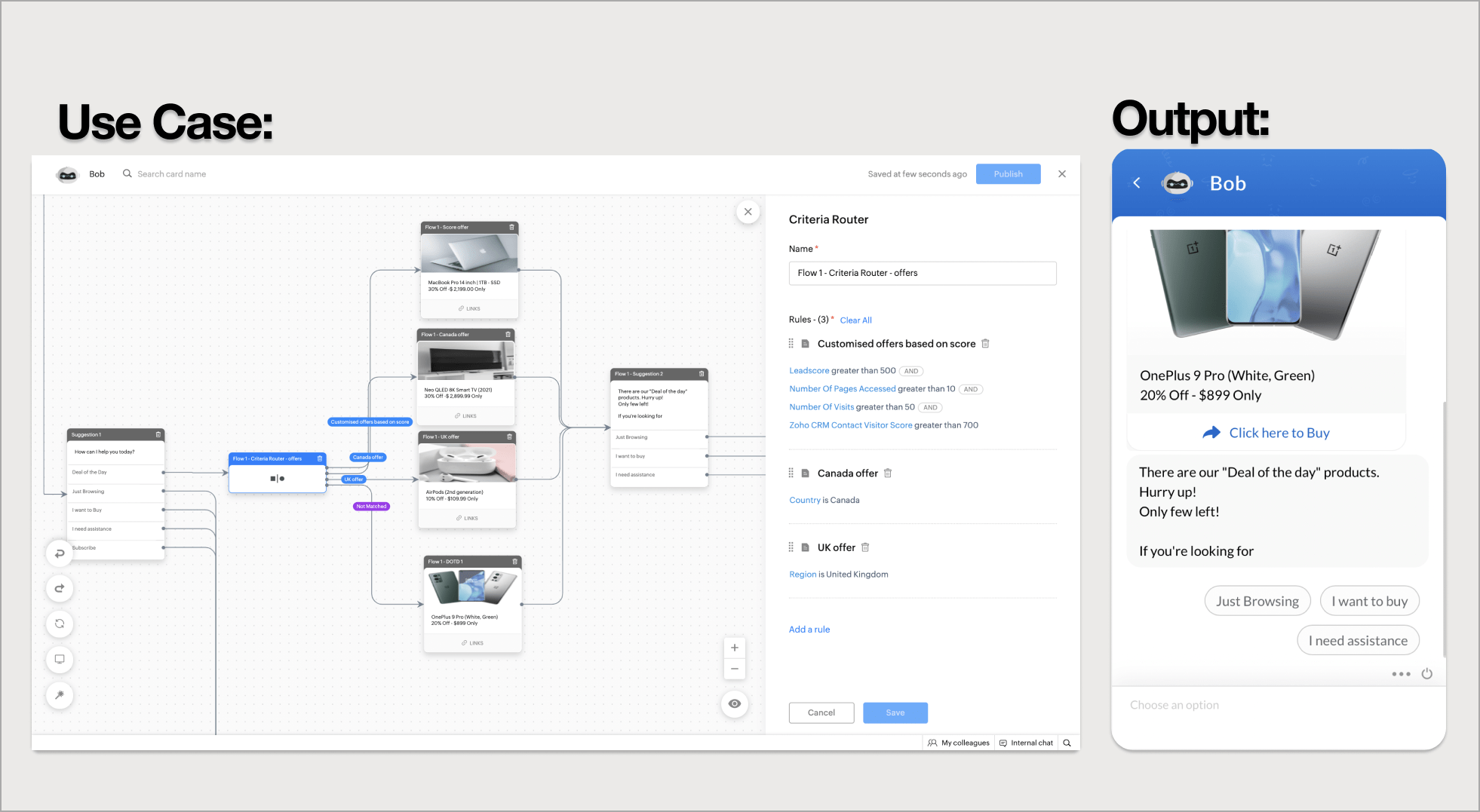

Example -  Displaying offers based on different criteria, in this case (Output), the visitor comes under  Not matched.



Forward

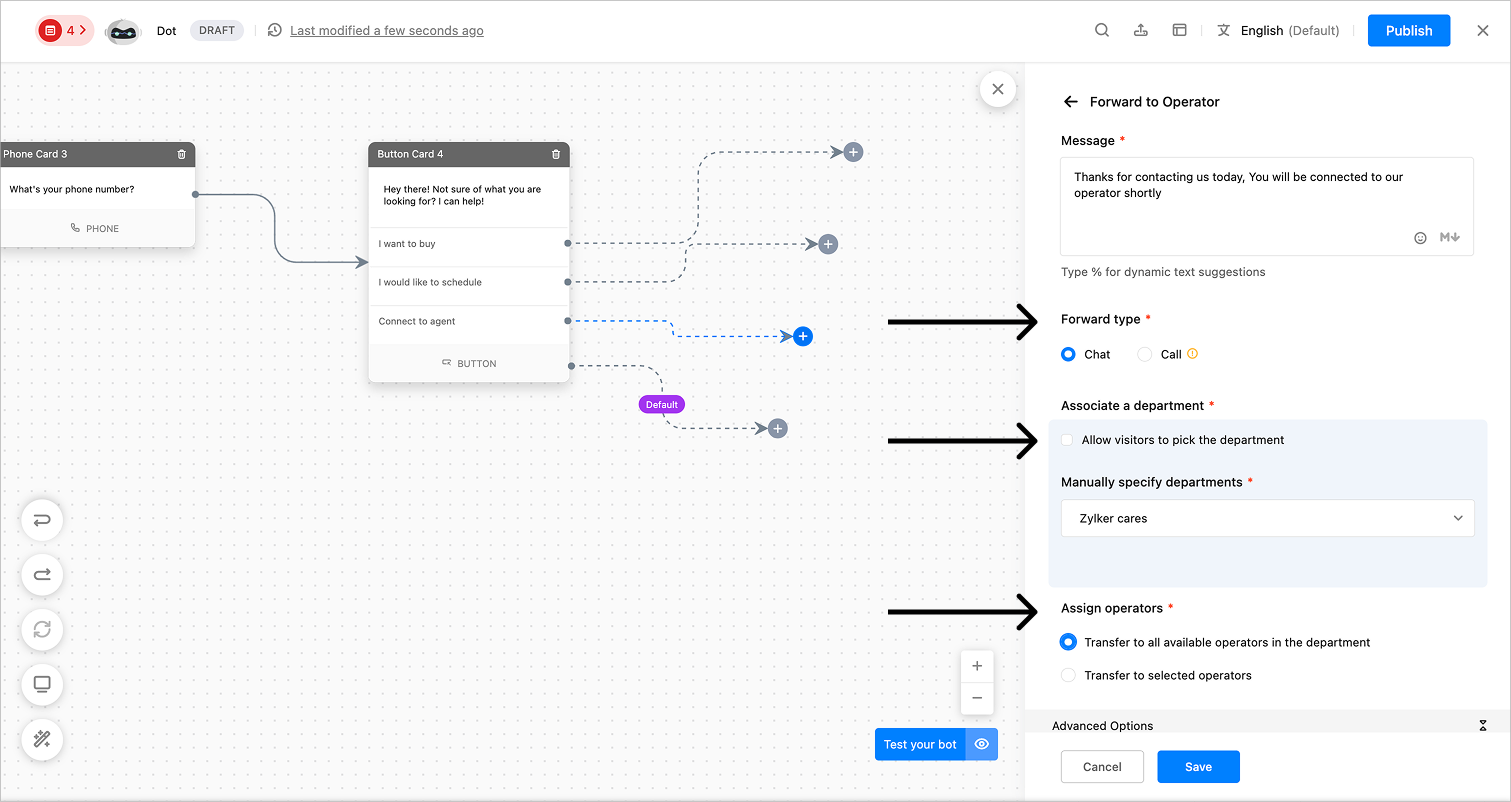

The forward card can be used to hand over the bot conversations to an operator seamlessly.

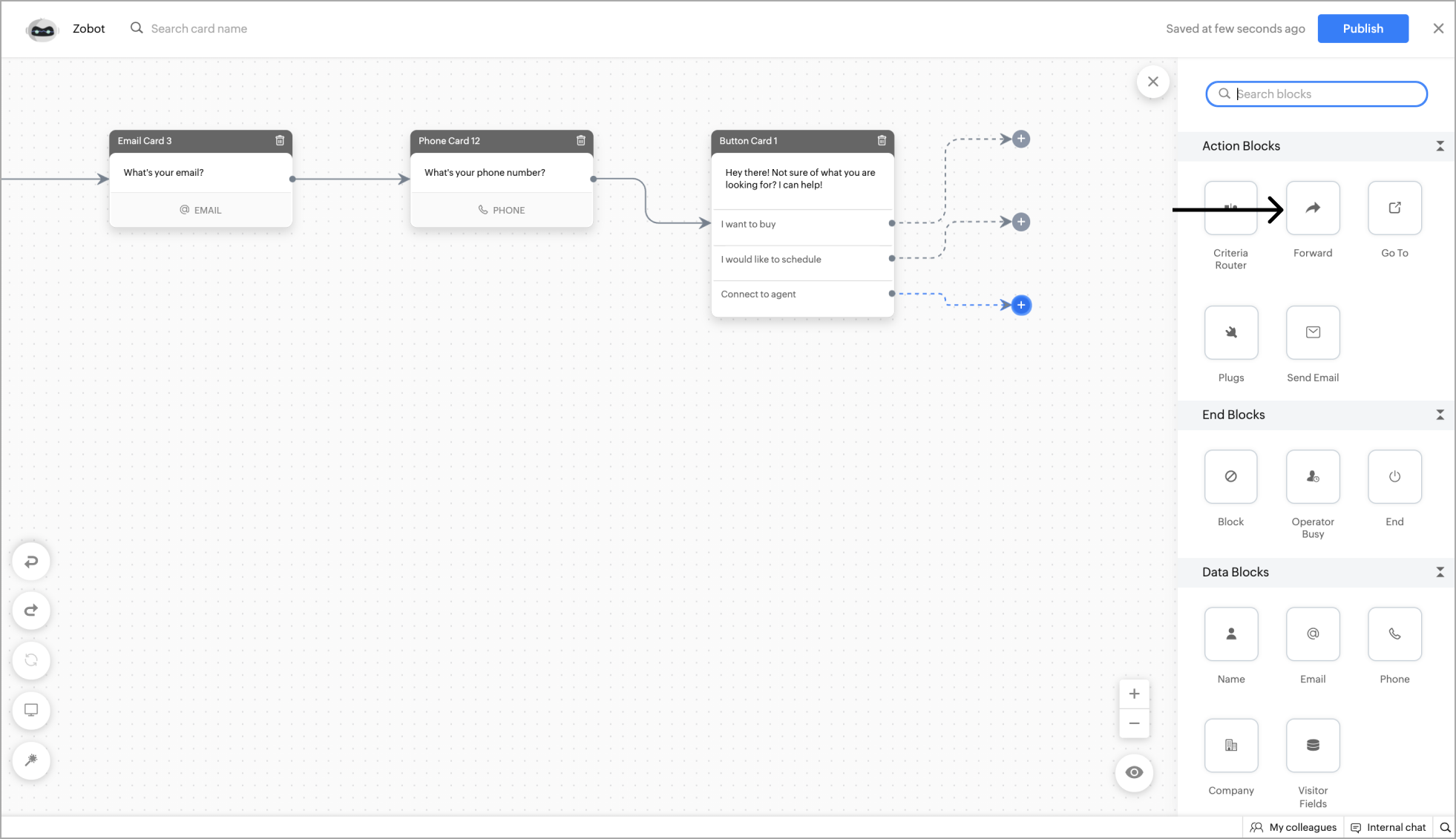

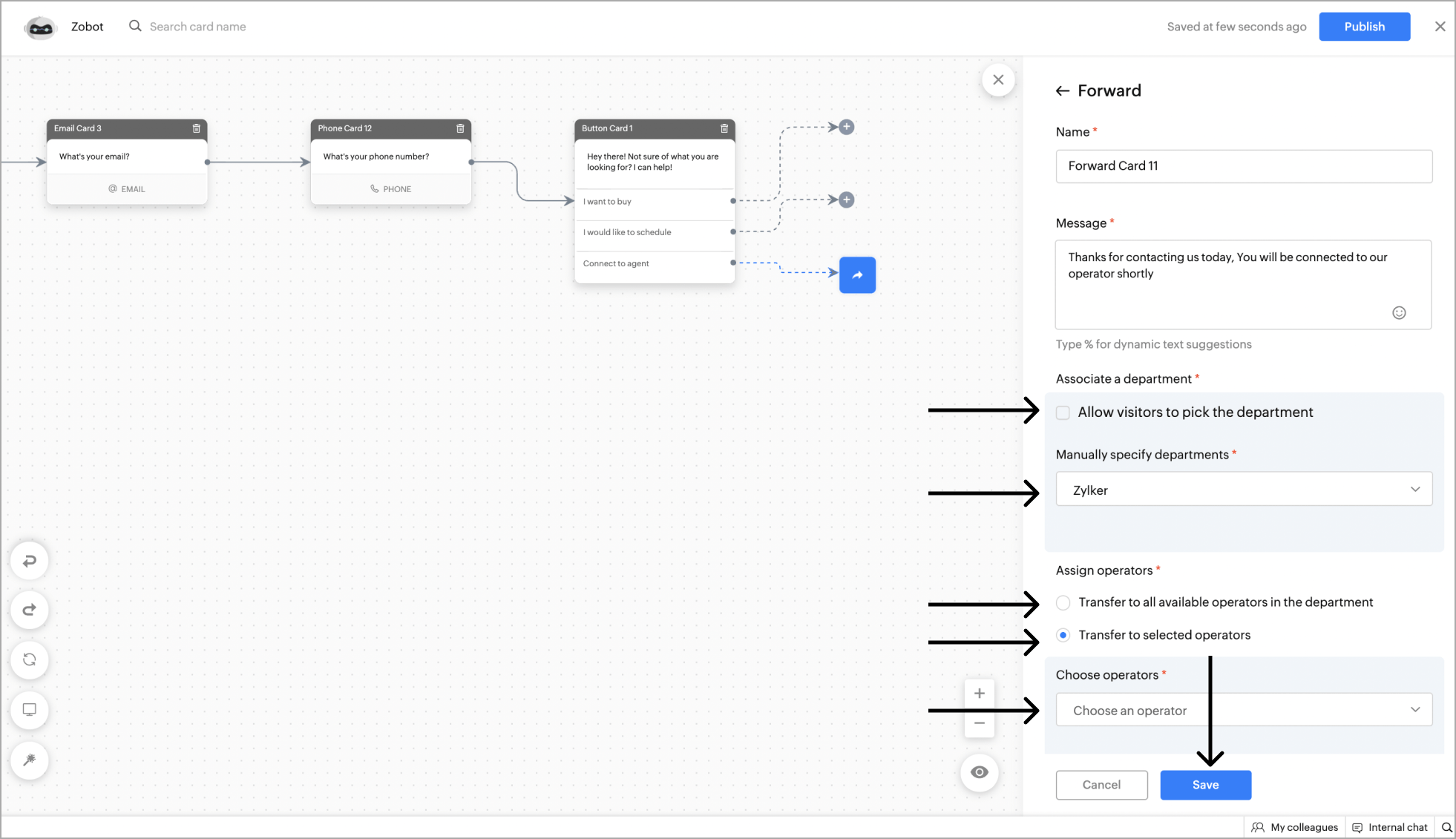

  • To forward the bot chats to operators, click on the card holder (+) icon to view the blocks gallery and select the Forward block under the action blocks section.

  • Add name, message, and image for the card.
  • Now, choose how to associate the department to the forwarded chat. You can assign a department or allow the visitors to choose the departments. Uncheck ' Allow visitors to pick the department ' to assign a department to the forwarded chat.
  • Now, you have to assign operators to take over the chat. You either transfer the chat to all available operators in the department or select specific operators.
    • Transfer to all available operators in the department : This option will route the chat to all the operators of the department who are online.
    • Transfer to selected operators : This option will route the chats to the specified operators.
  • Finally, click Save

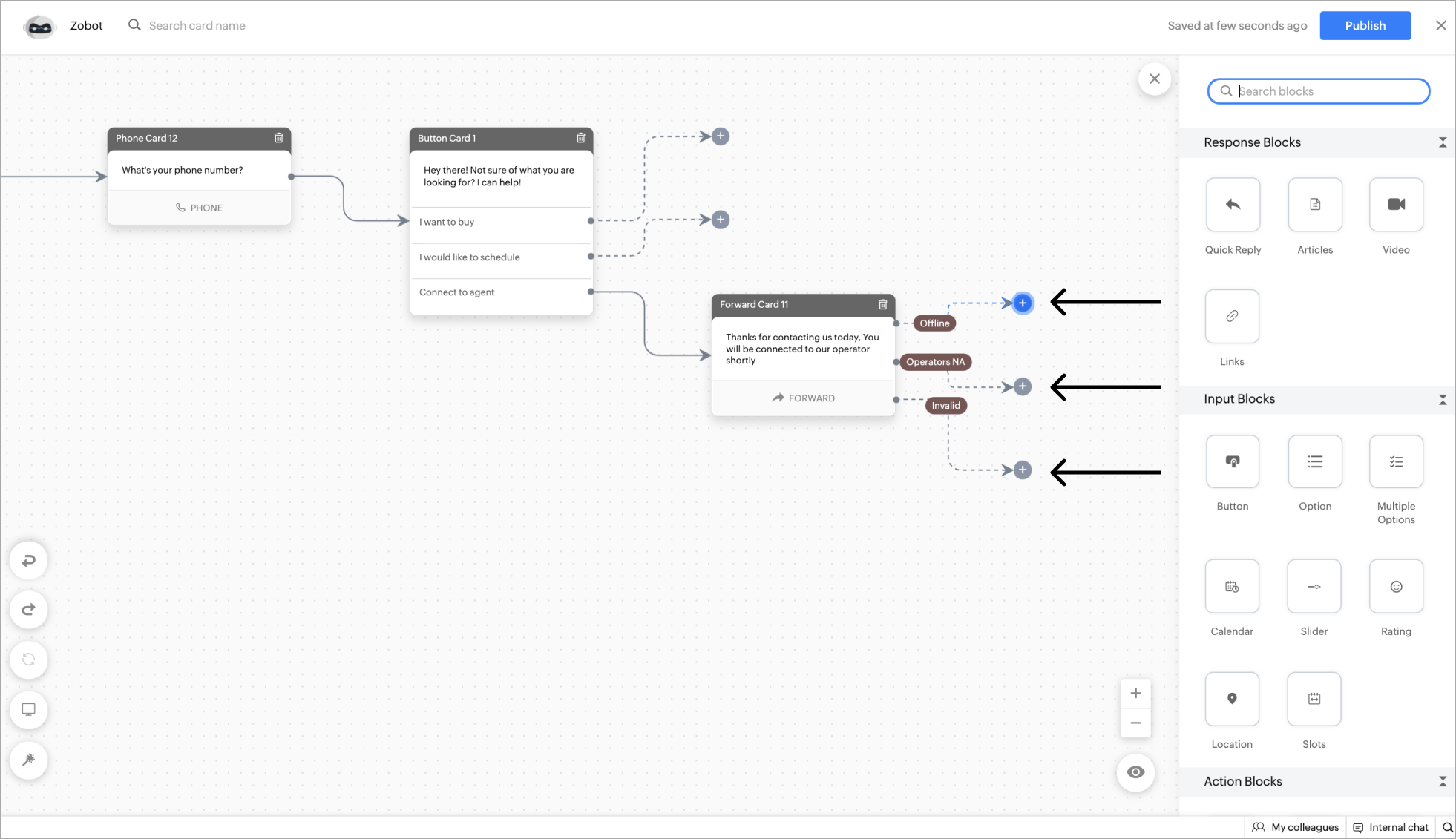

  • Once you have added the flow card, you have three possible flows
    • Offline hours (OF) - This flow is used when the card is activated outside the company's business hours.
    • Operator not available (ONA) - This flow is used when the mapped operators are busy or not available at the time of forward.
    • Invalid operator (IO) - This flow is used when the mapped operators are disabled/deleted from the portal. And, On forwarding the chat to other department operators & fails due to their unavailability.

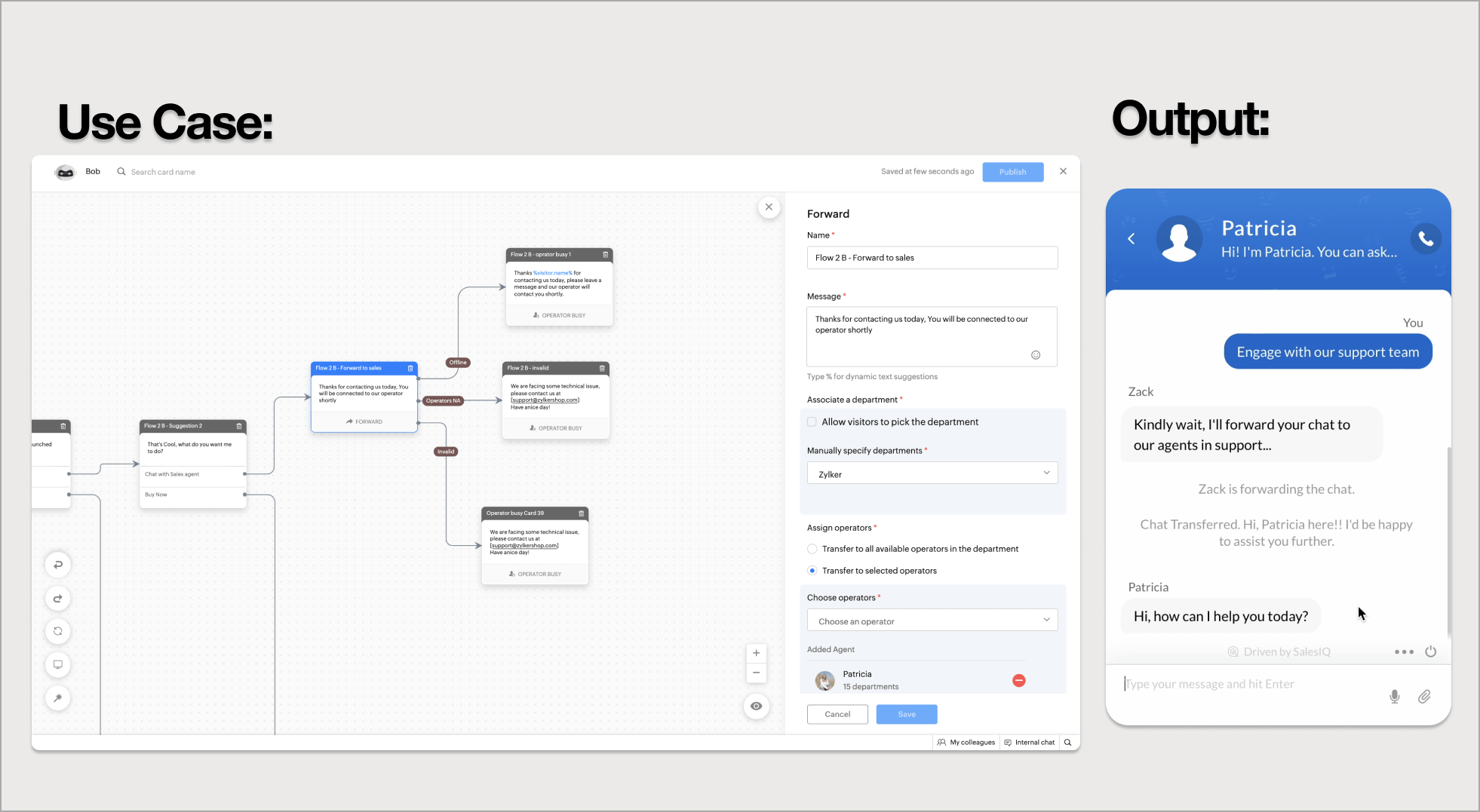

Example - Forwarding visitors to a sales department named Zylker to an operator Patricia.



Go to

This card can be used to jump from one flow to another. You can either re-use/restart a flow from there. There are two types of Go To blocks that you can add inside the Codeless Bot builder:

  1. Individual Card - to show the flow jump as a separate block
  2. Wire Connect   - to show the flow jump by wire

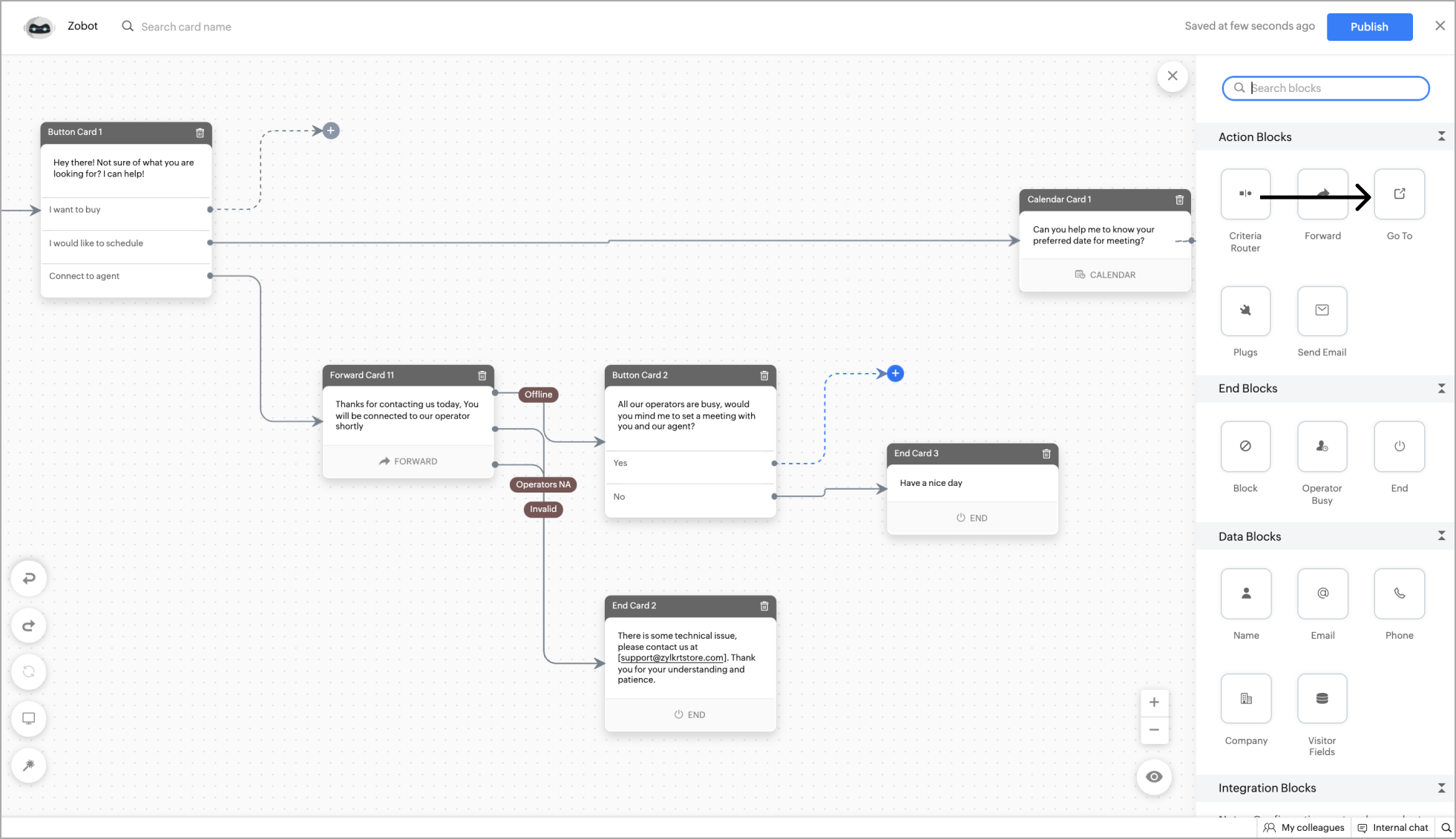

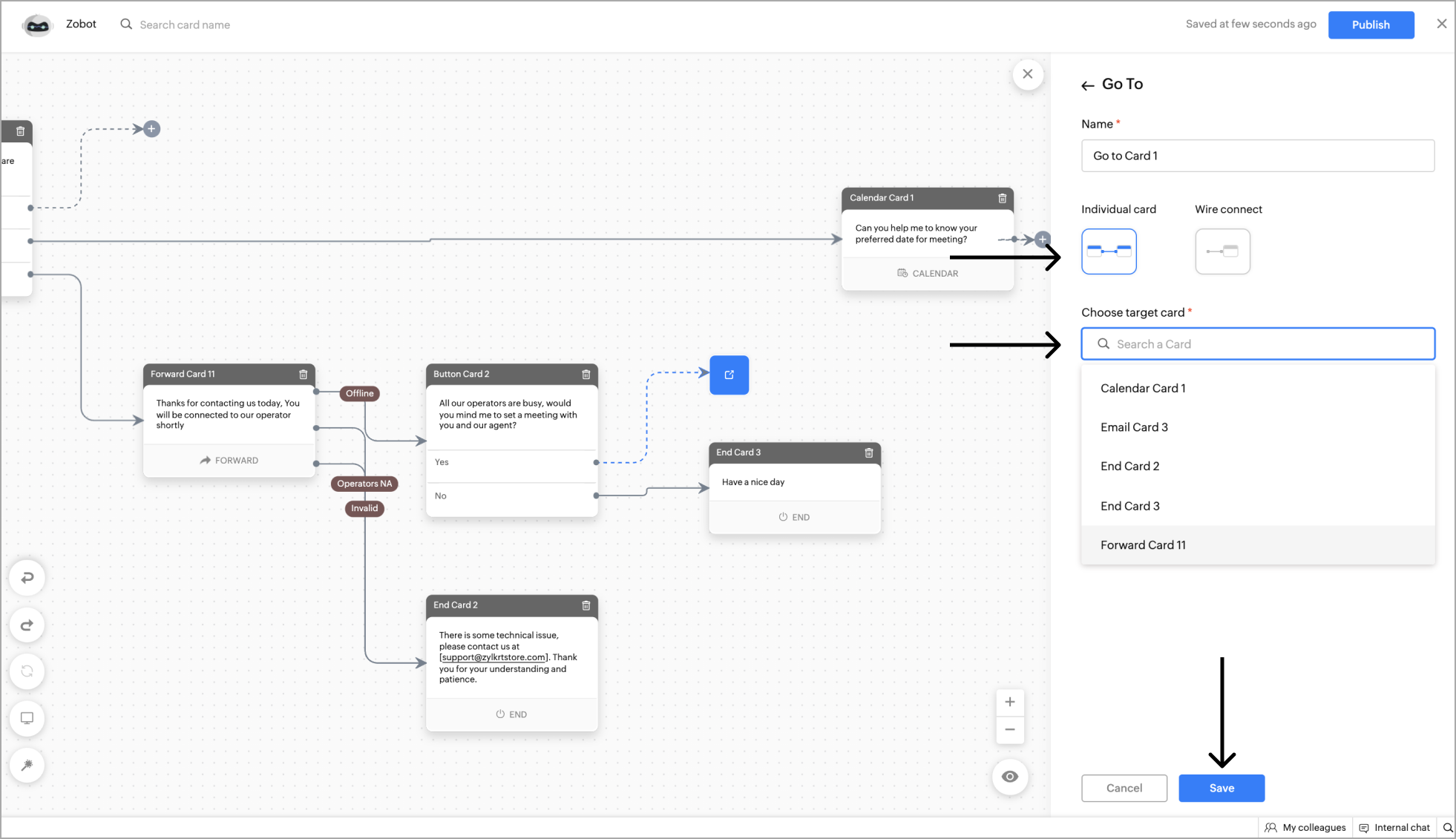

  • Click on the cardholder (+) icon to view the blocks gallery and select the Go To  block under the action blocks section.

  • Choose the type of Go To block - Individual Card or Wire Connect

  • Specify the card you want to go to. Once this card is activated, the flow will continue from the specified card.
  • Click Save.

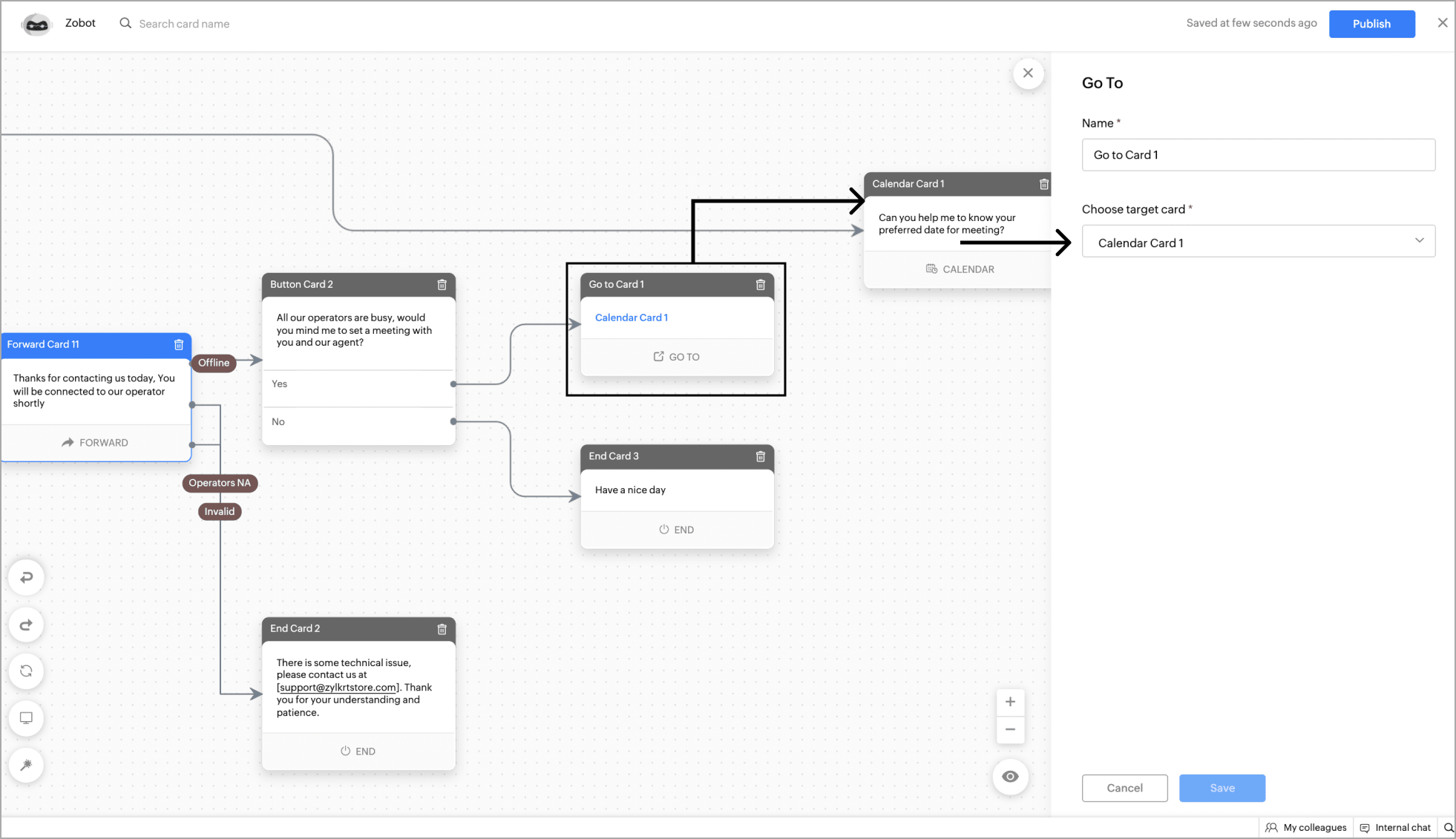

  • The above is a reference for individual Card.

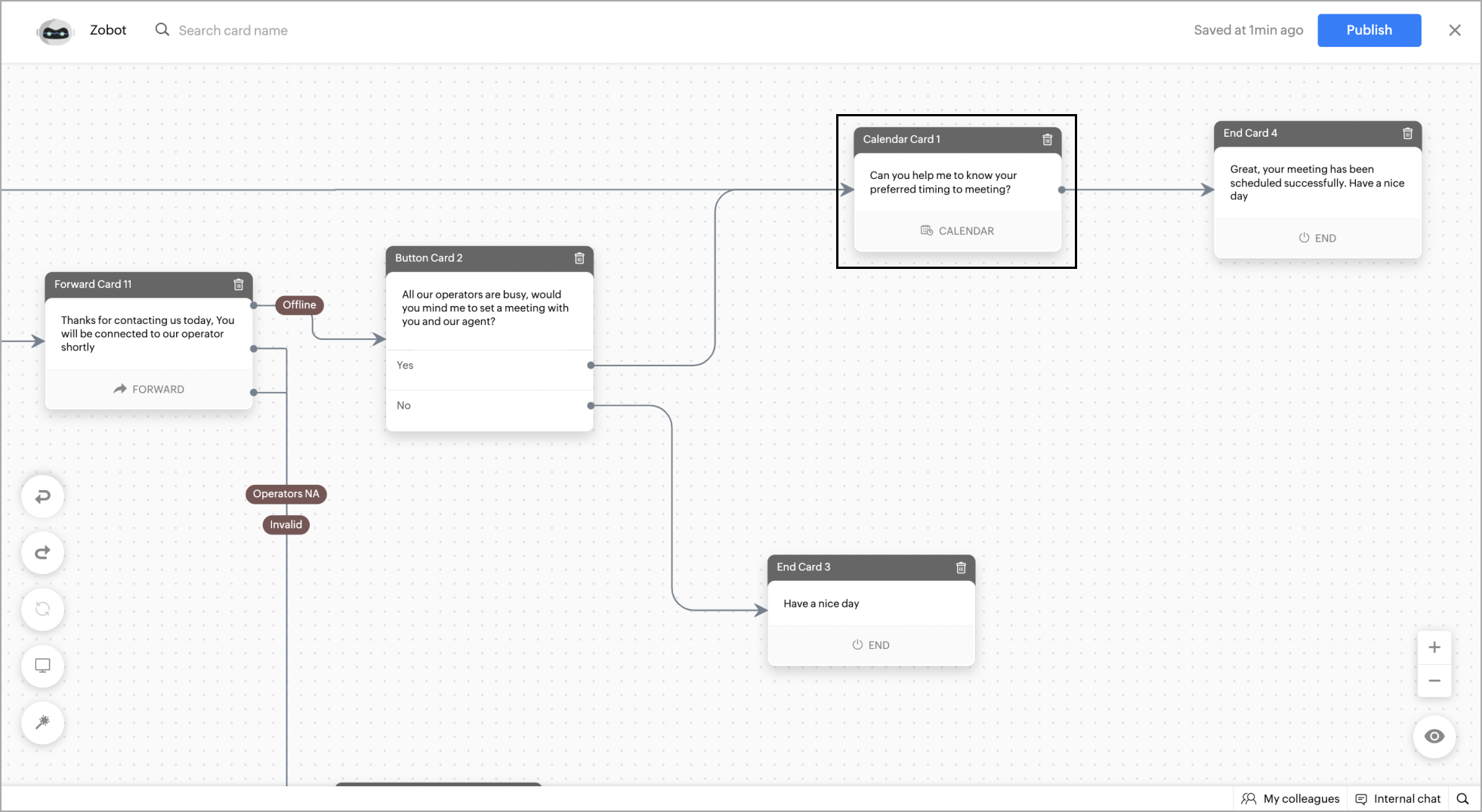

  • The above is a reference for Wire Connect .

Note:  The type of Go To block cannot be changed once the configuration is saved.

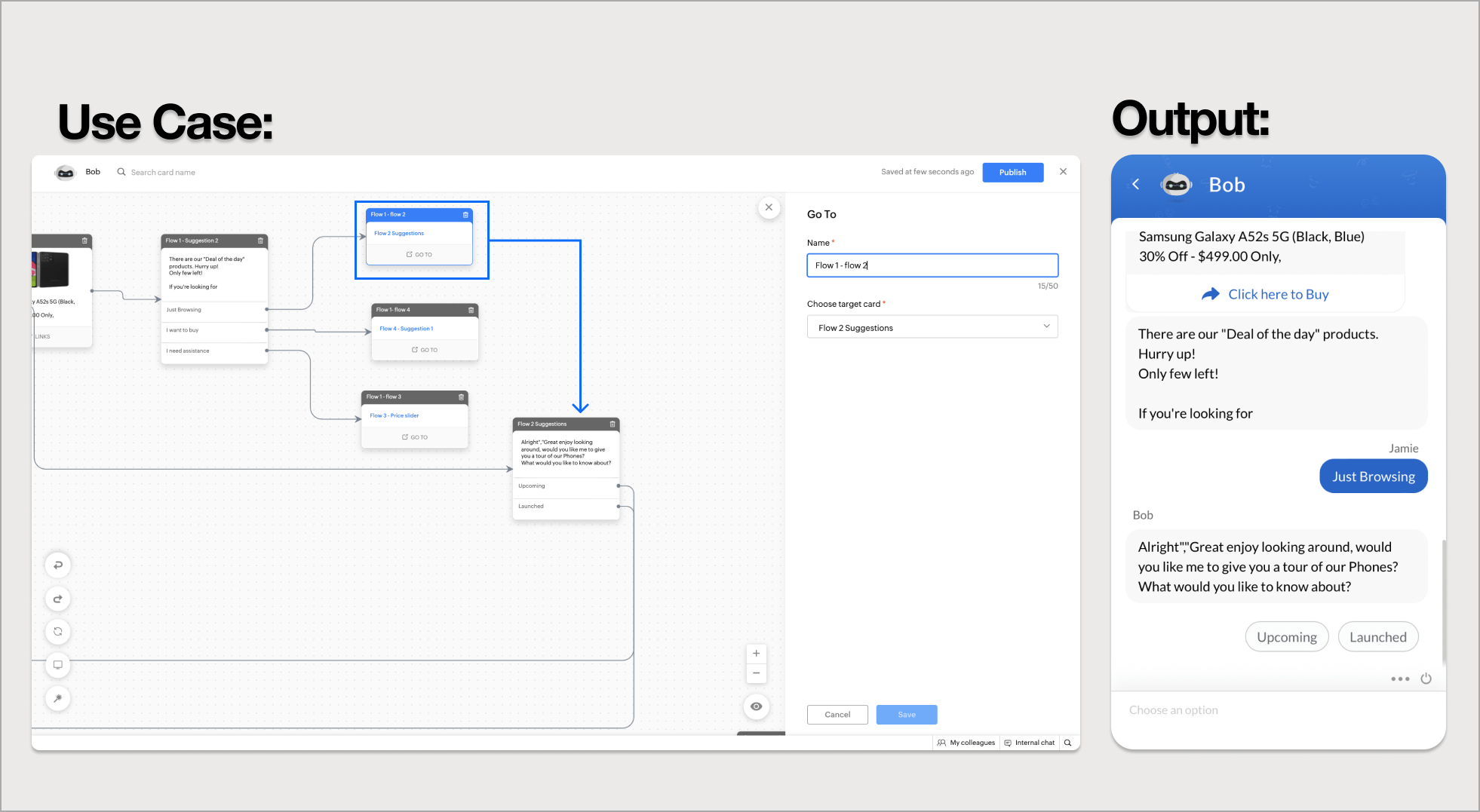

Example - Redirecting the flow to another card (Card name: [Flow 1 - flow 2] to [Flow 2 - Suggestion])



Auto Pilot

The Auto pilot card is available only for the Enterprise plan

The Auto pilot block behaves like the Answer bot, it displays articles and FAQs based on the visitor's question.

  • To add an Auto pilot card to the bot's flow, click on the card holder (+) icon to view the blocks gallery and select the Auto pilot block under the action blocks section.

  1. Give a name to your card and select the resource section to the Auto pilot card. The bot will use these resources to answer visitor queries. You can either choose FAQs or Articles or both.
  2. You need to have a considerable amount of resources (FAQs, Articles) to improve the bot replies' efficiency. We recommend having a minimum of 50 resources in each category. The more the resources, the more powerful your bot will be.

  1. Next, select a Small talk package. The Small talk is a collection of possible informal phrases that a visitor can send during a conversation and the corresponding responses that can be given by the bot. The default package will be selected by default but you can choose the package of your choice. Learn how to manage Small Talk packages.


If the bot knows the answer to a visitor query, it picks the right article or FAQ and displays it. This is called an Answer found case. In this section,
  1. Enter the Suggestion Prefix Text.  This is the text that will be displayed above the article that the bot displays to the visitor.
  2. Followed by, click on Add action to add a follow-up action when the bot finds answers to the visitor's queries. You can add a maximum of three follow-up actions.


If the bot does not know the answer to a visitor query and does not find any matching articles or FAQs, it is an Answer not found case. In this section,
  1. Set up Fallback Text - the text that has to be displayed in the chat window when no FAQ or article matches the visitor's query.
  2. Followed by, click on Add action to add a follow-up action when the bot couldn't find answers. You can add maximum of three follow-up actions.
  3. You can also configure the bot to display related resources. Click on the toggle to enable/disable Related Resource Suggestion. Now, enter the suggestion text to indicate when a related resources is shown.
  4. Finally click on Save. The auto pilot card will be added to the bot's flow.
The Auto pilot card will exit only when the visitor selects follow up actions, until then the auto pilot engine will continue.
According to the follow-up action you have defined here, the auto pilot card will split the flow. Therefore you can add blocks and create flow based on your requirements. By default, there is a failure flow, this will be invoked when the auto pilot bot engine fails. You can add cards here to handle failure cases.



Example - Setting up auto pilot card for assistance.



Plugs


Plugs help to perform customized action/third-party integrations. To build plugs, navigate to Settings > Developers > Plugs . Once the plug is built and published, you can use those in the codeless bot builder.

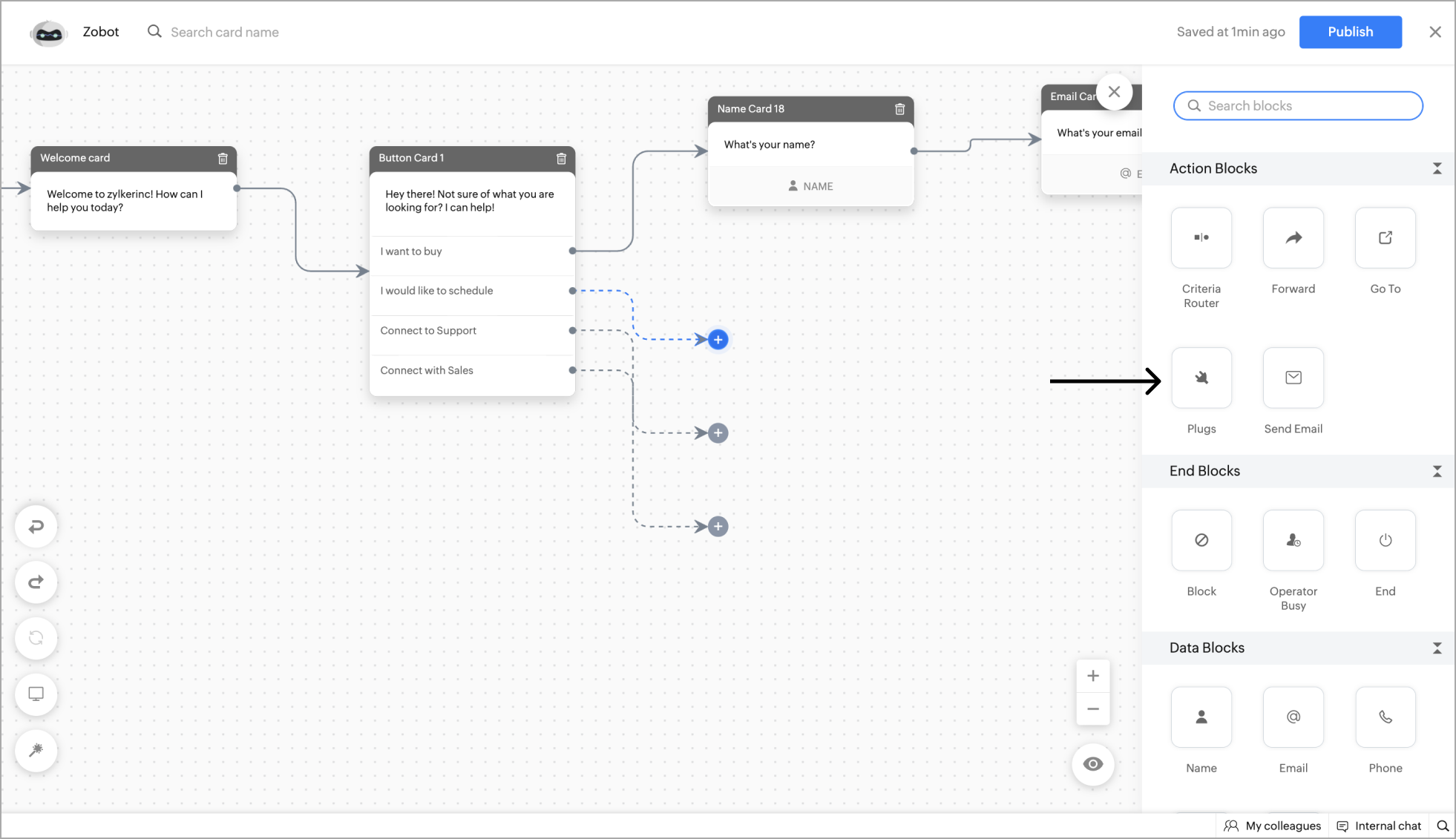

  • Click on the card holder (+) icon to view the blocks gallery and select the Plugs block under the action blocks section.

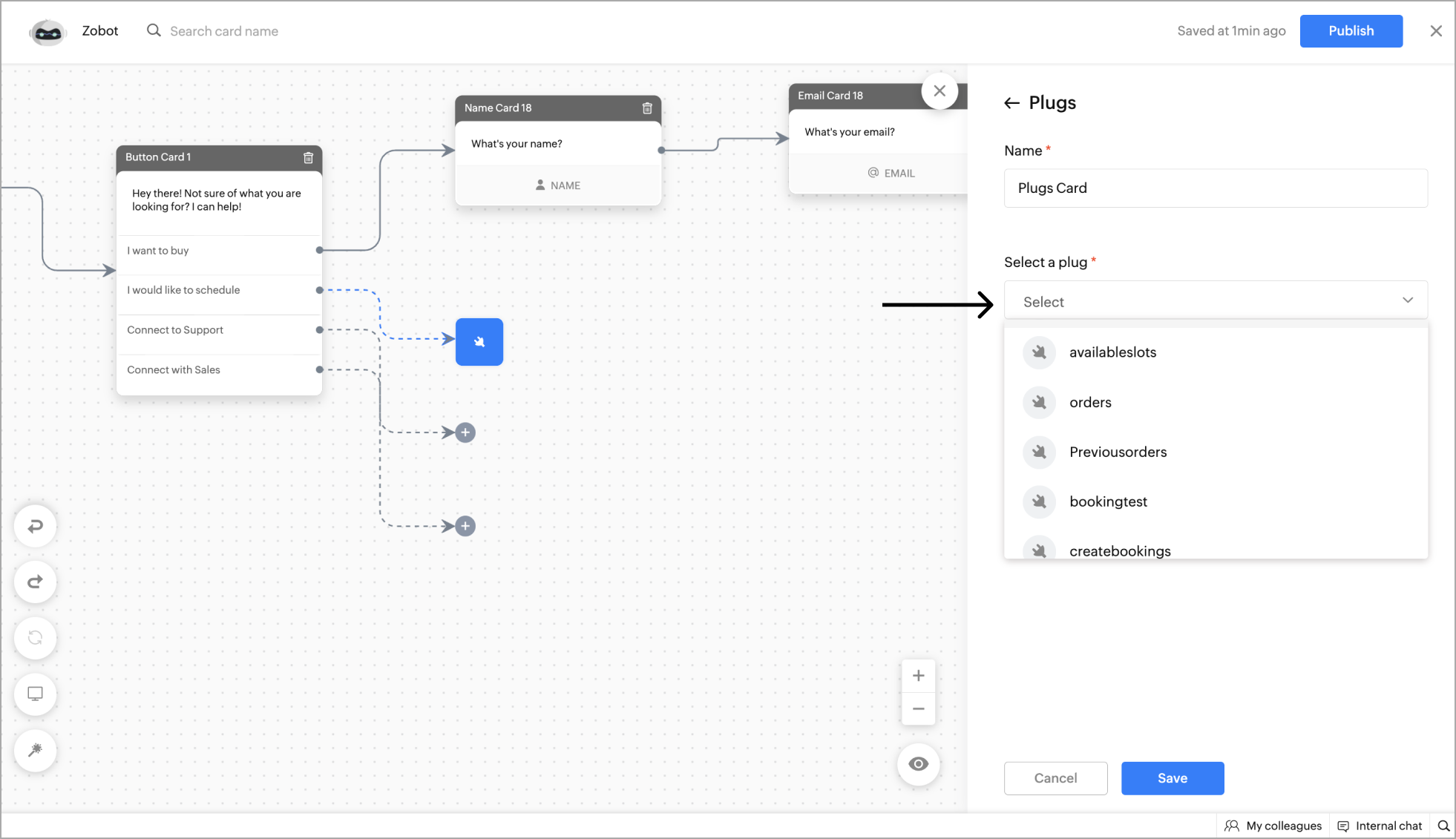

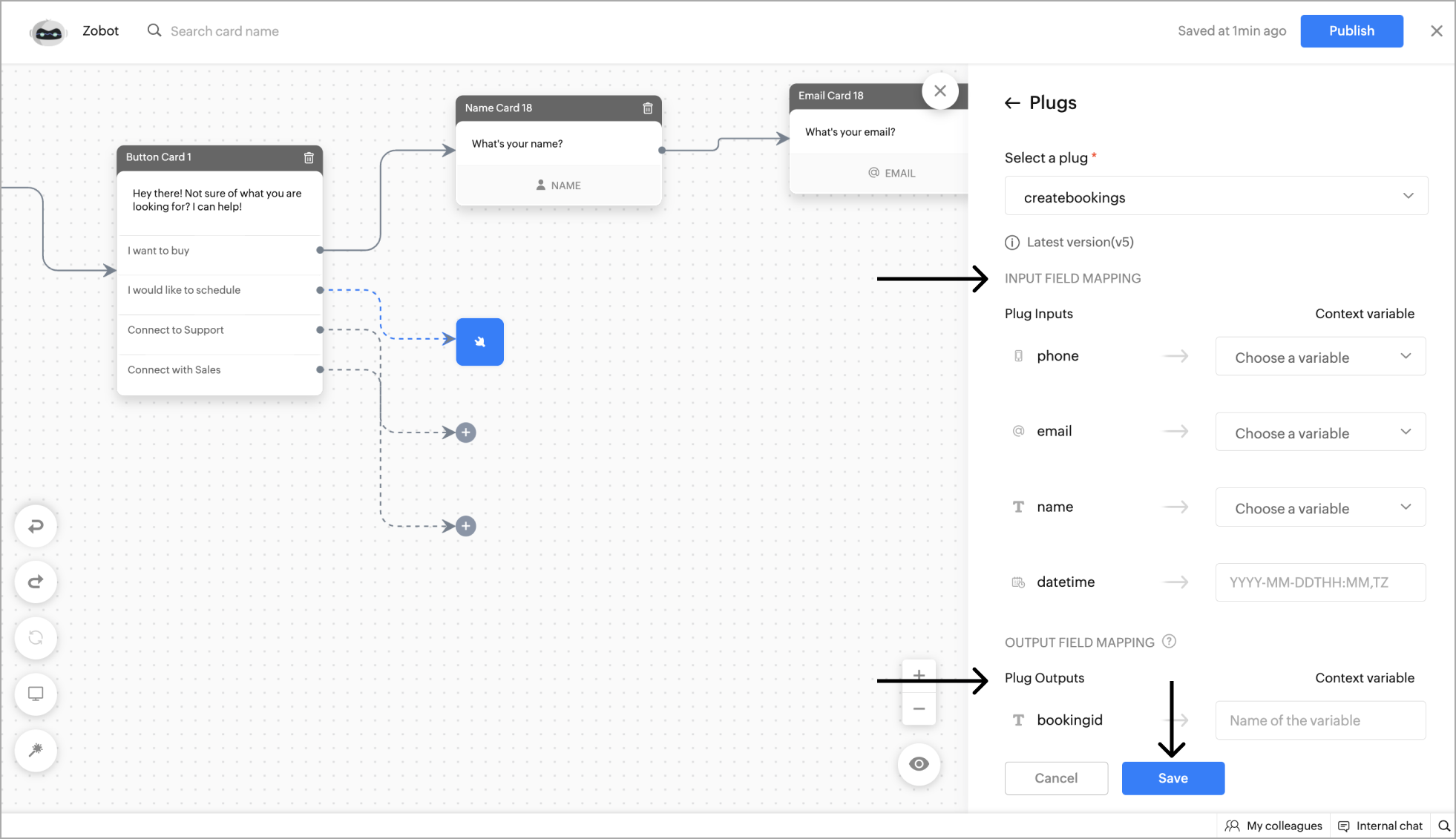

  • Give your card a name, and select the Plug you want to associate from the drop-down.

  • Then, provide the context variables for plug's Input and Output fields
  •  Click Save

There are two possible flows upon the plug card's is triggered. The flows can be used to:

  • Success : To add cards upon successful execution of the plug.
  • Failure : To add cards in case of plug failure. This can happen due to wrong usage/values or technical issues.

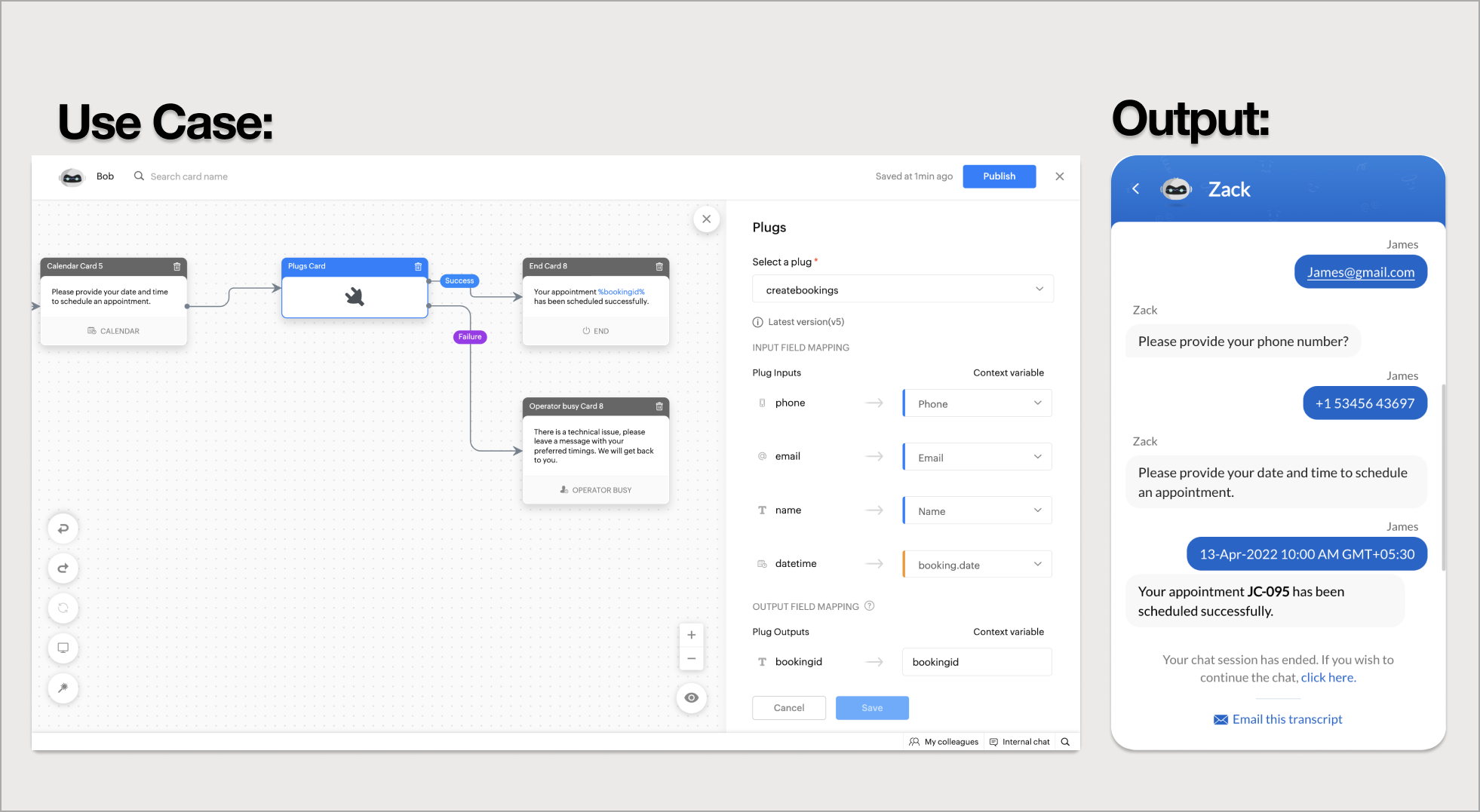

Example: Scheduling an appointment using Zoho Bookings.


Here, the name, email, phone, date & time are stored in the bot context and given as plug input. The output of the plug is stored in the bot context ( bookingid ), which can be used in the further flow.

Related links:

Send Email

The send email card allows the bot to send emails during the bot conversation. This can be used to send details of the ongoing bot conversation.

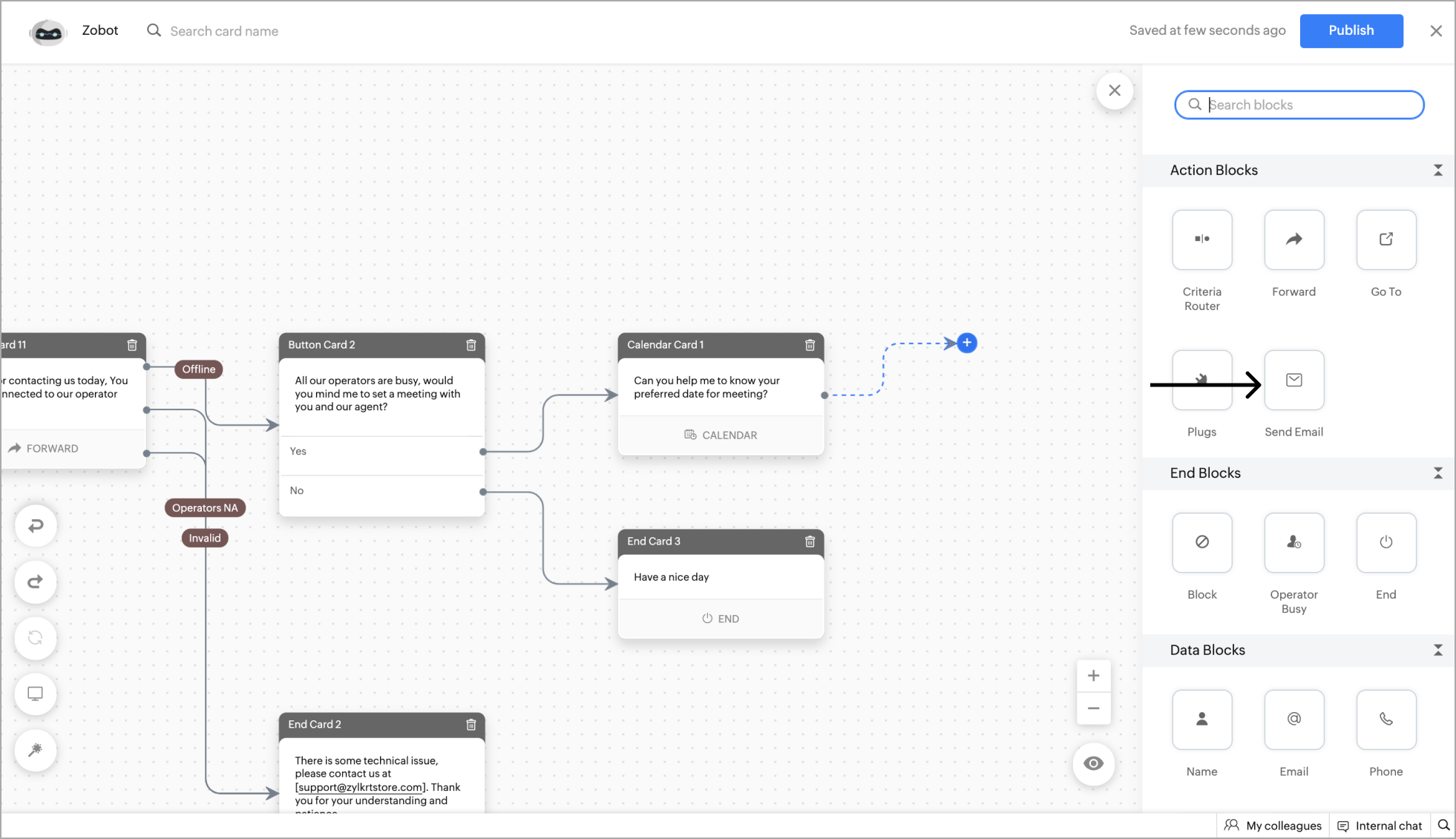

  • To send emails during bot conversation, click on the card holder (+) icon to view the blocks gallery and select the Send Email block under the action blocks section.

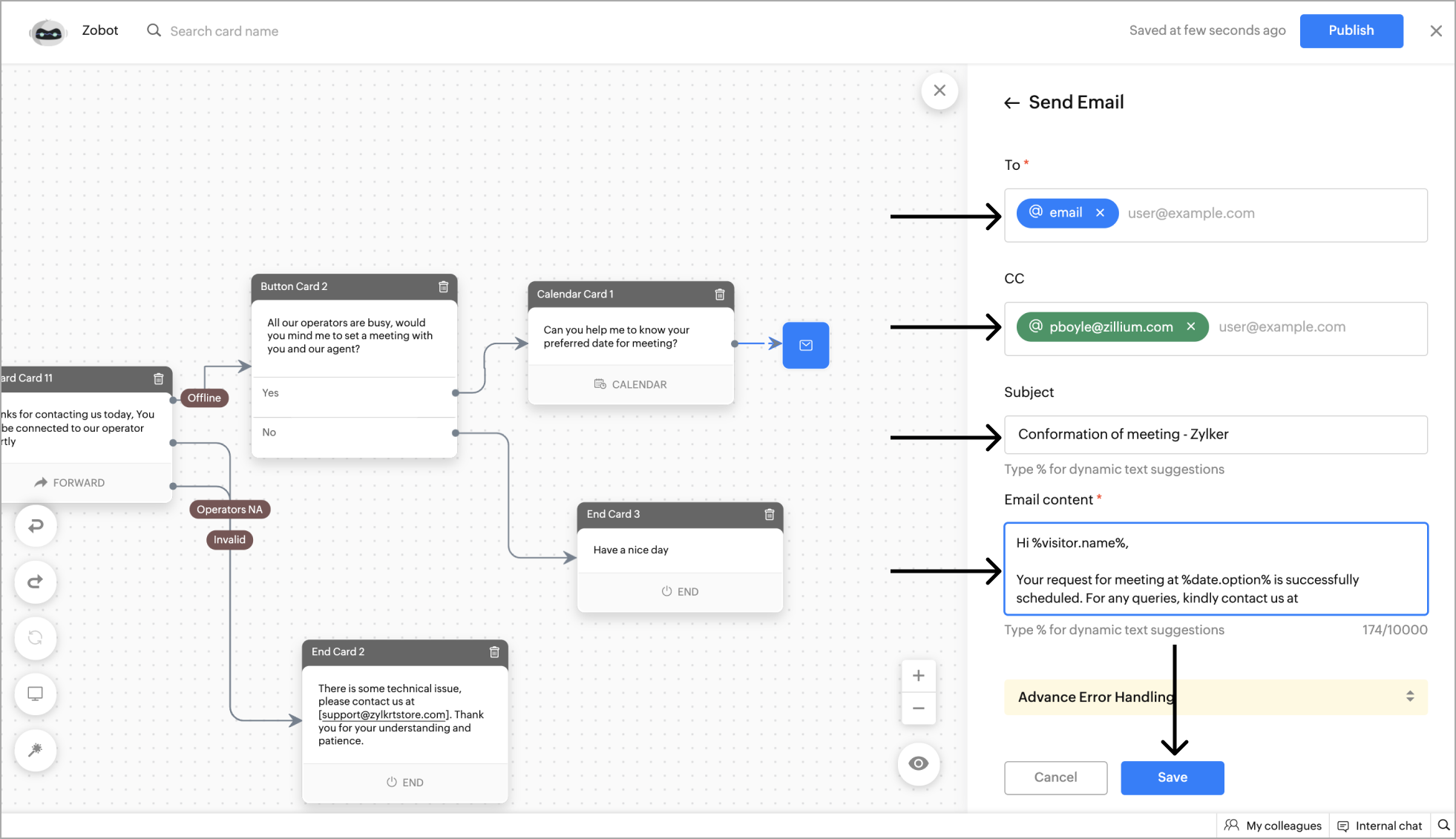

  • Enter the name , To address , and CC to send the mail to the required email address.
  • Now, Add the Subject and the content . You can use dynamic text to notify the receiver about the ongoing conversation. Finally, click Save .

There are two possible flows upon the execution of the Send email card:

  1. Success : To add cards after the mail is sent successfully.
  2. Failure : To add cards in case of failure due to technical reasons.
  3. Misconfiguration : To add cards in case of the company email address is not available in the portal's email configuration.

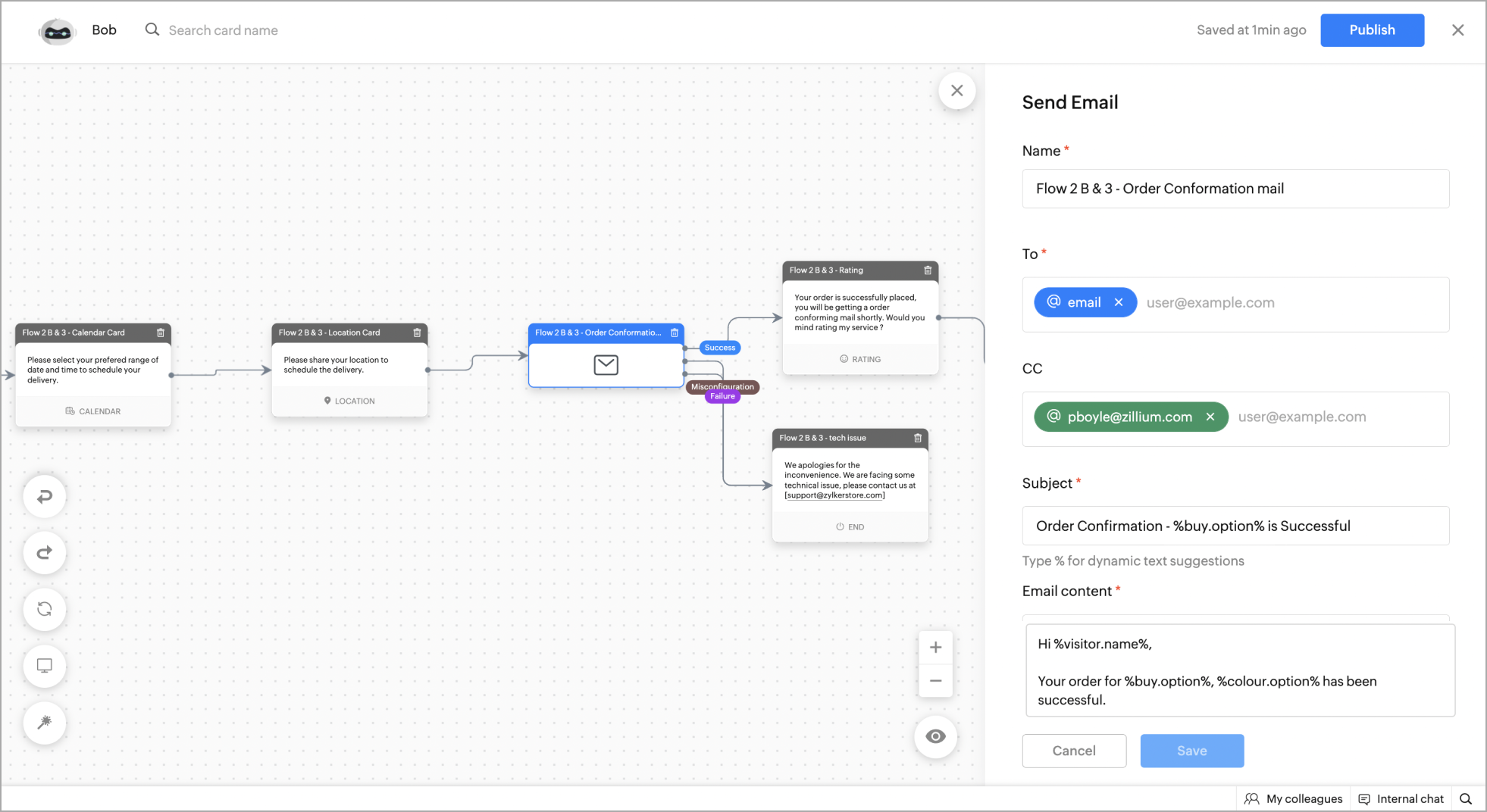

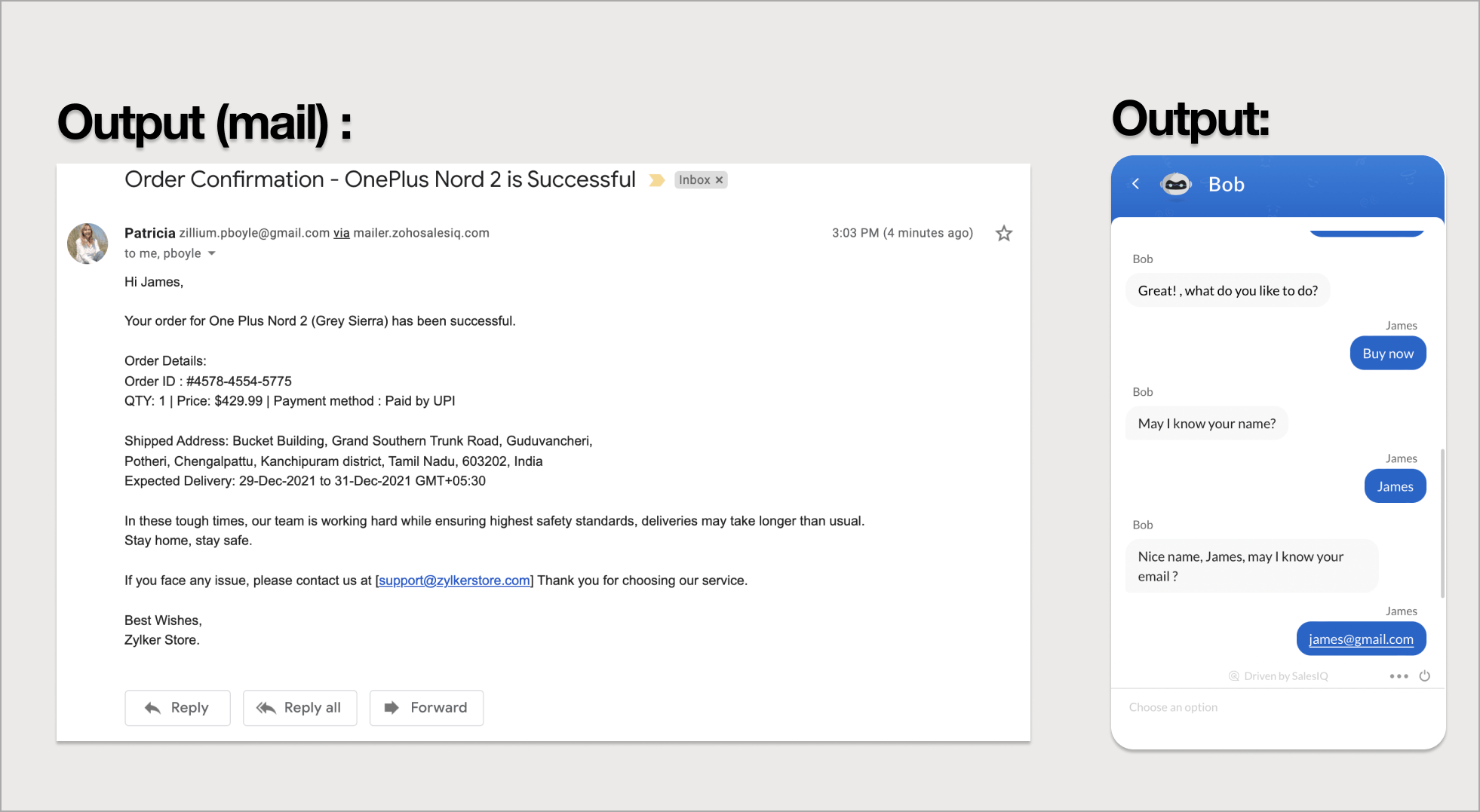

Example -  Sending an Order Confirmation mail to the customers who order using the Zobot.



Attachments:

You can add attachments to the mail by declaring the bot context variable under the attachment section, which is used to save the received files from the visitor.

Example - Attaching the visitor's order invoice in the email as a reference to initiate a return process.


Note:  Only the files received from the visitor by files card can be added as attachments here. Custom files cannot be uploaded here.
