Integration with Microsoft Entra ID

Zoho Vault can easily be integrated with Microsoft EntraID for efficient collaboration and user management. With this integration, you can manage users' access to Zoho Vault from your Microsoft EntraID portal, and allow users to access Zoho Vault with their existing Azure AD credentials. This integration involves four steps:
  1. Adding Zoho from the Azure gallery
  2. Configuring Microsoft EntraID Single Sign-on
  3. Assigning access to users
  4. Accessing Zoho Vault
NotesNote: Only super admins can configure Microsoft EntralD Single Sign-on for their organization.


Prerequisites

  • A valid Azure subscription
  • A Zoho Vault account with Enterprise Edition license
  • Completion of the first step of Domain Configuration, as shown here

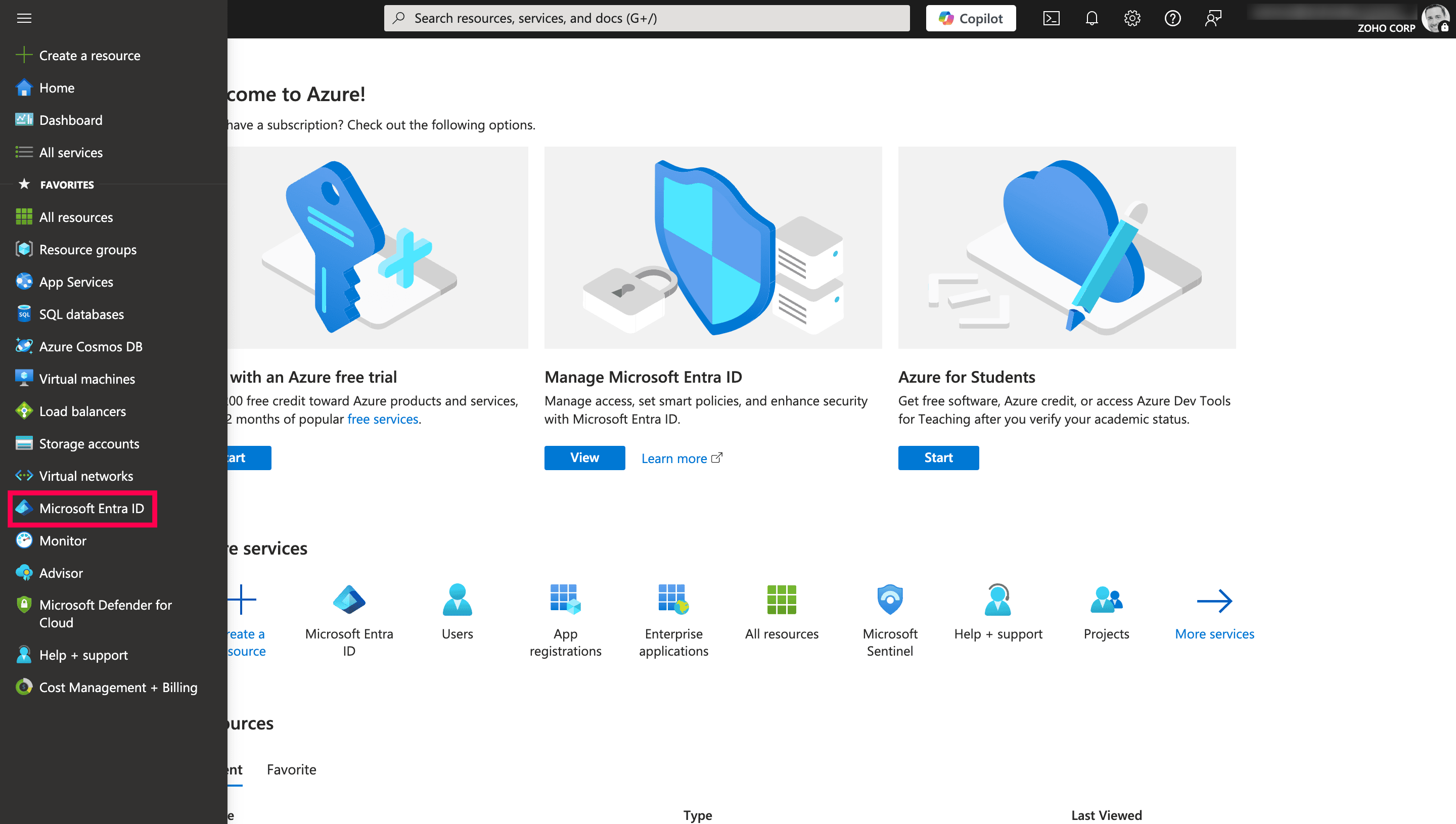

  1. Log in to the Azure portal and click Microsoft Entra ID from the left panel.

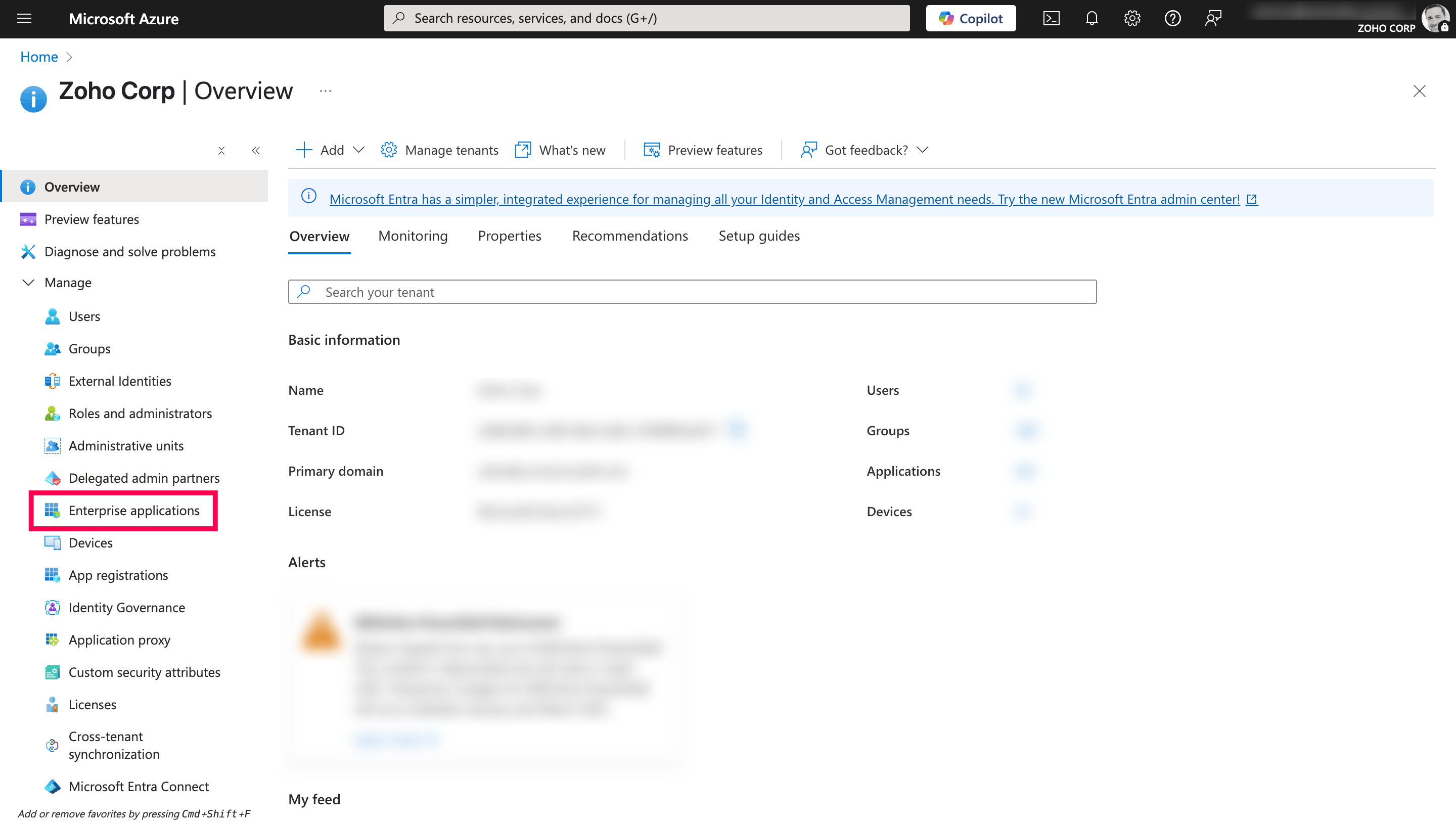

  2. Select Enterprise applications under Manage.

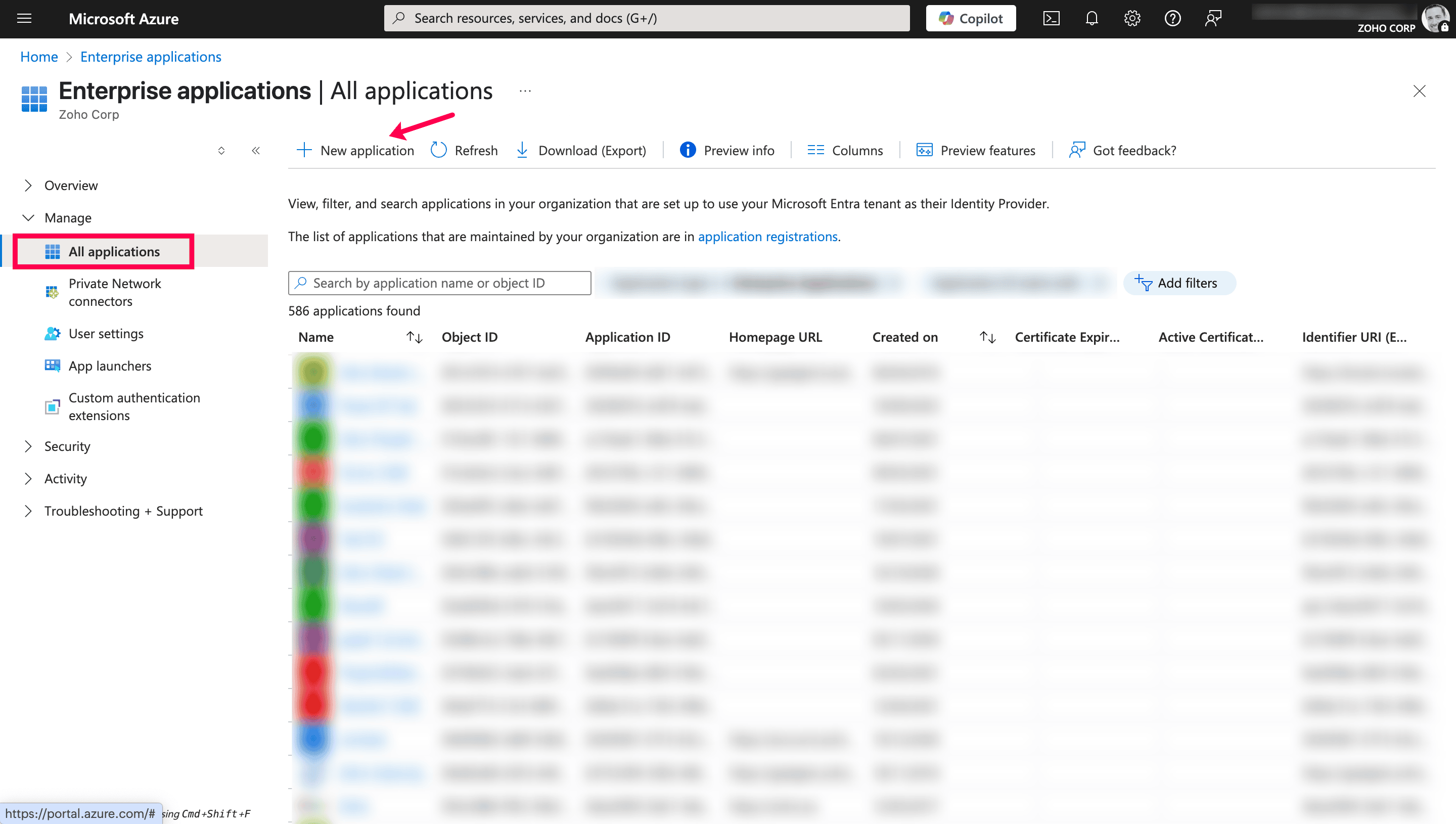

  3. Click All applications, then select New application to add your application from the gallery.

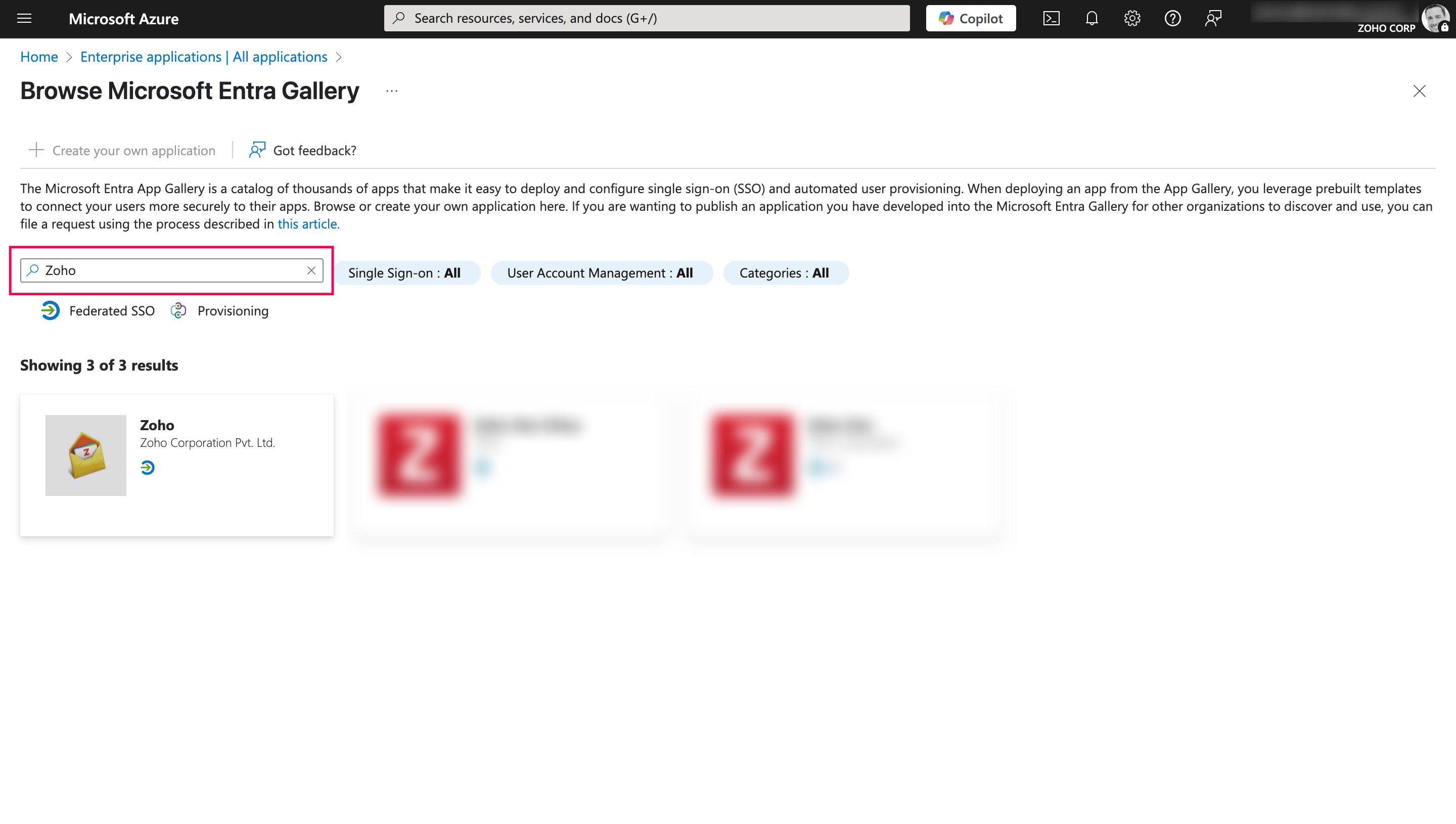

  4. Search for Zoho and add it from the search results by clicking Add.

Configuring Azure AD Single Sign-On

  1. Access your Azure portal and navigate to Azure Active Directory >> Enterprise application >> All Application.
  2. Search for Zoho, then click Add
  3. Under Manage, select Single Sign-on and set your single sign on mode to SAML
  4. Edit the Basic SAML Configuration section with the following details.

    Identifier - zoho.com
    Relay State - aHR0cHM6Ly92YXVsdC56b2hvLmNvbV9fSUFNX19ab2hvVmF1bHQ=
    Reply URL -  https://accounts.zoho.com/signin/samlsp/<YOUR_ORG_ID>
    Sign on URL https://accounts.zoho.com/samlauthrequest/<YOUR_ORG_ID>?serviceurl=https://vault.zoho.com

Notes

Note:

  • Replace zoho.com with zoho.eu | zoho.in | zoho.com.cn | zoho.com.au to match your corresponding domain.
  • Replace <YOUR-ORG-ID> with your unique ORG ID.

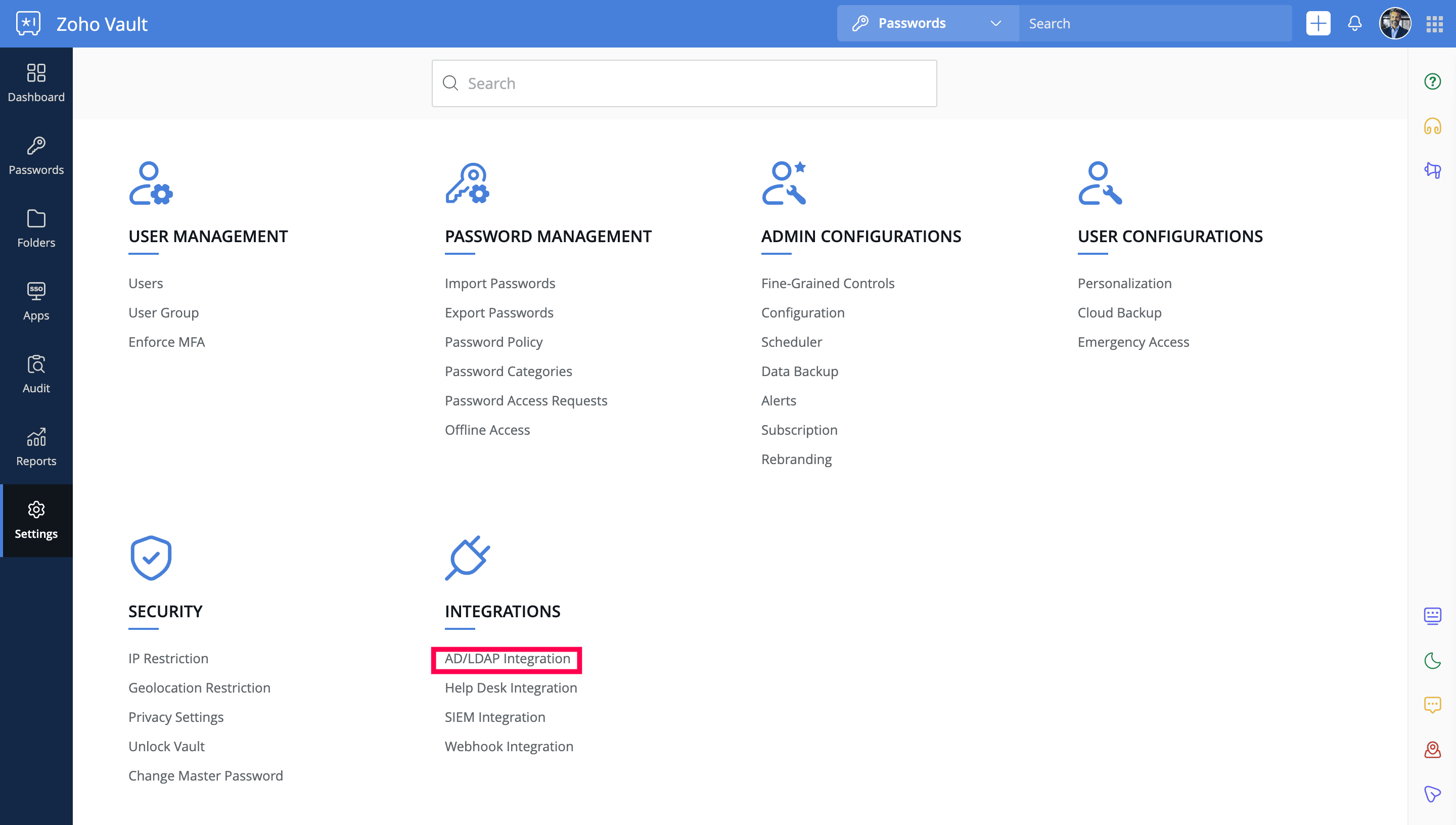

  • You can find the ORG ID under Zoho Vault's Settings > Integrations > AD/LDAP Integration > Service Provider Details.

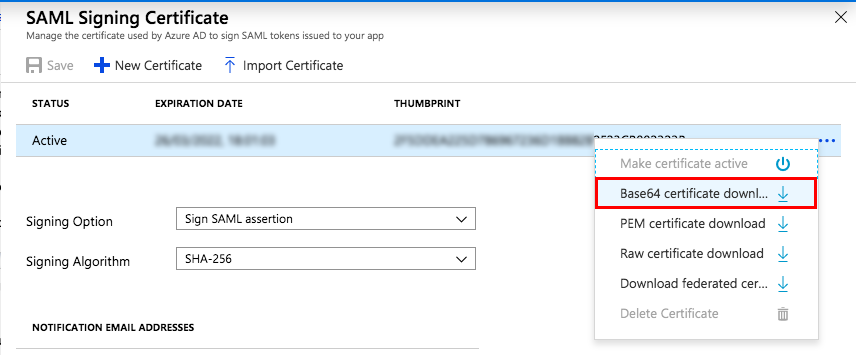

  1. Edit the SAML Signing Certificate field to download the Base 64 certificate

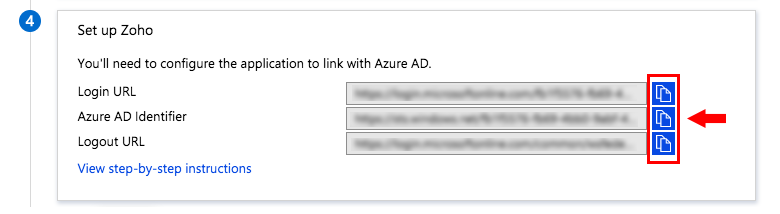

  2. Copy the details of the Login URL, Azure AD Identifier, and Logout URL from the Set up Zoho section for your reference.



  3. Log in to your Zoho Vault account as the super admin, select Settings, click AD/LDAP Integration from the Integrations section, then select SAML Configuration.
  4. Select Enter the IdP details manually, then enter the Login and Logout URL details from the Azure portal in the corresponding fields in Zoho Vault.
  5. Upload the certificate downloaded earlier (extension must be .cer) and select RSA for the algorithm
  6. To automatically create new Zoho accounts when users authenticate with Zoho Vault through Azure AD, enable Just in time provisioning.
  7. Click Save and Enable

Assigning Access to Users

  1. Access your Azure portal and navigate to Azure Active Directory >> Enterprise application >> All Application
  2. Select Zoho

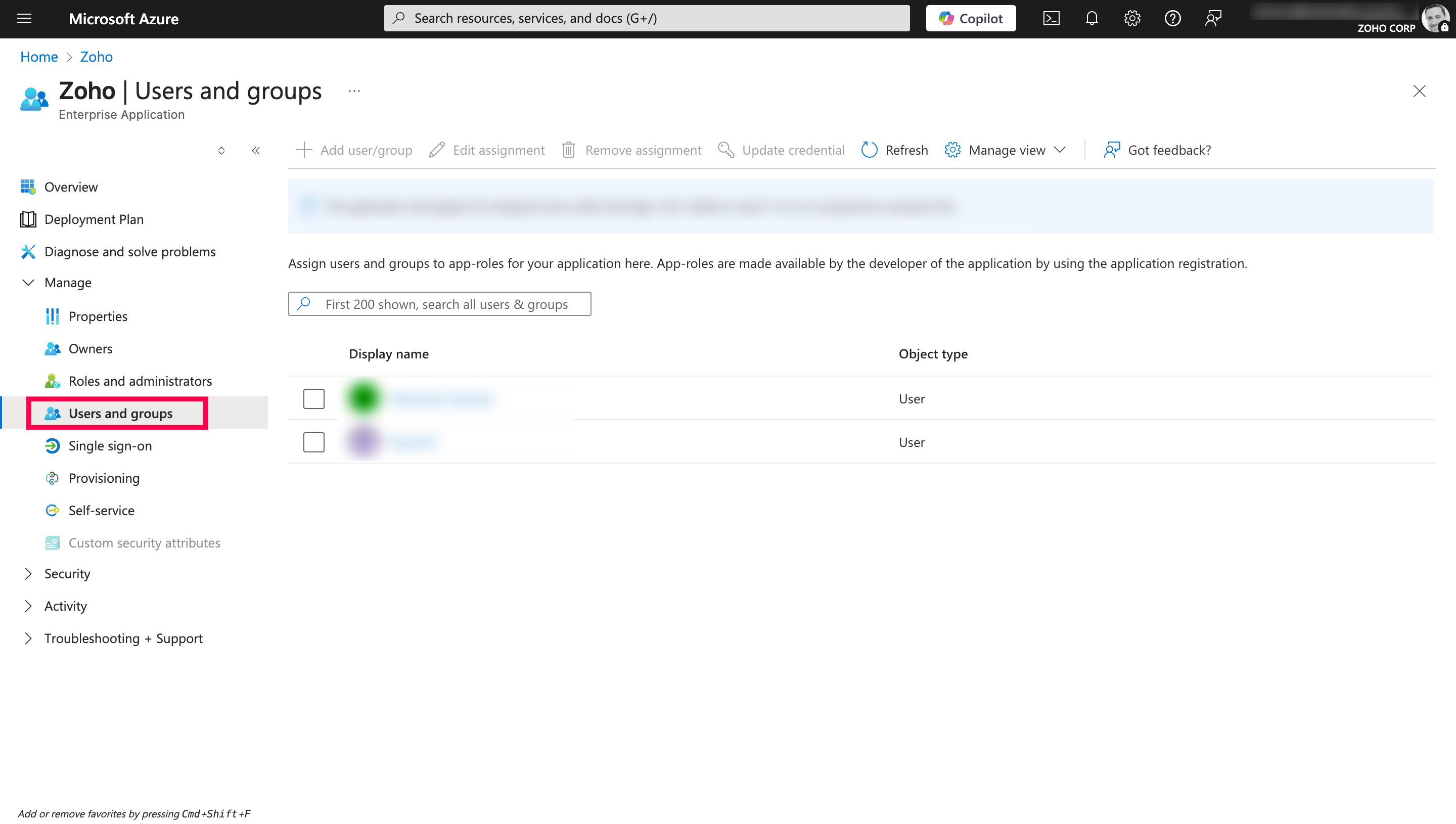

  3. Under Manage, select Users and groups
  4. Click Assign

Accessing Zoho Vault

Users can log in to Zoho Vault using one of the following options:
  • Entering their email on Zoho Vault's login page, which will redirect them to Azure's authentication page.
  • Accessing Zoho Vault application from their Azure console.
  • Using the login URL copied from step 6 of Configuring Azure AD Single Sign-on, mentioned above.
