Installation

1. Go to Zoho Cliq Marketplace and search for and install "Figma", or click the following link.

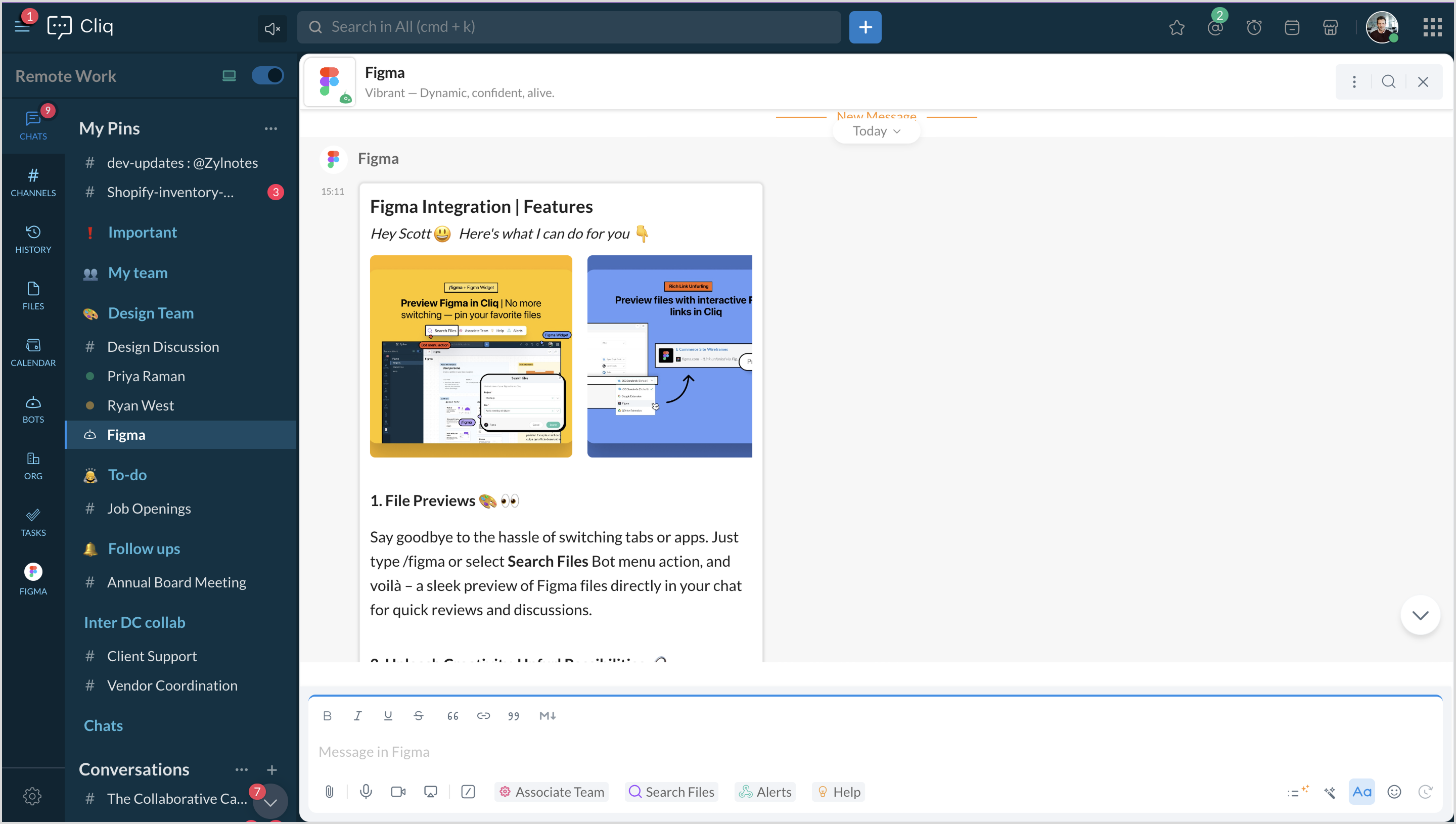

2. After successful installation, you will receive a bot message with instructions to configure the team's files and projects you want to view.

 Bot

1. In the bot message, select Connect your Team button.

2. A configure Figma team pop-up will appear where you will have to enter the Team ID and you will be able to view the project files associated to that team.

Note:

To get your team ID, do the following:

• Navigate to the team page you are a part of. The team ID will be in provided after the "/team/" in the url.

• Eg .https://www.figma.com/files/XXXXXXXXXXX/team/81002361234911901531.

Bot actions

There are three bot actions available :

1. Search files

2. Associate team

3. Help

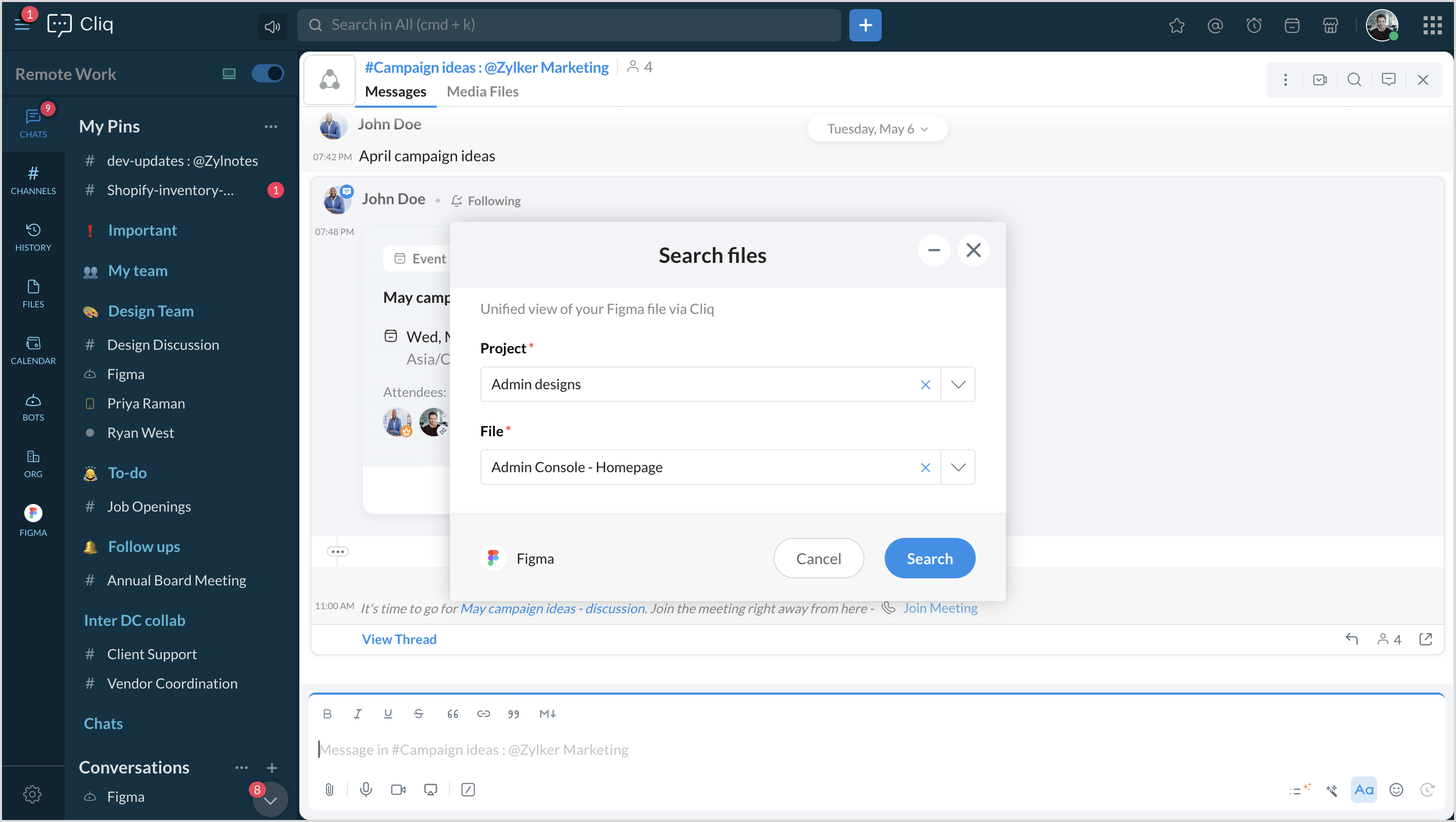

Search files

• Here you can select a file from any project.

• Once you select Search, a bot message of the file will be posted where you can select File Preview and view the file inside Cliq.


Associate team

• If you want to view the files and project of a different team, you can select Associate team.

• A Configure Figma Team pop-up will appear where you will have to enter the Team ID and you will be able to view the project files associated with that team.


Help

• Here you will find a message with six points posted in the bot on what the integration offers.


Widget

Projects

• Here all the Figma projects and files associated to the team you have configured will be listed.


• Under each project, you will have two options to select from: Open and View Files.

• When you select "Open" it will navigate to the Figma website.

• When you select "View Files", all the files of the project will be displayed inside Cliq.



• Under each file, you will have two options to select from: View File and View Comments.


• When you select "View File", you will be able to view the Figma file inside Cliq.


• On selecting "View Comments", you will be able to view all the comments made in the file will be listed.


Help

• Here you will be able to see what the integration offers.


 Slash command

• You can use the slash command "/figma" in your message composer and a search pop-up will be displayed.

• Here you can select a file from any project.


• Once you select Search, a bot message of the file will be posted where you can select File Preview and view the file inside the chat with a file preview option available.


 Message actions

• You can convert a message into a comment using the message actions.

• Hover over the message and select More. Search for "Figma" and select the Post Comment to File option.


• An Add comment to File pop-up will appear where you ll have to select the project and file you want to add the comment to.


Note: To view an unfurled figma link sent in a conversation, refer the following doc to know how.
