Functions

Functions

This guide helps you with the following:
  1. Create Functions
    1. Normal Functions
    2. REST API Functions
  2. Invoke Functions
  3. Edit Functions
  4. Delete Functions
  5. Rest API Functions
    1. Authentication
    2. Version 2.0
    3. Version 1.0
    4. Example

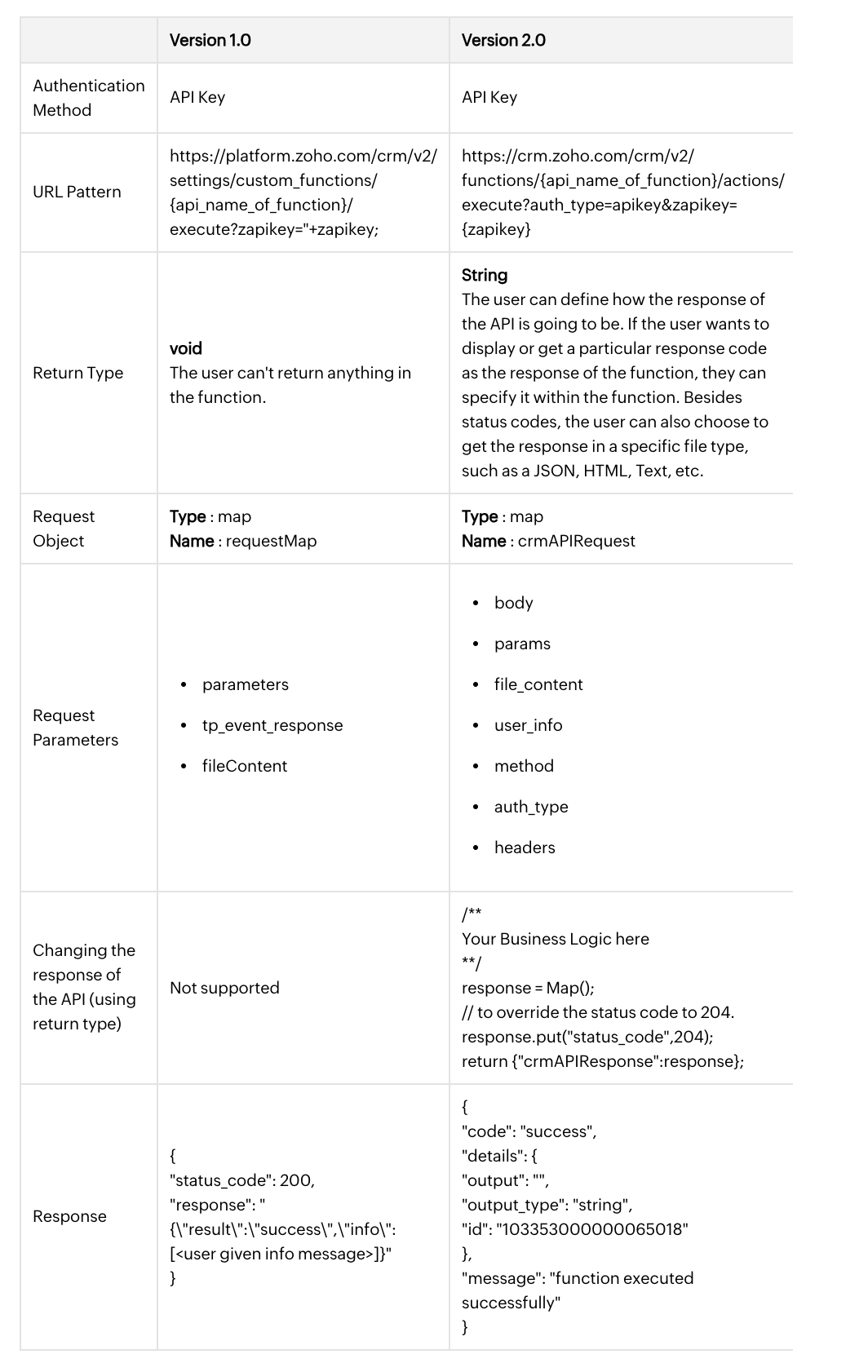

    5. Comparison of Version 2.0 and 1.0
    6. Invoke REST API functions from widgets

Functions are the user-defined type of routines that performs a specific set of operations whenever called. They are defined in Zoho Developer as stand-alone functions written in Deluge Scripts and are module independent. So, these functions can be called inside any of the workflows to achieve the specified functionality.

Return Type and Arguments

  1. Single or multiple arguments of supported data types can be passed as parameters to the functions.
  2. Functions can return values with one of the supported data types.
  3. The supported data types are Integer,Float,String,Boolean,Date,Map and List.

Types of Functions

Functions in Zoho Developer are categorised as Normal functions and REST API functions.

Create Functions

Normal Functions

These are the functions invoked in other workflow custom functions, custom buttons, Related lists and schedules.

To create a function,
  1. Log in to the Zoho Developer Console and click Extensions for Zoho CRM.
  2. Select the extension you want to create a function for, and click Edit.
  3. Click Automate in the left pane, then click Functions.
  4. Click Create Function in Functions page.
  5. In the Create Function page, fill in the following details,
    1. Name of the function
    2. Invoke as REST API - "No" for normal functions and "Yes" for REST API functions.
    3. Select the return type of the function
    4. Click Add Arguments if any,and specify the arg name and type
  6. Click Save.
A sample code snippet in Deluge Script for a normal function is given below,
  1. string pluginname.Copy_Address(string module, int id)
  2. {
  3. m = { "module" : input.module, "id" : input.id };
  4. resp = zoho.crm.invokeConnector(("crm.get"), m);
  5. response = (resp.get("response")).toMap();
  6. data = response.get("data").toJSONList();
  7. respstr = "";
  8. for each rec in data
  9. {
  10. dataMap = rec.toMap();
  11. idd = dataMap.get("id");
  12. street = dataMap.get("Street");
  13. city = dataMap.get("City");
  14. state = dataMap.get("State");
  15. country = dataMap.get("Country");
  16. zip = dataMap.get("Zip_Code");
  17. updateDataMap = map();
  18. updateDataMap.put("installscript.Billing_Street", street);
  19. updateDataMap.put("installscript.Billing_City", city);
  20. updateDataMap.put("installscript.Billing_State", state);
  21. updateDataMap.put("installscript.Billing_ZipCode", zip);
  22. updateDataMap.put("installscript.Billing_Country", country);
  23. updateDataMap.put("id", idd);
  24. l = List();
  25. l.add(updateDataMap);
  26. updMap = { "module" : input.module, "data" : l };
  27. updateResp = zoho.crm.invokeConnector("crm.update", updMap);
  28. respstr = updateResp+"";
  29. }
  30. return respstr;
  31. }

REST API Functions

The REST API function provides you the flexibility of triggering it from anywhere - within a function in an extension or from a third-party application. Third-party applications can invoke these API functions as webhook URL. More details on REST API Functions can be found here.

Invoke Functions

Stand-alone functions are invoked inside custom functions,custom buttons,related lists and schedules as given below,
  1. resp = <EXTENSIONNAME>.Copy_Address("Leads", <LEADID>);
The "Copy_Address" function generates output API response as,
  1. {"response":"{\"data\":[{\"code\":\"SUCCESS\",\"details\":
  2. {\"Modified_Time\":\"2017-08-29T14:53:08+05:30\",\"Modified_By\":
  3. {\"name\":\"Saranya \",\"id\":\"2641973000000124009\"},
  4. \"Created_Time\":\"2017-08-29T14:28:16+05:30\",
  5. \"id\":\"2641973000000128184\",\"Created_By\":{\"name\":\"Saranya \",
  6. \"id\":\"2641973000000124009\"}},\"message\":\"record
  7. updated\",\"status\":\"success\"}]}","status_code":200}
A Rest API function can be invoked similar to a normal function wherever it is necessary.

Edit Functions

To edit a function
  1. Log in to your Zoho Developer Console and select Extensions for Zoho CRM.
  2. Select the extension your function is associated with, and click Edit.
  3. Click Automate option in the left pane, then click Functions.
  4. Select the required function from the list and click the Edit icon [].
  5. Edit and update the changes as per your requirements.

Delete Functions

To delete a function
  1. Log in to your Zoho Developer Console account and select Extensions for Zoho CRM.
  2. Select the extension associated with the function you wish to delete, and click Delete.
  3. Click Automate option in the left pane and click Functions.
  4. Choose the function that you want to delete, and click the Delete icon.
  1. Calling a standalone function inside another standalone function is not supported.
  2. Writing a function for Install Actions are also not supported.

REST API Functions

The REST API function provides you the flexibility of triggering it from anywhere - within a function in an extension or from a third-party application. Third-party applications can invoke these API functions as webhook URL. There are two versions of the REST API function (explained in detail in later sections).

Authentication

The REST API function uses the API Key authentication method. The value of the ZAPI key to be used can be obtained using one of the following:
  1. Custom Functions
  2. Installation scripts

Using Custom Functions

  1. Publish the extension in which the REST API Function is included and install the extension.
  2. Log in to your application.
  3. Go to Setup > Automation > Actions and select the Functions tab.
  4. Click the Configure Function button.
  5. Click the Write your own link.
  6. In the Deluge Script Editor, paste the following code snippet and click Save & Execute Script.
  1. m = {"nameSpace" : "<portal_name.extension_namespace>"};
  2. apikeyresp = zoho.crm.invokeConnector("crm.zapikey",m);
  3. zapikey = apikeyresp.get("response");
  4. info zapikey;
      7. The ZAPI key will be displayed in the Log messages.

Using Installation Scripts

  1. Log in to your Zoho Developer console and click Extensions for Zoho CRM.
  2. Select the extension in which the REST API Function is included, then click Edit.

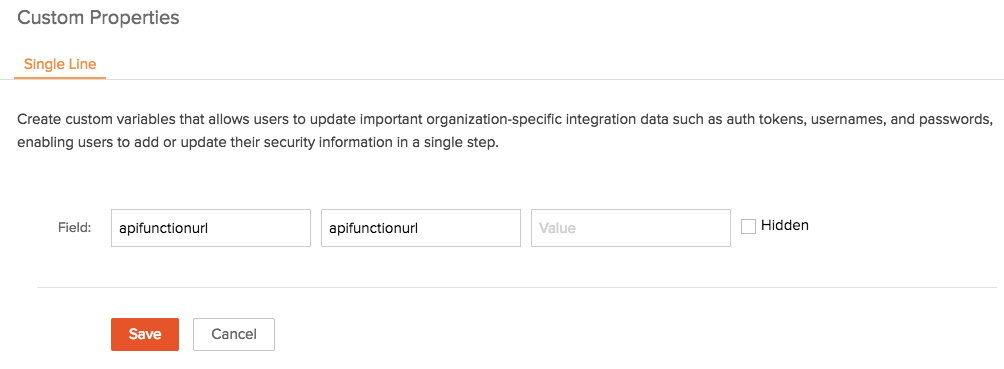

  3. Select Custom Properties in the left pane.
  4. Click the Create button.
  5. Enter a variable name in  Field Name and API Name fields and click Save.
    This variable will be used in the installation script to store the URL of the REST API function (details are explained in the steps below).


      6. Select Install Actions in the left pane.
      7. Click Extension - On Installation.
      8. In the Deluge Script Editor, paste the below code snippet and click Save.
  1. m = { "nameSpace" : "<portal_name.extension_namespace>" };
  2. apikeyresp = zoho.crm.invokeConnector("crm.zapikey", m);
  3. zapikey = apikeyresp.get("response");
  4. url = "https://platform.zoho.com/crm/v2/settings/custom_functions/<extension_namespace.
  5.         function_name>/execute?zapikey=" + zapikey;
  6. m = { "apiname" : "<extension_namespace.variable_name>", "value" : url };
  7. r = zoho.crm.invokeConnector("crm.set", m);
  8. info r;
      9. Publish the extension in which the REST API Function is included and install the extension.
      10. Log in to your application.
      11. Go to  Setup > Marketplace > All > Installed and click the extension name.
      The value of the variable "apifunctionurl" will be displayed under the Extension Settings section of the Extension Details page. This variable will have the ZAPI key value.

Version 2.0
Details of the Version 2.0 of the REST API function are given below:

Request Object

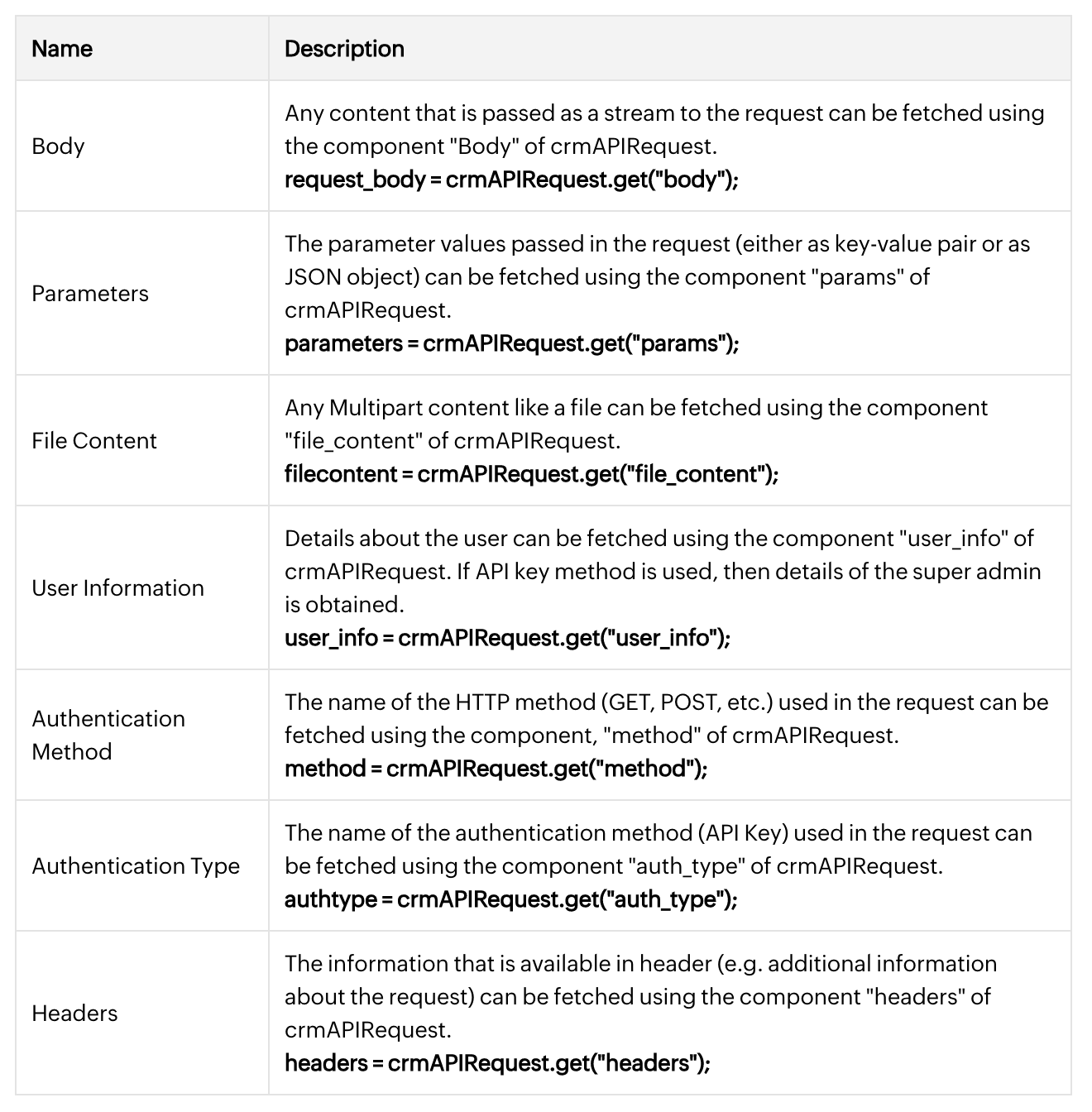

The entire request object of the function is stored in crmAPIRequest. The need to create multiple arguments within the function is eliminated as the crmAPIRequest object dynamically stores the information from the request and makes it available inside the function. The request object will be automatically mapped to the crmAPIRequest argument.

Input Types





The input for the function can be acquired from the following types:


Body

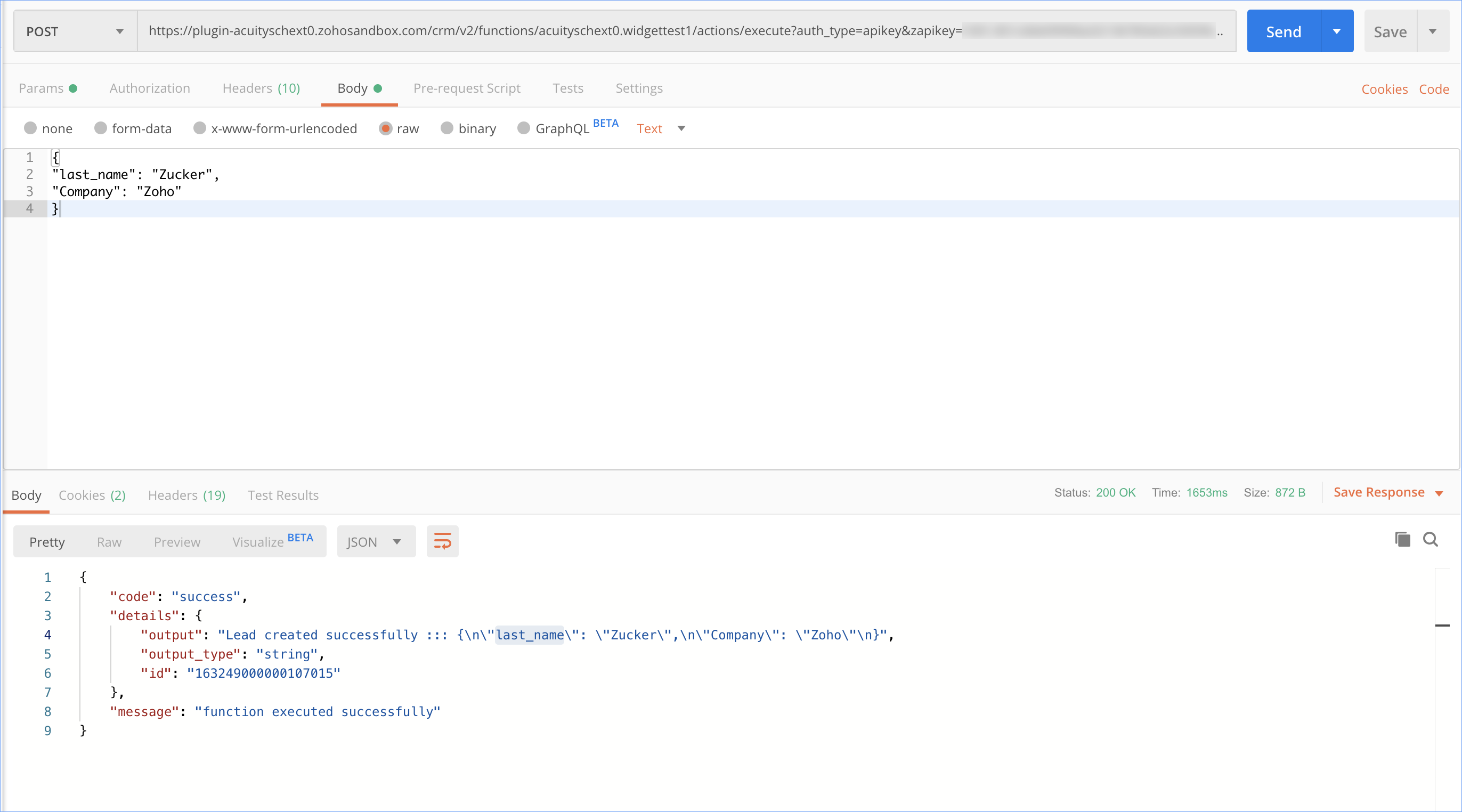

Sending body using POSTMAN as a stream (raw):

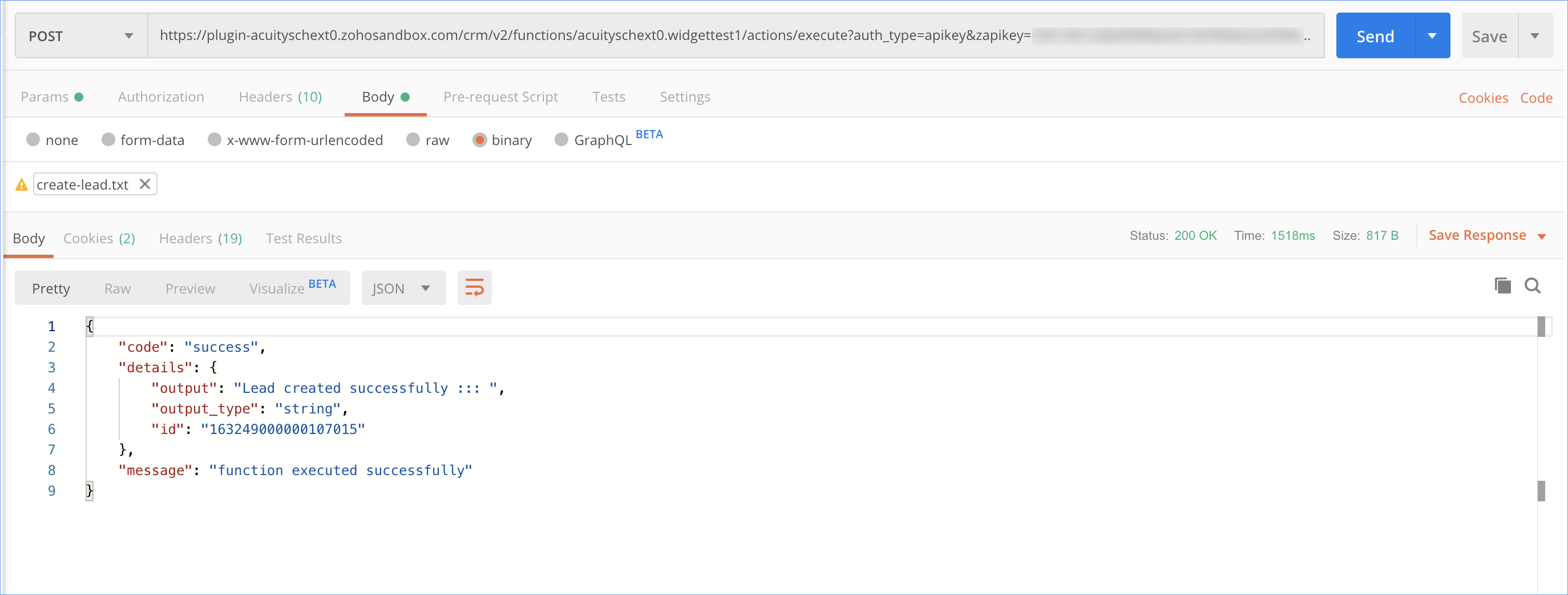

Sending body using POSTMAN as a binary file:


To get the entire body section of the request in a function:
  1. crmAPIRequestMap = crmAPIRequest.toMap();
  2. request_body = crmAPIRequestMap.get("body");
  3. company = request_body.get("Company");
  4. name = request_body.get("last_name");
  5. m = Map();
  6. m.put("Last_Name",name);
  7. m.put("Company",company);
  8. r = zoho.crm.createRecord("Leads",m);
  9. return "Lead created successfully ::: ";
In POSTMAN, the body content can be passed either in the raw or binary.

Parameters

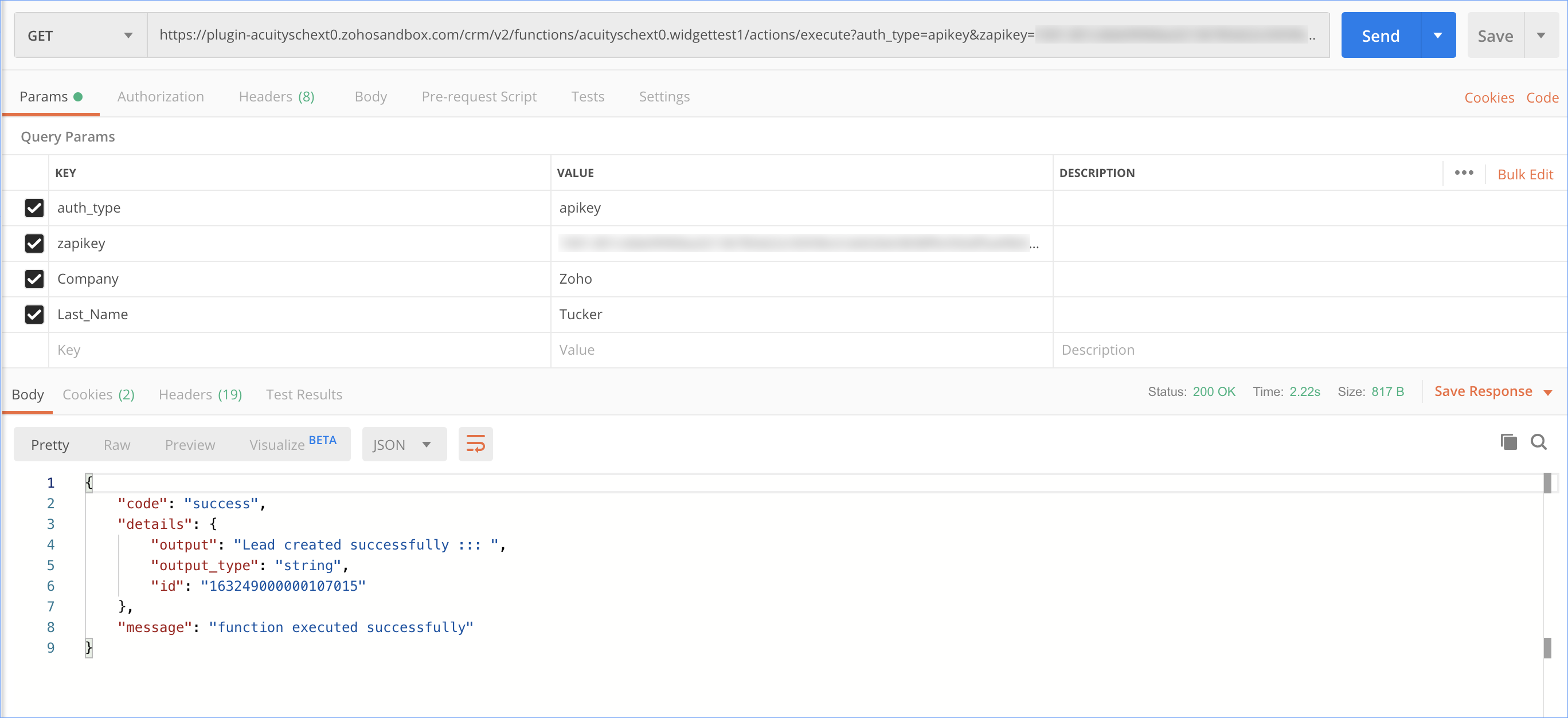

Sending parameters using POSTMAN, within the request URL:

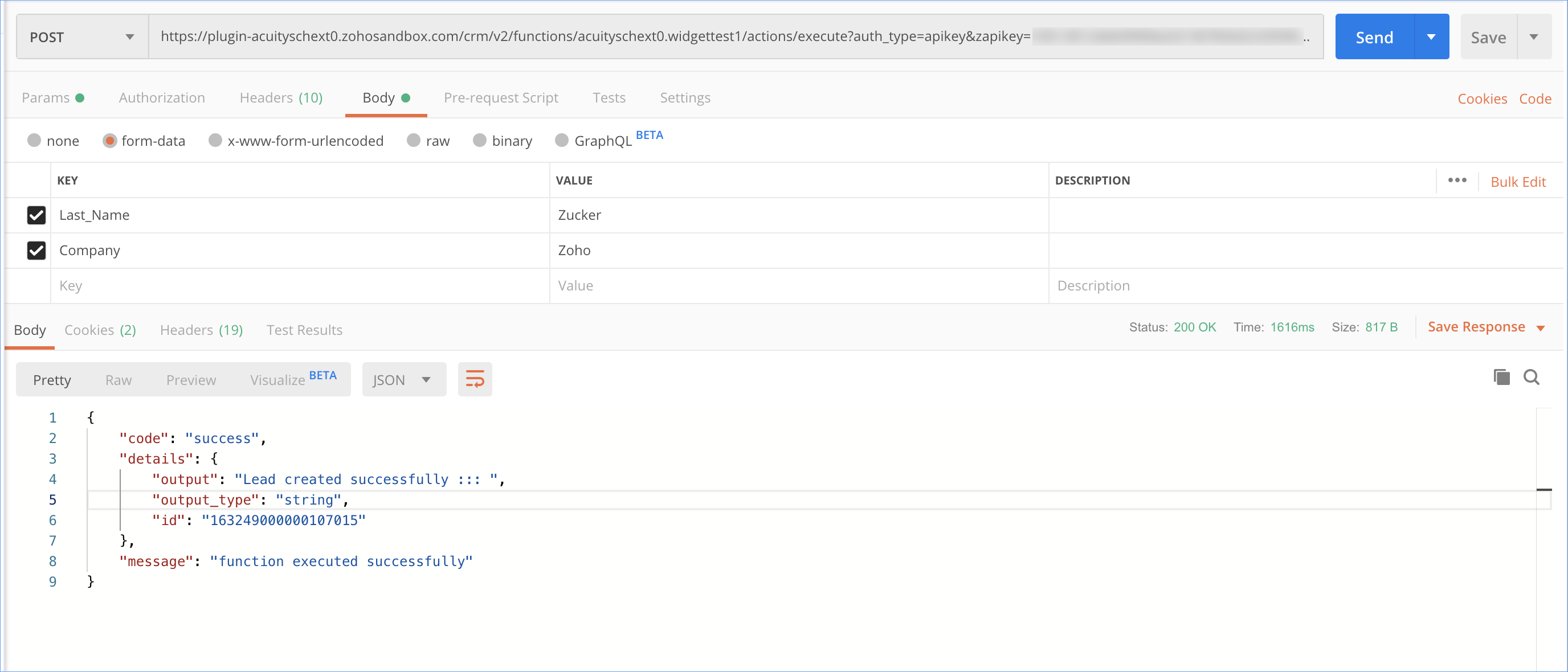

Sending parameters using POSTMAN as KEYS in form-data:


To get the additional parameters used in the request:
  1. crmAPIRequestMap = crmAPIRequest.toMap();
  2. parameters = crmAPIRequestMap.get("params");
  3. company = parameters.get("Company");
  4. name = parameters.get("last_Name");
  5. m = Map();
  6. m.put("Last_Name",name);
  7. m.put("Company",company);
  8. r = zoho.crm.createRecord("Leads",m);
  9. return "Lead created successfully ::: ";

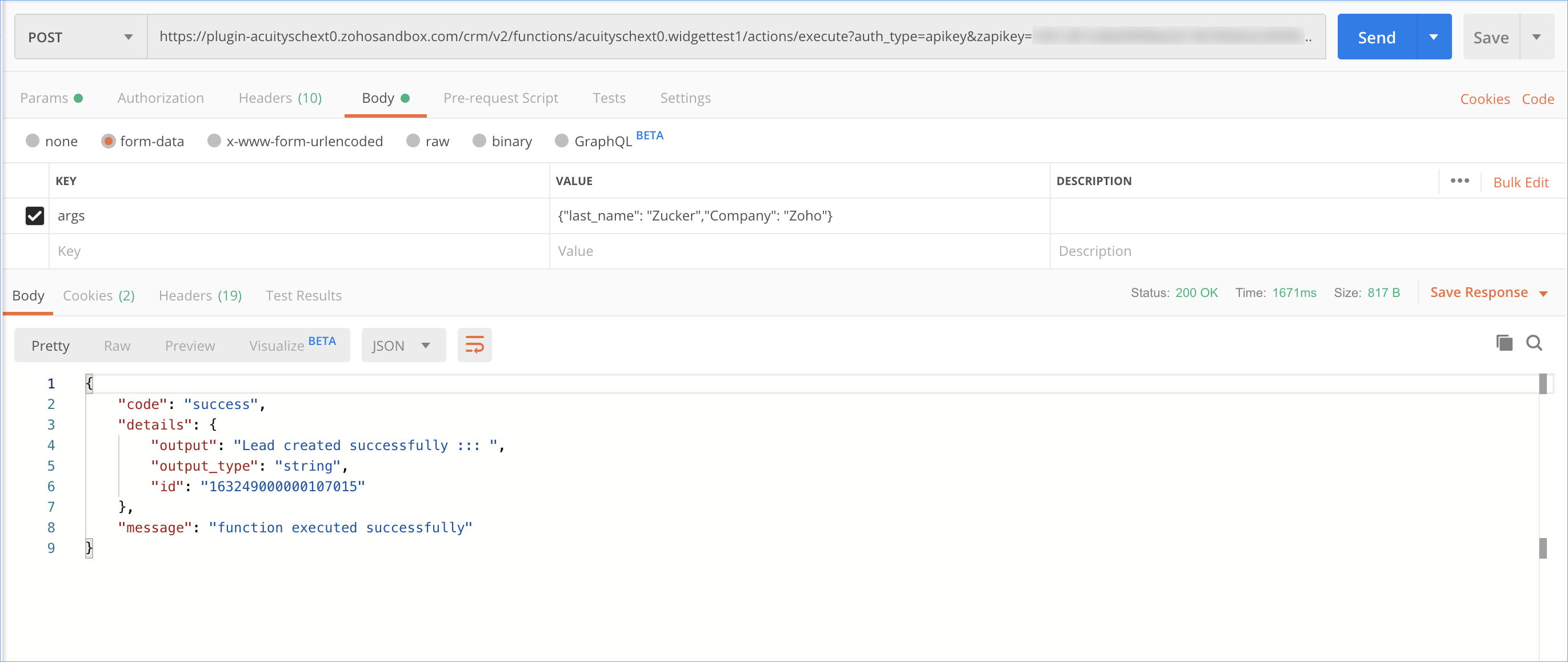

Sending parameters using POSTMAN, as JSON objects in form-data:



To get the additional parameters used in the request:
  1. crmAPIRequestMap = crmAPIRequest.toMap();
  2. parameters = crmAPIRequestMap.get("params");
  3. args = parameters.get("args");
  4. company = args.get("Company");
  5. name = args.get("last_name");
  6. m = Map();
  7. m.put("Last_Name",name);
  8. m.put("Company",company);
  9. r = zoho.crm.createRecord("Leads",m);
  10. return "Lead created successfully ::: ";

File Content

The file types currently supported are the text files. In order to send the file to the function as a multipart data, send it under the argument name "inputFile".

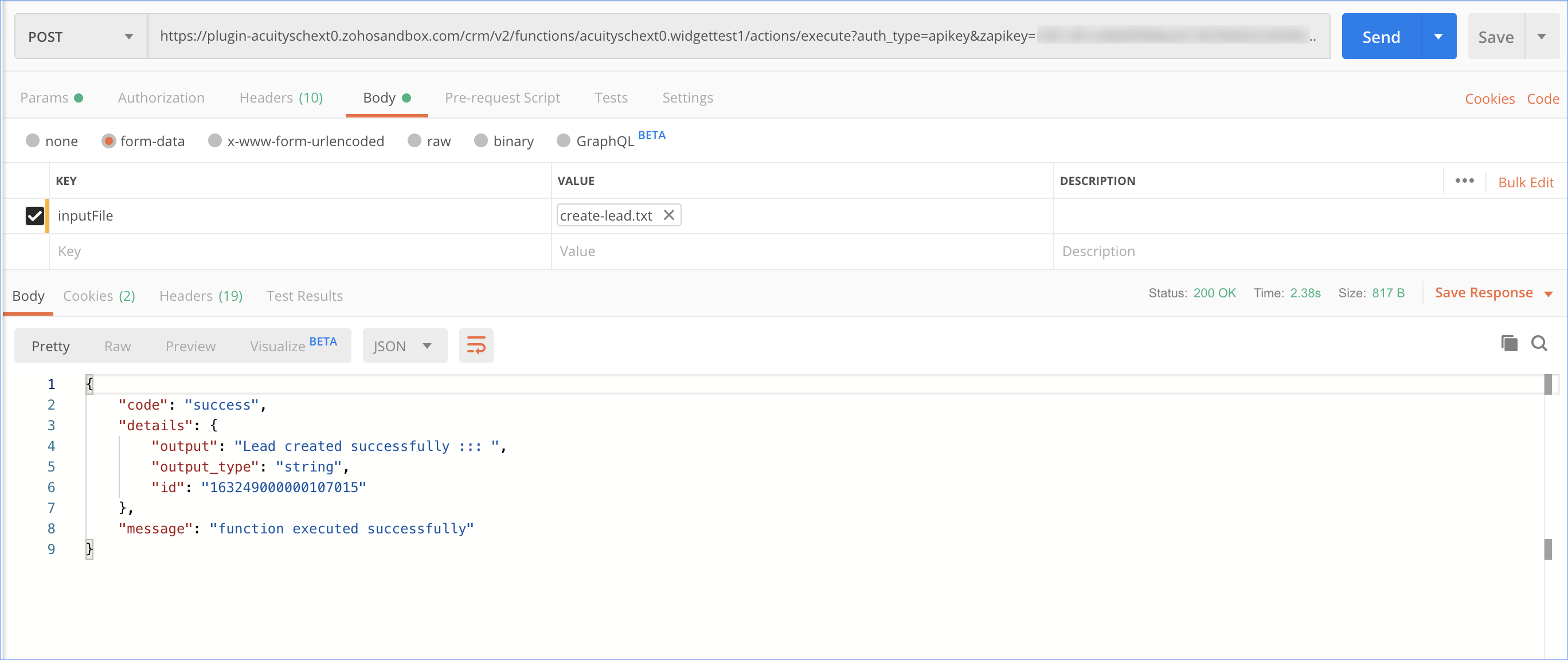

To get the file uploaded to be used in the function:
  1. crmAPIRequestMap = crmAPIRequest.toMap();
  2. parameters = crmAPIRequestMap.get("file_content");
  3. company = parameters.get("Company");
  4. name = parameters.get("last_name");
  5. m = Map();
  6. m.put("Last_Name",name);
  7. m.put("Company",company);
  8. r = zoho.crm.createRecord("Leads",m);
  9. return "Lead created successfully ::: ";

User Information
To get the info about the users:
  1. crmAPIRequestMap = crmAPIRequest.toMap();
  2. // to get the user info of the request
  3. user_info = crmAPIRequestMap.get("user_info");
  4. /**
  5. Your Business Logic here
  6. **/
  7. return crmAPIRequestMap;

Authentication Type and Method

To get the info about the authentication type:
  1. crmAPIRequestMap = crmAPIRequest.toMap();
  2. // to get the HTTP method of the request
  3. user_info = crmAPIRequestMap.get("method");
  4. // to get the authentication type of the request
  5. user_info = crmAPIRequestMap.get("auth_type");
  6. /**
  7. Your Business Logic here
  8. **/
  9. return crmAPIRequestMap;

Headers

To get the headers of the request:
  1. crmAPIRequestMap = crmAPIRequest.toMap();
  2. // to get the user info of the request
  3. header_request = crmAPIRequestMap.get("headers");
  4. /**
  5. Your Business Logic here
  6. **/
  7. return crmAPIRequestMap;

Return Type

The default return type is String in Version 2.0. You can specify the return message as String or you can define response object by using crmAPIResponse(explained below).

Response Object

In the argument crmAPIResponse, you can define the following specifications about the response:

Status Code: Use this key to define the status of the API call (successful or bad request). The default status code is 200.
  1. response = Map();
  2. response.put("status_code",204);
  3. return {"crmAPIResponse":response};

Content-Type: Use this key to define the format in which you want the response. The default value of this key is application/json;charset=utf-8.
  1. response = Map();
  2. response.put("Content-Type","application/text");
  3. return {"crmAPIResponse":response};

Headers: Use this key to define the values in header. The default value of this key is {"Content-Disposition", "attachment;filename=response.json"}.
  1. response = Map();
  2. headers = Map();
  3. headers.put("X-ZOHO-SOURCE","CRM");
  4. headers.put("X-Frame-Options","SAMEORIGIN");
  5. headers.put("X-RATELIMIT-LIMIT","60");
  6. response.put("headers",headers);
  7. return {"crmAPIResponse":response};

Body: Use this key to pass the information that you need to send to the third-party as a response to their request. The default value of body is empty.
  1. response = Map();
  2. body = "{<xml>}"
  3. response.put("body",body);
  4. return {"crmAPIResponse":response};

Version 1.0

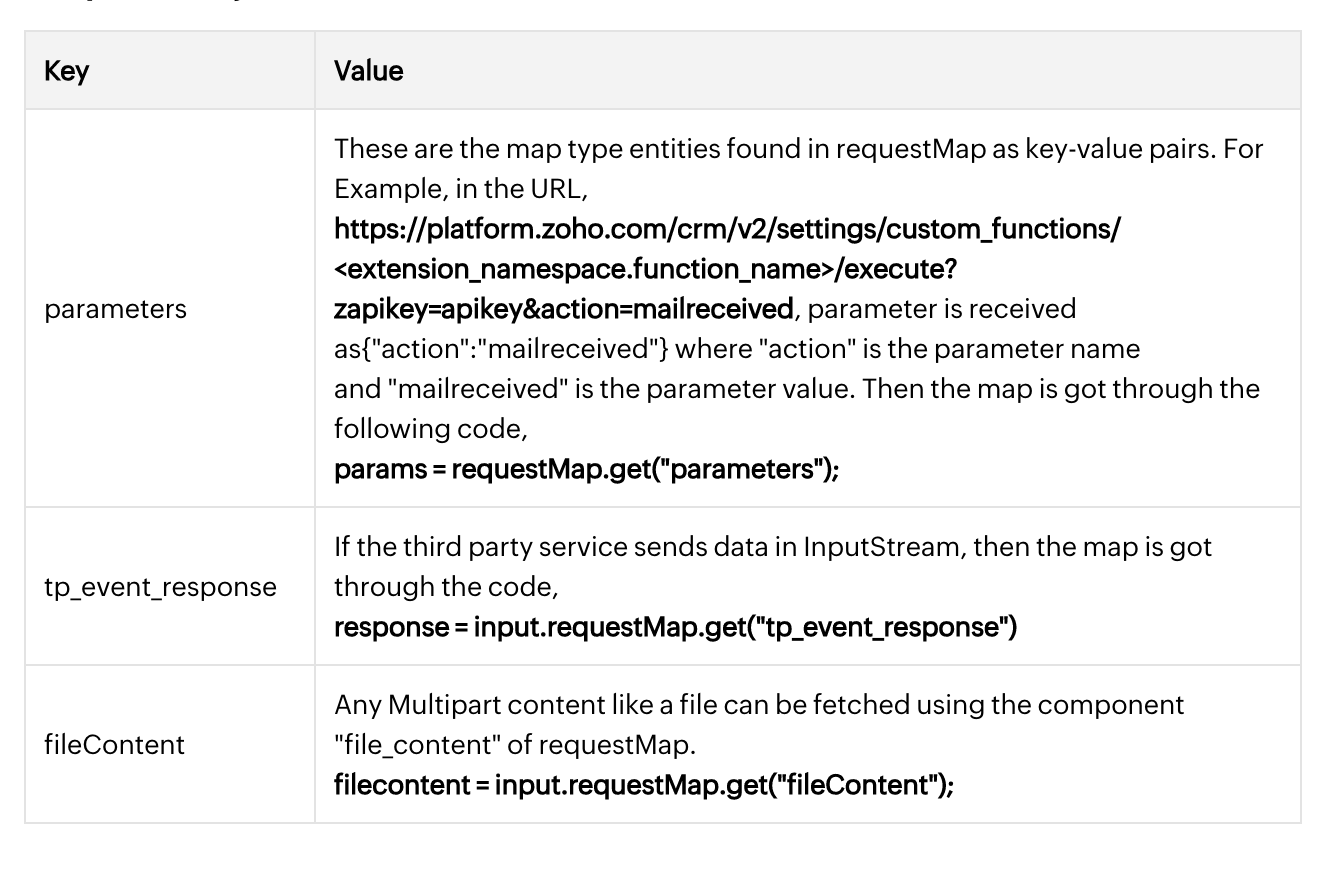

Request Object



Example
The following function code snippet calls the third-party "Twilio" REST API as a webhook and associates it with the application,
  1. //use this for v1.0
  2. twilioResp = (requestMap.get("parameters")).toMap();
  3. //use this for v2.0
  4. twilioResp = (crmAPIRequest.get("params")).toMap();
  5. //below lines are common for both the versions
  6. fromNumber = twilioResp.get("From");
  7. messageContent = twilioResp.get("Body");
  8. LeadRespList = zoho.crm.searchRecords("Leads", "(Mobile:equals:" + fromNumber + ")");
  9. for each LeadResp in LeadRespList
  10. {
  11. LeadId = LeadResp.get("id");
  12. if ((LeadId == null) || (LeadId == ""))
  13. {
  14. LeadId = "";
  15. }
  16. }
  17. ContactRespList = zoho.crm.searchRecords("Contacts", "(Mobile:equals:" + fromNumber + ")");
  18. for each ContactResp in ContactRespList
  19. {
  20. FinalId = ContactResp.get("id");
  21. if ((FinalId == null) || (FinalId == ""))
  22. {
  23. FinalId = "";
  24. }
  25. }
  26. updateMap = { ("twilioext.Incoming_Message_Content") : messageContent, "twilioext.SMS_Texts_Name" : ("Incoming SMS"), "twilioext.Lead" : LeadId, "twilioext.Contact" : FinalId, "twilioext.Direction" : "Inbound" };
  27. m = map();
  28. l = List();
  29. l.add(updateMap);
  30. m.put("module", "twilio.SMS_Texts");
  31. m.put("data", l);
  32. resp = zoho.crm.invokeConnector("crm.create", m);
  33. signalleadResp = zoho.crm.getRecordById("Leads", LeadId.toLong());
  34. Leademail = signalleadResp.get("Email");
  35. if ((Leademail != "") || (Leademail != null))
  36. {
  37. signalMap = map();
  38. signalMap.put("signal_namespace", ("twilioext.incomingsmssignal"));
  39. signalMap.put("email", Leademail);
  40. signalMap.put("subject", ("Incoming SMS"));
  41. signalMap.put("message", messageContent);
  42. actionsList = List();
  43. actionMap = map();
  44. actionMap.put("type", "link");
  45. actionMap.put("display_name", "View Email");
  46. actionMap.put("url", "www.google.com");
  47. actionsList.add(actionMap);
  48. signalMap.put("actions", actionsList);
  49. result = zoho.crm.invokeConnector("raisesignal", signalMap);
  50. info result;
  51. }
  52. signalcontactResp = zoho.crm.getRecordById("Contacts", FinalId.toLong());
  53. Contactemail = signalcontactResp.get("Email");
  54. if ((Contactemail != "") || (Contactemail != null))
  55. {
  56. signalMapx = map();
  57. signalMapx.put("signal_namespace", ("twilioext.incomingsmssignal"));
  58. signalMapx.put("email", Contactemail);
  59. signalMapx.put("subject", ("Incoming SMS"));
  60. signalMapx.put("message", messageContent);
  61. actionsListx = List();
  62. actionMapx = map();
  63. actionMapx.put("type", "link");
  64. actionMapx.put("display_name", "View Email");
  65. actionMapx.put("url", "www.google.com");
  66. actionsListx.add(actionMapx);
  67. signalMapx.put("actions", actionsListx);
  68. resultx = zoho.crm.invokeConnector("raisesignal", signalMapx);
  69. info resultx;
  70. }

Comparison of Version 1.0 and 2.0


Invoke REST API functions from widgets

You can invoke a REST API function from a  widget using the ZOHO.CRM.FUNCTIONS.execute() function. Using this function, you can pass user input values to the REST API function.

The API name of the function can be obtained from the Sandbox URL or Production URL (see below) that can be viewed by clicking  Invoke as REST API in the function's deluge script editor.

https://platform.zoho.com/crm/v2/functions/function_apiname/actions/execute?auth_type=apikey&zapikey=<zapikey>

  1. var func_name = "<function_apiname>";

  3. //obtain user inputs
  4. var lastName = $("#last-name").val();
  5. var company = $("#company").val();

  7. var req_data ={
  8. "arguments": JSON.stringify({
  9. "Last_Name" : lastName,
  10. "Company" : company
  11. })
  12. };
  13. ZOHO.CRM.FUNCTIONS.execute(func_name, req_data)
  14. .then(function(data){
  15.         console.log("REST API function invoked from widget."+data);
  16. })
Given below is the code snippet for the REST API function. Here, the user inputs from the widget is obtained through the params argument.
  1. // to get the parameters of the request
  2. params = crmAPIRequest.get("params");
  3. // to fetch the parameters from the arguments key
  4. args = params.get("arguments");
  5. /**
  6. Your Business Logic here
  7. **/
  8. return <function_response>;

    Zoho CRM Training Programs

    Learn how to use the best tools for sales force automation and better customer engagement from Zoho's implementation specialists.

    Zoho CRM Training
      Redefine the way you work
      with Zoho Workplace
      Start your free trial

        Zoho DataPrep Personalized Demo

        If you'd like a personalized walk-through of our data preparation tool, please request a demo and we'll be happy to show you how to get the best out of Zoho DataPrep.

        Zoho CRM Training

          Create, share, and deliver

          beautiful slides from anywhere.

          Get Started Now


            Zoho Sign now offers specialized one-on-one training for both administrators and developers.

            BOOK A SESSION








                              Zoho Pagesense Resources


                                    You are currently viewing the help pages of Qntrl’s earlier version. Click here to view our latest version—Qntrl 3.0's help articles.


                                      Zoho Survey Resources
                                        Features
                                        Survey Templates
                                        Integrations
                                        Community
                                        iOS Mobile Surveys
                                        Pricing
                                        Android Mobile Surveys
                                        Insurvey Blogs
                                        Insight Blogs
                                        Tips & Tricks


                                        Manage your brands on social media
                                        Access Zoho Social


                                          Zoho Desk Resources

                                          • Desk Community Learning Series


                                          • Digest


                                          • Functions


                                          • Meetups


                                          • Kbase


                                          • Resources


                                          • Glossary


                                          • Desk Marketplace


                                          • MVP Corner


                                          • Word of the Day


                                            Zoho Marketing Automation

                                              Zoho Sheet Resources



                                                  Zoho Forms Resources


                                                    Features

                                                    Form Templates

                                                    Customers

                                                    Mobile Forms

                                                    Pricing

                                                    Integrations

                                                    Blogs

                                                    Ebooks

                                                    Tips & Tricks

                                                    Community

                                                    Terms of Use

                                                    Secure your business
                                                    communication with Zoho Mail
                                                    Get started


                                                    Mail on the move with
                                                    Zoho Mail mobile application
                                                    Go Mobile

                                                      Stay on top of your schedule
                                                      at all times
                                                      Get started


                                                      Carry your calendar with you
                                                      Anytime, anywhere
                                                      Get started


                                                        Latest Announcements


                                                            Zoho Sign Resources

                                                              What's new
                                                              Help Guide
                                                              Solutions Guide
                                                              API
                                                              Blogs
                                                              FAQ's
                                                              Legal Guide
                                                              Forums
                                                              Webinars

                                                              Sign, Paperless!

                                                              Sign and send business documents on the go!

                                                              Get Started Now


                                                                  Zoho SalesIQ Resources


                                                                      Zoho TeamInbox Resources



                                                                            Latest Feature Updates

                                                                              Zoho DataPrep Resources



                                                                                Zoho DataPrep Demo

                                                                                Get a personalized demo or POC

                                                                                REGISTER NOW


                                                                                  Design. Discuss. Deliver.

                                                                                  Create visually engaging stories with Zoho Show.

                                                                                  Get Started Now






                                                                                            Latest Feature Updates



                                                                                                    Setup Zoho Bigin in 30 Minitues
                                                                                                    Latest Feature Updates

                                                                                                      • Related Articles

                                                                                                      • Custom Functions

                                                                                                        The guide will help you with the following: Create Custom Functions Program Custom Functions  Test Custom Functions  Associate with Workflow Rules  Manage Custom Functions  Custom functions help in automation where procedural logic is required, which ...

                                                                                                      • Logical Functions

                                                                                                        The guide helps you with the following: 1. Difference between isBlank(), isNull() and isEmpty() functions 2. Equals 3. isBlank 4. isEmpty 5. isNull 6. isValidObject Difference between isBlank(), isNull() and isEmpty() functions The table below lists ...

                                                                                                      • Custom Functions

                                                                                                        Custom functions are user built functions that help them to add new features to Zoho CRM as per their requirement. These are written in deluge script and are easy to construct. The syntax and logic are simple to formulate and aid in the continuous ...

                                                                                                      • Client Functions

                                                                                                        This guide will help you with the following: 1. Hide | Show 2. Enable | Disable 3. Add | Append 4. Select | Deselect 5. SelectAll | DeselectAll 6. Clear items 7. Alert  8. Reload 1. Hide | Show Overview The hide deluge task hides a specified field on ...

                                                                                                      • Built-in Functions

                                                                                                        This guide will help you with the following: String functions  Numeric Functions  Boolean string functions  Date Functions  Time functions  List Functions  Map Functions  XML Functions  URL Functions  Form Data Functions   A function is a set of ...
                                                                                                        Bootcamp
                                                                                                        Community
                                                                                                        Pricing
                                                                                                        Webinars
                                                                                                        What's New
                                                                                                        Integrations
                                                                                                        Contact Support
                                                                                                        Contact Sales
                                                                                                        Wherever you are is as good as
                                                                                                        your workplace
                                                                                                        Workplace on mobile

                                                                                                          Resources

                                                                                                          Videos

                                                                                                          Watch comprehensive videos on features and other important topics that will help you master Zoho CRM.



                                                                                                          eBooks

                                                                                                          Download free eBooks and access a range of topics to get deeper insight on successfully using Zoho CRM.



                                                                                                          Webinars

                                                                                                          Sign up for our webinars and learn the Zoho CRM basics, from customization to sales force automation and more.



                                                                                                          CRM Tips

                                                                                                          Make the most of Zoho CRM with these useful tips.



                                                                                                            Zoho Show Resources
