E-Sign : Implementation Guide

E-Sign lets your subscribers send documents for electronic signing using a designated Send for E-Sign button, which can be placed on any page you decide.This feature is provided by integrating with Zoho Sign using various developer tools offered by Zoho Vertical Solutions. We'll walk you through the entire process, outlining each step in detail.

In this document we will provide a detailed step-by-step guide for implementing E-Sign for your solutions. For a deeper understanding of the functionalities of E-Sign, please refer to this document.

Step 1 : Create the custom modules for the E-Sign implementation

Custom modules are required for storing and managing data related to the document signing process within your solution. By creating custom modules specifically tailored for E-Sign functionality, you can ensure efficient organization and retrieval of relevant information.

The Sign Documents, Sign Recipients, and Sign Document Events modules are used for storing information regarding the documents to be signed, recipients involved in the signing process, and events related to document signing activities, respectively. Begin the implementation step by creating these custom modules, with the relevant custom fields in each. Refer to our help documentation for detailed guidance on how to create custom modules.

a. Sign Documents

The Sign Documents module is used for storing details about the documents to be signed, including document names, descriptions, statuses, and deadlines. Refer to the table below for a breakdown of the module's fields.

Please note that you need to add lookup fields to all the modules where you need the E-Sign functionality.

Sl. No:	Field Label	Data Type	Remarks
01	Sign Documents Image	profileimage	Standard
02	Sign Documents Name	text	Standard
03	Sign Documents Owner	ownerlookup	Standard
04	Created By	ownerlookup	Standard
05	Modified By	ownerlookup	Standard
06	Contacts	lookup Lookup Module : Contacts Related List Title : ZohoSign Documents	Custom
07	Created Time	datetime	Standard
08	Last Activity Time	datetime	Standard
09	Quotes	lookup Lookup Module : Quotes Related List Title : Sign Documents	Custom
10	Tag	Text	Standard
11	Date Declined	Date	Custom
12	Date Sent	Date	Custom
13	Declined Reason	Textarea	Custom
14	Document Deadline	Date	Custom
15	Document Status	Text	Custom
16	Document Description	Textarea	Custom
17	Document Note	Textarea	Custom
18	Sign Document_ID	Text	Custom
19	Sign Request_ID	Text	Custom
20	Is Sign Reminder Sent	Boolean	Custom
21	Number of Sign Reminder Sent	Text	Custom
22	Modified Time	Datetime	Standard
23	Unsubscribed Time	Datetime	Standard

b. Sign Recipients

The Sign Recipients module stores information about the recipients involved in the signing process, such as their names, email addresses, and signing statuses. Refer to the table below for details on the module's fields.

Sl No:	Field Label	Data Type	Remarks
01	Sign Recipients Image	profileimage	Standard
02	Sign Recipients Name	text	Standard
03	Email	email	Custom
04	Date Completed	date	Custom
05	Recipient Status	picklist Picklist Values None, Sent, Signed, Declined, Mailed	Custom
06	Date Declined	date	Custom
07	Recipient Type	picklist Picklist Values SIGN, VIED, INPERSON SIGN	Custom
08	Sign Recipients Owner	ownerlookup	Standard
09	Date Delivered	date	Custom
10	Modified By	ownerlookup	Standard
11	Modified Time	datetime	Standard
12	Created Time	datetime	Standard
13	Declined Reason	text	Custom
14	Last Activity Time	datetime	Standard
15	Sign Document	lookup Lookup Module : ZohoSign_Documents Related List Title : Sign Recipients	Custom
16	Tag	text	Standard
17	Created By	ownerlookup	Standard
18	Unsubscribed Time	datetime	Standard
19	Sign Docuement_ID	text	Custom
20	Recipient Order	text	Custom

b. Sign Document Events

The Sign Document Events module stores events related to document signing activities, providing a track of actions performed throughout the signing process. Refer to the table below for details on the module's fields.

Sl No:	Field Label	Data Type	Remarks
01	Sign Document Events Image	profileimage	Standard
02	Sign Document Events Name	text	Standard
03	Sign Document Events Owner	ownerlookup	Standard
04	Sign Documents	date	Custom
05	Recipient Status	lookup Lookup Module : ZohoSign_Documents Related List Title : Sign Document Events	Custom
06	Modified By	ownerlookup	Standard
07	Sign Recipients	lookup Lookup Module : ZohoSign_Recipients Related List Title : Sign Document Events	Custom
08	Created Time	datetime	Standard
09	Last Activity Time	datetime	Standard
10	Date	date	Custom
11	Tag	text	Standard
12	Created By	ownerlookup	Standard
13	Modified Time	datetime	Standard
14	Unsubscribed Time	datetime	Standard
15	Description	text	Custom

Step 2: Create and establish the Connector

Connectors facilitate the integration process between solutions built on the Vertical Solution platform and third-party applications via the OAuth 2.0 protocol.

For ease of understanding, we will outline the connector configuration specific to Vertical Sign product. Henceforth, we will stick to the term Vertical Sign for the rest of the document.

By creating and establishing a connector for Vertical Sign or Zoho Sign, you enable your solution to communicate with the Vertical Sign securely. The connector facilitates authentication and authorization processes, ensuring that data exchanges between your solution and Vertical Sign are encrypted and protected.

2.1. Create the Connector

To enable Vertical Sign integration, follow these steps for creating a connector:

Log in to the Zoho Developer Console and navigate to Vertical Solutions.
Choose the application you wish to modify and select Edit.
Access Connectors under Utilities.
Click on Create Connector.
Specify an appropriate name and description for the connector.
Name the third-party service. For example, "ESign."
Provide the signup URL for the third-party service.
Input the necessary URLs for generating the Auth token. In the URLs given below, Replace {{portal-id}} with your portal ID. To get your Portal ID, Go to Set Up > Developer Space > APIs and click on the ? > API Console. The API console URL has the Portal ID in the format https://{{your_solution_name}}.zohoplatform.com/accounts/console/user/{{portal_id}}

Choose whether to revoke authorization using the Access token or the refresh token.
Click Save.

Upon successful creation, you will see a window displaying the redirect URL for the client. Here, you need to input the client credentials for Vertical Sign.

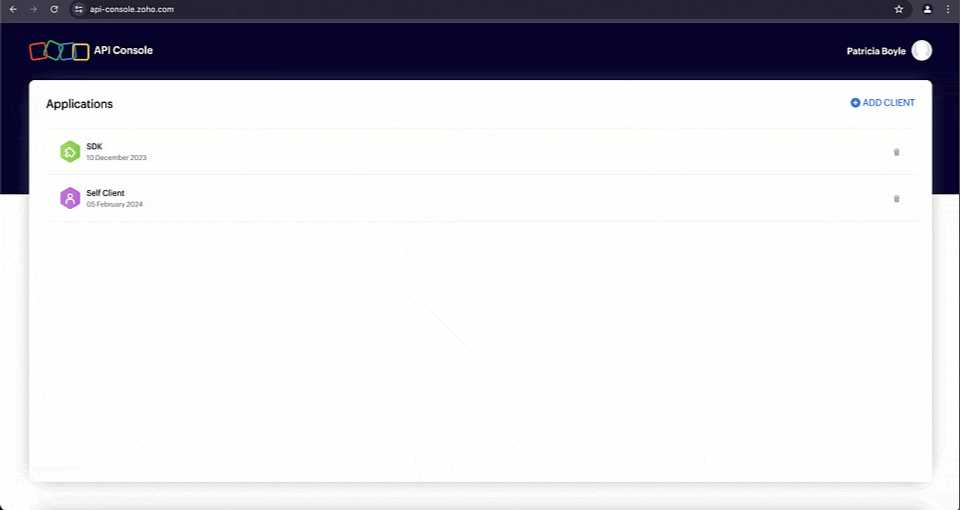

2.2. Create a Server-Based Client

In this step, you should create a server-based client in your API console, and use the redirect URL provided in the previous step and the redirect URI for the client.

Click the API Console button located in the top right corner.
To create a new server-based client, click +ADD CLIENT > Server Based Applications. Enter the following details:

Client name: Provide a client name for identification purposes.
Homepage URL.
Authorized Redirect URIs: Use the redirect URI obtained from the previous step after connector creation.

Click CREATE.

Upon successful client creation, you will receive the client ID and client secret. Copy these credentials and input them into the client details window obtained in the previous step.

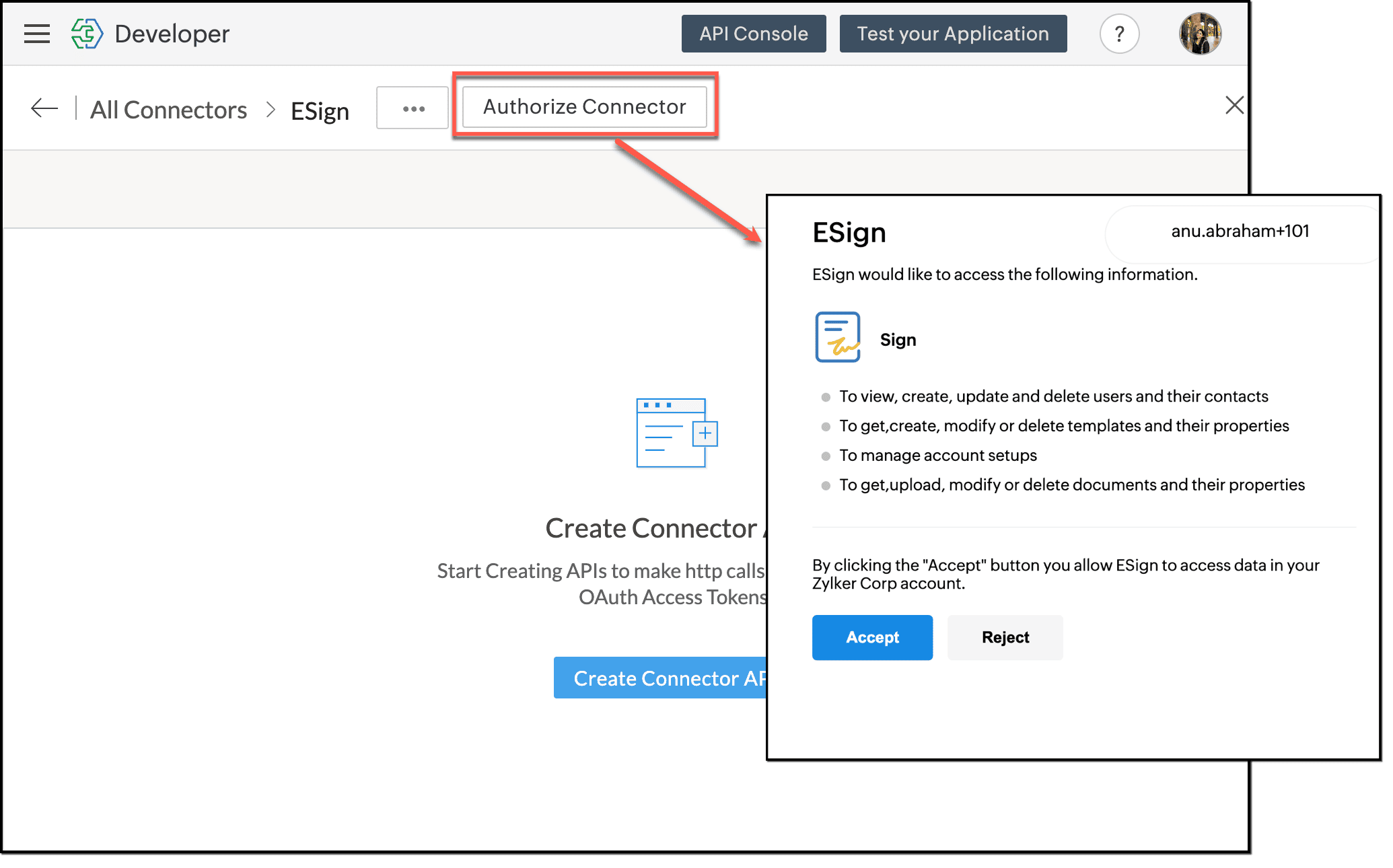

2.3. Authorise the Connector

Once you have created the connector, it will need to be authorized. By authorizing the connector, you grant it permission to perform specific actions and access data within the specified scope

To authorize your connector,

In the Connectors page of your Zoho developer, click the Authorize link next to the connector you are working on.
If you are not already logged in, you will be prompted to do so. Login with user credentials.
Once you are logged in, the authorization window will display the access permissions for the connector.
Click Allow.

Your connector will now be authorized.

2.3 Add APIs

After creating your connector, specify the actions it can execute by adding an API for each action. For the Vertical Sign feature, we will utilize Zoho Sign APIs to perform tasks such as adding a document, sending a document for ESign, or sending a reminder. These APIs are to be invoked by the widgets using the JS SDK methods of Zoho CRM, or any other methods that fit your development environment.

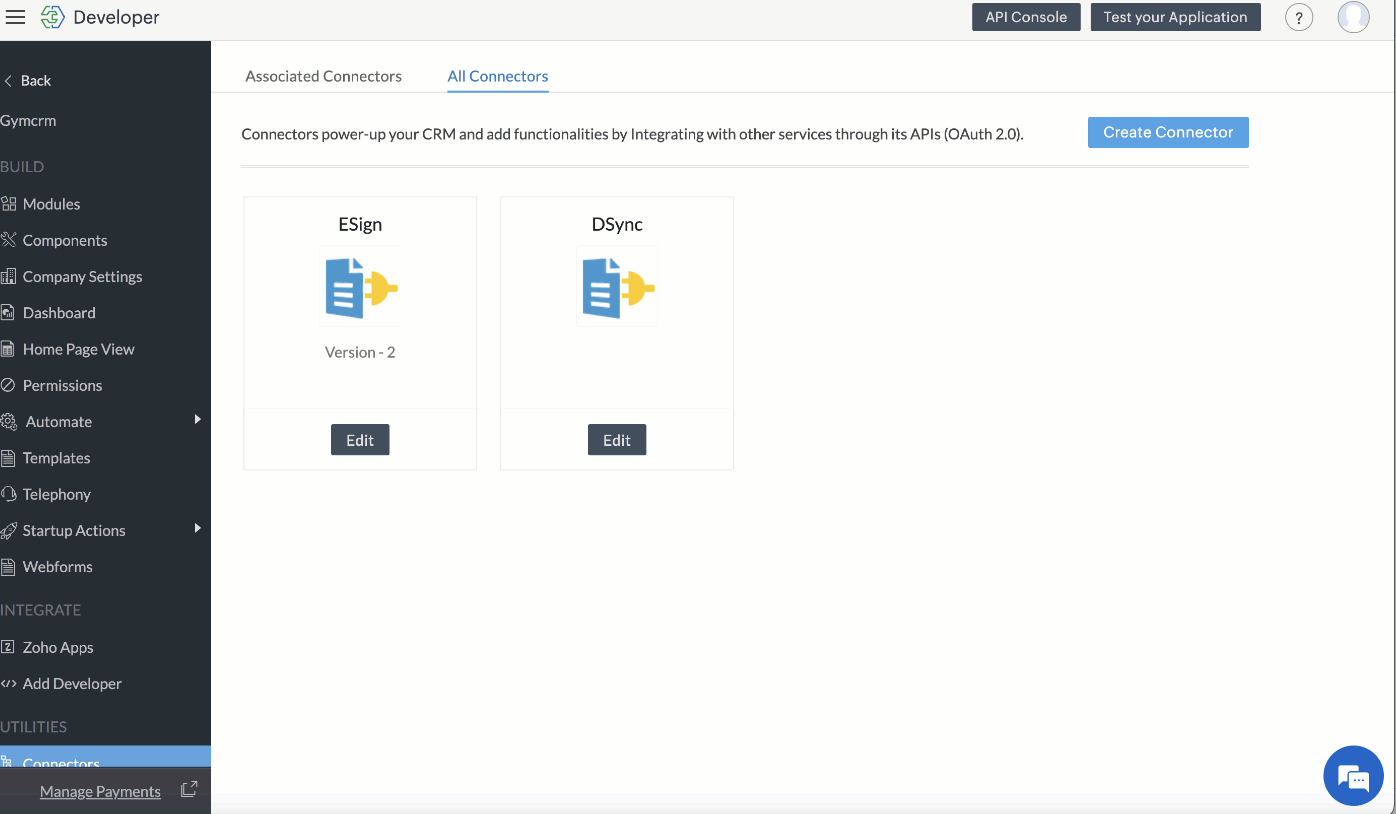

To add the APIs,

Navigate to Connectors under Utilities.
Click Edit on the connector created for the Vertical Sign implementation.
Click on Create Connector API.
For each API, provide the following details:

Name of the connector API
Method type
API URL
Headers

Click Create.

To add more APIs, repeat steps 4 and 5 by clicking on Create API. The following are the basic APIs you need to add for the Vertical Sign implementation. You may add more APIs to implement your business requirements, from the Zoho Sign APIs.

Note : In the API URL, replace {{solution-name}} with the name of your solution. For example, if the solution URL is https://zylker.zohoplatform.com/, the URL for the gethostusers API would be http://zylker.sign.zohoplatform.com/api/v1/signhosts.

Sl. No	API Name & Purpose	API URI	Method	Headers
1	updatedocument To update an existing document	http://{{solution-name}}.sign.zohoplatform.com/api/v1/requests/${reqId}	PUT	NA
2	createdocument To create a new document	http://{{solution-name}}.sign.zohoplatform.com/api/v1/requests	POST	NA
3	sendsignrequest To send a document to the recipients for signature.	http://{{solution-name}}.sign.zohoplatform.com/api/v1/requests/${reqId}/submit?data=${data}	POST	NA
4	downloaddocument To retrieve the PDF content of a particular file.	http://{{solution-name}}.sign.zohoplatform.com/api/v1/requests/${reqId}/documents/${docId}/pdf	GET	NA
5	getcompcert To get the completion certificate.	http://{{solution-name}}.sign.zohoplatform.com/api/v1/requests/${request_id}/completioncertificate	GET	NA
6	remindrecipient To send a reminder to the recipients.	http://{{solution-name}}.sign.zohoplatform.com/api/v1/requests/${reqId}/${remind}	POST	NA

After adding the required APIs, publish your connector by clicking on the Publish button in the top right corner of the connector window, and take a note of the extension URL you get after publishing the connector.

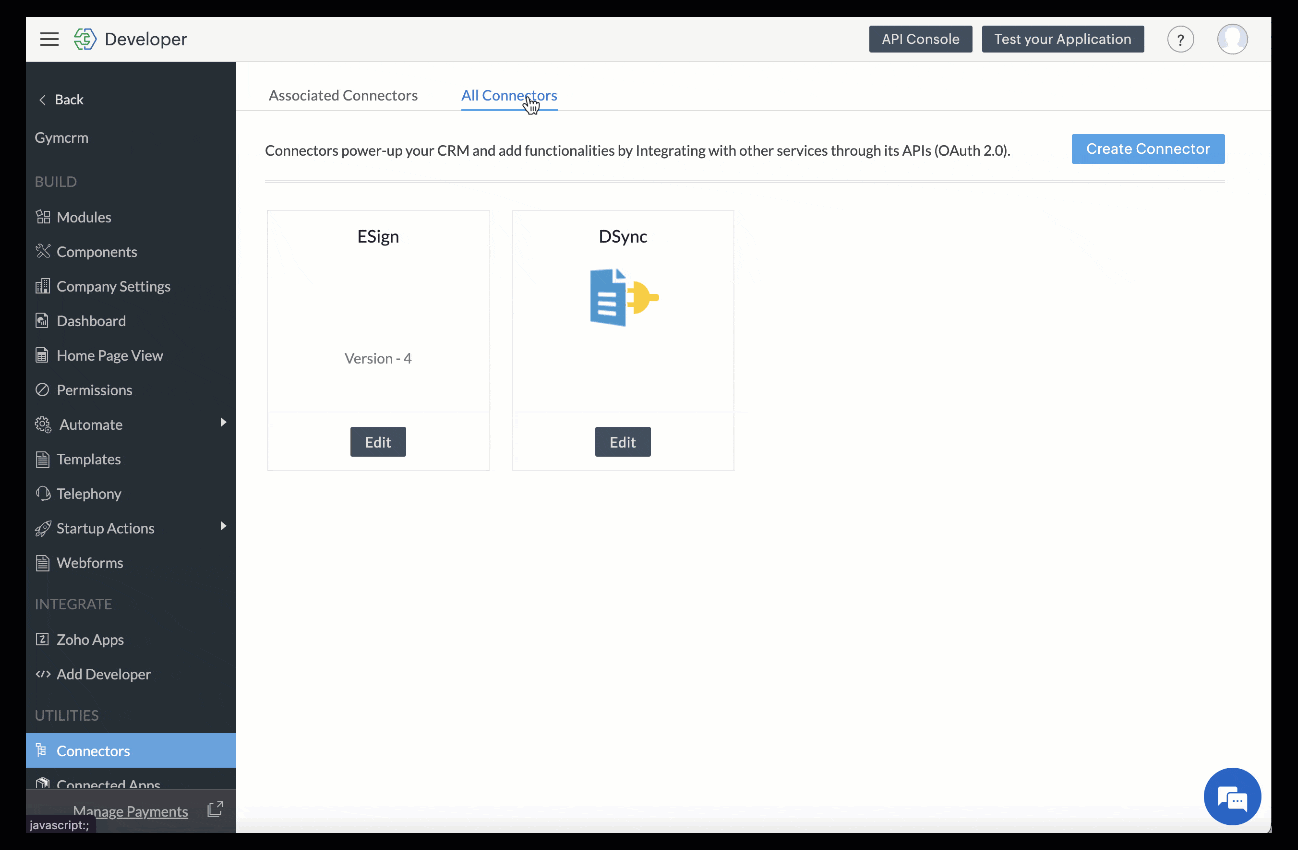

2.4 Associate Connector

In this step, you need to associate the connector that you just created with the Vertical Sign app. This step ensures that the connector is recognized and authorized to access Vertical Sign resources within your solution. Although this is a one-time process, if you update the connector, you should publish the connector again and repeat this step.

To associate the connector,

Access Connectors under Utilities.
Select the Associated Connectors tab. All the published connectors will be listed.
Select the Connector
Click on Add

Every time you update the connector, or update one or more of the added APIs, you should publish the connector, and update the same in the Associated Connectors section. To do this,

Access Connectors under Utilities.
Select the Associated Connectors tab.
Hover over the connector name, and click on View All APIs.
Click on the Update button on the top.

Step 3 : Connected App

A Connected App helps you integrate your solution with various applications via APIs. This integration enables you to incorporate the functionalities provided by external applications, thereby enhancing the feature set of your solution. In this step, you will create a connected app (widget) for the Vertical Sign implementation. By creating a connected app for Vertical Sign, you provide users with a user-friendly interface for initiating document signing processes.

Create the widget to fit your specific business requirements. Although the basic functionality of Vertical Sign involves sending documents for E-Sign, sending reminders, revoking documents, and downloading the completion certificate, you can implement many more functionalities utilising the Zoho Sign APIs. Use the JS SDK methods of Zoho CRM to invoke the Connector and the APIs added within the connector. Click here to learn Invoking Connectors and its APIs via JS SDK Methods.

To create a connected app,

Click on Connected Apps from Utilities
Enter the following details to create the connected app:

Connected App Name
Description
Choose the hosting as External or Internal, depending on your requirement. You need to specify the domain details of the server where your application is hosted. For internal hosting, specify the base URL of your app and upload the zip file. Refer here to know more about Internal hosting. For external hosting, specify the Base URL for both Sandbox and Production.
Check the Modifiable check-box if you want your connected app to be editable.

Click on Save

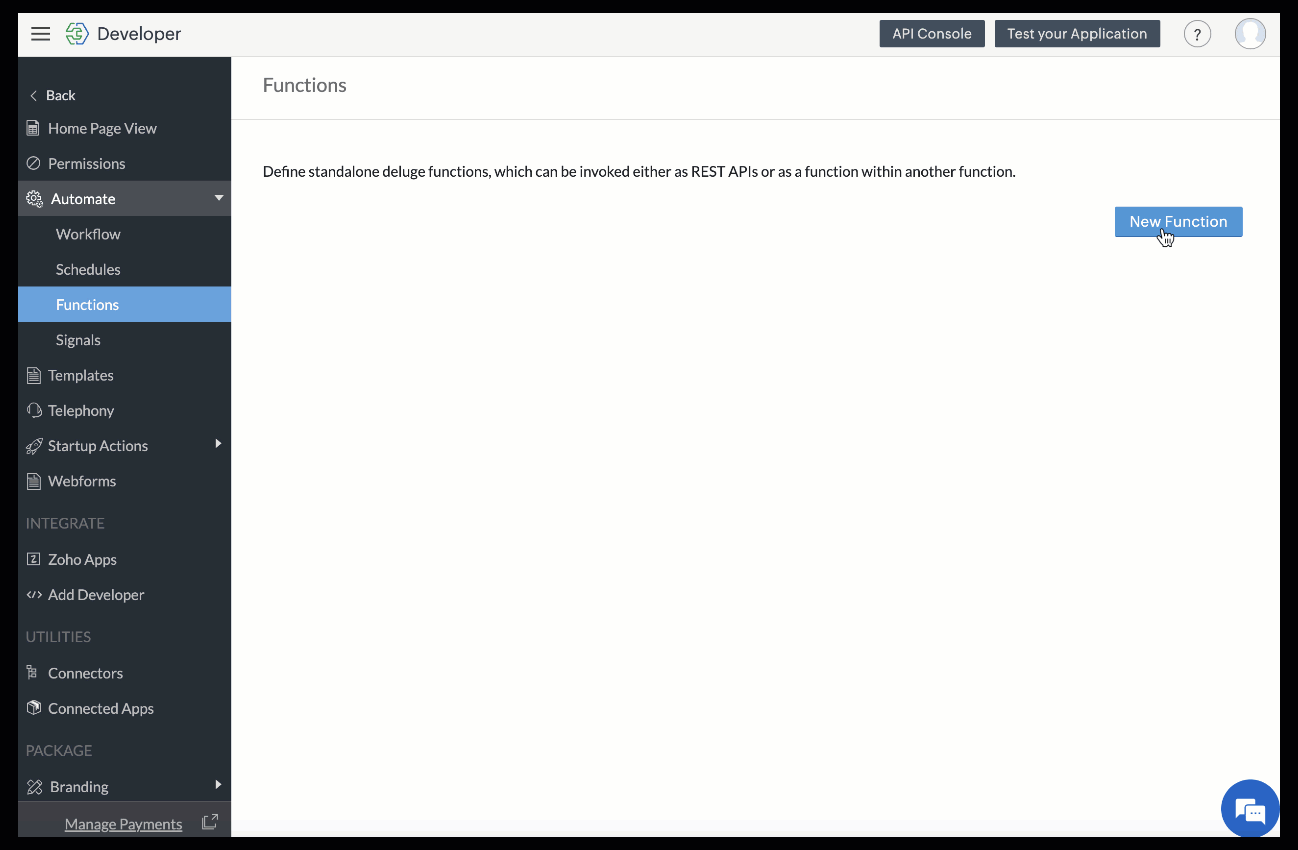

Step 4 : Add necessary functions to be invoked as REST API

Define standalone functions to be invoked as REST API, to implement functionalities pertaining to Vertical Sign. For instance, define functions to get the mail merge templates in the account or to get the mail merge document, and invoke them from the widget for the specific functionality.

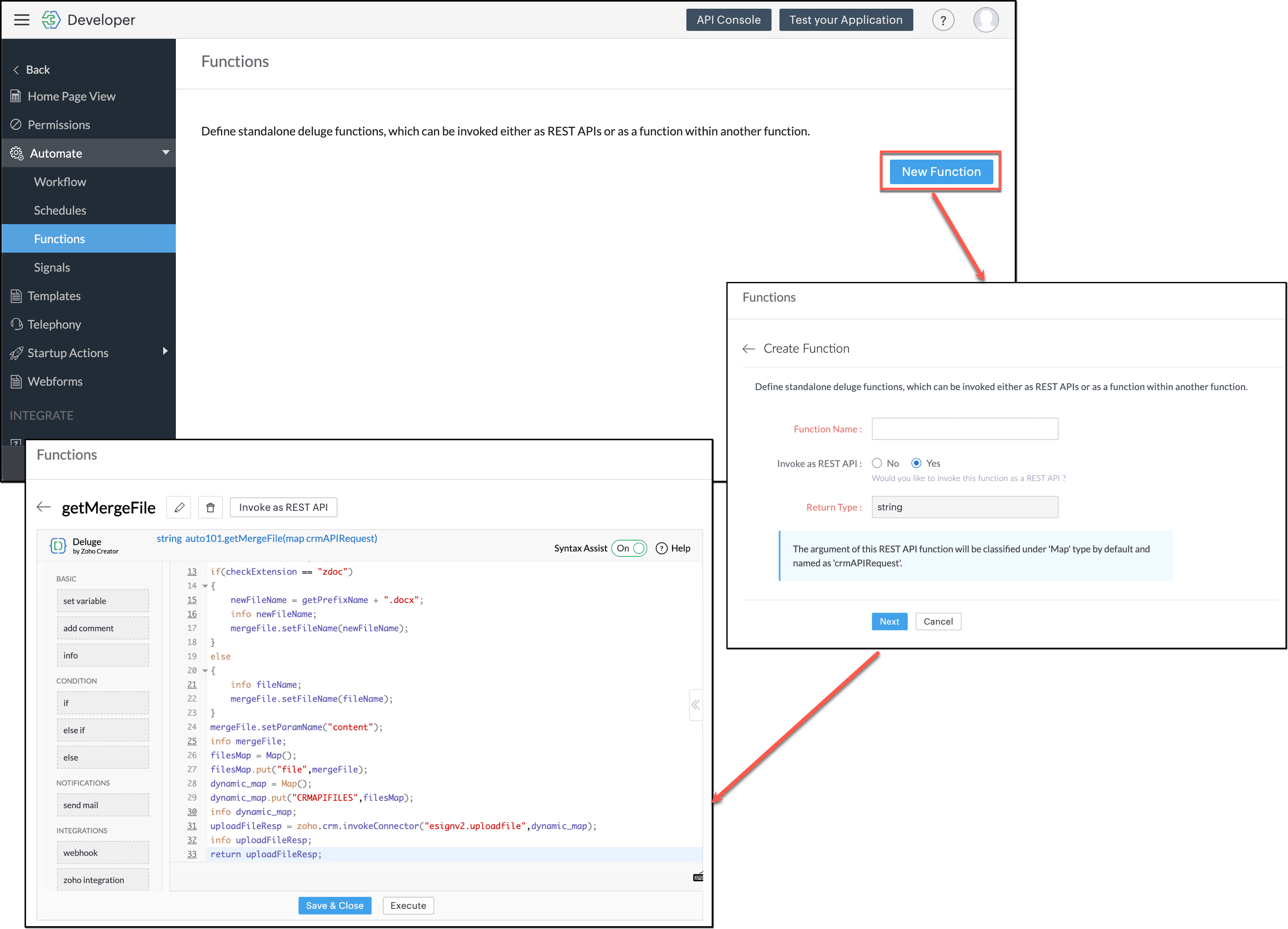

To add the functions,

From the Solution home page, click on Automate > Functions
Click on New Function
In the Create Function page, specify the following details:

Function Name
Invoke as REST API > YES
Specify the return type for the function

Click Next
In the function editor, define your function, and click on Save & Close.

Repeat these steps for all the custom functions that you want to invoke from your widget. Click on the Invoke as REST API button in the editor window to get the Sandbox and Production invoke URLs for the function. These functions should be invoked using the execute method of the JS SDK:

ZOHO.CRM.FUNCTIONS.execute( function namespace, params).then(function (data) {console.log(data);})

The following are the basic functions you need to define for the Vertical Sign functionality.

getMMtemplates - To get the mail merge templates available in the account, for the corresponding module from where the function is invoked. Given below is a sample code for this function. Feel free to make changes according to your specific requirements.

moduleName = crmAPIRequest.get("params").get("module");
tempList = zoho.crm.getTemplates(moduleName);
return tempList;

getMergeFile - To get the merged files. Given below is a sample code for this function. Feel free to make changes according to your specific requirements.

moduleName = crmAPIRequest.get("params").get("module");
recordId = crmAPIRequest.get("params").get("recordId");
fileName = crmAPIRequest.get("params").get("fileName");
mailMerge_templateId = crmAPIRequest.get("params").get("templateId");
info "ModuleName :: " + moduleName;
info "templateId :: " + mailMerge_templateId;
mergeFile = zoho.crm.getMergedFile(moduleName,recordId,mailMerge_templateId);
getPrefixName = fileName.getPrefix('.');
checkExtension = fileName.getSuffix(".");
info mergeFile;
info getPrefixName;
info checkExtension;
if(checkExtension == "zdoc")
{
newFileName = getPrefixName + ".docx";
info newFileName;
mergeFile.setFileName(newFileName);
}
else
{
info fileName;
mergeFile.setFileName(fileName);
}
mergeFile.setParamName("content");
info mergeFile;
filesMap = Map();
filesMap.put("file",mergeFile);
dynamic_map = Map();
dynamic_map.put("CRMAPIFILES",filesMap);
info dynamic_map;
uploadFileResp = zoho.crm.invokeConnector("esignv2.uploadfile",dynamic_map);
info uploadFileResp;
return uploadFileResp;

sendEreminder - To send reminders for E-sign to all the recipients. Given below is a sample code for this function. Feel free to make changes according to your specific requirements.

signDocRecId = sign_documents.get("ZohoSign_Documents.ID");
//signDocRecId = "4479873000000274065";
info signDocRecId;
recDetails = zoho.crm.getRecordById("ZohoSign_Documents",signDocRecId);
signReqId = recDetails.get("Sign_Request_ID");
docuStatus = recDetails.get("Document_Status");
if(!"INPROGRESS".equalsIgnoreCase(docuStatus) || signReqId.isNull() || signReqId.isEmpty())
{
if(signReqId.isNull() || signReqId.isEmpty())
{
return "E-Sign Request Id is not found, Can't send Reminder";
}
return "E-Sign Document Status is " + docuStatus + " So, Can't send Reminder";
}
dynamic_map = Map();
//Map all dynamic params to your desired values
dynamic_map.put("reqId",signReqId);
dynamic_map.put("remind","remind");
remindResp = zoho.crm.invokeConnector("esignv2.remindrecipient",dynamic_map);
info "remindResp is :: " + remindResp;
status = remindResp.get("status_code");
if(status >= 200 && status < 300)
{
response = remindResp.get("response").toMap();
remindMsg = response.get("message");
return remindMsg;
}
return "Reminder Failed";

zohosigncallback_Function - The call back function to handle the callbacks, and update the CRM records according to the events. Click here to download a sample code for this function. Feel free to make changes to handle your specific requirements.

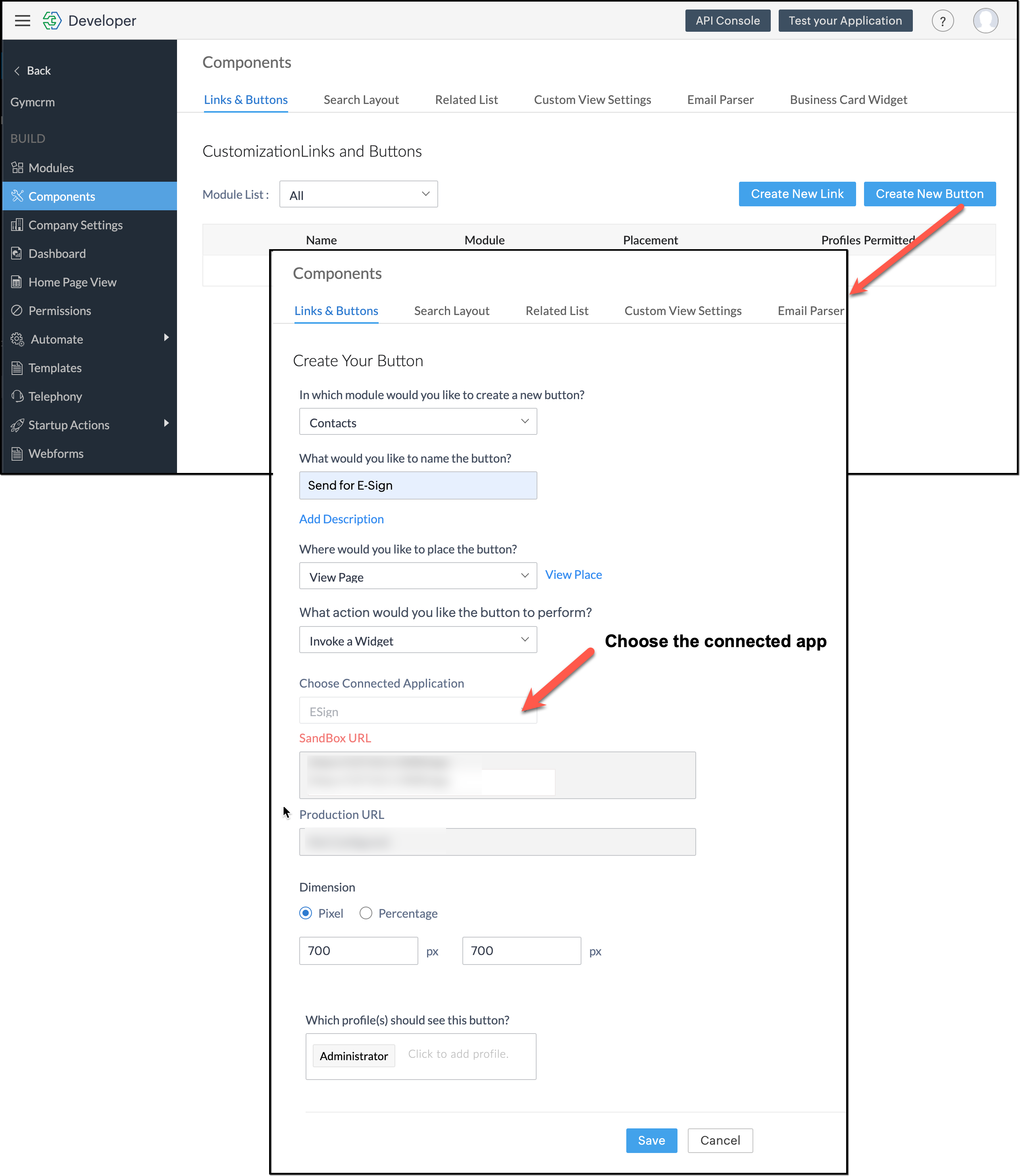

Step 5 : Add Button to the required modules

In this step, you need to create a button for the E-Sign in the modules where you want the E-Sign feature. Adding buttons to relevant modules within your solution provides users with intuitive access to Vertical Sign functionalities. Refer to our help document here to know more.

To add a button,

Click on BUILD > Components in the left pane menu
Click on Links & Buttons > Create new Button
In the Create Button page, select the module where you want the E-Sign functionality
Specify a name for the button. For example, Send for E-Sign
Add a description for the button.
Select where you want this button placed. Select View Page to place the button in the record view page.
Select the action you want the button to perform. In our case, Invoke a Widget.
Choose the Connected application from the dropdown.
Specify the resource path for the Sandbox and Production URL
Specify the dimensions for the button
Select the profiles that should have access to the button.
Click Save

For additional functionalities, like Send Sign Reminder, Download completion certificate, or Recall Document, add corresponding buttons, and implement the functionality according to your requirements.

Step 6 : Signals for notifications

To receive notifications about Vertcal Sign events, utilize Signals. You can set up custom signals and activate it using a callback function. For detailed instructions on invoking signals through functions, please see here.

6.1 Define a signal

Log in to the Zoho Developer Console and navigate to Vertical Solutions.
Choose the application you wish to modify and select Edit.
Access BUILD > Automate > Signals
Click on Define Signal
Provide Signal Name and click on Save. Please note that the name space will be generated automatically.

6.2 Trigger the signal via a function

Use the namespace of the signal in the callback function to trigger the signal when an event occurs in Vertcal Sign, according to your requirements. Refer to this guide for detailed instructions on invoking signals using functions.

After you have successfully completed all the mentioned steps, publish the solution, and upgrade your customers to the latest version.

When a user clicks on the Send for E-Sign button within a module, it invokes the connected app (widget) configured for Vertical Sign integration. This initiates a series of processes orchestrated in the backend. Firstly, the connected app communicates with the established connector, facilitating secure data transmission and interaction with Vertical Sign via the OAuth 2.0 protocol. Subsequently, the app leverages the defined REST APIs to execute specific functions required for the E-Sign process, such as retrieving document templates, sending reminders, and handling recipient responses. Additionally, the app interacts with the custom modules created for Vertical Sign, storing and retrieving relevant data to ensure smooth workflow management. This implementation streamlines the E-Sign process, ensuring a user-friendly experience for both senders and recipients.

Access your files securely from anywhere

Zoho CRM Training Programs

Learn how to use the best tools for sales force automation and better customer engagement from Zoho's implementation specialists.

Redefine the way you work

with Zoho Workplace

Start your free trial

Zoho DataPrep Personalized Demo

If you'd like a personalized walk-through of our data preparation tool, please request a demo and we'll be happy to show you how to get the best out of Zoho DataPrep.

Create, share, and deliver

beautiful slides from anywhere.

Get Started Now

Zoho Sign now offers specialized one-on-one training for both administrators and developers.

BOOK A SESSION

Zoho Workerly Home
Forums
Connect With Us:

Zoho Recruit Home
Forums
Connect With Us:

Start tracking your website metrics today

Use PageSense to understand what your visitors are looking for, how they are behaving, and where they are facing problems on your website.

Ready to improve your website's performance?

Install the PageSense code snippet on your site in a matter of minutes and start collecting in-depth data about the website visitors to grow your business.

Track and measure every business goal

Set up goals in PageSense to measure every single action performed by visitors on your website like button or link clicks, form submissions, and page engagements.

Understand the customer journey on your website

Create funnels in PageSense to quickly see which pages visitors use to enter your website, where they navigate to next, and which pages they decide to leave without converting.

Visualize your visitor's behavior with color codes

Set up heatmaps in PageSense to see where users have clicked more, how far they've scrolled, and on which parts of a page they've spent the most time using color-coded patterns in reports.

Measure customer engagement with your web forms

Use form analytics in PageSense to see how people interact with different fields in your form, whether they complete the form successfully or not, and where exactly they drop out on your form.

Record real visitor interactions on your website

Use session recordings in PageSense to watch a video of all the visitor actions performed on your website including the pages they navigate, the buttons they click, the UX issues they face, and more.

Test and optimize webpages for better conversions

Run A/B or Split URL tests in PageSense to figure out which version of your web page works best for your business and results in the best conversion rate.

Give each customer a unique website experience

Use personalization in PageSense to deliver customized versions of your website for every individual customer based on their demographics, local weather, browsing history, and more.

Grow your business through customer feedback

Run polls on your website using PageSense to understand what your customers think about your products/services and what needs improvement on your site.

Send timely updates that customers love

Use web push notifications in PageSense to schedule and notify your customers about an upcoming flash sale, product releases, promotional coupons, and a lot more that can spark conversions on your website.

Advertise your business to website visitors

Use pop-ups in PageSense to instantly grab the attention of visitors by showing attractive signup offers, coupon code discounts, or email newsletters that can eventually convert them into subscribers.

Access more advanced settings in PageSense

Use PageSense's advanced features like creating mutually exclusive groups, enabling cross-domain tracking, configuring customized project JS, and more to get deeper insights about your website.

Try easy-to-use extensions

Download the PageSense extension app available for your web browser with a few clicks and start collecting all of your required website metrics in real time.

Discover your favorite integrations with PageSense

Get a deeper look at your website's data by seamlessly integrating PageSense with a host of popular third-party apps like Google Analytics, Mixpanel, Intercom, and more.

Quick Links	Workflow Automation	Data Collection
Web Forms	Enterprise	Begin Data Collection
Interactive Forms	Workplace	Data Collection App
Encrypted Forms	Customer Service	Accessible Forms
Digital Forms	Marketing	Forms for Small Business
HTML Forms	Education	Forms for Enterprise
Contact Forms	E-commerce	Forms for any business
Lead Generation Forms	Healthcare	Forms for Startups
Wordpress Forms	Customer onboarding	Order Forms for Small Business
No Code Forms	Construction	RSVP tool for holidays
Free Forms	Travel
Prefill Forms	Non-Profit
Intake Forms	Legal	Mobile App
Form Designer	HR	Mobile Forms
Card Forms	Food	Offline Forms
Assign Forms	Photography	Mobile Forms Features
Translate Forms	Real Estate	Kiosk in Mobile Forms
Electronic Forms
Notification Emails for Forms	Alternatives
Holiday Forms	Google Forms alternative
Form to PDF	Jotform alternative
Email Forms CRM Forms Embeddable Forms Drag and Drop form builder HIPAA Forms Secure Forms

New to Zoho CRM Plus?

Deliver unforgettable customer experiences

ACCESS ZOHO CRM PLUS

New to Zoho CRM Plus?

Deliver unforgettable customer experiences

ACCESS ZOHO CRM PLUS

New to Zoho Marketing Plus?

Everything you need to run your marketing

ACCESS ZOHO MARKETING PLUS

New to Zoho Marketing Plus?

Everything you need to run your marketing

ACCESS ZOHO MARKETING PLUS

Zoho Pagesense Resources

You are currently viewing the help pages of Qntrl’s earlier version. Click here to view our latest version—Qntrl 3.0's help articles.

New to Zoho Survey?

Access Zoho Survey

Latest Feature Updates

Explore our Pricing & Plans

Zoho Survey Resources

Android Mobile Surveys

Insurvey Blogs

Insight Blogs

Tips & Tricks

New to Zoho Social?

Manage your brands on social media

Access Zoho Social

Zoho Desk Resources

Desk Community Learning Series
Digest
Functions
Meetups
Kbase
Resources
Glossary
Desk Marketplace
MVP Corner
Word of the Day

Zoho Sheet Resources

New to Zoho Forms?

Latest Feature Updates

Explore our Pricing & Plans

Zoho Forms Resources

Secure your business

communication with Zoho Mail

Get started

Mail on the move with

Zoho Mail mobile application

Go Mobile

Stay on top of your schedule

at all times

Get started

Carry your calendar with you

Anytime, anywhere

Get started

Latest Announcements

New to Zoho Sign?

Zoho Sign Resources

Sign, Paperless!

Sign and send business documents on the go!

Get Started Now

Zoho SalesIQ Resources

New to Zoho TeamInbox?

Zoho TeamInbox Resources

Connect with us

New to Zoho ZeptoMail?

LEARN MORE

Latest Feature Updates

Zoho DataPrep Resources

New to Zoho DataPrep?

Access Zoho DataPrep

Zoho DataPrep Demo

Get a personalized demo or POC

Design. Discuss. Deliver.

Create visually engaging stories with Zoho Show.

Get Started Now

New to Zoho Workerly?

Access Zoho Workerly

New to Zoho Recruit?

Access Zoho Recruit

New to Zoho CRM?

Signup Now

Access Zoho CRM

Latest Feature Updates

New to Zoho Projects?

Access Zoho Projects

New to Zoho Sprints?

Access Zoho Sprints

New to Zoho Assist?

Access Zoho Assist

New to Bigin?

Signup Now

Access Bigin

Latest Feature Updates

Related Articles
E-Sign for Zoho Vertical Apps
E-Sign for Vertical Apps is a feature that can be added into your Vertical Solution, enabling users to request electronic signatures for documents. This functionality allows users to send documents to any recipient, both inside and outside your ...
Quickstart Guide For Extensions
Extensions—prebundled software components that can add a set of custom features to your Zoho CRM—enable developers to deliver a range of functionality not available by default on our system. This allows our partners to streamline the customization ...
Customization - Sign Up Function
The Sign Up function allows you to adjust the user sign up settings for your Vertical Solutions. Some adjustable features include setting default input values, sending out email notifications, and setting custom organization variables for later use. ...
Publishing your CRM
This guide helps you with the following: Publish your solution Deactivate a solution Restrict New Sign ups Publish Your Solution Your solution will be live only if it is published. Only then your subscribers will be able to sign up and start using ...
SAML Terminologies and Workflow
Security Assertion Markup Language (SAML) is an XML-based standard that allows you to exchange authentication data between one service and another. Zoho provides single sign-on for connected apps using SAML. Here, Zoho acts as the identity provider ...
