Epic dashboard

The epic dashboard provides a dynamic understanding of data in your epics with the help of graphical charts and stats.

The following charts are available on the epic dashboard:
  1. Epic item status
  2. Associated sprints
  3. Work item count
  4. Billable and non-billable log hours
  5. Approval status
  6. Planned vs completed epic items
  7. Planned vs actual epic progress
  8. User activity
  9. Sprint activity
  10. Release activity

View dashboard

To view epic dashboard:
  1. Go to the epic module of the project.
  2. Hover over the required epic.
  3. Click the View Details icon. The epic details page will appear.
  4. Select the dashboard tab to view dashboard.

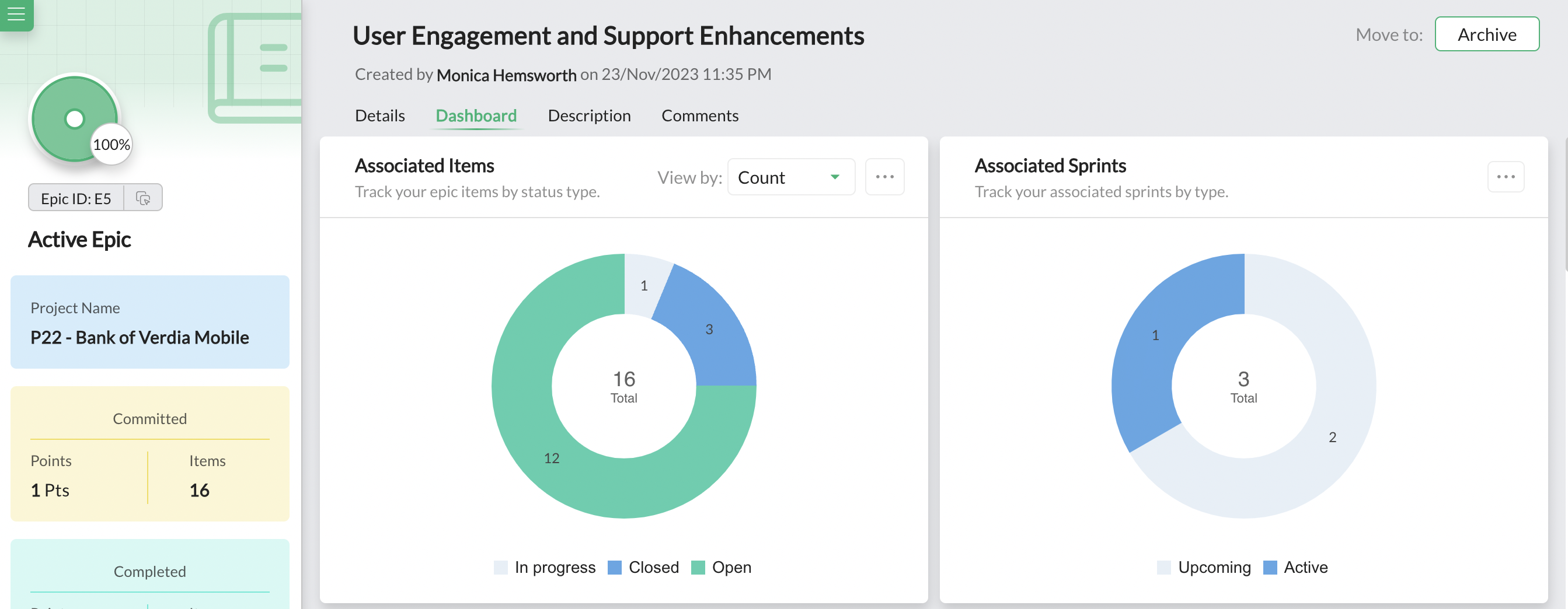

Associated items

  1. Track your epic items by their status.
  2. Hover to view the completion percentage in each status.
  3. View the status by item count and estimation points.
  4. Click the ellipsis icon to expand or export the chart.

Associated sprints

  1. Track the sprints that are associated with the epic.
  2. Hover to view the status of the sprints and the number of associated sprints.
  3. Click the ellipsis icon to expand or export the chart.

Item status

  1. Get the count of your epic items by their status.
  2. Hover to view the count of items in each status.
  3. Click the ellipsis icon to expand or export the chart.

Billing status

  1. Track billing status and billed hours.
  2. Hover to view the number of billed and non-billed hours.
  3. Click the ellipsis icon to expand chart and export it.

Approval logs

  1. Track approval status of the log.
  2. Hover to view log hours and approval status.
  3. Click the ellipsis icon to expand chart and export it.

Planned vs completed epic items

  1. Compare the planned progress of items with the actual progress of items.
  2. Follow the comparison based on the item type.
  3. View the progress by item count or estimation points.
  4. Click the ellipsis icon to expand chart and export it.

Planned vs actual epic progress

  1. Study the progress of your epic by comparing the planned vs actual epic progress.
  2. Follow the comparison based on the item type.
  3. View the progress by item count or estimation points.
  4. Click the ellipsis icon to expand chart and export it.

User activity

  1. Assess the epic with the help of information on user activity.
  2. View activity or all users or assigned users.
  3. Track items by their status and view them by count of estimation points.
  4. Click the expand icon to get an expanded view of the chart.

Sprint activity

  1. Monitor the daily activities in the sprints associated with the epic.
  2. View the completion percentage of the sprints and their duration.
  3. Click the expand icon to get an expanded view of the chart.

Release activity

  1. Monitor the daily activities in the releases associated with the epic.
  2. View the completion percentage of release and it's duration.
  3. Click the expand icon to get an expanded view of the chart.
