Before you begin

You can save a public email domain such as Gmail, Yahoo, or Outlook as your Customer Communications address, but you cannot authenticate it. You cannot configure DKIM for a domain you do not own, so invitations sent from these domains never carry a DKIM signature and are more likely to be filtered.

How the standards work

Standard	What it does
Domain verification	Confirms that you own the domain from which emails are sent.
DKIM	Uses public-key cryptography to sign each email so the receiving server can verify that the message was sent from your domain and was not altered in transit.
SPF	Identifies the mail servers that are allowed to send email on behalf of your domain, which helps prevent spoofing and reduces the chance of spam filtering.
DMARC	Builds on DKIM and SPF by adding identity alignment, policy definition, and reporting. It tells receiving servers how to handle emails that fail authentication.

Configure the sender address

Set this address first so invitation emails come from your application instead of your developer-account contact address.

1. Sign in to your Developer Console.
2. Navigate to App Details > System Notification Emails > Customer Communications.
3. Add the email address you want to use for invitation emails.
4. Verify the address if prompted.

Until the address is verified, App Details shows Update Requested. If the verification email is not delivered to your inbox, click Resend Mail.

Authenticate the domain

After you configure the sender address, authenticate that domain so invitation emails can pass sender checks. Use the Email Authentication page to add the domain and verify ownership.

1. Sign in to your Vertical Studio developer edition at https://platform.zoho.com/crm/.

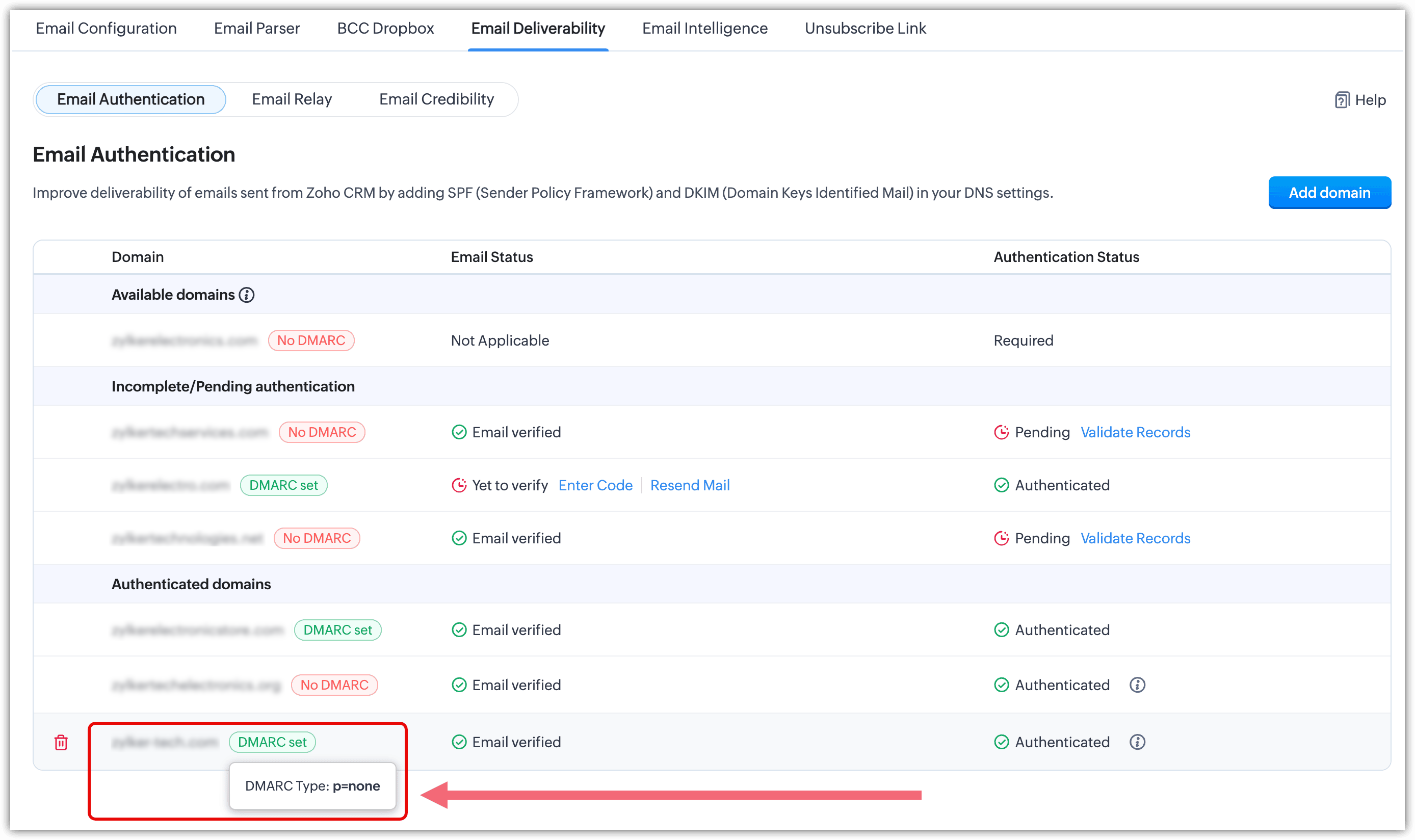

2. Navigate to Setup > Channels > Email > Email Deliverability > Email Authentication.
3. Check whether the domain is already listed and whether its authentication records show the expected status.

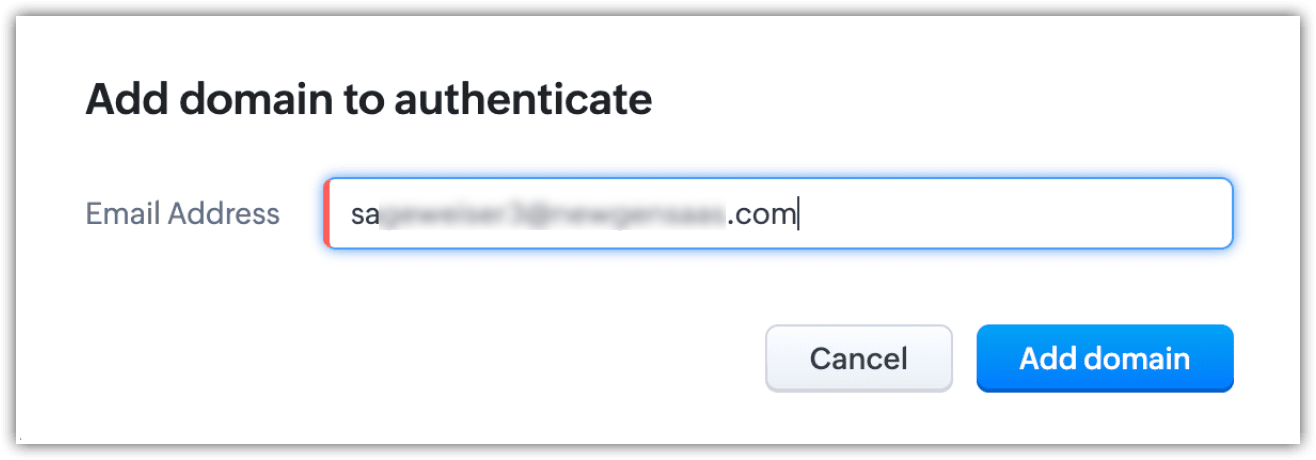

4. Click Add Domain if the domain is not already listed.


5. Enter the email address that uses the domain you want to authenticate. Use your Customer Communications address when possible.
6. Click Add Domain.

7. Wait for the verification code to be sent to that address.
8. Open the verification email.
9. Copy the verification code.

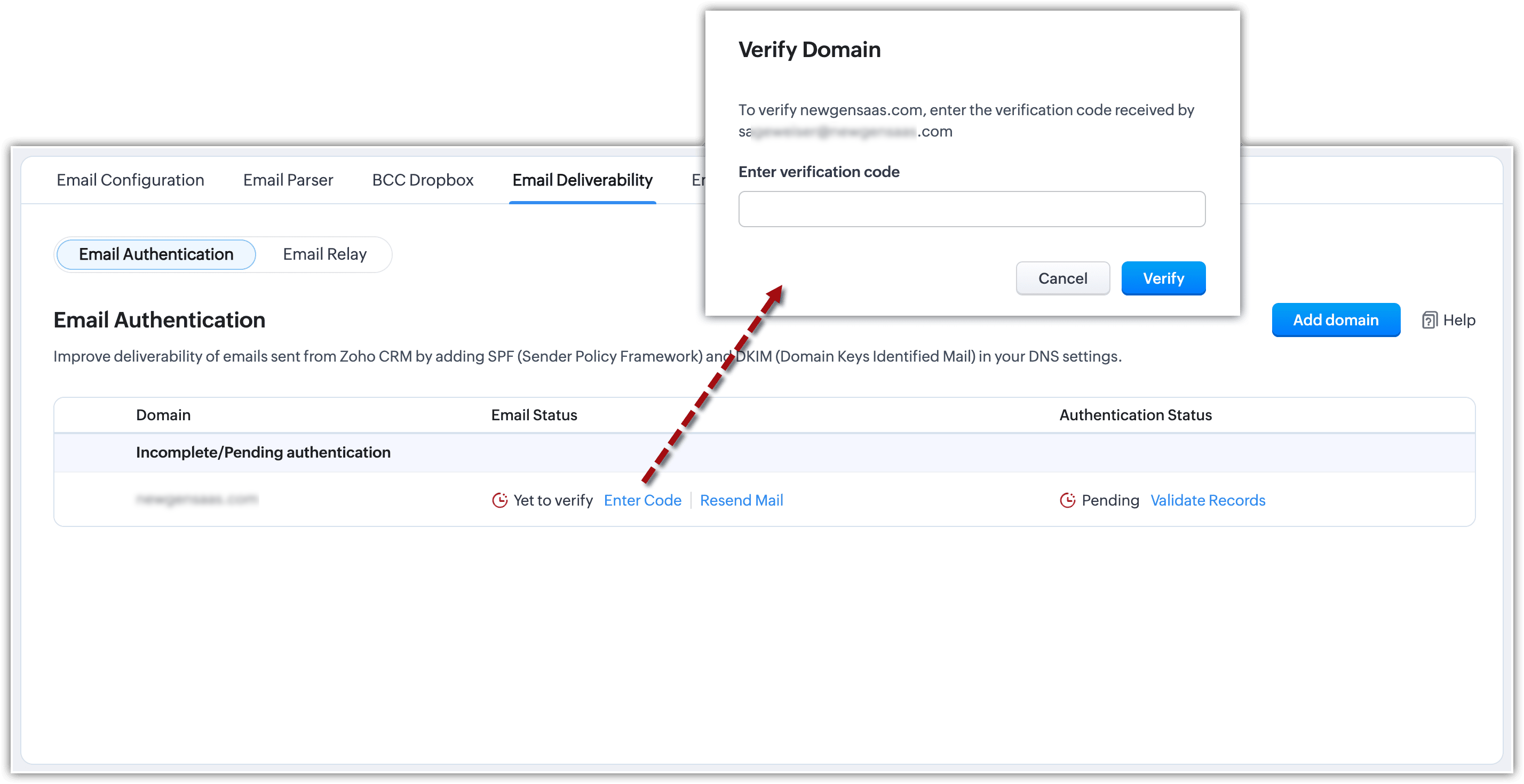

10. Return to Email Authentication and click Enter Code for the domain.
11. Enter the code, then click Verify.


Confirm that the domain is now listed and verified on the Email Authentication page.

Please note that the verification email stays valid for 15 days. If it expires, or if you do not receive it, click Resend Mail and check the Spam or Junk folder.

Repeat these steps for each domain or subdomain your application uses to send invitation emails.

Retrieve your DNS records

Retrieve these values from Vertical Studio because they contain the exact DKIM and SPF records (DNS records) your domain must publish for email authentication to work correctly.

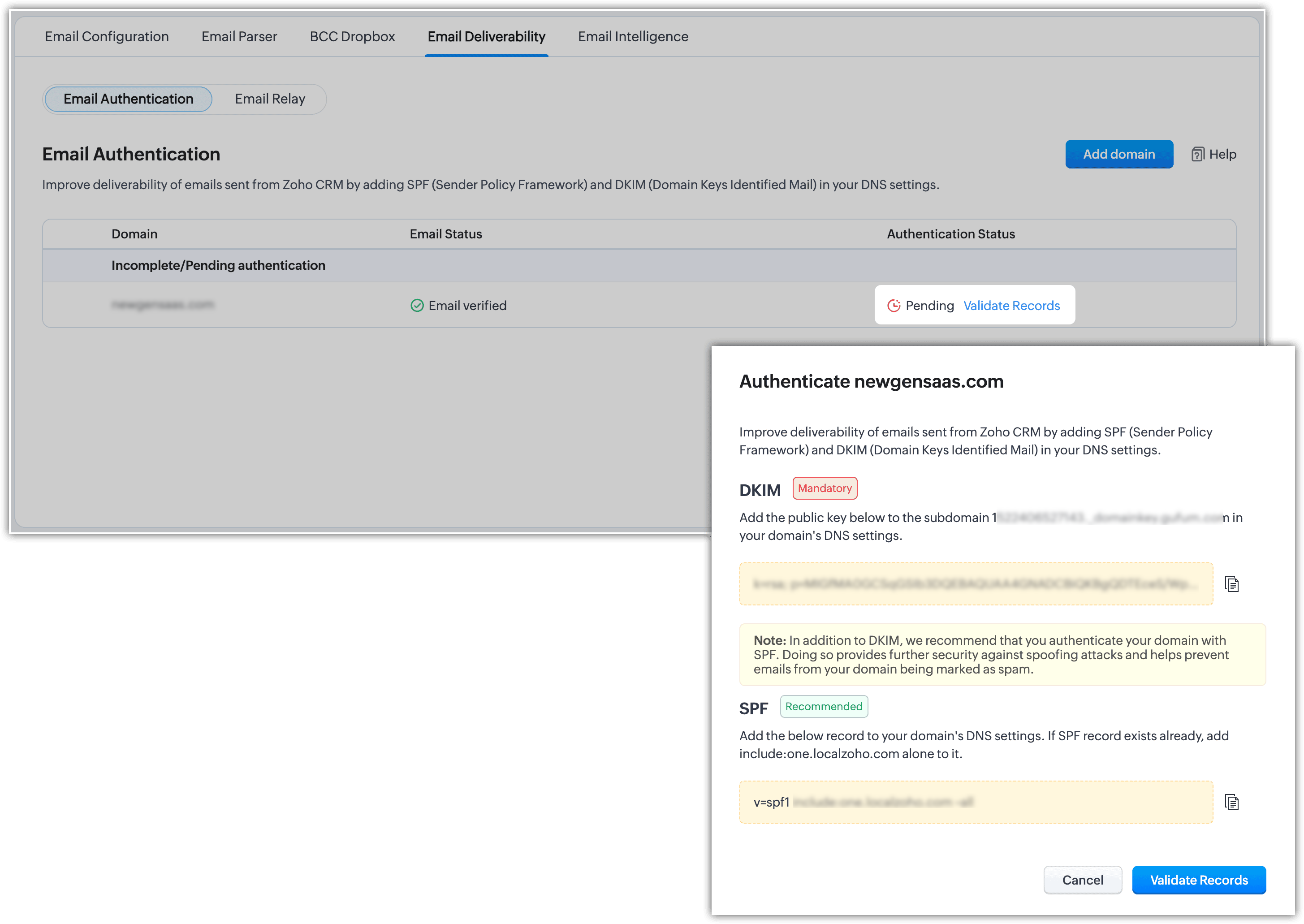

1. Open Email Authentication.
2. Locate the verified domain.
3. Click
   Validate Records.




4. Copy the DKIM hostname and DKIM value. Together, these make up the DKIM TXT record you must add to your DNS.
5. Copy the SPF value if you want to publish SPF. This is the SPF TXT record value you must add to your DNS.
6. Keep the popup open while you add these DNS records to your domain provider so you can copy the values exactly. Copy the record values exactly as they appear in your account. The DKIM key is unique to your domain.


Add the DKIM record to your DNS

DKIM is required because it lets receiving mail servers verify that invitation emails were sent from your domain.

1. Sign in to your domain provider's DNS management portal.
2. Create a new TXT record.
3. Enter the DKIM hostname in the host or name field.
4. Paste the full DKIM value into the value field.
5. Keep the default TTL unless your provider requires a different value.
6. Save the record.

1. Use only the hostname shown in Vertical Studio, for example 2232._domainkey, unless your DNS provider specifically requires the full domain name. Some providers append the domain automatically, which can create an invalid host.

2. Copy the full DKIM value without adding spaces or line breaks. If your DNS provider requires the full host name, add a trailing dot to prevent the domain from being appended twice.




Check	What to confirm
Host name	Use only the hostname shown in Vertical Studio unless your DNS provider requires the full host.
Auto-appended domain	Avoid duplicate host names such as 2232._domainkey.example.com.example.com.
Record value	Copy the full DKIM value without spaces or line breaks.
Domain-specific key	Use the DKIM value generated for the same domain.

Add or update the SPF record

1. Open your DNS management portal.  For example, if your domain is registered with GoDaddy, open the DNS page for that domain in your GoDaddy account.
2. Check whether a TXT record beginning with v=spf1 already exists for the same domain used by your Customer Communications email address. The value v=spf1 identifies the TXT record as an SPF policy.
3. If no TXT record beginning with v=spf1 exists for that domain, create a new SPF TXT record. If one already exists, edit the existing record instead.
4. Copy the SPF value shown in Validate Records, then add the Zoho include value from that SPF entry to the SPF TXT record for that domain.
5. Save the record.

Add a DMARC record

1. Open your DNS management portal.
2. Check whether a TXT record already exists at _dmarc.yourdomain.com.
3. Edit the existing DMARC record if one is already present.
4. Create a new TXT record only if none exists.
5. Enter _dmarc in the host or name field.
6. Enter a DMARC policy such as v=DMARC1; p=none; rua=mailto:reports@yourdomain.com.
7. Save the record.

If your domain does not already use DMARC, start with p=none. This meets the minimum sender-policy requirement used by Google and Yahoo while you monitor delivery results. If your domain already has a quarantine or reject policy, keep that policy and make sure DKIM is authenticated.

Common issues and fixes

Case 1: The subscriber does not recognize the sender

1. Open App Details > System Notification Emails > Customer Communications in the Developer Console.
2. Add an email address on a custom domain you control.
3. Verify the address. If App Details shows Update Requested, click Resend Mail if needed.
4. Complete domain verification and DKIM setup for that domain.

Case 2: The subscriber does not receive the invitation because DKIM is missing or invalid

1. The DKIM TXT record was never added, so the message is sent without a valid DKIM signature.
2. The host name includes the domain twice, for example 2232._domainkey.example.com.example.com, so the DNS record does not resolve correctly.
3. The DKIM value was copied incompletely or with extra spaces or line breaks, so the signature cannot be validated.
4. The domain was added in Vertical Studio, but the verification code was never entered, so the domain does not complete authentication.

1. Verify the domain in Email Authentication.
2. Click Validate Records and copy the DKIM hostname and value again.
3. Compare the DNS record in your provider portal with the value shown in Vertical Studio.
4. Remove extra spaces, line breaks, or duplicate domain text in the host name.
5. Save the corrected TXT record.
6. Return to Email Authentication and validate the domain again after DNS propagation.

Case 3: SPF is not configured

1. Open Validate Records for the verified domain.
2. Copy the SPF value shown there.
3. Check whether your domain already has an SPF TXT record.
4. Add the Zoho include value to the existing record, or create one if none exists.
5. Save the record.

Case 4: Gmail or Yahoo filters the invitation because DMARC is missing

1. No DMARC record exists for the domain, so strict mailbox providers may treat the sender as less trustworthy.
2. The DMARC record was added to the wrong host, so receiving servers cannot find the policy.
3. More than one DMARC record exists for the same domain, so the published policy becomes invalid.
4. When this happens, the invitation is sent from your authenticated domain, but the domain has no usable DMARC policy. Strict mailbox providers may send the message to Spam, move it to quarantine, or reject it, so the subscriber may not find the invitation in the inbox.

1. Check whether a TXT record exists at _dmarc.yourdomain.com.
2. Edit the existing DMARC record if one already exists.
3. Create a new record only if none exists.
4. Publish a policy with at least p=none.
5. Confirm that DKIM or SPF passes and aligns with the From domain.

Note: DMARC is mandatory for domains that send more than 5,000 emails per day.

Case 5: The subscriber's organization quarantines the invitation

1. Ask the subscriber to contact their IT administrator.
2. Ask the IT team to check email gateway and quarantine logs.
3. Ask the IT team to allowlist your Customer Communications email address or sending domain.
4. Ask the IT team to confirm that their security policies permit emails from your sender domain.
5. Resend the invitation after the allowlist is updated.

Case 6: Email security software on the subscriber side blocks the invitation

1. Ask the subscriber to contact their IT administrator.
2. Ask the IT team to check gateway and quarantine logs for the invitation.
3. Ask the IT team to allowlist your Customer Communications email address or sending domain.
4. Resend the invitation after the block is removed.

1. Ask the subscriber to check Junk, Spam, Promotions, and Quarantine folders.
2. Ask the subscriber to mark the invitation as safe if it is found.
3. Ask the subscriber to add your sender address or domain to their safe sender list.
4. Ask the subscriber to check whether local antivirus or email security software blocked or moved the email.
5. Resend the invitation after the block is removed.

Add records in common DNS providers

GoDaddy

1. Sign in to your GoDaddy account.
2. Open My Products.
3. Click DNS next to your domain.
4. Click Add New Record and select TXT.
5. Enter @ for SPF, or enter the DKIM hostname for DKIM.
6. Paste the corresponding value.
7. Click Save.

Cloudflare

1. Sign in to your Cloudflare account.
2. Select the domain.
3. Open DNS.
4. Click Add record and select TXT.
5. Enter @ for SPF, or enter the DKIM hostname for DKIM.
6. Paste the corresponding value into Content.
7. Click Save.

Namecheap

1. Sign in to your Namecheap account.
2. Open Domain List.
3. Click Manage next to your domain.
4. Open Advanced DNS.
5. Click Add New Record and select TXT Record.
6. Enter @ for SPF, or enter the DKIM hostname for DKIM.
7. Paste the corresponding value.
8. Click Save all changes.

Checklist

1. Configure a Customer Communications address so invitations do not fall back to your developer-account contact address.
2. Confirm that the subscriber email address is entered correctly.
3. Use a custom-domain address, not a public email address.
4. Verify the sender domain in Email Authentication.
5. Publish the full DKIM record with the correct host value.
6. Publish the SPF record if you want stronger sender validation.
7. Publish a DMARC record with at least p=none.
8. Validate the records after DNS propagation.
9. Send a test invitation and confirm that DKIM and DMARC show PASS before you start a larger rollout.
10. Ask enterprise subscriber organizations to allowlist your sender if needed.

1. Ask the subscriber to check Spam, Junk, Promotions, and Quarantine.
2. Verify the recipient email address and resend the invitation.
3. Confirm that DKIM validation passes for the sender domain.
4. Confirm that the domain has a DMARC record.
5. Ask the subscriber to check mailbox rules, forwarding rules, and email security software.
6. Ask the subscriber organization's IT team to review quarantine logs when needed.
