System Requirements

Note:

1. The RPA Agent is currently only available for Windows machines.
2. The RPA Agent requires the .NET Framework 4.8 or later.

1. Log in to your Zoho RPA account.

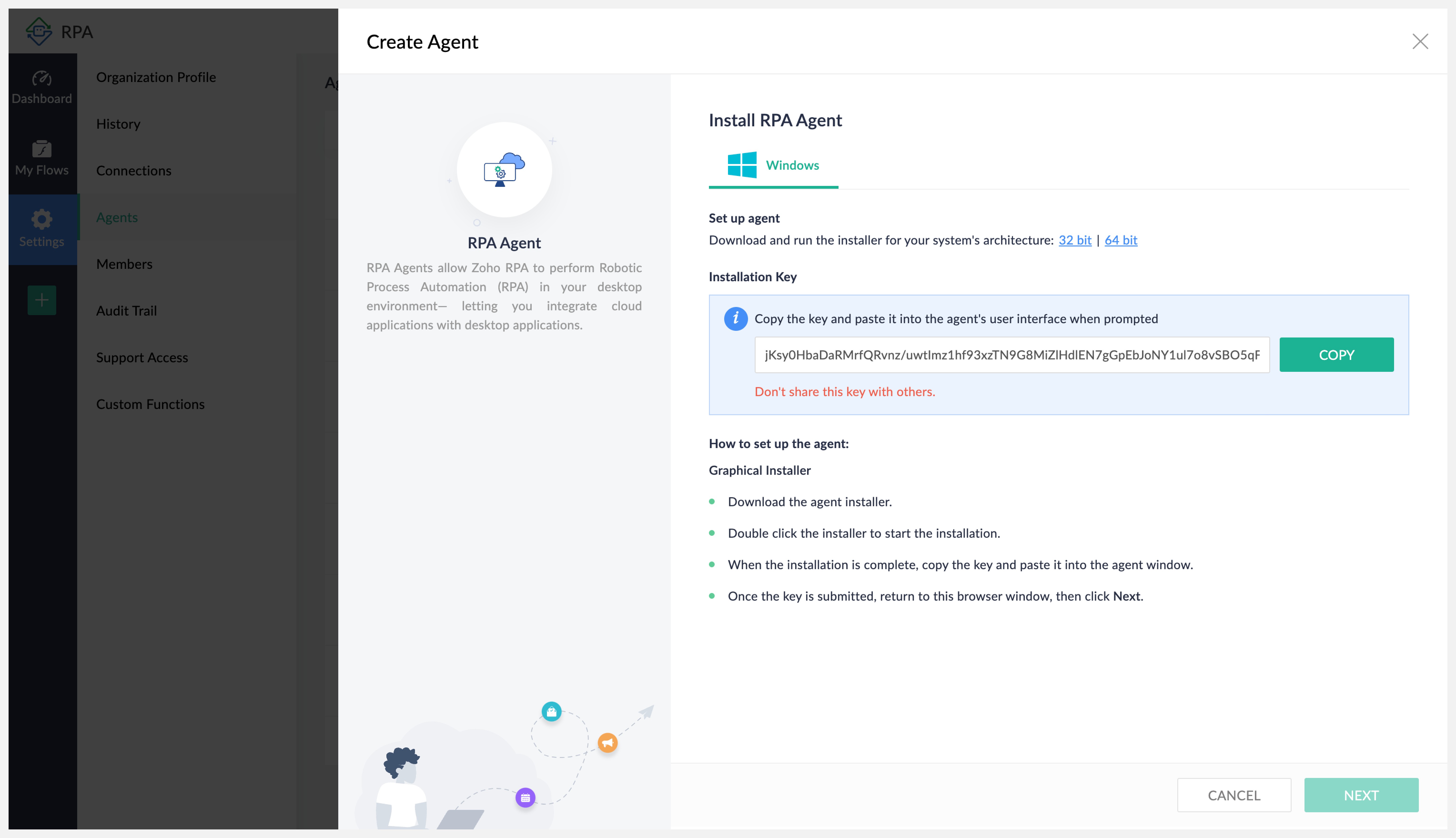

2. In the Settings section, click Agents, then click Create Agent.




3. In the screen that appears, click on the download link suitable for your Windows architecture.

4. Click Generate Key to generate a unique key for the new agent. In the pop-up window that appears, click Accept to continue.




   Note: The installation key can only be generated by either an admin or the owner of the organization. Once the key is generated, it will be available for the other users in the organization.
5. Follow the on-screen instructions and run the agent.

6. Once you've successfully set up the agent, click Next.

7. Click Done.

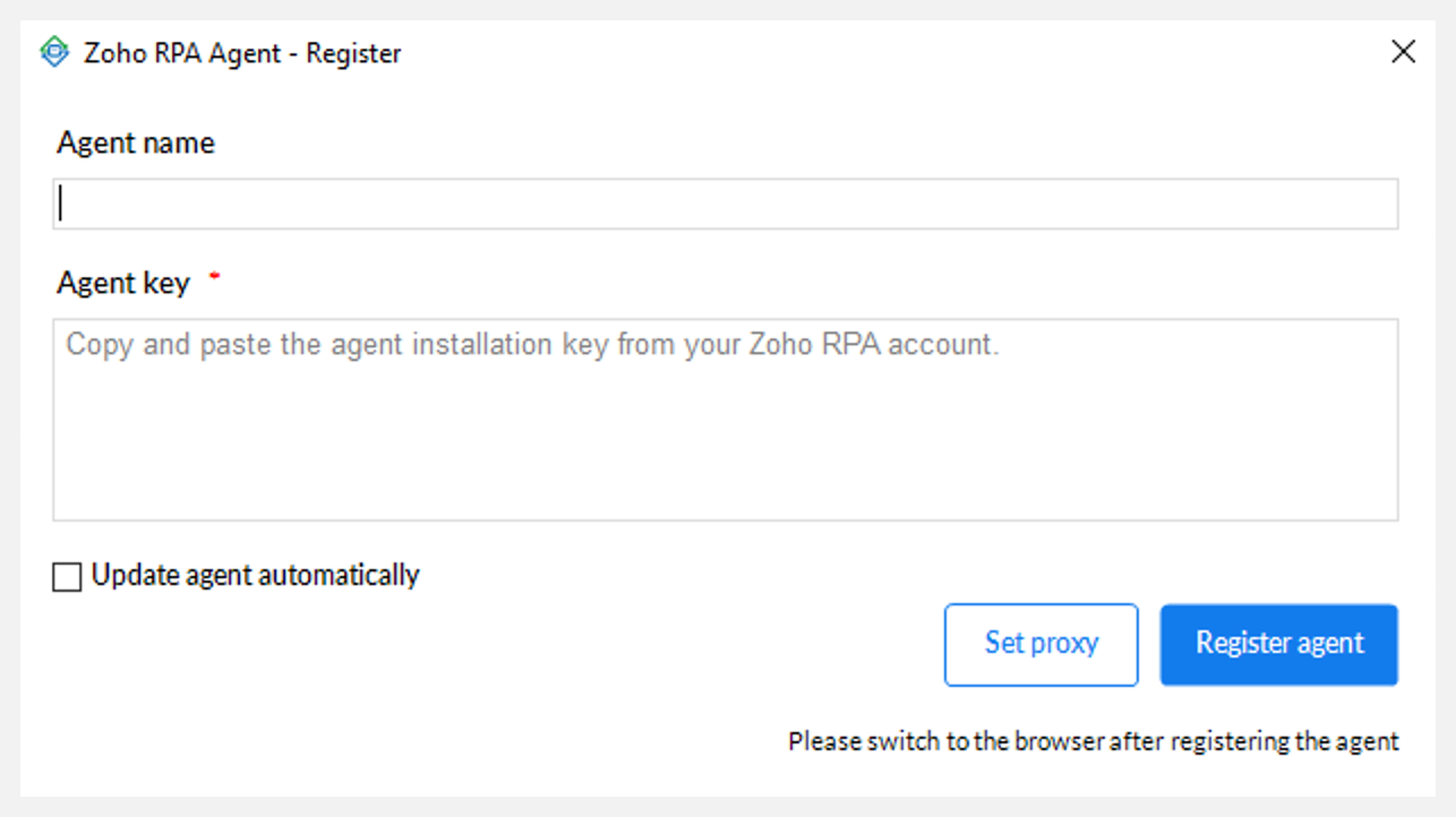

1. Enter the agent name in the Agent name field.

2. Enter the agent key in the Agent key field.

3. Click Register Agent.

4. Switch to the browser window to confirm that your agent is created and registered.

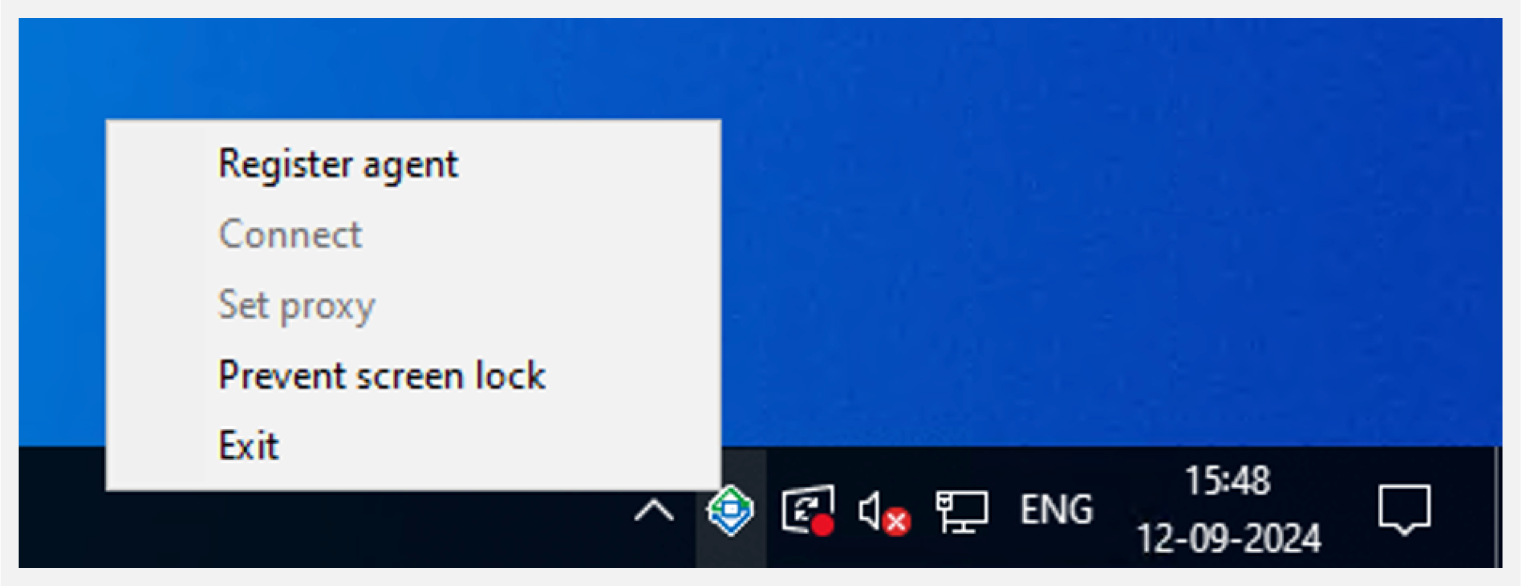

To register an agent at a later time, or to register an agent that was unregistered:

Note: You can only register an agent that has not been registered. If you need to register an agent that has already been registered, you will first need to unregister.

Configure Proxy Settings

1. Install the RPA agent.
2. On the Register Window screen, click the Set Proxy button.

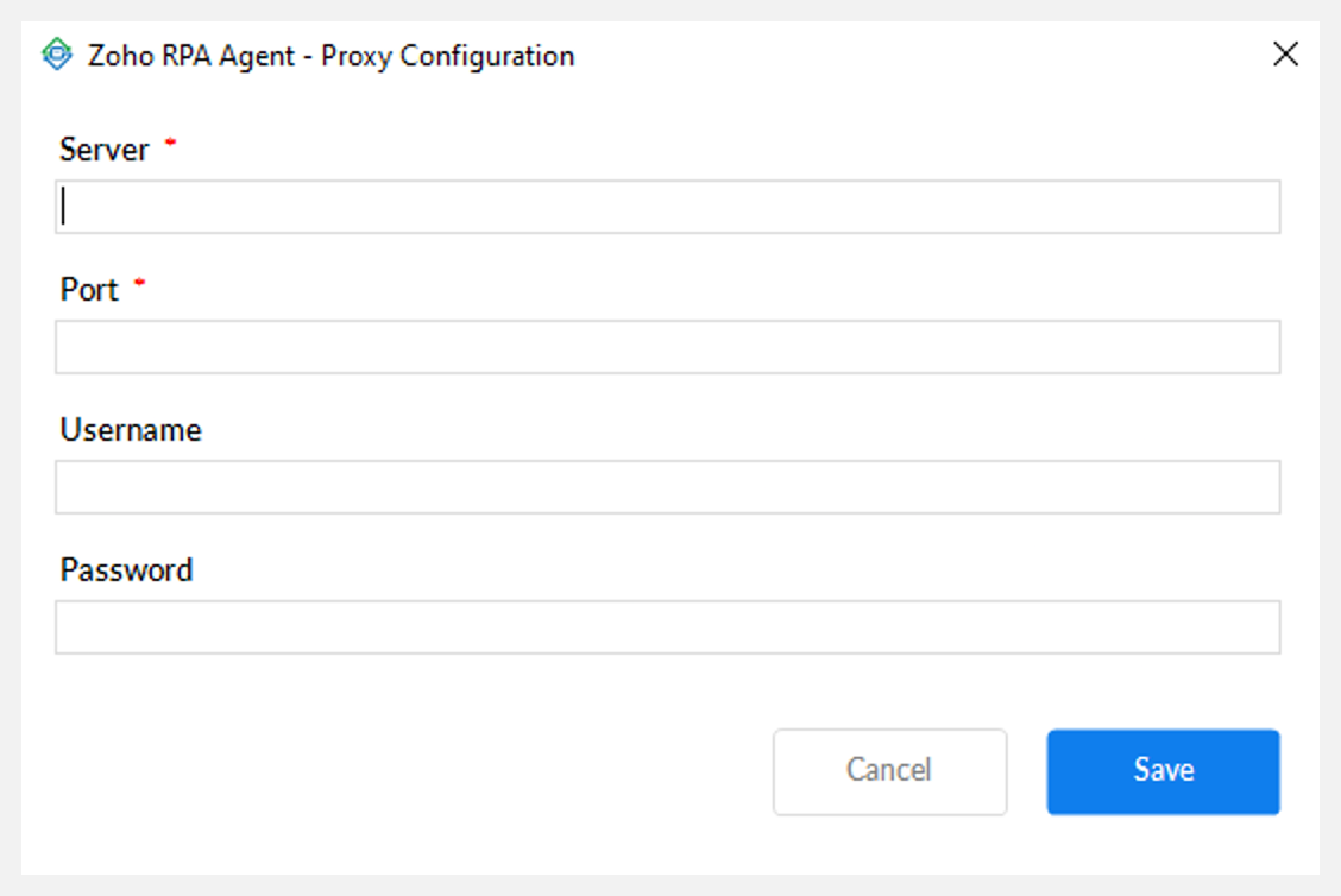

3. You will be redirected to the Proxy Configuration screen.
4. Enter the following information:

1. Server

2. Port

3. Username (optional)

4. Password (optional)

5. Click Save.

1. Right-click on the RPA system tray icon and select Set proxy. You will be redirected to the Proxy Configuration window screen.

2. Enter the proxy server settings and click Set proxy.


Unregister RPA Agent

To unregister an agent:

1. Right-click the RPA Agent icon in the system tray and select Unregister Agent.

2. Click Unregister to proceed.

Note: Unregistering an agent will abort all running RPA processes and exit the agent. You will need to manually start the agent again, if required.

Enable Screen Lock

By default, the RPA agent follows your Windows machine's screen lock settings. If your machine is set to automatically lock the screen at a specific time, the screen will lock as scheduled. The agent will not change this setting.

Here's how RPA automation processes will be executed when screen lock is enabled:

No active executions: The system will lock and eventually enter sleep mode.

Active UI interactions: The system will not lock. The RPA agent remains active and connected to the RPA server. Once UI interactions stop, the system will lock and eventually enter sleep mode, and the agent will disconnect. Unfinished executions may result in failure.

Screen locked: The following UI-based actions will not work:

Category	Unsupported actions
Windows Actions	Type into Send hot keys
Windows General	Open file dialog Save file dialog
Web Automation	Type into  Send hot keys

Other actions like MS Excel file and folder actions will work until the system enters sleep mode, causing the agent to disconnect.

To enable this action:

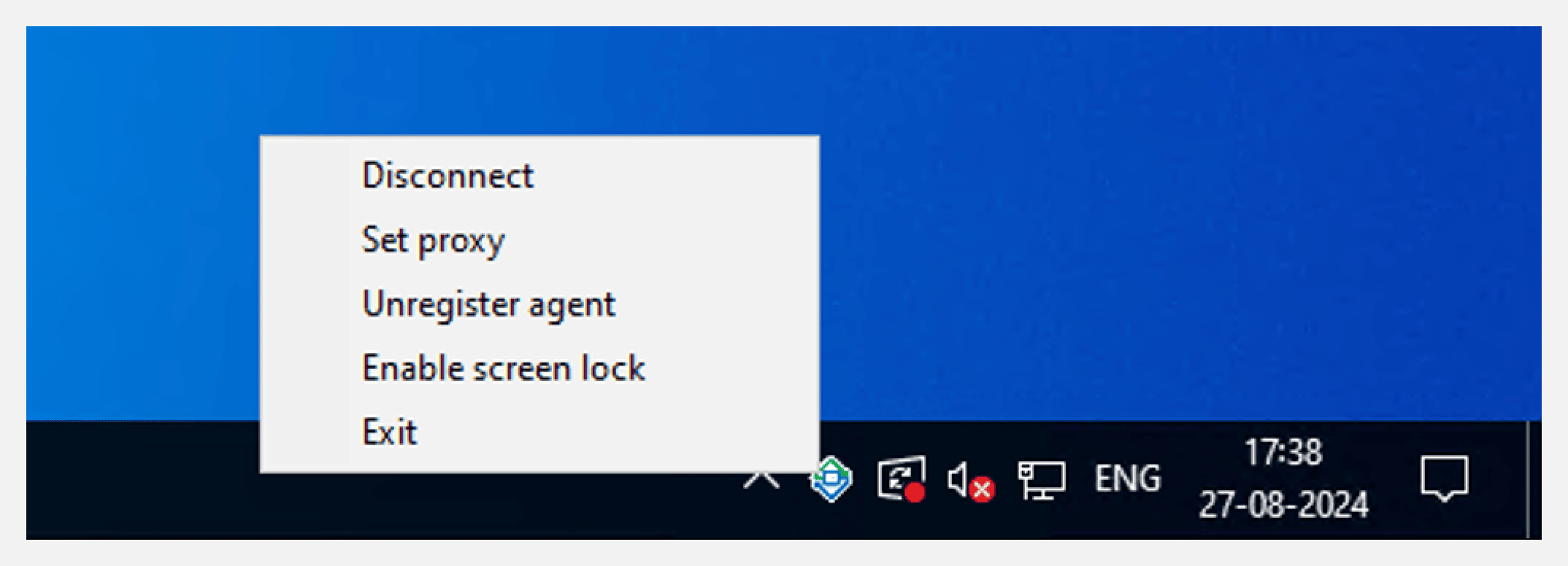

1. Right-click the RPA Agent icon in the system tray and select Enable screen lock.



Note: This option is only available if you've previously switched to prevent screen lock and want to return to the default setting.

Prevent Screen Lock

Using this option, the agent will override your Windows settings and prevent the screen from locking unless you manually lock it.

To use this option:

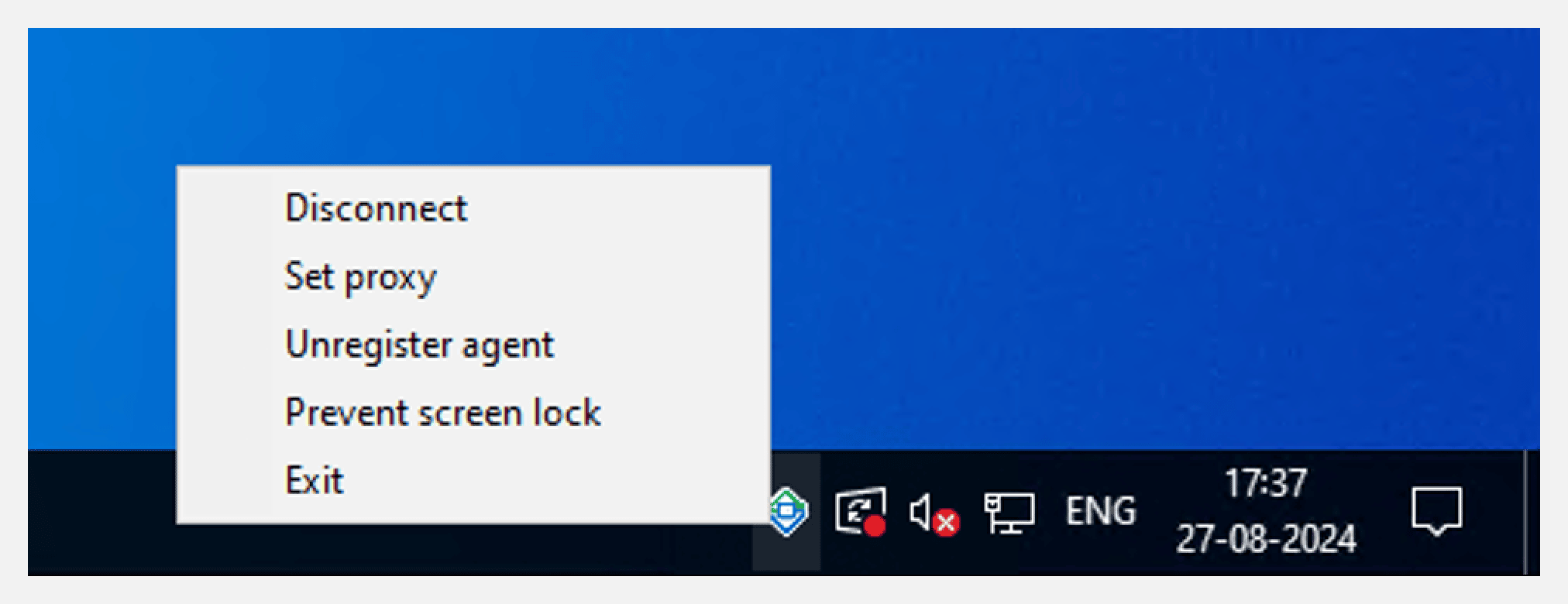

1. Right-click the RPA system tray icon and select Prevent screen lock.

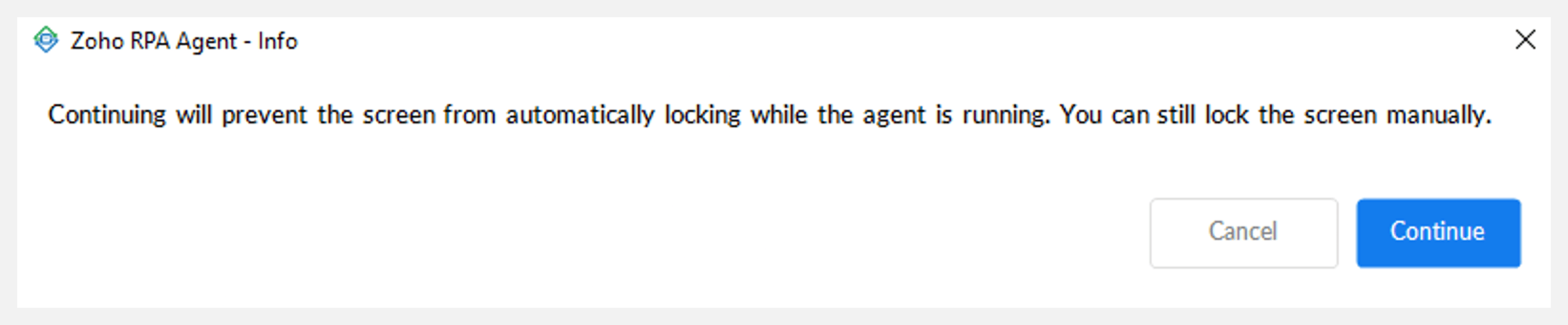

1. Click Continue on the prompt.


When screen lock is prevented, all RPA executions will work as expected.

Connect, Disconnect and Exit RPA Agent

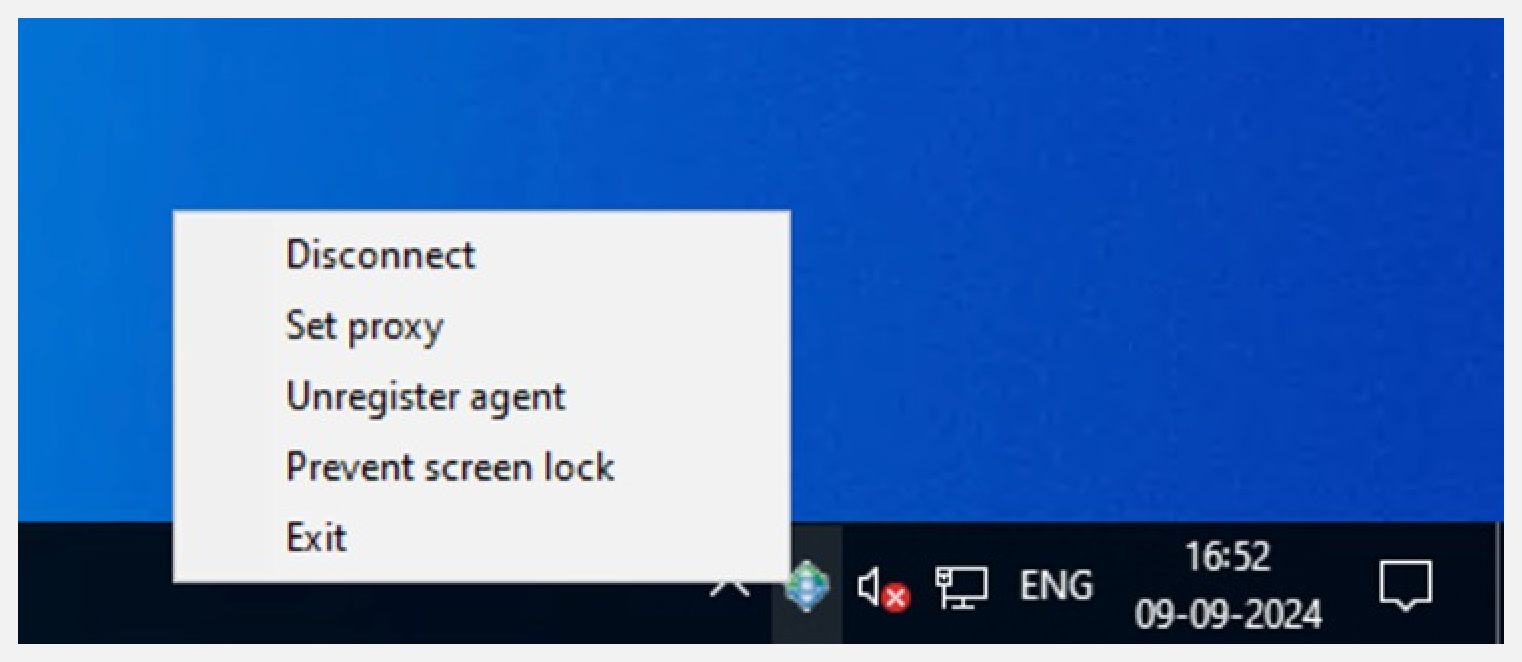

You can connect, disconnect, and exit the RPA Agent from the system tray.

1. To connect the agent to the RPA server: Right-click the agent icon and select Connect.

2. To disconnect the agent from the server: Right-click the agent icon and select Disconnect.

3. To exit the RPA process: Right-click the agent icon and select Exit.

Delete RPA Agent

To delete an agent:

1. Log in to your Zoho RPA account.

2. Click Settings, then click Agents.

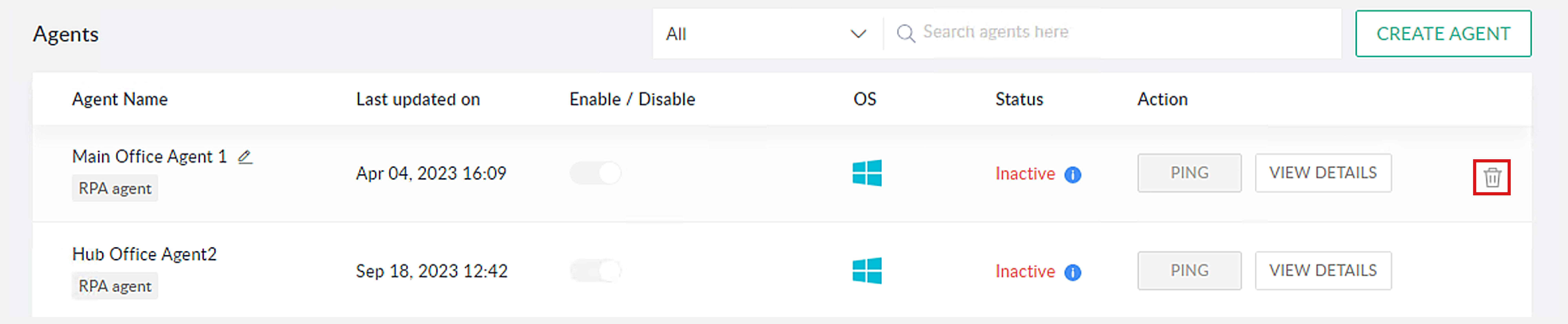

3. Hover over the agent you want to delete, then click the bin icon to delete the agent.


Manage your RPA Agents

1. Agent Name: The name of the RPA agent
2. Last Updated On: The date and time the agent was last updated
3. Enable/Disable: Toggle to enable or disable the agent for use in flows
4. Host: The hostname and operating system of the agent
5. Status: The status of the RPA agent (active or inactive)

1. Ping: Check the agent's connectivity to the RPA server
2. View Details: Access the following information:
   Agent Details:
1. Agent Name: The name of the agent
2. Installation Key: Use this installation key if you have uninstalled the agent on the agent machine.
3. Agent Version: The version of the agent installed. Indicates whether it's the latest version or if an update is available.
4. Auto Update: Enable or disable auto-updates for the agent. When enabled, the agent will update automatically whenever a new update is available.
5. Created On: The date and time the agent was created
6. Created By: The user who created the agent


Frequently asked questions

1. What is an RPA Agent?
   An RPA agent is a software program that you install on your computer to run RPA workflows. It acts as a bridge between your computer and the Zoho RPA server, allowing the server to send commands to your computer and execute workflows on it.


2. When should you install an RPA Agent?
   All RPA flows require an RPA agent to run. When creating an RPA flow, you must configure an agent to execute the automation.


3. What are the system requirements for an RPA agent?
   Supported Operating systems: Windows 10, Windows 11, Windows Server 2016, Windows Server 2019, or Windows Server 2022
   Minimum disk space: 512 MB
   Minimum RAM: 512 MB


4. How do I install the RPA Agent?

1. Navigate to the Settings page on your Zoho RPA account.

2. Click Agents then, click Create Agent.

3. From the Install your agent screen, you can download the agent installation file for your system's architecture.

4. Run the agent installation file on your computer.

5. Follow the on-screen instructions to complete the installation process.


5. Does RPA Agent have to be installed on all machines where the automation need to be executed?
   Yes.


6. Do I need RPA Agent to be installed for Web Automation?
   Yes. All RPA flows will require an RPA agent to run the flow. Web browser actions will require a browser extension to be installed additionally to record the tasks.


7. Can I undo deleting my agent from Zoho RPA's settings page?
   No, you cannot undo the deletion. However, you can create a new agent. Reinstalling the agent on the machine is not necessary. Right-click on the agent's desktop tray icon, choose "UnRegister Agent. Then start the agent and register your agent.


8. What happens if my system crashes and is recovered later? Will it affect my flows?
   If you're able to recover your system after the crash, and the agent's files are intact in your system, you can start the agent again. If you're unable to recover your system, you'll just need to install the agent again, using the re-installation key available from Settings > Agents > View Details. You won't have to reconfigure existing flows if you have successfully reinstalled the agent.

   However, note that any RPA flow using that agent will fail and will not work until the agent is active and is connected.


9. How do I manage all the agents I have created?
   You can manage your agents by navigating to Settings > Agents. Here, you can perform actions such as rename, enable auto update, delete, and enable/disable.


10. Do we have a limit on the number of agents I can install?
    Yes, we do have a limit. Please write to us at support@zohorpa.com to help us understand your requirement and work on the limits.


11.  I'm getting an "Agent Busy" error, even though I don't see the agent performing any operations. What should I do?
    This error typically occurs when the agent is currently executing a flow or performing an update and you attempt to configure an action using the same agent. To resolve this issue, try the following:
1. Wait for a few minutes and try again.Once the agent has finished its current task, it should be available for you to configure new actions.

2. Exit the agent and restart it. This will completely refresh the agent and clear any pending tasks allowing you to configure actions.


12. How can I retrieve the agent logs to contact support for further debugging assistance in case of issues?
    C:/Users/<Windows-User>/AppData/Roaming/Zoho/RPAAgent/logs/RPAAgentLog0.txt


13. How do I manually update the RPA Agent?

1. Double click on the RPA Agent desktop tray icon.

2. If a new version is available, you will see a message "New Version of agent is available. Update now."

3. Click Update now to update your agent to the latest version.


14. How do I uninstall the RPA Agent?

1. Open the Windows Control Panel.

2. Click Programs and Features or Uninstall a program.

3. In the list of applications, search for Zoho RPA.

4. Right-click on Zoho RPA and select Uninstall.

5. Follow the on-screen instructions to complete the uninstallation process.


15. How do I resolve connectivity issues with my RPA agent?
    If you are having connectivity issues with your RPA agent, please check the following:
1. Make sure that your computer is connected to the internet.

2. Check your proxy server settings to make sure that the firewall on your computer is not blocking the RPA agent from connecting to the server.

3. Exit and restart your  RPA Agent.

4. If you are still having problems, contact Zoho RPA support at support@zohorpa.com
