Connectivity Guide: The Things Stack
LoRa devices (LoRa nodes) registered in The Things Stack LoRaWAN Network Servers can be monitored in Zoho IoT applications through datastream integrations.
Prerequisites
Before proceeding with the integration, ensure you have:
- Access to the Zoho IoT Application.
- A datastream for The Things Stack created in the Zoho IoT Application.
- Endpoint Usage connection detail of the datastream.
- An active The Things Stack account with access to the The Things Stack Console.
Configure the Integration in the The Things Stack console

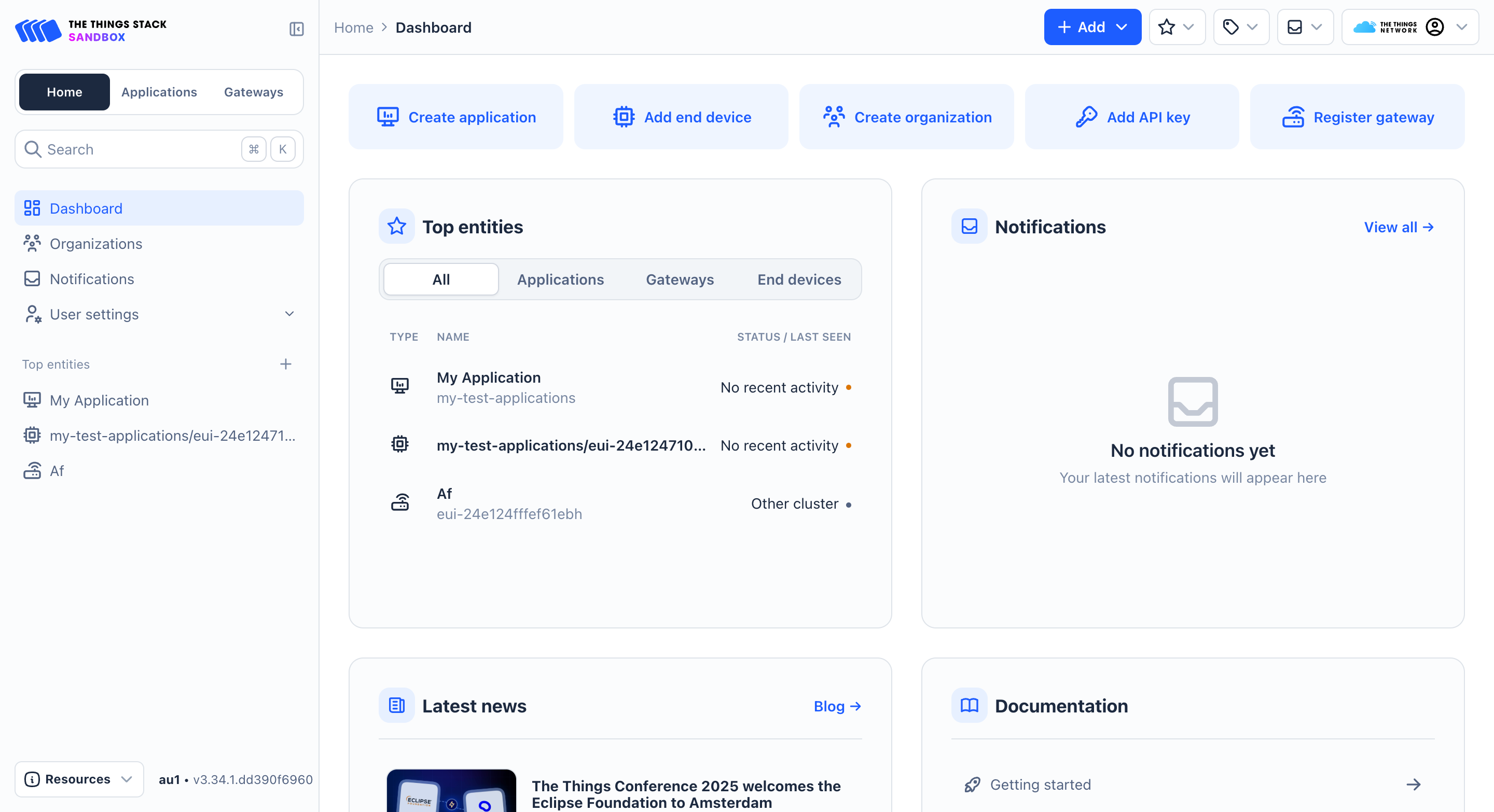

- Open the The Things Stack Console.

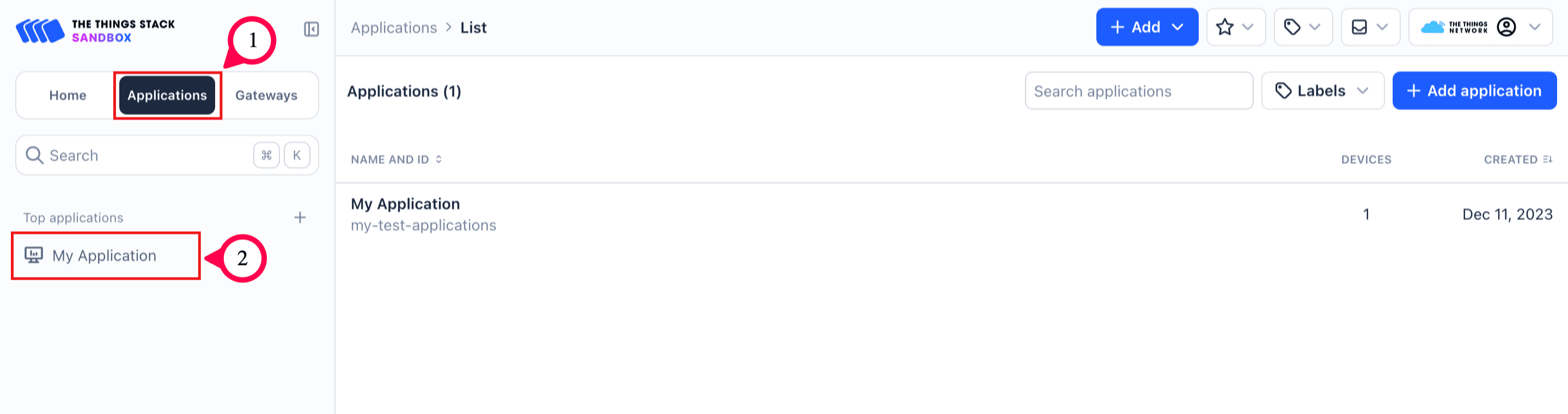

- Toggle to Applications and select the application you wish to integrate with the Zoho IoT application.

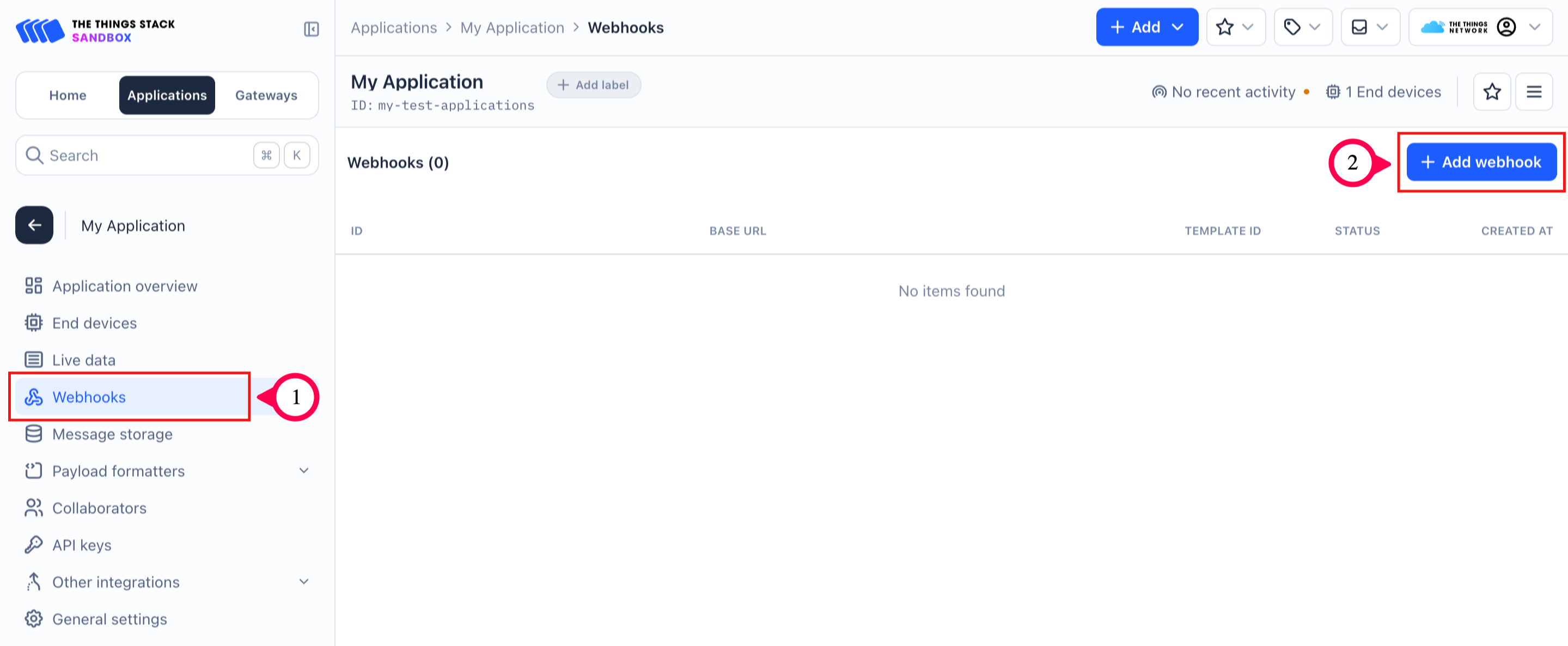

- Select Webhooks and click Add Webhook.

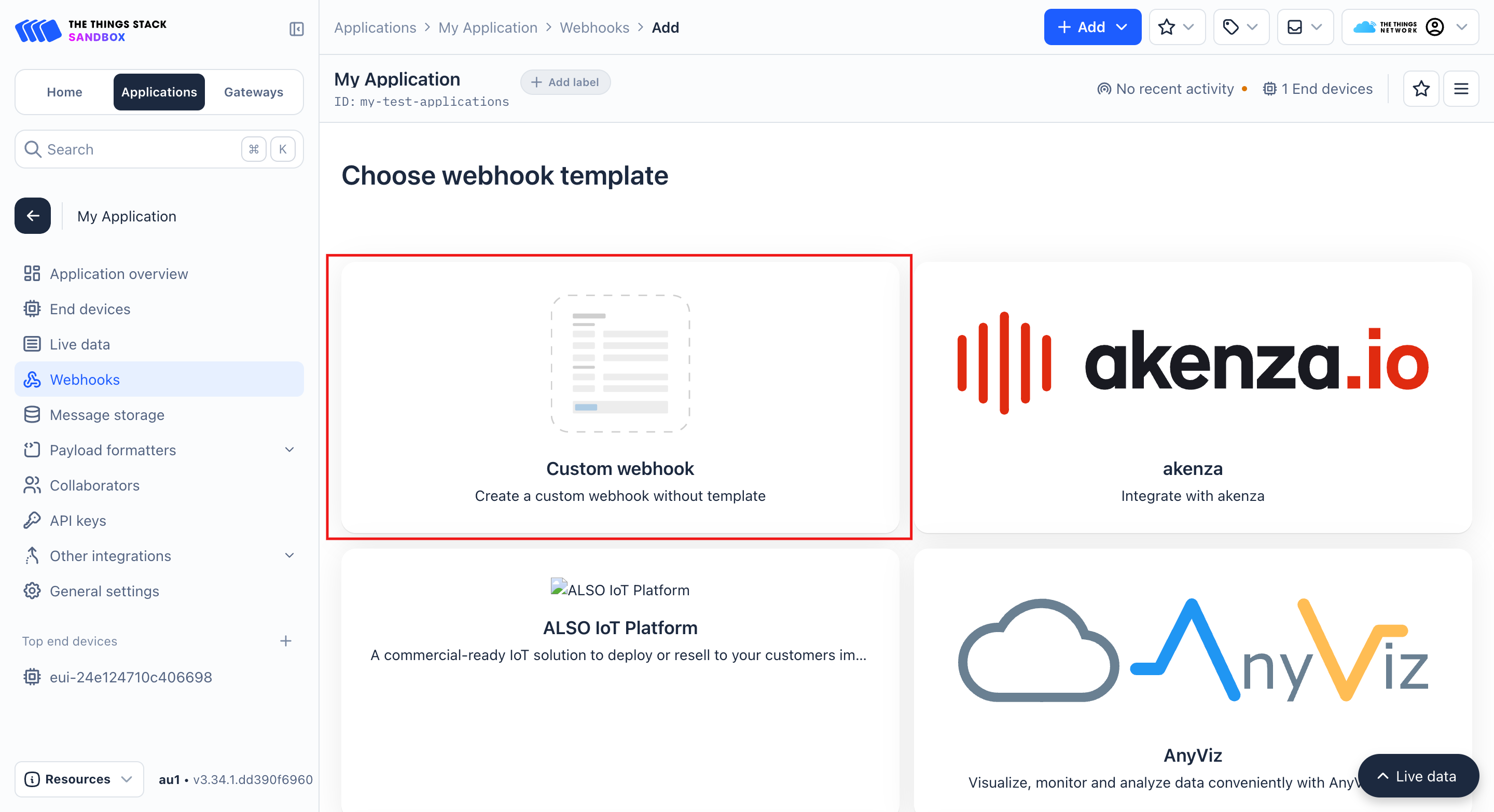

- Click on Add Custom webhook in the webhook template section.

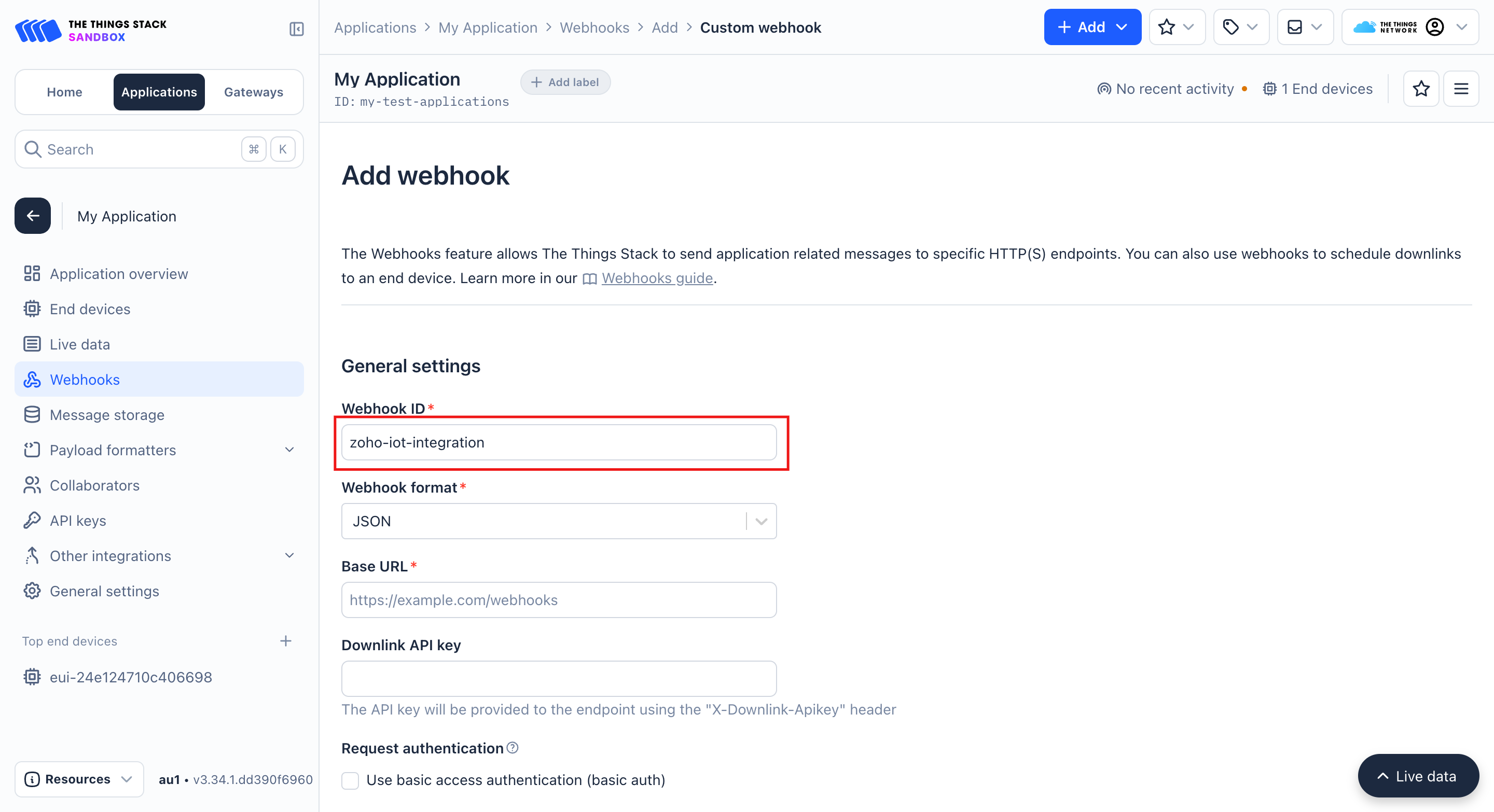

- Provide a Webhook ID for your reference.

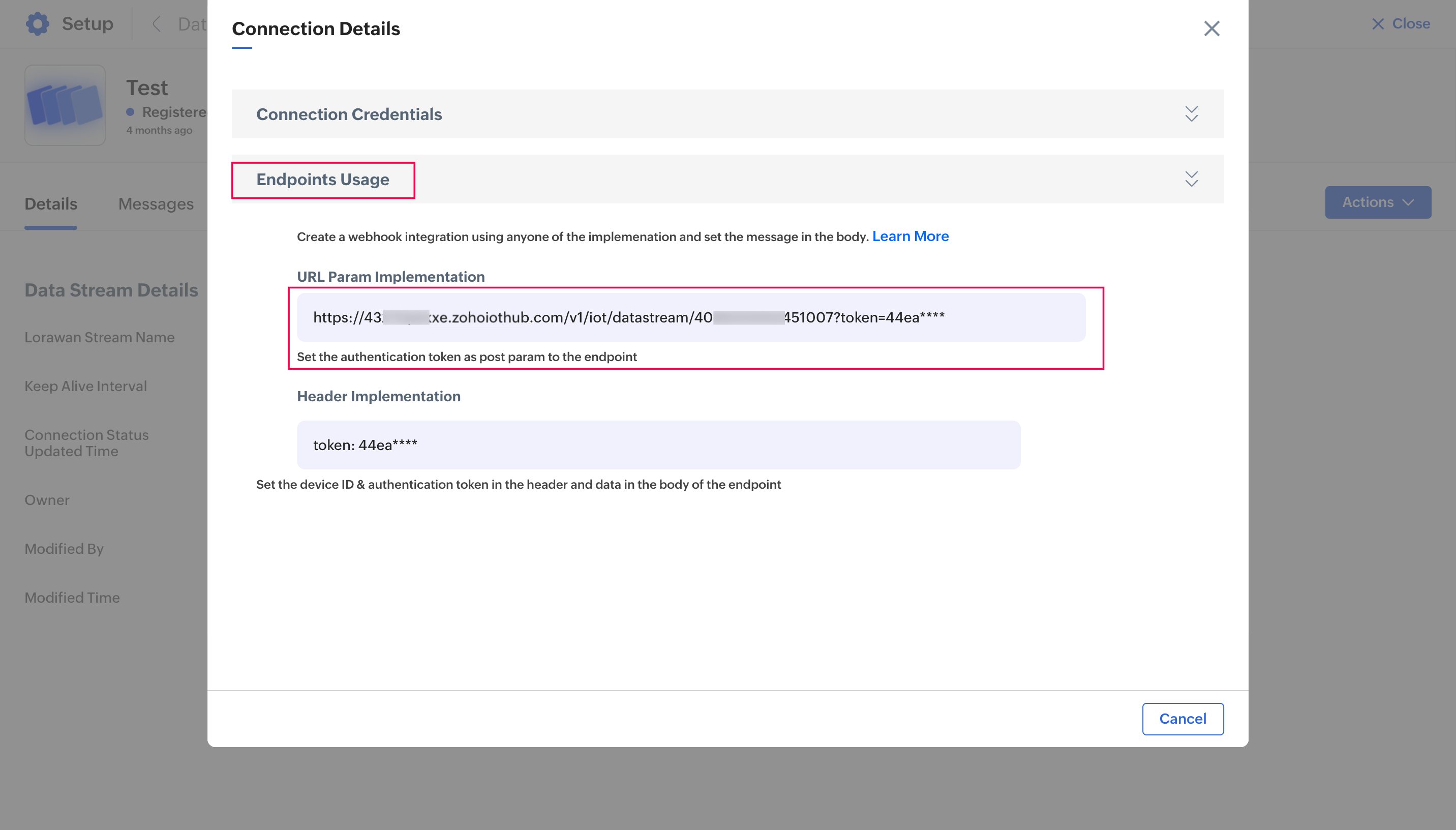

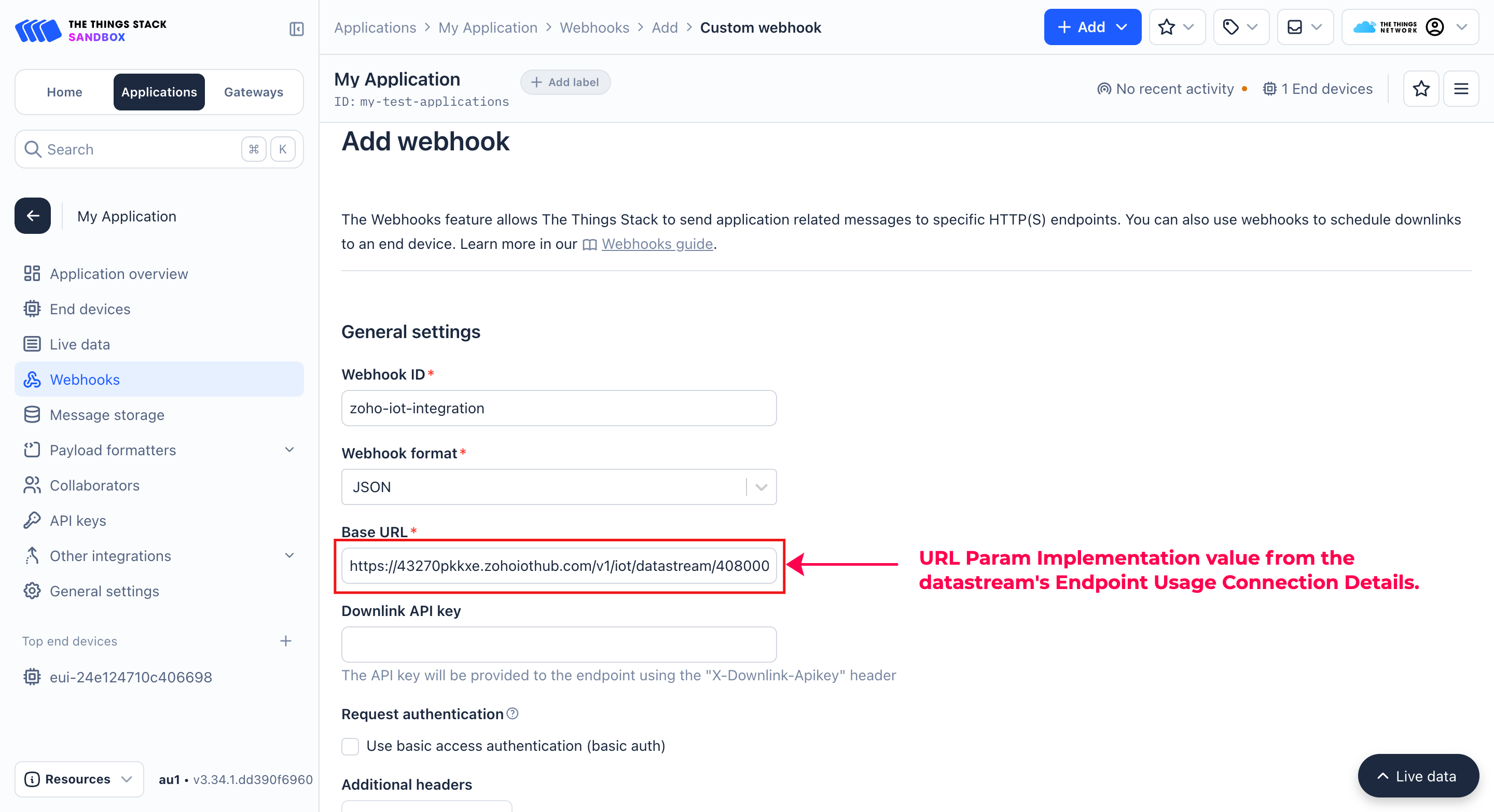

- Provide the URL Param Implementation value from the datastreams connection credentials in the Base URL filed. The authentication token required for secure connection is include in the URL param value.

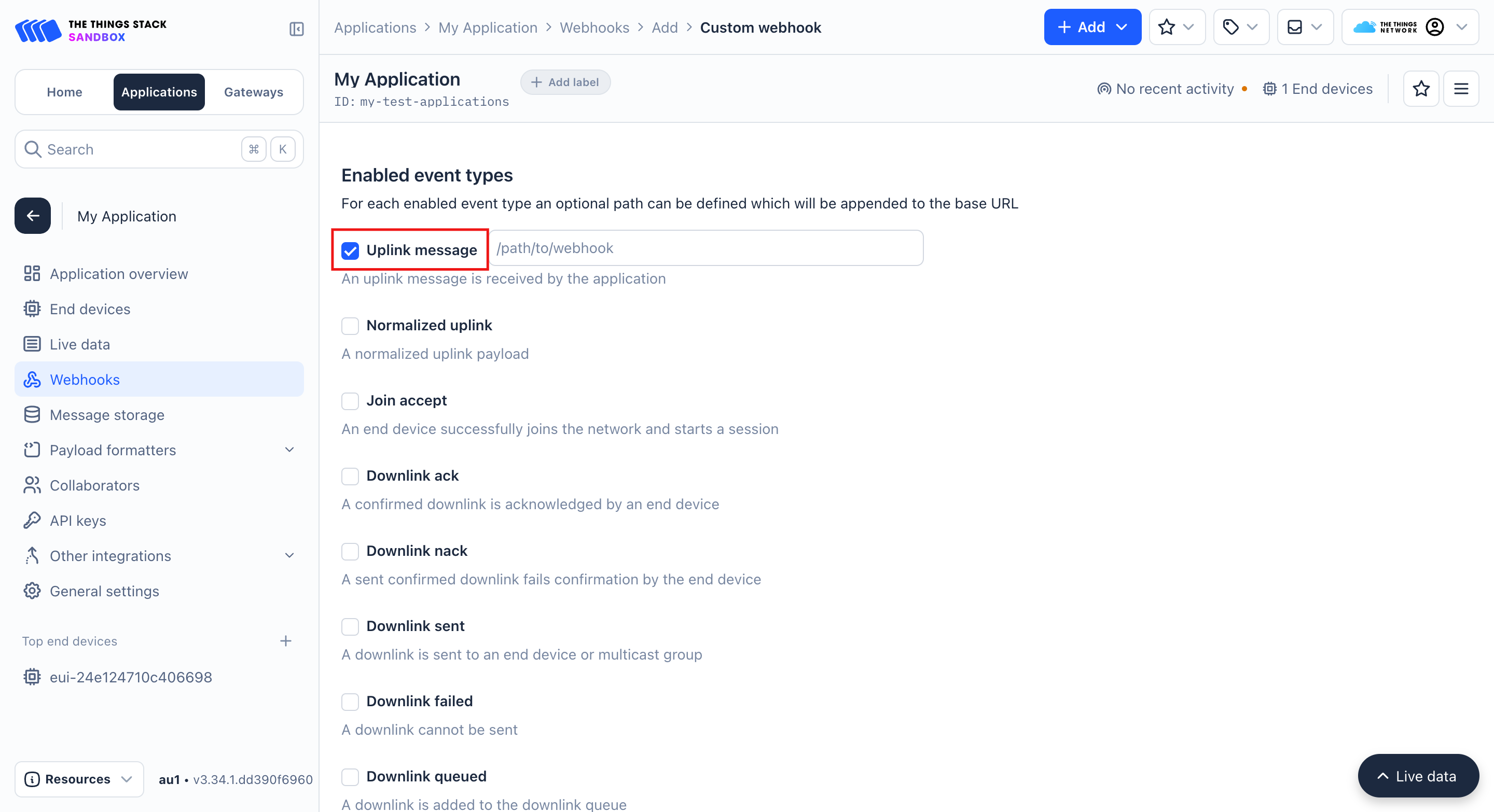

- Enable Uplink message.

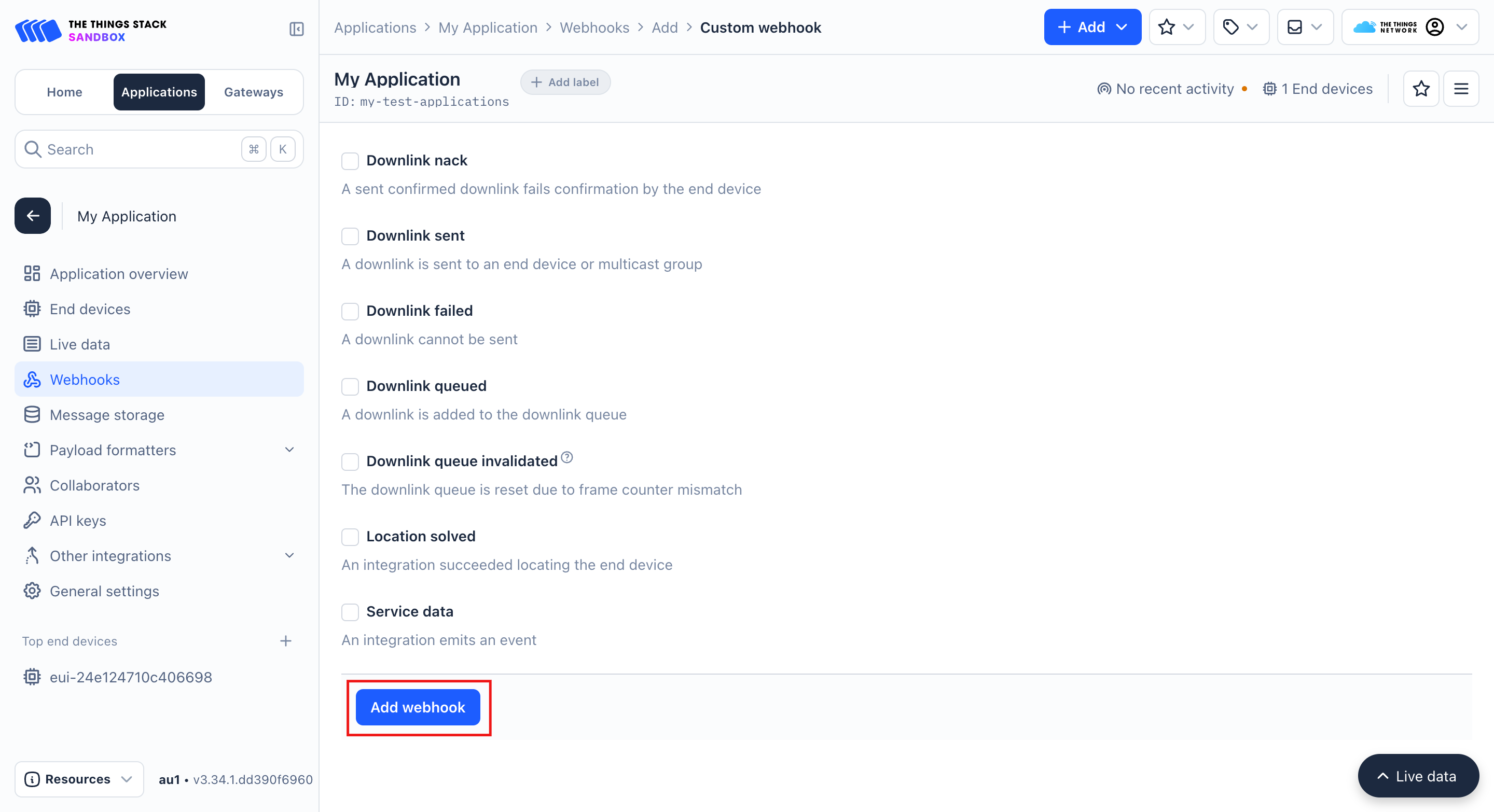

- Scroll down and click Add webhook.
The webhook is now successfully created, and the integration with the Zoho IoT application via Datastreams is complete.
When a device managed by the The Things Stack LNS sends a message, it will be received by the Zoho IoT application as well and can be viewed in the datastream's messages tab.
With the datastream integration complete, you can now proceed to use this datastream while adding a LoRa device or update this datastream to a LoRa device already added in the Zoho IoT application and begin monitoring it.
