Adding a datastream

Adding a datastream

When a datastream is added in the Zoho IOT application, credentials will be generated that can be used to integrate and connect to the corresponding server or system. Datastreams are currently supported only for the LoRa network servers listed here.

All Datastream operations require necessary permissions. Refer User Profiles document for more details.

To add a datastream,
  1. Access the End Application.

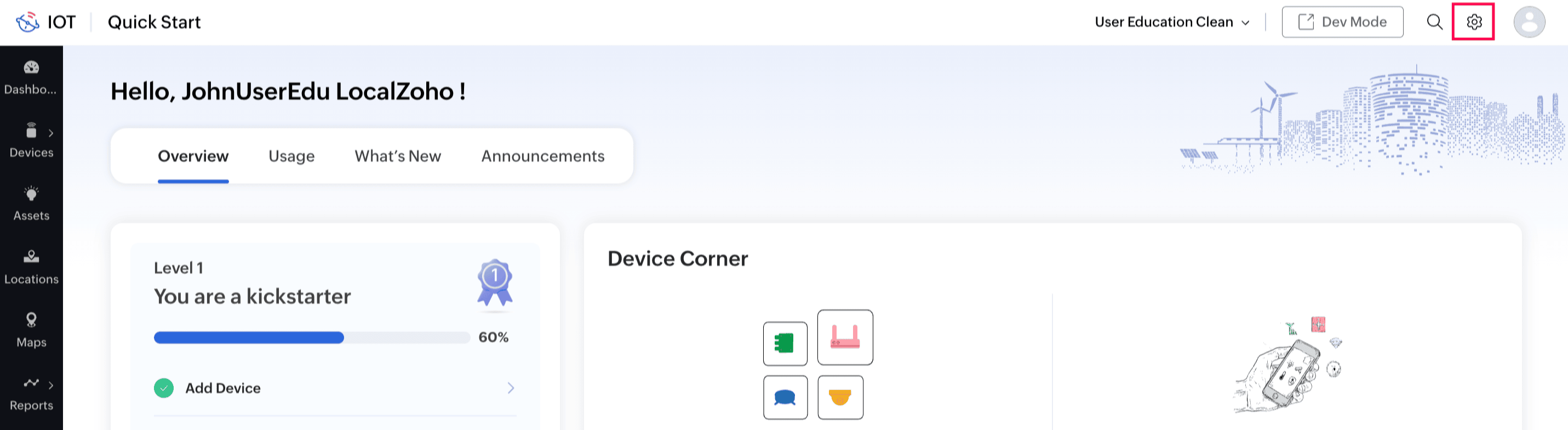

  2. Click the Settings icon at the top right.

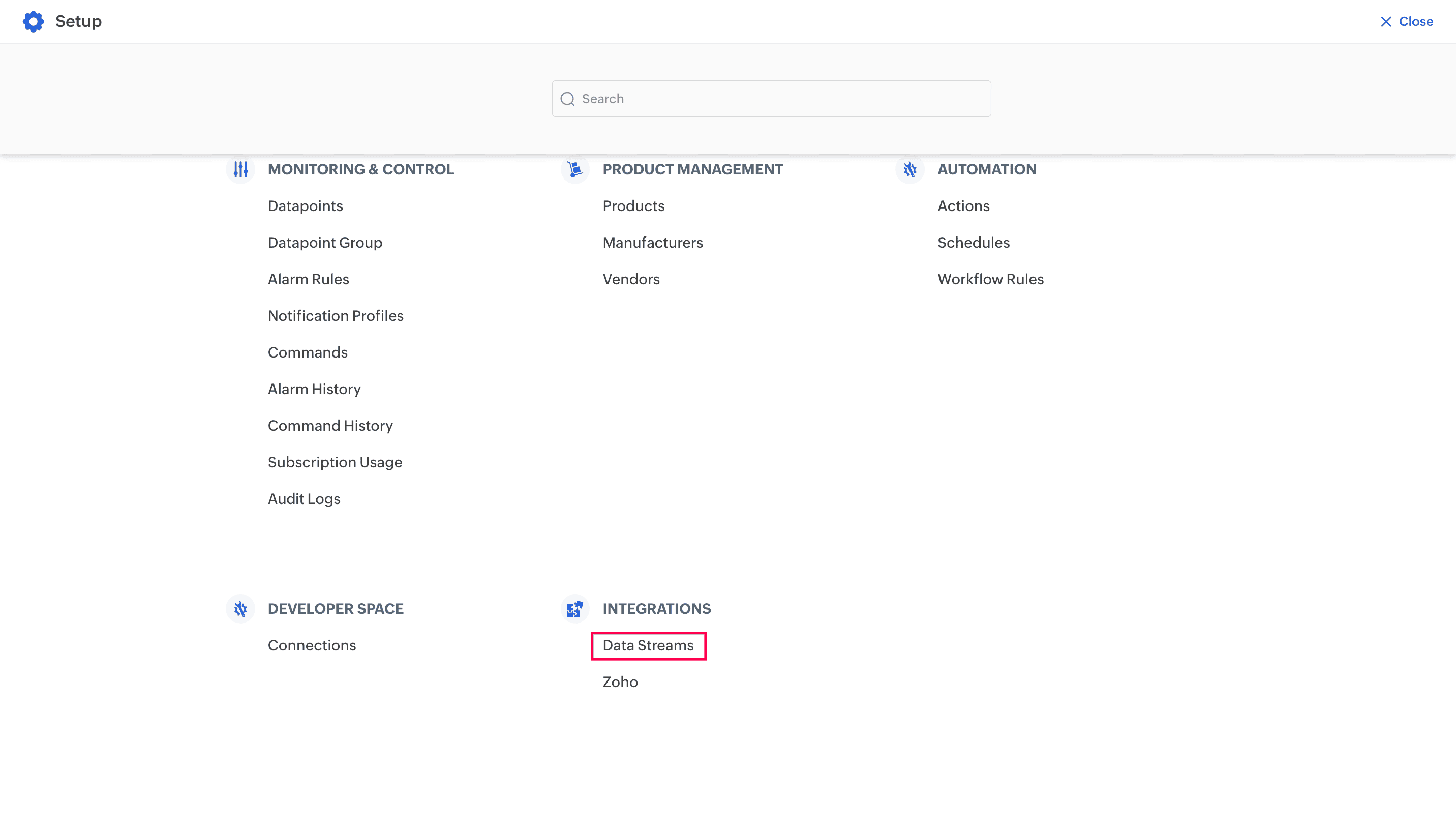

  3. Scroll down and click on Datastreams under the INTERGRATIONS section.

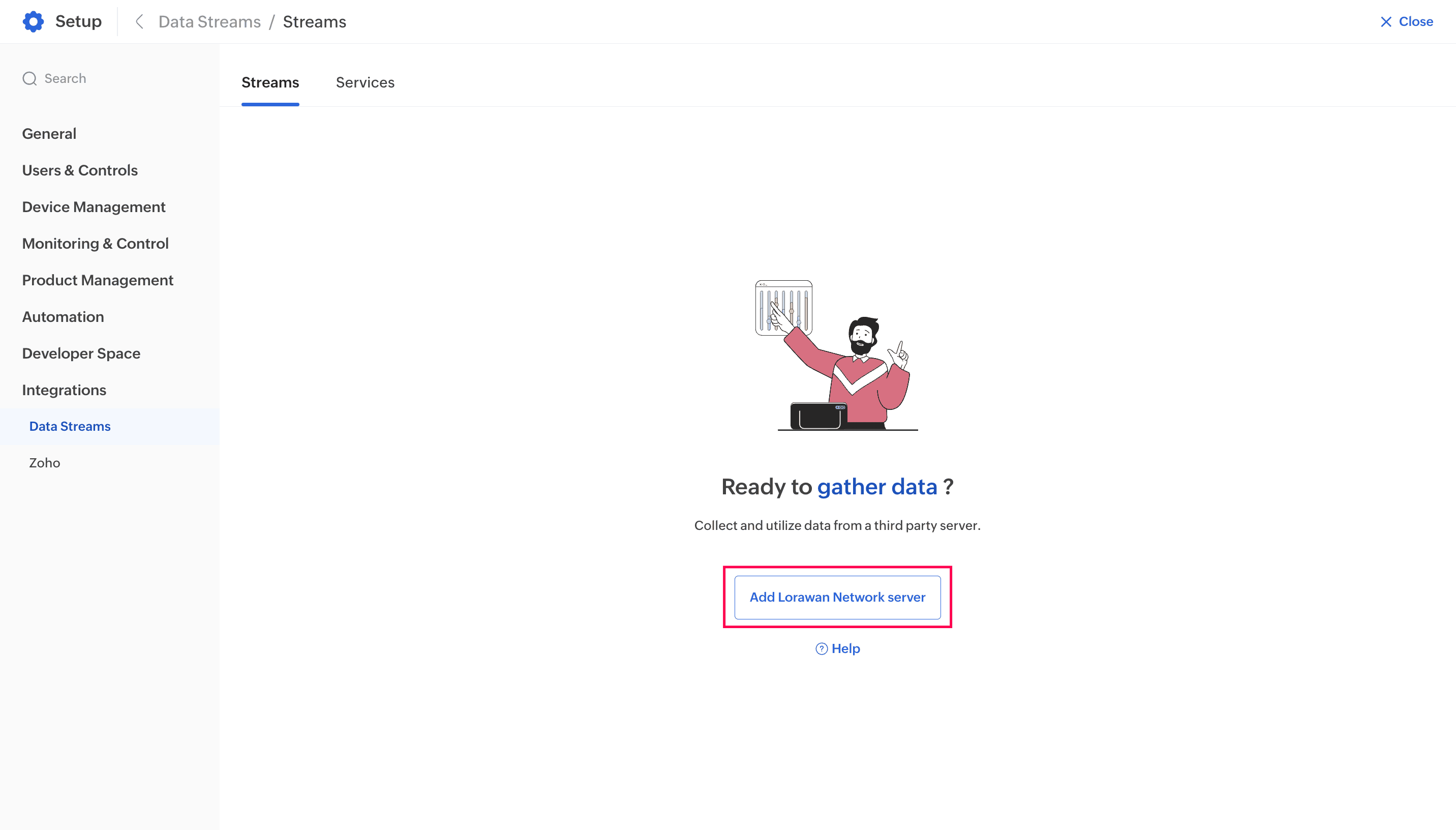

  4. Click Add Lorawan Network Server.

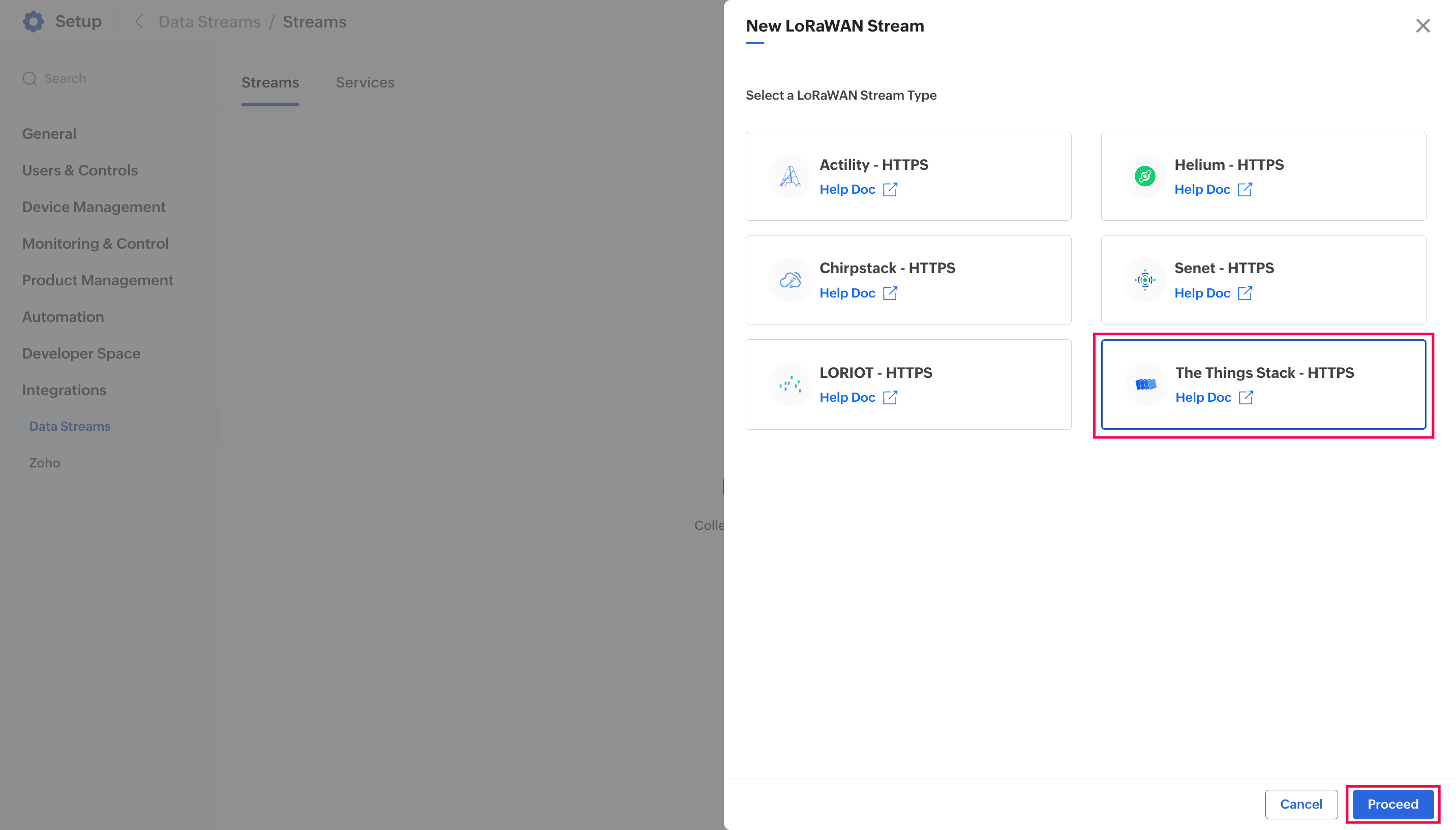

  5. Choose the required LNS by selecting the LoRaWAN Stream Type and click Proceed. For this illustration, The Things Stack LoRaWAN network server is selected.

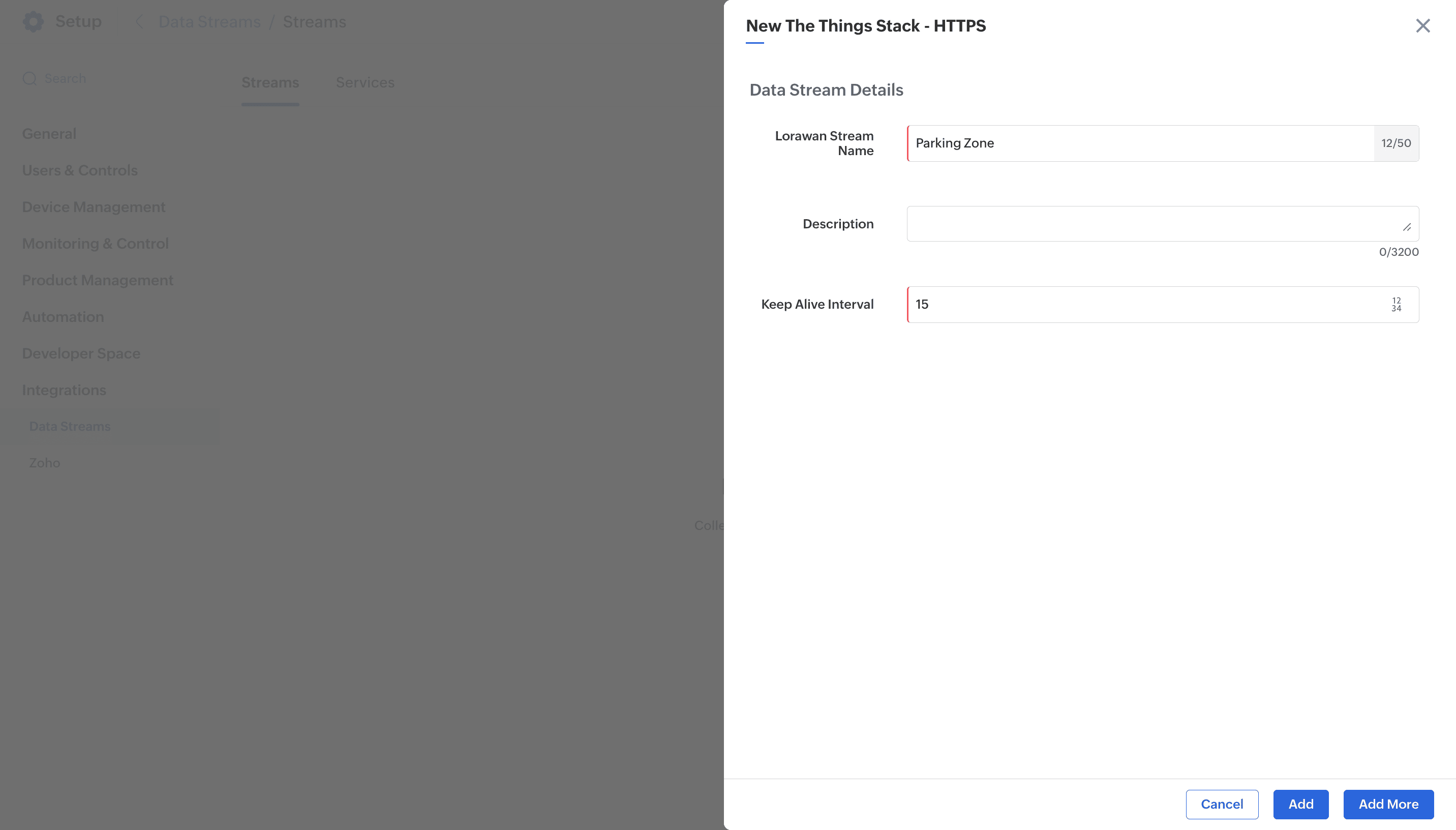

  6. Provide the details in the required fields.For this illustration, a datastream details for a parking management system is provided.



    Note: The Keep Alive Interval is the time, measured in minutes, that the application waits to check for a connection with the LNS. If the connection fails during this interval, the stream will be marked as disconnected.
  7. Click Add.

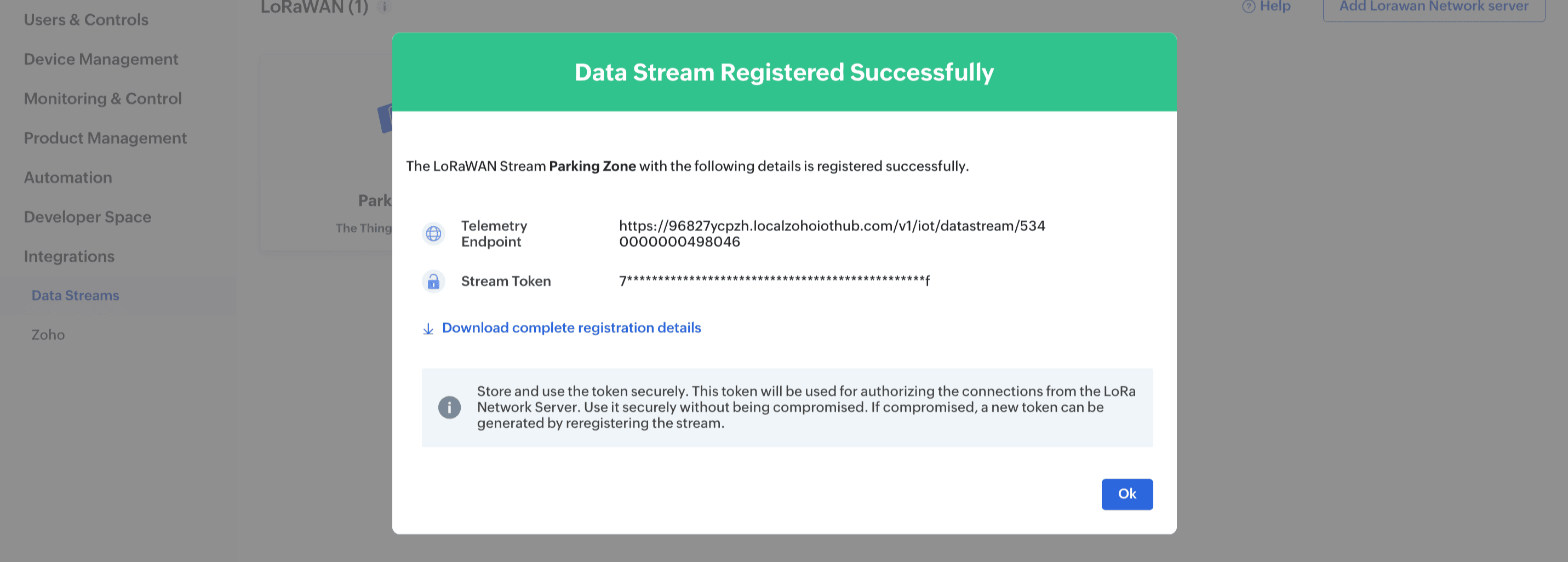

The datastream will now be added to the application, and the connection credentials will be displayed.



LoRa Datastream Connectivity Documents

Follow the guides provided to learn how to connect to the corresponding LNS using the generated credentials.

  • The Things Network
  • Chirpstack
  • SENET
  • Helium
  • Actility
  • LORIO
