Track merge status and view logs in Zoho Writer

How to track merge status and handle errors in Zoho Writer

Overview

You can track the status of the merge jobs using email notifications and the merge logs. While email notifications help you track the merge initiation and completion status, the merge logs help you track the status of jobs in progress, along with granular details such as the number of records merged successfully, debug info, custom function execution status, record-specific status, and more.

Prerequisites

  1. You must either be the owner of the merge template or it should be shared to you.
  2. You must have enabled the merge status notifications at the template level or at your account level to receive email notification
  3. You must be the one who initiates or schedules the merge job to receive the email notifications.
  4. The output option should not be "Merge as a new document".

Steps

 1. How to enable or disable merge status email notifications?

1. Open the desired Writer merge template.
2. a. To enable or disable the notifications only for this template

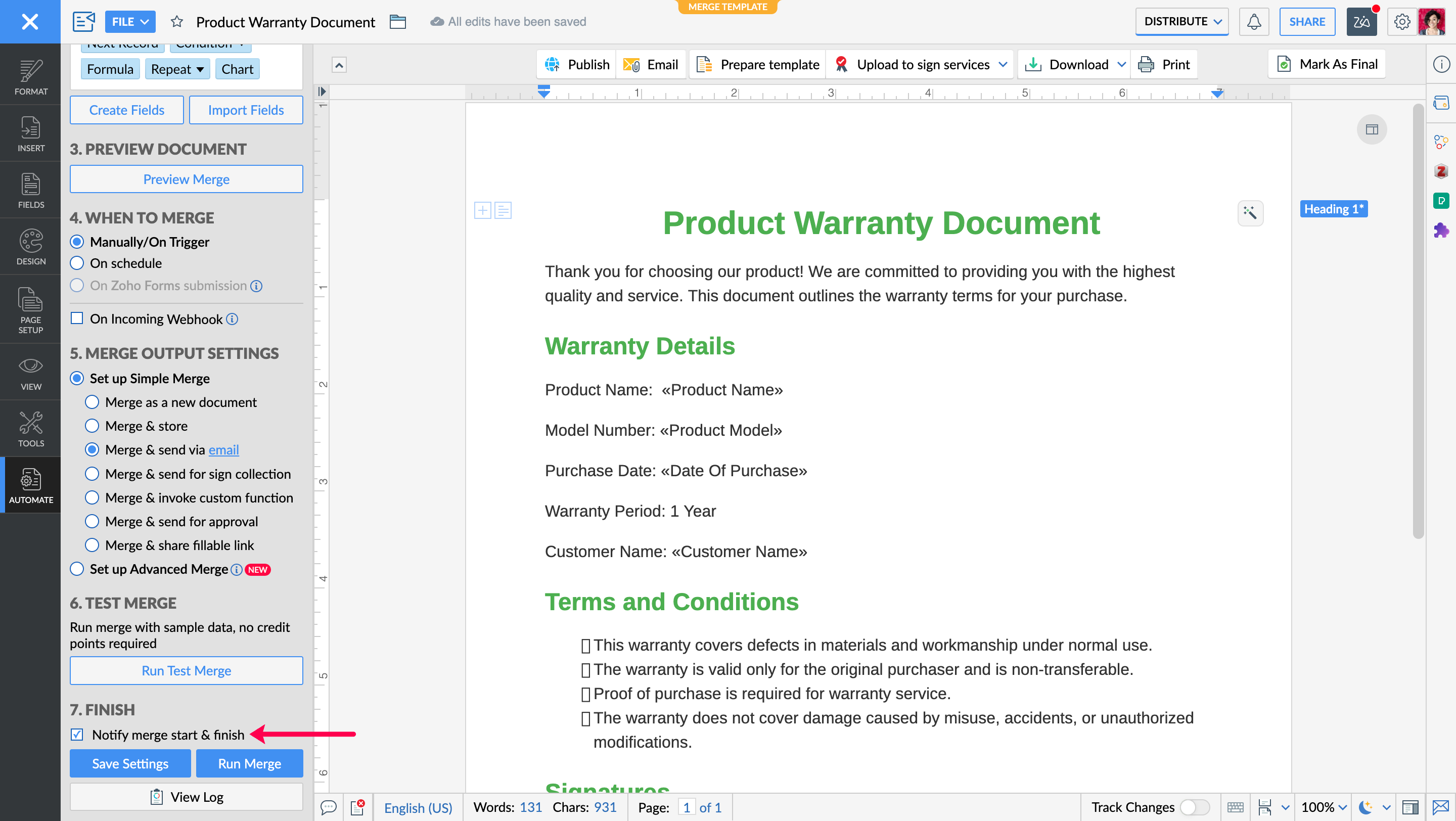

      1. Go to Automate on the top toolbar.

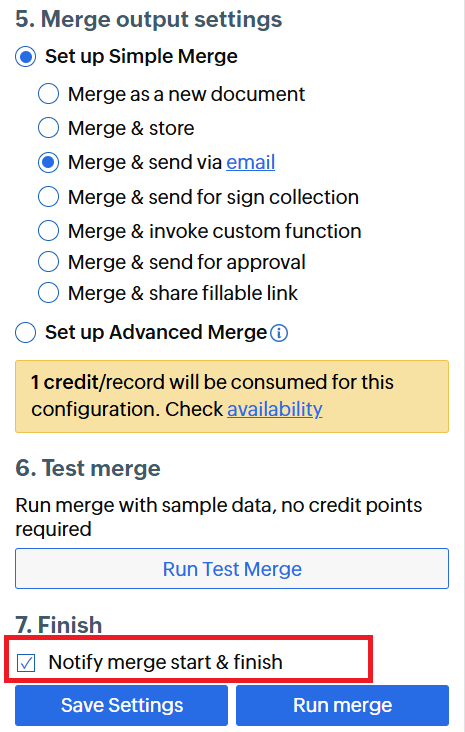

      2. Scroll down to the Finish section and check or uncheck the "Notify merge start & finish" option.




    b. To enable or disable the notifications at the account level

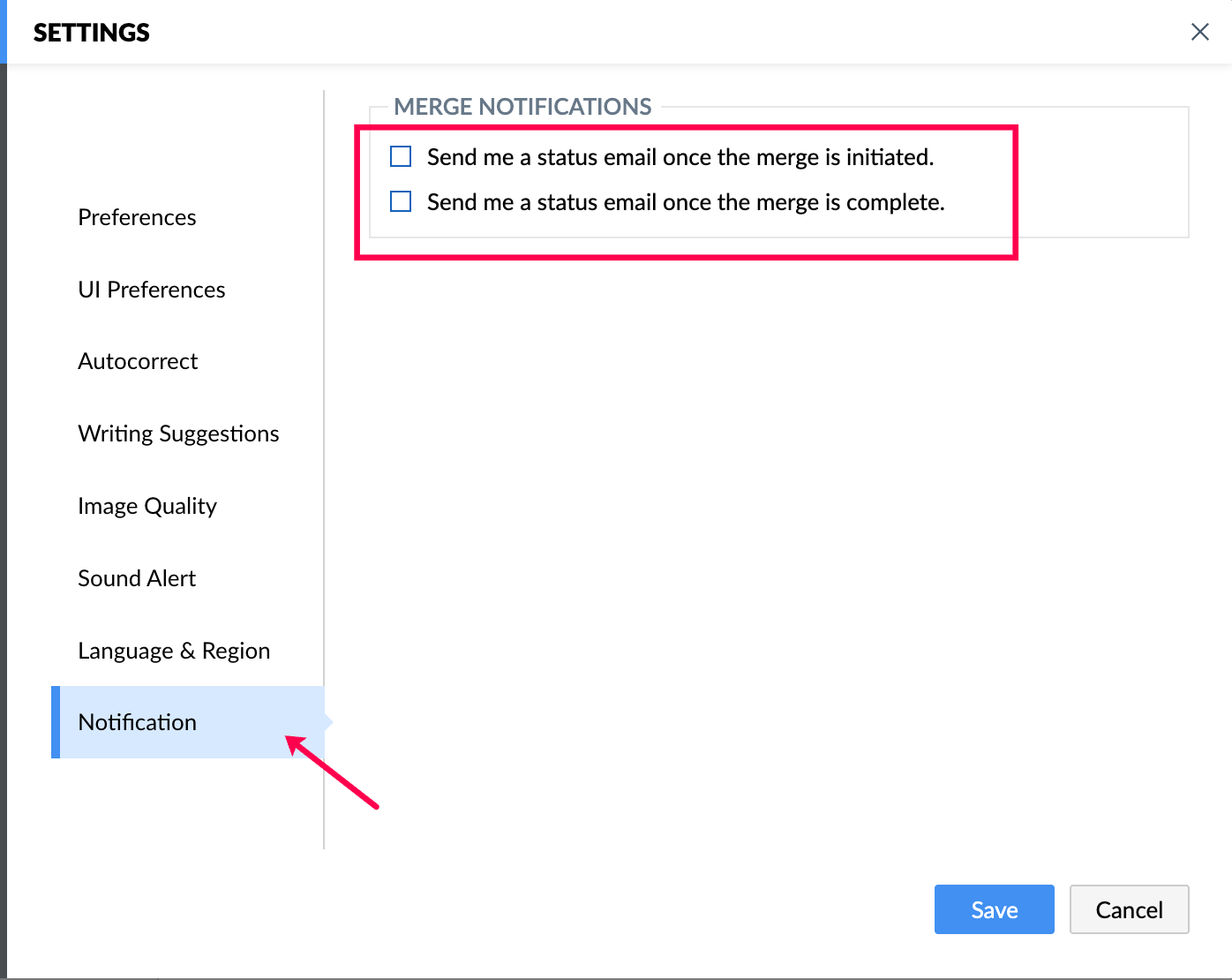

      1. Click the Settings icon located at the top right corner, beside the Zia button, and click More Settings.
      2. In the Settings dialog that opens, go to Notifications and check or uncheck the notification for merge initiation or merge                  completion option as required, and click Save.



 2. How to view merge logs and deluge/custom functions logs

Merge logs
1. a. Open the merge status notification email and click the merge logs URL mentioned in it.
Or,
1. b. Open the template that you used for the merge operation. On the top toolbar, go to the Automate --> Finish, and click the View Log button.
2. In the merge logs window that opens, you can view: the merge logs and deluge/custom function logs.
3. In the merge logs you can view details such as:
  1. Overall Merge Status (Initiated, completed, in-progress, etc.)
  2. Custom Function Status
  3. Merge status: Total number of records successfully merged vs failed
  4. Output status: Total number of records for which the merge output was processed successfully vs failed
4. To view the logs specific to each record, click the relevant record from the list displayed below the merge and output status.

Deluge Logs
1. Open the Merge Logs window using the steps above.
2. Go to the Custom Function Status field to provide the status of the custom functions (Deluge/DRE) added in the merge templates.

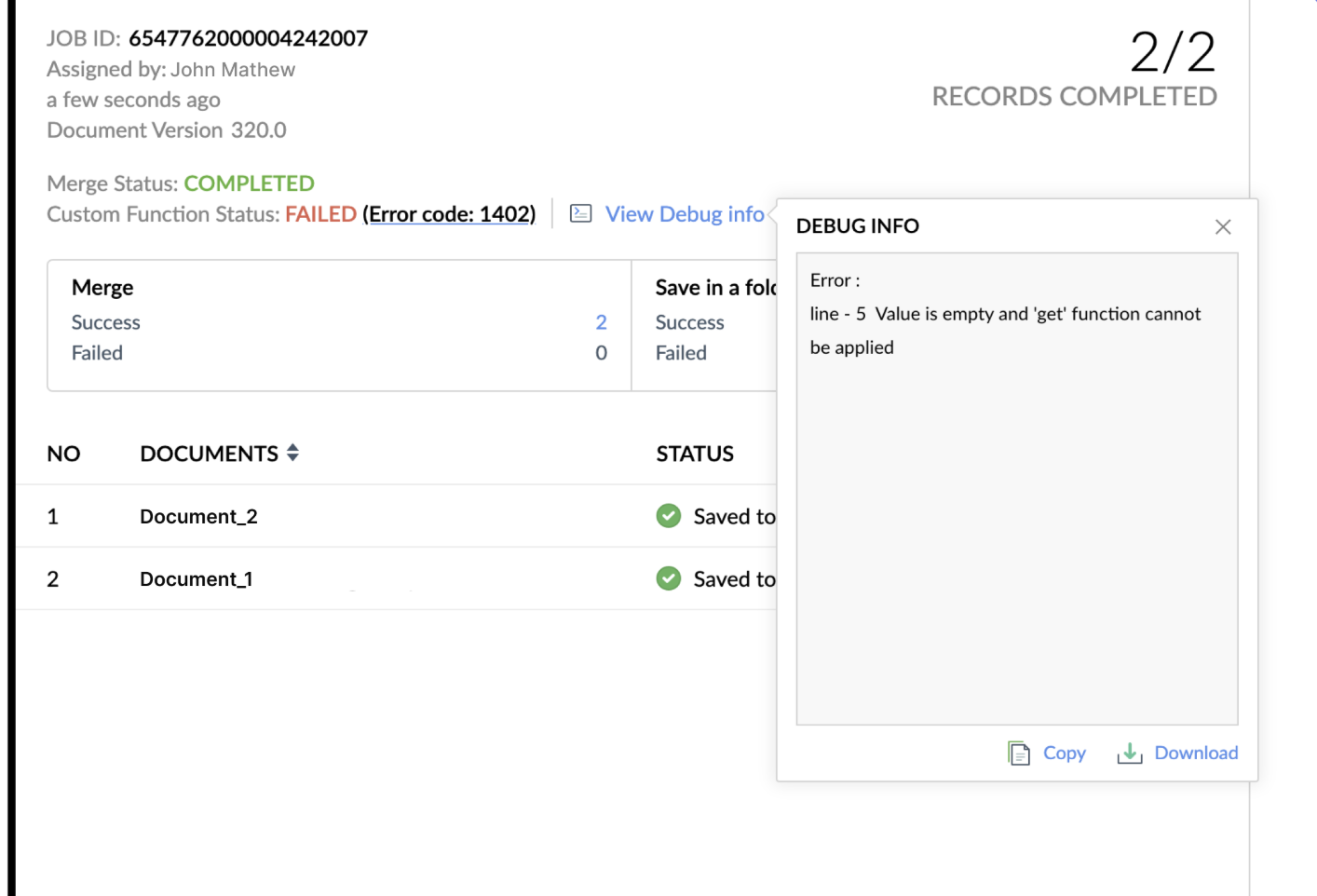

3. To view the Deluge or custom function logs, click the View Debug Info link. You can see the details of the custom functions executed, along with error messages of functions that did not execute properly.




 3. What are the common merge errors and how to handle them?

There merge operation could be interrupted or fail due to different reasons such as insufficient permissions, server issues, and API limitations. The table below lists some of the common causes for a merge failure and how to handle them.

Error Code

Reason

101

General error caused due to internal server problem.

105

Mail limit reached. You have reached the daily mail limit of 1000.

111

Failed to create attachment.

201

Failed to create HTML.

202

The email could not be sent. Please try again.

1001

Mail Merge Permission revoked. Permission to mail merge has been revoked. Contact admin.

1002

Record permission revoked. Access to records for mail merge has been revoked. Contact record owner/admin.

1005

One of the lookup fields used as an email address does not contain a valid value. Adding a lookup record in the CRM entity from which the customer initiated the mail merge will resolve the issue.

1008

Internal error occurred. Error while sending email. Contact support@zohocrm.com

1011

Failed to fetch the related list data.

1012

Daily mail limit for your mail merge exceeded.

1018

Document length exceeding 7 lakh characters won't be processed in mail merge.

1103

Unable to download the attachment.

1104

Failed to include the 'unique attachment'.

1202

Permission denied for the selected folder.

1203

Folder not found or improperly configured for document storage.

1204

Zoho Docs is discontinued. Please use the WorkDrive folder ID to store all your merged documents.

1301

Mail sending failed. An Internal error occurred while processing images in Zoho CRM. Contact support@zohocrm.com

1302

Attachment upload failed. Internal Error in attaching document. Contact support@zohocrm.com

1304

Record Email opted-out. The record owner/admin opted out emails for the record.

1305

Organization Email blocked. Email has been blocked for this organization. Contact admin

1306

Failure in sending email. Invalid / blocked recipients mail address present.

Note: If you are using mail merge templates in Zoho CRM, please refer to this article to unblock blocked email addresses. For further assistance, please contact support@zohocrm.com.

1309

DMARC verification failed. DMARC verification failed for 'From' address

1317

Invalid Email Address. Recipient email address is invalid.

1320

Failed to retrieve email template from CRM, possibly due to deletion, invalid email template, or a CRM-related issue.

1321

Mail hard bounce. Please check the recipient’s email address and try again.

1322

Mail soft bounce.

1401

Unable to execute the custom functions.

1402

Run time exception due to code execution.

1403

Function execution limit has exceeded.

1701

Unable to send email. Please try again.

1702

Images count exceeded. Email images count exceeds the allowed limit of 60.

1703

Attachment failed. An Error occurred when uploading the attachment.

1704

Attachments size exceeded. Attachments size greater than allowed limit.

1705

Unable to send mail. Please try again or write to: support@zohowriter.com. If you're from EU region, contact us at: support@eu.zohowriter.com.

1706

Mail sending was aborted. Your account has been flagged as spam.

1707

Mail sending was aborted. Mail seems to have spam content.

1708

Mail sending aborted. The email domain is blacklisted/blocked.

1709

Email policy disabled. Email policy in Organization is disabled. Please contact your organization administrator.

1710

Mail sending aborted. Invalid email address.

1711

Unconfirmed sender email. Sender email address not yet verified.

1712

Invalid mail agent key. Please try again with valid one.

1713

Mail sending was aborted. Invalid authorization token. Please try again with valid one.

1714

Mail sending was aborted. Mandatory parameter is missing. Please check and try again.

1715

Mail sending aborted. Sender domain is not verified yet.

1716

Mail sending aborted. Sender account is inactive.

1717

Unable to send mail. Character length exceeds allowed limits.

1718

Mail sending aborted. Attachments count exceeds the allowed limit of 60.

1719

Mail sending aborted. Recipient count exceeds the allowed limits.

1720

Failure sending mail. Invalid file cache key. Contact support.

1721

Unable to send mail, mandatory parameter values are invalid. Please check and try again.

1722

Unauthorized From Address. Insufficient permission to send email from this address.

1801

Unable to send the merged document to the Web hook URL.

1901

Mail sending aborted. Attachment name exceeds the allowed limit of 150 characters.

1902

Unable to send email. Email body section should not be empty.

1903

Invalid Email Address. The Recipient email address is invalid.

1904

Mail sending Aborted. Total Recipient count limit exceeds 30 [Address includes To, CC and BCC ]

1905

Mail sending Aborted. Sender Email needs to be verified. Click here to learn more.

1906

Email policy disabled. Email policy in Organization is disabled. Please contact your organization administrator. Click here to learn more.

1907

Invalid Sender Address. Sender email address is invalid.

1908

Internal error occurred. Error while sending email. Contact support support@zohopeople.com.

1909

Mail sending aborted. Attachment contains unsupported file format.

1910

Mail sending aborted. Record details not available in Zoho People. Kindly check once.

2001

Failed to assign workflow. The created document cannot be assigned to an approver or reviewer.

On Hold

Attachment failed and the mail merge operation is stopped. Please try again.
