Lead time variation reports

​

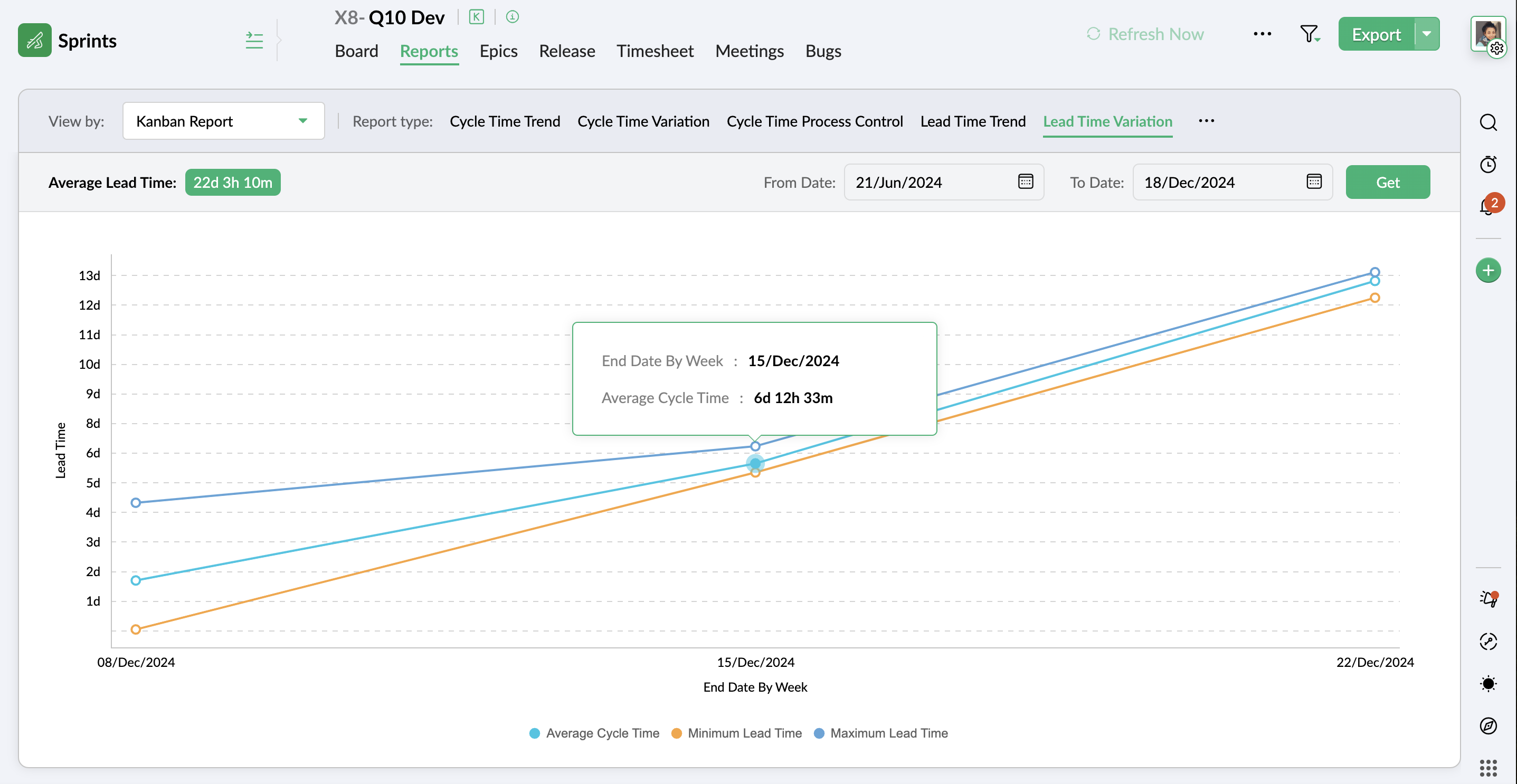

What the report shows?

1. This report shows the weekly trend by tracking the average, minimum, and maximum cycle lead of items on the board.

2. X-axis denotes the end dates of the items by week.

3. Y-axis denotes the lead time of the items that were completed.

4. Maximum, minimum, and average lead times are represented as individual lines.

5. Each item type line plots the lead time based on the items completed for a particular week.

Example

Let's assume you have an inventory management application that solves your customer requirement to procure, stock, and distribute goods. You have multiple tasks and bug fixes that need to be rolled out periodically and iteratively. The kanban board provides you with the mechanism to track, monitor, and deliver your work items.

The lead time is the time from when an item is added to the board to the time it is moved to the final status to denote completion. Using this report, you will be able to view the maximum amount of duration and minimum amount of duration taken for item completion. Along with these, the average duration for the selected date rage is also generated in the report.

For instance, if you have 10 items on the board, with maximum lead time of 20 days and minimum lead time of 9 days, your average lead time is 13 days and 8 hours.

Insights

1. You can obtain the average lead time of items for a preferred date range.

2. You can track the maximum and duration taken for item completion on a weekly basis.

Report table

Access lead time variation report

1. Go to the kanban project.

2. Select the Reports module.

3. Select Lead Time Variation report type.

4. Specify a date range to generate the report.

5. Click the Get button. The report for the specified period will be generated.

6. Hover over the plotted points to view details.

7. Click the plotted points or scroll down to navigate to the detailed table for the report.

You can export the reports in PDF and PNG formats for external use.

You can schedule exports to automate periodic export of the reports. Navigate to the Export History to access the exported files.
