Hello everyone!

Welcome back to another week of Kaizen.
In this post, we explore the Multi-Module Lookup (MML) field in the Appointments module of Zoho CRM. You learn what an MML field is, how it works, and how to use it with Zoho CRM APIs.



Table of Contents:

  • What is a Multi-Module Lookup (MML) Field in Zoho CRM?
  • Use Cases for MML
  • How  the "Appointment For" (MML) field in the "Appointments" module works?
  • Creating a Record in the Appointments Module Using the Insert Records API
  • Retrieving a Record from the Appointments Module Using the Get Records API
  • Multi-module Lookup Using the COQL API
  • Multi-module Lookup Using the Bulk Read API
  • Frequently Asked Questions

What is a Multi-Module Lookup (MML) Field in Zoho CRM?

A Multi-Module Lookup (MML) field in Zoho CRM allows you to create a one-to-one relationship between a record in one module and a record from one of multiple other modules. Unlike a normal lookup field, which references a single module, an MML field can dynamically reference records from multiple modules.
Without the MML field, users must create multiple lookup fields for each module, which complicates the CRM layout and user experience.

Note:
  • The multi-module lookup (multi_module_lookup) data type was introduced in Zoho CRM API version 3.
  • Currently, the MML field is available as a system-defined field named Appointment For in the Appointments module.
  • The Appointment For field supports lookups to both Contacts and custom modules.
  • You cannot create a custom MML field in Zoho CRM.

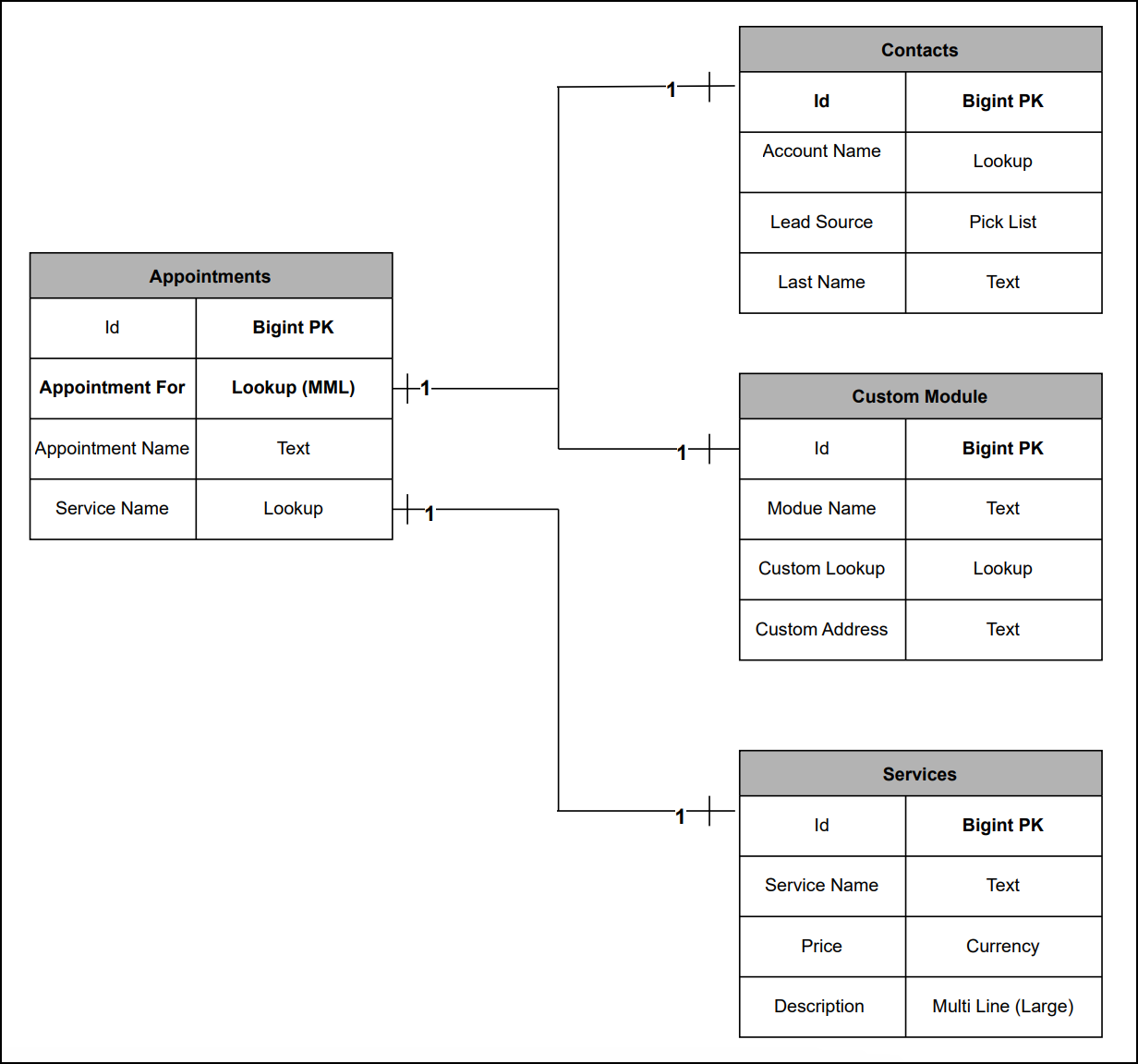

Data Model Representation

MML's Data Model Representation

Use Cases for MML


Zylker Healthcare is a multi-specialty hospital that uses Zoho CRM to maintain its appointment scheduling process.

In this setup, Zylker maintains two key modules:
  • Contacts module - Stores records of physicians and surgeons, including attending physicians, specialists, and surgeons who diagnose and refer patients.
  • Patients module - A custom module used to maintain records of all patients.

To improve the appointment booking process, Zylker uses the "Appointment For" Multi-Module Lookup (MML) field in the Appointments module. This field lets Zylker manage an appointment with either a Physician/Surgeon or a Patient, eliminating the need for multiple lookup fields.

How  the "Appointment For" (MML) field in the "Appointments" module works?

  • When creating an appointment, the user selects the "Appointment For" field.
  • The field displays records based on the selected module, either the Contacts or  Patients.
  • The user selects the appropriate record (Contact or Patients) for the appointment.
  • A related list is automatically created in the selected module (Contact or Patients) as the Open Activities / Closed Activities to display all appointments associated with that record.

Creating a Record in the Appointments module using the Insert Records API

Before creating a record in the Appointments module via the Insert Records API, make sure you know the API names of the system-defined mandatory fields. These fields are required to create an appointment successfully.

System-defined Mandatory Fields:
  • Appointment_For (MML field)
  • Service_Name
  • Appointment_Start_Time
  • Appointment_Name
  • Member
  • Location

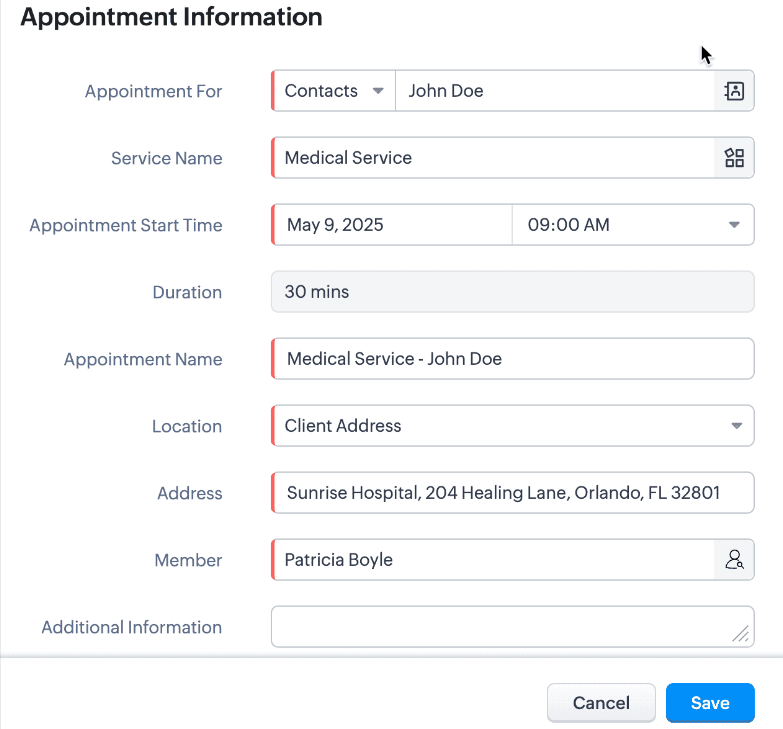

The below image shows how these system-defined mandatory fields appear in the Appointments module UI:

System-defined mandatory keys in the Appointments Module in UI view.

API calls you have to make before creating a record:

Before inserting a record into the Appointments module, it is important to know the API names of the fields and their parent modules.

i. Use the GET - Module Metadata API to know the API name of the module. In our case, the Appointments module.

Request URL : {api-domain}/crm/v8/settings/modules
Request Method : GET

Sample Response :


In the API response, search for the module with "module_name": "Appointments" and check the value of the "api_name" key to get the API name of the module. This is the name you will use in all related API calls.

ii. Use the GET - Fields Metadata API and get fields metadata for the Appointments module. Here, you can find the API names of the mandatory fields along with other fields present in the Appointments module.

Below is the API call & response for the multi-module lookup field along with other mandatory fields.

Request URL : {api-domain}/crm/v8/settings/fields?module=Appointments__s
Request Method : GET

Sample Response :


Note: The above image highlights only the key properties of the Multi-Module Lookup (MML) field from the field metadata response. The complete API response contains additional properties not shown here.

In the response:
  • The multi-module lookup field is identified by the key "data_type" with the value "multi_module_lookup".
  • The associated modules supported by the MML field (e.g., Contacts, Patients) are listed under the "modules" key.
  • Other mandatory fields like Service Name, Appointment Name, and Appointment Start Time can be identified by "system_mandatory": true.
The keys of the above multi_module_lookup JSON object are explained below:


"multi_module_lookup": {
    "display_label": "Appointments", // Display label of the module where the MML field is used
    "api_name": "Appointments__s", // API name of the Appointments module
    "modules": [ //List of modules associated with the Appointments module.
        {
            "api_name": "Contacts", //API name of the associated module
            "module_name": "Contacts", // Display Name of the module
            "id": "5725767000000002179" //Unique ID of the module
        },
        {
            "api_name": "Patients", //API name of the associated custom module
            "module_name": "Patients", //Display label of the module
            "id": "5725767000006473007" //Unique module ID
        }
    }
]
},

Note:
  • You cannot add or remove modules from the Multi-Module Lookup (MML) field using APIs. These actions are only available through the Zoho CRM UI.
  • Once a module is disassociated from the MML field, existing records associated with that module will remain in the Appointments module, and you will no longer be able to associate newly created records from the disassociated module using the MML field.
The remaining system-defined mandatory fields, along with their API names, are listed below.



 System-defined Mandatory Field Names





System-defined Mandatory Field API Names

Service Name

Service_Name

Appointment Start Time

Appointment_Start_Time

Appointment Name

Appointment_Name

Member

Owner

Location

Location


Note: The system-defined mandatory fields can be identified by "system_mandatory": true.

Search the system-defined mandatory field names and get their API names.
With the field API names, use the following request and sample input body to create a record in the Appointments module using the Insert Records API.

Request URL : {{api-domain}}/crm/v8/Appointments__s
Request Method : POST

Request Body :

{
    "data": [
        {
            "Appointment_Name": "General Consultation",
            "Owner": {
                "name": "Patricia Boyle",
                "id": "5725767000000411001",
                "email": "patricia@zohotest.com"
            },
            "Appointment_Start_Time": "2025-04-15T13:00:00-07:00",
            "Appointment_End_Time": "2025-04-15T13:30:00-07:00",
            "Appointment_For": {
                "module": {
                    "api_name": "Contacts",
                    "id": "5725767000000002179"
                },
                "name": "John Doe",
                "id": "5725767000005607020"
            },
            "Service_Name": {
                "name": "General Check-up",
                "id": "5725767000006387029"
            },
            "Location": "Business Address"
        }
    ]
}


Sample Response:


{
    "data": [
        {
            "code": "SUCCESS",
            "details": {
                "Modified_Time": "2025-05-06T20:33:42-07:00",
                "Modified_By": {
                    "name": "Patricia Boyle",
                    "id": "5725767000000411001"
                },
                "Created_Time": "2025-05-06T20:33:42-07:00",
                "id": "5725767000006390001", //Unique ID if the newly created record. Please note that this record ID will be used in the following API get and update operations.
                "Created_By": {
                    "name": "Patricia Boyle",
                    "id": "5725767000000411001"
                }
            },
            "message": "record added",
            "status": "success"
        }
    ]
}



Note:
Only Contacts and custom modules are supported in the Multi-Module Lookup field. If you try to associate a new record with a module that has been removed from the MML field or an unsupported module in the MML field, the following error will be thrown.


Retrieving a Record from the Appointments Module Using the Get Records API

Request URL : {{api-domain}}/crm/v8/Appointments__s/5725767000006390001
Request Method: GET

Request Response:

{
    "data": [
        {
            "Owner": {
                "name": "Patricia Boyle",
                "id": "5725767000000411001",
                "email": "patricia@zoho.com"
            },
            "$currency_symbol": "$",
            "Address": null,
            "Appointment_Start_Time": "2025-04-15T13:00:00-07:00",
            "Cancellation_Reason": null,
            "$field_states": null,
            "Appointment_For": {
                "module": {
                    "api_name": "Contacts",
                    "id": "5725767000000002179"
                },
                "name": "John Doe",
                "id": "5725767000005607020"
            },
            "Rescheduled_To": null,
            "$sharing_permission": "full_access",
            "Reschedule_Reason": null,
            "Additional_Information": null,
            "Last_Activity_Time": null,
            "Cancelled_Time": null,
            "Cancellation_Note": null,
            "Modified_By": {
                "name": "Patricia Boyle",
                "id": "5725767000000411001",
                "email": "patricia@zoho.com"
            },
            "Reschedule_Count": 0,
            "Rescheduled_By": null,
            "id": "5725767000006390001",
            "Rescheduled_Time": null,
            "Remind_At": null,
            "Appointment_End_Time": "2025-04-15T13:30:00-07:00",
            "Status": "Overdue",
            "Modified_Time": "2025-05-06T20:04:38-07:00",
            "Service_Name": {
                "name": "General Check-up",
                "id": "5725767000006387029"
            },
            "Created_Time": "2025-05-06T20:04:38-07:00",
            "testing": null,
            "Rescheduled_From": null,
            "Cancelled_By": null,
            "$editable": true,
            "Appointment_Name": "General Consultation",
            "Duration": 30,
            "Record_Status__s": "Available",
            "Created_By": {
                "name": "Patricia Boyle",
                "id": "5725767000000411001",
                "email": "patricia@zoho.com"
            },
            "Tag": [],
            "Location": "Business Address",
            "Reschedule_Note": null
        }
    ]
}


Updating MML Field Value Using the Update Records API

Request URL : {{api-domain}}/crm/v8/Appointments__s/5725767000006390001
Request Method: PUT

Request Body:

{
    "data": [
        {
            "Appointment_Start_Time": "2025-04-16T14:00:00-07:00", //Updating the Appointment_Start_Time
            "Appointment_End_Time": "2025-04-16T14:30:00-07:00", //Updating the Appointment_End_Time
            "Appointment_For": {
                "module": {
                    "api_name": "Employees", //Updating a different module
                    "id": "5725767000002161028"
                },
                "name": "Patrica", //A record from the Employees module
                "id": "5725767000006272001" //unique ID of the record
            }
        }
    ]
}


Multi-module Lookup Using the COQL API

Querying Inner Fields of Linked Modules within the MML Field

With the COQL API, you can query inner fields of linked modules within a Multi-Module Lookup (MML) field. This provides deeper insights into related fields data in a module. This query support is available from Zoho CRM API Version 7.

Sample Query:


{
 "select_query": "select 'Appointment_For->Contacts.Lead_Source' from Appointments__s where id is not null"
}

The above query retrieves the Lead Source field from the Contacts module within the Appointment_For MML field.


Sample Response:



Querying Multi-Module Lookup Module Name

Querying the module name associated with each record in a Multi-Module Lookup (MML) field. This query support is available from Zoho CRM API Version 7.

Sample Query:

{
"select_query": "select Appointment_For.module.api_name, Appointment_For from Appointments__s where id is not null"
}


The Appointment_For.module.api_name returns the module name (e.g., Contacts or Accounts) for each record linked in the Appointment_For MML field.

Sample Response:


Multi-module Lookup Using the Bulk Read API

Bulk Read API allows you to fetch a large set of data i.e., you can fetch a maximum of 2,00,000 records in a single API call.
Specify the API name of the Appointments module in the module JSON object when making API calls. Refer to the following section for an example.

Request Method : POST

Request Body :

{
    "callback": {
        "method": "post"
    },
    "query": {
        "module": {
            "api_name": "Appointments__s" //API name of the Appointments module
        },
        "file_type": "csv"
    }
}


Note: The Appointment_For field cannot be used in the criteria.

As the API is an asynchronous API, the response will not be available instantly; the bulk read job is scheduled, and the status can be checked. Once the job is completed, you will be notified in the callback URL. The records are available in a downloadable CSV file or ICS file (for events). See the Bulk Read API document to know how to view the status of the scheduled job and download the file, along with more sample requests and responses.

Sample Exported Response



Frequently Asked Questions

1. Which modules are currently supported in the MML field?

Only Contacts and custom modules can be associated with an MML field.

2. What error is thrown if I try to associate a record with a removed or unsupported module in the MML field?

If you try to associate a record with a removed or unsupported module in an MML field, the system will throw an "INVALID_DATA" error.

3. Is the MML field available for all modules?

No, as of Zoho CRM API Version 8, the MML field is available only as a system-defined field in the Appointments module.

4. How do I get the list of modules associated with an MML field?

You can use the GET - Fields Metadata API for the Appointments module and look for the field with "data_type" : "multi_module_lookup" and check its "modules" JSON array.

5. Can I add or remove modules from a Multi-Module Lookup (MML) field via API?

Adding or removing modules in an MML field is not supported via API. These actions can only be done through the Zoho CRM UI.

6. What happens if I remove a module from an MML field?

If a module is removed from the MML through Zoho CRM UI, it can no longer be associated with new records, but existing records linked to that module will remain unaffected.

7. Is MML field supported in the Bulk Write API?

As of Zoho CRM API Version 8, the MML field is available only in the Appointments module as a system-defined field. The Appointments module is not supported in the Bulk Write API.

8. Is MML field supported in the Search API?

The MML field is not currently supported in the Search API.



We trust that this post meets your needs and is helpful. Let us know your thoughts in the comment section or reach out to us at support@zohocrm.com

Stay tuned for more insights in our upcoming Kaizen posts!

Cheers!!!


Related Readings:


    • Sticky Posts

    • Kaizen #217 - Actions APIs : Tasks

      Welcome to another week of Kaizen! In last week's post we discussed Email Notifications APIs which act as the link between your Workflow automations and you. We have discussed how Zylker Cloud Services uses Email Notifications API in their custom dashboard.

    • Kaizen #216 - Actions APIs : Email Notifications

      Welcome to another week of Kaizen! For the last three weeks, we have been discussing Zylker's workflows. We successfully updated a dormant workflow, built a new one from the ground up and more. But our work is not finished—these automated processes are

    • Kaizen #152 - Client Script Support for the new Canvas Record Forms

      Hello everyone! Have you ever wanted to trigger actions on click of a canvas button, icon, or text mandatory forms in Create/Edit and Clone Pages? Have you ever wanted to control how elements behave on the new Canvas Record Forms? This can be achieved

    • Kaizen #142: How to Navigate to Another Page in Zoho CRM using Client Script

      Hello everyone! Welcome back to another exciting Kaizen post. In this post, let us see how you can you navigate to different Pages using Client Script. In this Kaizen post, Need to Navigate to different Pages Client Script ZDKs related to navigation A.

    • Kaizen #210 - Answering your Questions | Event Management System using ZDK CLI

      Hello Everyone, Welcome back to yet another post in the Kaizen Series! As you already may know, for the Kaizen #200 milestone, we asked for your feedback and many of you suggested topics for us to discuss. We have been writing on these topics over the

    • Recent Topics

    • Custom Search using HTM+CSS Snippet

      Suppose I wanted to create my own list view using HTML and CSS snippets inside a Page with a custom search input at the top of the list (not the Search snippet). Without Javascript, is there a way to retrieve a user's entry from that search input and

    • Link Purchase Order to Deal

      Zoho Books directly syncs with contacts, vendors and products in Zoho CRM including field mapping. Is there any way to associate vendor purchase orders with deals, so that we can calculate our profit margin for each deal with connected sales invoices

    • Recruit paid support?

      Hi all, Could anyone who has paid support package advise if it provides value for money with regards to support response times? Exploring the idea as unfortunately when we have faced issues with Recruit it has been a 7+ day timescale from reporting to

    • Zoho Projects - Attachments added to Task and Bug emails are not saved

      Hi Projects team, I have been experimenting with emails into projects to create tasks and bugs. I have noticed that attachments added to the emails are not saved to the task or bug. Is this normal behaviour? Thanks, Ashley

    • Zoho Projects - Email notification relabelling of modules not present on default templates

      Hi Projects Team, I noticed that in the default email template notification, the word "bug" was not renamed to the lable I am using in my system. As many users may used the Bugs modules for various purposes including Changes, Revisions, Issues, etc...

    • Zoho Projects - Unread Comment Icon

      Hi Projects Team, It would be great if there was a notification I con on the comments icon so it's easy to see which tasks have new comments. Something like a red circle with a number of unread comments would be great. Thanks for considering my feed

    • E-Invoicing in Belgium with Zoho Billing

      Starting January 1, 2026, Belgium is introducing mandatory electronic invoices (e-invoicing) for all B2B transactions between VAT-registered businesses. Invoices and credits notes must be exchanged in a prescribed digital format. How E-Invoicing works

    • Zoho Projects - Email Notifications for Feed Updates

      Hi Projects Team, I'm working with a client who wants a simple way to communicate with their customers on projects. Getting the customer to add comments to Tasks or Bug records is not ideal, as we need a way which is easy with minimal training, and has

    • Zoho Projects - Reply by email to @ mentions posted on the Feed.

      When mentioning someone on the Feed (Status), it would be great if that mentioned person could reply to the email notification to update the Feed thread.

    • Zoho Analytics Export API

      Hi Team, I’m working on some integration tasks and wanted to confirm if it’s possible to retrieve a Zoho Analytics table as JSON data using a Deluge script. I’ve already stored my custom data from multiple sources and combined it into a single source.

    • Unveiling Zoho Sites 2.0 - A new dimension in website building

      Dear Zoho Sites Users, We are thrilled to announce the launch of Zoho Sites 2.0 today! This refresh represents a significant step forward in the capabilities of Zoho Sites and is crucial for creating a lasting and positive impact on our customers' businesses.

    • Weekly Tips : Make collaboration effortless with Whiteboard in Zoho Mail

      Working with your team often means switching between emails, notes, and other applications just to explain an idea. Maybe you are trying to sketch a layout, plan a workflow, or quickly brainstorm ideas—with text alone, things can get confusing. So how

    • Zoho Projects - Update Feed via API

      Hi Projects Team, Please consider adding an API to allow update and retrieval of messages to the Feed. Thank you

    • Rich-text fields in Zoho CRM

      Hello everyone, We're thrilled to announce an important enhancement that will significantly enhance the readability and formatting capabilities of your information: rich text options for multi-line fields. With this update, you can now enjoy a more versatile

    • Hide fields only for creation

      Hello, I'd like to hide some fields only during the creation of a contact in Zoho CRM. In fact I have some fields that are automatically calculated thanks to an automation, so when my users create a contact I don't want them to fill those fields. I know

    • My go to On Load Client Script - Fast, efficient, and works for ALL profiles; Hides everything except initial fields

      This is my on Load client script that I use for Create pages. I use a modified version for Edit and Display pages which you can create yourself using the same basic structure that I will give you below. First up, the script. Below that will be an explanation

    • Cliq iOS can't see shared screen

      Hello, I had this morning a video call with a colleague. She is using Cliq Desktop MacOS and wanted to share her screen with me. I'm on iPad. I noticed, while she shared her screen, I could only see her video, but not the shared screen... Does Cliq iOS is able to display shared screen, or is it somewhere else to be found ? Regards

    • Zoho Sites "pages" management page

      I have 80 plus pages on zoho sites. When I go to the "pages" link to view and edit pages, They are not in any kind of order, so I spend lots of time searching for pages when I need to edit or create new. How can I change the view order of all my pages

    • Introducing the all-new email parser!

      Greetings, We are pleased to introduce to you, a brand-new, upgraded version of the Zoho CRM Email Parser, which is packed with fresh features and has been completely redesigned to meet latest customers needs and their business requirements. On that note,

    • Exciting Updates to the Kiosk Studio Feature in Zoho CRM!

      Hello Everyone, We are here again with a series of new enhancements to Kiosk Studio, designed to elevate your experience and bring even greater efficiency to your business processes. These updates build upon our ongoing commitment to making Kiosk a powerful

    • Zoho Projects - Refine Access to Collaboration Menu

      Hi Projects Team, I noticed that Calendar, Chat and Meeting menu options in the Collaboration section are visible to client users, even when they don't have access to the features. This could be confusing and frustrating, because if it's there you expect

    • Zoho Projects - Add Feed to Project Tabs

      Hi Projects Team, I'm working on a lightweight communications requirement for one of my customers in relation to communicating with their client users via Zoho Projects. I noticed that the Feed is only available in the Collaboration section, but you can

    • Zoho Books Finance Modules Not Accessible in Zoho CRM Mobile App

      We have integrated Zoho CRM with Zoho Books using the Zoho Finance Suite integration. In the CRM web version, we can see the Finance modules (Estimates/Quotes, Invoices, Sales Orders, Items, Payments) and are able to create invoices and quotes directly

    • Zoho CRM Kiosk Upload Files

      Hello all, We are trying out Kiosks at the moment to see where it can fit best in our business. We are still a bit off in the application but lets say we will sort this out. My question is the following - when I create a Kiosk I can add "File Upload"

    • Connecting zoho creator to zoho writer to send prefilled documents

      i will paste the worflow below // Get user's submitted data from the form userSalary = input.Current_Salary; userCIBIL = input.CIBIL_Score; userEmail = input.Email; userName = input.Name; // You need to get the Document ID from the URL of your Zoho Writer

    • Extracting Images from a Zoho Creator Report into a Pages

      If you’ve uploaded images in a form and can see them in your report, you might also want to display those same images inside a Page (custom HTML page). This is useful for dashboards, profile pages, or any place where images should be visible dynamically

    • How do I change a form's name? Why isn't this more intuitive?

      Can someone please let me know how to change a form's name?

    • Zoho is blocking emails I subscribe to from one sender

      About 4 months ago I stopped receiving newsletters that I subscribe to from @thedispatch.com. They tell me that zoho's server is blocking them. I've added them to my contacts list, but they're not even reaching my inbox. I don't know how to troubleshoot

    • Introducing Formula Fields for performing dynamic calculations

      Greetings, With the Formula Field, you can generate numerical calculations using provided functions and available fields, enabling you to derive dynamic data. You can utilize mathematical formulas to populate results based on the provided inputs. This

    • Inactive Items - Make Less Prominent by Default

      Currently, when one marks an Item as "Inactive", it really doesn't do much of anything to hide it or get it out of the way. Search and reporting within Finance should, by default, hide inactive Items from standard reports, searches, etc. If one specifically

    • Items should display under specific warehouse

      I have configured the multi warehouse but it show all the items under all warehouse which is not correct according to our business logic, so i want that items should only display under that specific warehouse not under all the warehouses not even with zero quantity. Some items should be common but not all so is there any option for that purpose so i can specific the items to its warehouse. Regards

    • Zoho Analytics Bulk Api Import json Data

      HI, I’m trying to bulk-update rows in Zoho Analytics, and below are the request and response details. I’d like to understand the required parameters for constructing a bulk API request to import or update data in a table using Deluge. Any guidance on

    • Convert HTML to PDF & Send as Email Attachments in Zoho Creator (Deluge)

      This approach is useful for sending welcome letters, instructions, or promotional offers after order creation. // 1. Define the variables using the submitted input customerName = input.Customer_Name1; orderID = input.ID; customerEmail = input.Email_Address; //

    • Auto-fill New Row with Previous Row Values

      rowsize = input.Order_Items.count(); for each row1 in input.Order_Items { rowsize = rowsize - 1; if(rowsize == 1) { row.Door_Model = row1.Door_Model; row.Door_Color = row1.Door_Color; row.Materials = row1.Materials;

    • I am facing a problem with an if-else condition

      If I use if, else if, and else conditions in Deluge with the same variable name, sometimes the variable causes an error because the same variable name is present in every block

    • When I click on PDF/PRINT it makes the invoice half size

      When I click PDF / Print for my invoice in Zoho Books, the generated PDF appears at half size — everything is scaled down, including the logo, text, and layout. The content does not fill the page as it should. Could someone advise what causes Zoho Books

    • Python - code studio

      Hi, I see the code studio is "coming soon". We have some files that will require some more complex transformation, is this feature far off? It appears to have been released in Zoho Analytics already

    • API question - adding a thread to an existing ticket

      Hi Is there an API function for the customer to add to an existing ticket thread? example, customer puts in new support ticket. support replies and ask for more details. customer replies with more details -what api function is used for this (will add record append to same ticket number?) Thanks

    • search and Smart Bar both missing in Mail

      One of the users on my account does not have the search bar at the top right or the Smart Bar at the bottom left of the desktop Mail app. Any ideas how to get those back?

    • Why is Zoho Meeting quality so poor?

      I've just moved from Office 365 to Zoho Workplace and have been generally really positive about the new platform -- nicely integrated, nice GUI, good and easy-to-understand control and customisation, and at a reasonable price. However, what is going on

    • Next Page
