Connectivity Guide: Chirpstack V3
LoRa devices (LoRa nodes) registered in ChirpStack V3 LoRaWAN Network Servers can be monitored in Zoho IoT applications through datastream integrations.
Note: For ChirpStack V4, refer to the documentation here.Prerequisites
Before proceeding with the integration, ensure you have:
- Access to the Zoho IoT Application.
- Endpoint Usage connection detail of the datastream.
- An active ChirpStack account with access to the ChirpStack Console.
Configure the Integration in the The Things Stack console

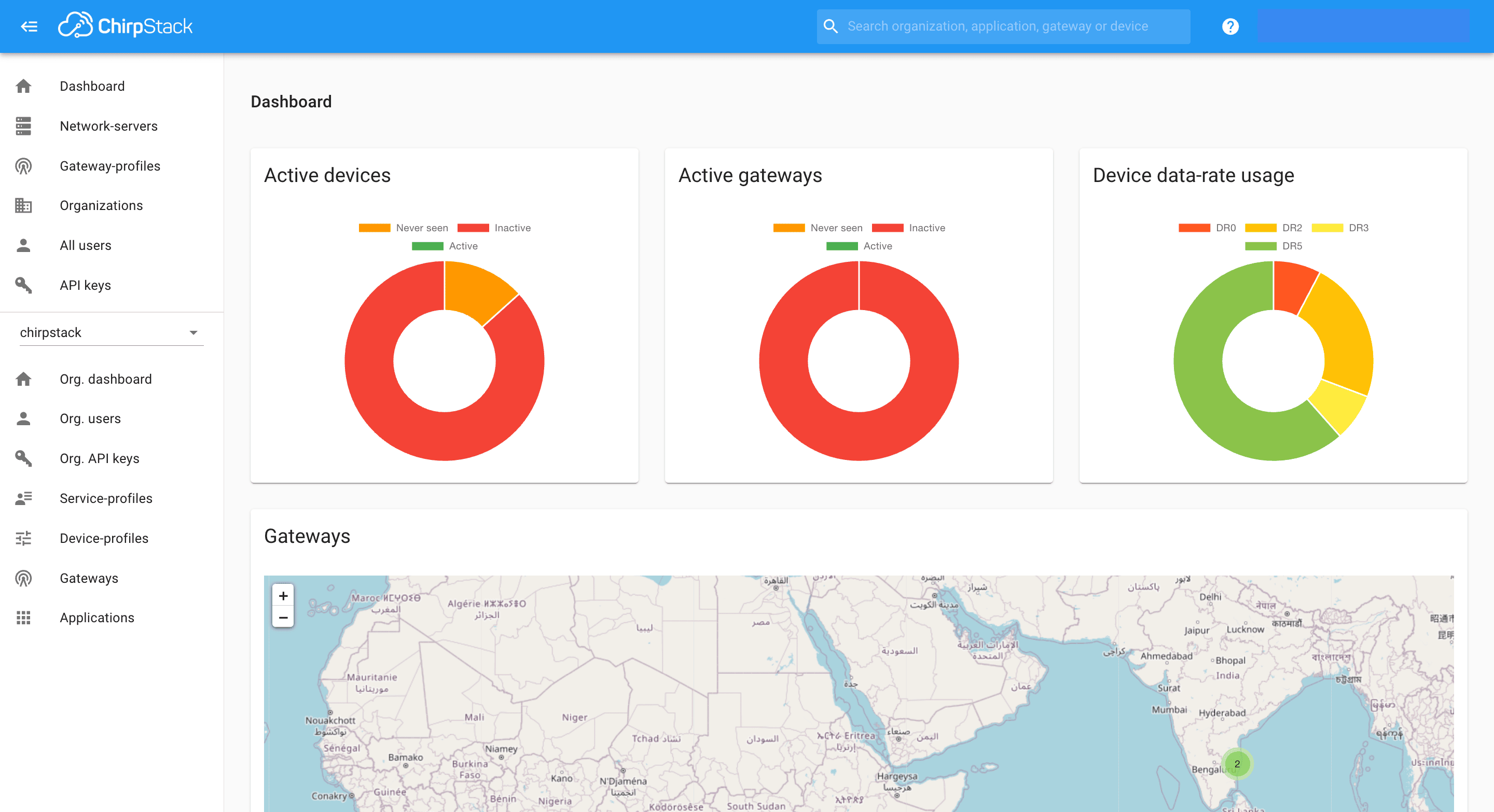

- Open the ChirpStack Console.

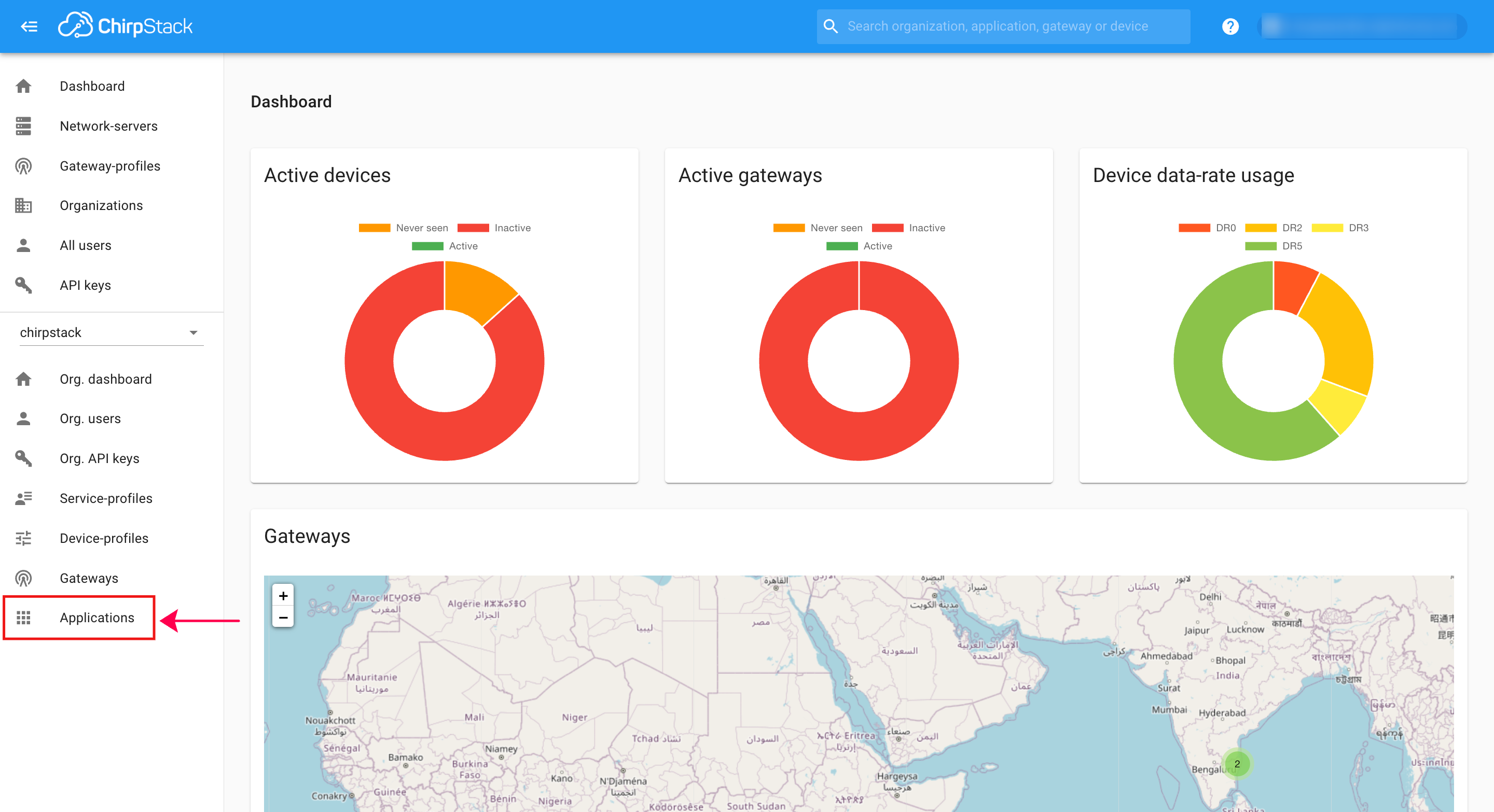

- Click Applications is the left navigation pane.

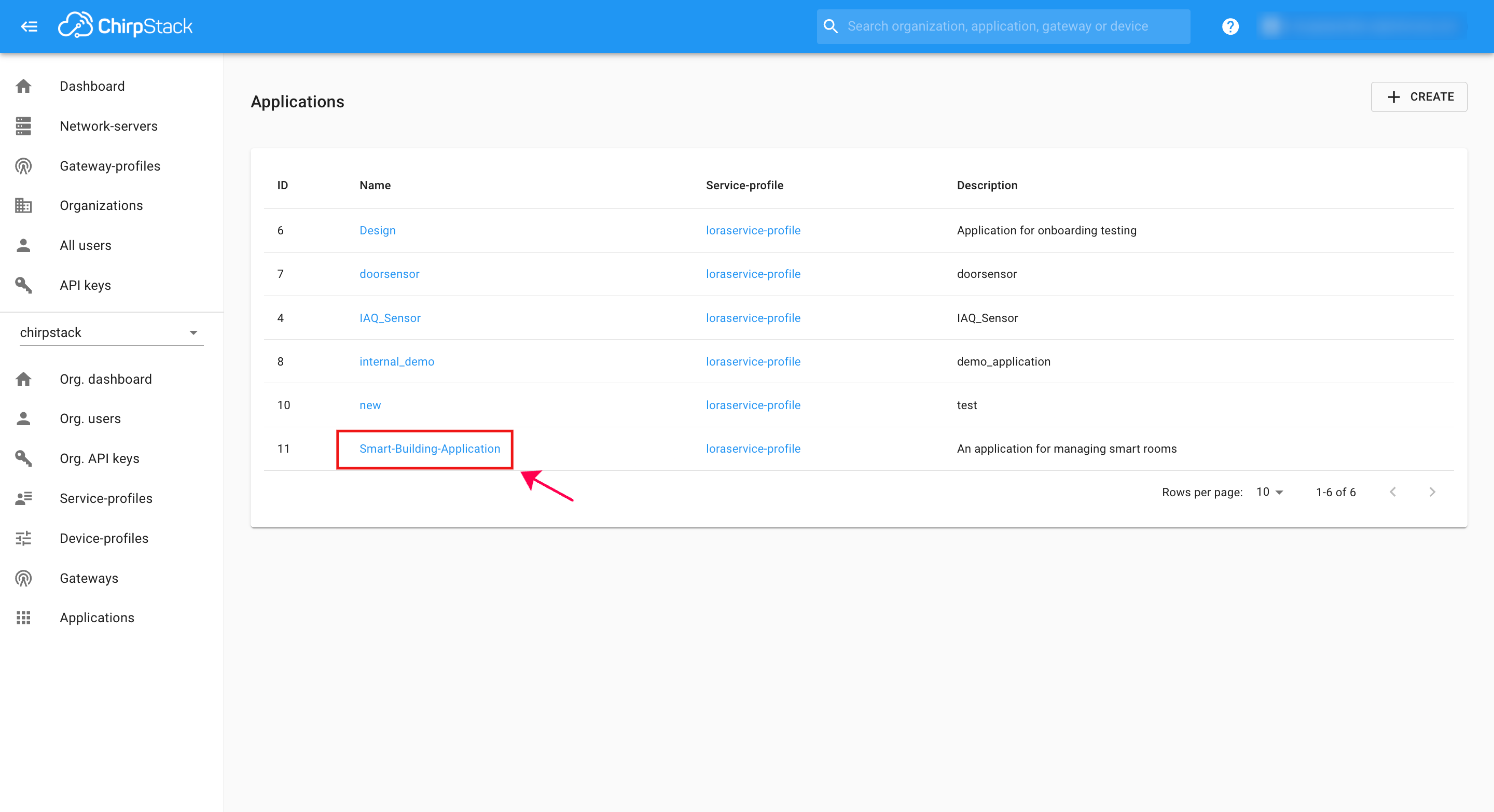

- Select the application you want to integrate. For this illustration, the Smart-Building-Application is selected.

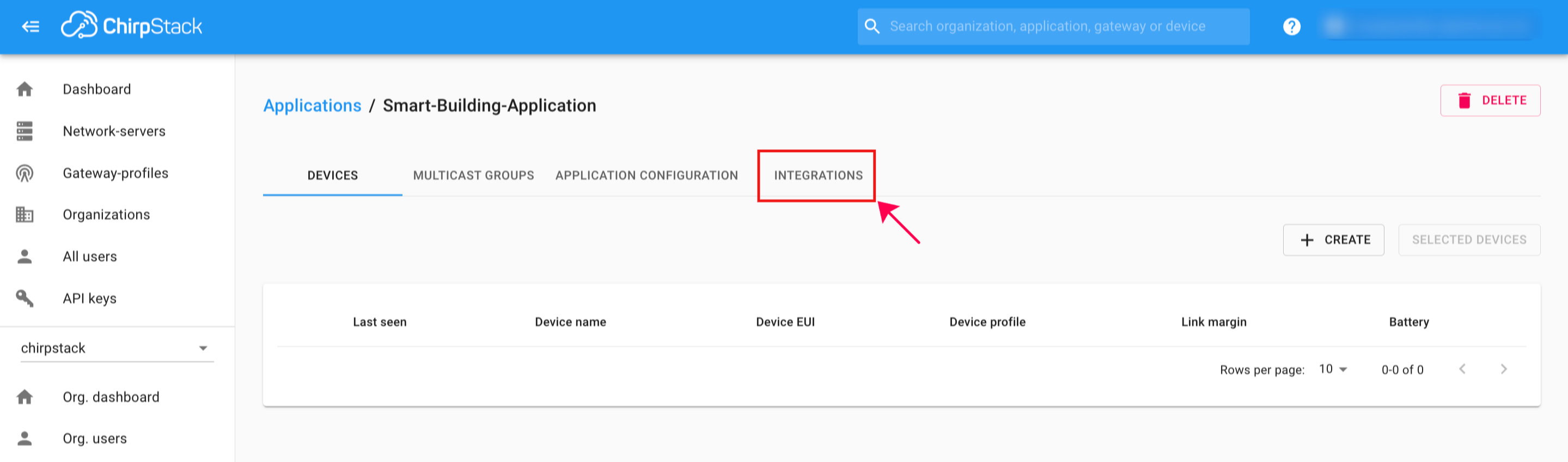

- Select the INTEGRATIONS tab.

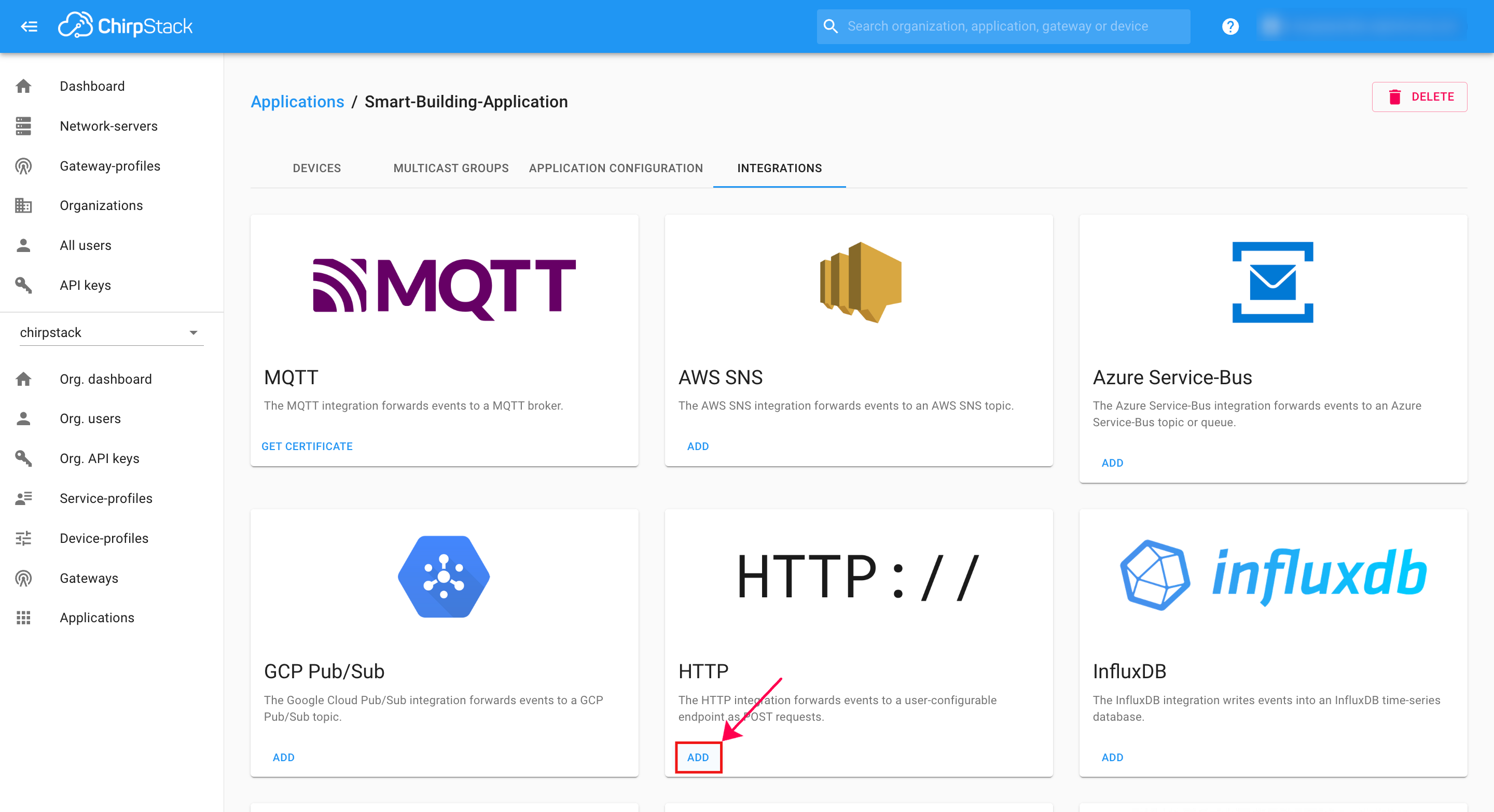

- Click ADD in the HTTP option.

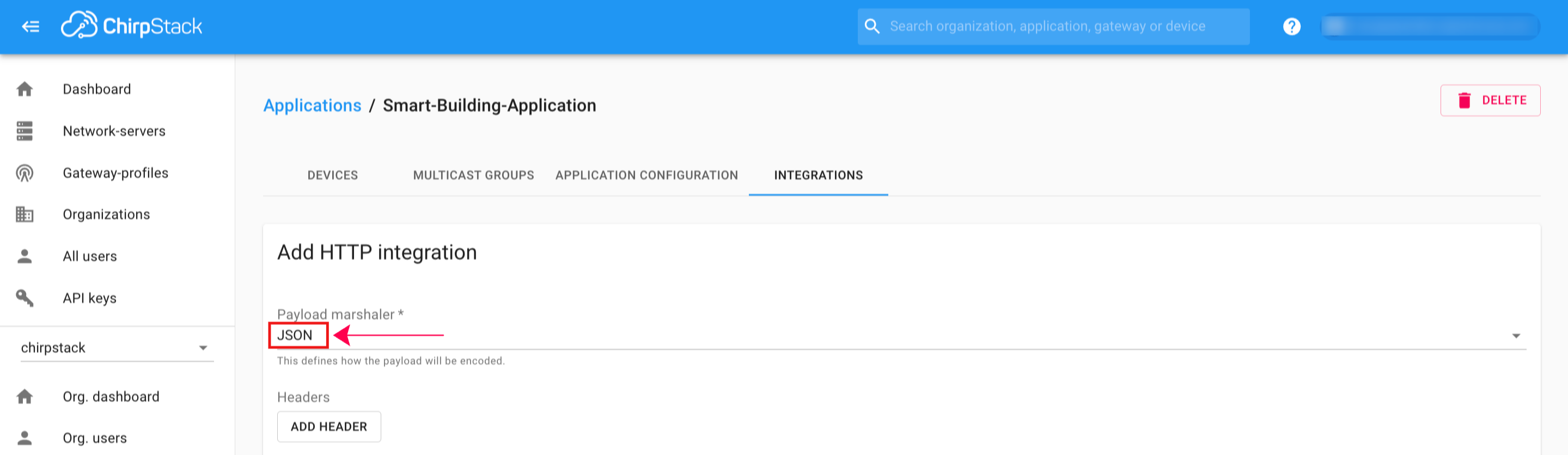

- Select JSON as the Payload marshaler.

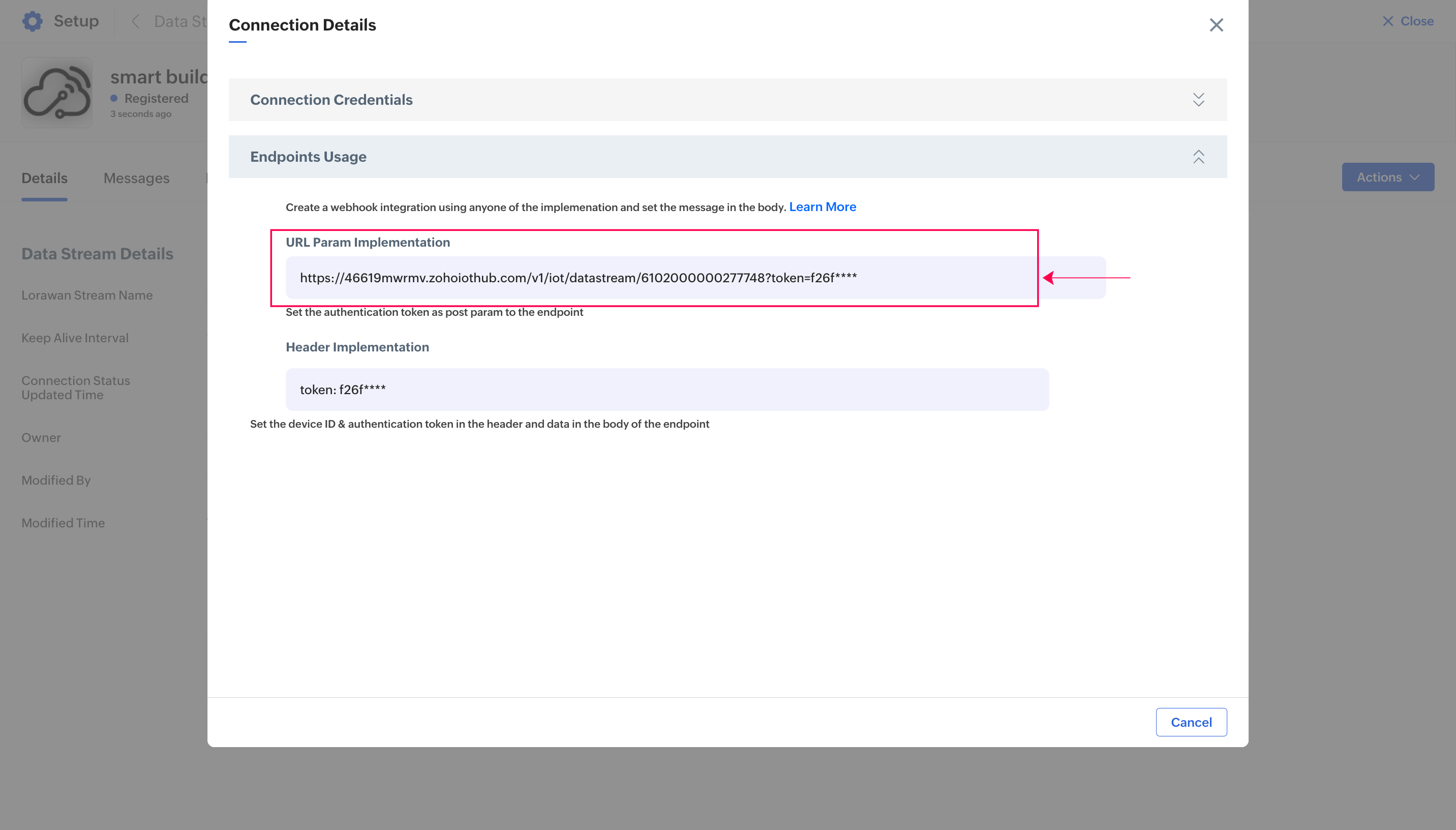

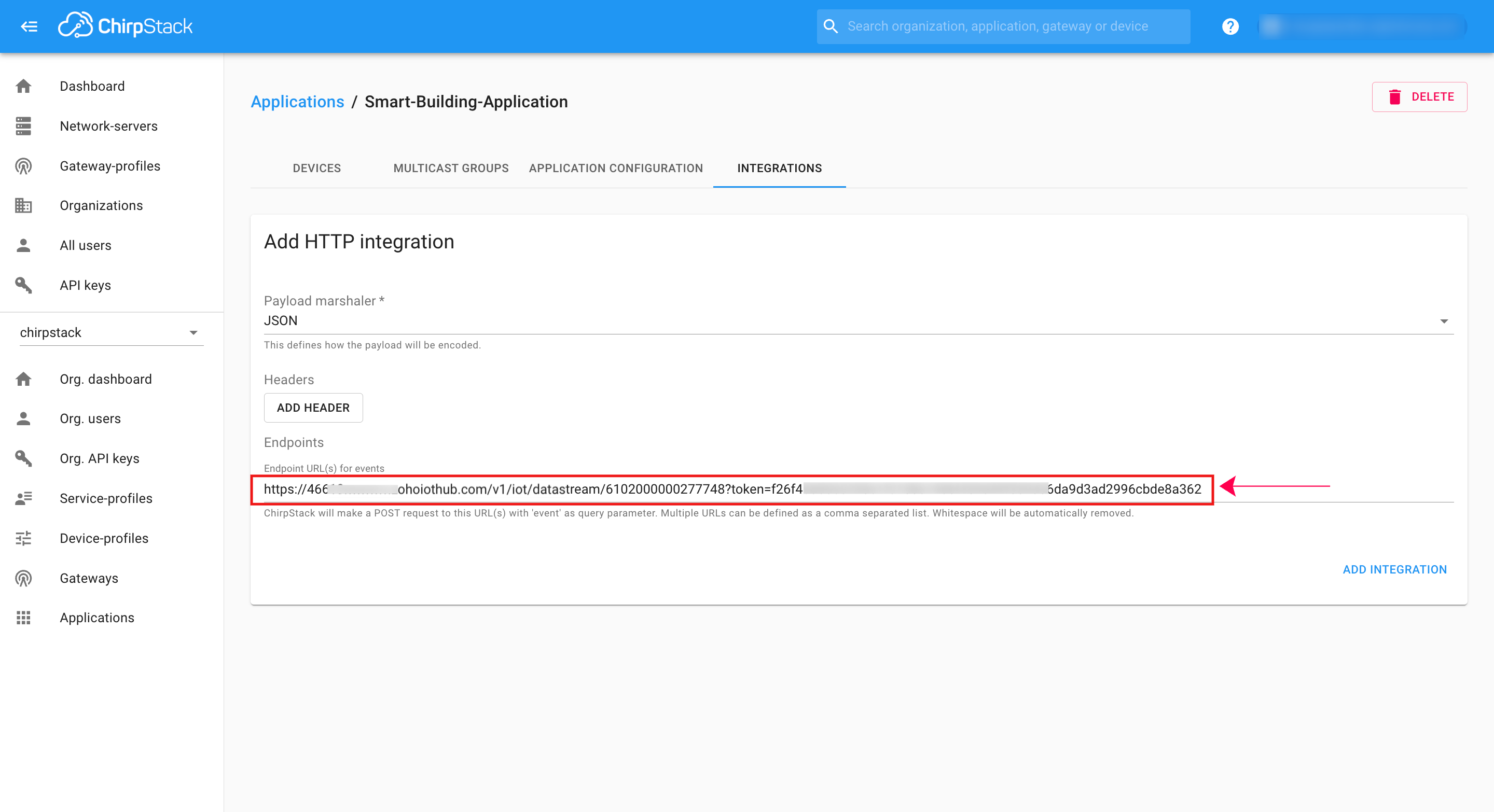

- Provide the URL Param Implementation value from the datastreams connection credentials in the Endpoints filed.

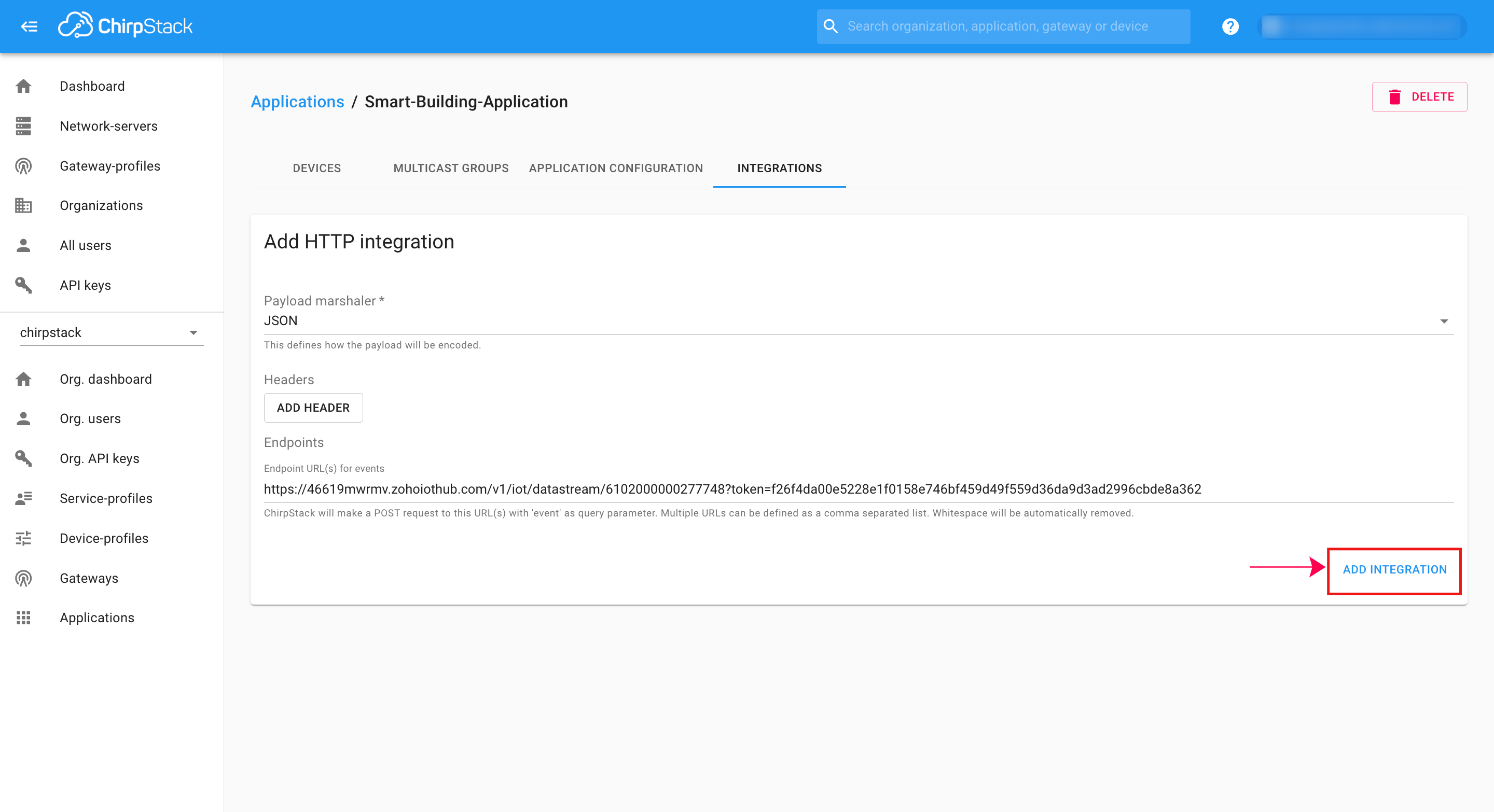

- Click ADD INTEGRATION.
The integration with the Zoho IoT application via Datastreams is complete.
When a device managed by the ChirpStack LNS sends a message, it will be received by the Zoho IoT application as well and can be viewed in the datastream's messages tab.
With the datastream integration complete, you can now proceed to use this datastream while adding a LoRa device or update this datastream to a LoRa device already added in the Zoho IoT application and begin monitoring it.
