Kaizen #199: FAQs on Multi-Select Lookup (MxN) Field in Zoho CRM

Kaizen #199: FAQs on Multi-Select Lookup (MxN) Field in Zoho CRM

 Nearing 200th Kaizen Post – We want to hear from you!
Do you have any questions, suggestions, or topics you would like us to cover in future posts? Your insights and suggestions help us shape future content and make this series better for everyone.

Hey everybody!!!
Welcome back to another post in the Kaizen series!
In this post, we will address some of the most frequently asked questions about the Multi-Select Lookup(MxN) field from the Zoho CRM developer community forum.

1. What is a Multi-select lookup field?

A multi-select lookup field in Zoho CRM lets you create a many-to-many relationship between two modules. This means a record in one module can be linked to multiple records in another module and vice versa.
For example, using an multi-select lookup field, you can associate multiple skills with an employee.

2. How does the Mutli-Select Lookup relationship work?

When you create a Multi-Select Lookup between two modules, for example, Employees and Skills, Zoho CRM automatically creates a hidden linking module, which is also known as an MxN module. This module stores the associations between records in the two modules, enabling you to track and manage many-to-many relationships.

For instance, if you link Employees and Skills, a linking module named EmpXSkills will be created.

This linking module is accessible only via API.

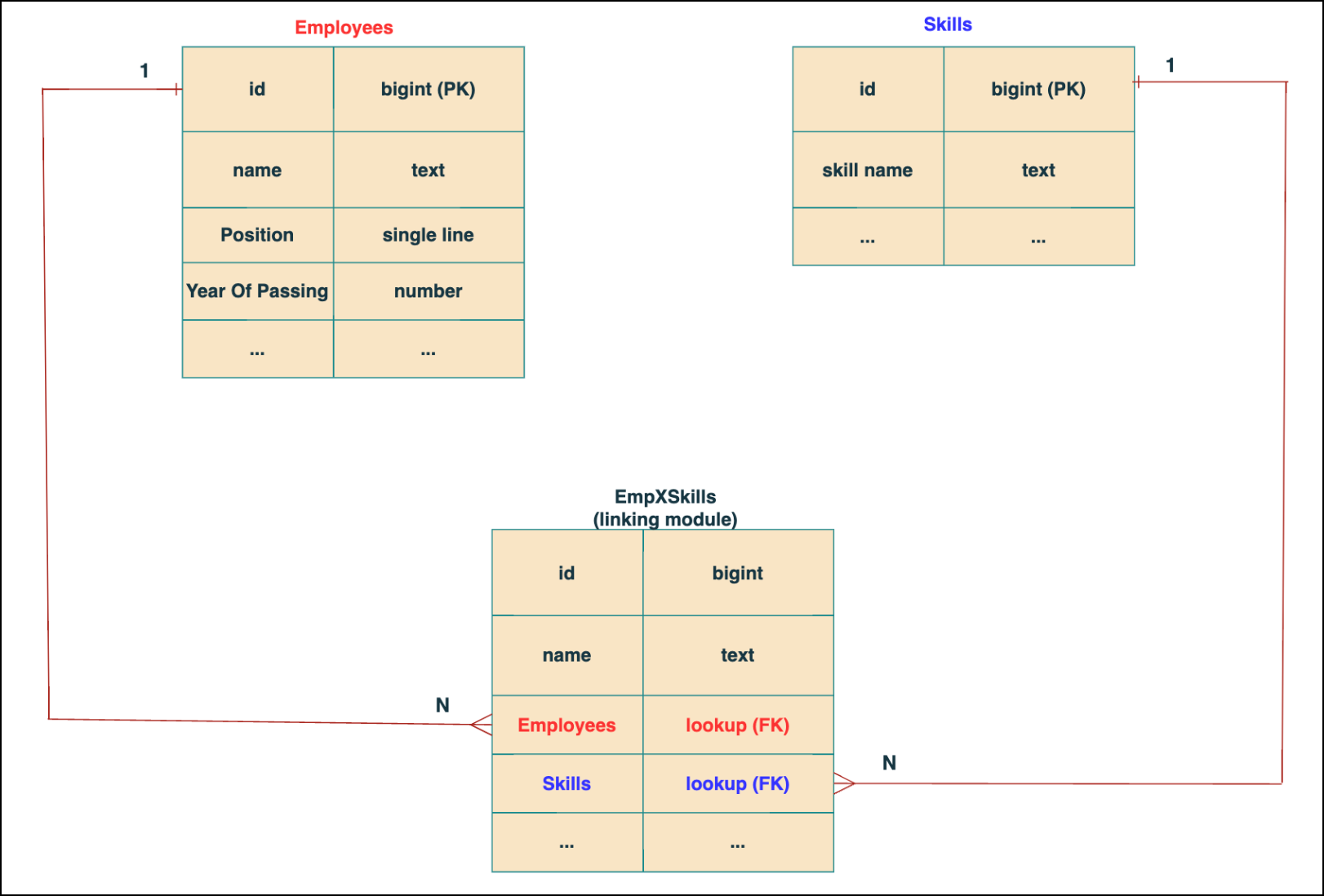

Backend Flow of multi-select lookup Relationship



In the linking module, two lookup fields (lookup fields with api names - Employees and Skills) will be created. The lookup fields, one pointing to Employees and the other pointing to Skills from the linking module, establish a connection between the linking module and its associated module.

Why you cannot use a lookup field for this use case?
In Zoho CRM, a lookup field creates a one-to-many relationship between two modules i.e. one record in the source module can be linked to only one record in the target module.

Example :
If you create a lookup field for Skills in the Employees module, each employee can be linked to only one skill. So, use a multi-select lookup field instead of a lookup field when you need to represent complex relationships like one employee - many skills and one skill - many employees.

3. How to create a multi-select Lookup field using Zoho CRM APIs?

To create a Multi-Select lookup field between two modules using Zoho CRM APIs, follow these steps:

Step 1: Identify the Module API Name
Before creating the field, you should know the API names of the Employees and Skills modules. For that, use the Get Module Metadata API.

Request URL  : {{api-domain}}/crm/v8/settings/modules
Request method : GET

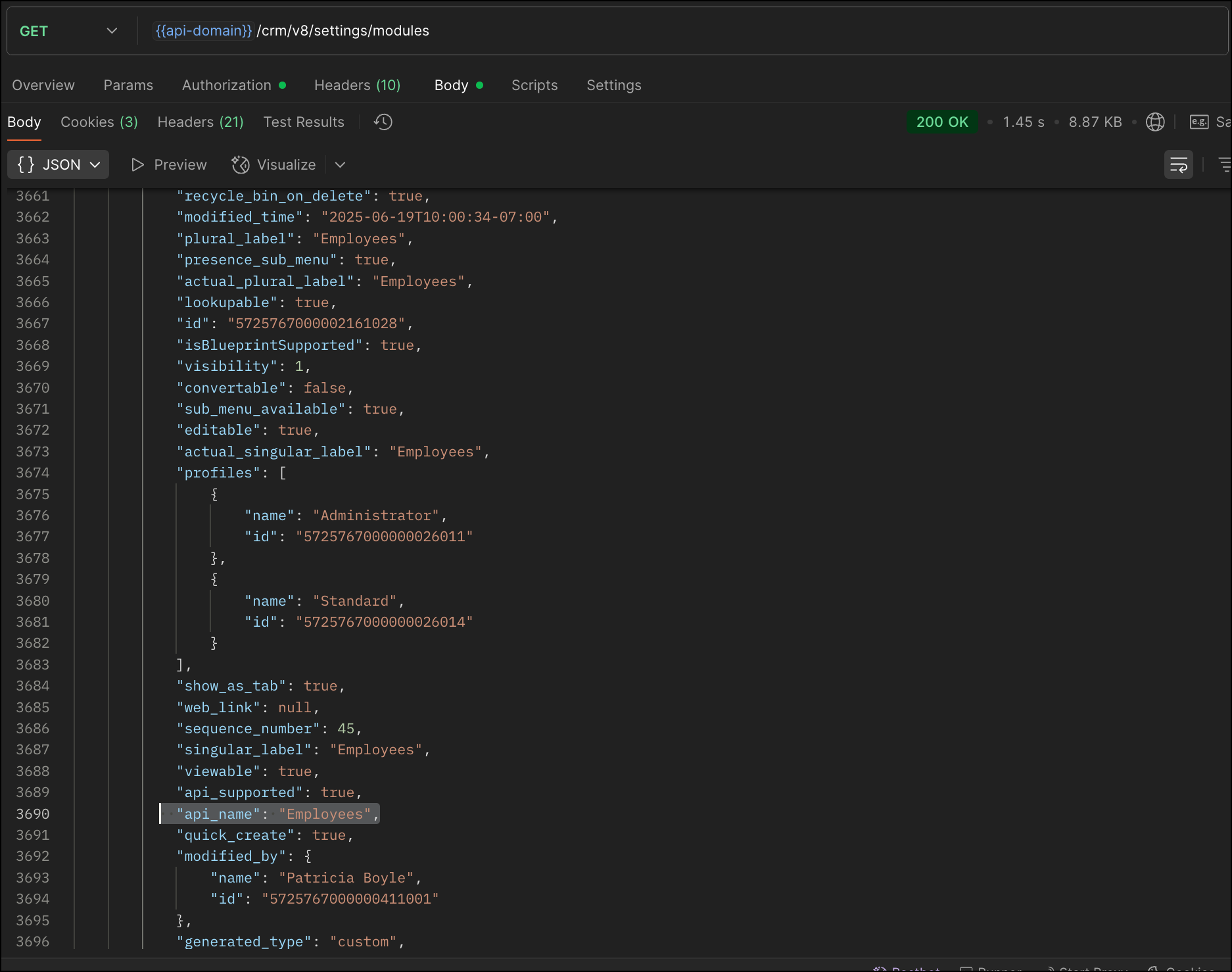

Now, search for the Employees module in the response and note its API name.

Step 2: Use the Create Custom Fields API

To establish a many-to-many relationship between two modules, in our case, Employees and Skills, you need to create a custom field of type multi-select lookup in the Employees module (parent module).  Here, we will associate multiple skills to an employee.

This custom field requires:
  • The related module you want to link to - Skills.
  • A display field from the related module
  • The linking module (EmpXSkills), which stores the actual associations.
Use the Create Custom Fields API to create custom fields.

Request URL : {{api_domain}}/crm/v8/settings/fields?module=Employees
Request method : POST

Sample input :



{
    "fields": [
        {
            "field_label": "Skills", //Name of the field in your module
            "data_type": "multiselectlookup", //Type of the field
            "multiselectlookup": { //This JSON object contains the multi-select lookup relationship details

                "connected_details": { //Details about the module and field you want to link
                    "module": {
                        "api_name": "Skills" //API name of the related module
                    },
                    "field": {
                        "field_label": "Skills" //The field in the related module to display
                    }
                },
                "linking_details": { //Details about the junction or linking module that manages the many-to-many relationship
                    "module": {
                        "plural_label": "EmpXSkills" //Plural label of the junction module
                    }
                }
            }
        }
    ]
}

4. How Do You Find the Linking Module and Field API Names?

To know the API name of the linking module:

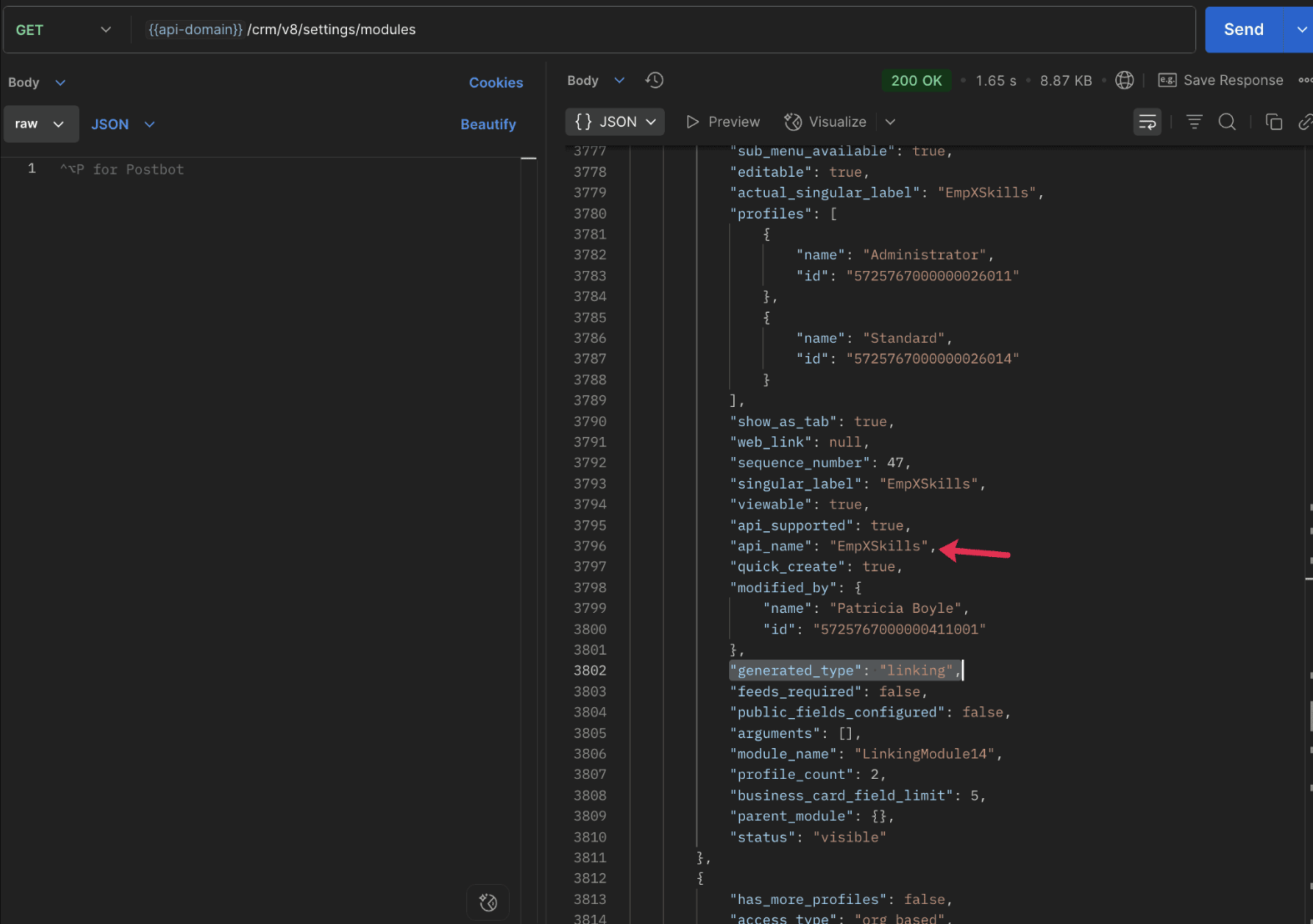

Use the Get Modules API and search for "generated_type" : "linking" in the response to identify MxN modules. In our case, EmpXSkills.

Request URL : {{api_domain}}/crm/v8/settings/modules
Request method : GET



To know the field API names in the linking module:
Use the Get Fields Metadata API to retrieve the API names of lookup fields within the linking module.

Request URL : {{api_domain}}/crm/v8/settings/fields?module=EmpXSkills
Request method : GET

5. How do I associate records via a multi-select lookup field using the Insert Records API in Zoho CRM?

To associate records using a multi-select lookup field, you must provide the record IDs from the related module. The association is made through the linking module.

Example :
Associating multiple skills with an employee using the multi-select lookup field.

Request URL : {{api-domain}}/crm/v8/Employees
Request method : POST

Sample input :


{
  "data": [
    {
      "Name": "Patricia",
      "Email": "patricia@mail.com",
      "Position": "Marketing Specialist",
      "Year_of_Experience": 5,
      "Skills": [   // API name of the multi-select lookup field in the Employees module
        {
          "Skills": { // API name of the lookup field in the linking module pointing to the Skills module
            "name": "Marketing",
            "id": "5725767000002149427"  //ID from the Skills module are mandatory to establish the link
          }
        },
        {
          "Skills": {
            "name": "Social Media Marketing",
            "id": "5725767000002149476"
          }
        }
      ]
    }
  ]
}


6. How do I associate an Employee's skills using the linking module in Zoho CRM?

To establish a relationship between the Employees and Skills modules through the linking module, use the Insert Records API to create a record in the linking module, EmpXSkills.

To do this,
  • Use the appropriate lookup field API names to reference the parent module.
  • You must need the record IDs from both the Employees and Skills modules to create the associations.
Request URL : {{api-domain}}/crm/v8/EmpXSkills
Request method : POST

Sample input :


{
  "data": [
    {
      "Name": "Patricia",
      "Employees": {
        "id": "5725767000002161001"  // Record ID from the Employees module
      },
      "Skills": {
        "id": "5725767000002149476"  // Record ID from the Skills module
      }
    }
  ]
}


7. When should I use create/update operations in the Employees module vs the EmpXSkills module?

                Employees Module

               EmpXSkills (linking) Module

Use when you want to create or update an Employee and associate Skills using the Multi-select Lookup field.

Use when you want to create or remove associations between existing Employee and Skill records without modifying the actual Employee or Skill data.

Creating a new employee and assigning their skills at once.

Managing relationships between existing records i.e., linking and unlinking skills to employees.


8. How to update a record in the linking module?

To update a record in the linking module, use the Update Records API.
Request URL : {{api-domain}}/crm/v8/EmpXSkills/5725767000006269044
Request method : PUT

Sample input :


{
    "data": [
        {
            "Skills": {
                "name": "Marketing",
                "id": "5725767000002170035" //Associating another skill with the employee
            }
        }
    ]
}
In the above sample, we have replaced an existing skill associated with an employee with another Skill in the linking module.This is done by updating the Skills lookup field in the EmpXSkills record.

Please note that in the linking module, Skills is a lookup field, so you can associate only one skill per linking record. But in the Employees module, Skills is a multi-select lookup field, so an employee can be associated with multiple skills.

9. How to unlink records from the parent module as well as the linking module?

Unlink the associated records from the parent module:

Using the Update records API, you can remove an associated skill from an employee, use the "_delete": null key within the multi-select lookup field in the Employee record update.

Request URL : {{api-domain}}/crm/v8/Employees/5725767000006269044
Request method : PUT

Sample input :

{
"data": [
        {
            "Skills": [
               {
                    "Skills": {
                        "name": "Marketing",
                        "id": "5725767000002170035" // The Skill record you want to unlink
                    },
                    "id": "5725767000007228047", //record ID - The record created in the linking module for the employee with the Marketing skill
                    "_delete" : null
                }
            ]
        }
    ]
}

Replace an associated record from the linking module:

Use the Update Records API to replace an existing association in the linking module.

Request URL : {{api-domain}}/crm/v8/EmpXSkills/5725767000007228035
Request method : PUT

Sample input :


{
    "data": [
        {
            "Skills": {
                "name": "Java",
                "id": "5725767000005259075" //replacing a new skill
            }
        }
    ]
}
In the above sample, we have replaced the existing skill with Java.

10. Why am I seeing the error "DUPLICATE_LINKING_DATA"  in the Update Records API?

This error occurs when you try to associate records with the parent record that are already linked with the Multi-select lookup field. To resolve this, check the records you are trying to link and make sure your association is only with records that are not already linked.

Know your existing linked records:

Before the Update Records API, use the Get Related Records Data API and search for the multi-select lookup field. In our case, Skills is the multi-select lookup field created in the Employees module. This will return all records already associated.

Example :

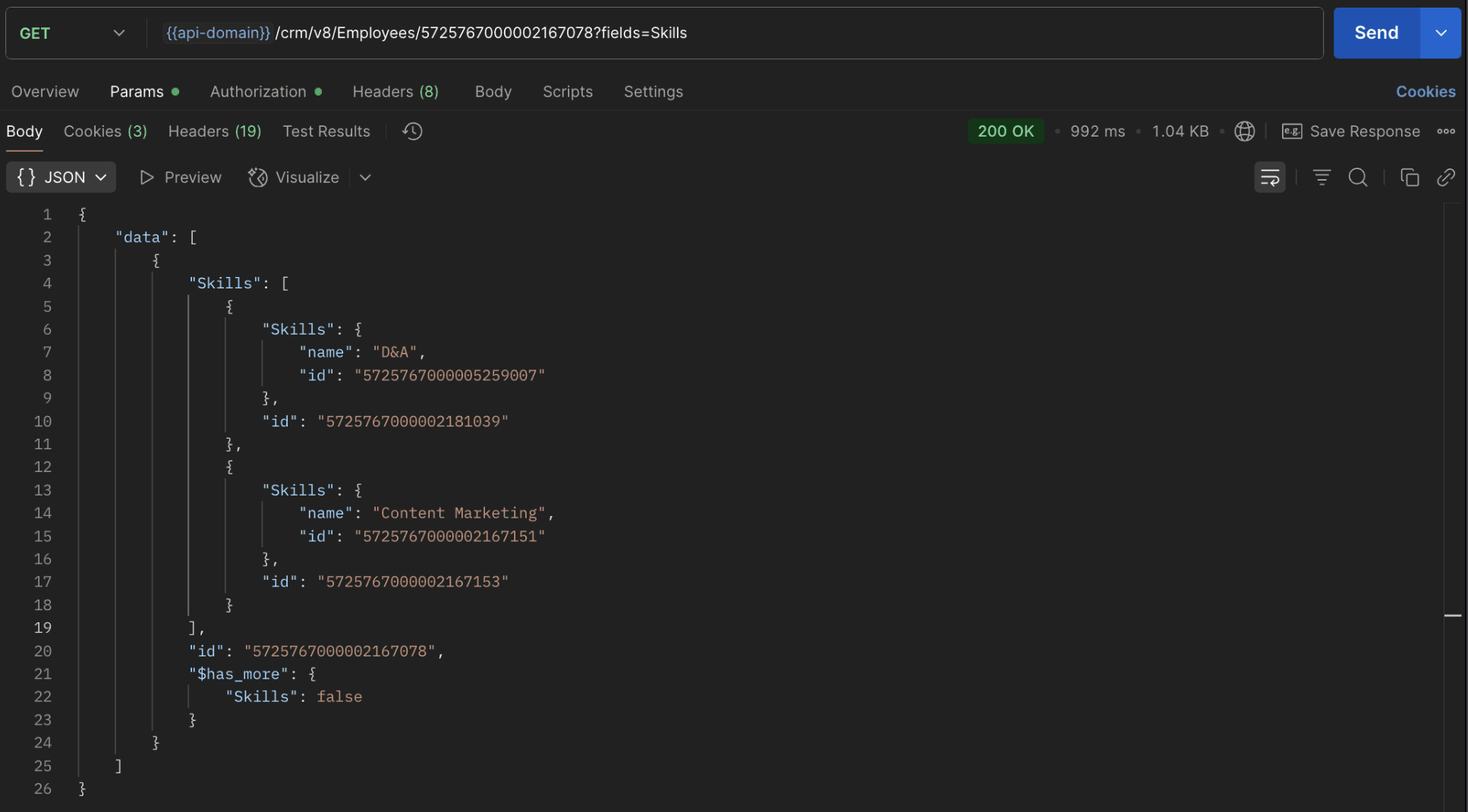

The response returns all Skills already linked with that Employee.

Using this way, compare the IDs from the API response with the new records you are about to link, and only proceed with non-duplicate IDs. This avoids duplicate entries and prevents the "DUPLICATE_LINKING_DATA" error.

11. What happens if I delete a record in the linking module?

When you delete a record in the linking module, it only removes the association between the related records in the Employees and Skills modules.

Note :
  • Deleting a linking module record removes only the relationship between two records from the Employees and Skills modules.
  • Deleting an Employee or Skill record deletes all corresponding entries in the linking module as well.

12. How do I query linked records?

Use the COQL API to query multi-select lookup data by specifying the corresponding linking module's API name directly in your query. The linking module is treated as a separate module in Zoho CRM, so you can retrieve associated records by querying it like any other module.

Sample query :


{
  "select_query": "select Skills.Name as skill, Employees.Name as employee from EmpXSkills where Skills.Name like '%Marketing%'"
}

Use the Get Module Metadata API to know the linking module's API name.

13. How do I export multi-select lookup records using the Bulk Read API?

To export multi-select lookup data, linking module records efficiently, use the Bulk Read API with the linking module’s API name.

Request method : POST

Sample Request :


{
    "callback": {
        "method": "post"
    },
    "query": {
        "module": {
            "api_name": "EmpXSkills" //API name of the linking module
        },
        "fields": [
            "Employees.Name",
            "Employees.Year_of_Experience",
            "Skills.Name"
        ],
        "criteria": {
            "group": [
                {
                    "field": {
                        "api_name": "Employees.Year_of_Experience"
                    },
                    "comparator": "greater_than",
                    "value": "4"
                },
                {
                    "field": {
                        "api_name": "Skills.Name"
                    },
                    "comparator": "contains",
                    "value": "Social"
                }
            ],
            "group_operator": "AND"
        }
    }
}

14. Can I import my linking module's data using the Bulk Write API?

Yes. Like the Leads and Contacts modules, you can also import linking module's data into Zoho CRM using the Bulk Write API by directly specifying the linking module’s API name.

If you are importing data that involves both a parent module, Employees and its associated MxN linking module, follow these steps:

1. Create separate CSV files:
  • One for the parent module - Employees
  • One for the linking module - EmpXSkills
2. Zip the files into a single ZIP file.
3. Upload the ZIP in a single Bulk Write API request.
4. Ensure accurate field mappings are provided in the API request body.

Refer to Kaizen #131 - Bulk Write for parent-child records using Scala SDK for more details on handling parent-child records.


15. Can I receive notifications if a multi-select lookup field in a module is modified or updated?

Yes, you can receive notifications when a MxN field is updated using the Notification API. To enable instant notifications for actions performed in a module, use the respective API names of the linking module in the input body.

Request method : POST

Sample input :


{
    "watch": [
        {
            "channel_id": "10000",
            "events": [
                "EmpXSkills.all"  //EmpXSkills represents the API name of the linking module
            ],
            "return_affected_field_values": true
        }
    ]
}

16. Can I use criteria-based filtering when accessing multi-select lookup data using the Search API?

Yes, you can filter multi-select lookup data using the criteria parameter in the Search API's URL.

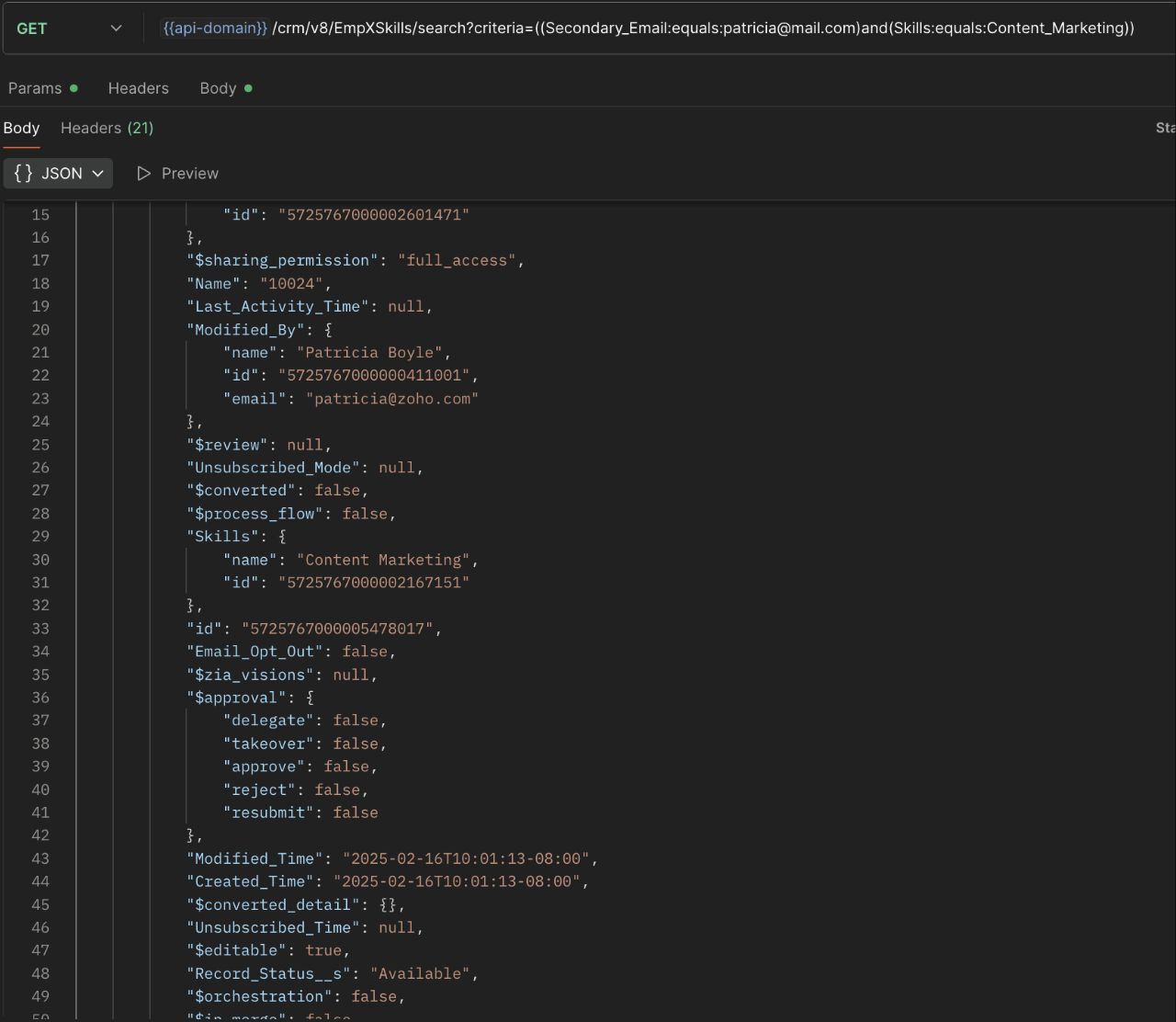

Here is an example that fetches records from the EmpXSkills linking module.

Request URL : {{api-name}}/crm/v8/EmpXSkills/search?criteria=((Secondary_Email:equals:patricia@mail.com)and(Skills:equals:Content_Marketing))
Request method : GET

Sample response :



                                                                                                                               x-----------------------------x


We trust that this post meets your needs and is helpful. Let us know your thoughts in the comment section or reach out to us at support@zohocrm.com

Stay tuned for more insights in our upcoming Kaizen posts!


Other FAQs in the Kaizen series :


    • Recent Topics

    • Trigger Zapier on Deluge Insert Into Function?

      Hello, To get around the limitation of not being able to trigger a Zapier Zap on Record Update(this would be extremely useful to be able to do btw), I have created a Deluge script to copy the data from Form A to a Trigger Form B using the Insert Into expression from a Custom Action button on a Report from Form A.  This action does not trigger the Zapier Zap whereas manually adding a record or duplicating an existing record does trigger the Zap. Is Insert Into not the same as a manual Add in the context

    • Can you inject JS in an HML+CSS+Deluge Page?

      I have an HTML + CSS + Deluge page and need just a little vanilla JS functionality. However, it seems like Zoho Creator does not allow that. I'm required to create a JS widget. Is this correct? If so: 1. Won't this quickly consume my API limit if there

    • Display Client Name in Zoho Creator Client Portal Dashboard

      Hello Zoho Creator Team, We hope you are doing well. Zoho Creator recently introduced the option to set a client’s display name in the Client Portal settings, which is very helpful for providing a personalized portal experience. However, there is currently

    • Finding missing records

      I have a challenge and I am not really sure where to start with it. I can't find any similar threads on here, can anyone help: I have two forms, FormA and FormB. Both forms have records that contain a field called Job_Number. What I am trying to achieve

    • Creator HTML page refresh

      Hi, I have added around 5 different html snippets in single creator page. I understand, I can refresh the entire page from page script using Navigational URLs https://help.zoho.com/portal/en/kb/creator/developer-guide/others/url-patterns/articles/navigational-urls

    • Custom Related List Inside Zoho Books

      Hello, We can create the Related list inside the zoho books by the deluge code, I am sharing the reference code Please have a look may be it will help you. //..........Get Org Details organizationID = organization.get("organization_id"); Recordid = cm_g_a_data.get("module_record_id");

    • Zoho Vault API: Create new Secrets

      Hello, I attempt to Post Secrets to the vault, since the encrypted entries are almost impossible to decrypt, since there is no documentation on how to decrypt them. Like with the lack of documentation on how to descrypt, there are missing information regarding on how to create new secrets/post secrets. Source: https://www.zoho.com/vault/api/#create-a-new-secret When I try to send JSON Informationen as a POST-Request I only receive the error message: {     "operation": {         "result": {             "error_code": "",

    • Marketer’s Space - Multi-Channel Campaigns for the Biggest Shopping Week with Zoho Marketing Automation

      Hello marketers, Welcome back to another post in Marketers Space! The biggest shopping week of the year is almost here, and it’s your moment to shine without the stress. With Black Friday and Cyber Monday just around the corner, being present across email,

    • Is there a problem with sharing workdrive files with links since last night?

      As per title, we can't access folders/files through share links since last night. I created ticket but we need quick solution and didn't hear back from the support yet. The files are still accessible by the main account but all zoho files that we are

    • Managing functions

      Can someone let me know if there are any plans to improve the features for managing functions in CRM? I have lots of functions and finding them is hard. The search only works on the function name and the filter only works on function type. I have created a naming convention based on tags to filter the list which helps a bit and for some projects I keep lists in a spreadsheet.  I'd like a spreadsheet-style list in CRM with a few custom fields and a way to construct views (like in modules). Maybe even

    • Enable Screen Recording in Zoho WorkDrive Mobile Apps (Android & iOS)

      Hi Zoho WorkDrive Team, How are you? We are enthusiastic Zoho One users and rely heavily on Zoho WorkDrive for internal collaboration and content sharing. The screen-recording feature in the WorkDrive web app (similar to Loom) is extremely useful- however,

    • Issue in Annual Leave

      We created a policy to credit 21 days at the Start of the Year An employee has taken 16 days of leaves thought the year, so we expect to see 5 Leaves remaining right? But Zoho People is Showing 12 Days of Leave Balance Available If we check the Leave

    • Regarding not having Bots section in the sidebar of the cliq.zoho.com

      I have registered and participated Cliqtrix for developing Bots or extension, when i refer the bots & tools section in my profile , i can't see the Bots option in the sidebar to create , edit and configure, is there something i have to enable?? and how

    • Flow - Fetch info from drop down in another module

      I am running into a road block which I thought would be a simple task. My goal - The account is assigned to a "route" which can be selected from a drop down menu and adds a tag to the account accordingly (easy enough). Now when I create a task for this

    • Tags get removed from notes on mobile

      I don't know why this keeps happening even after all these app updates but if you log out and log back into the app or you reinstall it, all the tags you assigned to your notes get taken off, but if you go on the desktop version the tags are still there.

    • Production Management Tool (MRP / BOM)

      Hi Guys, is there any recommended App available that works with zoho and covers the needed applications for a production? What we need is a system that covers the BOM (bill of materials), MRP (material ressources planning), MRP II (manufacturing ressources

    • Function #53: Transaction Level Profitability for Invoices

      Hello everyone, and welcome back to our series! We have previously provided custom functions for calculating the profitability of a quote and a sales order. There may be instances where the invoice may differ from its corresponding quote or sales order.

    • Prevent Unapproved Quotes from Exporting to Zoho CRM Finance Module

      Is it possible to prevent unapproved quotes in Zoho Books from being exported from Zoho Finance module inside Zoho CRM?

    • Kanban view on Zoho CRM mobile app!

      What is Kanban? The name doesn't sound English, right? Yes, Kanban is a Japanese word which means 'Card you can see'. As per the meaning, Kanban in CRM is a type of list view in which the records will be displayed in cards and categorized under the given

    • Bug in Zoho Cliq Signup Flow – "%s" Placeholder Visible Instead of Product Name

      Hi Zoho Team, I would like to report a UI bug in the Zoho Cliq signup/enable flow. During the step where Cliq asks to enable the product for the company, the following text appears: Great! Your company is already available in Zoho, so you just have to

    • Account name not populating when importing contacts

      When importing a csv file to add contacts the account name is blank? Every other filed gets mapped and imported correctly, i.e contact name, phone number. However not the account name which I have mapped to "company" field in my csv file

    • Zoho Invoice Customer Login Portal

      Are there any plans for a customer portal to Zoho Invoice, ala Freshbooks?  I would like customers that I invoice to be able to login to review invoices and invoice history.  I have not switched from Freshbooks for this very reason.

    • Exporting tickets

      I went to Setup -> Organization -> Import/Export in order to export tickets but found 2 issues: 1. The email body never gets exported. 2. There are some large numbers (like 5.57E+16) under certain columns of the exported CSV file. I could not find any export options. Please can you help with this?

    • Editing the Ticket Properties column

      This is going to sound like a dumb question, but I cannot figure out how to configure/edit the sections (and their fields) in this column: For example, we have a custom "Resolution" field, which parked itself in the "Ticket Information" section of this

    • Copy field information to clipboard

      I need to be able to transfer some field information in to the clipboard, so that I can then paste it in to our helpdesk system. Is there a way I could add a button to a detail report that does this?

    • Issuing reconciling a bank statement

      HELP! I'm trying to reconcile a bank statement. The prior month reconciled perfectly. Beginning balance is correct yet I'm off by the same amount each time. Both myself and my office manager, separately and together, have tried to complete this reconciliation

    • Use the searchBy parameter to find user by email address

      I'm trying to find a user is Zoho Desk via the Api. In the documentation I see that there is the possibility to add a searchBy parameter in the request. But I can't find how the search values should be formatted. I've tried multiple things and get either

    • Correlated subqueries not supported in Zoho Analytics. This creates huge limitations

      Running into a major limitation in Zoho Analytics: correlated subqueries simply don’t work, even in completely standard SQL patterns inside a JOIN. Example: LEFT JOIN "Bills" b ON d."Id" = b."Deal ID" AND EXISTS ( SELECT 1 FROM "Bill

    • Unknown table or alias 'A1'

      I would like to create a subquery but i am getting the following error: Unknown table or alias 'A1' used in select query. This is the sql statement:  SELECT A1.active_paying_customers, A1.active_trial_customers, A1.new_paying_signup, date(A1.date_active_customers),

    • Detect and ignore bots in visitors

      The SalesIQ visitor numbers are basically useless to us because there is no bot detection. We get the same bots coming in from the same countries looking at the same pages every day. It can't be that difficult to tell the difference between an actual

    • Zoho CRM - Rename "Estimates" in CRM Finance Suite Integration to "Quotes"

      I'm not sure if it's been 2 or 3 years now since Zoho Books renamed Estimates to Quotes. I still see "Estimates" in the Zoho CRM integration. Could this be added to Translation settings so that some customisation could be made on an account by account

    • Add Real-Time Microphone Audio-Level Indicator During Screen Recording

      Hi Zoho WorkDrive Team, Hope you are doing well. We would like to request an important enhancement to the Zoho WorkDrive screen-recording experience. Current Limitation: During a recording session, there is no visual indication that the microphone is

    • Properly Capture Dropdowns & Hover Elements When Recording a Window/Tab

      Hi Zoho WorkDrive Team, Hope you are doing great. We encountered a limitation when recording a selected window or browser tab: Certain UI elements, such as dropdown lists, hover menus, and overlays, are not captured unless we record the entire screen.

    • Allow Recording Only a Selected Portion of the Screen

      Hi Zoho WorkDrive Team, Hope you are doing well. We would like to request a more flexible recording option in Zoho WorkDrive. At the moment, we can record either the entire screen or a specific window/tab — but not a custom selected portion of the screen

    • Add Camera Background Blur During Recording

      Hi Zoho WorkDrive Team, Hope everything is well. We would like to request an enhancement to the video recording feature in Zoho WorkDrive. Currently, the camera preview displayed during a recording does not support background blur. This is an essential

    • Make Camera Overlay & Recording Controls Visible in All Screen-Sharing Options

      Hi Zoho WorkDrive Team, Hope you are doing well. We would like to request an improvement to the screen-recording experience in Zoho WorkDrive. Current Limitation: At the moment the recording controls are visible only inside the Zoho WorkDrive tab. When

    • Introducing Dark Mode / Light Mode : A New Look For Your CRM

      Hello Users, We are excited to announce a highly anticipated feature - the launch of Day, Night and Auto Mode implementation in Zoho CRM's NextGen user interface! This feature is designed to provide a visually appealing and comfortable experience for

    • Allow Admins to Transfer Ownership of Their Own Files & Folders

      Hi Zoho WorkDrive Team, Hope you are doing well. We would like to request an important enhancement to the ownership-transfer functionality in Zoho WorkDrive, specifically regarding administrator capabilities. As administrators, we have the ability to

    • Allow Regular Users to Directly Transfer Ownership of Files & Folders

      Hi Zoho WorkDrive Team, Hope you are doing well. We would like to request an important enhancement related to file and folder ownership management in Zoho WorkDrive. At the moment, a regular user cannot directly transfer ownership of their files or folders

    • How to update custom multi-user field in Zoho Projects?

      I'm trying to update custom multi-user fields in Zoho Projects via a Deluge function in CRM. The code I have so far is below. It works for updating standard project fields and single-line custom fields, but it does not work to update multi-user fields.

    • Next Page
