To export data to MS SQL Server

3. You can select Other Cloud Services from the Cloud databases category or search it in the search box.

Note: If you have already added a MS SQL Server connection earlier, you can simply select the existing connection under the Saved connections section and proceed with exporting.

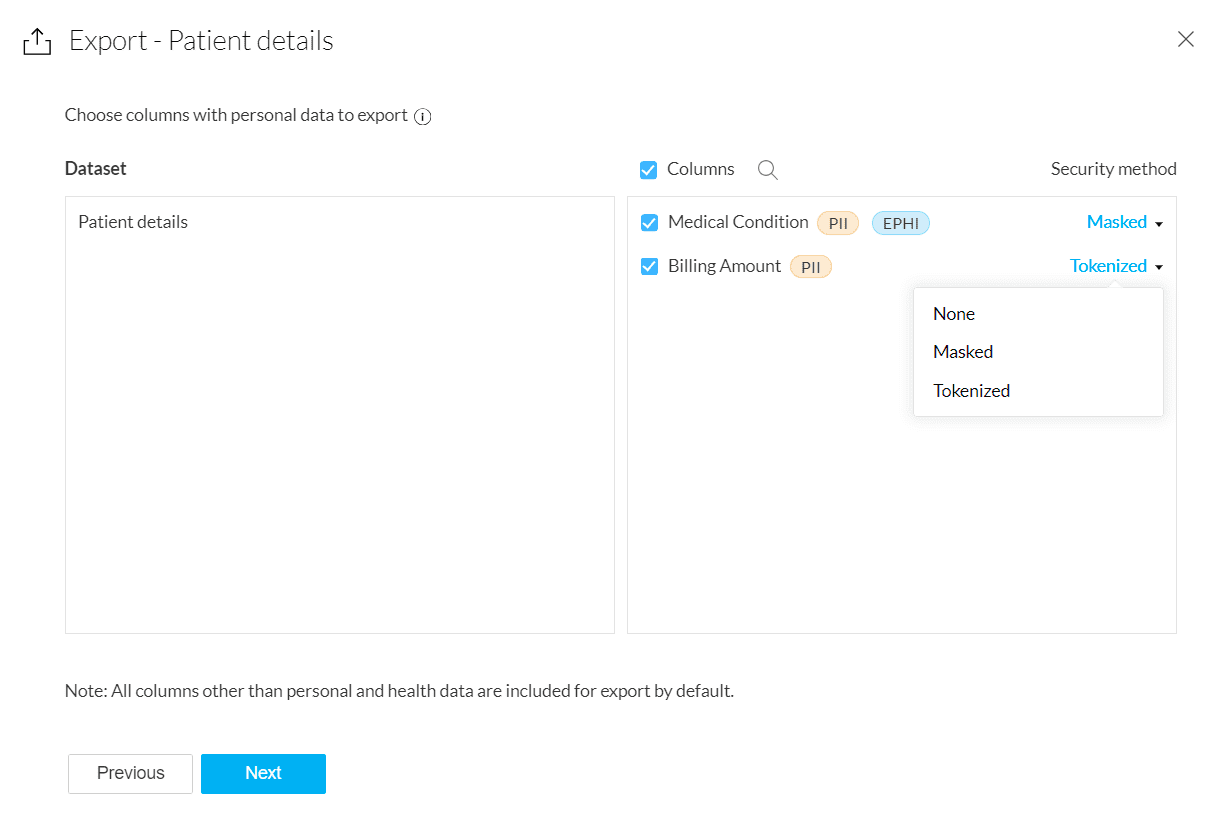

4. If your data contains columns with personal data or ePHI data, you can choose to include or exclude them in the Columns section.

You can also apply the necessary security methods below to protect your data column:

A. Data masking

Data masking hides original data with 'x' to protect personal information.

B. Data Tokenization

Data tokenization replaces each distinct value in your data with a random value. Hence the output is statistically identical to the original data.

C. None

You can select None if you do not want to use any security method.

Note:

1. Exporting datasets without securing personal data will be restricted if Secure data exports option is enabled in your organization's privacy settings. Click here to know more.

2. Based on the Compliance settings of your organization, exporting datasets with ePHI data may be restricted or restricted without securing ePHI data with security measures or password protection.


5. Click Next and select Other Cloud Services in the Database service name dropdown and MS SQL Server in the Database type.

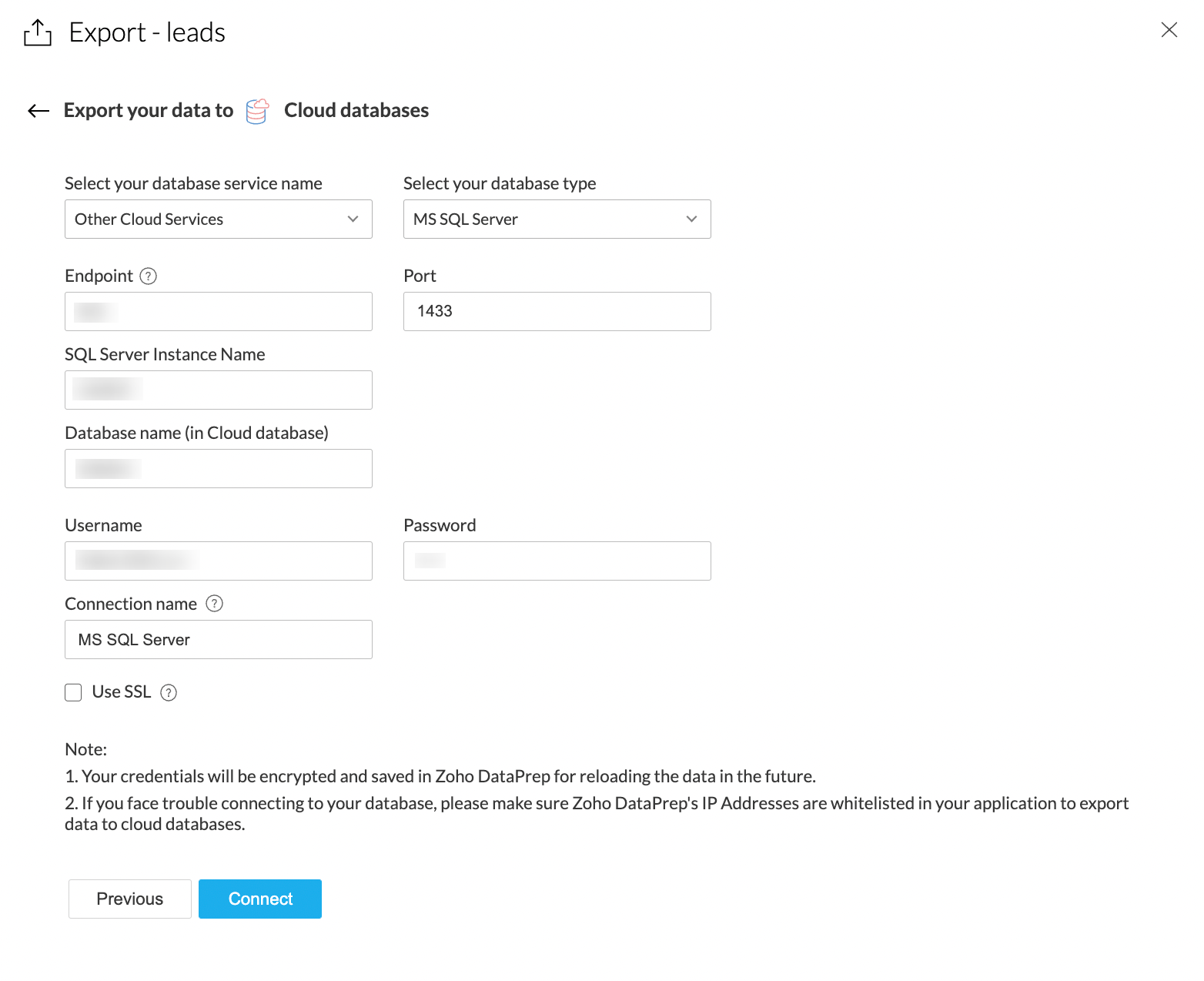

6. Enter the Endpoint, Port, Database name, Username and Password to authenticate the database connection.

7. You can also select the Use SSL checkbox if your database server has been setup to serve encrypted data through SSL.

8. Enter a unique name for your connection under Connection name and click Connect.

Note: The connection configuration will be saved for exporting data in the future. Credentials are securely encrypted and stored.

Note: If you face trouble connecting to your database, please make sure Zoho DataPrep's IP Addresses are whitelisted in your application to export data to cloud databases. Click here to know about Zoho DataPrep IP addresses.

9. Once you have successfully connected to your MS SQL Server account, you can choose how and where to export the data.

10. Choose Existing table if you want to export data to an existing table and select one from the list of tables available in the database.

11. If you select the Existing table option, there are two ways in which you can choose how to export the new rows from your dataset in DataPrep to the table in your database.

• If the new rows are to be added to the table, choose Append.



• If the newly added rows are to replace the existing rows, select Overwrite from the dropdown.



12. If you want to create a new table and export data, select the New table option, enter the Schema name, Table name and proceed to exporting.

Note: Schema name is not a mandatory field.

13. Click Save. Now that you have added a destination, you may want to try executing your pipeline using a manual run at first. Once you make sure manual run works, you can then set up schedule to automate the pipeline. Learn about the different types of runs here.

Info: Each run is saved as a job. When a pipeline run is executed, the data fetched from your data sources will be prepared using the series of transforms you have applied in each of the stages, and then data will be exported to your destination. This complete process is captured in the Jobs page.

13. If the manual run succeeds without any errors, your data will be exported successfully. If you are exporting data to an existing table in your cloud database, and if the manual run fails throwing the below target match error, you can fix them by completing the target matching steps.

Target matching is a useful feature in DataPrep that prevents export failures caused due to errors from the data model mismatch.

Note: Target matching will be applied even if you export data to a new table and automate the pipeline using the Schedule run option. Only during the first schedule it will treated as a new table. In the subsequent exports, the new table will be treated as an existing table and target matching will be applied.



Target matching during export to cloud databases

Target matching happens before the data is exported to the destination. Target matching is a useful feature in DataPrep that prevents export failures caused due to errors from the data model mismatch. Using target matching, you can set the required cloud database table as the target and align the source dataset columns to match with your target table. This ensures seamless export of high quality data to the cloud databases.

Note: Target matching failure is not an export failure. Target matching happens before the data is actually exported to the destination. This way the schema or data model errors that could cause export to fail are caught beforehand preventing export failures.

When target match check fails

1. If the target match check fails during export, you can go to the DataPrep Studio page, click the target matching icon  at the top right corner and choose the Show target option. The target's data model is displayed above the existing source dataset. The columns in the source dataset are automatically aligned to match the columns in the target dataset, if found.

Target matching displays the different icons and suggestions on the matched and unmatched columns. You can click on these suggestions to quickly make changes to match the existing column with the target column. To make it easier for you to fix the errors, the target module in your cloud database is attached as a target to your data. You can view the mapping of your data with the table in the DataPrep Studio page along with the errors wherever there is a mismatch. You can hover over the error icons to understand the issue and click on them to resolve each error.

Note: All columns are displayed in the grid by default. However, you can filter out the required option by clicking the All columns link.

2. Click the View summary link to view the summary of the target match errors. The summary shows the different model match errors and the number of columns associated with each error. You can click on the required error columns and click Apply to filter out specific error columns.

Target match error summary

1. The Target match errors section shows the errors and the number of columns associated with each error.
2. The section at the top lists the error categories along with the number of errors in each category.
3. You can click them to filter errors related to each category in the panel.
4. In the default view, all columns are displayed. However, you can click any error category and get a closer look at the columns or view the error columns alone by selecting the Show only errors checkbox.
5. Your filter selection in the Target match error summary will also be applied on the grid in the DataPrep Studio page.

Target matching errors
