Manipulating Multi-Module Lookup Field using Zoho CRM APIs

Manipulating Multi-Module Lookup Field using Zoho CRM APIs

Hello everyone!

Welcome back to another week of Kaizen.
In this post, we explore the Multi-Module Lookup (MML) field in the Appointments module of Zoho CRM. You learn what an MML field is, how it works, and how to use it with Zoho CRM APIs.



Table of Contents:

  • What is a Multi-Module Lookup (MML) Field in Zoho CRM?
  • Use Cases for MML
  • How  the "Appointment For" (MML) field in the "Appointments" module works?
  • Creating a Record in the Appointments Module Using the Insert Records API
  • Retrieving a Record from the Appointments Module Using the Get Records API
  • Multi-module Lookup Using the COQL API
  • Multi-module Lookup Using the Bulk Read API
  • Frequently Asked Questions

What is a Multi-Module Lookup (MML) Field in Zoho CRM?

A Multi-Module Lookup (MML) field in Zoho CRM allows you to create a one-to-one relationship between a record in one module and a record from one of multiple other modules. Unlike a normal lookup field, which references a single module, an MML field can dynamically reference records from multiple modules.
Without the MML field, users must create multiple lookup fields for each module, which complicates the CRM layout and user experience.

Note:
  • The multi-module lookup (multi_module_lookup) data type was introduced in Zoho CRM API version 3.
  • Currently, the MML field is available as a system-defined field named Appointment For in the Appointments module.
  • The Appointment For field supports lookups to both Contacts and custom modules.
  • You cannot create a custom MML field in Zoho CRM.


Data Model Representation

MML's Data Model Representation

Use Cases for MML


Zylker Healthcare is a multi-specialty hospital that uses Zoho CRM to maintain its appointment scheduling process.

In this setup, Zylker maintains two key modules:
  • Contacts module - Stores records of physicians and surgeons, including attending physicians, specialists, and surgeons who diagnose and refer patients.
  • Patients module - A custom module used to maintain records of all patients.

To improve the appointment booking process, Zylker uses the "Appointment For" Multi-Module Lookup (MML) field in the Appointments module. This field lets Zylker manage an appointment with either a Physician/Surgeon or a Patient, eliminating the need for multiple lookup fields.

How  the "Appointment For" (MML) field in the "Appointments" module works?

  • When creating an appointment, the user selects the "Appointment For" field.
  • The field displays records based on the selected module, either the Contacts or  Patients.
  • The user selects the appropriate record (Contact or Patients) for the appointment.
  • A related list is automatically created in the selected module (Contact or Patients) as the Open Activities / Closed Activities to display all appointments associated with that record.

Creating a Record in the Appointments module using the Insert Records API

Before creating a record in the Appointments module via the Insert Records API, make sure you know the API names of the system-defined mandatory fields. These fields are required to create an appointment successfully.

System-defined Mandatory Fields:
  • Appointment_For (MML field)
  • Service_Name
  • Appointment_Start_Time
  • Appointment_Name
  • Member
  • Location

The below image shows how these system-defined mandatory fields appear in the Appointments module UI:

System-defined mandatory keys in the Appointments Module in UI view.

API calls you have to make before creating a record:

Before inserting a record into the Appointments module, it is important to know the API names of the fields and their parent modules.

i. Use the GET - Module Metadata API to know the API name of the module. In our case, the Appointments module.

Request URL : {api-domain}/crm/v8/settings/modules
Request Method : GET

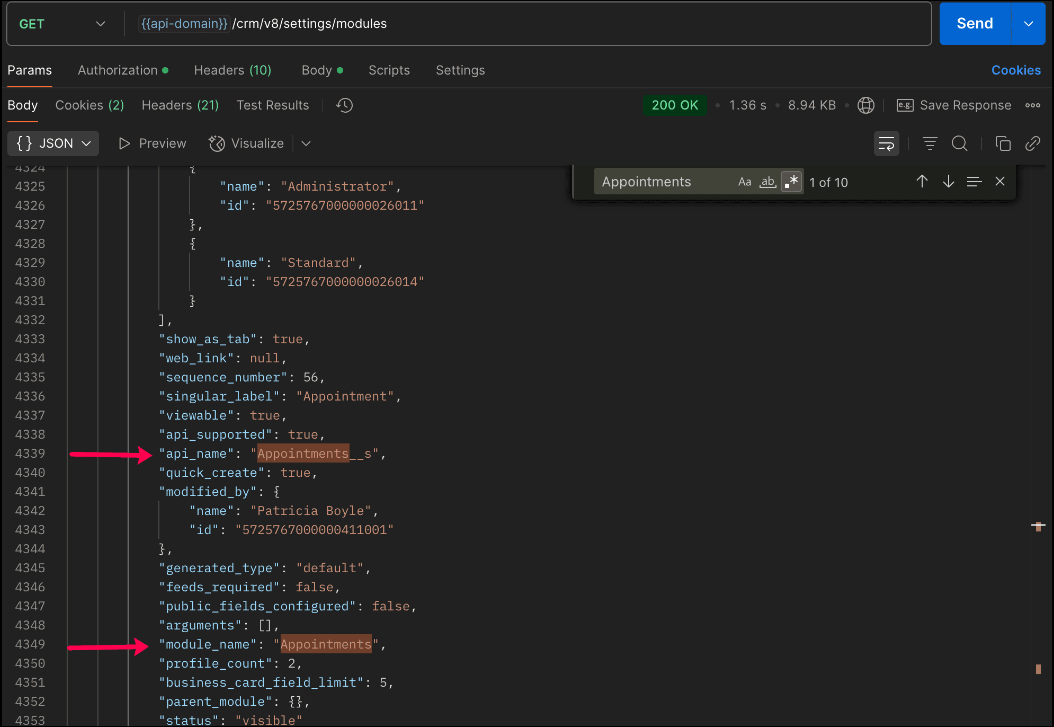

Sample Response :


In the API response, search for the module with "module_name": "Appointments" and check the value of the "api_name" key to get the API name of the module. This is the name you will use in all related API calls.

ii. Use the GET - Fields Metadata API and get fields metadata for the Appointments module. Here, you can find the API names of the mandatory fields along with other fields present in the Appointments module.

Below is the API call & response for the multi-module lookup field along with other mandatory fields.

Request URL : {api-domain}/crm/v8/settings/fields?module=Appointments__s
Request Method : GET

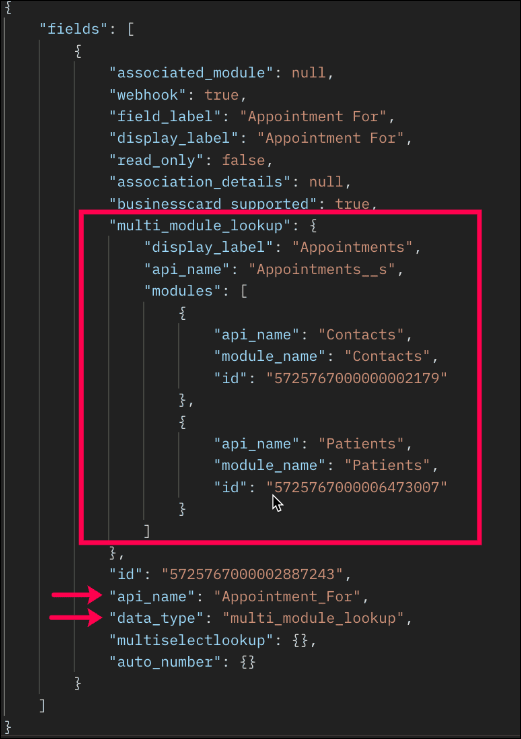

Sample Response :


Note: The above image highlights only the key properties of the Multi-Module Lookup (MML) field from the field metadata response. The complete API response contains additional properties not shown here.

In the response:
  • The multi-module lookup field is identified by the key "data_type" with the value "multi_module_lookup".
  • The associated modules supported by the MML field (e.g., Contacts, Patients) are listed under the "modules" key.
  • Other mandatory fields like Service Name, Appointment Name, and Appointment Start Time can be identified by "system_mandatory": true.
The keys of the above multi_module_lookup JSON object are explained below:


"multi_module_lookup": {
    "display_label": "Appointments", // Display label of the module where the MML field is used
    "api_name": "Appointments__s", // API name of the Appointments module
    "modules": [ //List of modules associated with the Appointments module.
        {
            "api_name": "Contacts", //API name of the associated module
            "module_name": "Contacts", // Display Name of the module
            "id": "5725767000000002179" //Unique ID of the module
        },
        {
            "api_name": "Patients", //API name of the associated custom module
            "module_name": "Patients", //Display label of the module
            "id": "5725767000006473007" //Unique module ID
        }
    }
]
},

Note:
  • You cannot add or remove modules from the Multi-Module Lookup (MML) field using APIs. These actions are only available through the Zoho CRM UI.
  • Once a module is disassociated from the MML field, existing records associated with that module will remain in the Appointments module, and you will no longer be able to associate newly created records from the disassociated module using the MML field.
The remaining system-defined mandatory fields, along with their API names, are listed below.



 System-defined Mandatory Field Names





System-defined Mandatory Field API Names

Service Name

Service_Name

Appointment Start Time

Appointment_Start_Time

Appointment Name

Appointment_Name

Member

Owner

Location

Location


Note: The system-defined mandatory fields can be identified by "system_mandatory": true.

Search the system-defined mandatory field names and get their API names.
With the field API names, use the following request and sample input body to create a record in the Appointments module using the Insert Records API.

Request URL : {{api-domain}}/crm/v8/Appointments__s
Request Method : POST

Request Body :

{
    "data": [
        {
            "Appointment_Name": "General Consultation",
            "Owner": {
                "name": "Patricia Boyle",
                "id": "5725767000000411001",
                "email": "patricia@zohotest.com"
            },
            "Appointment_Start_Time": "2025-04-15T13:00:00-07:00",
            "Appointment_End_Time": "2025-04-15T13:30:00-07:00",
            "Appointment_For": {
                "module": {
                    "api_name": "Contacts",
                    "id": "5725767000000002179"
                },
                "name": "John Doe",
                "id": "5725767000005607020"
            },
            "Service_Name": {
                "name": "General Check-up",
                "id": "5725767000006387029"
            },
            "Location": "Business Address"
        }
    ]
}


Sample Response:


{
    "data": [
        {
            "code": "SUCCESS",
            "details": {
                "Modified_Time": "2025-05-06T20:33:42-07:00",
                "Modified_By": {
                    "name": "Patricia Boyle",
                    "id": "5725767000000411001"
                },
                "Created_Time": "2025-05-06T20:33:42-07:00",
                "id": "5725767000006390001", //Unique ID if the newly created record. Please note that this record ID will be used in the following API get and update operations.
                "Created_By": {
                    "name": "Patricia Boyle",
                    "id": "5725767000000411001"
                }
            },
            "message": "record added",
            "status": "success"
        }
    ]
}



Note:
Only Contacts and custom modules are supported in the Multi-Module Lookup field. If you try to associate a new record with a module that has been removed from the MML field or an unsupported module in the MML field, the following error will be thrown.


Retrieving a Record from the Appointments Module Using the Get Records API

Request URL : {{api-domain}}/crm/v8/Appointments__s/5725767000006390001
Request Method: GET

Request Response:

{
    "data": [
        {
            "Owner": {
                "name": "Patricia Boyle",
                "id": "5725767000000411001",
                "email": "patricia@zoho.com"
            },
            "$currency_symbol": "$",
            "Address": null,
            "Appointment_Start_Time": "2025-04-15T13:00:00-07:00",
            "Cancellation_Reason": null,
            "$field_states": null,
            "Appointment_For": {
                "module": {
                    "api_name": "Contacts",
                    "id": "5725767000000002179"
                },
                "name": "John Doe",
                "id": "5725767000005607020"
            },
            "Rescheduled_To": null,
            "$sharing_permission": "full_access",
            "Reschedule_Reason": null,
            "Additional_Information": null,
            "Last_Activity_Time": null,
            "Cancelled_Time": null,
            "Cancellation_Note": null,
            "Modified_By": {
                "name": "Patricia Boyle",
                "id": "5725767000000411001",
                "email": "patricia@zoho.com"
            },
            "Reschedule_Count": 0,
            "Rescheduled_By": null,
            "id": "5725767000006390001",
            "Rescheduled_Time": null,
            "Remind_At": null,
            "Appointment_End_Time": "2025-04-15T13:30:00-07:00",
            "Status": "Overdue",
            "Modified_Time": "2025-05-06T20:04:38-07:00",
            "Service_Name": {
                "name": "General Check-up",
                "id": "5725767000006387029"
            },
            "Created_Time": "2025-05-06T20:04:38-07:00",
            "testing": null,
            "Rescheduled_From": null,
            "Cancelled_By": null,
            "$editable": true,
            "Appointment_Name": "General Consultation",
            "Duration": 30,
            "Record_Status__s": "Available",
            "Created_By": {
                "name": "Patricia Boyle",
                "id": "5725767000000411001",
                "email": "patricia@zoho.com"
            },
            "Tag": [],
            "Location": "Business Address",
            "Reschedule_Note": null
        }
    ]
}


Updating MML Field Value Using the Update Records API

Request URL : {{api-domain}}/crm/v8/Appointments__s/5725767000006390001
Request Method: PUT

Request Body:

{
    "data": [
        {
            "Appointment_Start_Time": "2025-04-16T14:00:00-07:00", //Updating the Appointment_Start_Time
            "Appointment_End_Time": "2025-04-16T14:30:00-07:00", //Updating the Appointment_End_Time
            "Appointment_For": {
                "module": {
                    "api_name": "Employees", //Updating a different module
                    "id": "5725767000002161028"
                },
                "name": "Patrica", //A record from the Employees module
                "id": "5725767000006272001" //unique ID of the record
            }
        }
    ]
}


Multi-module Lookup Using the COQL API

Querying Inner Fields of Linked Modules within the MML Field

With the COQL API, you can query inner fields of linked modules within a Multi-Module Lookup (MML) field. This provides deeper insights into related fields data in a module. This query support is available from Zoho CRM API Version 7.

Sample Query:


{
 "select_query": "select 'Appointment_For->Contacts.Lead_Source' from Appointments__s where id is not null"
}

The above query retrieves the Lead Source field from the Contacts module within the Appointment_For MML field.


Sample Response:



Querying Multi-Module Lookup Module Name

Querying the module name associated with each record in a Multi-Module Lookup (MML) field. This query support is available from Zoho CRM API Version 7.

Sample Query:

{
"select_query": "select Appointment_For.module.api_name, Appointment_For from Appointments__s where id is not null"
}


The Appointment_For.module.api_name returns the module name (e.g., Contacts or Accounts) for each record linked in the Appointment_For MML field.

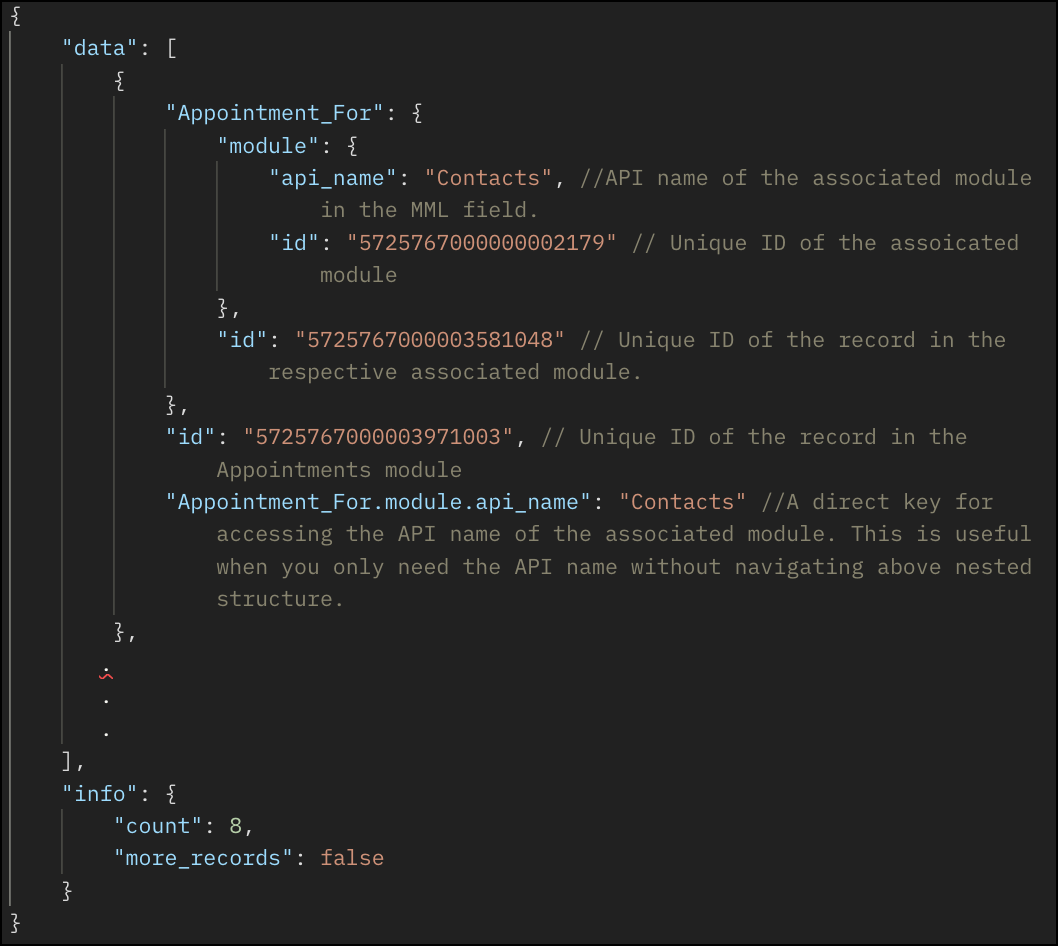

Sample Response:


Multi-module Lookup Using the Bulk Read API

Bulk Read API allows you to fetch a large set of data i.e., you can fetch a maximum of 2,00,000 records in a single API call.
Specify the API name of the Appointments module in the module JSON object when making API calls. Refer to the following section for an example.

Request Method : POST

Request Body :

{
    "callback": {
        "method": "post"
    },
    "query": {
        "module": {
            "api_name": "Appointments__s" //API name of the Appointments module
        },
        "file_type": "csv"
    }
}


Note: The Appointment_For field cannot be used in the criteria.

As the API is an asynchronous API, the response will not be available instantly; the bulk read job is scheduled, and the status can be checked. Once the job is completed, you will be notified in the callback URL. The records are available in a downloadable CSV file or ICS file (for events). See the Bulk Read API document to know how to view the status of the scheduled job and download the file, along with more sample requests and responses.

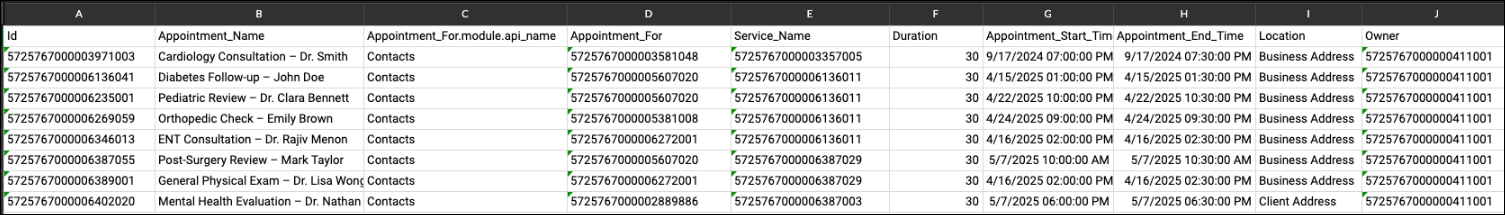

Sample Exported Response



Frequently Asked Questions

1. Which modules are currently supported in the MML field?

Only Contacts and custom modules can be associated with an MML field.

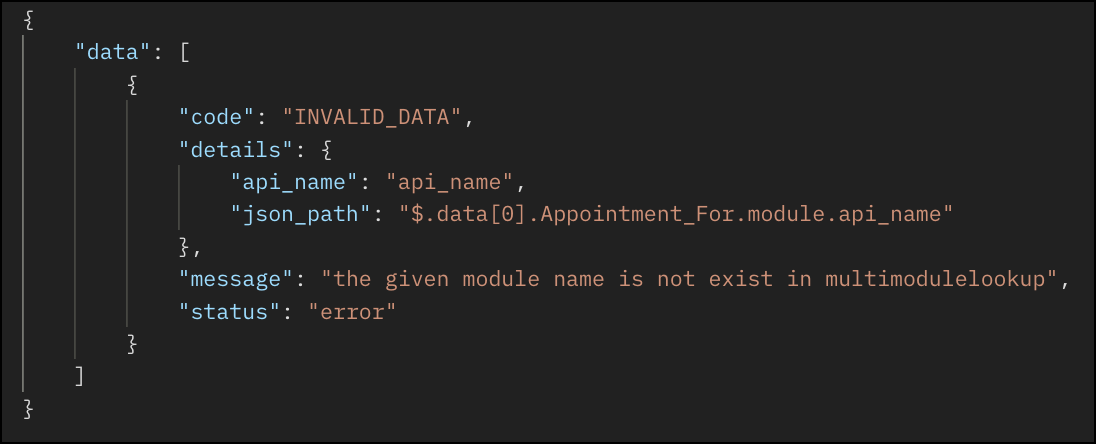

2. What error is thrown if I try to associate a record with a removed or unsupported module in the MML field?

If you try to associate a record with a removed or unsupported module in an MML field, the system will throw an "INVALID_DATA" error.

3. Is the MML field available for all modules?

No, as of Zoho CRM API Version 8, the MML field is available only as a system-defined field in the Appointments module.

4. How do I get the list of modules associated with an MML field?

You can use the GET - Fields Metadata API for the Appointments module and look for the field with "data_type" : "multi_module_lookup" and check its "modules" JSON array.

5. Can I add or remove modules from a Multi-Module Lookup (MML) field via API?

Adding or removing modules in an MML field is not supported via API. These actions can only be done through the Zoho CRM UI.

6. What happens if I remove a module from an MML field?

If a module is removed from the MML through Zoho CRM UI, it can no longer be associated with new records, but existing records linked to that module will remain unaffected.

7. Is MML field supported in the Bulk Write API?

As of Zoho CRM API Version 8, the MML field is available only in the Appointments module as a system-defined field. The Appointments module is not supported in the Bulk Write API.

8. Is MML field supported in the Search API?

The MML field is not currently supported in the Search API.



We trust that this post meets your needs and is helpful. Let us know your thoughts in the comment section or reach out to us at support@zohocrm.com

Stay tuned for more insights in our upcoming Kaizen posts!

Cheers!!!


Related Readings:


    • Sticky Posts

    • Kaizen #197: Frequently Asked Questions on GraphQL APIs

      🎊 Nearing 200th Kaizen Post – We want to hear from you! Do you have any questions, suggestions, or topics you would like us to cover in future posts? Your insights and suggestions help us shape future content and make this series better for everyone.

    • Kaizen #198: Using Client Script for Custom Validation in Blueprint

      Nearing 200th Kaizen Post – 1 More to the Big Two-Oh-Oh! Do you have any questions, suggestions, or topics you would like us to cover in future posts? Your insights and suggestions help us shape future content and make this series better for everyone.

    • Celebrating 200 posts of Kaizen! Share your ideas for the milestone post

      Hello Developers, We launched the Kaizen series in 2019 to share helpful content to support your Zoho CRM development journey. Staying true to its spirit—Kaizen Series: Continuous Improvement for Developer Experience—we've shared everything from FAQs

    • Kaizen #193: Creating different fields in Zoho CRM through API

      🎊 Nearing 200th Kaizen Post – We want to hear from you! Do you have any questions, suggestions, or topics you would like us to cover in future posts? Your insights and suggestions help us shape future content and make this series better for everyone.

    • Client Script | Update - Introducing Commands in Client Script!

      Have you ever wished you could trigger Client Script from contexts other than just the supported pages and events? Have you ever wanted to leverage the advantage of Client Script at your finger tip? Discover the power of Client Script - Commands! Commands

      • Recent Topics

      • Payroll and BAS ( Australian tax report format )

        Hello , I am evaluating Zoho Books and I find the interface very intuitive and straight forward. My company is currently using Quickbooks Premier the Australian version. Before we can consider moving the service we would need to have the following addressed : 1.Payroll 2.BAS ( business activity statement ) for tax purposes 3.Some form of local backup and possible export of data to a widely accepted format. Regards Codrin Mitin

      • Problem with Email an invoice with multiple attachments using API

        I have an invoice with 3 attachments. When I send an email manually using the UI, everything works correctly. I receive an email with three attachments. The problem occurs when I try to initiate sending an email using the API. The email comes with only

      • Page Layouts for Standard Modules like CRM

        For standard modules like quotes, invoices, purchase orders, etc, it would be a great feature to be able to create custom page layouts with custom fields in Zoho Books similar to how you can in Zoho CRM. For example, and my current use case, I have a

      • Non-depreciating fixed asset

        Hi! There are non-depreciable fixed assets (e.g. land). It would be very useful to be able to create a new type of fixed asset (within the fixed assets module) with a ‘No depreciation’ depreciation method. There is always the option of recording land

      • Fixed asset management

        I want to know if there is any individual module for fixed assets management

      • One time sale item in billing automatically detects as service

        if i have some items which i don't want to add in my "item" list because its sold only for one time. but when i type item name in invoice, it (system) automatically takes it as a service and despite of HSN , it shows SAC code to be entered. if its selectable i.e. either item or service , it would be very helpful and a must have feature.

      • Project template after project creation

        How can I apply a project template AFTER the project has been created?

      • convert the project to templet

        i have some deployment ME product for different customer , i need to create a fixed template for use it rather then keeping creating this template every time

      • Is there a notification API when a new note is addeding

        Trying to push to Cliq, or email notification when there's a new note added in module. How to implement this?

      • Seriously - Create multiple contacts for leads, (With Company as lead) Zoho CRM

        In Zoho CRM, considering a comapny as a lead, you need us to allow addition of more than one contact. Currently the Lead Section is missing "Add contact" feature which is available in "Accounts". When you know that a particular lead can have multiple

      • Related Module in Sharing Rules

        Zoho CRM team recently added the feature to filter records by Related Records It will be really beneficial if we can have this feature for Sharing Rules as well

      • Assignment Thresholds Resetting After Lead Conversion

        Hello everyone, We're facing an issue with Zoho CRM's lead assignment thresholds that makes them unsuitable for our workflow. I'm hoping to find a potential workaround or solution from the community. Here’s our current process: A new lead is created automatically

      • Vendor Signatures Needed for Purchase Orders

        Hello everyone, We have a unique requirement that necessitates that Vendors & Suppliers formally acknowledge our Purchase Orders upon receipt. I was hoping that there would be an option to do so in Zoho Books, but that does not appear to be the case.

      • Zoho CRM Analytics - Allow To Reorder Dashboards

        I would like to suggest that you add the ability to reorder dashboards in the Analytics Module. I can see that this has been requested some time ago, the latest 9 years ago. I am not sure if this is a big or small endeavor, but such a small fix can go

      • Territory view for custom modules?

        I have recently activated territories however I can't seem to find how to use territories for custom modules? These modules have territories:  Contacts /  Accounts / Opportunities These modules don't have territories:   Buildings (custom module) and

      • Zoho Books - How to Invoke a Custom Function in Schedulers

        We have multiple schedulers that send emails to customers in batches. Currently, we are maintaining the same code across several schedulers. Is it possible to use a custom function inside a scheduler script? If yes, how can we invoke the custom function

      • Approval Process Comments

        Is it possible to view the comments entered during the approval or rejection of a record in the approval process? If not, is there a way to require a field to be completed upon approval or rejection?

      • Login for test case

        Had a few questions regarding authentication test cases and couldn't find an answer in the the docs. 1. If an app like Zoho Creator requires authentication before providing access, do I need to create a login function and add it to each test case? 2.

      • Zoho / Outlook Calendar sync

        The current Marketplace -> Microsoft -> Meetings integration needs 2 changes. 1. The current language for the Two-Way sync option should be changed. It currently states, "Sync both your Zoho CRM Calendar and Office 365 Calendar meetings with each other."

      • GST Slabs Redefined: Stay Compliant Using Zoho Books!

        Hello Everyone! The Government of India is rolling out new GST rates, a major reform aimed at simplifying the current tax structure starting 22 September 2025. GST will move from four slabs (5%, 12%, 18%, 28%) to two main slabs (5% and 18%), plus a special

      • Form Rules for Suburb Categories to alternate landing pages or Making a Fields Contents ALL CAPS

        I need to send differentform submissions to two to three different thank-you URLs (for Meta/Google pixels) depending on which suburb a user selects in a form. I have ~400 suburbs split into two categories (A and B, based on business value). Current challenges:

      • Please make it easier to Pause syncing

        right now it takes 3 clicks to get there. sounds silly, but can you make it just 2 clicks to get it done instead? thats how dropbox does it, 2 clicks to pause instead of 3.

      • Customer members area

        Does FSM support a customer members area? If not what do you propose we use if we want the data used in FSM for customers to give them an area / login to see past orders, create new orders and general announcements.

      • Zoho Books-Accounting on the Go Series!

        Dear users, Continuing in the spirit of our 'Function Fridays' series, where we've been sharing custom function scripts to automate your back office operations, we're thrilled to introduce our latest initiative – the 'Zoho Books-Accounting on the Go Series'.

      • Record Logged in User while using CRM lookup field

        Is it possible, while using the Zoho CRM lookup field, to automatically use the user account logged into Zoho CRM in a hidden field? I was hoping to add employee accounts to my current plan. But would like a record on the Form submission of who submitted

      • Desktop app doesn't support notecards created on Android

        Hi, Does anybody have same problem? Some of last notecards created on Android app (v. 6.6) doesn't show in desktop app (v. 3.5.5). I see these note cards but whith they appear with exclamation mark in yellow triangle (see screenshot) and when I try to

      • Notes created in mobile can no longer be accessed in desktop

        Working with a 2013 Mac running OS 10.14.6; Desktop Notebook version 4.5.3. Using Motorola Moto G Power 5G - 2024; Android app version 6.7 I have been using Notebook for some years. Starting several weeks ago, the notes newly created ion the phone can

      • Function #49: Manage varying installment payments using Zoho Books

        . Hello everyone, and welcome back to our series! Last week, we discussed automating the collection of fixed installment payments in Zoho Books. But what if your payment structure involves charging varying percentages of the invoice total as installments?

      • Open Sans Font in Zoho Books is not Open Sans.

        Font choice in customising PDF Templates is very limited, we cannot upload custom fonts, and to make things worse, the font names are not accurate. I selected Open Sans, and thought the system was bugging, but no, Open Sans is not Open Sans. The real

      • Zoho Writer - Option to Export as .zdoc format

        I've noticed that it's not possible to export a Zoho Writer Document in the .zdoc format. Isn't zdoc, Zoho Writer's own format? My use case is that I sometimes need to create quite complex documents with floating elements, which sometimes need to become

      • Is it possible for contacts to "Re-enter" a workflow in Zoho Campaign?

        We are currently working on a way to automatically add users to from one list to other lists based on specific criteria, but can't seem to find a native way of doing this so we are trying to use Workflows to do this. So, for example, if a user's status is set to "Active," then they should be added to the list "Active Users." If the same user's status is then set to "Paused," they should be added to the list "Paused Users" and removed from the list "Active Users." This works fine for the first go

      • Bulk upload images and specifications to products

        Hi, Many users have asked this over the years and I am also asking the same. Is there any way in which we can bulk upload product (variant) images and product specifications. The current way to upload/select image for every variant is too cumbersome.

      • Out of Office for Just One of My Alias Email

        Can I set up the Out of Office Reply for Just One of my Alias Email Addresses?

      • Can I map multiple Surveys into the CRM using the same fields?

        Hello, We are a healthcare practice that offers two distinct services (Nutrition and Primary Care). We use Zoho Survey for our lead generation form (Get Started Survey), which allows people to express interest in one of the two services and even allows

      • Dealing with API responses where integers have more than 16 digits

        Hi there How do I deal with an api response contaning an int or float with more than 16 digits (before any decimal places for a float). I constantly receive the response "Unable to cast the 'BigInteger' value into a 'BIGINT' value because the input is

      • Can not add fields to a Section

        I feel like I'm missing something obvious: I can add new Sections to my form but I can not add fields to the Sections. I've tried fields already on the form as well as dragging and dropping new fields into the Section but nothing will go into it. What

      • Elevate your CX delivery using CommandCenter 2.0: Simplified builder; seamless orchestration

        Most businesses want to create memorable customer experiences—but they often find it hard to keep them smooth, especially as they grow. To achieve a state of flow across their processes, teams often stitch together a series of automations using Workflow

      • To Zoho customers and partners: how do you use Linked Workspaces?

        Hello, I'm exploring how we can set up and use Linked Workspaces and would like to hear from customers and partners about your use cases and experience with them. I have a Zoho ticket open, because my workspace creation fails. In the meantime, how is

      • [Webinar] Automate sales and presales workflows with Writer

        Sales involves sharing a wide range of documents with customers across the presales, sales, and post-sales stages: NDAs, quotes, invoices, sales orders, and delivery paperwork. Generating and managing these documents manually slows down the overall sales

      • Can't change form's original name in URL

        Hi all, I have been duplicating + editing forms for jobs regarding the same department to maintain formatting + styling. The issue I've not run into is because I've duplicated it from an existing form, the URL doesn't seem to want to update with the new

      • Next Page
