Prerequisites
- An Employee-Wi-Fi account
1. If you're a Zoho One user:
- Sign in to Zoho One, then click Directory in the left menu.

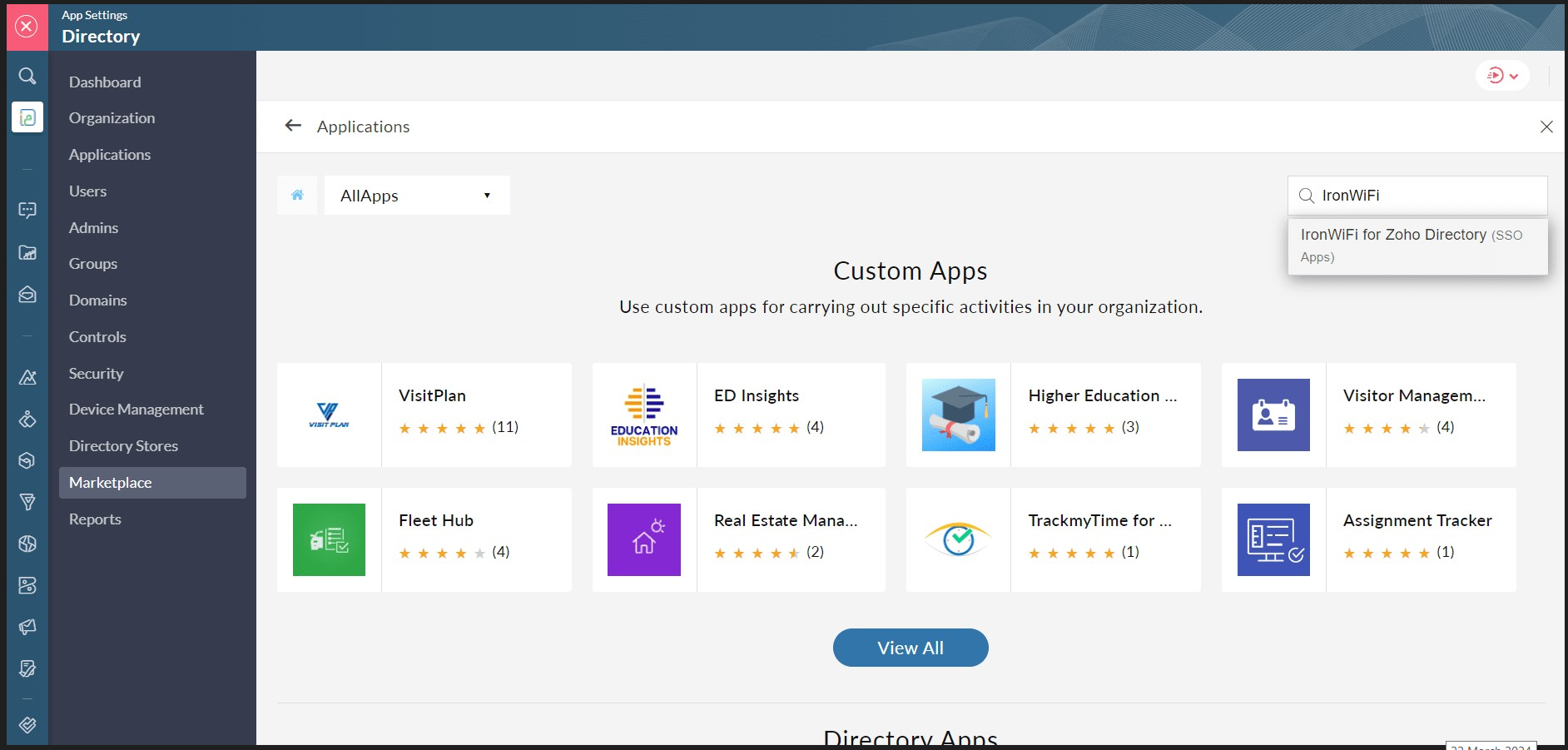

- Go to Marketplace, then click Browse Applications.
- Use the search bar to find and install IronWiFi.
2. If you're a Zoho Directory user:
- Sign in to Zoho Directory, then click Admin Panel in the left menu.

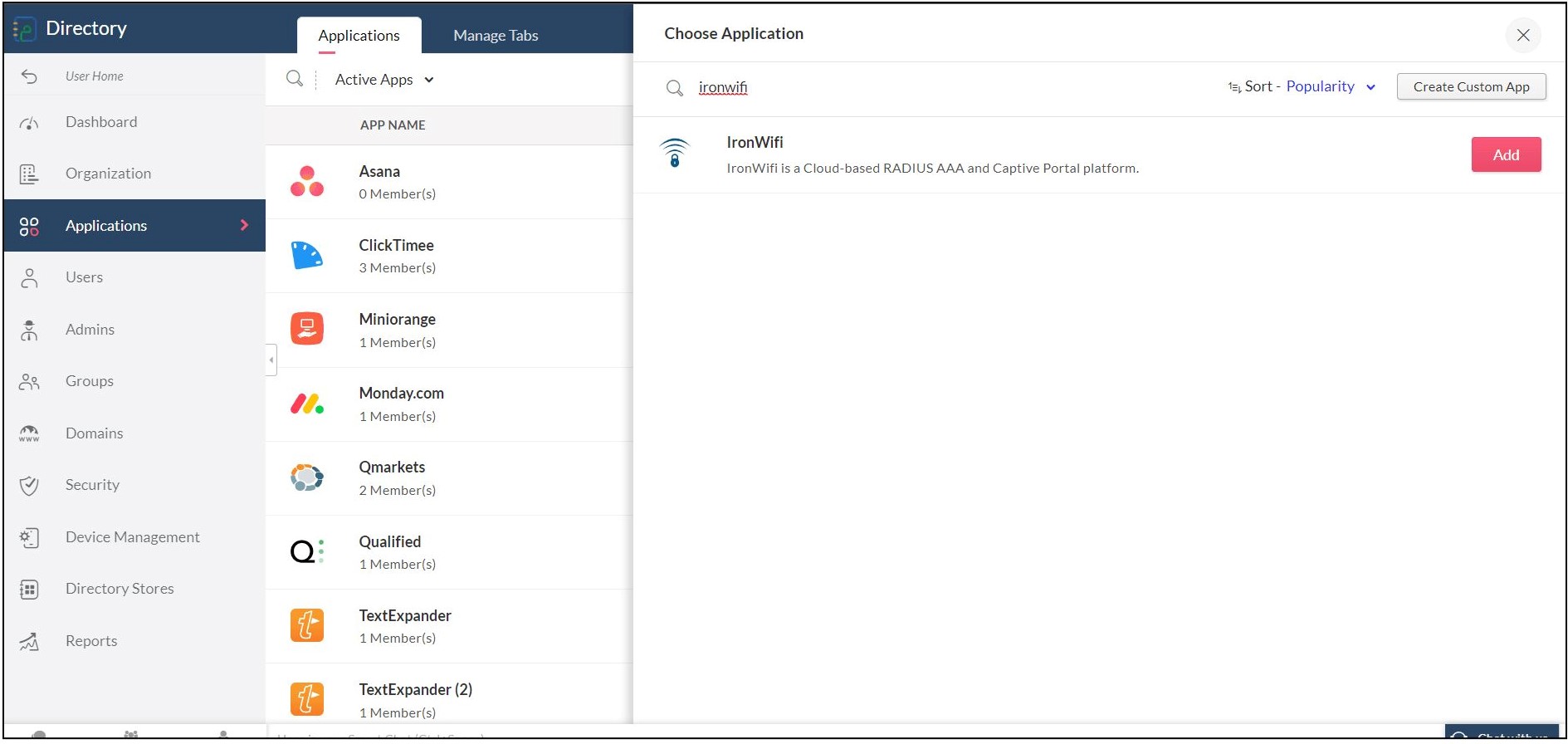

- Go to Applications, then click Add Application.
- Use the search bar to find and add IronWiFi.
3. Name your app and enter your Subdomain.
Note: Your Subdomain is the first part of your IronWiFi URL. If your URL is "zylker.ironwifi.com", your Subdomain will be "zylker".
4. If you want to test the SAML configuration before allowing users to access IronWiFi, uncheck Display app to users. You can later make the app visible to all users.
5. Click Add.
6. Click the Single Sign-On tab.
7. Click Service Provider Details to check and verify the SP details. You can also edit them if needed.

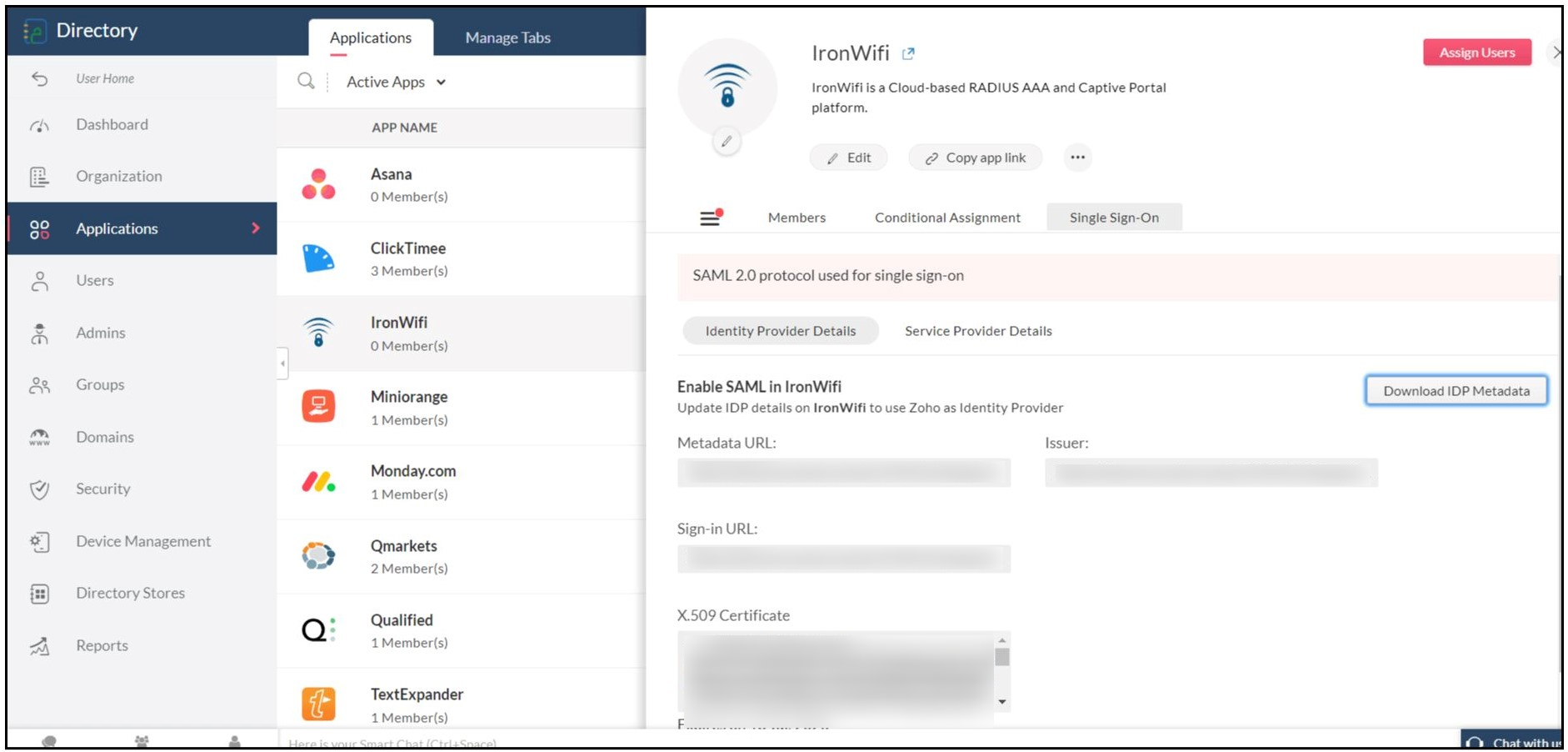

8. Click Identity Provider Details, then copy the Issuer, the Sign-in URL, and the X.509 Certificate.
1. Sign in to your IronWiFi account as an administrator.
2. Click Networks >New Network, then create a new network name.
3. Click Captive Portals > New Captive Portal, then select the network name.
4. Click your Network Name, then click Add New under Authentication Providers.
5. Select SAML 2.0 Single Sign-On method from the dropdown.
6. Paste the Issuer in the IDP Entity ID field, Sign-in URL in the IDP SSO URL field, and X.509 Certificate in the Certificate field.
7. Click Save.
Test the SAML connection
1. Return to the Zoho Directory Admin Panel.
2. Go to Applications, then click IronWiFi.
3. Click Assign Users, choose yourself from the list, then click Assign.

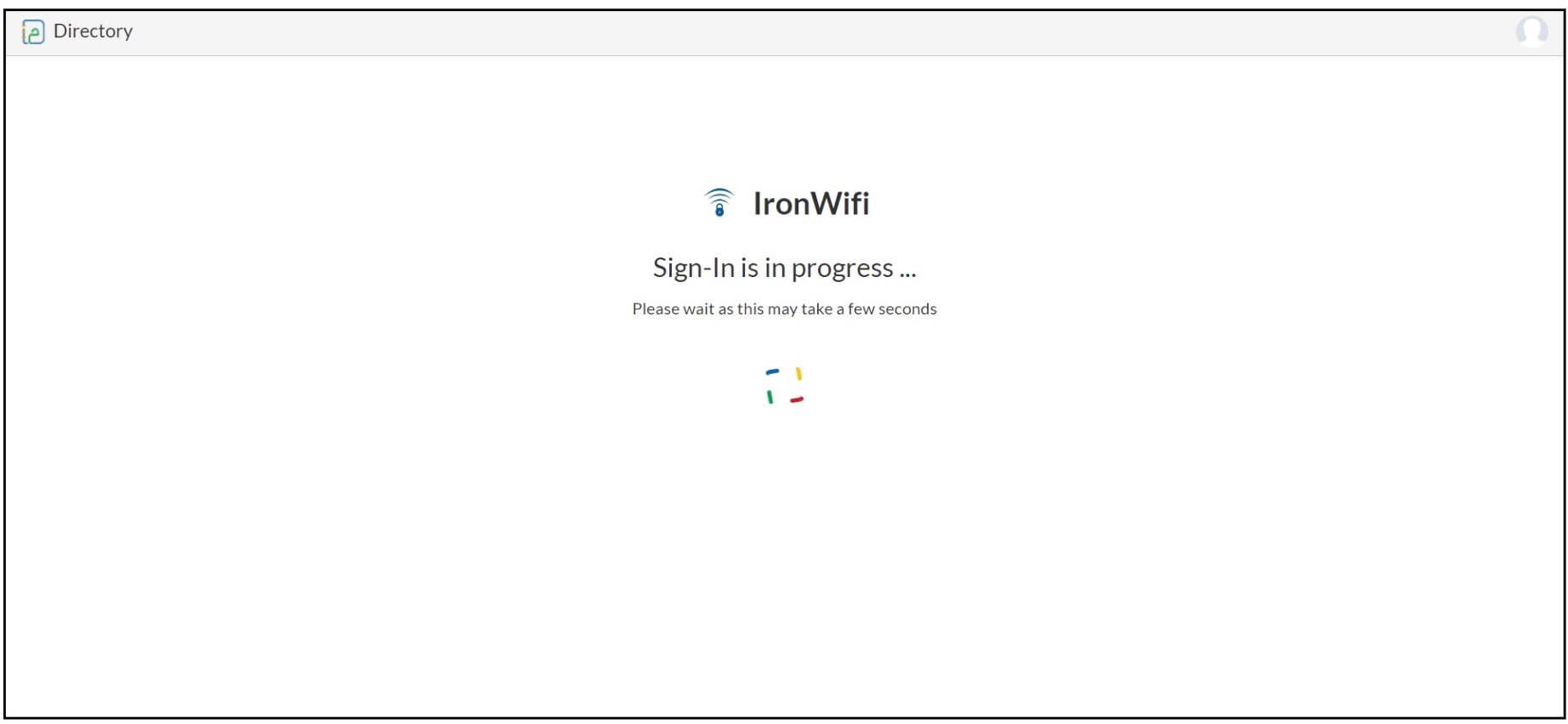

4. Click the icon next to the app's name. If everything is working, you should be signed in automatically and taken to IronWiFi's homepage. Make app visible to all users
After successfully testing the SSO, you can make IronWiFi available for all users to access from their My Apps pages.
To make IronWiFi visible to all users:
1. Sign in to the Zoho DIrectory Admin Panel.
2. Go to Applications, then click IronWiFi.

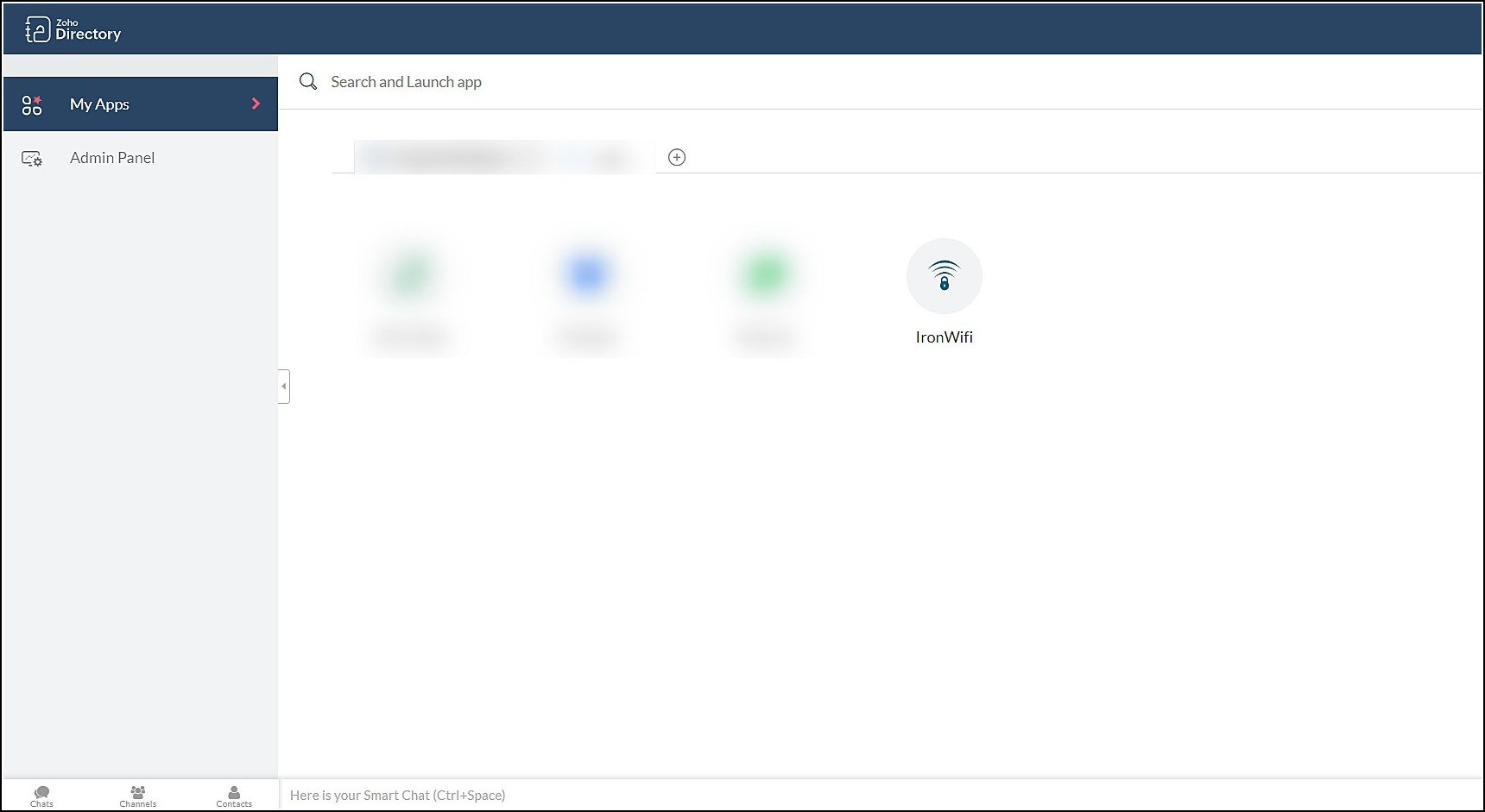

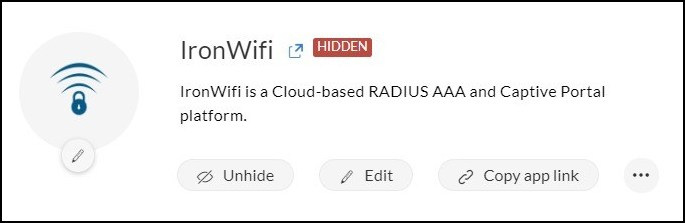

3. Click Unhide.4. You can now access IronWiFi from Zoho Directory's My Apps page.
