Lattice for Zoho Directory

Prerequisites

Lattice administrator privileges

Configure SAML in Zoho One/Directory

1. If you're a Zoho One user:
  1. Sign in to Zoho One , then click Directory in the left menu.

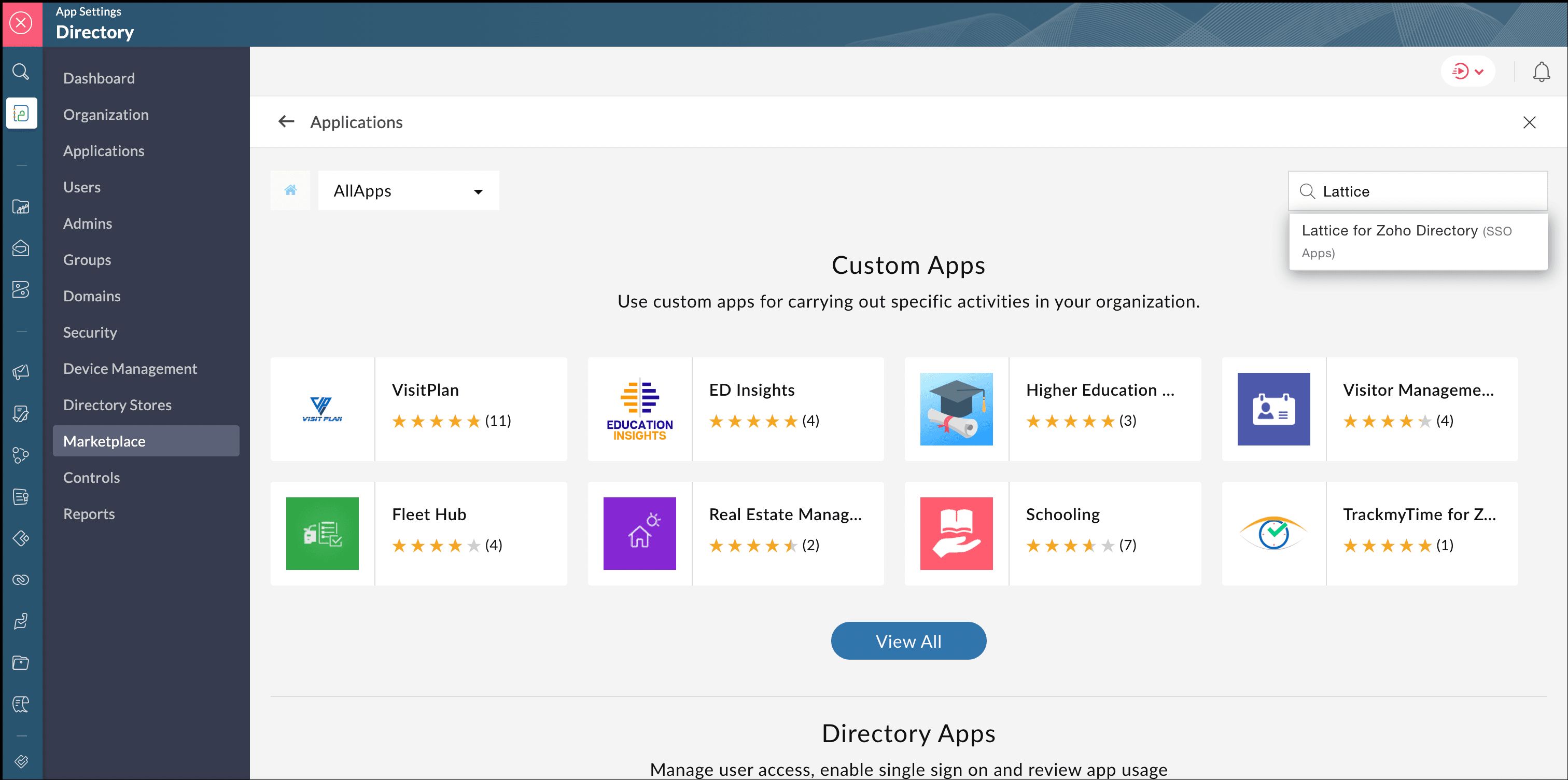

  2. Go to Marketplace, then click Browse Applications.
  3. Use the search bar to find and install Lattice.

2. If you're a Zoho Directory user:
  1. Sign in to Zoho Directory  , then click Admin Panel in the left menu.

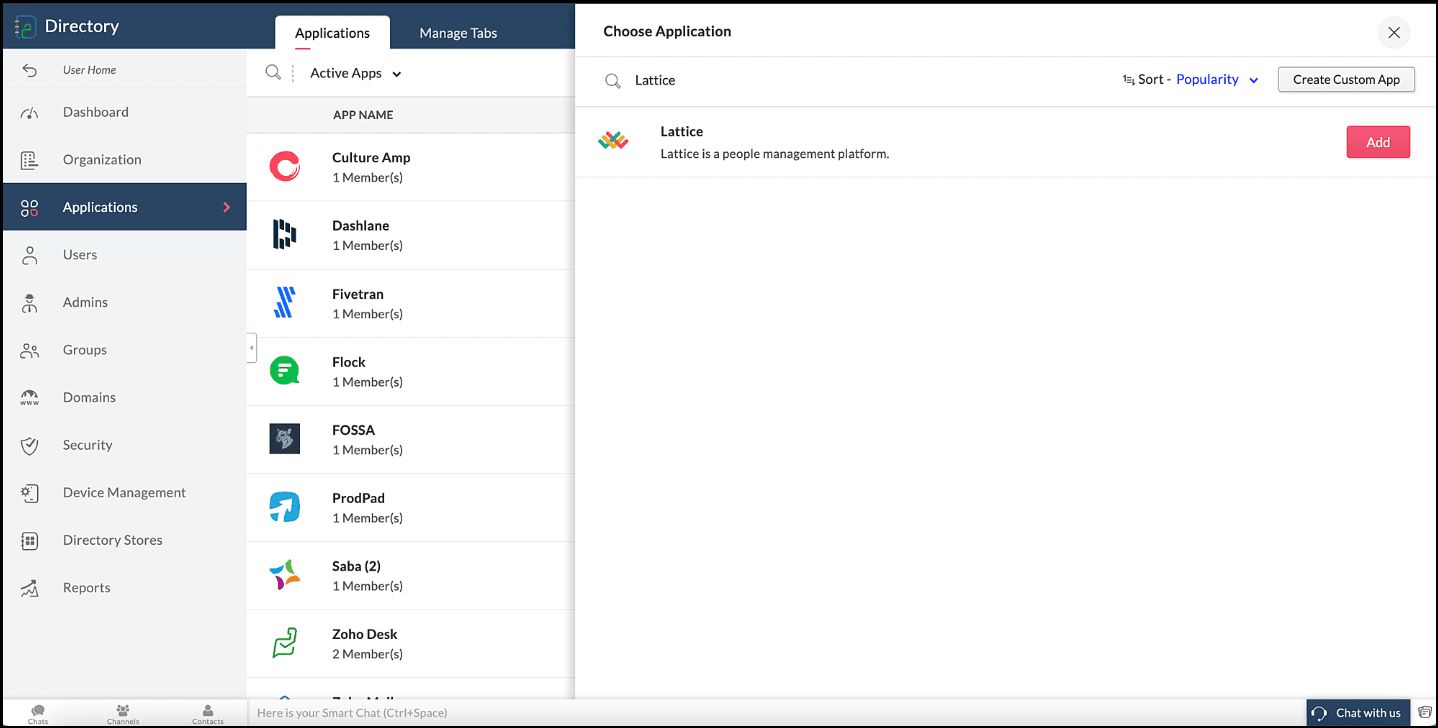

  2. Go to Applications, then click Add Application.
  3. Use the search bar to find and add Lattice.

3. Provide a name for your app and subdomain.
Note: The "[subdomain]" will be your Lattice subdomain. For example, if your organization's Lattice URL is https://zylker.latticehq.com, "zylker" would be your subdomain and your ACS URL would be: https://router.latticehq.com/sso/zylker/acs
4. Click Add.

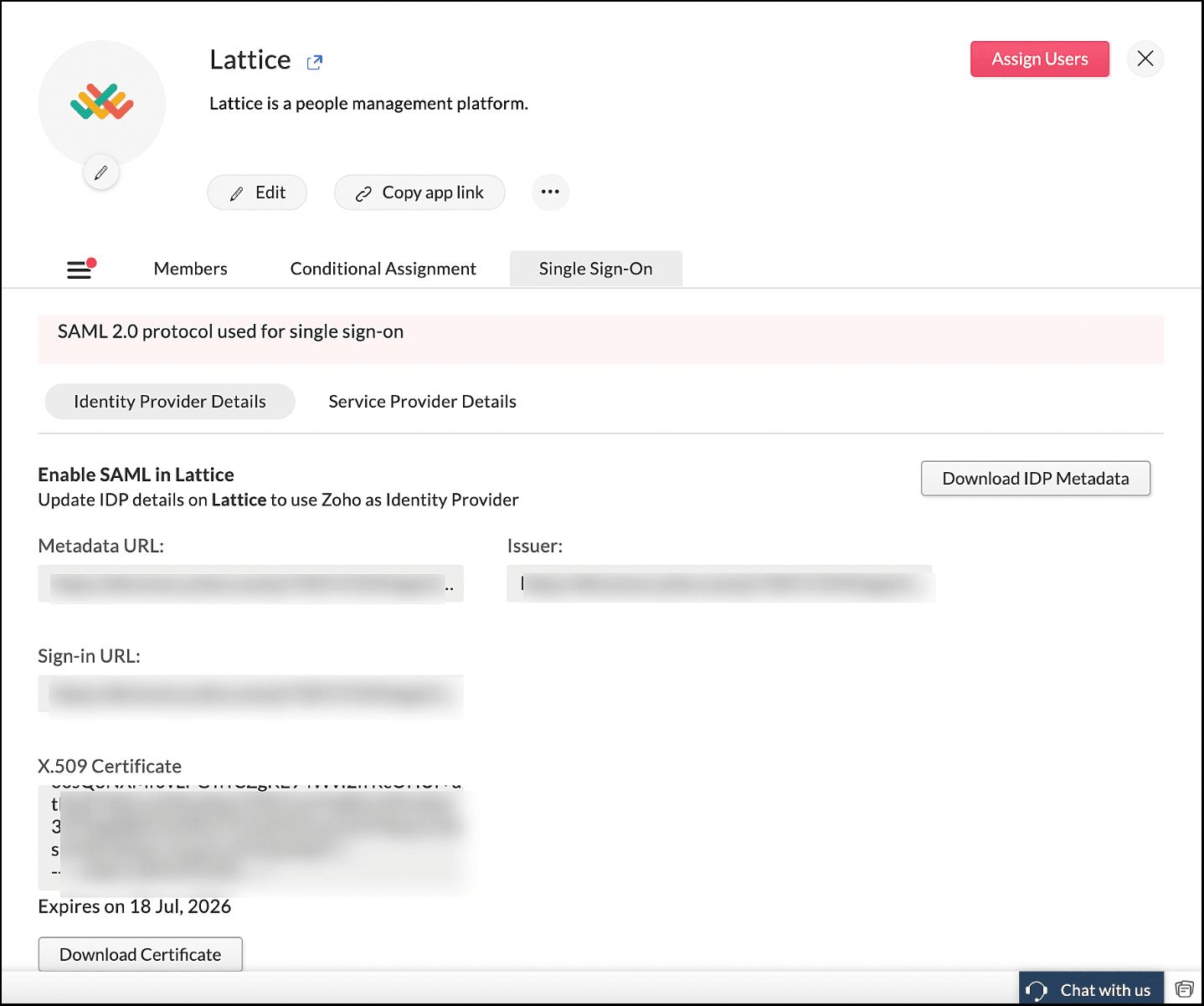

5. Click the Single Sign-On tab.
6. Click Service Provider Details to check and verify the SP details. You can also edit them if needed.
7. Click Identity Provider Details, then click Download IDP Metadata. An XML file will be downloaded.


Configure SAML in Lattice

To enable and configure SAML SSO for your Lattice account:
  1. Sign in to Lattice account as an administrator.
  2. Go to Admin and click Single Sign On.
  3. Below Single Sign-On settings, check the Force login through SSO or Force admin login box if you want to hide email and password input fields on the login page.
  4. In the XML metadata fields, paste the XML metadata file copied from the Zoho Directory Admin Panel.
  5. Click Save.

Test the SAML connection

Return to the Zoho Directory Admin Panel.
  1. Go to Applications, then click Lattice.
  2. Click Assign Users, choose yourself from the list, then click Assign.

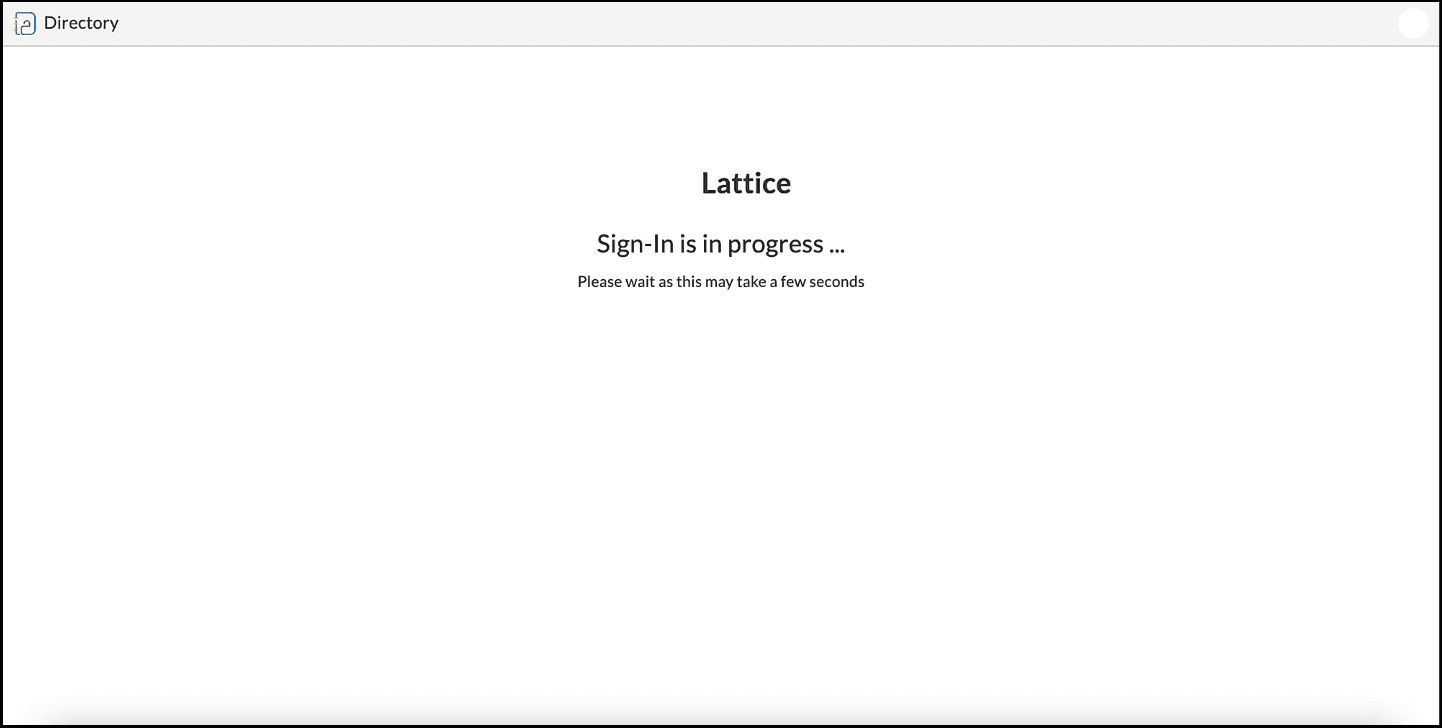

  3. Click the  icon next to the app's name. If everything is working, you should be automatically signed in and taken to Lattice homepage.

Make app visible to all users

After successfully testing the SSO, you can make Lattice available for all users to access from their My Apps page.
To make Lattice visible to all users:
  1. Sign in to the Zoho Directory Admin Panel.
  2. Go to Applications, then click Lattice.

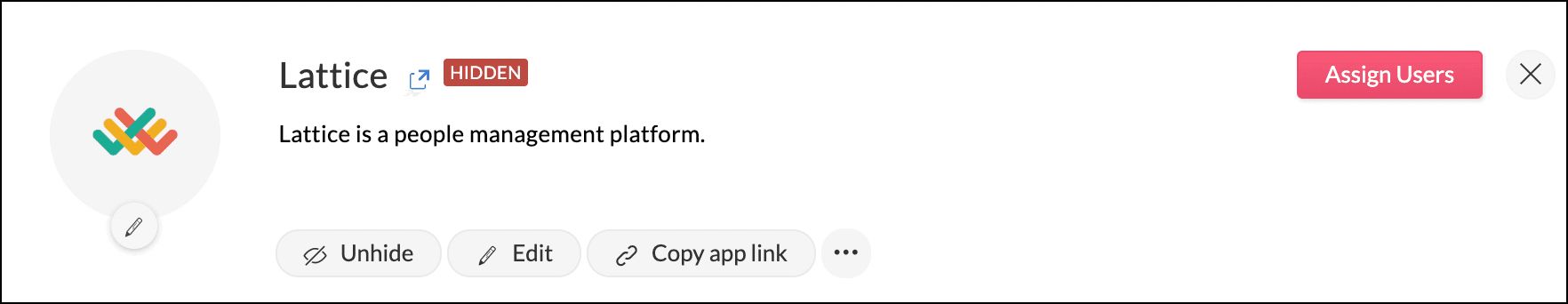

  3. Click Unhide.

  4. You can now access Lattice from Zoho Directory's My Apps page.
