Adding a realtime datapoint template to a custom datapoint group in the end application

Prerequisite: Make sure you have already created a custom datapoint group.

New realtime datapoint templates without computation can be added to a custom datapoint group which can be used while configuring device, asset, and location models.

Note: Only realtime datapoint templates without any computation can be added. Datapoint templates cannot be added to datapoint groups imported from the gallery.

To add a custom datapoint template to a datapoint group in the end application,
If you had just created a datapoint group proceed from step 5.
  1. Access the End Application.

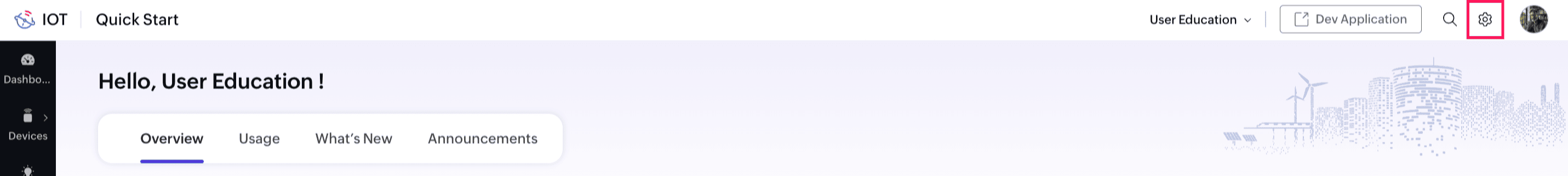

  2. Click the Settings icon in the top right corner.

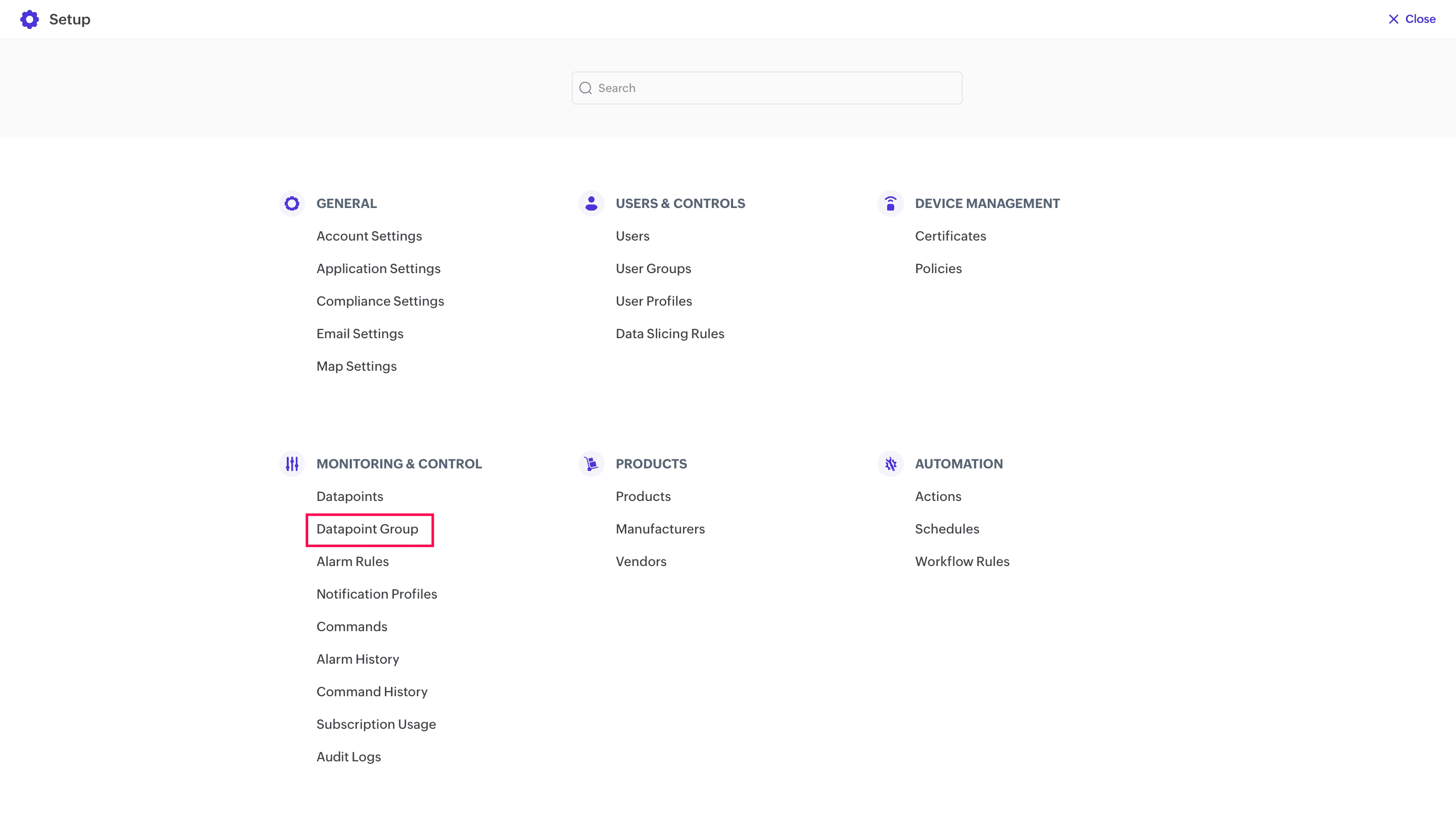

  3. Click on Datapoint Group under the MONITORING & CONTROL section.

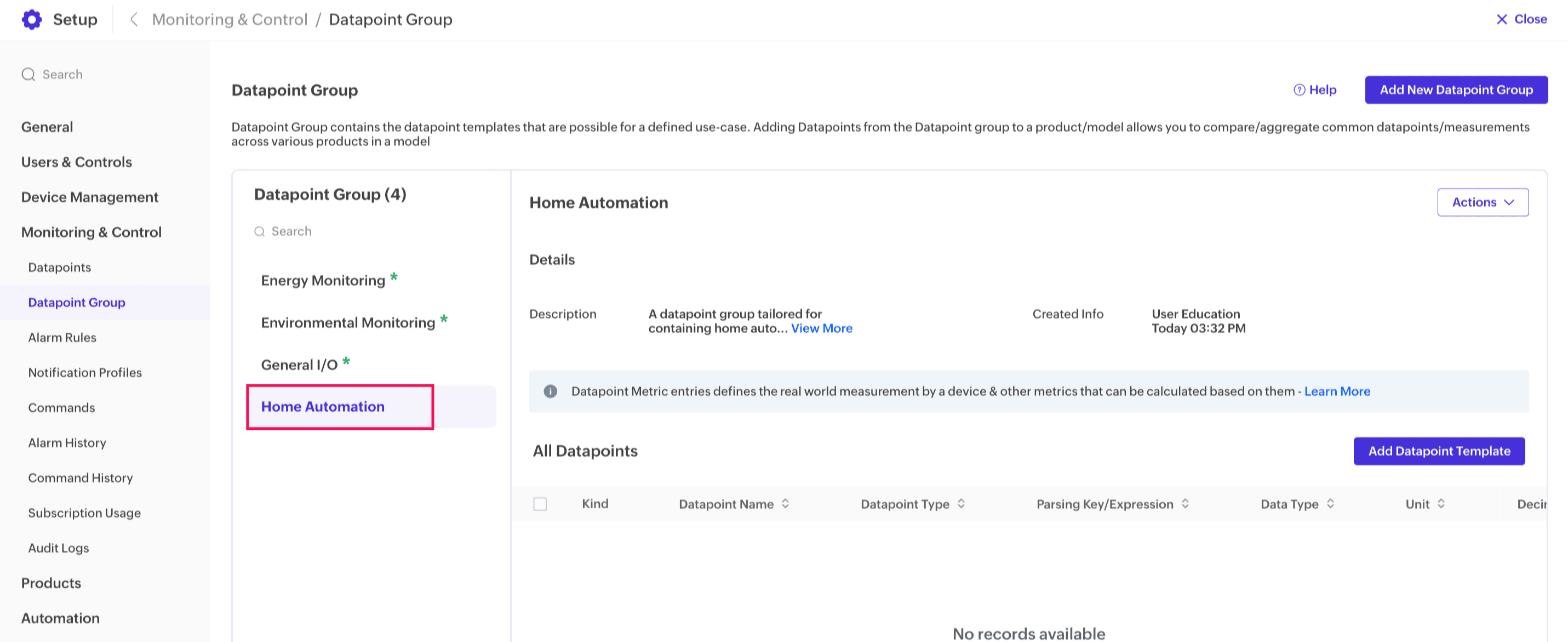

  4. Click on the custom datapoint group for which you want to add the datapoint template. For this illustration, the Home Automation datapoint group is selected.

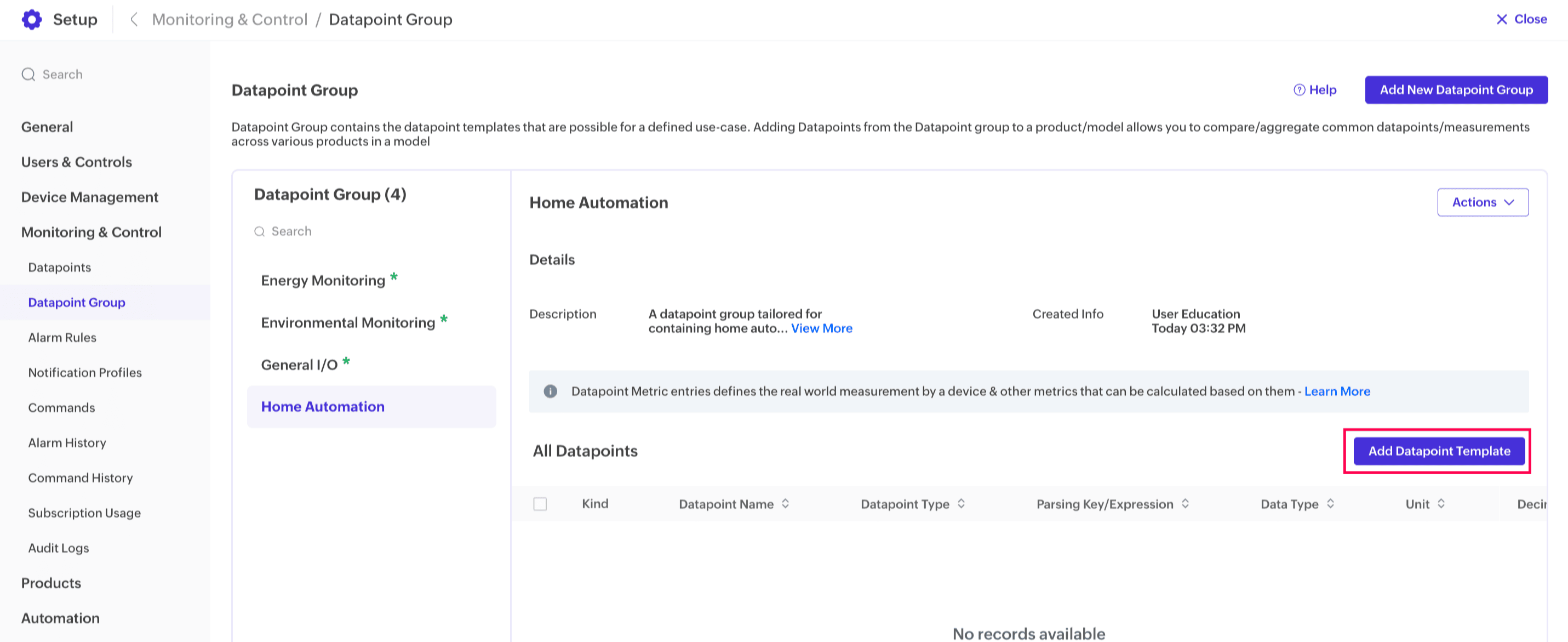

  5. Click Add Datapoint Template.

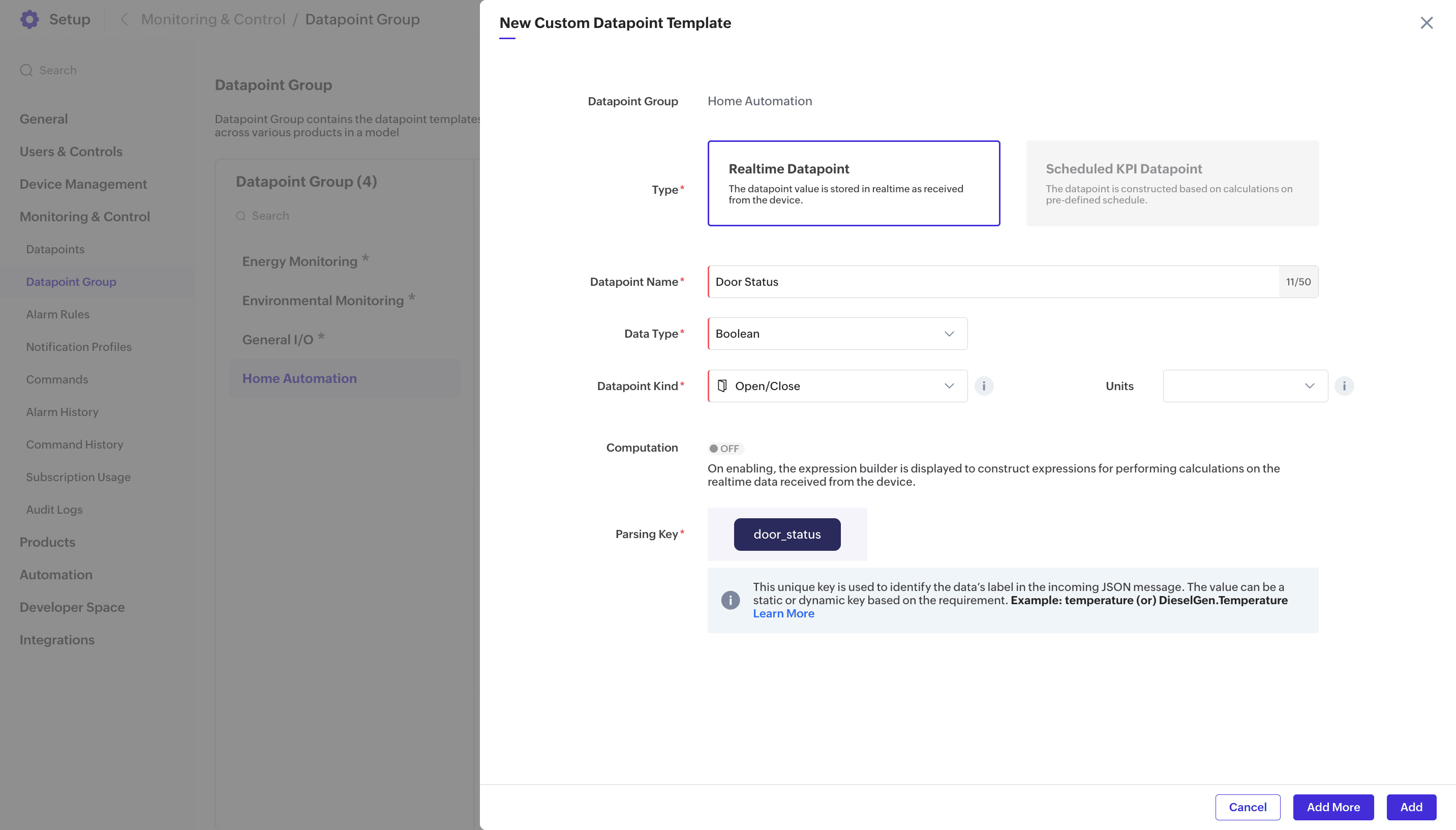

  6. Provide the required details in the appropriate fields. For this illustration, a datapoint for Door Status is created.


    Learn how to configure the fields for a datapoint template.
  7. Click Add.
The datapoint template will now be added to the custom datapoint group.
