Zoho IoT Agent Installation: TRB 245

Zoho IoT Agent Installation: TRB 245

Zoho IoT provides an agent for the TRB245 device. Installing this agent enables seamless connection between your device and the Zoho IoT platform, allowing you to configure and manage your TRB245 remotely.

Prerequisites

Make sure you have the following:
  1. PC or Mac
  2. LAN cable
  3. TRB245 device
  4. Power supply for TRB245
  5. Firmware version of TRB245 is above  06.xx.xx

Installation Guide

Get the Agent Files

  1. Contact support@zohoiot.com to obtain the Zoho IoT agent for TRB245 and its dependencies.
  2. Unzip the provided file agent-trb-245-v.0.2.0.zip to a known location.

Connect to the TRB245

  1. Connect your Mac/PC to the TRB245 using a LAN cable.



  2. Power on the TRB245.

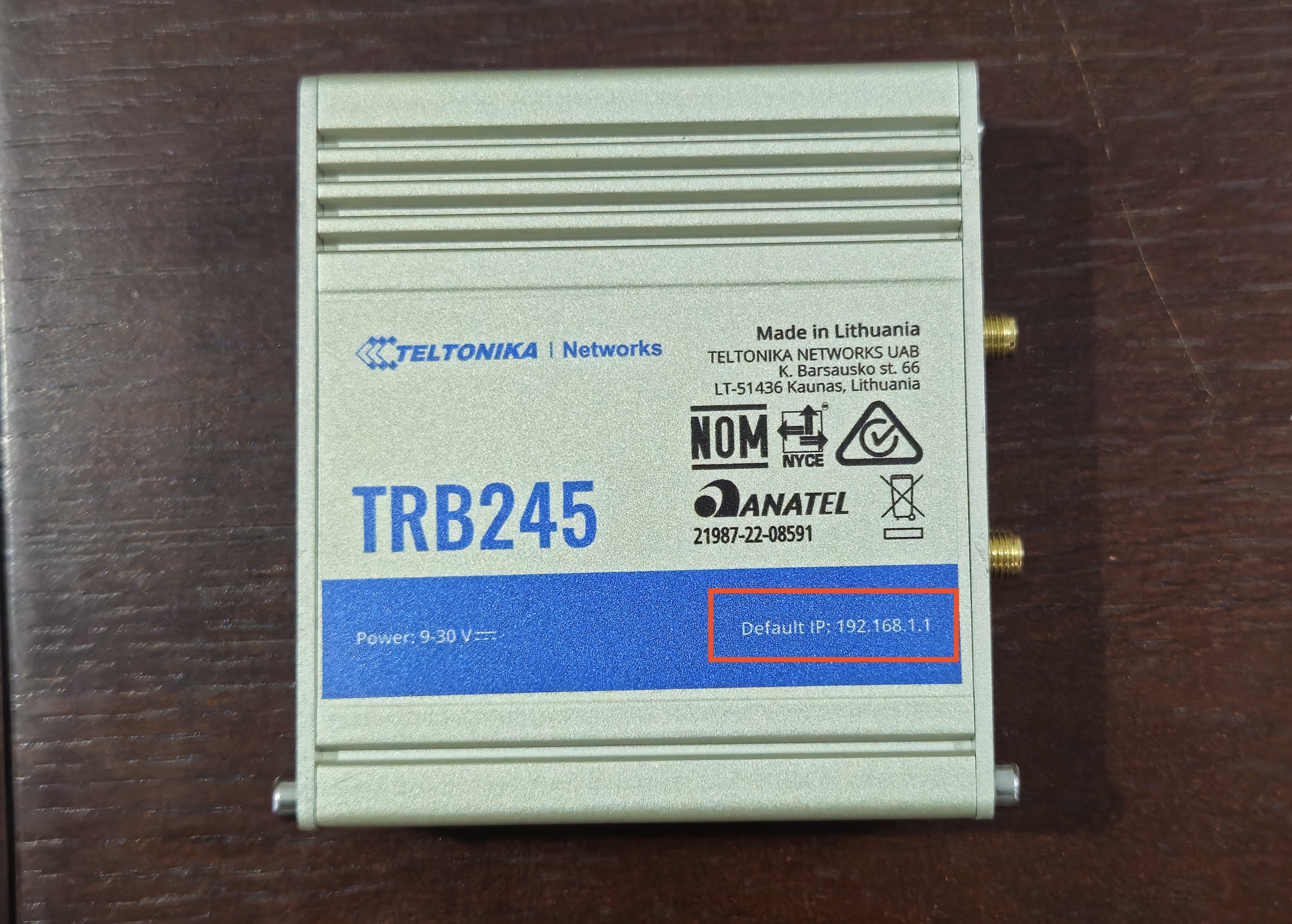

  3. Note the device's default IP address (Default IP: 192.168.1.1) displayed on the device.



  4. Open a browser (Chrome recommended) and enter the IP address in the address bar and click return/Enter. If prompted with a security warning, click "Continue to Site".


    You'll be redirected to the Teltonika device application interface.

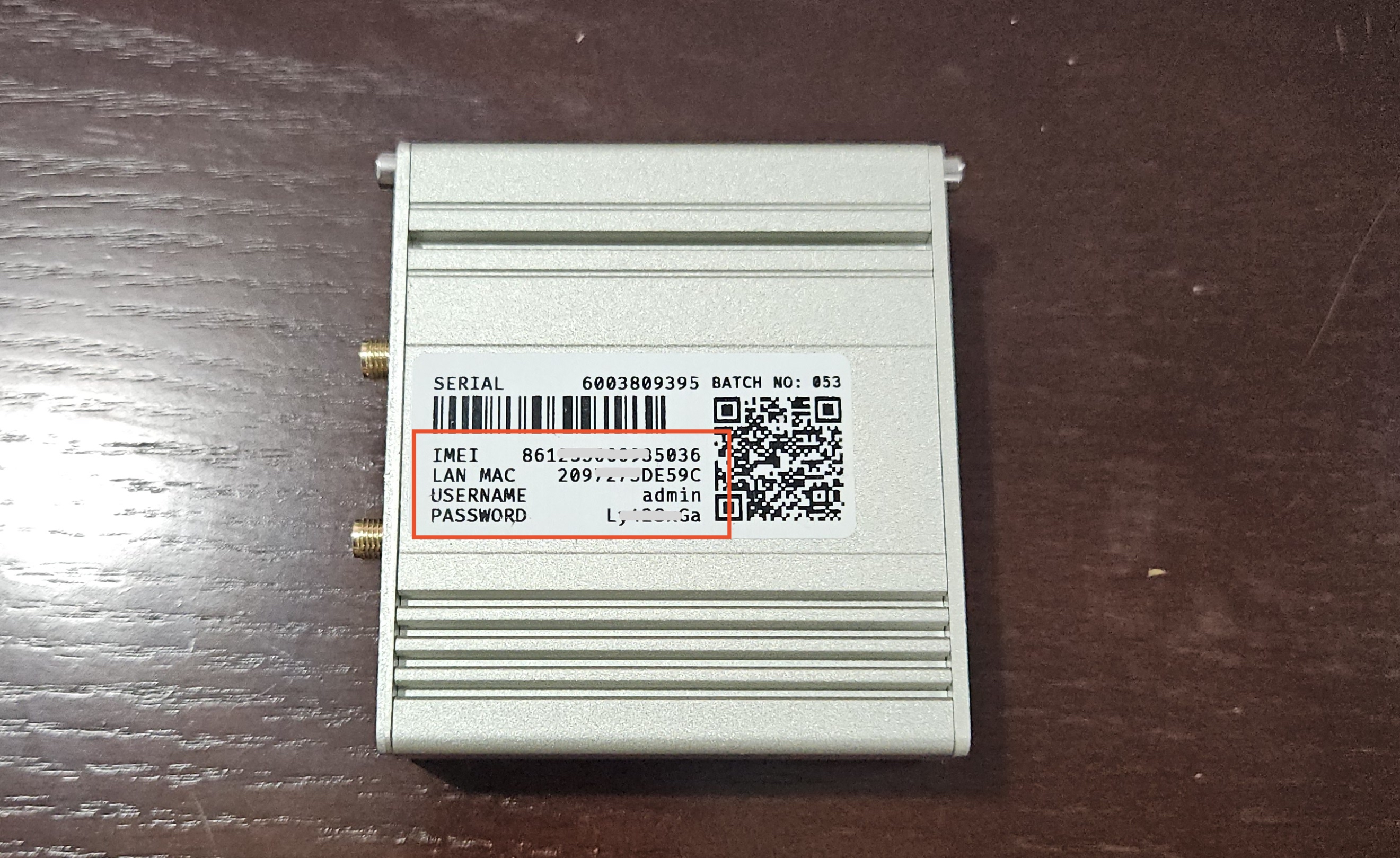

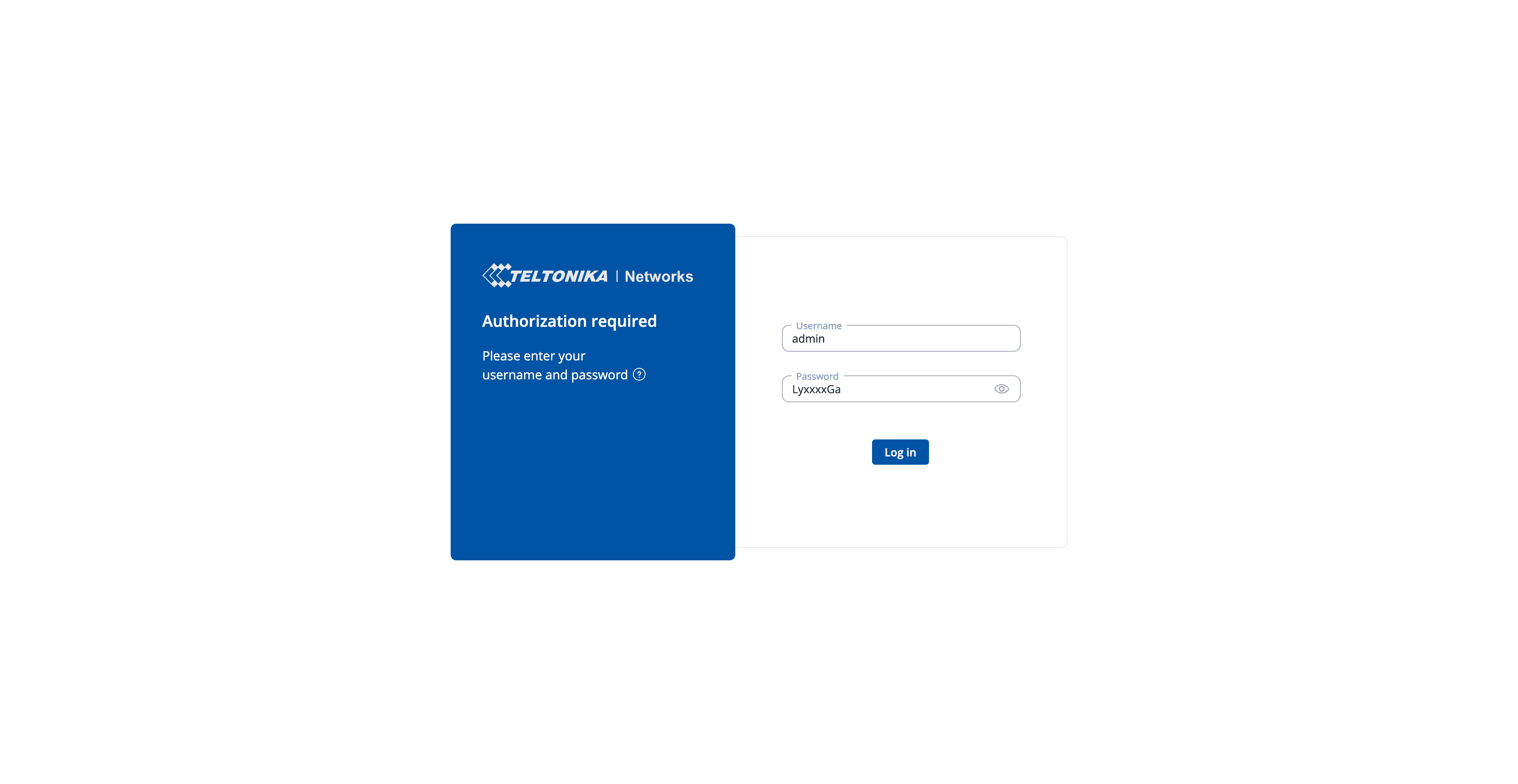

  5. Log in using the username and password displayed on the device label.

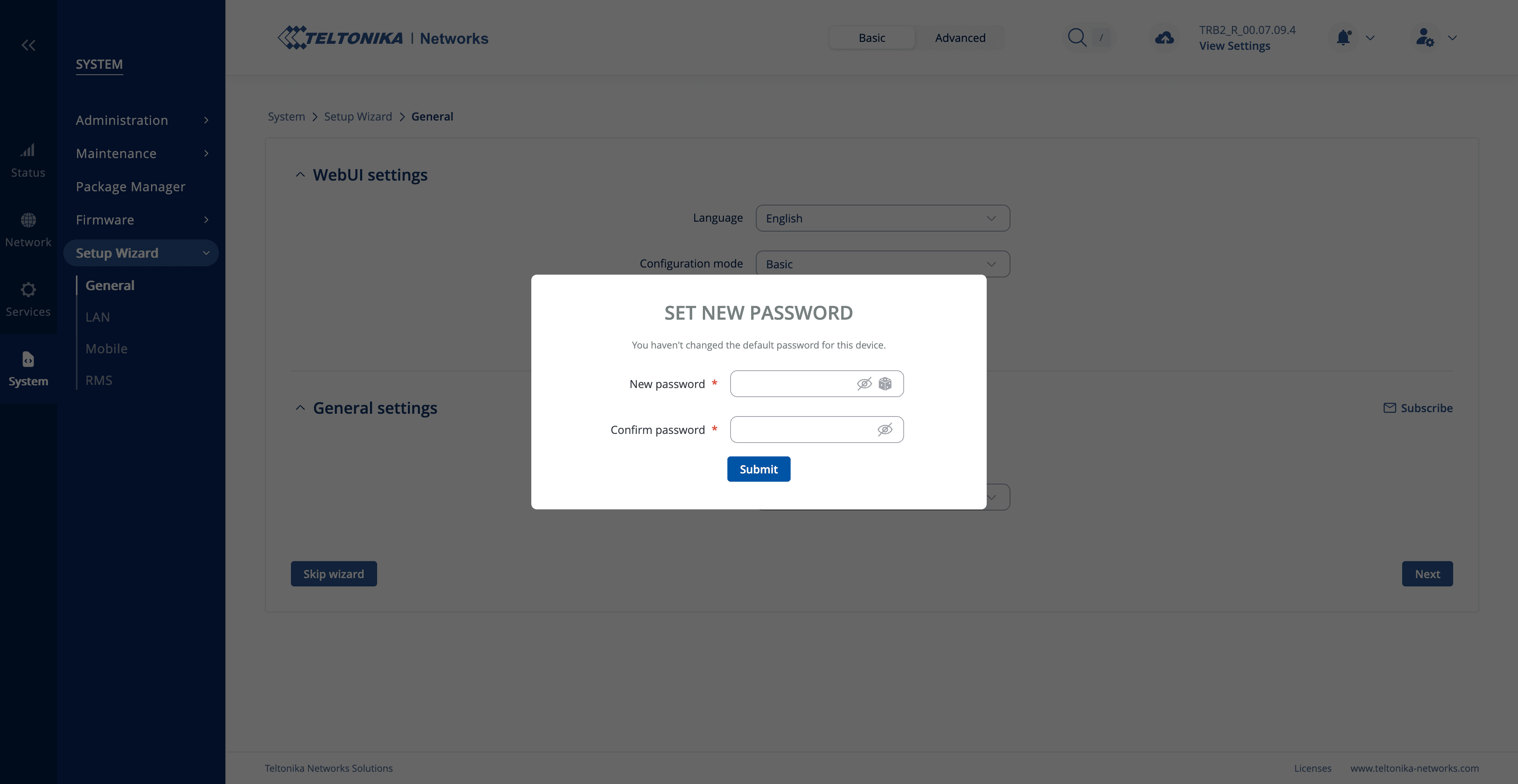

  6. For new devices, you’ll be asked to set a new password.


Transfer the Files to TRB245

Notes
Note: Commands in the Terminal/Command Prompt are executed by typing the required command and pressing return/Enter. Password to be used in the setup must be the newly set password.
  1. Open the terminal and navigate to the unzipped agent folder:
    1. Mac:
      1. Open Terminal.

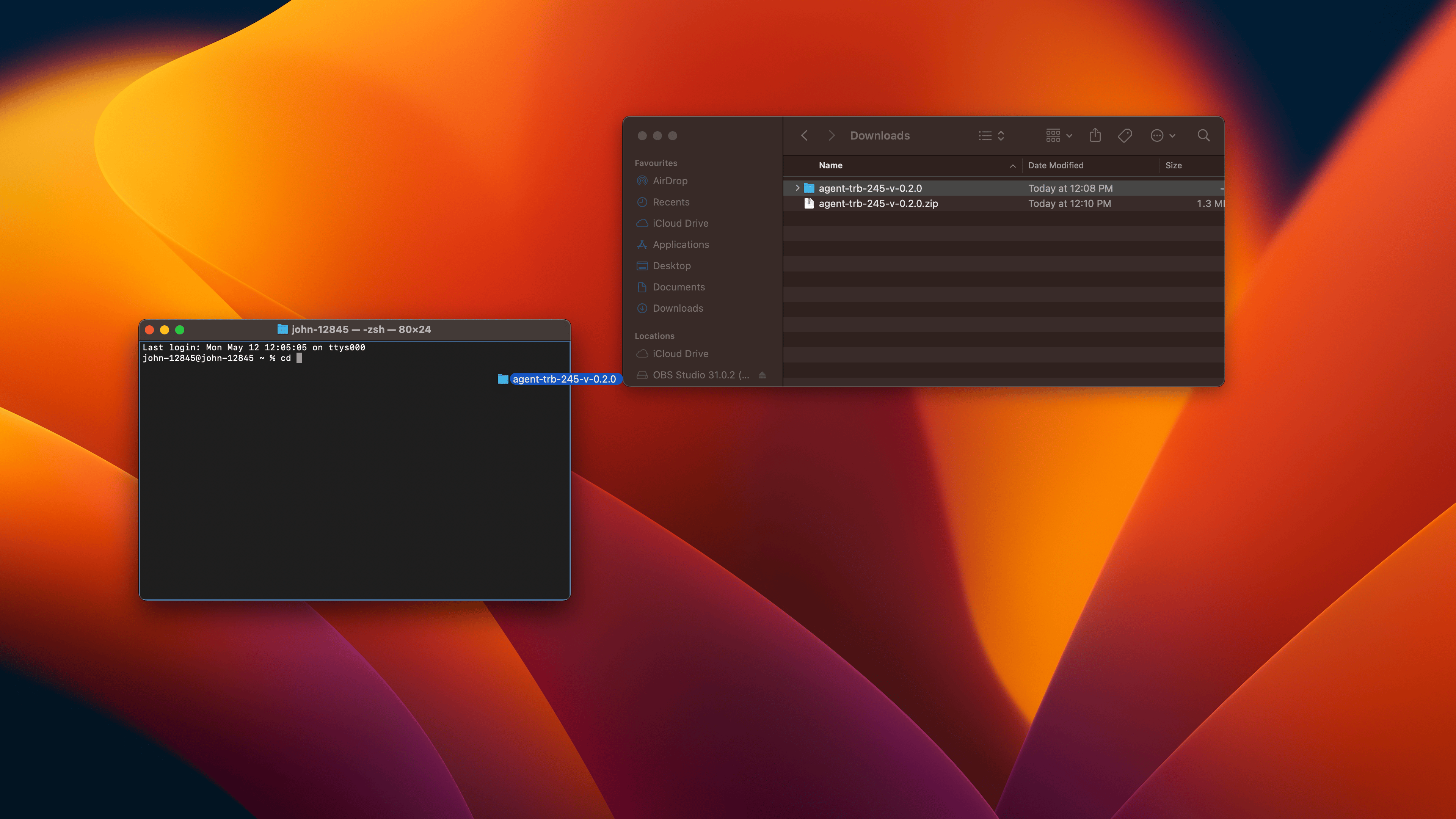

      2. Type cd (followed by a space), drag the unzipped folder into Terminal, then press Return.

            cd

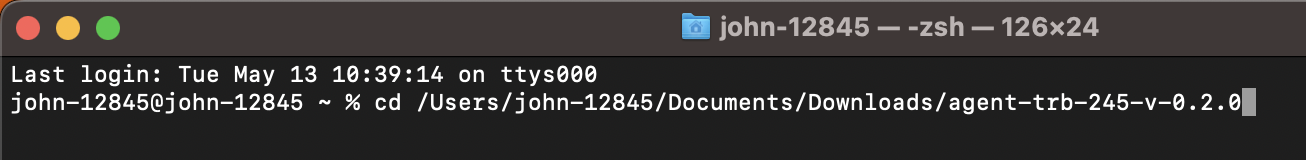

      3. Example of command line after dragging and dropping:

             cd /Users/user-name/Documents/Downloads/agent-trb-245-v-0.2.0



    2. Windows:
      1. Open the extracted folder.

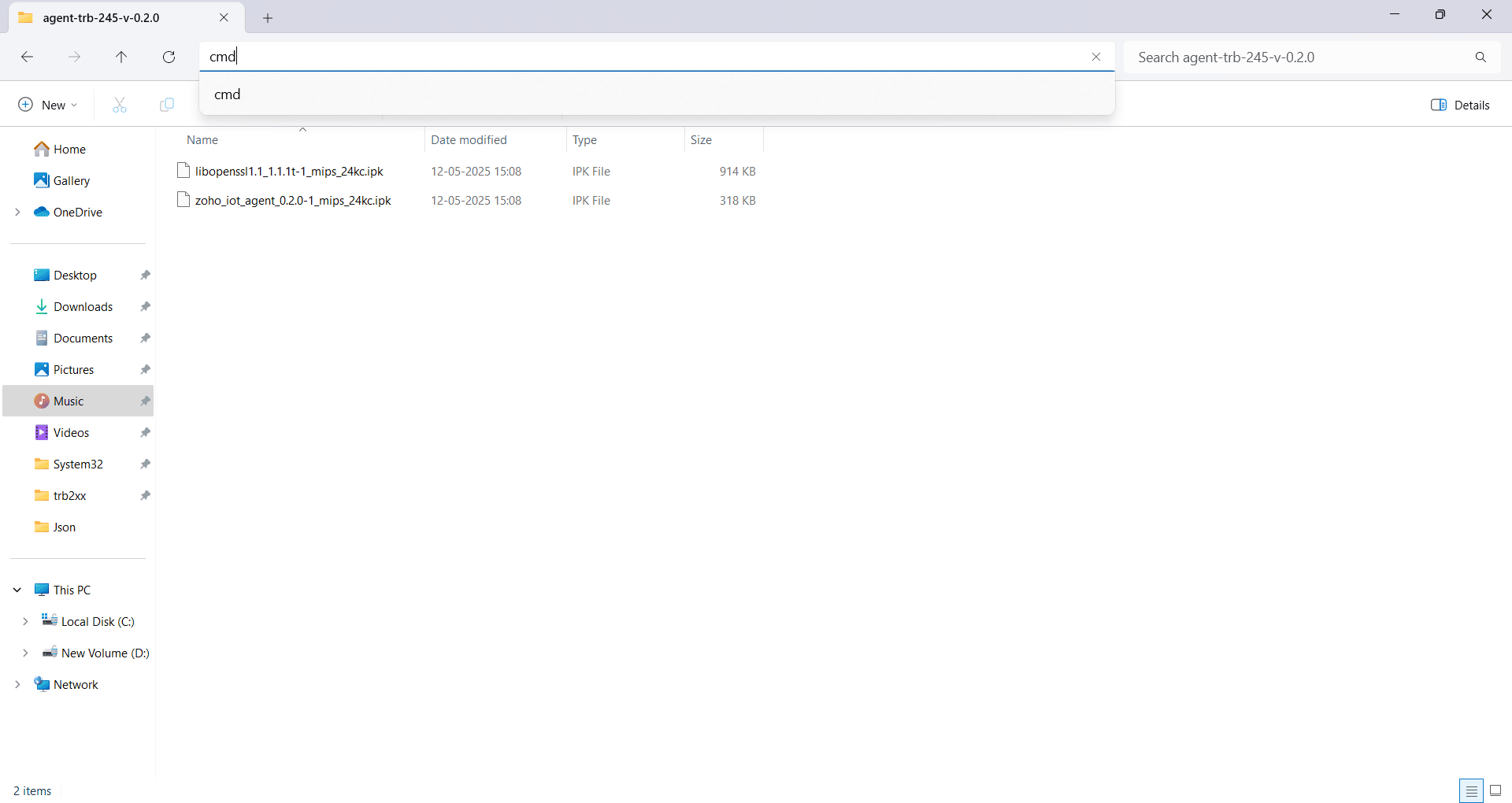

      2. Type cmd in the address bar and press Enter to open Command Prompt in that folder, then press Enter.

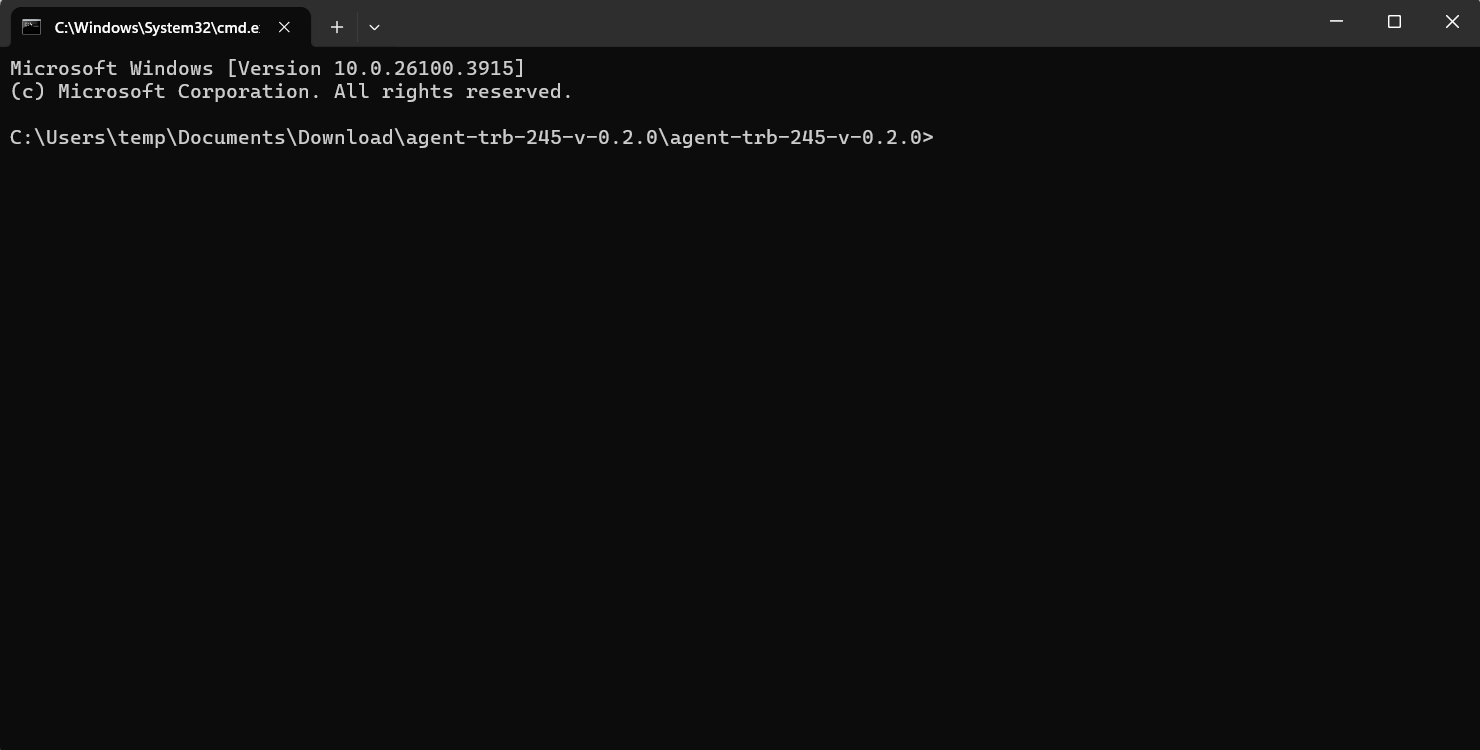

      3. Example of command in the command prompt for the directory:



  2. Transfer the dependency file:
    1. Execute the following command:

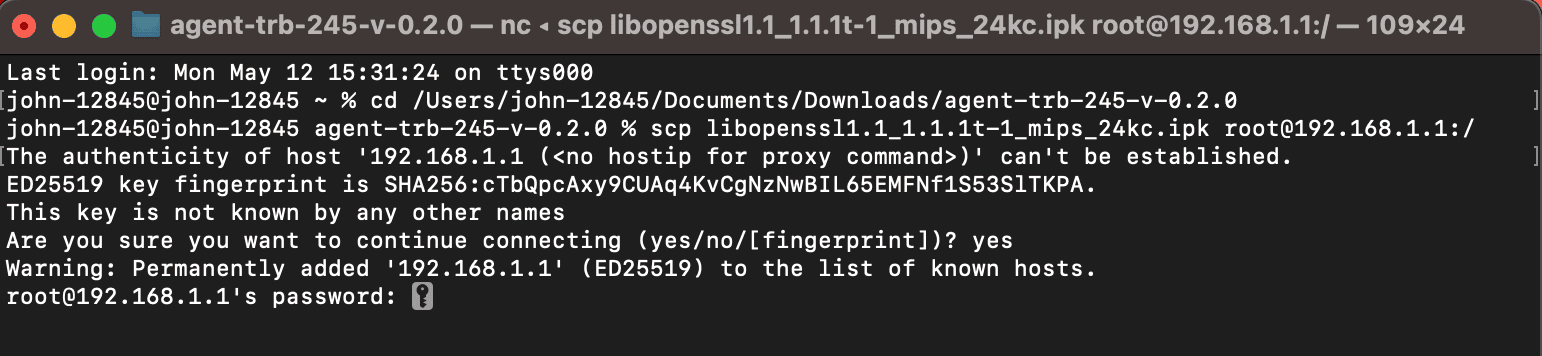

           scp libopenssl1.1_1.1.1t-1_mips_24kc.ipk root@192.168.1.1:/tmp

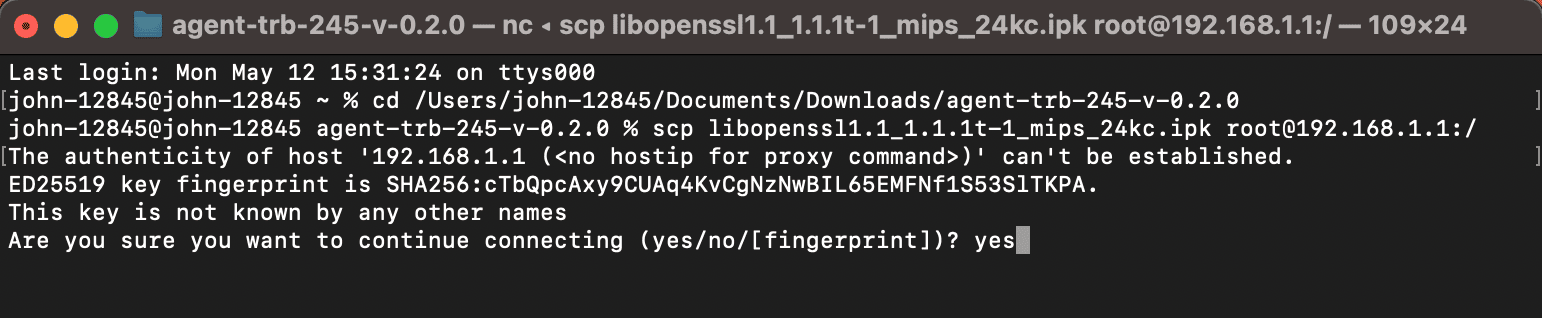

    2. If prompted, type yes and press return/Enter.



    3. Then, enter the TRB245 password and press return/Enter.

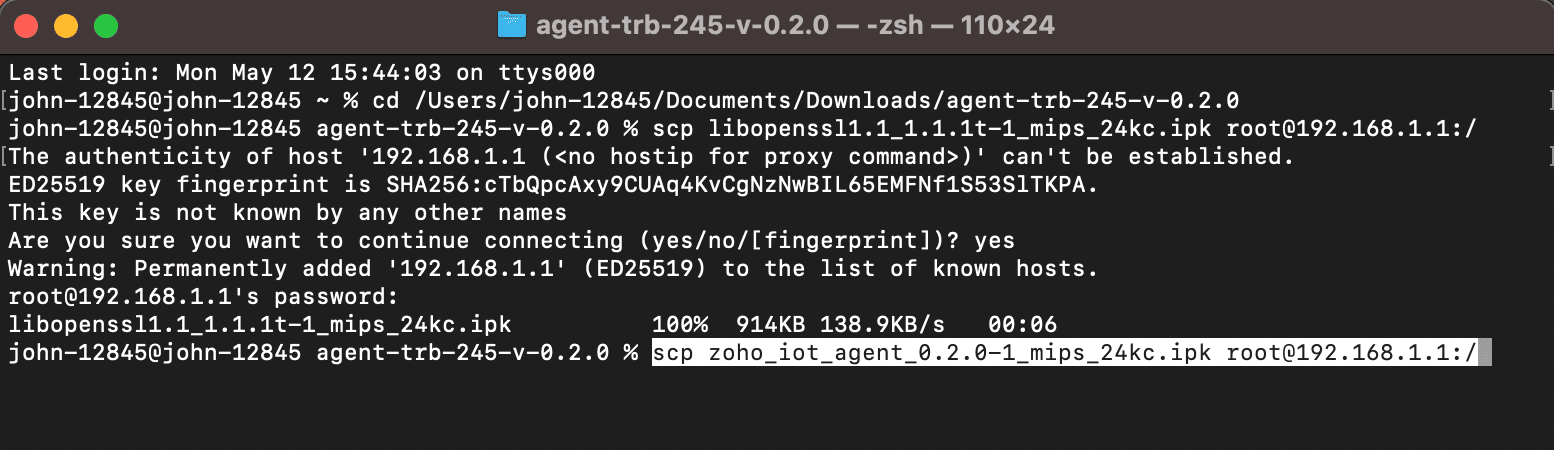

  3. Transfer the agent file:
    1. Execute the following command:

           scp zoho_iot_agent_0.2.0-1_mips_24kc.ipk root@192.168.1.1:/tmp



    2. Enter the TRB245 device password when prompted and click return/Enter.



Install the Agent on TRB245

  1. Go back to your browser tab with the TRB245 interface.

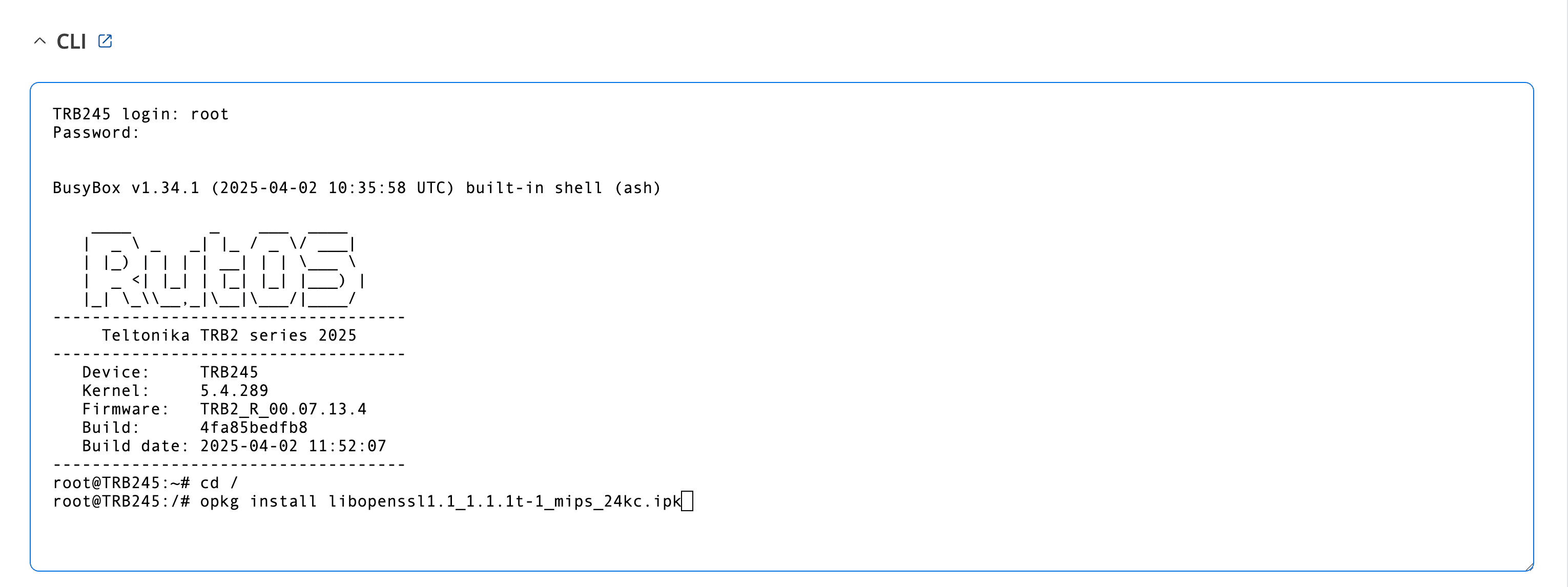

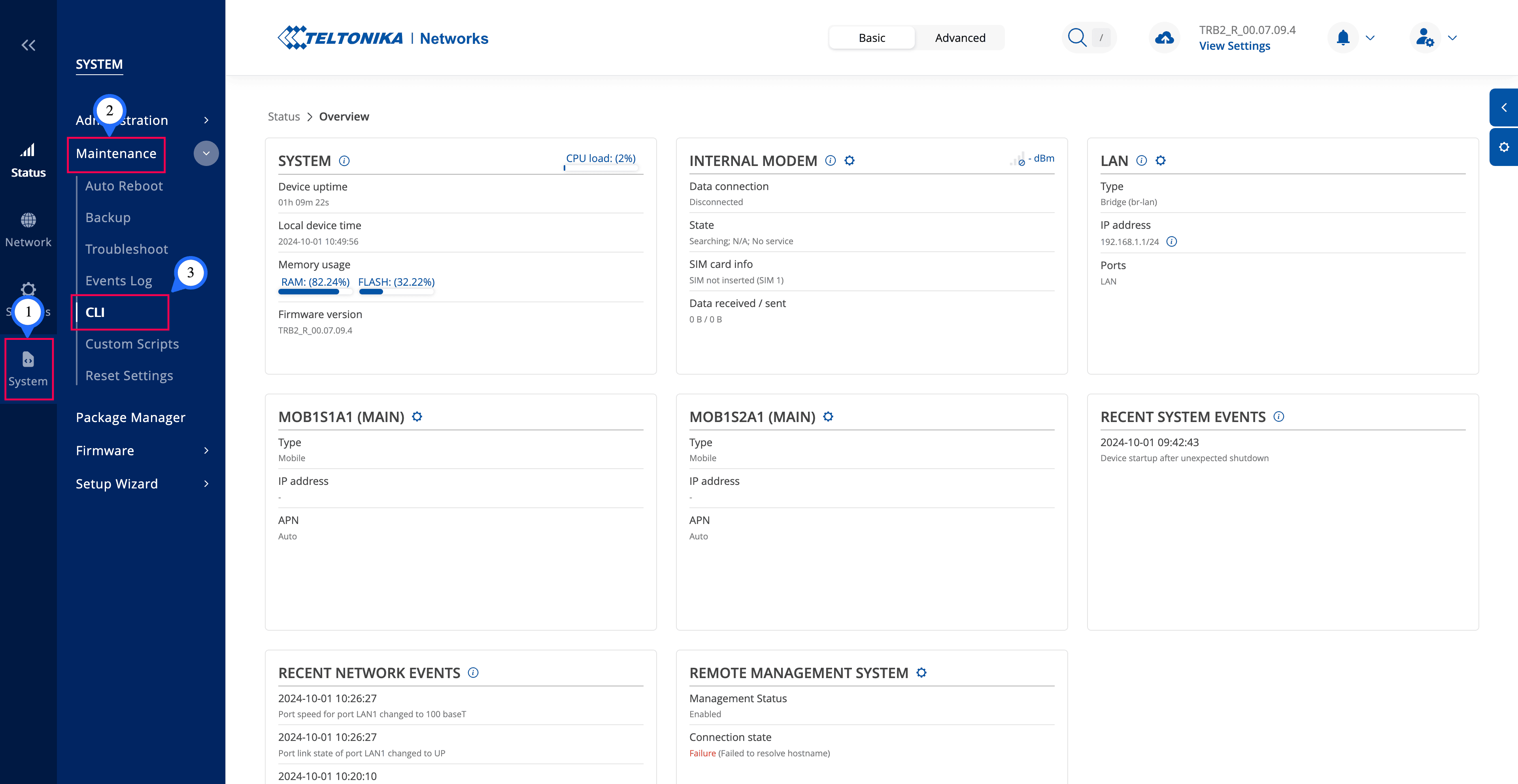

  2. Navigate to System > Maintenance > CLI.



  3. Log in with username root and your TRB245 device password.

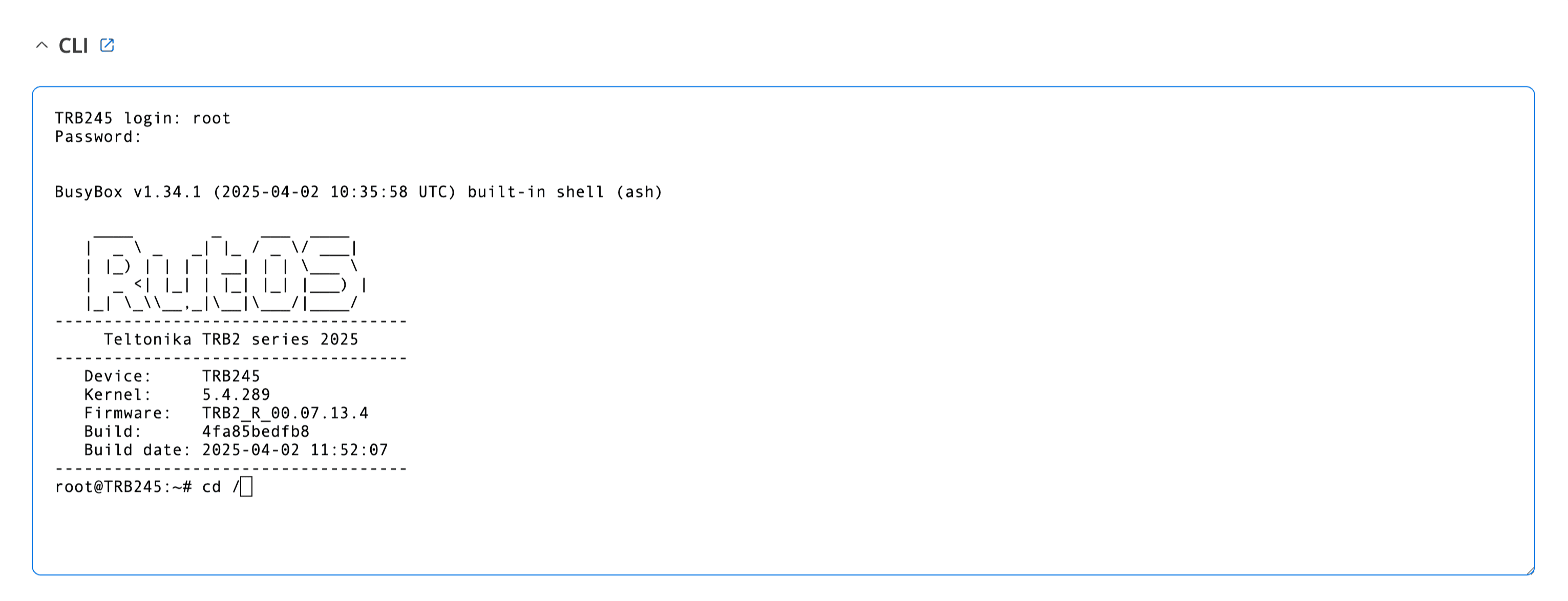

  4. In the command line interface, execute.

        cd /tmp

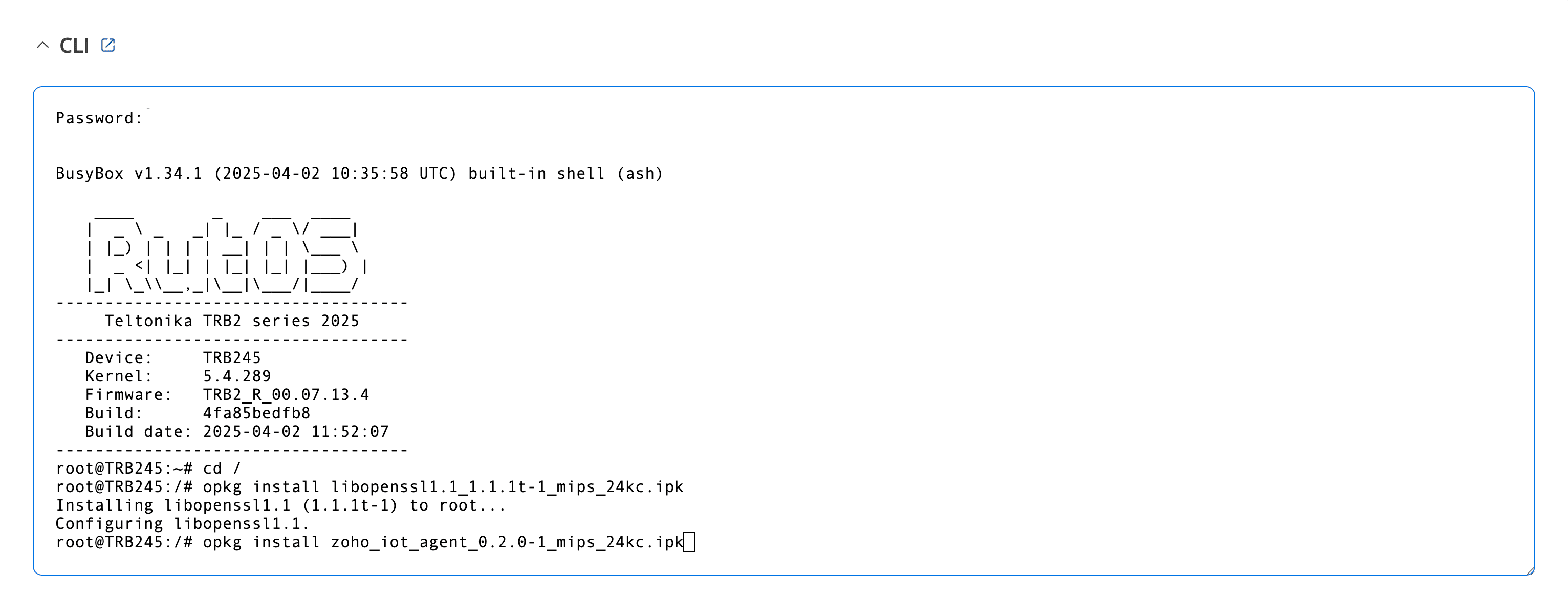

  5. Install the dependency first by executing:

         opkg install libopenssl1.1_1.1.1t-1_mips_24kc.ipk



  6. Then, install the agent by executing:

         opkg install zoho_iot_agent_0.2.0-1_mips_24kc.ipk


Activate the Agent

  1. Open a new browser tab.

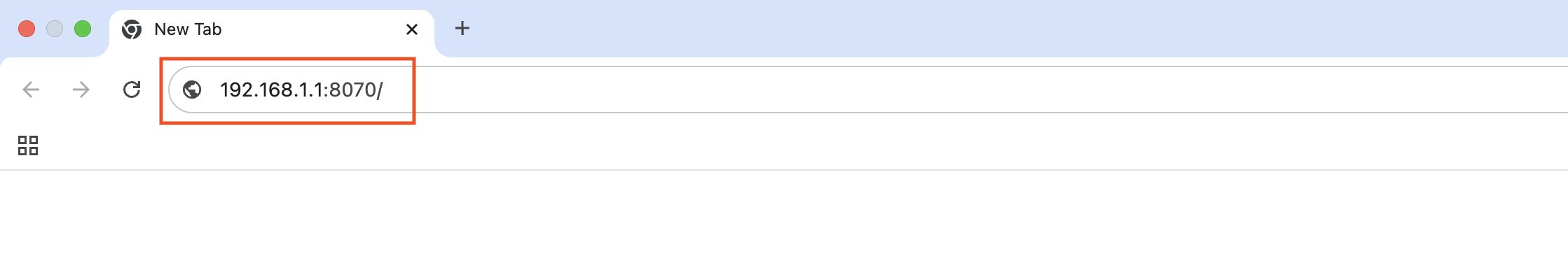

  2. Go to: 192.168.1.1:8070/

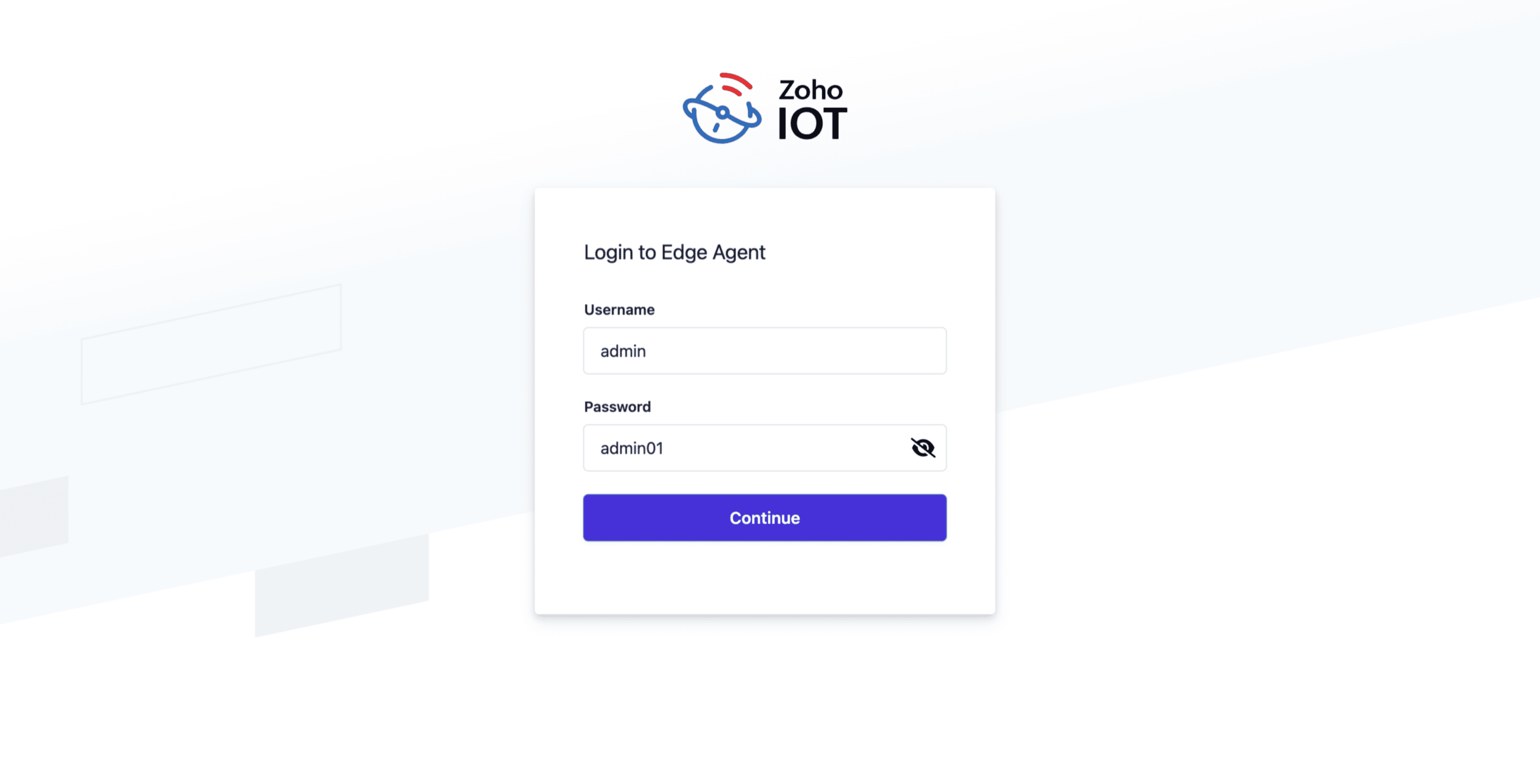

  3. Login using:
              Username   : admin
             Password     : admin01

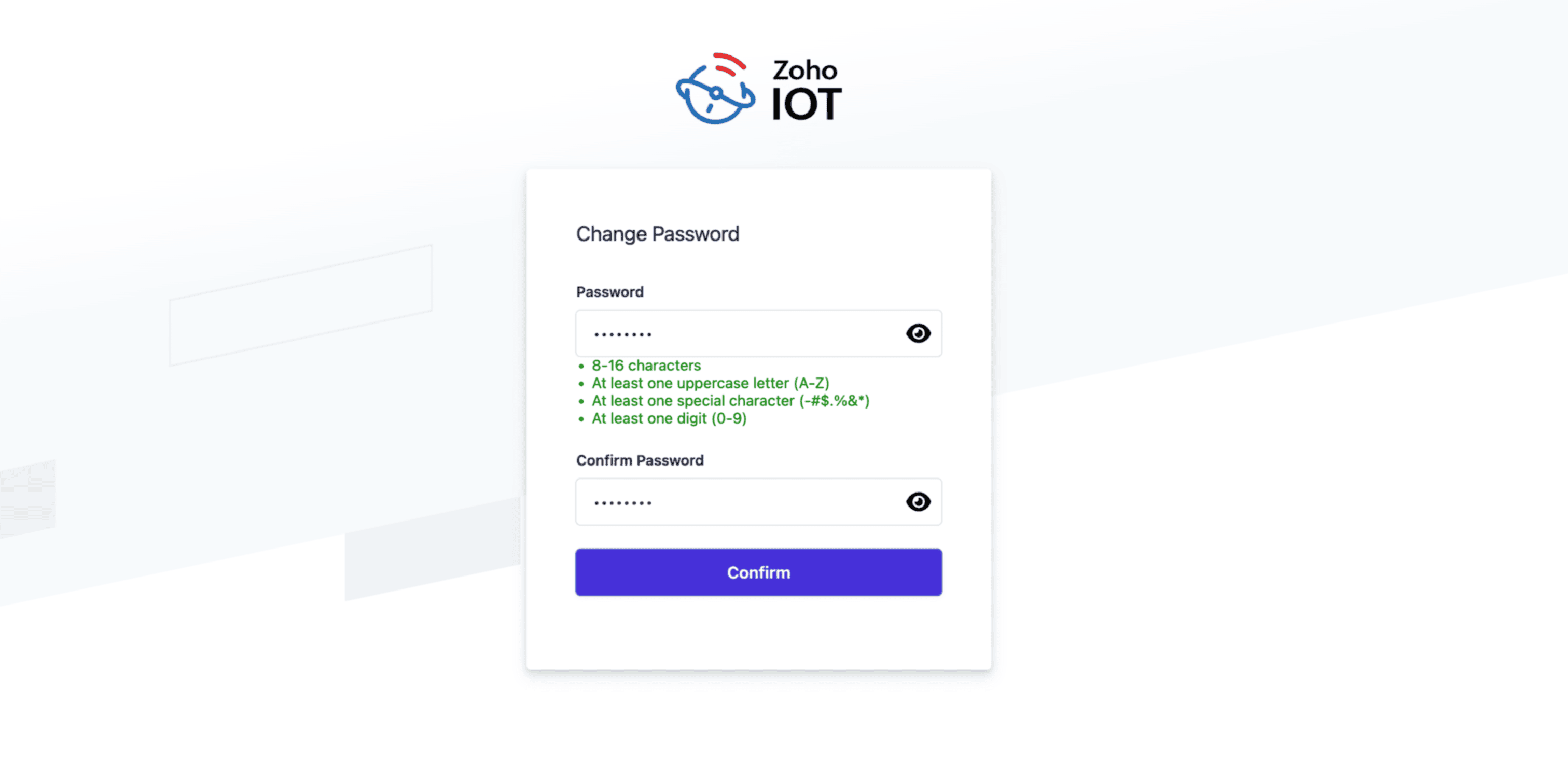

  4. Set a new password for the agent and click Continue.

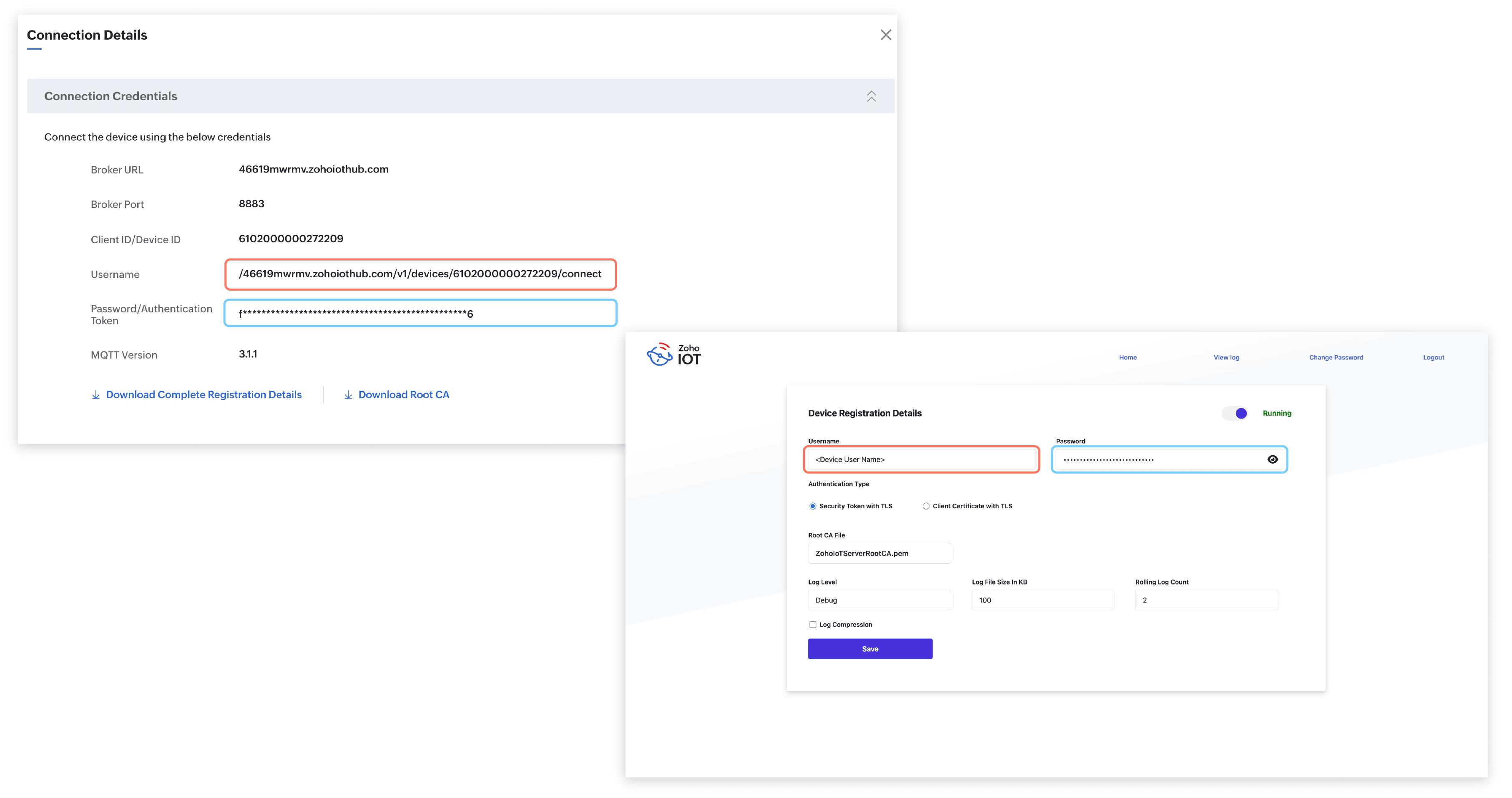

  5. Enter the Zoho IoT Device credentials (username and password of the device you've added on the Zoho IoT application).

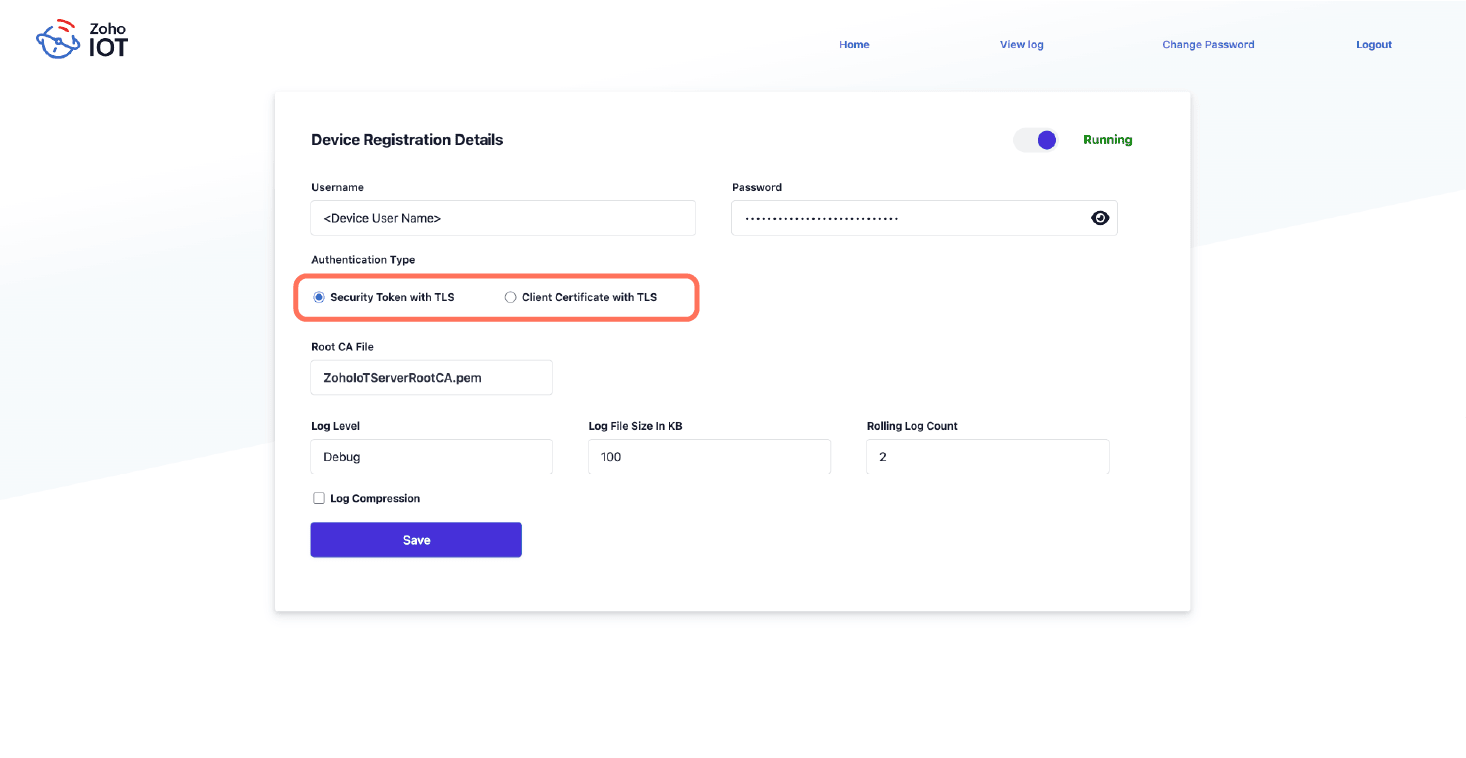

  6. Select the required authentication type.



  7. Click Save.

Ensure a SIM card is inserted and the device is connected to the network. The device will connect with the Zoho IoT application once a network becomes available.
