To upload key,

1. Add a BYOK Certificate:

1. Sign in to Zoho One , then click Directory on the top-right corner.

2. Click Security.

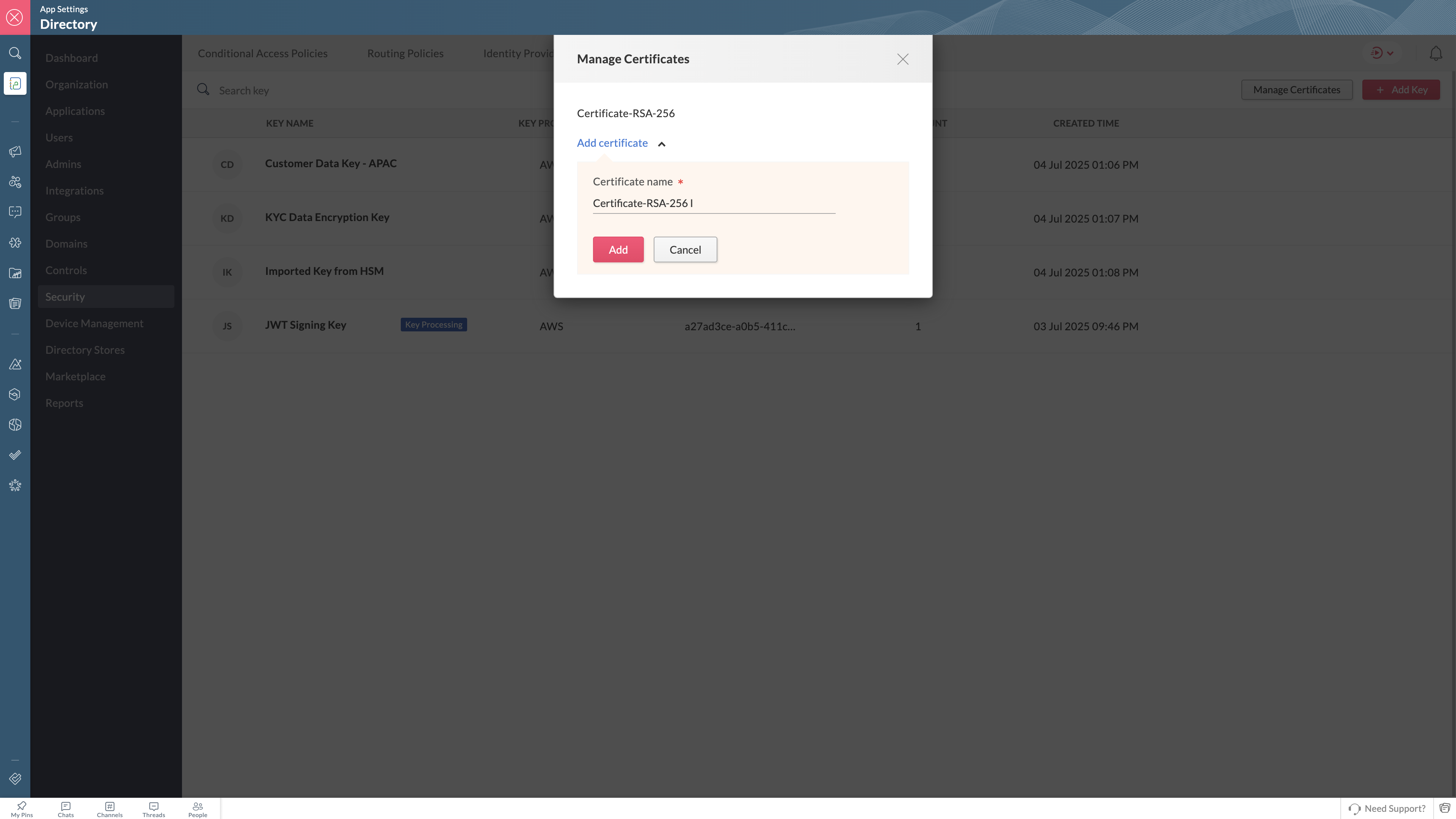

3. Click BYOK, then click Manage certificates in the top-right corner.

4. Click Add certificates, provide a unique name for your certificate, and click Add. Hover over the added certificate and click the download icon.


Note: You can only add a maximum of two certificates.

2. To generate encrypted KEK:

Prerequisites:

• "bcprov-jdk18on" jar with version greater than or equal to 1.78.1

Use the following Java code snippet to extract the public key from the downloaded certificate file and encrypt the key:

Click here to view the complete code snippet

/**
 * @param fileName
 *            - Downloaded FileName
 * @param plainKeyBytes
 *            - Generated Key Bytes
 * @return - Encrypted Key
 * @throws Exception
 */
	public static String encryptKeyWithPublicKey(String fileName, byte[] plainKeyBytes) throws Exception {

		PemReader reader = new PemReader(new FileReader(new File(fileName)));
		PemObject pemObject = reader.readPemObject();
		byte[] content = pemObject.getContent();
		reader.close();
		InputStream fin = new ByteArrayInputStream(content);
		CertificateFactory f = CertificateFactory.getInstance("X.509");
		X509Certificate certificate = (X509Certificate) f.generateCertificate(fin);
		PublicKey pk = certificate.getPublicKey();
		byte[] publicKeyBytes = pk.getEncoded();
		X509EncodedKeySpec keySpec = new X509EncodedKeySpec(publicKeyBytes);
		KeyFactory keyFactory = KeyFactory.getInstance("RSA");
		PublicKey publicKey = keyFactory.generatePublic(keySpec);
		Cipher encryptCipher = Cipher.getInstance("RSA/ECB/OAEPWITHSHA-256ANDMGF1PADDING");
		OAEPParameterSpec oaepParams = new OAEPParameterSpec("SHA-256", "MGF1", new MGF1ParameterSpec("SHA-256"), PSource.PSpecified.DEFAULT);
		encryptCipher.init(Cipher.ENCRYPT_MODE, publicKey, oaepParams);
		byte[] encryptedBytes = encryptCipher.doFinal(plainKeyBytes);
		return Base64.getEncoder().encodeToString(encryptedBytes);

	}

3. To generate hashed KEK:

Generate AES key hash value   using the below code snippet:

public static String getHashValue(byte[] plainKeyBytes) throws NoSuchAlgorithmException {
    MessageDigest digest = MessageDigest.getInstance("SHA-256");
    byte[] hashed = digest.digest(plainKeyBytes);
    return Base64.getEncoder().encodeToString(hashed);
}

4. To upload key:

1. Sign in to Zoho One , then click Directory in the left menu.

2. Click Admin Panel, then click Security.

3. Click BYOK, then click Setup.

 Note: Click + Add key on the right if you already have a key added.

4. In the Add key screen, enter the Key name, select applications, enable availability key if you want it to be used for data recovery in case of unavailability of the configured key, and choose your key type as Upload key.

   Note: Only one key can be applied to an app, and apps already assigned will not be listed under Available applications.

5. Under Key details, select any one of the available certificates for which you have already generated Encrypted KEK and Hashed KEK.

Note: You can add a certificate by clicking the + icon next to the Available certificates and generate encrypted KEK and hashed KEK using the above mentioned Java code snippets.

6. Browse and upload the hashed KEK as a .txt file.

7. Browse and upload the encrypted KEK as a .txt file.

8. Click Add.
