Advanced Fields

Lookups

Lookups are fields used to obtain a subset of options from available values in fields, tables, webhook API responses, or database query responses. Existing data available in the organization can be reused using lookups. Lookups usually return multiple options that are displayed to the end-user using Dropdown or Multi Select fields.

Lookups help organizations maintain consistent data through all modules. As lookups reuse data that is already available, it eases the task of mapping and managing data in the organization.

Benefits of lookups

Compile and reuse data from various modules
Maintain consistency in available data
Populate values dynamically
Improve data entry
Reduce storage space

Types of lookups in Qntrl

Qntrl currently supports 4 types of lookups.

Field Lookup
API Lookup
Table Lookup
Database Lookup

Field lookup compiles a particular field’s value from different cards in a form and populates the compiled data in a dropdown or multi select field.

API lookup generates webhook responses and filters the responses using a data path. The result data obtained is displayed in a dropdown or multi select field.

Table lookup fetches an entire column’s data from a selected table and populates the data in a dropdown or multi select field.

Database lookup fetched data from remote databases and lists them in Qntrl.

A total of five lookups and relation fields can be used per Organization.

Field Lookup

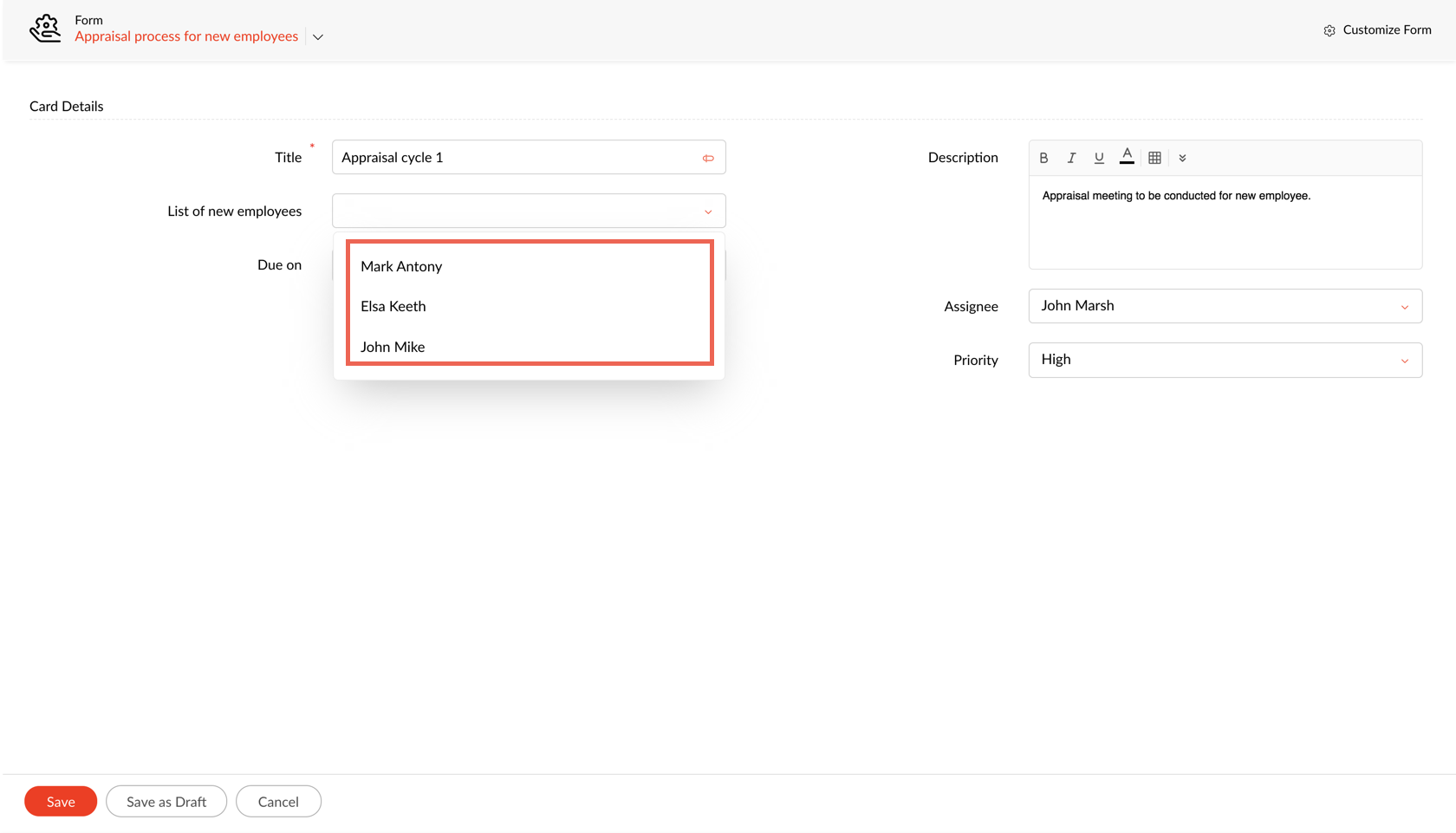

Field Lookup can be used to populate field values from different cards in a form into a dropdown or multi select field. For example, every time a new employee joins the company, a card is created in the Employee Onboarding Form, that records employee details like Name, Position, Experience, and so on. Every such value available in different cards can be compiled and listed as a common dropdown or multi select field using Field Lookup.

Navigate to and select Orchestration from the menu.
Select an orchestration name from the list.

You will land in Step 1: Create Form.

Drag and drop Field Lookup from the New Fields tray onto the right panel.
Enter a Field Title . This field is mandatory and must be unique in each form.
Click Set field label hyperlink to add field label.

The field is displayed with the label name in the form.

Configure the lookup details:

Form: Select a form to list its fields.
Field: Select a field to populate lookup values.

Note that all users are allowed to view the selected field’s values even if they do not have the required field level permission.

Display Type: You can choose to display lookup values in either a dropdown or multi select field format.

Set the field-level validations:

Mandatory: Toggle YES to make the field mandatory.
Visibility: Toggle YES to make the field visible while creating cards.

A maximum of five Field lookup and Relation fields can be created.
Field lookup options are updated whenever new cards with different field values are created.
If the field linked to a field lookup has no value, the lookup options will be rendered empty.
On modifying either the form or field in field lookup properties, the field lookup values already selected in existing cards will not change. However, you can change these manually with the newly populated lookup values.
Only Single-Line, Dropdown, User Dropdown, Date & Time, Decimal, Integer, and Email Address fields can be configured for field lookup.
Once a form is deleted, field lookup mapping with other forms will also be deleted.
Field lookup is not supported in Qntrl's mobile app yet.

Check out the detailed business case on ' Field Lookup'.

API Lookup

API lookup enables you to look for specific information among a bulk of API response data. Using API lookup, you can run an existing webhook, obtain the response data in your preferred format of JSON/XML/Text, and filter the response using a data path to fetch only the required result data.

For example, if you have a webhook configured to fetch the real-time weather details from a third-party website, the API response data will comprise many parameters, such as date, time, place, weather in Celsius, and weather in Fahrenheit. Among all these details, if you want to fetch a single detail— say, weather in Celsius— it can be filtered using the data path and listed as a dropdown or multi select field to the end-users using API lookup.

Navigate to and select Orchestration from the menu.
Select an orchestration name from the list.

You will land in Step 1: Create Form.

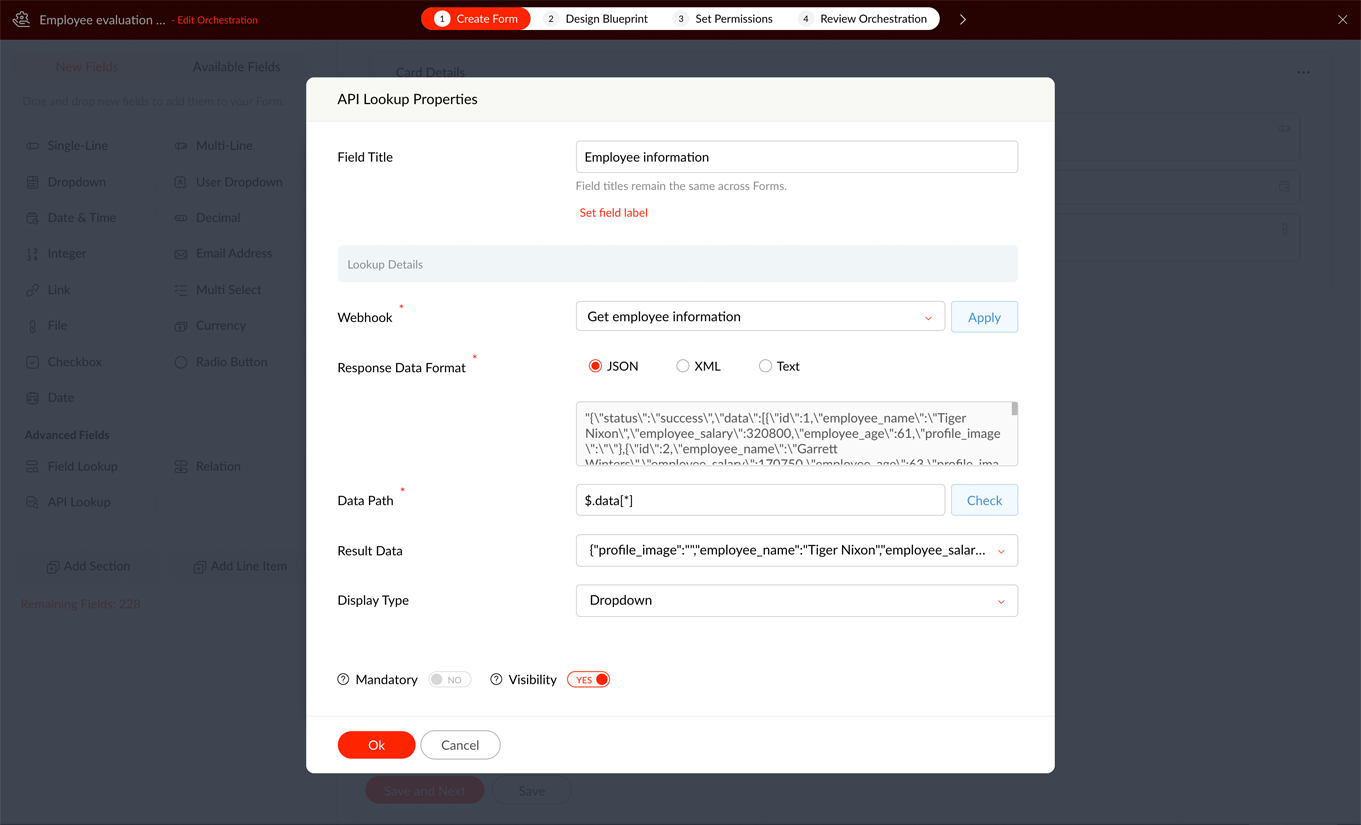

Drag and drop API Lookup from the New Fields tray onto the right panel.
Enter a Field Title. This field is mandatory and must be unique in each form.
Click Set field label hyperlink to add field label.

The field is displayed with the label name in the form.

Configure the lookup details:

Webhook: Select an existing webhook from the dropdown.
Response Data Format: Select a repose format from the available options— JSON, XML or Text—and click Apply.
Data Path: Enter the data path to filter the response, then click Check . This is applicable only for JSON and XML response formats. Learn in detail about the data path to be entered <link>.
Result Data: This field will be auto-populated with the filtered data once we check the data path. Choose the result data from the dropdown.
Display Type: You can choose to display lookup values in either a dropdown or multi select field format.

On choosing dropdown, each option will be trimmed to display only 200 characters.

Set the field-level validations:

Mandatory: Toggle YES to make the field mandatory
Visibility: Toggle YES to make the field visible while creating cards.

Click Ok.

Only five lookup and relation fields can be created.
If a webhook associated with API lookup is deleted or disabled, the lookup will not render any value.

Configure data path in API lookup

When the response obtained from webhooks are of JSON or XML formats, the data path must be included to filter the obtained response data. Data path helps to identify and group similar values in the result dropdown.

Generic data path format

For JSON response: $.<JSONArrayName>[].<JSONObejctName>.key

For XML response: /RootElement/Element/@Attribute/Type

Examples

We’ve compiled a set of sample responses and their corresponding data paths below.

JSON response 1

{

"id": 1,

"name": "Leanne Graham",

"username": "Bret",

"email": "Sincere@april.biz",

"address": {

"city": "Gwenborough"

"phone": "1-770-736-8031",

"website": "hildegard.org"

}

Data path

Here ‘$’ represents overall (root) response

To fetch the name: $.name

Result data: Leanne Graham

To fetch the city: $.address.city

Result data: Gwenborough

To fetch the address: $.address (Returns a string)

Result data: { "city" : "Gwenborough" }

JSON response 2

[

{

"userId": 1,

"name": "Leanne",

"title": "quidem molestiae enim"

{

"userId": 2,

"name": "Ervin",

"title": "sunt qui excepturi placeat culpa"

{

"userId": 3,

"name": "Clementine",

"title": "omnis laborum odio"

{

"userId": 4,

"name": "Patricia",

"title": "eaque aut omnis a"

}

]

Data path

Here ‘$[*]’ represents overall (root) response and index starts from 0.

To fetch all the names: $[*].name

Result data: [Leanne , Ervin , Clementine, Patricia]

To fetch the second name: $[1].name

Result data: Ervin

To fetch the first 3 users: $[0-2].name or $[-2].name

Result data: [Leanne , Ervin , Clementine]

To fetch last 3 users: $[1-].name

Result data: [Ervin , Clementine, Patricia]

XML response

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<employees>

    <employee id="1">
        <firstName>Lokesh</firstName>
        <lastName>Gupta</lastName>
        <department>
            <id>101</id>
            <name>IT</name>
        </department>
    </employee>

    <employee id="2">
        <firstName>Brian</firstName>
        <lastName>Schultz</lastName>
        <department>
            <id>102</id>
            <name>HR</name>
        </department>
    </employee>

    <employee id="3">
        <firstName>Alex</firstName>
        <lastName>Kolenchisky</lastName>
        <department>
            <id>103</id>
            <name>FINANCE</name>
        </department>
    </employee>

    <employee id="4">
        <firstName>Amit</firstName>
        <lastName>Jain</lastName>
        <department>
            <id>104</id>
            <name>HR</name>
        </department>
    </employee>

    <employee id="5">
        <firstName>David</firstName>
        <lastName>Beckham</lastName>
        <department>
            <id>105</id>
            <name>DEVOPS</name>
        </department>
    </employee>

</employees>

Data path

To fetch all employee names: /employees/employee/firstName/text()

Result data:[Lokesh, Brian, Alex, Amit, David]

To fetch all employee IDs: /employees/employee/@id

Result data: [1,2,3,4,5]

Troubleshooting steps

Check if you are able to generate the webhook response by clicking Apply.
Check if your data path displays result data by clicking Check.
Check if data path complements the response data and its format.

Table Lookup

Qntrl's tables store and organize data in an easy-to-interpret tabular format. Table lookup fetches data from a table’s column and populates it in a dropdown or multi select field for the end-user.

For example, if you have a table to store your employee details, each column will contain details like employee ID, employee name, age, salary, and other information. If you want to fetch a list of all your employee names, you can use table lookup and get all the entire column details.

Navigate to and select Orchestration from the menu.
Select an orchestration name from the list.

You will land in Step 1: Create Form.

Drag and drop Table Lookup from the New Fields tray onto the right panel.
Enter a Field Title. This field is mandatory and must be unique in each form.
Click Set field label hyperlink to add field label.

The field is displayed with the label name in the form.

Configure the lookup details:

Table: Select a table to lookup data.
Column: Choose a column from the table.
Display Type: You can choose to display lookup values in either a dropdown or multi select field format.

On choosing dropdown, each option will be trimmed to display only 200 characters.

Set the field-level validations:

Mandatory: Toggle YES to make the field mandatory.
Visibility: Toggle YES to make the field visible while creating cards.

Note:

Only five lookup and relation fields can be created.
If the table associated with lookup is deleted, the lookup will not render any value.

Learn how to populate and search values from tables in cards using table lookups.

DB Lookup

Database Lookup allows organizations to fetch data from their remote databases and list them in Qntrl. DB lookup uses Bridge and Connectors to establish a secure connection with external databases and queries for response.

DB lookup can only be used to READ external databases. Other actions like update or delete are not allowed. This ensures that the customer’s external database is secure and intact at all times.

For example, the customer might maintain a remote database to store all the vendor details. If the customer wants to populate this data in Qntrl, without having to replicate the data again, DB lookup can be used. DB lookup connects with the customer’s database, queries the database, and lists the response in a dropdown or multi select field in Qntrl.

Navigate to and select Orchestration from the menu.
Select an orchestration name from the list.

You will land in Step 1: Create Form.

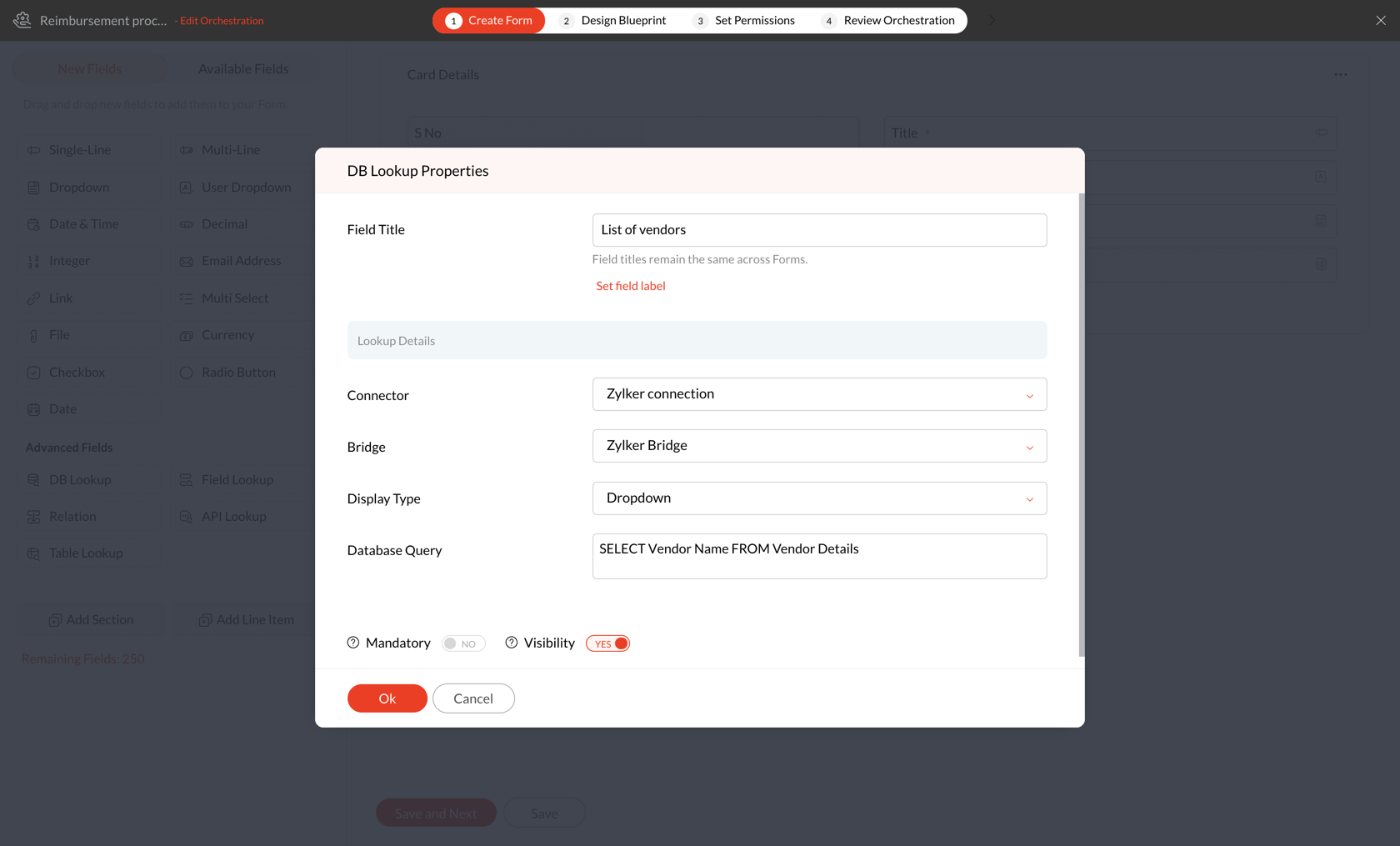

Drag and drop DB Lookup from the New Fields tray onto the right panel.
Enter a Field Title . This field is mandatory and must be unique in each form.
Click Set field label hyperlink to add field label.

The field is displayed with the label name in the form.

Configure the lookup details:

Connector: Select an existing connector or create a new one for the database.
Mid Server: Select an existing mid server or create a new one.
Display Type: You can choose to display lookup values in either a dropdown or multi select field format.

On choosing dropdown, each option will be trimmed to display only 200 characters.

Database Query: Type the command to query the database.

If no limit is specified in the query, only 20 results will be listed.

Set the field-level validations:

Mandatory: Toggle YES to make the field mandatory.
Visibility: Toggle YES to make the field visible while creating cards.

Note:

DB lookup lists only 20 results at a time if no limit is specified in the database query.

Relation Fields

Relation fields can be used to establish connections between cards of same or different orchestration in Qntrl.

While linking cards of different blueprints, the relationship can be:

Dependent cards - One workflow leads to another to complete the process.
Linked cards - Brings in information from one workflow to another making cards more intelligent.
Parent-child cards - The main workflow is distributed into sub-flows and these sub-flows, in turn, go back to the main workflow for the process to be completed.

To create a new relation field,

Navigate to and select Orchestration from the menu.
Select an orchestration name from the list.

You will land in Step 1: Create Form .

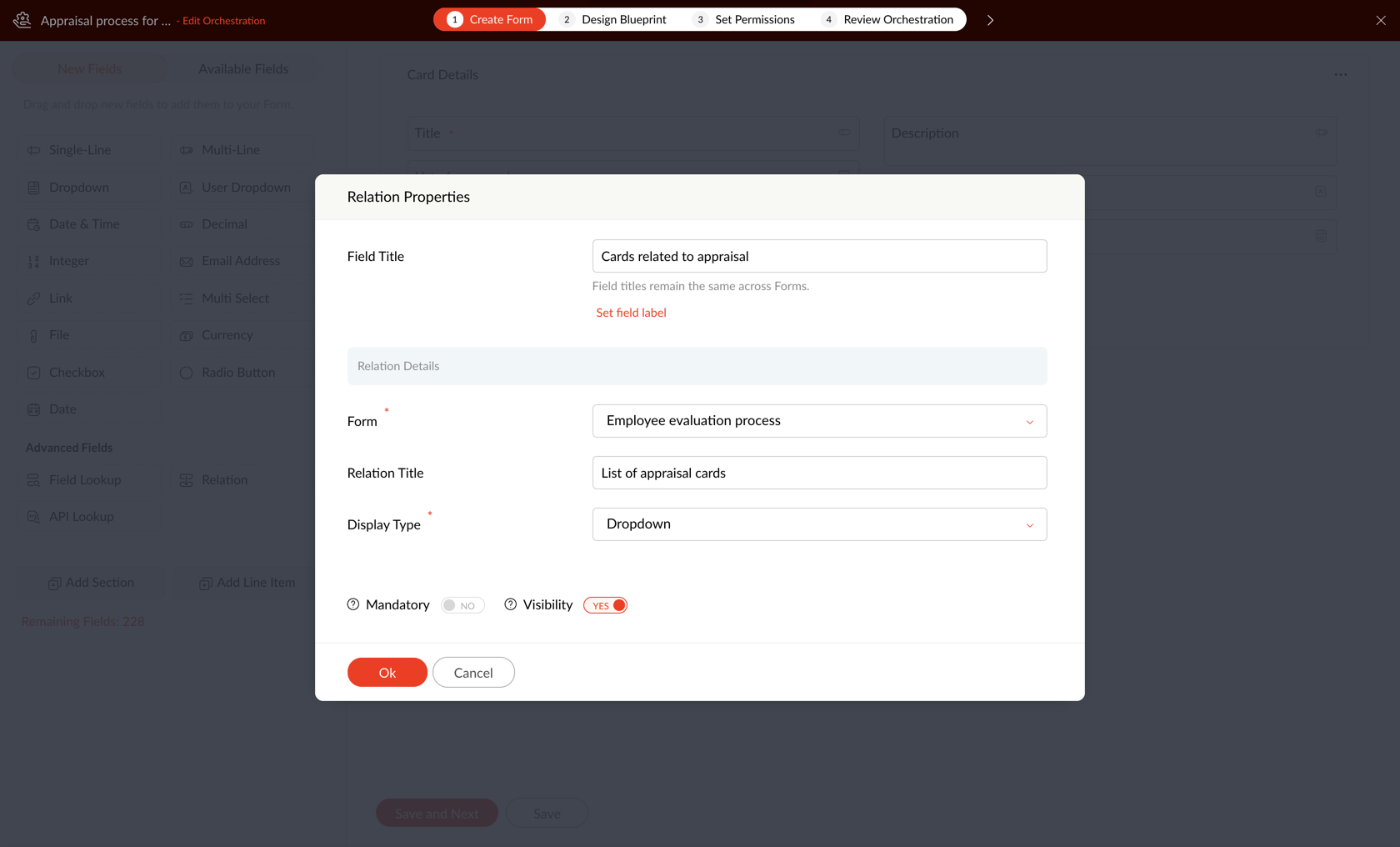

Drag and drop the Relation field from the New Fields tray onto the right panel.
Enter a Field Title . This field is mandatory and must be unique in each form.
Click Set field label hyperlink to add field label.

The field is displayed with the label name in the form.

Set the relation details:

Form: Select a form to list its cards.
Relation title: Enter a title for the relation.
Display Type: You can choose to display the cards in either a dropdown or multi select field format.

Configure the field-level validations:

Mandatory: Toggle YES to make the field mandatory.
Visibility: Toggle YES to make the field visible while creating cards.

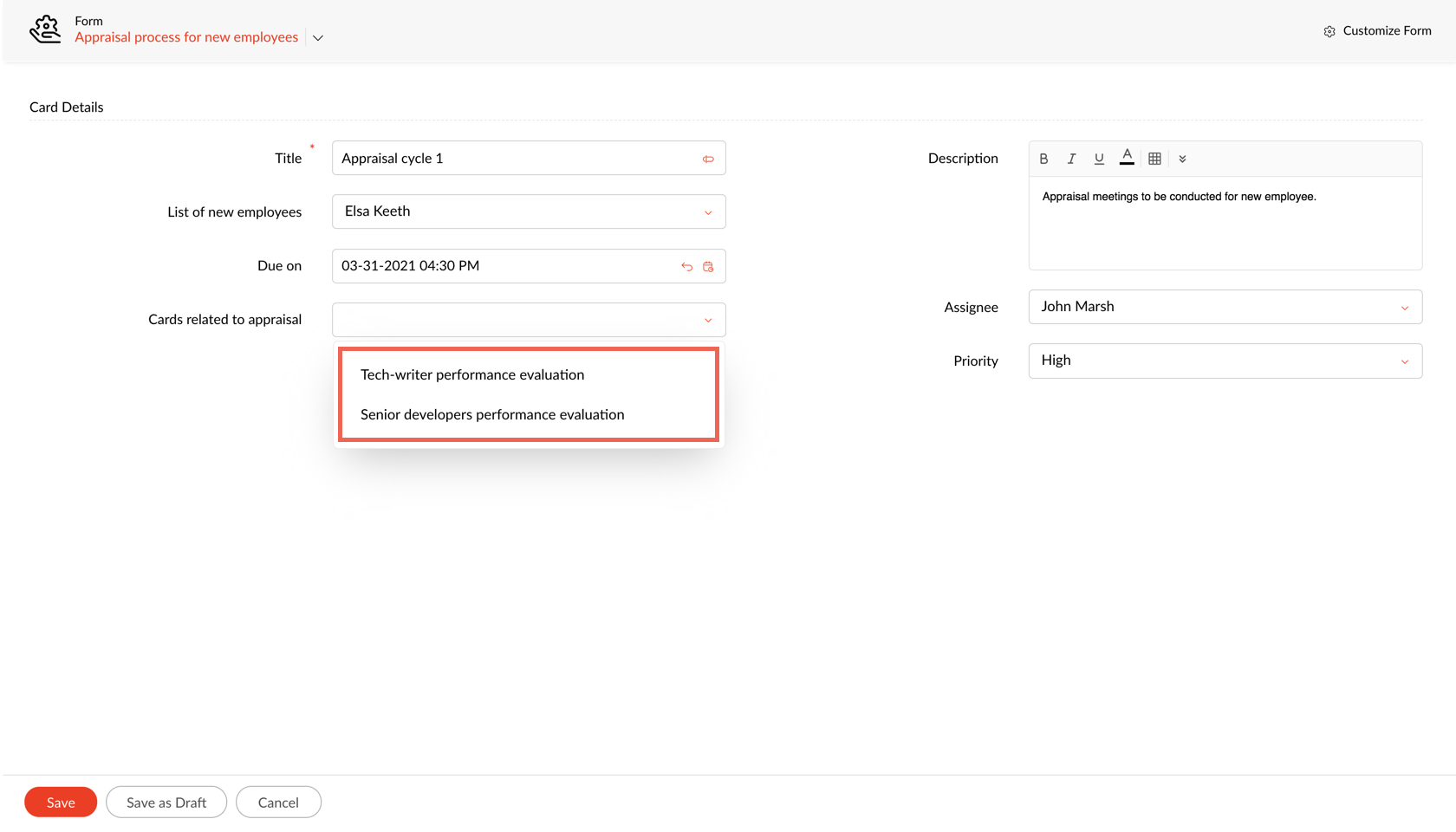

Create a new card in the above used orchestration. Select cards in the relation field to establish a relation.

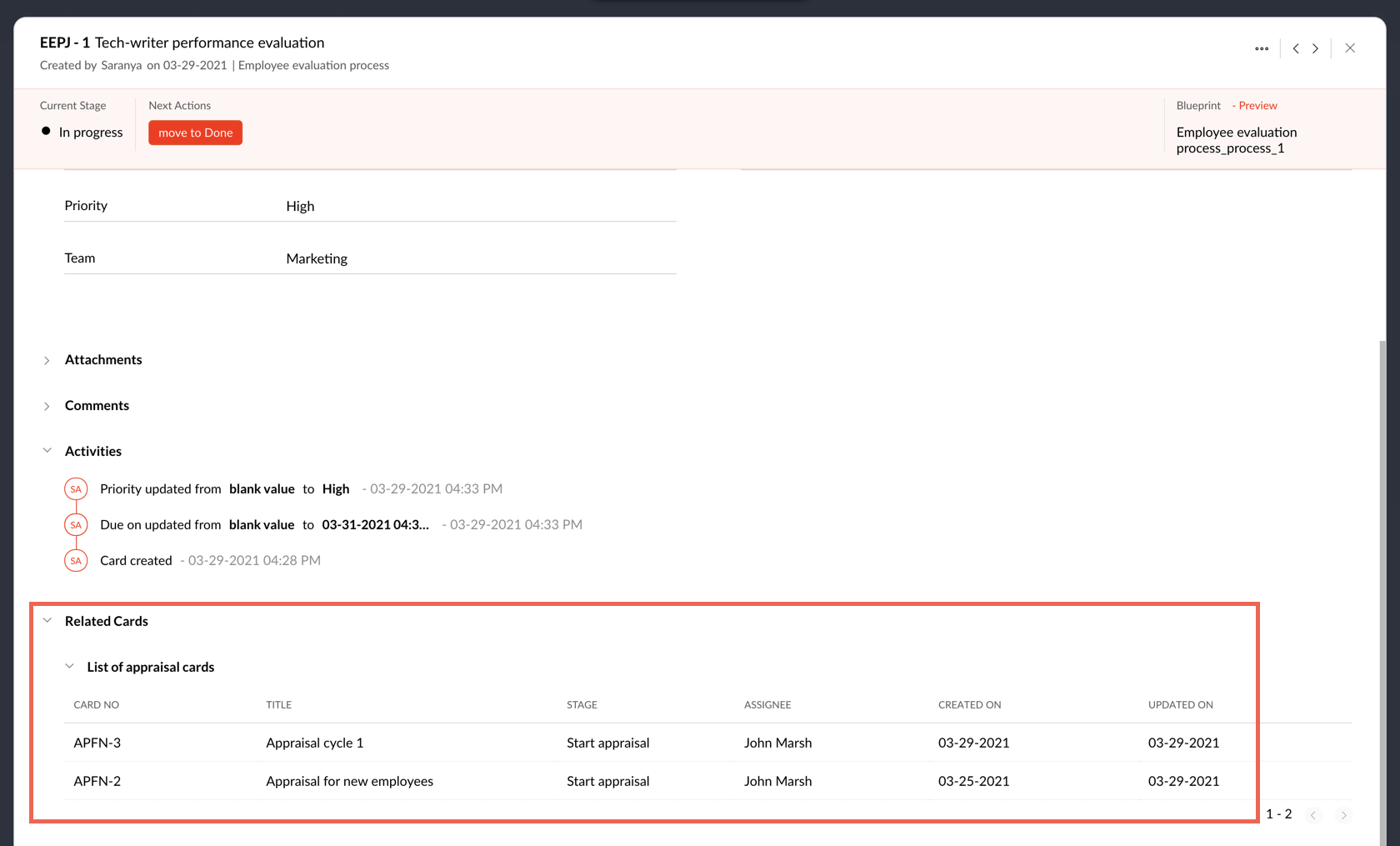

Now, visit the selected cards to view the related cards table. You can also click on the card name right from the relation field, in the card details page, to navigate to the related card.

A maximum of five Field lookup and Relation fields can be created.
Cards connected using relation fields can be viewed under Related Cards .
Once a form is deleted, relation field mapping with other forms will also be deleted.
Relation field is not supported in Qntrl's mobile app yet.

Related Cards

Cards connected using relation fields are displayed under Related Cards.

Create. Review. Publish.

Write, edit, collaborate on, and publish documents to different content management platforms.

Get Started Now

Access your files securely from anywhere

Zoho CRM Training Programs

Learn how to use the best tools for sales force automation and better customer engagement from Zoho's implementation specialists.

Redefine the way you work

with Zoho Workplace

Start your free trial

Zoho DataPrep Personalized Demo

If you'd like a personalized walk-through of our data preparation tool, please request a demo and we'll be happy to show you how to get the best out of Zoho DataPrep.

Create, share, and deliver

beautiful slides from anywhere.

Get Started Now

Zoho Sign now offers specialized one-on-one training for both administrators and developers.

BOOK A SESSION

Zoho Workerly Home
Forums
Connect With Us:

Zoho Recruit Home
Forums
Connect With Us:

Start tracking your website metrics today

Use PageSense to understand what your visitors are looking for, how they are behaving, and where they are facing problems on your website.

Ready to improve your website's performance?

Install the PageSense code snippet on your site in a matter of minutes and start collecting in-depth data about the website visitors to grow your business.

Track and measure every business goal

Set up goals in PageSense to measure every single action performed by visitors on your website like button or link clicks, form submissions, and page engagements.

Understand the customer journey on your website

Create funnels in PageSense to quickly see which pages visitors use to enter your website, where they navigate to next, and which pages they decide to leave without converting.

Visualize your visitor's behavior with color codes

Set up heatmaps in PageSense to see where users have clicked more, how far they've scrolled, and on which parts of a page they've spent the most time using color-coded patterns in reports.

Measure customer engagement with your web forms

Use form analytics in PageSense to see how people interact with different fields in your form, whether they complete the form successfully or not, and where exactly they drop out on your form.

Record real visitor interactions on your website

Use session recordings in PageSense to watch a video of all the visitor actions performed on your website including the pages they navigate, the buttons they click, the UX issues they face, and more.

Test and optimize webpages for better conversions

Run A/B or Split URL tests in PageSense to figure out which version of your web page works best for your business and results in the best conversion rate.

Give each customer a unique website experience

Use personalization in PageSense to deliver customized versions of your website for every individual customer based on their demographics, local weather, browsing history, and more.

Grow your business through customer feedback

Run polls on your website using PageSense to understand what your customers think about your products/services and what needs improvement on your site.

Send timely updates that customers love

Use web push notifications in PageSense to schedule and notify your customers about an upcoming flash sale, product releases, promotional coupons, and a lot more that can spark conversions on your website.

Advertise your business to website visitors

Use pop-ups in PageSense to instantly grab the attention of visitors by showing attractive signup offers, coupon code discounts, or email newsletters that can eventually convert them into subscribers.

Access more advanced settings in PageSense

Use PageSense's advanced features like creating mutually exclusive groups, enabling cross-domain tracking, configuring customized project JS, and more to get deeper insights about your website.

Try easy-to-use extensions

Download the PageSense extension app available for your web browser with a few clicks and start collecting all of your required website metrics in real time.

Discover your favorite integrations with PageSense

Get a deeper look at your website's data by seamlessly integrating PageSense with a host of popular third-party apps like Google Analytics, Mixpanel, Intercom, and more.

Quick Links	Workflow Automation	Data Collection
Web Forms	Enterprise	Online Data Collection Tool
Embeddable Forms	Banking	Begin Data Collection
Interactive Forms	Workplace	Data Collection App
CRM Forms	Customer Service	Accessible Forms
Digital Forms	Marketing	Forms for Small Business
HTML Forms	Education	Forms for Enterprise
Contact Forms	E-commerce	Forms for any business
Lead Generation Forms	Healthcare	Forms for Startups
Wordpress Forms	Customer onboarding	Forms for Small Business
No Code Forms	Construction	RSVP tool for holidays
Free Forms	Travel	Features for Order Forms
Prefill Forms	Non-Profit
Intake Forms	Legal	Mobile App
Form Designer	HR	Mobile Forms
Card Forms	Food	Offline Forms
Assign Forms	Photography	Mobile Forms Features
Translate Forms	Real Estate	Kiosk in Mobile Forms
Electronic Forms
Drag & drop form builder
Notification Emails for Forms	Alternatives	Security & Compliance
Holiday Forms	Google Forms alternative	GDPR
Form to PDF	Jotform alternative	HIPAA Forms
Email Forms	Formstack alternative	Encrypted Forms
	Wufoo alternative	Secure Forms
		WCAG

Quick Links

New to Zoho Writer?

Signup Now

Zoho Writer

What's new

Help Guide

Blogs

Forums

Webinars

API

Developers

Build Extensions

Create. Review. Publish.

Write, edit, collaborate on, and publish documents to different content management platforms.

Get Started Now

Zoho Campaigns Resources

Campaigns Community Learning Series

New to Zoho CRM Plus?

Deliver unforgettable customer experiences

ACCESS ZOHO CRM PLUS

New to Zoho CRM Plus?

Deliver unforgettable customer experiences

ACCESS ZOHO CRM PLUS

New to Zoho Marketing Plus?

Everything you need to run your marketing

ACCESS ZOHO MARKETING PLUS

New to Zoho Marketing Plus?

Everything you need to run your marketing

ACCESS ZOHO MARKETING PLUS

Zoho Pagesense Resources

You are currently viewing the help pages of Qntrl’s earlier version. Click here to view our latest version—Qntrl 3.0's help articles.

New to Zoho Survey?

Access Zoho Survey

Latest Feature Updates

Explore our Pricing & Plans

Zoho Survey Resources

Android Mobile Surveys

Insurvey Blogs

Insight Blogs

Tips & Tricks

New to Zoho Social?

Manage your brands on social media

Access Zoho Social

Desk Community Learning Series
Digest
Functions
Meetups
Kbase
Resources
Glossary
Desk Marketplace
MVP Corner
Word of the Day
Ask the Experts

Zoho Sheet Resources

New to Zoho Forms?

Latest Feature Updates

Explore our Pricing & Plans

Zoho Forms Resources

Secure your business

communication with Zoho Mail

Get started

Mail on the move with

Zoho Mail mobile application

Go Mobile

Stay on top of your schedule

at all times

Get started

Carry your calendar with you

Anytime, anywhere

Get started

Latest Announcements

New to Zoho Sign?

Zoho Sign Resources

Sign, Paperless!

Sign and send business documents on the go!

Get Started Now

Zoho SalesIQ Resources

New to Zoho TeamInbox?

Zoho TeamInbox Resources

Connect with us

New to Zoho ZeptoMail?

LEARN MORE

Latest Feature Updates

Zoho DataPrep Resources

New to Zoho DataPrep?

Access Zoho DataPrep

Zoho DataPrep Demo

Get a personalized demo or POC

Design. Discuss. Deliver.

Create visually engaging stories with Zoho Show.

Get Started Now

New to Zoho Workerly?

Access Zoho Workerly

New to Zoho Recruit?

Access Zoho Recruit

New to Zoho CRM?

Signup Now

Access Zoho CRM

Latest Feature Updates

New to Zoho Projects?

Access Zoho Projects

New to Zoho Sprints?

Access Zoho Sprints

New to Zoho Assist?

Access Zoho Assist

New to Bigin?

Signup Now

Access Bigin

Latest Feature Updates

Related Articles
Manage Tables
Tables help you store reference data in a tabular format within Qntrl . You can store data vital to support your business processes here. Also, the data in tables can be listed in cards using Table Lookup . For example, Zylker-- a manufacturing ...
Export Field Details Extension
Using this extension, you can download the details of all or specific fields of individual Cards in Qntrl. Business Scenarios Analyze the cards easily by gathering and organizing data Plot graphs using the exported field details to analyze trends ...
Manage Fields
Fields are individual elements in a form that classify user data. Qntrl provides a variety of field types that represent different kinds of user data in forms. We've complied all the fields created in forms under the Fields module. You can create new ...
Business case 1: Use client scripts to perform mathematical calculations and validations on data
While designing forms to replicate finance related documents like purchase order, invoice, or reimbursement bills, our workflows might require the calculation of total cost or sum of expenses incurred. To automate such mathematical calculations and ...
Business case 3: Use client scripts to fetch data from third party applications or websites
While designing forms, we might sometimes want to display data from other websites or applications like stock rates, flight status, freight details, weather updates, and so on. To fetch such information from third party websites or applications and ...
