Zoho IoT Agent Installation : AG-702

Zoho IoT Agent Installation : AG-702

This guide walks you through the process of installing the Zoho IoT Agent on Atreyo's AG-702 Gateway device.
The installation involves the following steps:

Prerequisite

  • PC or MAC
  • AG-702 Device
  • LAN Cable
  • WiFi
  • Power Supply for Gateway

Installation Guide

The installation involves the following steps:

Obtaining the Zoho IoT Agent

To get the Zoho IoT Agent for the AG-702 gateway, contact support@zohoiot.com. You will receive the following two files:
  1. libopenssl1.1_1.1.1t-1_mipsel_24kc.ipk
  2. zoho_iot_agent_0.2.4-1_mipsel_24kc.ipk
NotesNote: The version number of the files you receive may differ.

Accessing the Web Interface of the AG-702

To access the AG-702 gateway’s web interface, you must connect to the device using your Mac or PC. The AG-702 supports connection through three methods:

Using Wifi

  1. Turn on the gateway and wait a few minutes until the Wi-Fi light on the device turns on.

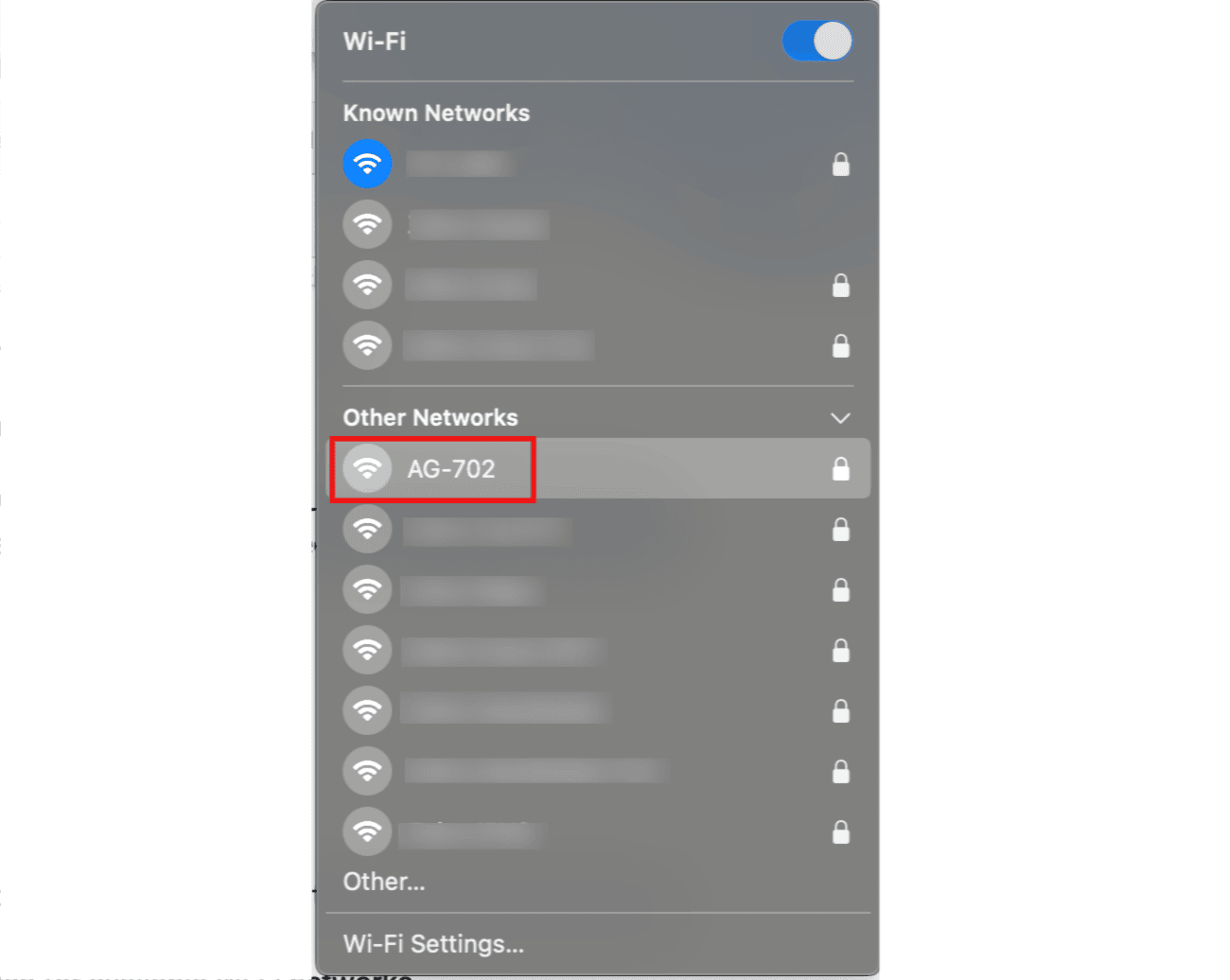

  2. On your Mac or PC, search for available Wi-Fi networks.
  3. Select AG-702 and connect to it using the default password given below:
    Password: atreyo12


    NotesNote: If you have previously connected via Wi-Fi and changed the password, use your updated password to connect.
  1. Once connected, open a browser and enter the following IP address in the address bar:
    IP: 192.168.1.1

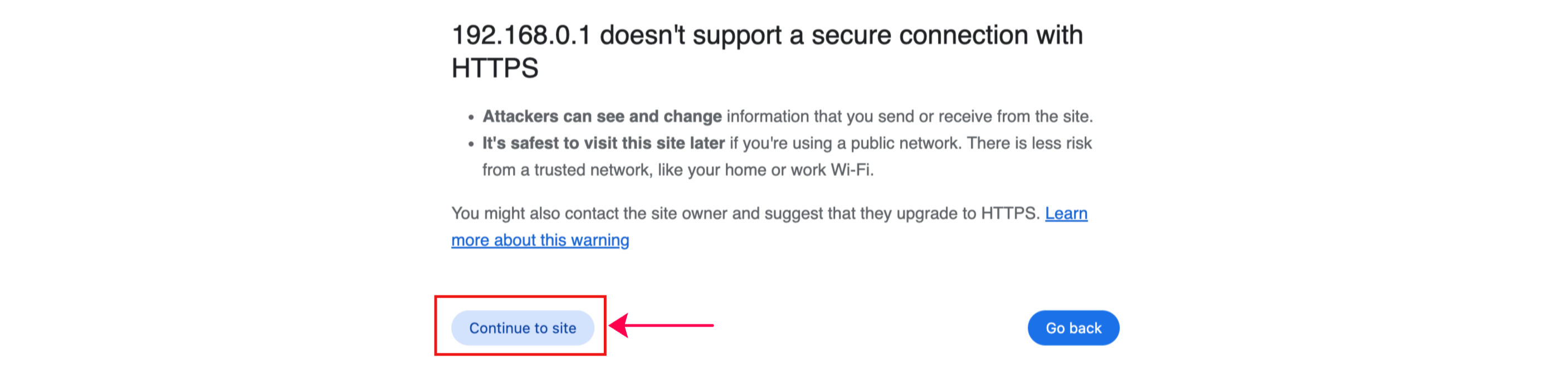

    NotesNote: Click Continue to site if prompted.

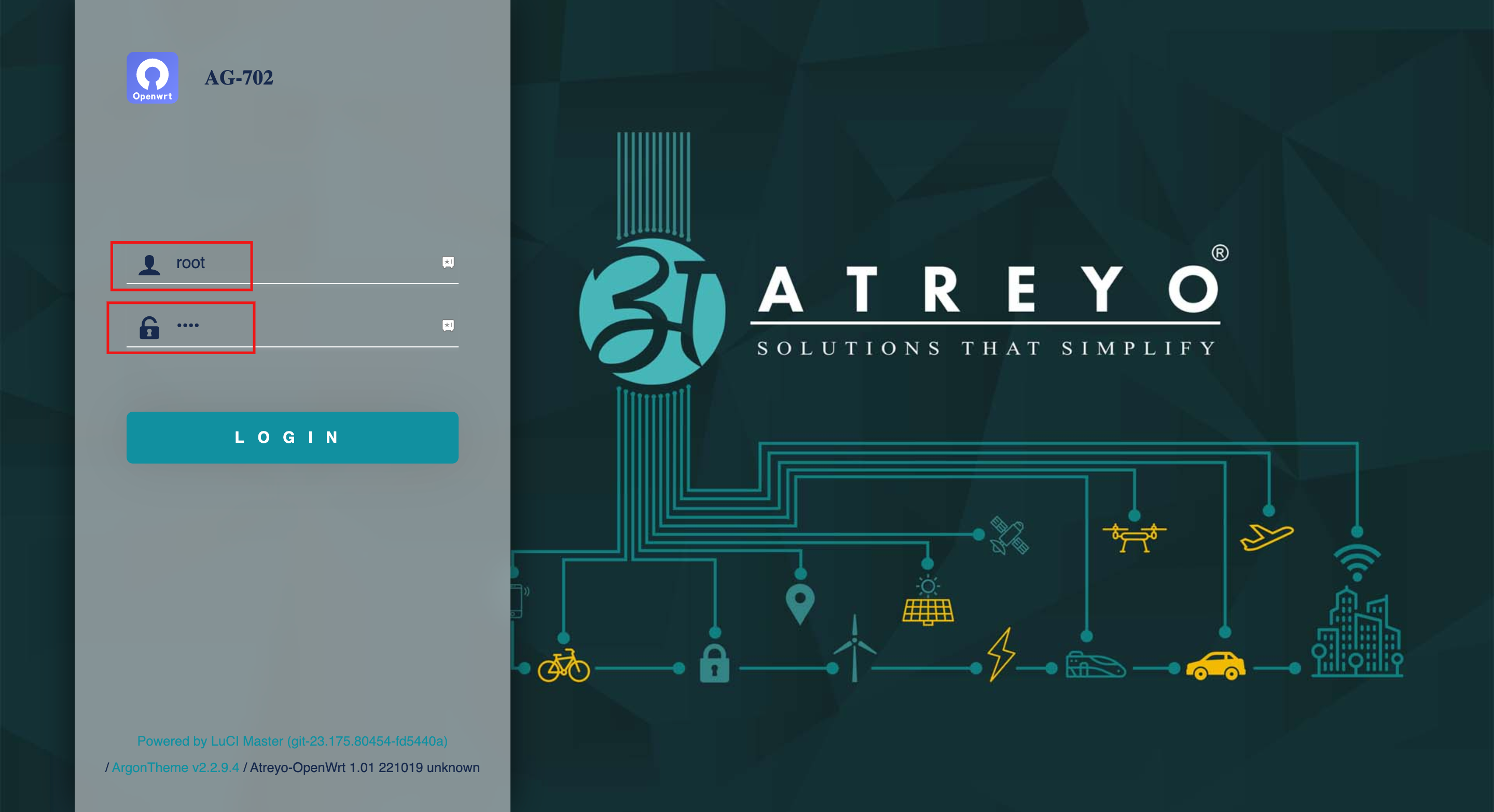

  1. You’ll be directed to the gateway’s web interface. Log in using the credentials below:
    Username: root
    Password: root



  2. After logging in, you’ll be prompted to update your password.
Proceed to the Installing the Zoho IoT Agent section to continue setup.

Using WAN

  1. Connect the WAN port of the AG-702 gateway to your router using an Ethernet cable.
  2. Power on the gateway and wait for the WAN LED indicator to turn on.
  3. On your Mac or PC, ensure you're connected to the same network as the router (wired or wireless).

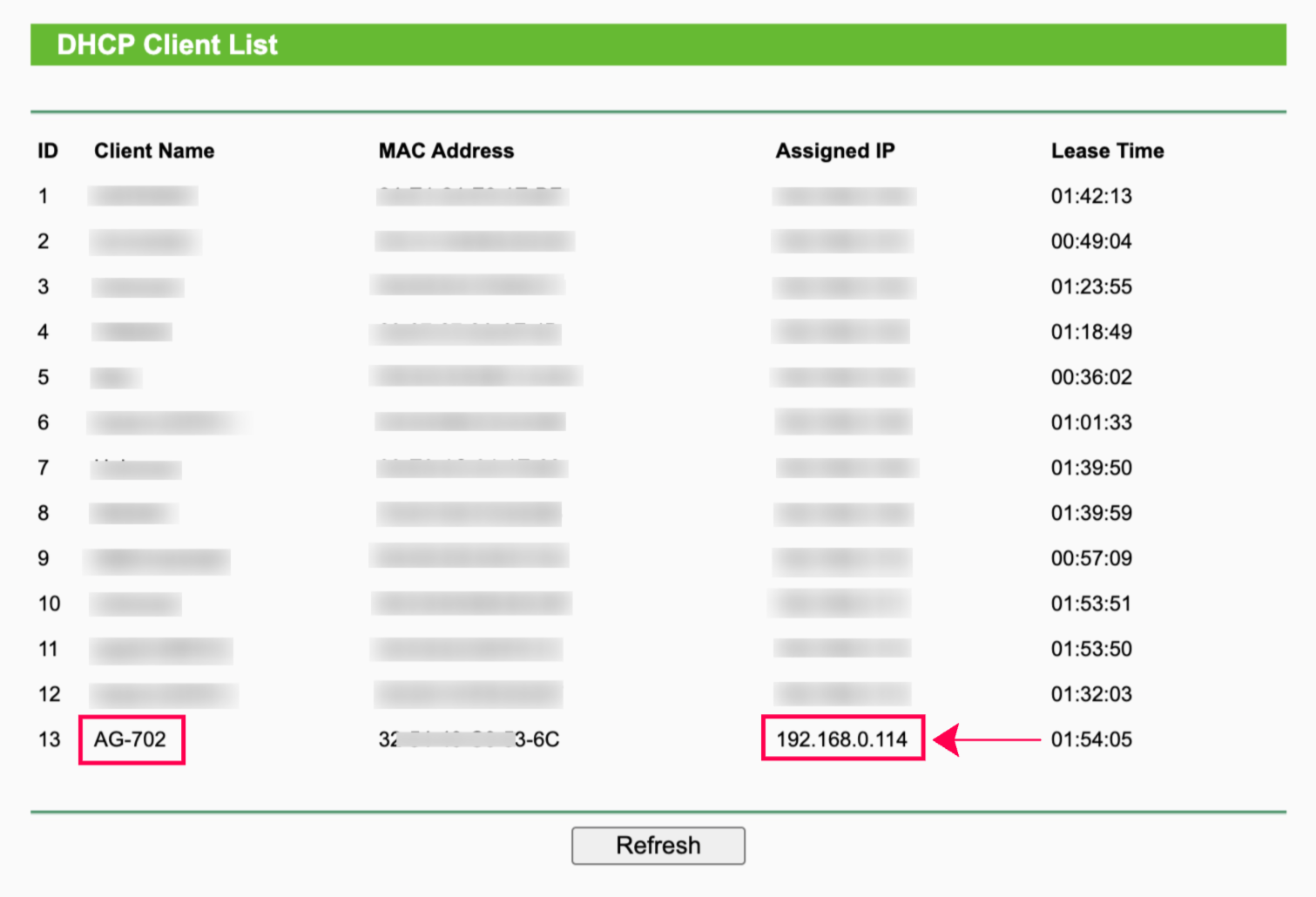

  4. Obtain the IP address of the Gateway device from your routers DCHP list.



  5. Open a browser and enter the IP address assigned to the gateway by your router.



  6. In the gateway’s web interface, log in using the default credentials:
    Username: root
    Password: root



  7. After logging in, you'll be prompted to update your password.
Then proceed to the Installing the Zoho IoT Agent section to continue setup.

Using LAN

  1. Connect your Mac or PC directly to the LAN port of the AG-702 gateway using an Ethernet cable.
  2. Set a static IP address for your system in the 192.168.1.x range (except 192.168.1.60, which is the gateway).
    • Example: 192.168.1.21
    • Subnet Mask: 255.255.255.0
For Mac,
You can configure this by navigating to:
System Settings > Network > [LAN Adapter] > Details > TCP/IP

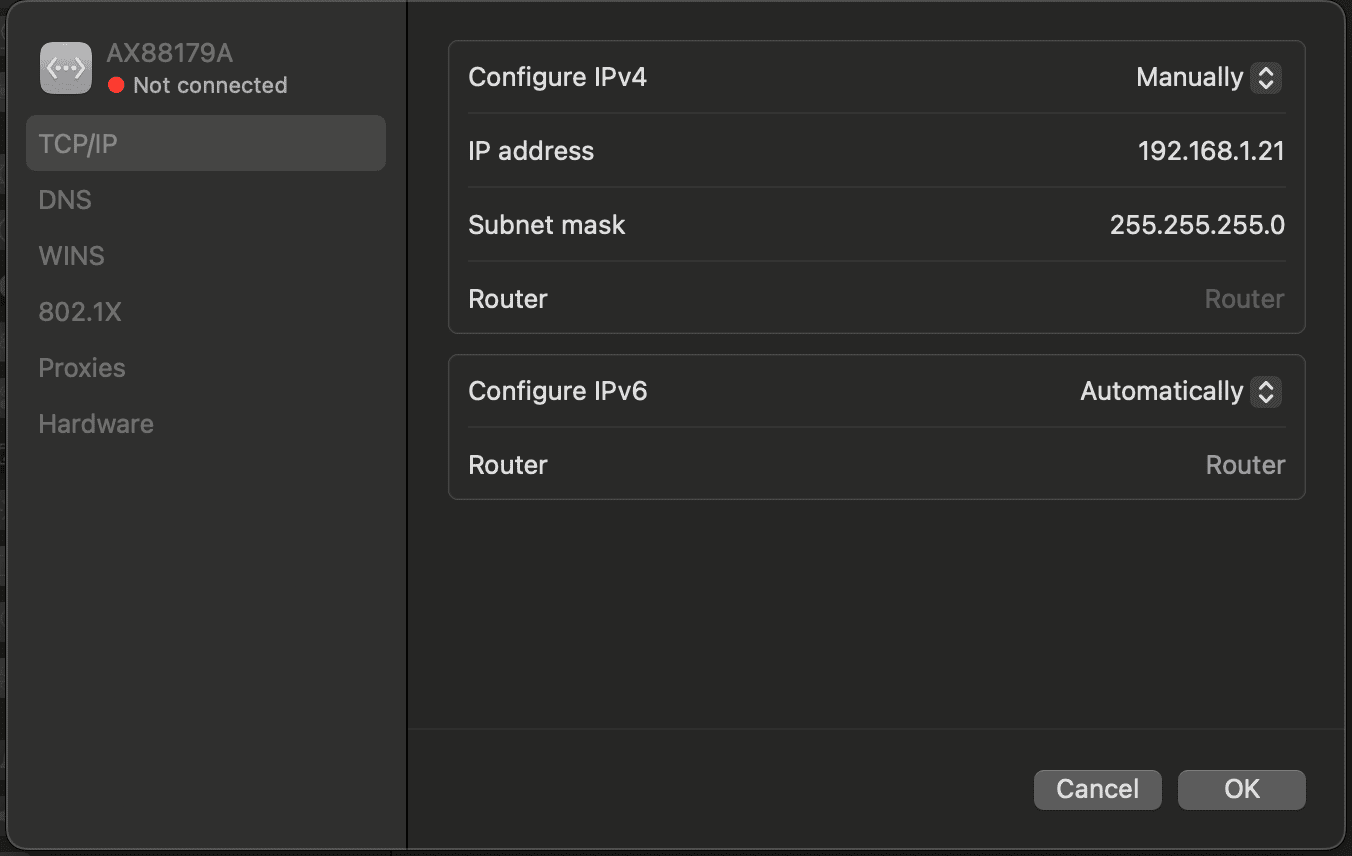

Set Configure IPv4 to Manually, then enter the static IP and subnet mask.



For Windows,
You can configure this by navigating to:
Control Panel > Network and Internet > Network and Sharing Center > Change adapter settings

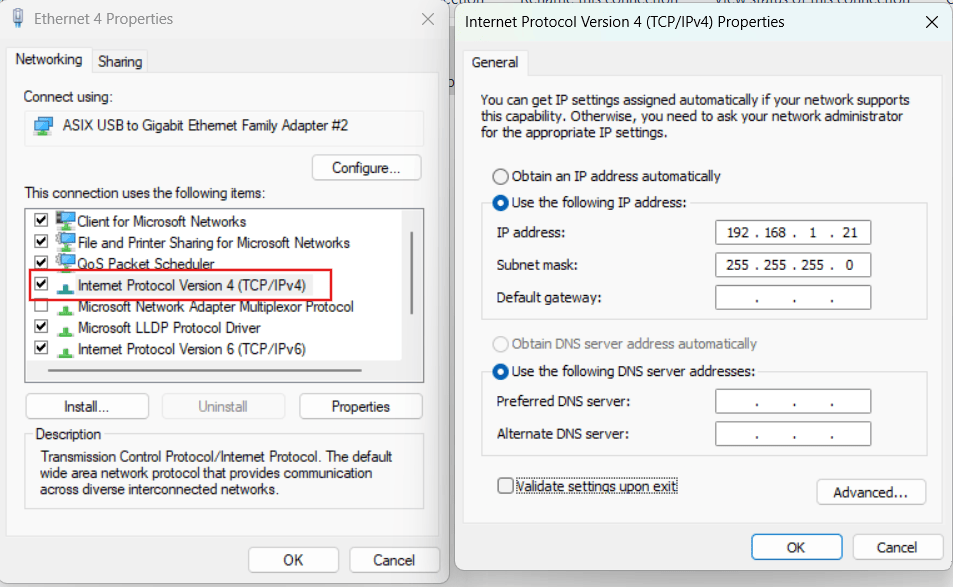

    • Right click on the Ethernet icon (corresponding to your LAN connection) and select Properties.
    • Double click Internet Protocol Version 4 (TCP/IPv4)
    • Select Use the following IP address.
    • Enter the IP address and subnet mask

  1. Open a browser and enter the following IP address in the address bar:
    IP: 192.168.1.60


  1. The gateway’s web interface will load. Log in using the credentials:
    Username: root
    Password: root



  2. After logging in, you’ll be asked to update your password.
Once done, continue with the Installing the Zoho IoT Agent section.

Installing the Zoho IoT Agent on the gateway

After accessing the AG-702 gateway's web interface, you can proceed with installing the Zoho IoT Agent on the device.

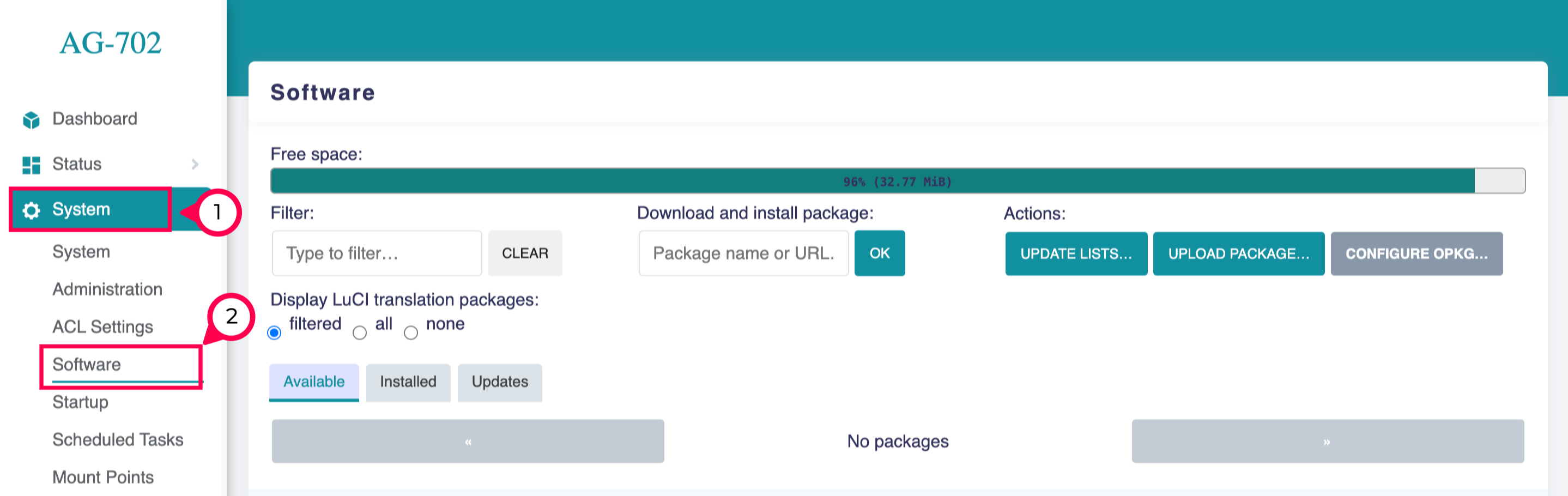

  1. Go to System > Software.

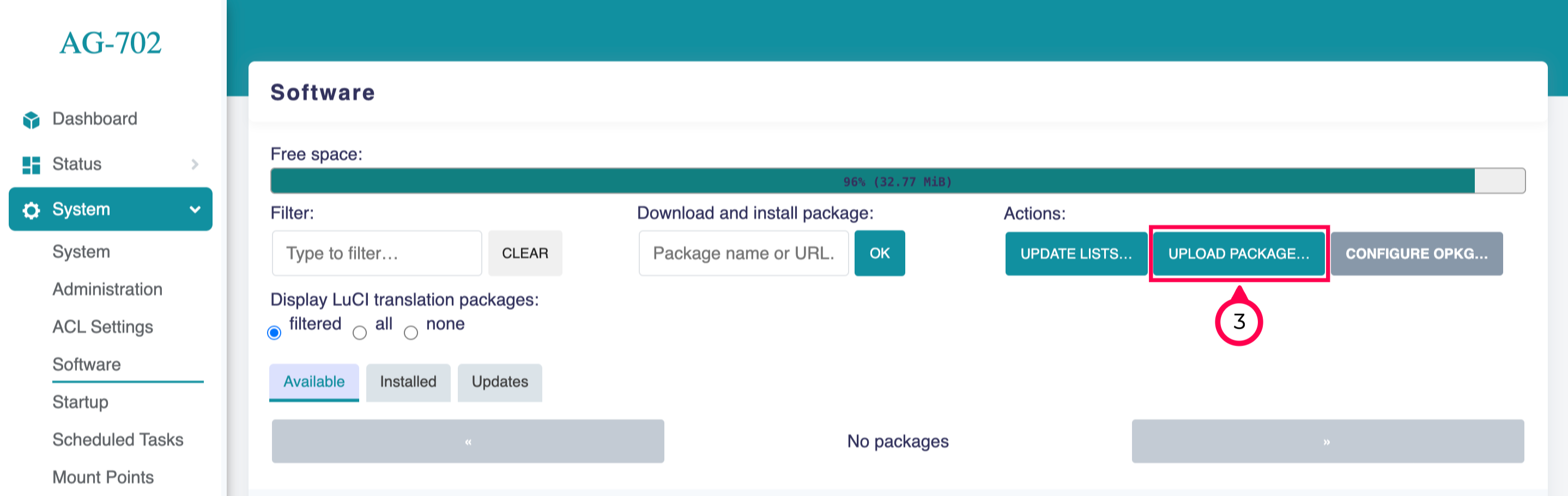

  2. Click Upload Package > Browse.

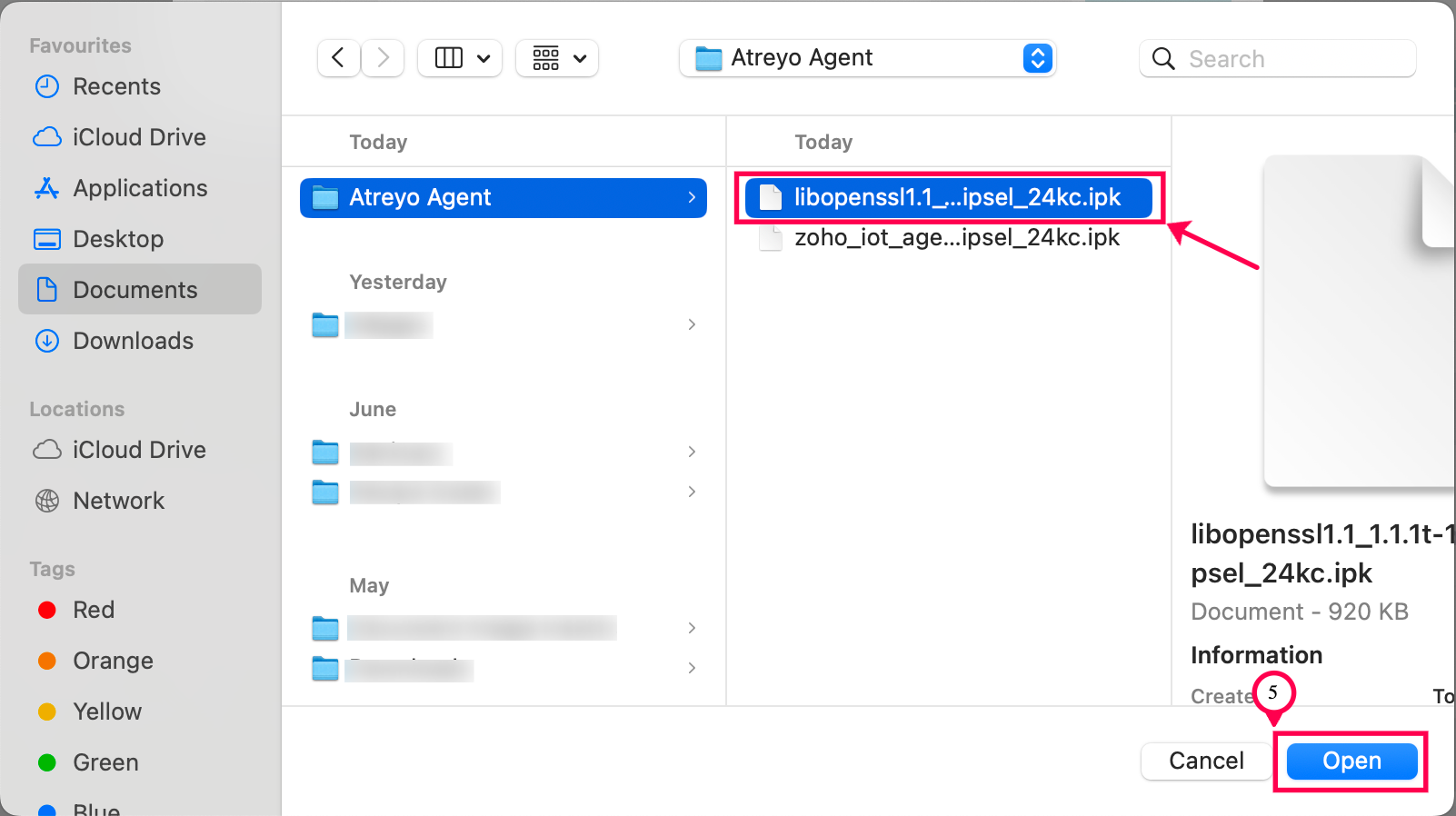

  3. Navigate to the location where you have stored the Zoho IoT Agent files.
  4. First, select libopenssl1.1_1.1.1t-1_mipsel_24kc.ipk, click Open, and then click Upload.

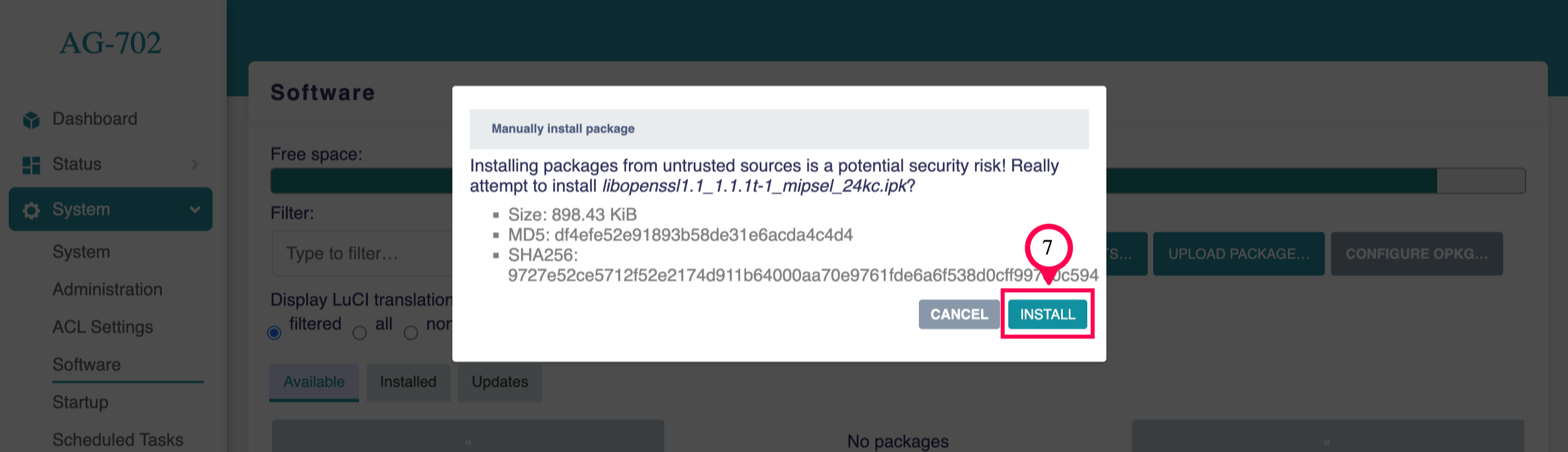

  5. Once the file is uploaded, click Install.



  6. Repeat the same steps to upload and install zoho_iot_agent_0.2.4-1_mipsel_24kc.ipk.

NotesNote: The order of installation is important. The files must be installed in the exact sequence shown above.

Once both files are installed, you can access the Zoho IoT Agent's web interface.

Accessing the Zoho IoT Agent Interface

The Zoho IoT Agent's web interface can be accessed by entering the following IP address in your browser, based on the connection method used:
  • Wi-Fi method: 192.168.1.1:8070
  • WAN method: 192.168.0.114:8070
    Note: The WAN IP address may vary depending on your DHCP settings.
  • LAN method: 192.168.1.60:8070

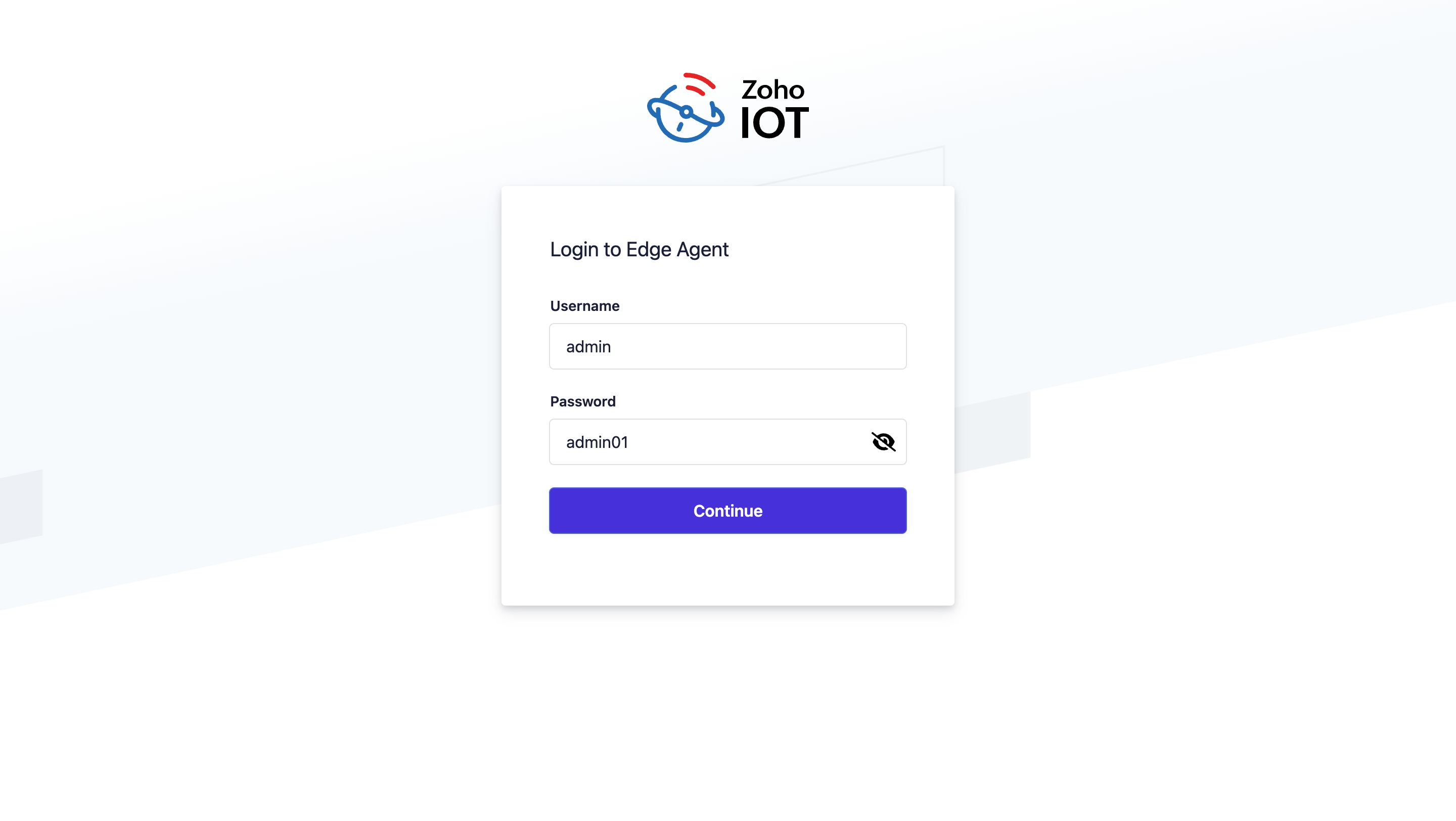

Log in to the agent using the default credentials:
Username: admin
Password: admin01
You'll be prompted to update your password.

Establishing a connection using the Zoho IoT Agent

Once you've logged in to the gateway via the Zoho IoT Agent, you can establish a connection with the Zoho IoT application.
  1. Open the End Application.

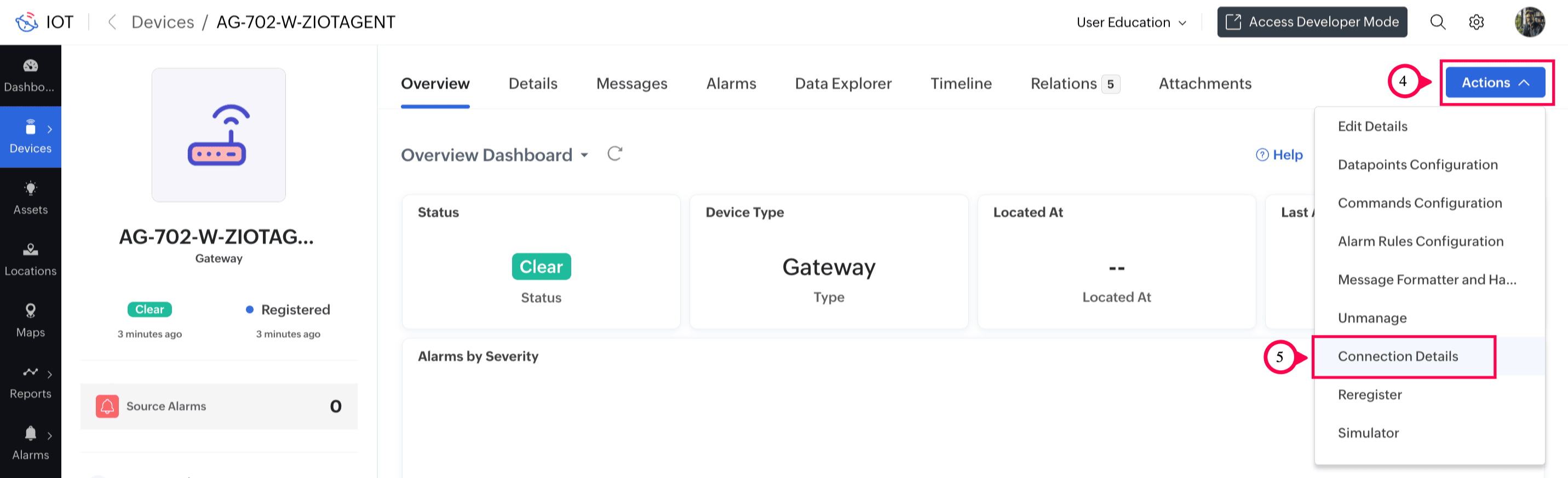

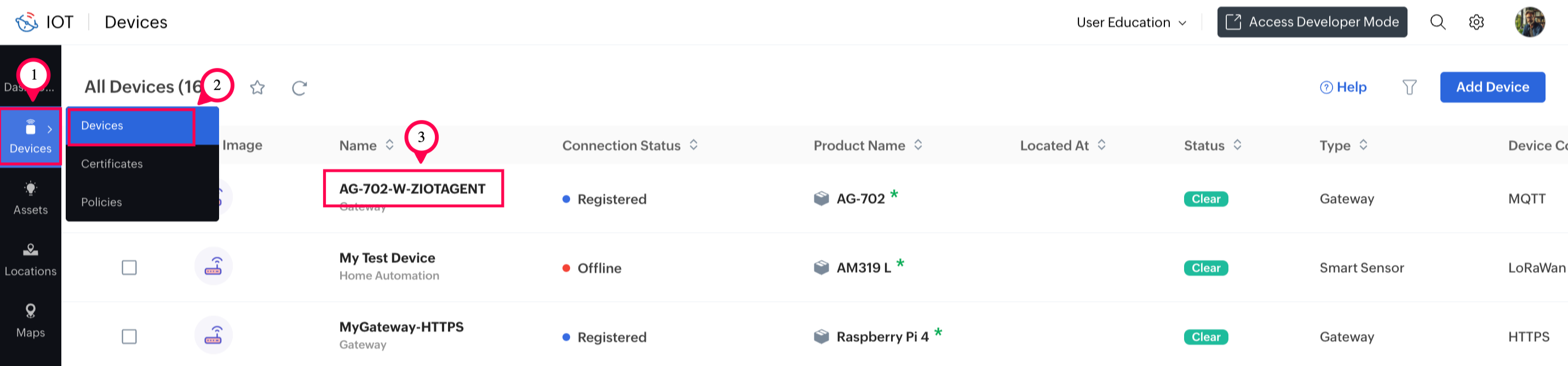

  2. Navigate to: Devices > Devices > [Your Device] > Actions > Connection Details.





    NotesNote: To learn how to add a new device, click here.

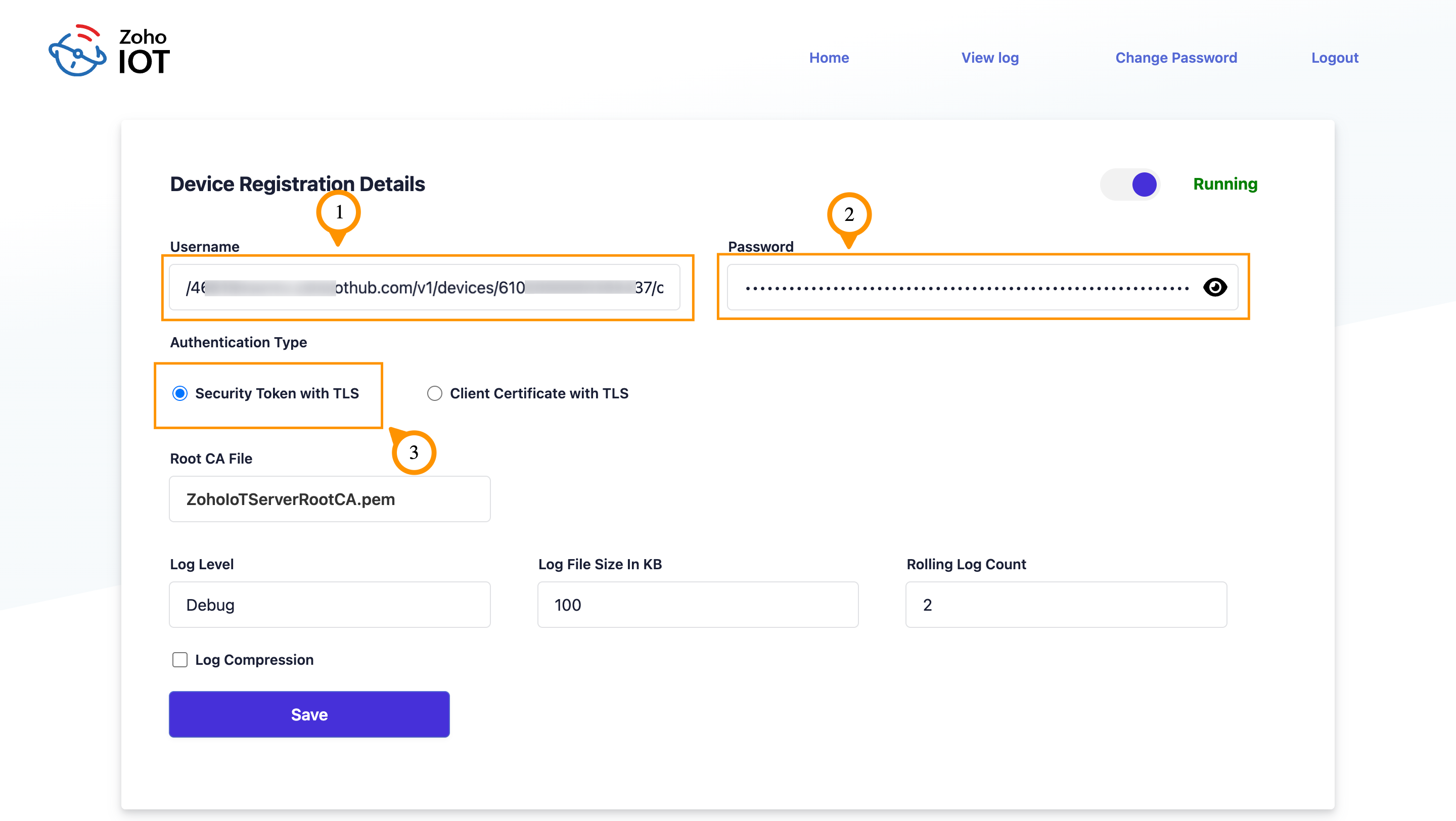

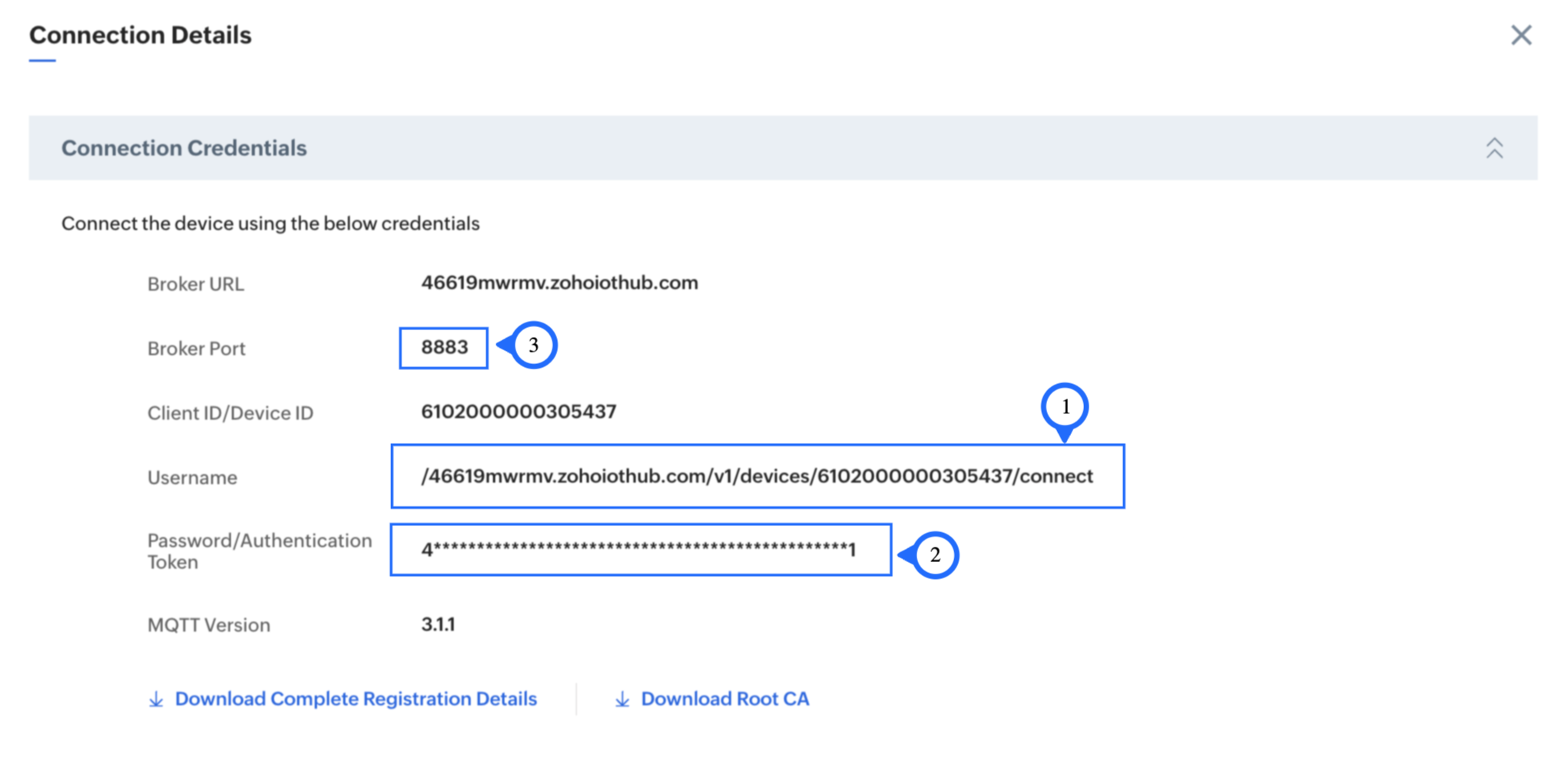

  1. Copy the required connection credentials from the Connection Details section.



  2. Paste them into the Zoho IoT Agent interface.

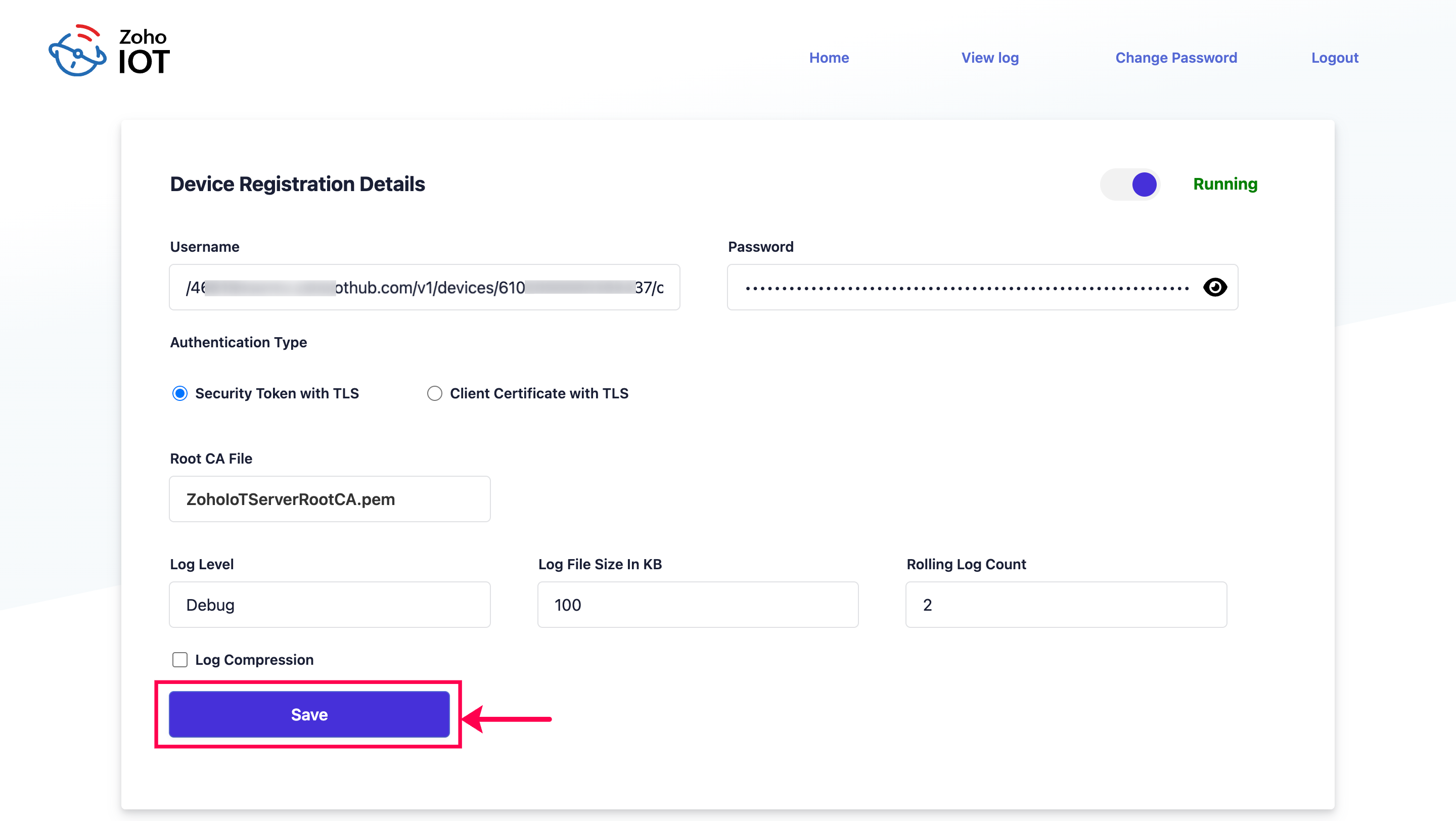

  3. Click Save to establish the connection.

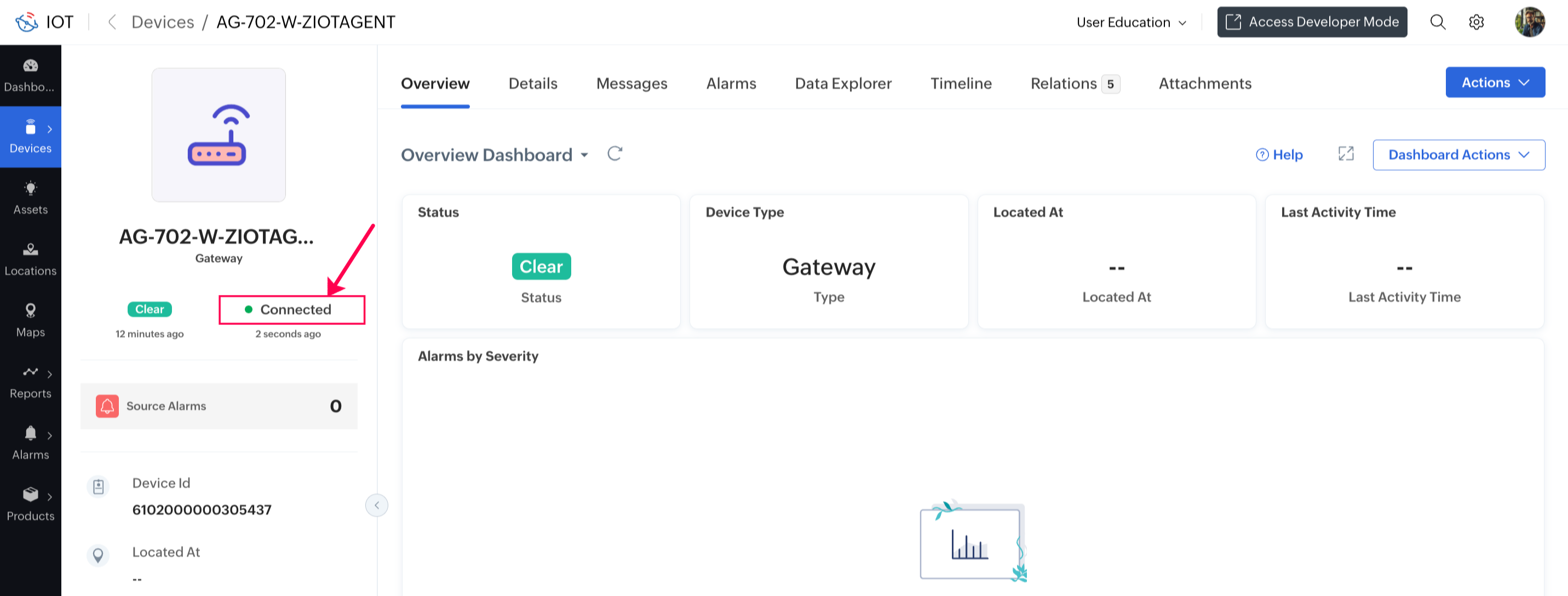

The agent will now be connected to the application.
