Builder View

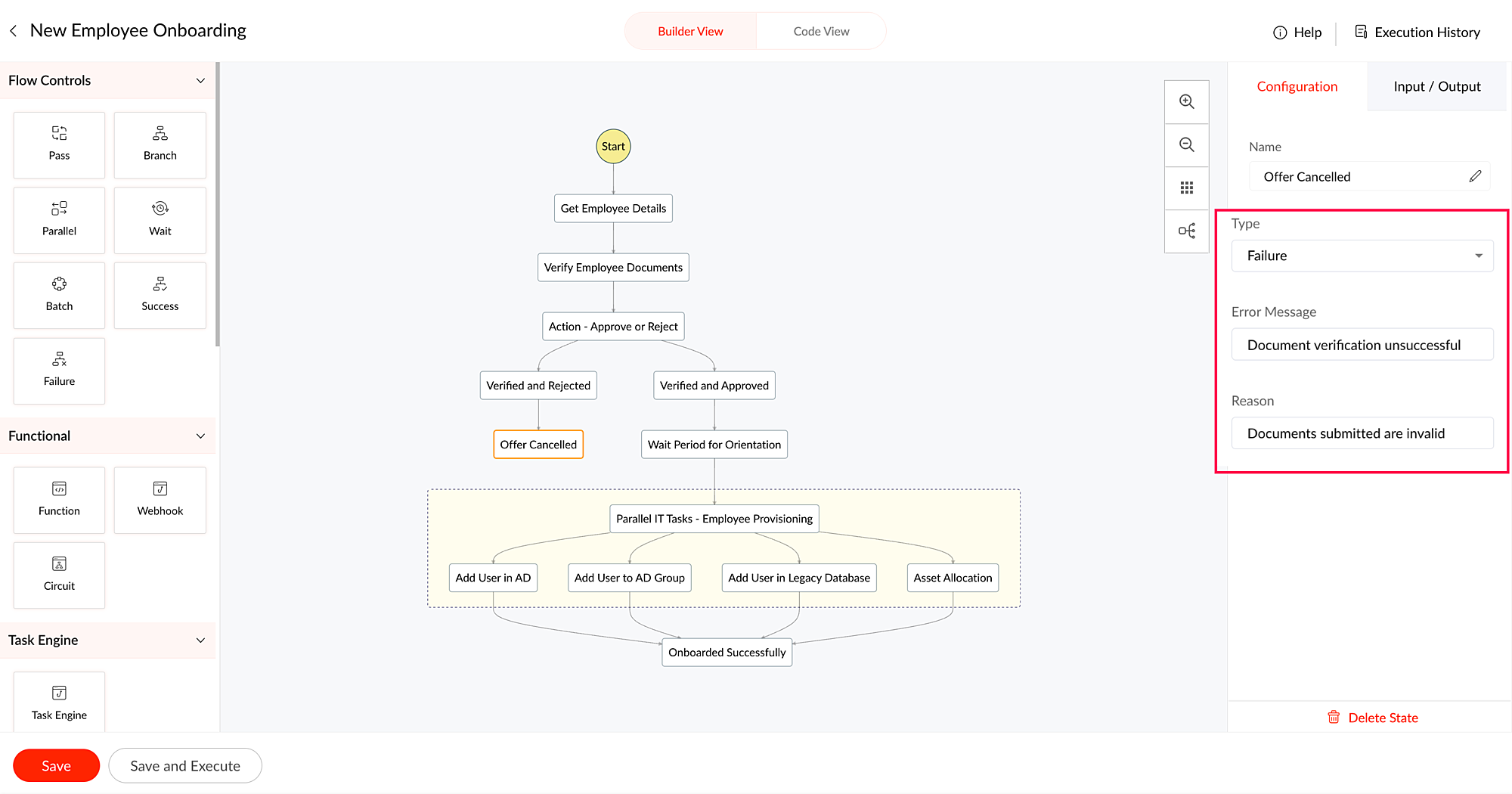

To configure a Failure state to your Circuit:

1. In Builder View, drag and drop the Failure state from the left pane into your Circuit or click the required Failure state in your Circuit.
2. Under Configuration, update the common state field attributes.

3. You can add a specific Error Message and an optional Reason in the state for your reference that will be displayed in the execution response to help in debugging.


4. In the Input/Output section, you can add the Result selector, to refine and filter the states' results.

There is no Next state for a Failure state since it is the last state for that path.

Code View

The below JSON is used in Code View and the equivalent fields for adding failure details are errorMessage and reason.

"Offer Cancelled": {
	"type": "failure",
	"error_message": "Document verification unsuccessful",
	"reason": "Documents submitted are invalid"
}
