Builder View

In Builder View, to incorporate a Function into a circuit:

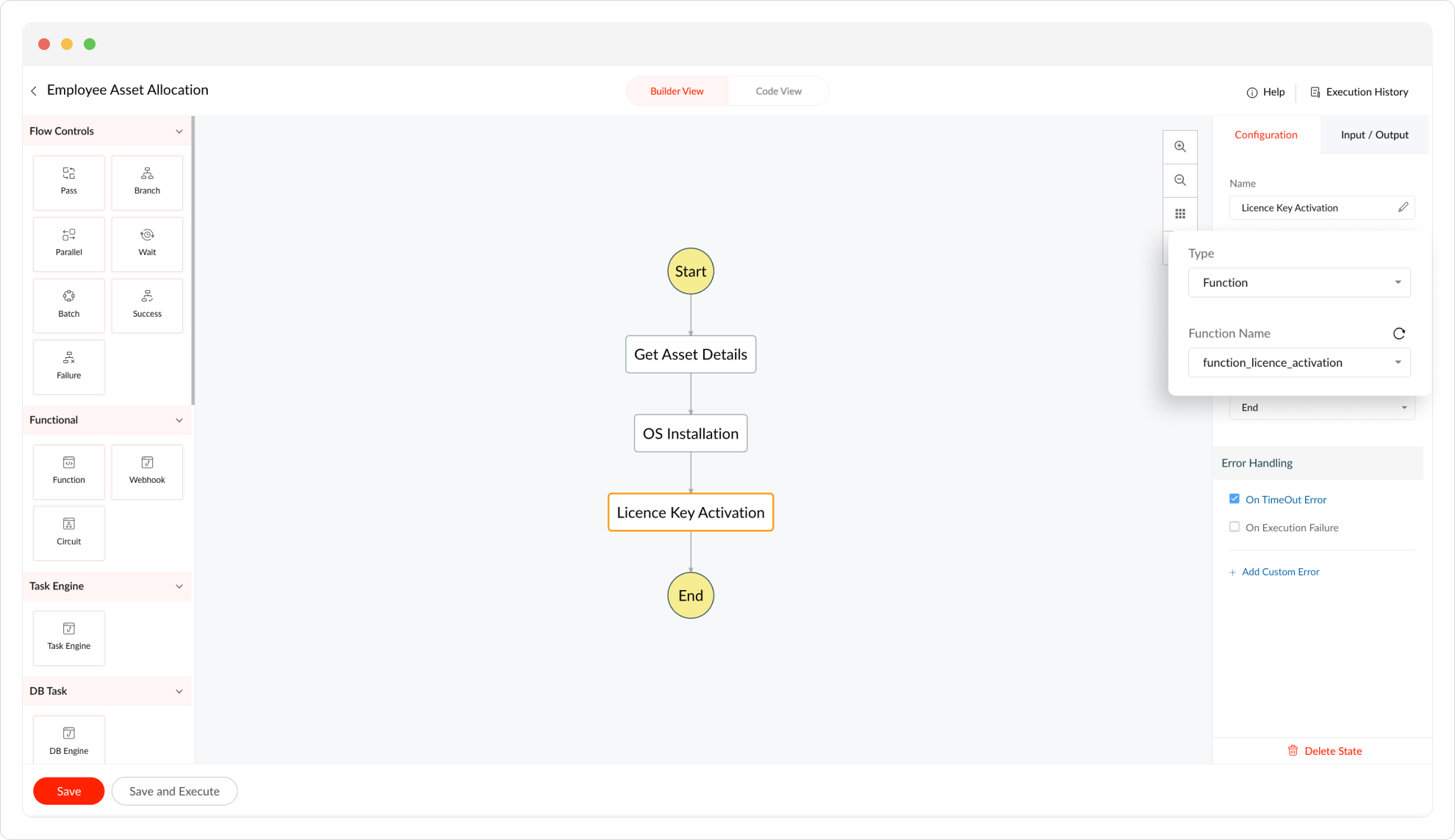

1. Drag and drop the Function state from the left pane into your Circuit or click the required Function state in your Circuit.
2. Under Configuration, update the common state field attributes.
3. Type Function is selected by default. Select the Function Name to be added to the Circuit from the drop-down list.
4. Specify the Error Handling options for the state. To learn more about Error Handling, click here.

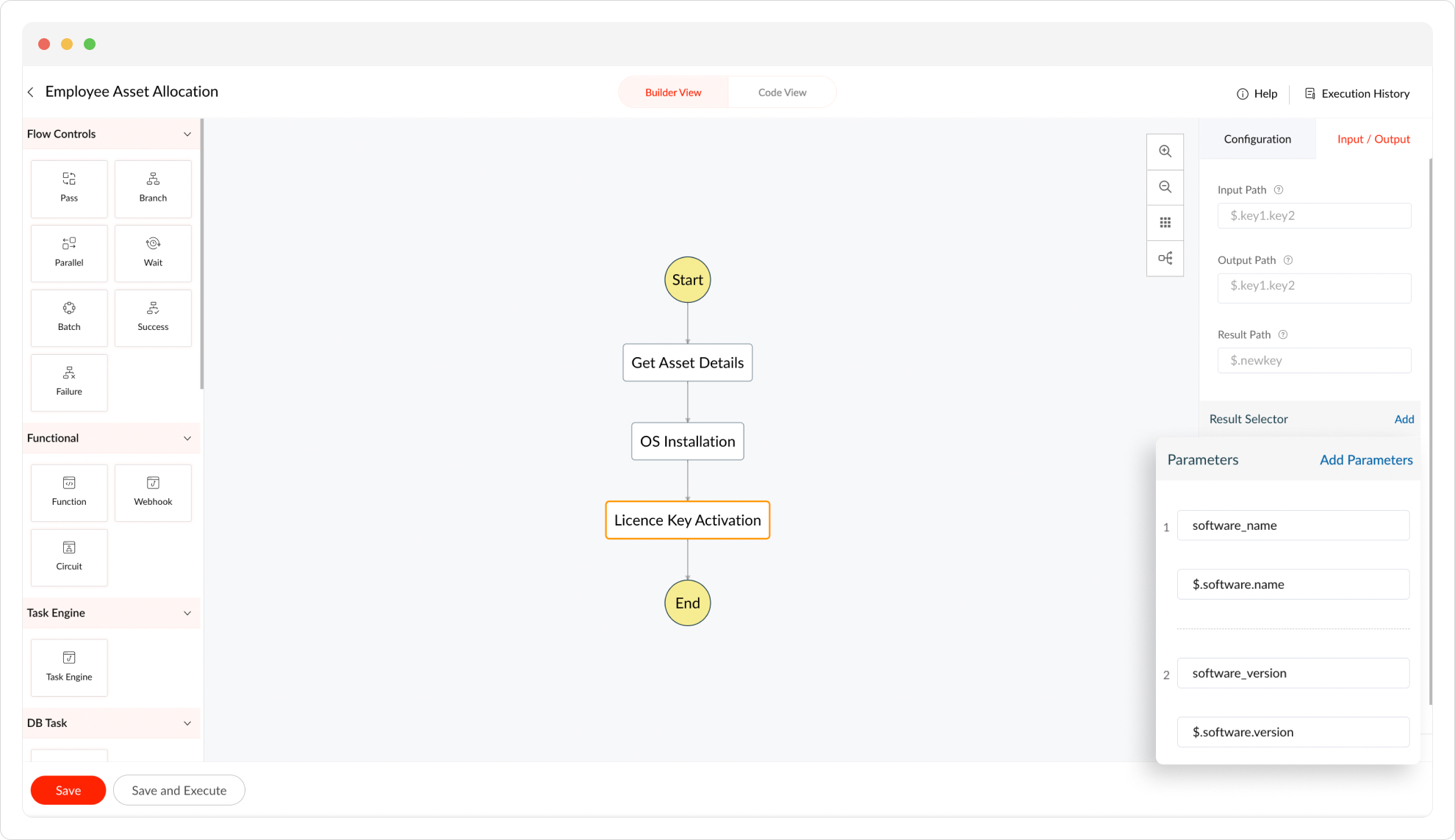

5. Under Input / Output on the right pane, you can optionally fill in the following details:


1. Enter the Input Path, Output Path, Result Path, and Result selector. To learn more about I/O paths, click here.


2. You can also send additional parameters along with the JSON input sent to the Function. Click Add Parameters and enter the parameter name and parameter value. These inputs will be passed to the Function during execution.

7. Click Save and Execute at the bottom of the page.
8. Specify the test data as Input JSON for your test run, then click Next.
9. Name your test run for this execution. Click Run.
10. Check for the data received from the Function.
11. Modify your Function settings if failure or data mismatch is encountered.

12. Repeat this test until you get the required result using your Function.


Code View

"Licence Key Activation": {
      "type": "function",
      "next": "End",
      "function_id": "function_licence_activation_21",
      "parameters": {
            "software_name": "$.software.name",
            "software_version": "$.software.version"
       }
}
