Uplink Message Formatter Custom Function

Uplink Message Formatter Custom Function

Payloads sent by a device can be in various formats, and they must be converted into readable JSON before the application can process them. Zoho IoT allows you to decode these payloads using an uplink message formatter implemented as a custom function, which can be associated with a device product.

Uplink message formatter custom functions must be written using the Java script programming language.

This document describes the steps to create one, how to associate it with a device product, and an example script.
Alert
  1. Some sensors available in the device product gallery include predefined message formatters with no execution limits.

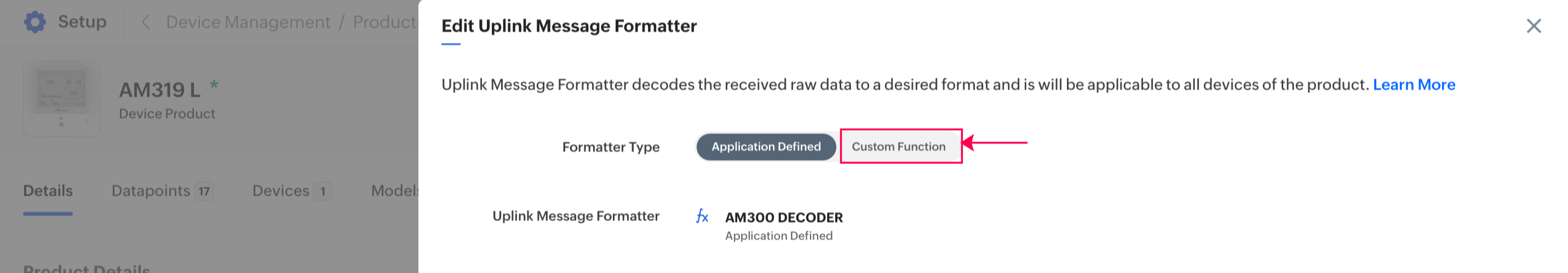

  2. For other sensors, users can create their own formatter using custom functions. Note that custom decoder execution is limited.
  3. To enable unrestricted decoding directly within the Zoho IoT application, contact the support team at support@zohoiot.com.

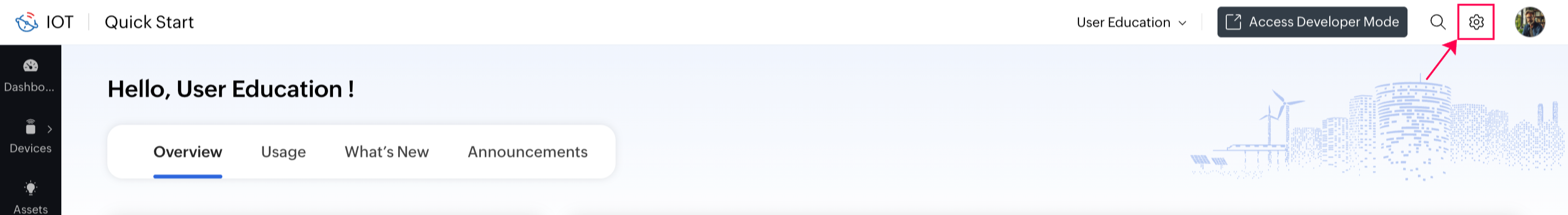

To create an uplink message formatter custom function,
  1. Access the custom functions list view page.

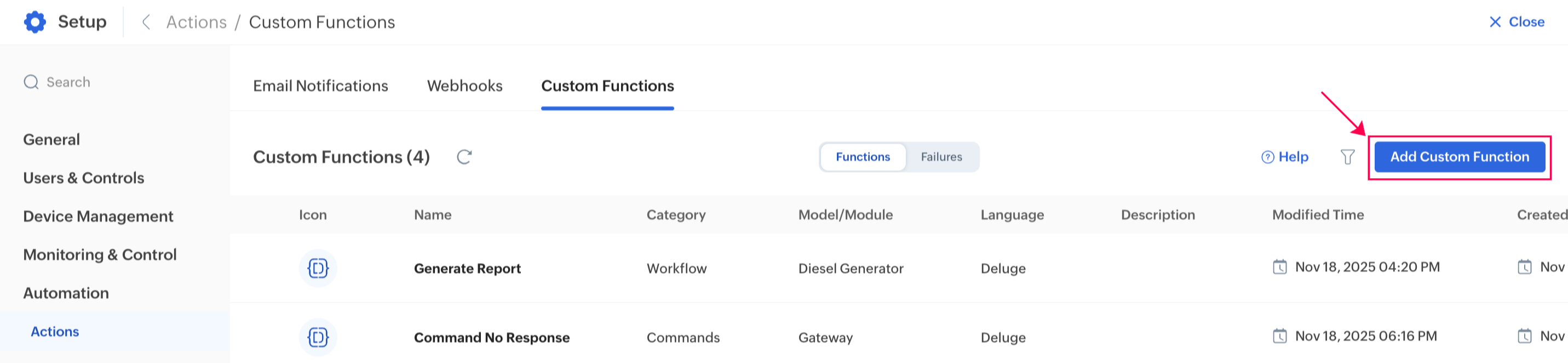

  2. Click Add Custom Function.

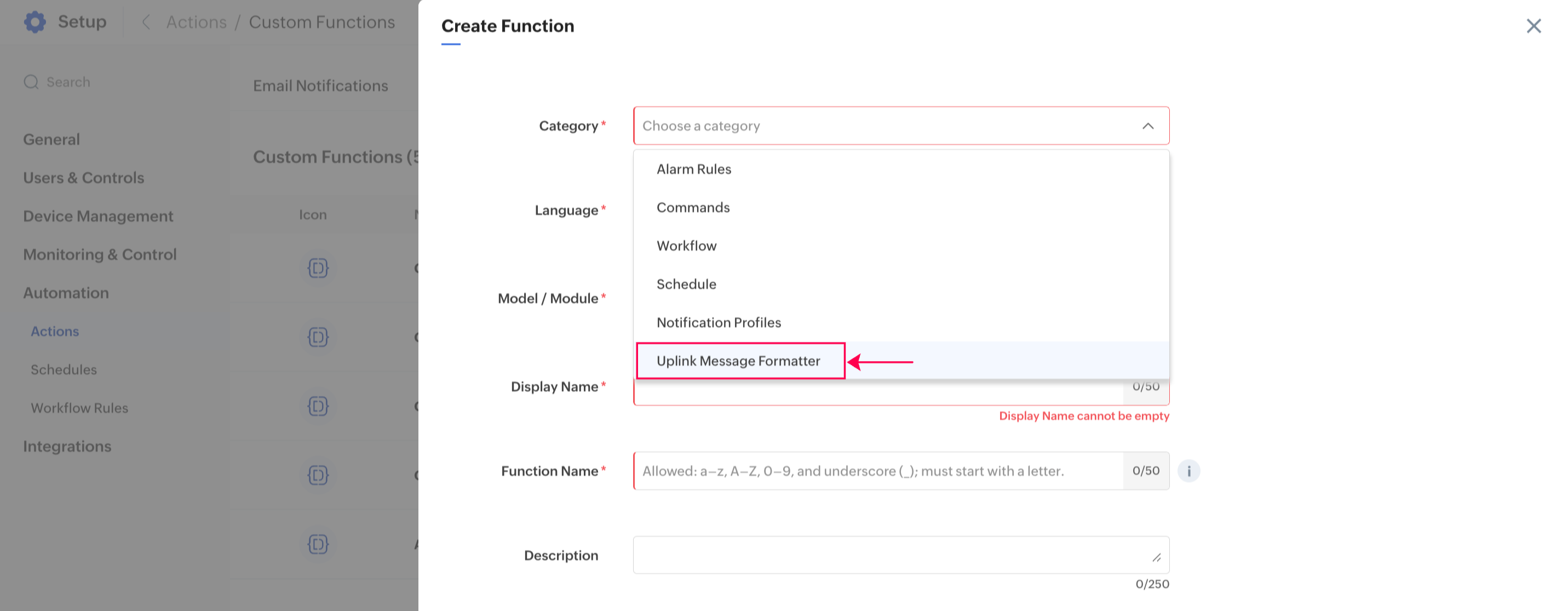

  3. Select Uplink Message Formatter in the Category field.

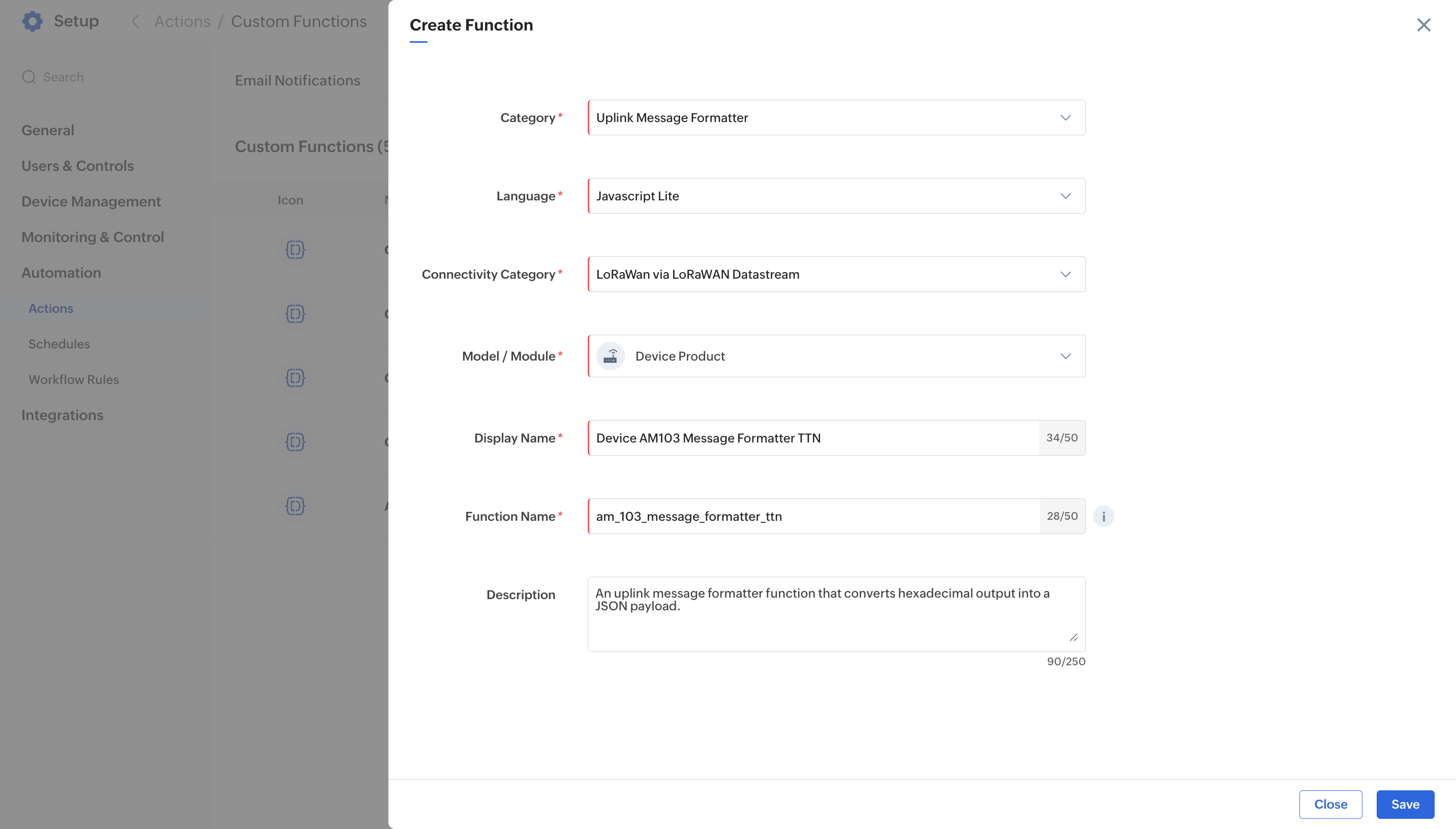

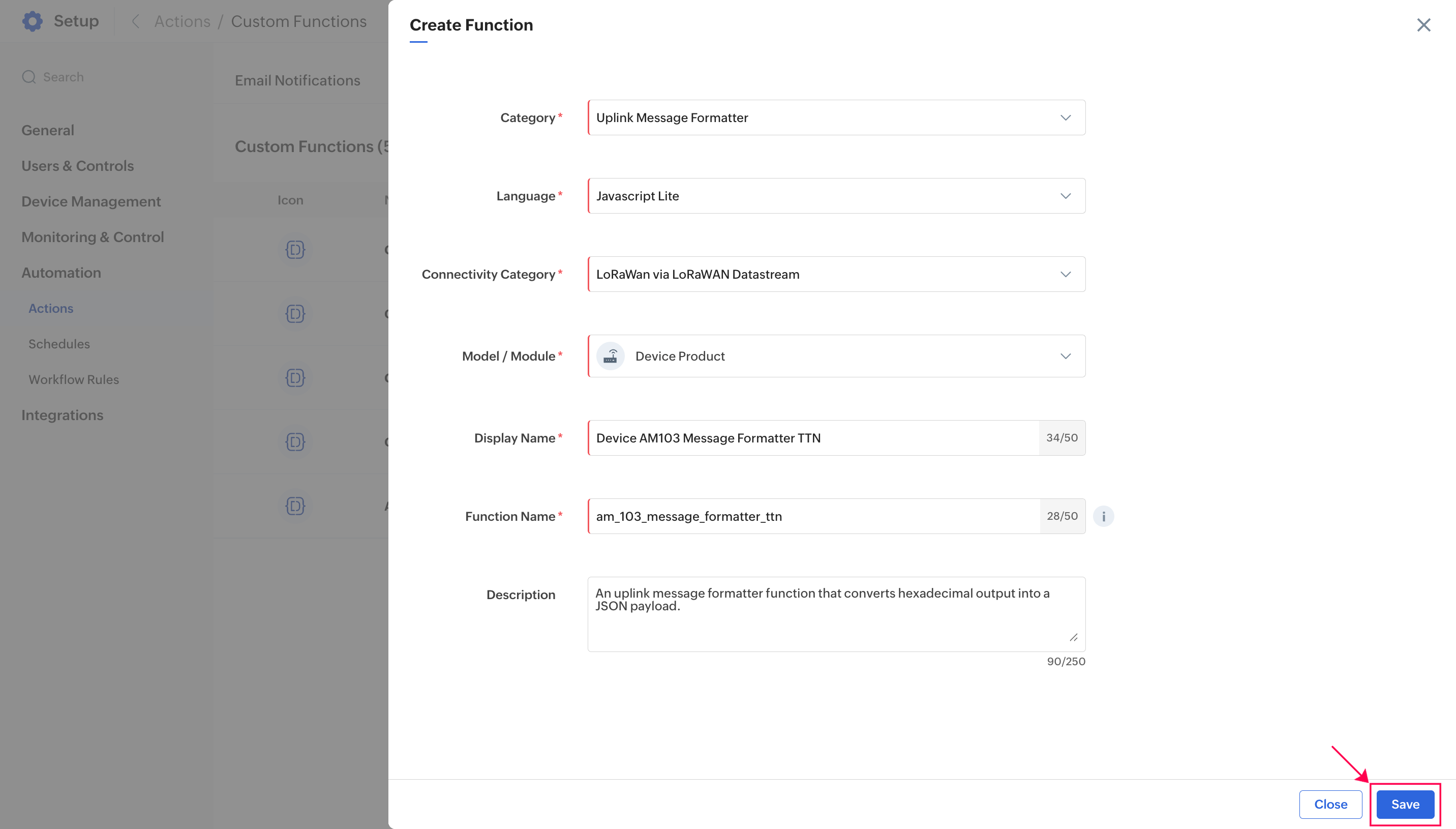

  4. Provide the required values in the appropriate fields.
    Example -
    Language : Javascript Lite
    Connectivity Category: LoRaWan via LoRaWAN Datastream
    Model/Module: Device Product (Uplink message formatter custom functions become available only under the Device Product module and can be associated with any device product within it.)
    Display Name: Device AM103 Message Formatter TTN (Provide a name of your choice)
    Function Name: am_103_message_formatter_ttn (Provide a name of your choice)
    Description:  An uplink message formatter function that converts hexadecimal output into a JSON payload.

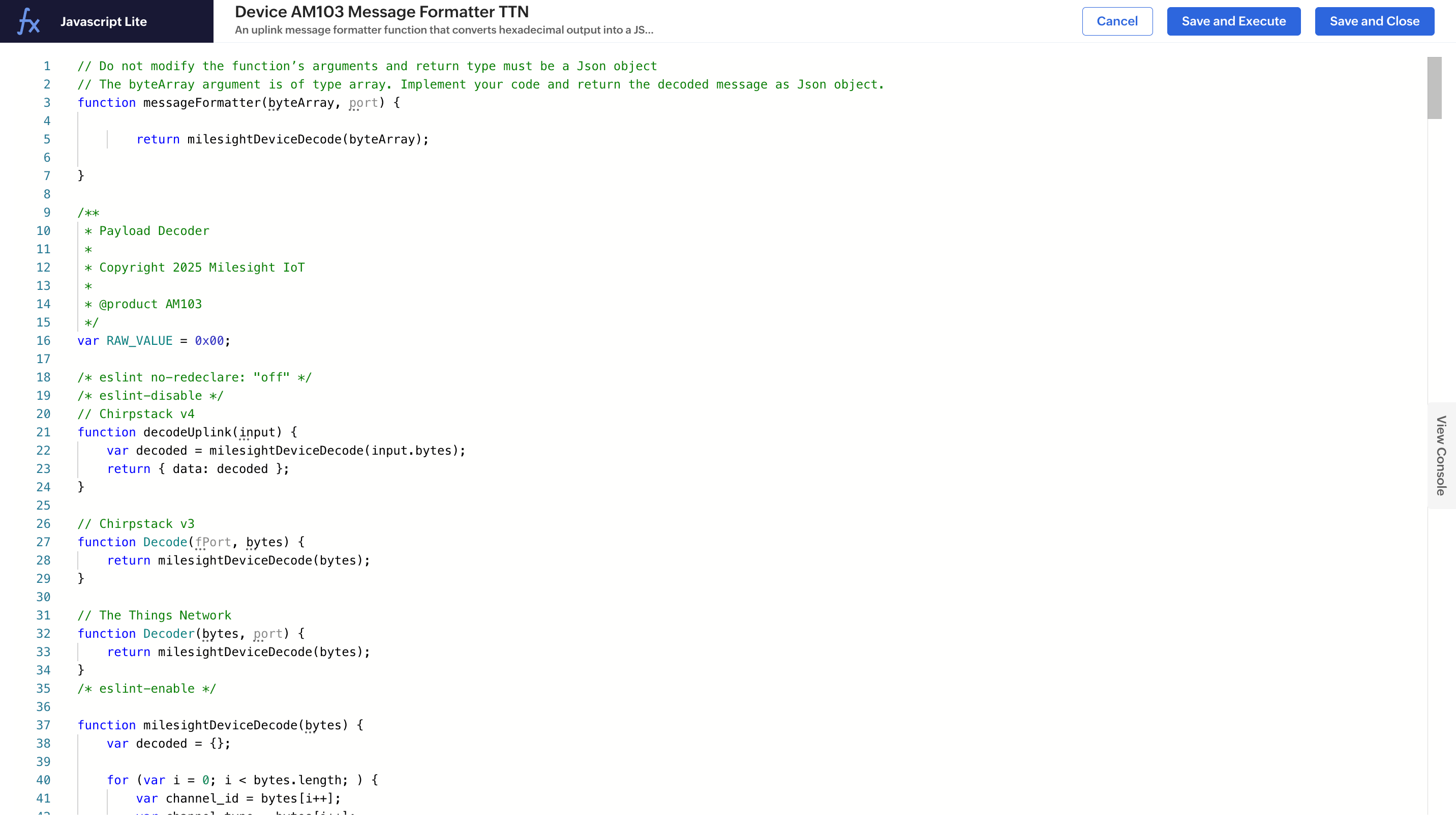

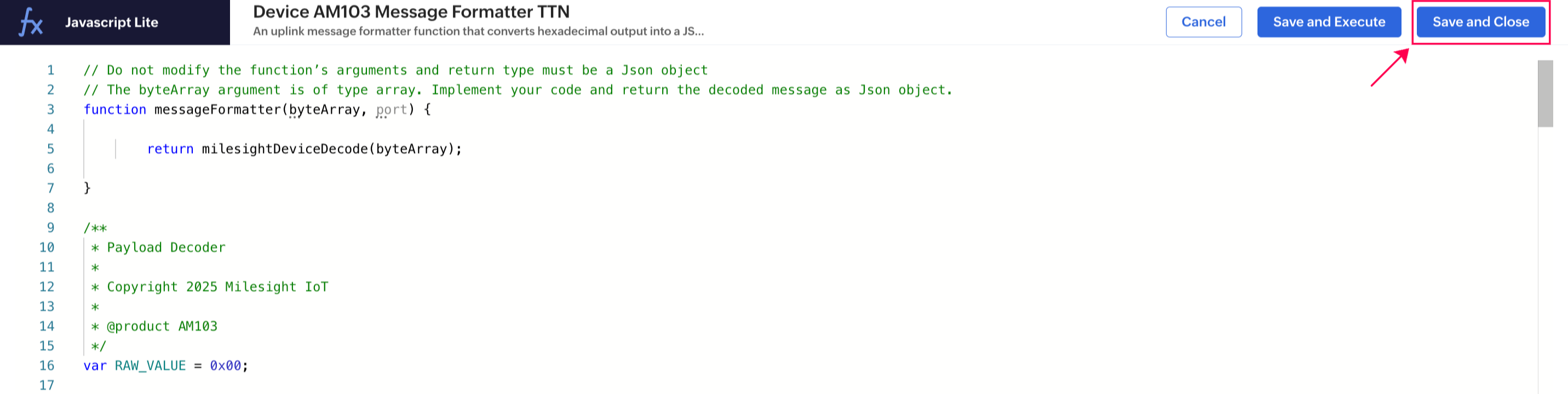

  5. Click Save. This will open the Code Editor.



  6. Provide the required code.



  7. Click Save and Close.

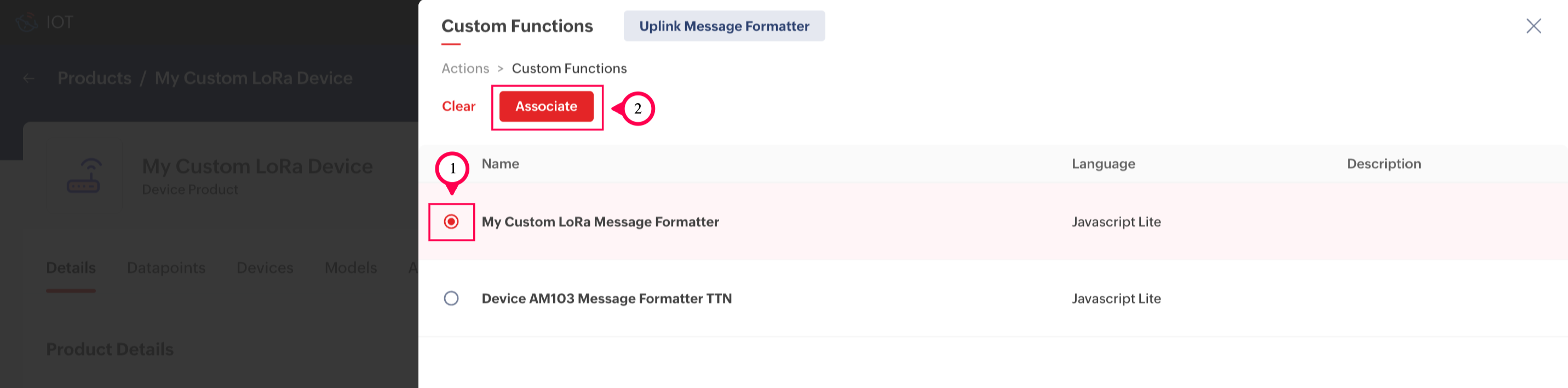

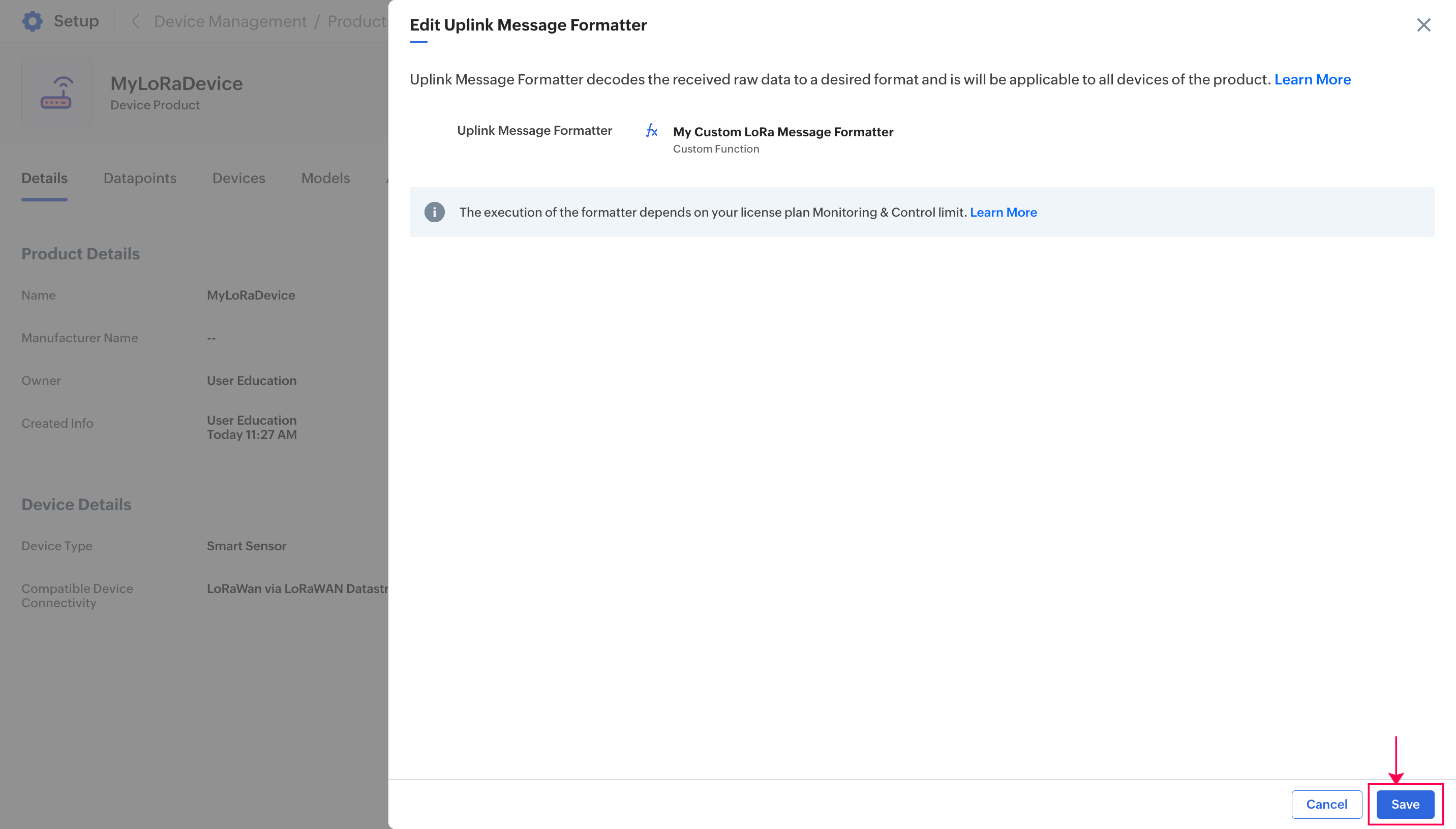

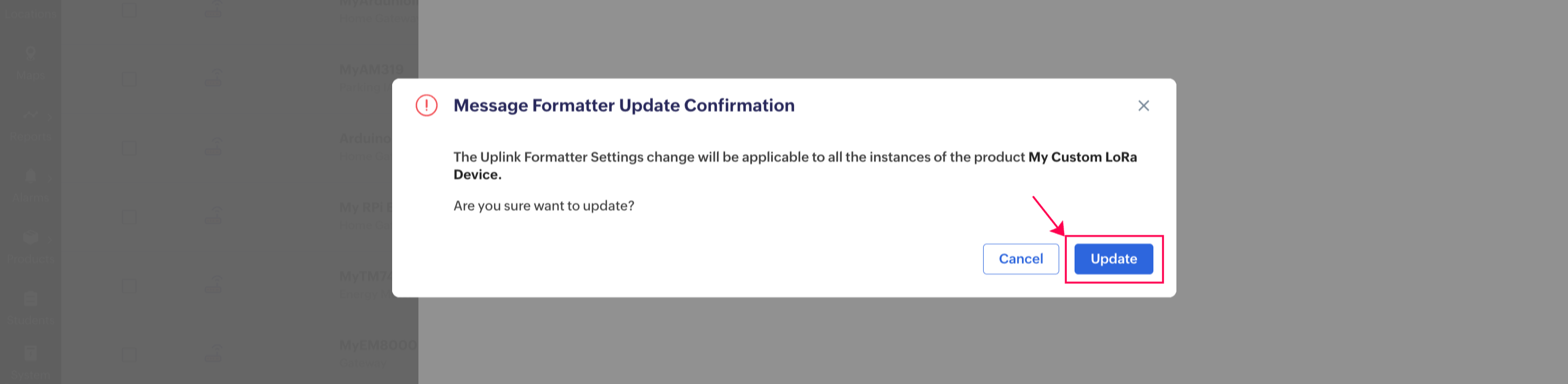

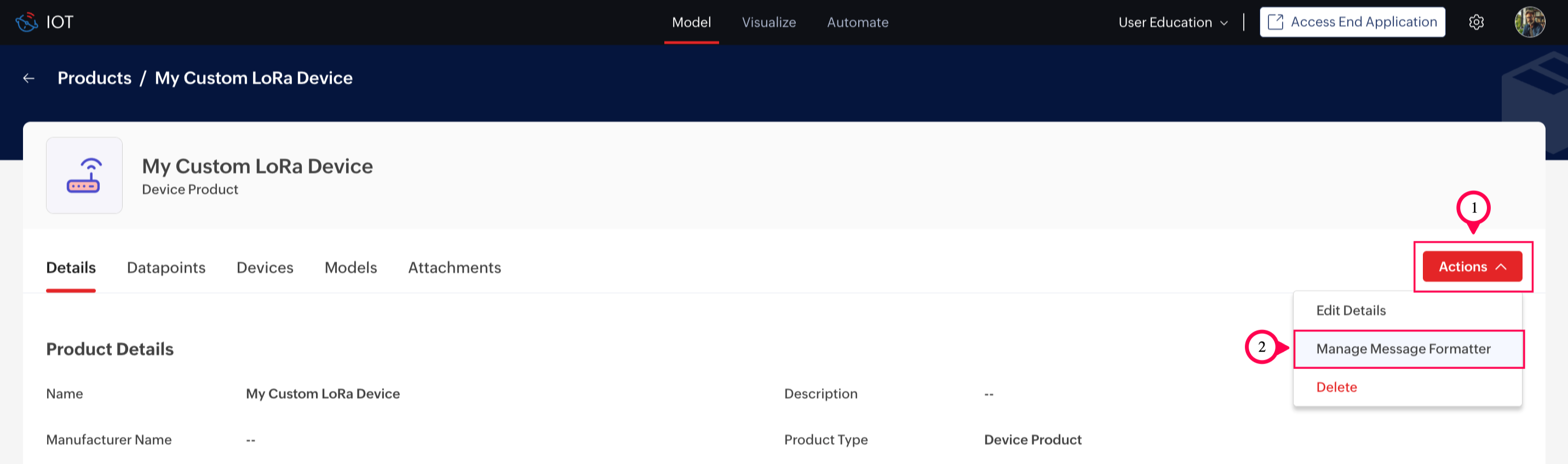

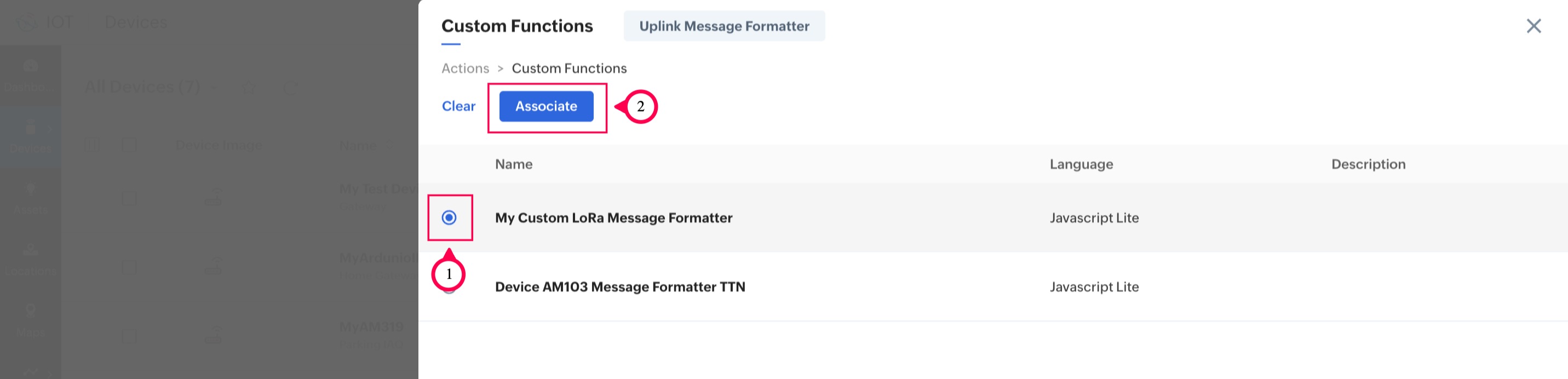

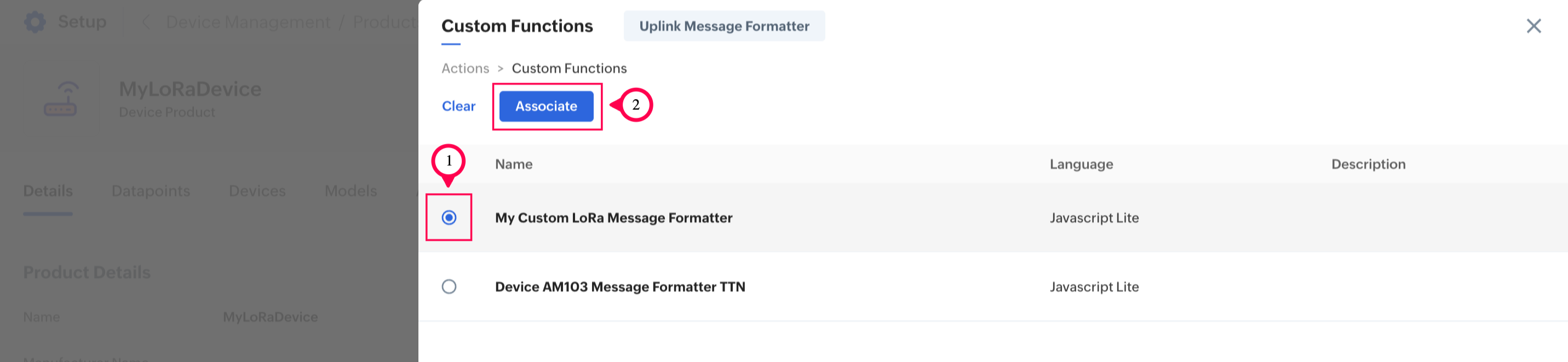

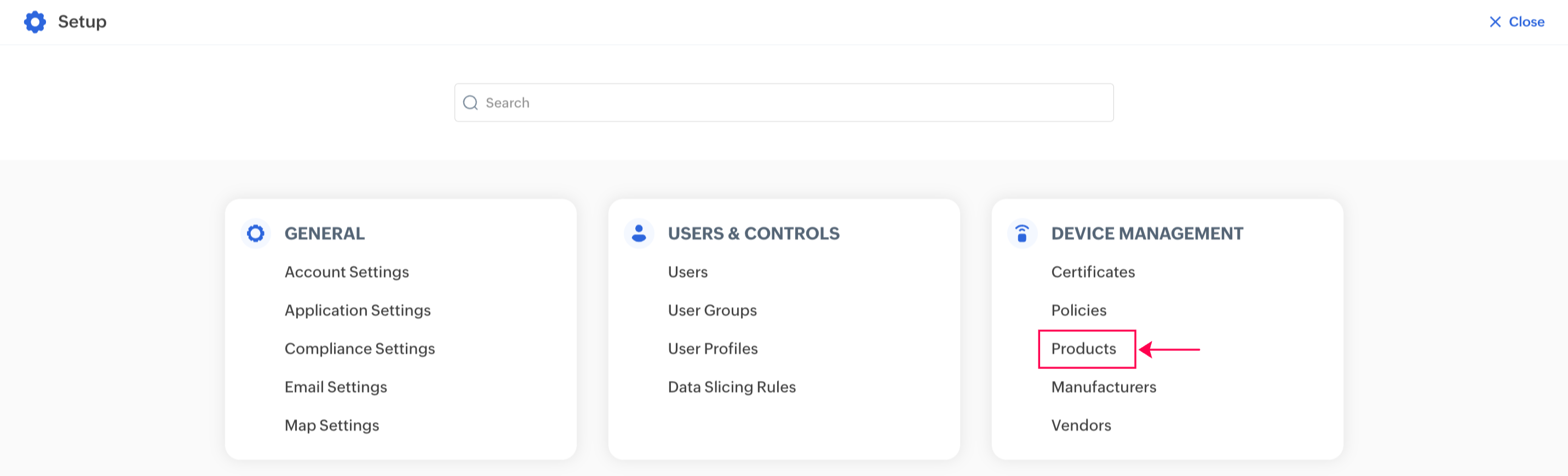

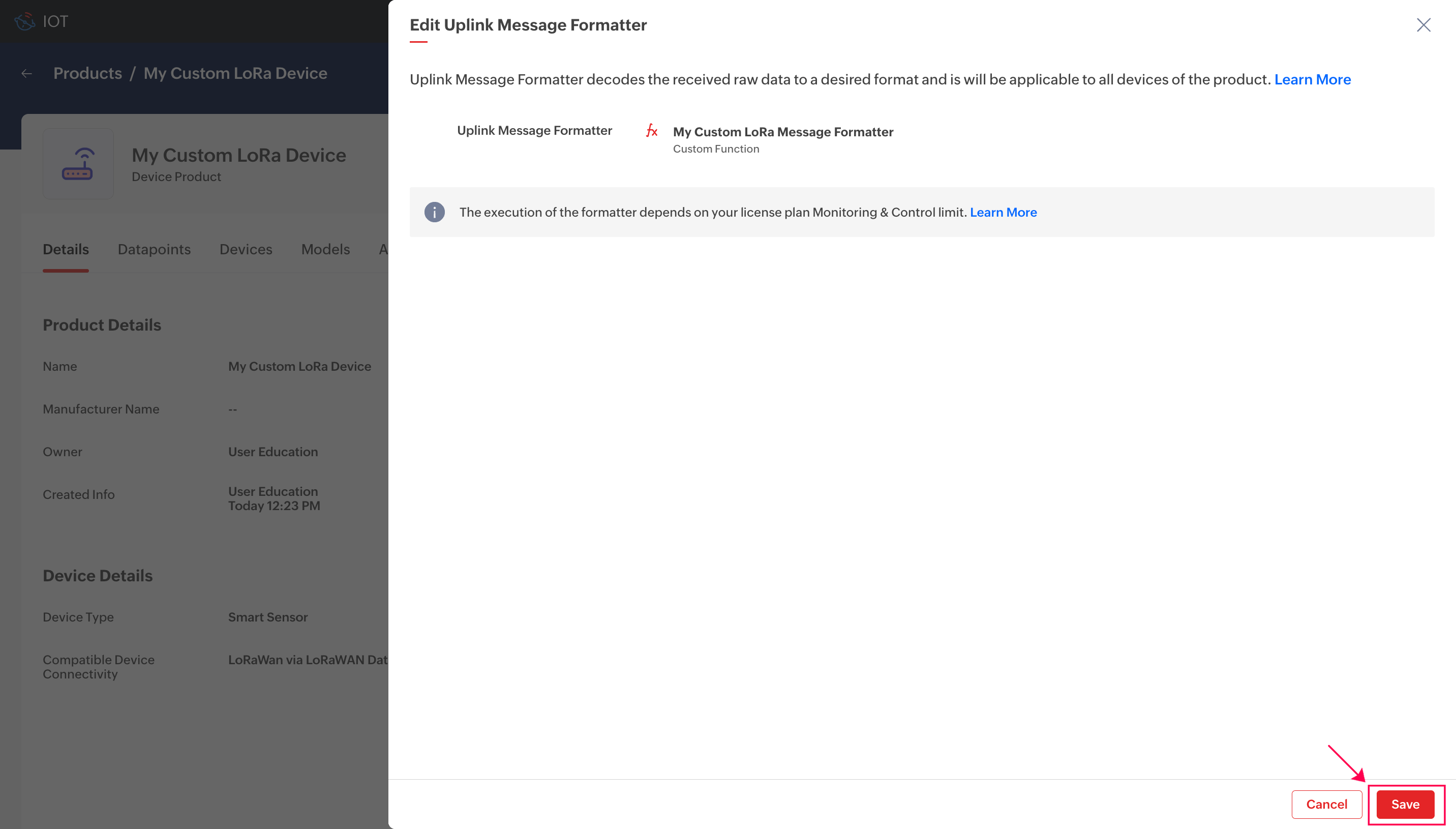

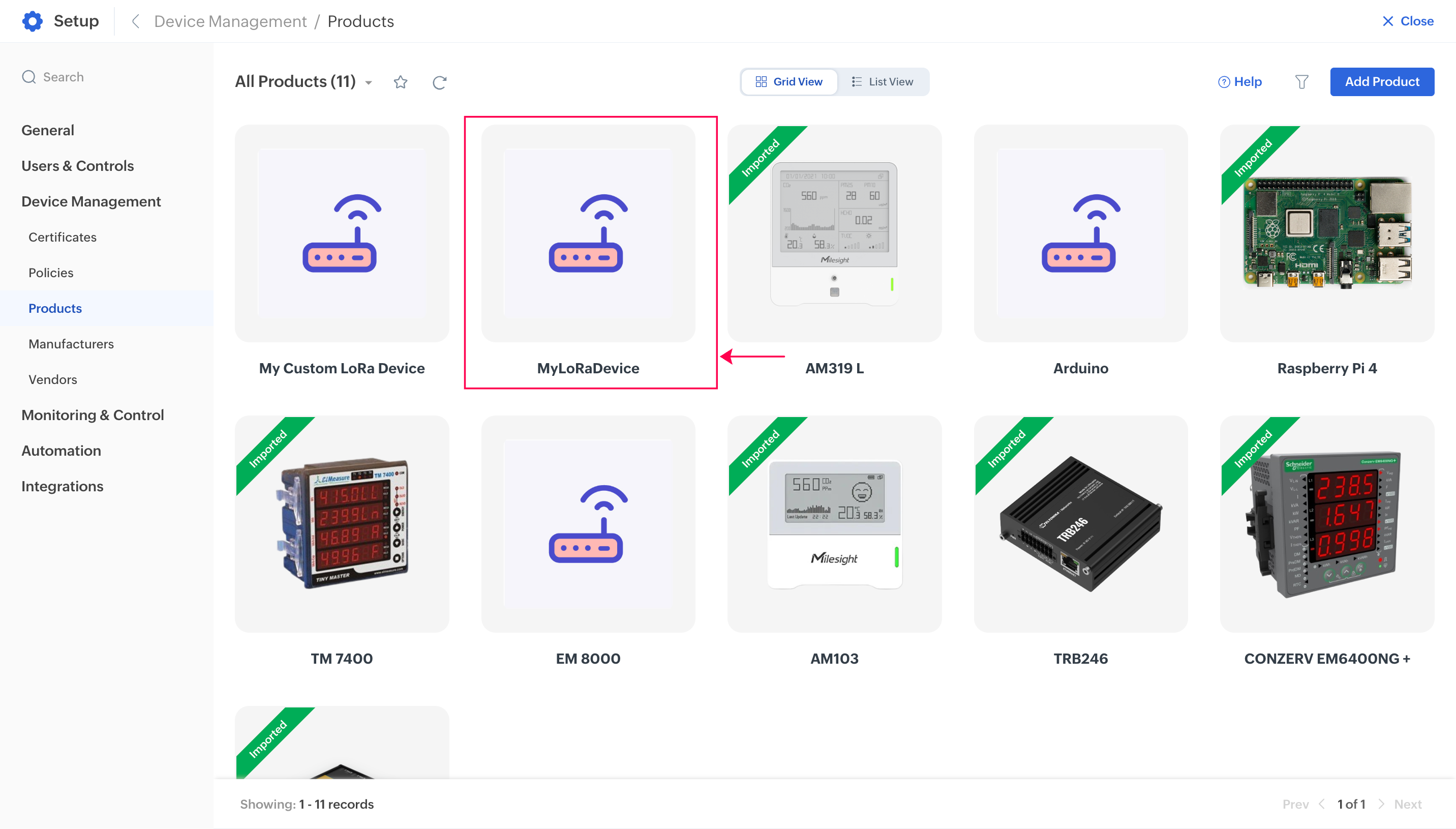

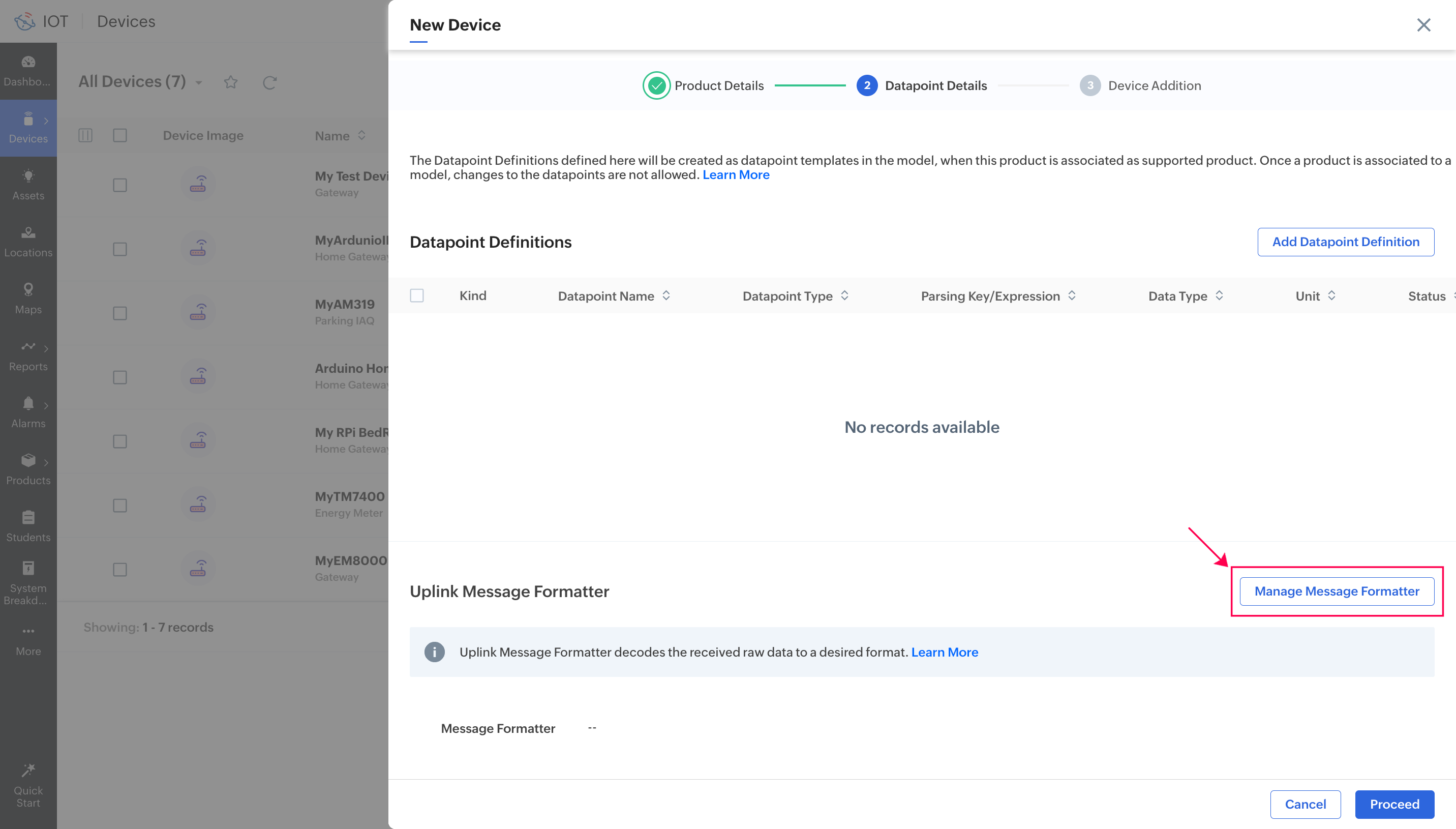

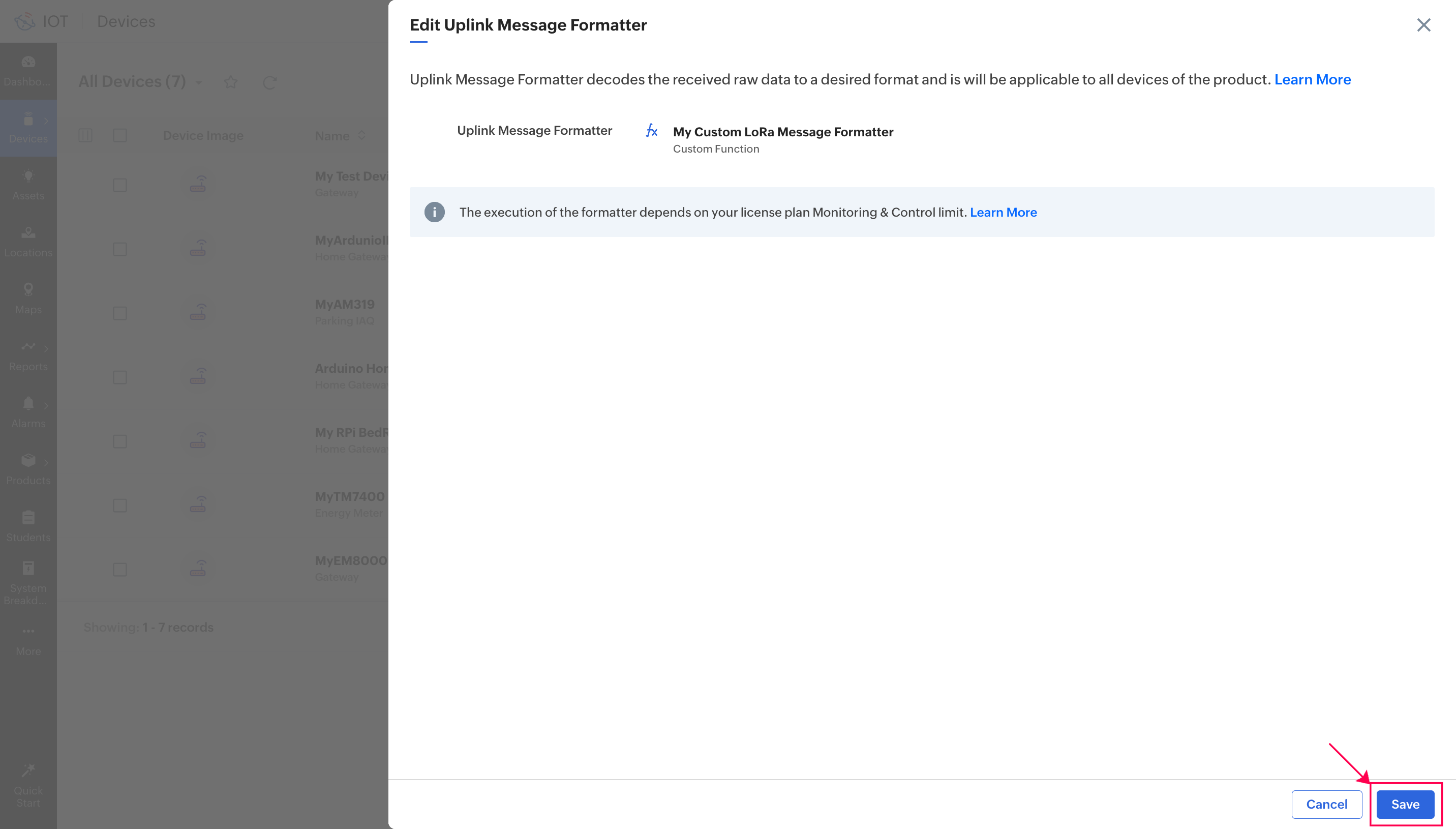

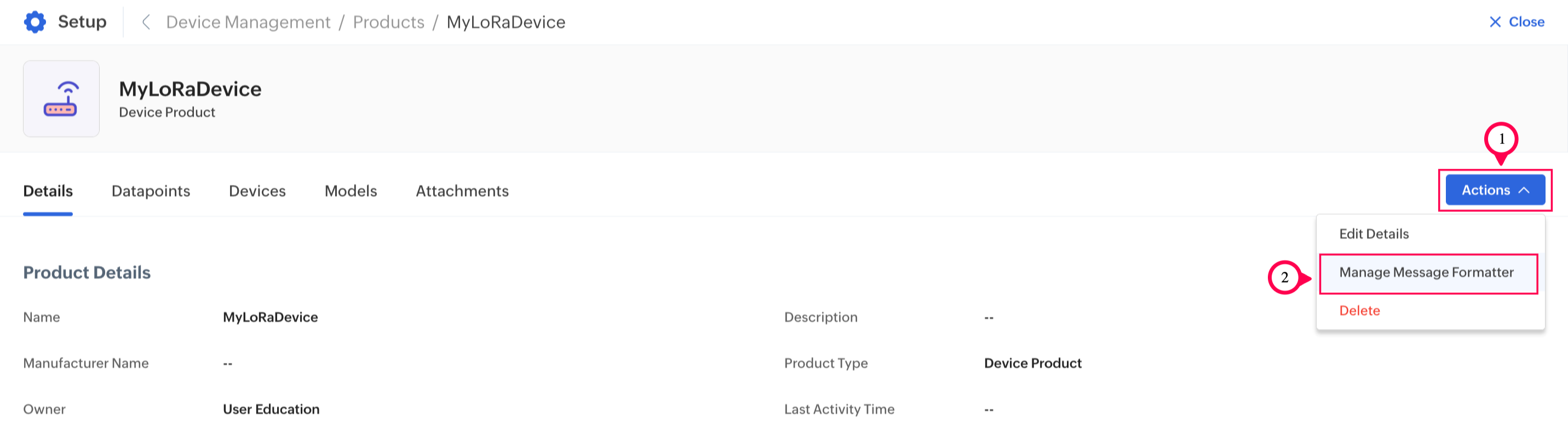

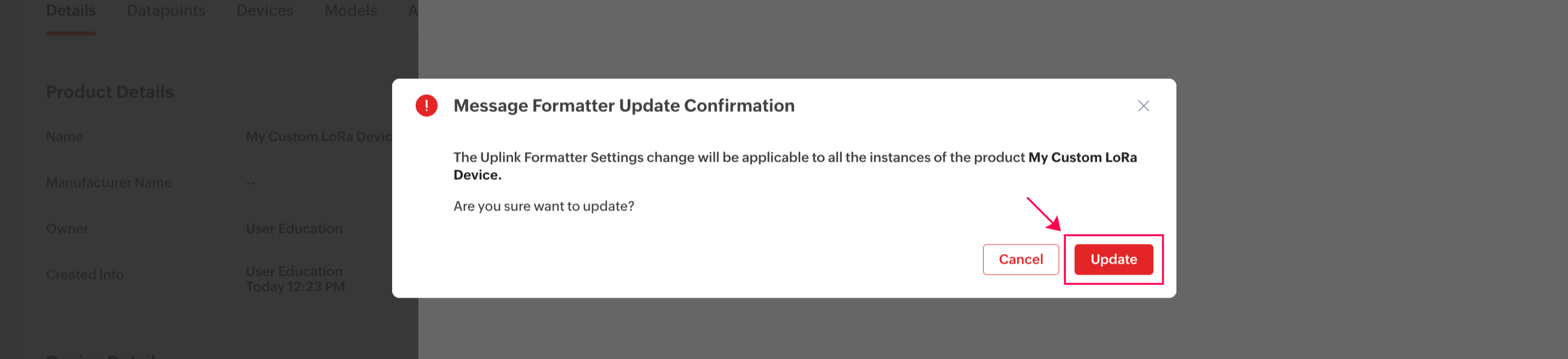

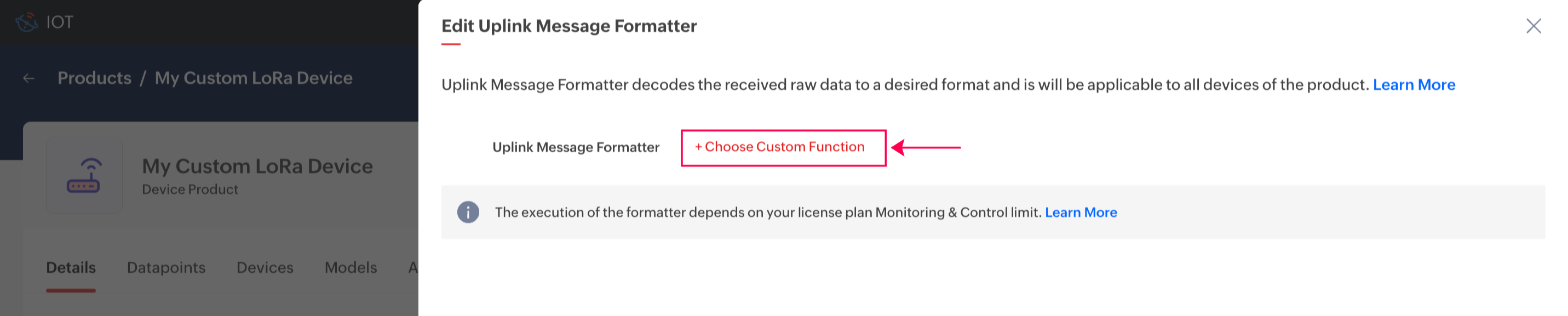

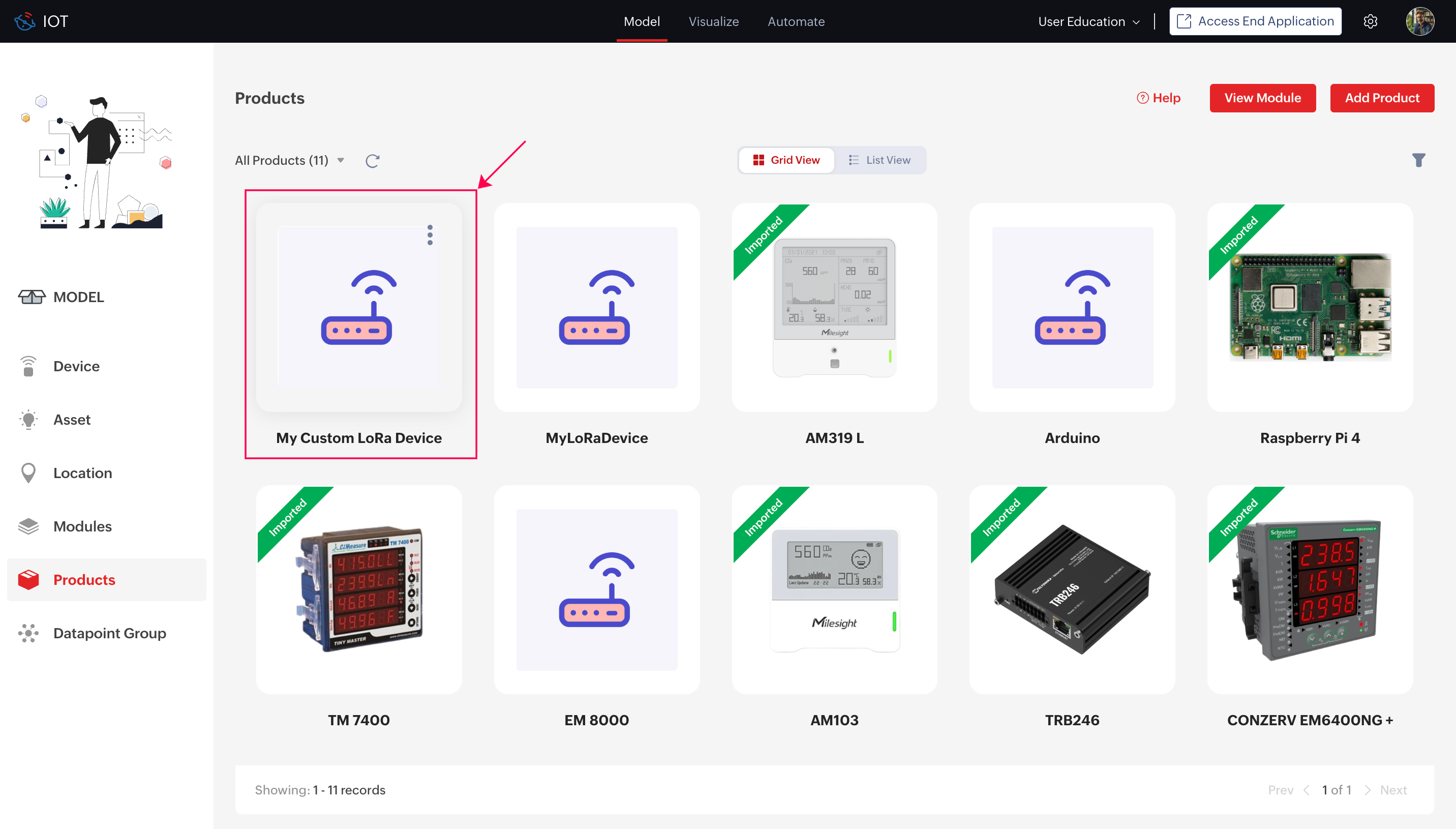

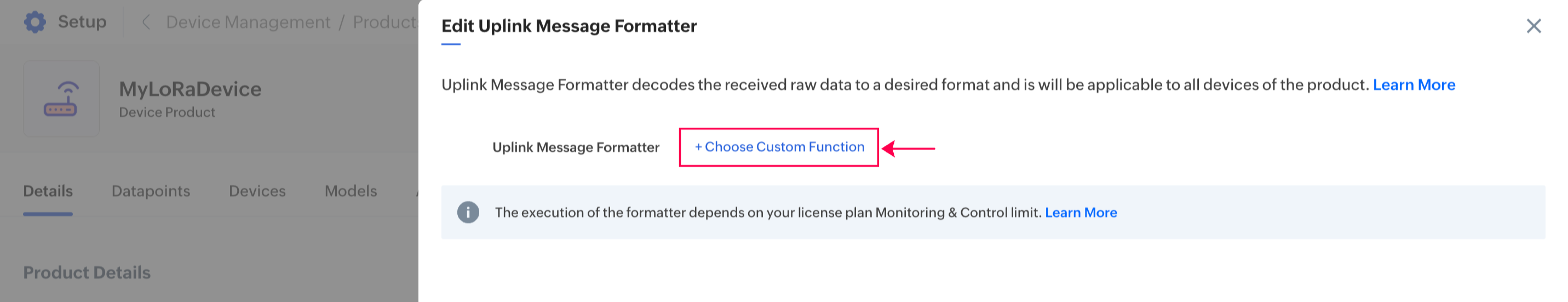

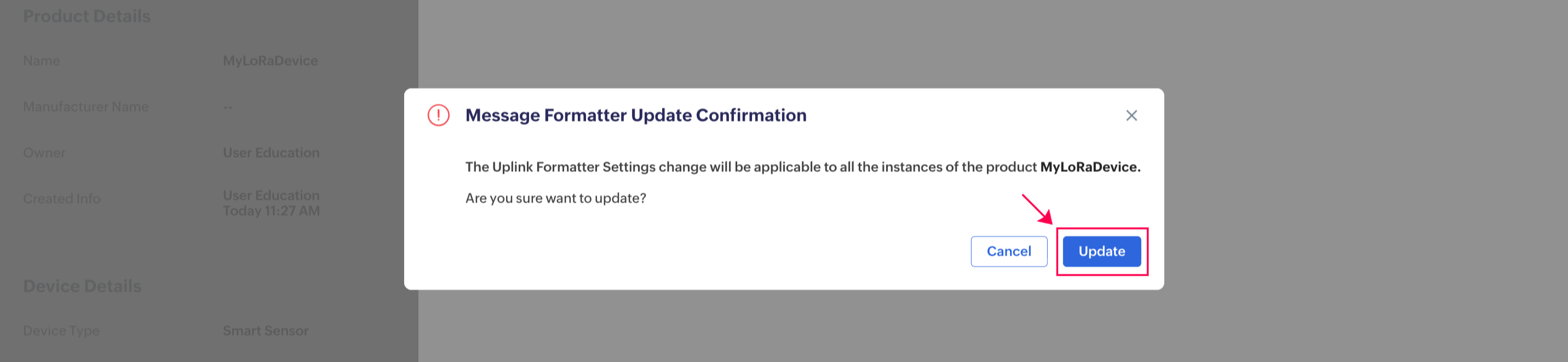

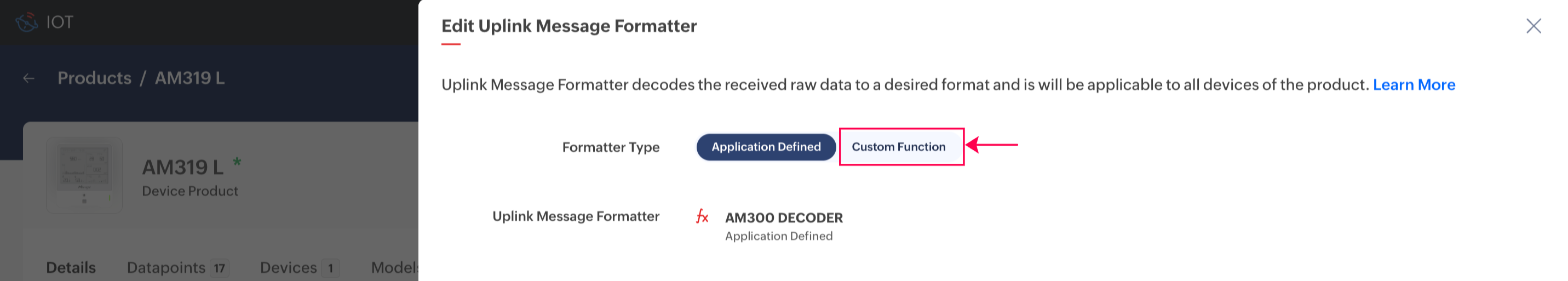

You can now associate the custom function with a device product. This ensures that every incoming payload from any device created based on that device product is automatically formatted into the required JSON structure.
For example, the Milesight AM103 device sends payloads in hexadecimal format. The uplink message formatter assigned to the AM103 product decodes this payload into a JSON object, which is then used by the Zoho IoT application for further processing, including parsing values into configured datapoints.

Device payload in hexadecimal format:

017564 03671801 04686D 077DC501

Decoded output:
{
      "battery": 100,
      "co2": 453,
      "temperature": 28,
      "humidity": 54.5
}

Below is a sample uplink message formatter custom function for the Milesight AM103 device connected to The Things Stack LoRa Network Server.

function messageFormatter(byteArray, port) {

        return milesightDeviceDecode(byteArray);

}

/**
 * Payload Decoder
 *
 * Copyright 2025 Milesight IoT
 *
 * @product AM103
 */
var RAW_VALUE = 0x00;

/* eslint no-redeclare: "off" */
/* eslint-disable */
// Chirpstack v4
function decodeUplink(input) {
    var decoded = milesightDeviceDecode(input.bytes);
    return { data: decoded };
}

// Chirpstack v3
function Decode(fPort, bytes) {
    return milesightDeviceDecode(bytes);
}

// The Things Network
function Decoder(bytes, port) {
    return milesightDeviceDecode(bytes);
}
/* eslint-enable */

function milesightDeviceDecode(bytes) {
    var decoded = {};

    for (var i = 0; i < bytes.length; ) {
        var channel_id = bytes[i++];
        var channel_type = bytes[i++];

        // IPSO VERSION
        if (channel_id === 0xff && channel_type === 0x01) {
            decoded.ipso_version = readProtocolVersion(bytes[i]);
            i += 1;
        }
        // HARDWARE VERSION
        else if (channel_id === 0xff && channel_type === 0x09) {
            decoded.hardware_version = readHardwareVersion(bytes.slice(i, i + 2));
            i += 2;
        }
        // FIRMWARE VERSION
        else if (channel_id === 0xff && channel_type === 0x0a) {
            decoded.firmware_version = readFirmwareVersion(bytes.slice(i, i + 2));
            i += 2;
        }
        // TSL VERSION
        else if (channel_id === 0xff && channel_type === 0xff) {
            decoded.tsl_version = readTslVersion(bytes.slice(i, i + 2));
            i += 2;
        }
        // SERIAL NUMBER
        else if (channel_id === 0xff && channel_type === 0x16) {
            decoded.sn = readSerialNumber(bytes.slice(i, i + 8));
            i += 8;
        }
        // LORAWAN CLASS TYPE
        else if (channel_id === 0xff && channel_type === 0x0f) {
            decoded.lorawan_class = readLoRaWANClass(bytes[i]);
            i += 1;
        }
        // RESET EVENT
        else if (channel_id === 0xff && channel_type === 0xfe) {
            decoded.reset_event = readResetEvent(1);
            i += 1;
        }
        // DEVICE STATUS
        else if (channel_id === 0xff && channel_type === 0x0b) {
            decoded.device_status = readDeviceStatus(1);
            i += 1;
        }

        // BATTERY
        else if (channel_id === 0x01 && channel_type === 0x75) {
            decoded.battery = readUInt8(bytes[i]);
            i += 1;
        }
        // TEMPERATURE
        else if (channel_id === 0x03 && channel_type === 0x67) {
            // °C
            decoded.temperature = readInt16LE(bytes.slice(i, i + 2)) / 10;
            i += 2;
        }
        // HUMIDITY
        else if (channel_id === 0x04 && channel_type === 0x68) {
            decoded.humidity = readUInt8(bytes[i]) / 2;
            i += 1;
        }
        // CO2
        else if (channel_id === 0x07 && channel_type === 0x7d) {
            decoded.co2 = readUInt16LE(bytes.slice(i, i + 2));
            i += 2;
        }
        // HISTORY DATA
        else if (channel_id === 0x20 && channel_type === 0xce) {
            var data = {};
            data.timestamp = readUInt32LE(bytes.slice(i, i + 4));
            data.temperature = readInt16LE(bytes.slice(i + 4, i + 6)) / 10;
            data.humidity = readUInt8(bytes[i + 6]) / 2;
            data.co2 = readUInt16LE(bytes.slice(i + 7, i + 9));
            i += 9;

            decoded.history = decoded.history || [];
            decoded.history.push(data);
        }
        // SENSOR ENABLE
        else if (channel_id === 0xff && channel_type === 0x18) {
            // skip 1 byte
            var data = readUInt8(bytes[i + 1]);
            var sensor_bit_offset = { temperature: 0, humidity: 1, co2: 4 };
            decoded.sensor_enable = {};
            for (var key in sensor_bit_offset) {
                decoded.sensor_enable[key] = readEnableStatus((data >> sensor_bit_offset[key]) & 0x01);
            }
            i += 2;
        }
        // DOWNLINK RESPONSE
        else if (channel_id === 0xfe || channel_id === 0xff) {
            var result = handle_downlink_response(channel_type, bytes, i);
            decoded = Object.assign(decoded, result.data);
            i = result.offset;
        } else {
            break;
        }
    }

    return decoded;
}

function handle_downlink_response(channel_type, bytes, offset) {
    var decoded = {};

    switch (channel_type) {
        case 0x03:
            decoded.report_interval = readUInt16LE(bytes.slice(offset, offset + 2));
            offset += 2;
            break;
        case 0x06:
            decoded.temperature_alarm_config = {};
            var condition = readUInt8(bytes[offset]);
            decoded.temperature_alarm_config.condition = readMathCondition(condition & 0x07);
            decoded.temperature_alarm_config.threshold_min = readInt16LE(bytes.slice(offset + 1, offset + 3)) / 10;
            decoded.temperature_alarm_config.threshold_max = readInt16LE(bytes.slice(offset + 3, offset + 5)) / 10;
            // skip 4 bytes
            offset += 9;
            break;
        case 0x10:
            decoded.reboot = readYesNoStatus(1);
            offset += 1;
            break;
        case 0x11:
            decoded.timestamp = readUInt32LE(bytes.slice(offset, offset + 4));
            offset += 4;
            break;
        case 0x17:
            decoded.time_zone = readTimeZone(readInt16LE(bytes.slice(offset, offset + 2)));
            offset += 2;
            break;
        case 0x1a:
            var mode_value = readUInt8(bytes[offset]);
            decoded.co2_calibration_settings = {};
            decoded.co2_calibration_settings.mode = readCalibrationMode(mode_value);
            if (mode_value === 2) {
                decoded.co2_calibration_settings.calibration_value = readInt16LE(bytes.slice(offset + 1,
                offset + 3));
                offset += 3;
            } else {
                offset += 1;
            }
            break;

        case 0x27:
            decoded.clear_history = readYesNoStatus(1);
            offset += 1;
            break;
        case 0x2d:
            decoded.screen_display_enable = readEnableStatus(bytes[offset]);
            offset += 1;
            break;
        case 0x2f:
            decoded.led_indicator_mode = readLedIndicatorStatus(bytes[offset]);
            offset += 1;
            break;
        case 0x39:
            decoded.co2_abc_calibration_settings = {};
            decoded.co2_abc_calibration_settings.enable = readEnableStatus(bytes[offset]);
            decoded.co2_abc_calibration_settings.period = readUInt16LE(bytes.slice(offset + 1, offset + 3));
            decoded.co2_abc_calibration_settings.calibration_value = readUInt16LE(bytes.slice(offset + 3,
            offset + 5));
            offset += 5;
            break;
        case 0x3a:
            var num = readUInt8(bytes[offset]);
            offset += 1;
            for (var i = 0; i < num; i++) {
                var report_schedule_config = {};
                report_schedule_config.start_time = readUInt8(bytes[offset]) / 10;
                report_schedule_config.end_time = readUInt8(bytes[offset + 1]) / 10;
                report_schedule_config.report_interval = readUInt16LE(bytes.slice(offset + 2, offset + 4));
                report_schedule_config.co2_collection_interval = readUInt8(bytes[offset + 4]);
                report_schedule_config.collection_interval = readUInt8(bytes[offset + 5]);
                offset += 6;
                decoded.report_schedule_config = decoded.report_schedule_config || [];
                decoded.report_schedule_config.push(report_schedule_config);
            }
            break;
        case 0x3b:
            decoded.time_sync_enable = readEnableStatus(bytes[offset]);
            offset += 1;
            break;
        case 0x54:
            decoded.co2_alarm_config = {};
            decoded.co2_alarm_config.enable = readEnableStatus(bytes[offset]);
            decoded.co2_alarm_config.threshold_1 = readUInt16LE(bytes.slice(offset + 1, offset + 3));
            decoded.co2_alarm_config.threshold_2 = readUInt16LE(bytes.slice(offset + 3, offset + 5));
            offset += 5;
            break;
        case 0x56:
            decoded.screen_intelligent_enable = readEnableStatus(bytes[offset]);
            offset += 1;
            break;
        case 0x57:
            decoded.clear_report_schedule = readYesNoStatus(1);
            offset += 1;
            break;
        case 0x59:
            decoded.reset_battery = readYesNoStatus(1);
            offset += 1;
            break;
        case 0x5a:
            decoded.screen_refresh_interval = readUInt16LE(bytes.slice(offset, offset + 2));
            offset += 2;
            break;
        case 0x68:
            decoded.history_enable = readEnableStatus(bytes[offset]);
            offset += 1;
            break;
        case 0x69:
            decoded.retransmit_enable = readEnableStatus(bytes[offset]);
            offset += 1;
            break;
        case 0x6a:
            var interval_type = readUInt8(bytes[offset]);
            if (interval_type === 0) {
                decoded.retransmit_interval = readUInt16LE(bytes.slice(offset + 1, offset + 3));
            } else if (interval_type === 1) {
                decoded.resend_interval = readUInt16LE(bytes.slice(offset + 1, offset + 3));
            }
            offset += 3;
            break;
        case 0x75:
            decoded.hibernate_config = {};
            decoded.hibernate_config.enable = readEnableStatus(bytes[offset]);
            decoded.hibernate_config.lora_uplink_enable = readEnableStatus(bytes[offset + 1]);
            decoded.hibernate_config.start_time = readUInt16LE(bytes.slice(offset + 2, offset + 4));
            decoded.hibernate_config.end_time = readUInt16LE(bytes.slice(offset + 4, offset + 6));
            decoded.hibernate_config.weekdays = {};
            var data = readUInt8(bytes[offset + 6]);
            var weekday_bit_offset = { monday: 1, tuesday: 2, wednesday: 3, thursday: 4, friday: 5,
            saturday: 6, sunday: 7 };
            for (var key in weekday_bit_offset) {
                decoded.hibernate_config.weekdays[key] = readEnableStatus((data >> weekday_bit_offset[key])
                & 0x01);
            }
            offset += 7;
            break;
        case 0x85:
            decoded.screen_display_time_enable = readEnableStatus(bytes[offset]);
            offset += 1;
            break;
        case 0x86:
            decoded.screen_last_refresh_interval = readUInt8(bytes[offset]);
            offset += 1;
            break;
        case 0x87:
            decoded.altitude_calibration_settings = {};
            decoded.altitude_calibration_settings.enable = readEnableStatus(bytes[offset]);
            decoded.altitude_calibration_settings.calibration_value = readUInt16LE(bytes.slice(offset + 1,
            offset + 3));
            offset += 3;
            break;
        case 0xf0:
            var mask = readUInt16LE(bytes.slice(offset, offset + 2));
            var data = readUInt16LE(bytes.slice(offset + 2, offset + 4));
            decoded.screen_display_element_settings = {};
            var sensor_bit_offset = { temperature: 0, humidity: 1, co2: 2, smile: 3 };
            for (var key in sensor_bit_offset) {
                if ((mask >> sensor_bit_offset[key]) & 0x01) {
                    decoded.screen_display_element_settings[key] = readEnableStatus(
                    (data >>> sensor_bit_offset[key]) & 0x01);
                }
            }
            offset += 4;
            break;
        default:
            throw new Error("unknown downlink response");
    }

    return { data: decoded, offset: offset };
}

function readProtocolVersion(bytes) {
    var major = (bytes & 0xf0) >> 4;
    var minor = bytes & 0x0f;
    return "v" + major + "." + minor;
}

function readHardwareVersion(bytes) {
    var major = (bytes[0] & 0xff).toString(16);
    var minor = (bytes[1] & 0xff) >> 4;
    return "v" + major + "." + minor;
}

function readFirmwareVersion(bytes) {
    var major = (bytes[0] & 0xff).toString(16);
    var minor = (bytes[1] & 0xff).toString(16);
    return "v" + major + "." + minor;
}

function readTslVersion(bytes) {
    var major = bytes[0] & 0xff;
    var minor = bytes[1] & 0xff;
    return "v" + major + "." + minor;
}

function readSerialNumber(bytes) {
    var temp = [];
    for (var idx = 0; idx < bytes.length; idx++) {
        temp.push(("0" + (bytes[idx] & 0xff).toString(16)).slice(-2));
    }
    return temp.join("");
}

function readLoRaWANClass(type) {
    var class_map = {
        0: "Class A",
        1: "Class B",
        2: "Class C",
        3: "Class CtoB",
    };
    return getValue(class_map, type);
}

function readResetEvent(status) {
    var status_map = { 0: "normal", 1: "reset" };
    return getValue(status_map, status);
}

function readDeviceStatus(status) {
    var status_map = { 0: "off", 1: "on" };
    return getValue(status_map, status);
}

function readYesNoStatus(status) {
    var status_map = { 0: "no", 1: "yes" };
    return getValue(status_map, status);
}

function readEnableStatus(status) {
    var status_map = { 0: "disable", 1: "enable" };
    return getValue(status_map, status);
}

function readTimeZone(time_zone) {
    var timezone_map = { "-120": "UTC-12", "-110": "UTC-11", "-100": "UTC-10", "-95": "UTC-9:30", "-90":
"UTC-9", "-80": "UTC-8", "-70": "UTC-7", "-60": "UTC-6", "-50": "UTC-5", "-40": "UTC-4", "-35": "UTC-3:30",
"-30": "UTC-3", "-20": "UTC-2", "-10": "UTC-1", 0: "UTC", 10: "UTC+1", 20: "UTC+2", 30: "UTC+3", 35:
"UTC+3:30", 40: "UTC+4", 45: "UTC+4:30", 50: "UTC+5", 55: "UTC+5:30", 57: "UTC+5:45", 60: "UTC+6", 65:
"UTC+6:30", 70: "UTC+7", 80: "UTC+8", 90: "UTC+9", 95: "UTC+9:30", 100: "UTC+10", 105: "UTC+10:30", 110:
"UTC+11", 120: "UTC+12", 127: "UTC+12:45", 130: "UTC+13", 140: "UTC+14" };
    return getValue(timezone_map, time_zone);
}

function readLedIndicatorStatus(status) {
    var status_map = { 0: "off", 2: "blink" };
    return getValue(status_map, status);
}

function readMathCondition(type) {
    var condition_map = { 0: "disable", 1: "below", 2: "above", 3: "between", 4: "outside" };
    return getValue(condition_map, type);
}

function readCalibrationMode(type) {
    var mode_map = { 0: "factory", 1: "abc", 2: "manual", 3: "background", 4: "zero" };
    return getValue(mode_map, type);
}

/* eslint-disable */
function readUInt8(bytes) {
    return bytes & 0xff;
}

function readInt8(bytes) {
    var ref = readUInt8(bytes);
    return ref > 0x7f ? ref - 0x100 : ref;
}

function readUInt16LE(bytes) {
    var value = (bytes[1] << 8) + bytes[0];
    return value & 0xffff;
}

function readInt16LE(bytes) {
    var ref = readUInt16LE(bytes);
    return ref > 0x7fff ? ref - 0x10000 : ref;
}

function readUInt32LE(bytes) {
    var value = (bytes[3] << 24) + (bytes[2] << 16) + (bytes[1] << 8) + bytes[0];
    return (value & 0xffffffff) >>> 0;
}

function readInt32LE(bytes) {
    var ref = readUInt32LE(bytes);
    return ref > 0x7fffffff ? ref - 0x100000000 : ref;
}

function getValue(map, key) {
    if (RAW_VALUE) return key;

    var value = map[key];
    if (!value) value = "unknown";
    return value;
}

if (!Object.assign) {
    Object.defineProperty(Object, "assign", {
        enumerable: false,
        configurable: true,
        writable: true,
        value: function (target) {
            "use strict";
            if (target == null) {
                throw new TypeError("Cannot convert first argument to object");
            }

            var to = Object(target);
            for (var i = 1; i < arguments.length; i++) {
                var nextSource = arguments[i];
                if (nextSource == null) {
                    continue;
                }
                nextSource = Object(nextSource);

                var keysArray = Object.keys(Object(nextSource));
                for (var nextIndex = 0, len = keysArray.length; nextIndex < len; nextIndex++) {
                    var nextKey = keysArray[nextIndex];
                    var desc = Object.getOwnPropertyDescriptor(nextSource, nextKey);
                    if (desc !== undefined && desc.enumerable) {
                        // concat array
                        if (Array.isArray(to[nextKey]) && Array.isArray(nextSource[nextKey])) {
                            to[nextKey] = to[nextKey].concat(nextSource[nextKey]);
                        } else {
                            to[nextKey] = nextSource[nextKey];
                        }
                    }
                }
            }
            return to;
        },
    });
}

Associating with a Device Product

Once the uplink message formatter custom function is created, it becomes available to the Device Product module. You can associate the custom function with any device product when creating a custom device product, or select it as the formatter for a device product imported from the device product gallery.

While creating a custom device product

The uplink message formatter can be associated during the Datapoints Details stage while adding a device by defining your own device product.
Notes
Note: This is applicable only for device products that are of the Smart Sensor device type having LoRaWAN via LoRaWAN Datastream device connectivity.

In the Datapoint Details step,

  1. Click Manage Message Formatter.



  2. Click Choose Custom Function.



  3. Select the required custom function and click Associate.



  4. Click Save.



  5. Click Update in the confirmation pop-up.


The uplink message formatter custom function will now be associated with the device product you just added. You can proceed with the creating a device instance based on the device product.

After creating/importing a device product

If you did not add the uplink message formatter custom function while creating a custom device product, you can still associate it afterwards. Imported device products may include an application-defined message formatter, which you can replace with your own.

Once the device product is available in the application, you can select and assign the required uplink formatter to it.

In the developer application:

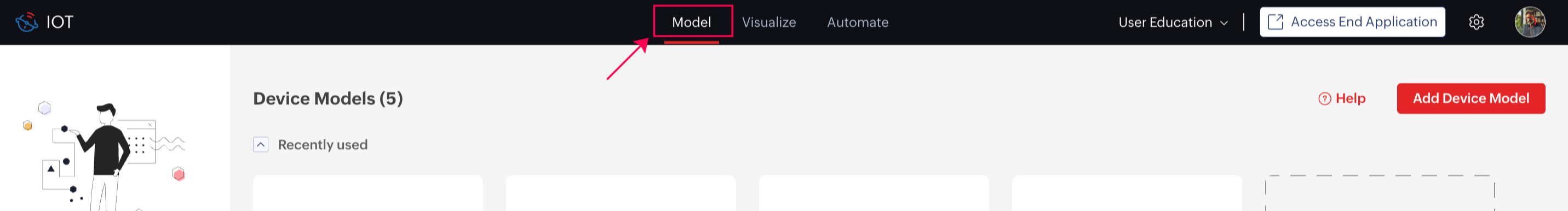

  1. Select Model tab at the top.

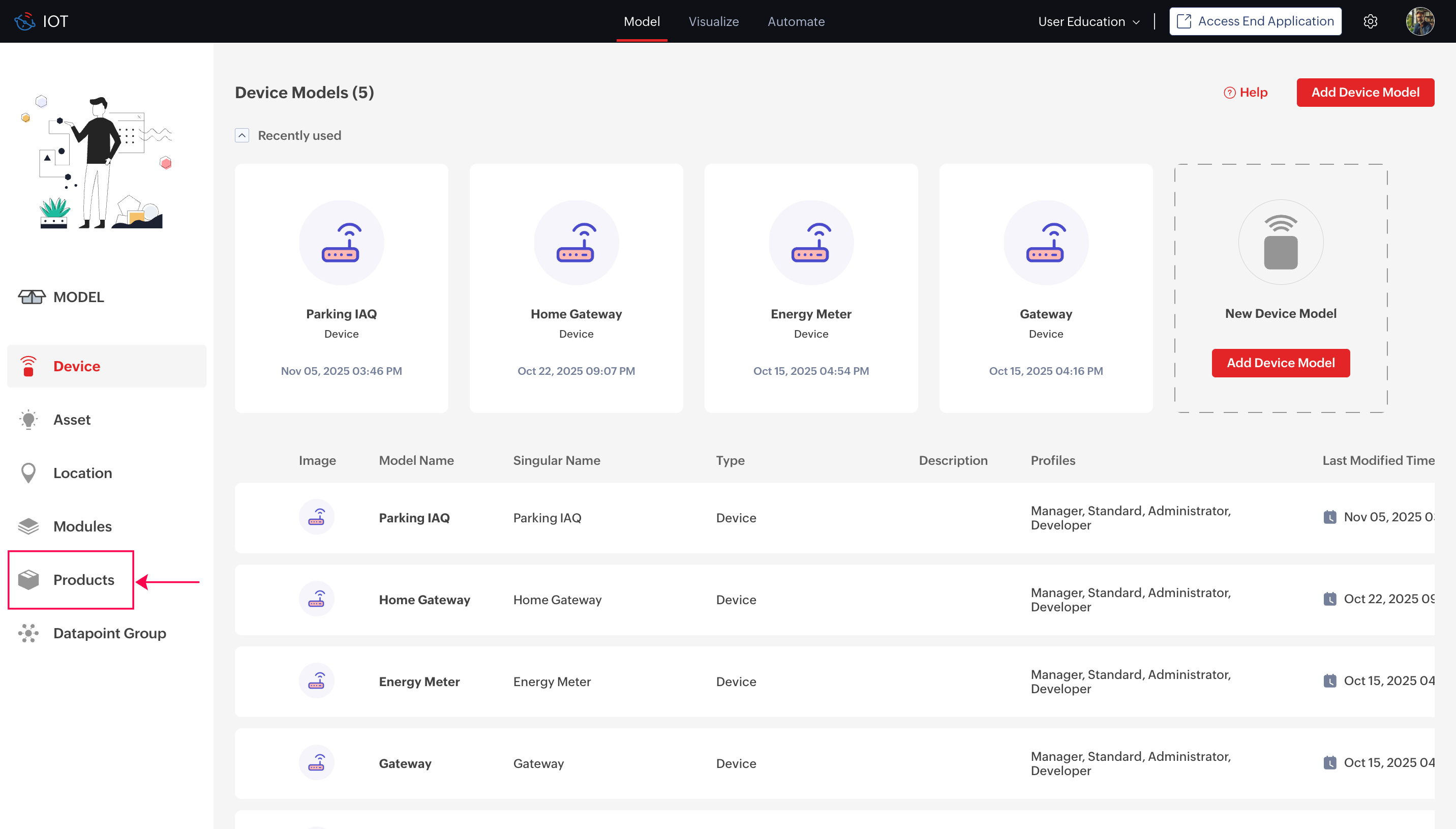

  2. Select Products in the left pane.



  3. Click on the required device product to open it's details page. For this illustration, My Custom LoRa Device device product is selected.



  4. Go to Actions > Manage Message Formatter.



  5. If the device product is imported and uses an application-defined formatter, toggle to Custom Function.



  6. Click Choose Custom Function.



  7. Select the required custom function and click Associate.



  8. Click Save.



  9. Click Update in the confirmation popup.



The selected uplink message formatter will now be associated with the device product.
​
In the end application:
  1. Click the settings icon in the top right corner.



  2. Click Products under the DEVICE MANAGEMENT section.



  3. Click on the required device product to open it's details page.



  4. Go to Actions > Manage Message Formatter.



  5. If the device product is imported and uses an application-defined formatter, toggle to Custom Function.



  6. Click Choose Custom Function.



  7. Select the required custom function and click Associate.



  8. Click Save.



  9. Click Update in the confirmation popup. ​



The selected uplink message formatter will now be associated with the device product.
​
