How Automatic Breaks are Logged Based on Time log settings

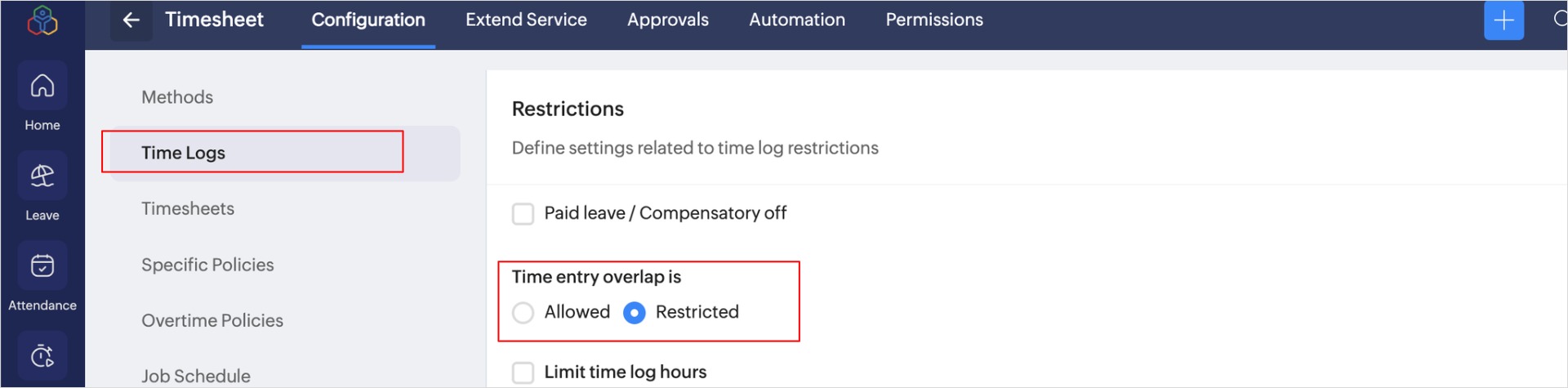

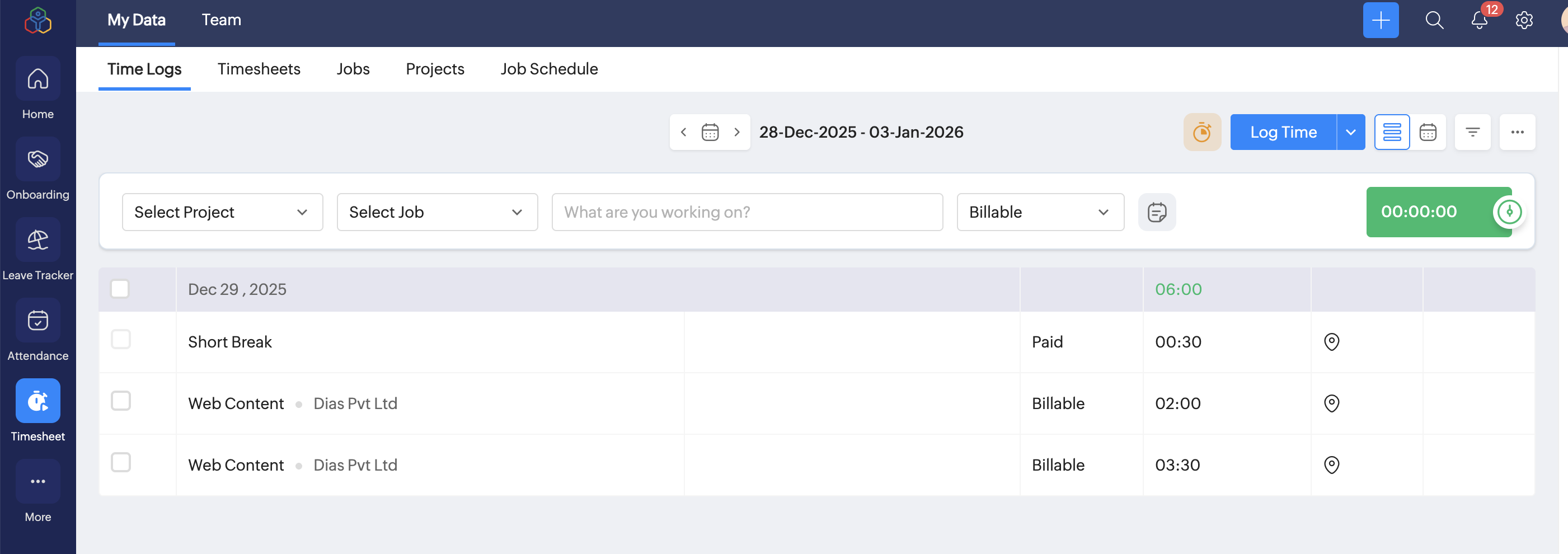

Time entry overlap is restricted
When Time entry overlap is set to Restricted, time logs cannot overlap with breaks. If an automatic break occurs during a time log, the system automatically splits the time log. The overlapping time is recorded as a break, and the remaining time is saved as separate time logs.
Example:
Time log: 9:00 AM – 3:00 PM
Break: 11:00 AM – 11:30 AM
Result:
Time log: 9:00 AM – 11:00 AM - 2 hours
Break: 11:00 AM – 11:30 AM - 0.5 hours
Time log: 11:30 AM – 3:00 PM - 3.5 hours

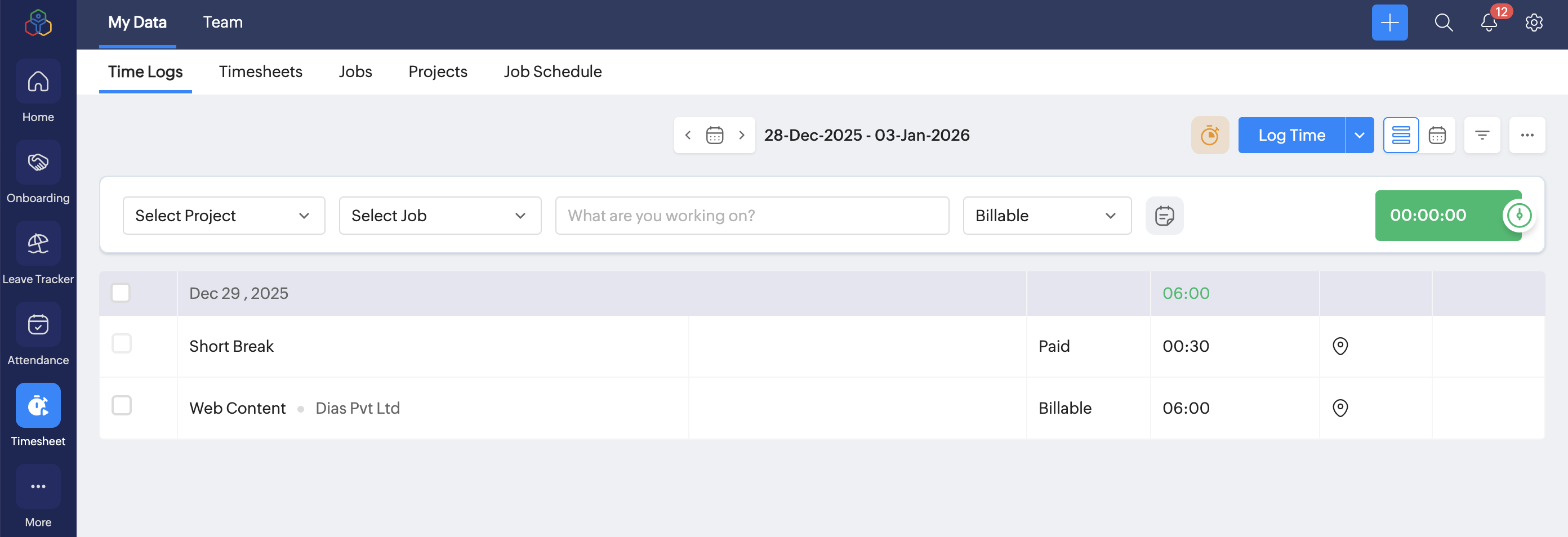

Time entry overlap is allowed
When time entry overlap is allowed, breaks can overlap with time logs without splitting them. The time log remains unchanged at 6:00 hours, and the break is logged separately as 00:30. This is useful when breaks are tracked for visibility or compliance without affecting recorded work duration.

Example:
Time log: 9:00 AM – 3:00 PM
Break: 11:00 AM – 11:30 AM
Result:
Break: 11:00 AM – 11:30 AM - 0.5 hours
Time log: 9:00 AM – 3:00 PM - 6 hours
